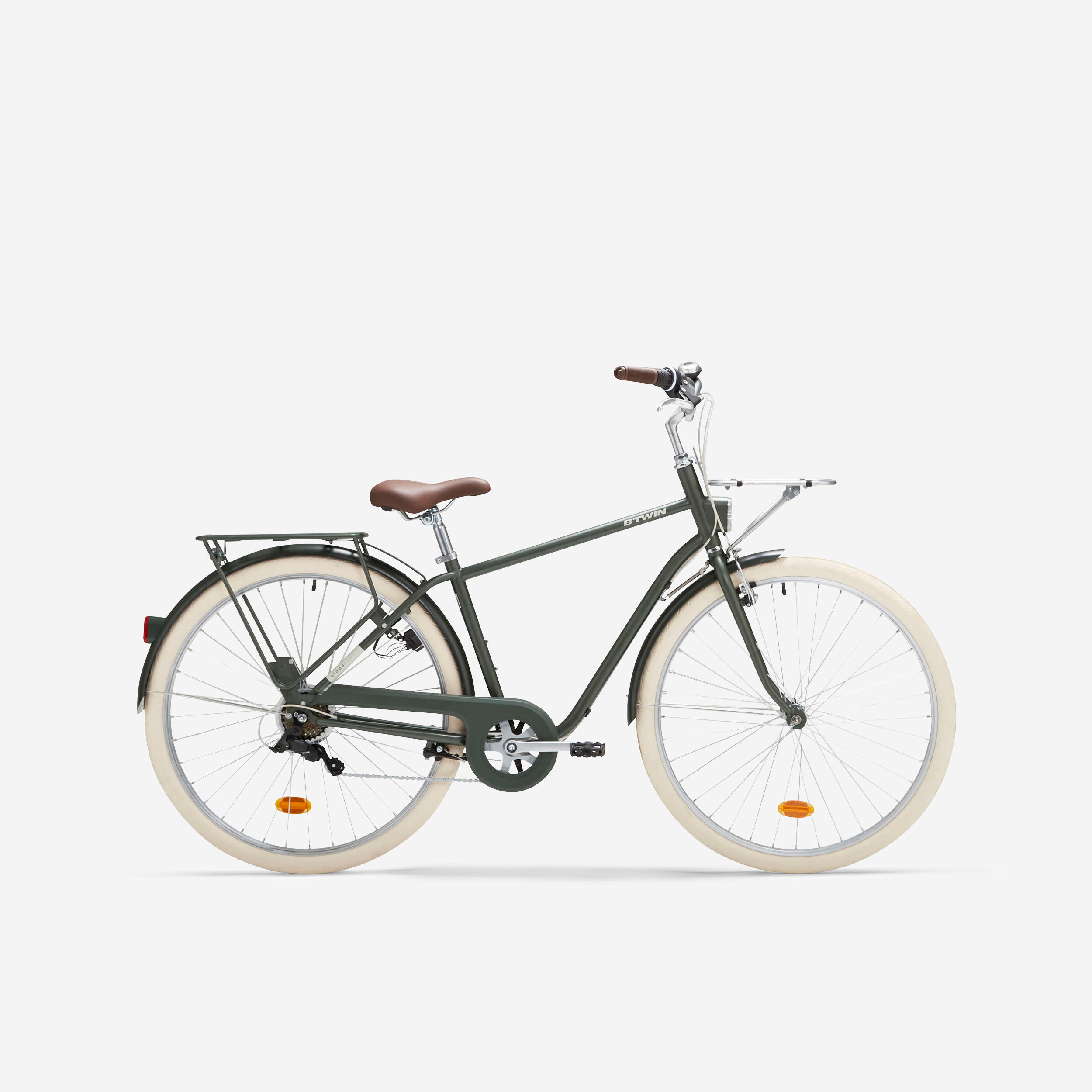

520 Step-Over Town Bike - Khaki
Try out this city bike from our passionate design team. Take pleasure in cycling around town.
Go for a ride in the city with this fully equipped, comfortable bike! With its high frame, front rack and anti-twist coil, you can enjoy propulsion and stability on rides.
BENEFITS
Compatibility
Compatible with child seats and/or saddle bags; safety accessories.
Ease of use

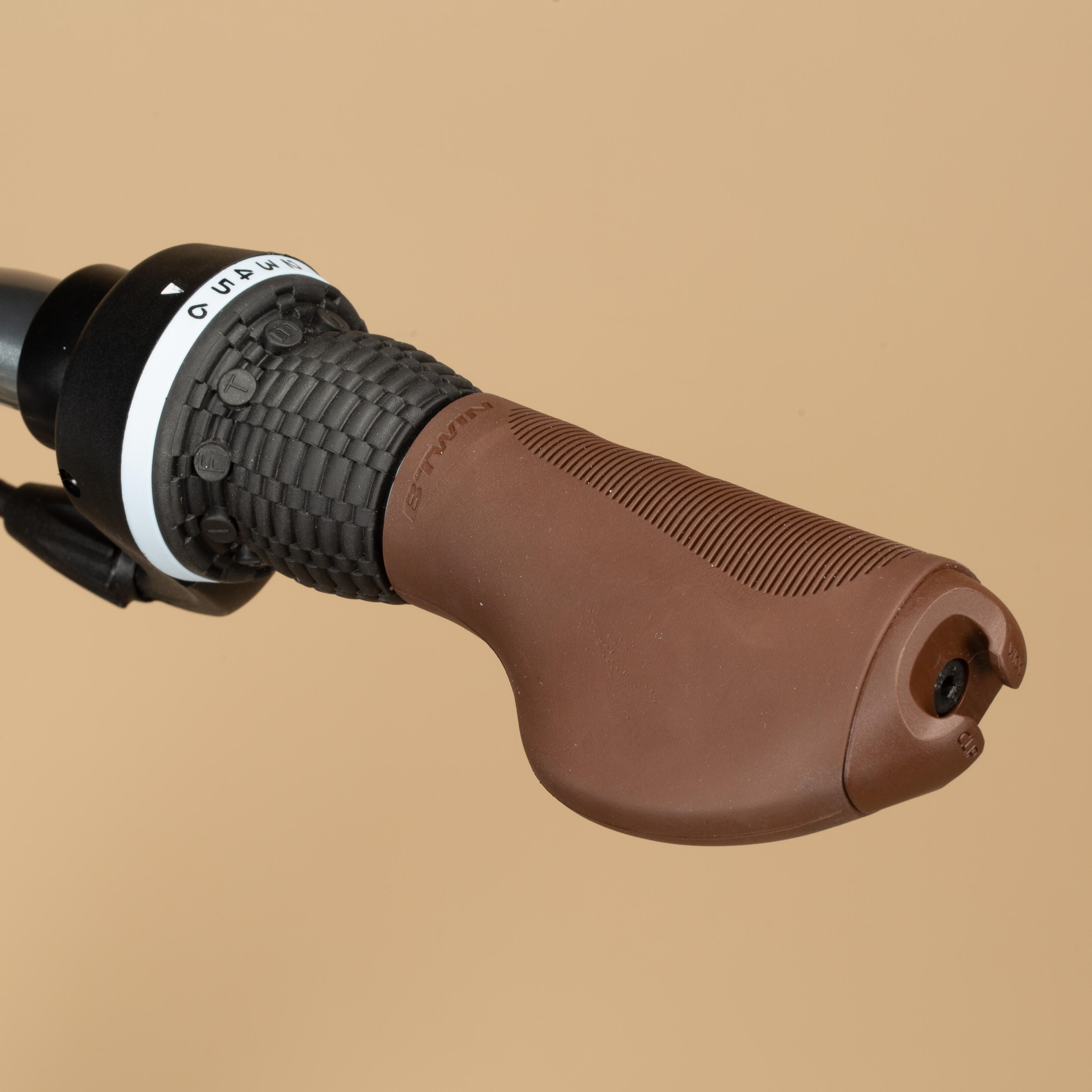

Single-chainring 6-speed grip shifter; equipped for transport (pannier rack).
Bike safety

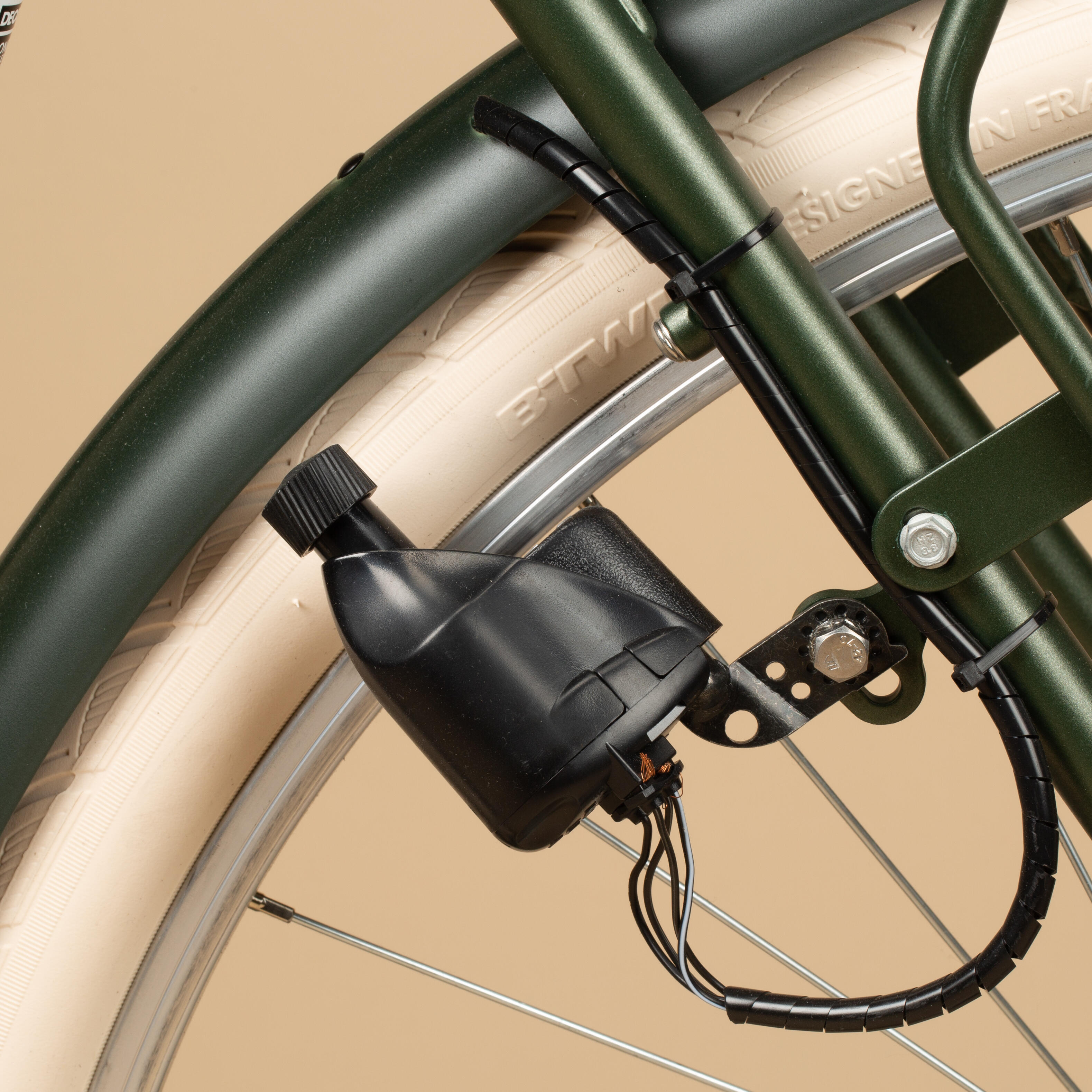

Lights powered by a rim dynamo (using friction against the tyre).
User comfort
2 sizes, upright riding position, height-adjustable handlebar, ergonomic grips.
Braking power
V-brakes with brake pads, easy to use and maintain.
Instructions
Download it hereTECHNICAL INFORMATIONS
Frame
Made with a steel frame to better absorb vibrations from the road, making your ride more comfortable.
Available in both step-over and step-through frame models to make it easy for anyone to ride.
Sizes S/M, L/XL; Frame weight (steel): 4 kg
Fork
Steel fork to absorb the small bumps in the road and keep you more comfortable as you ride.
Braking

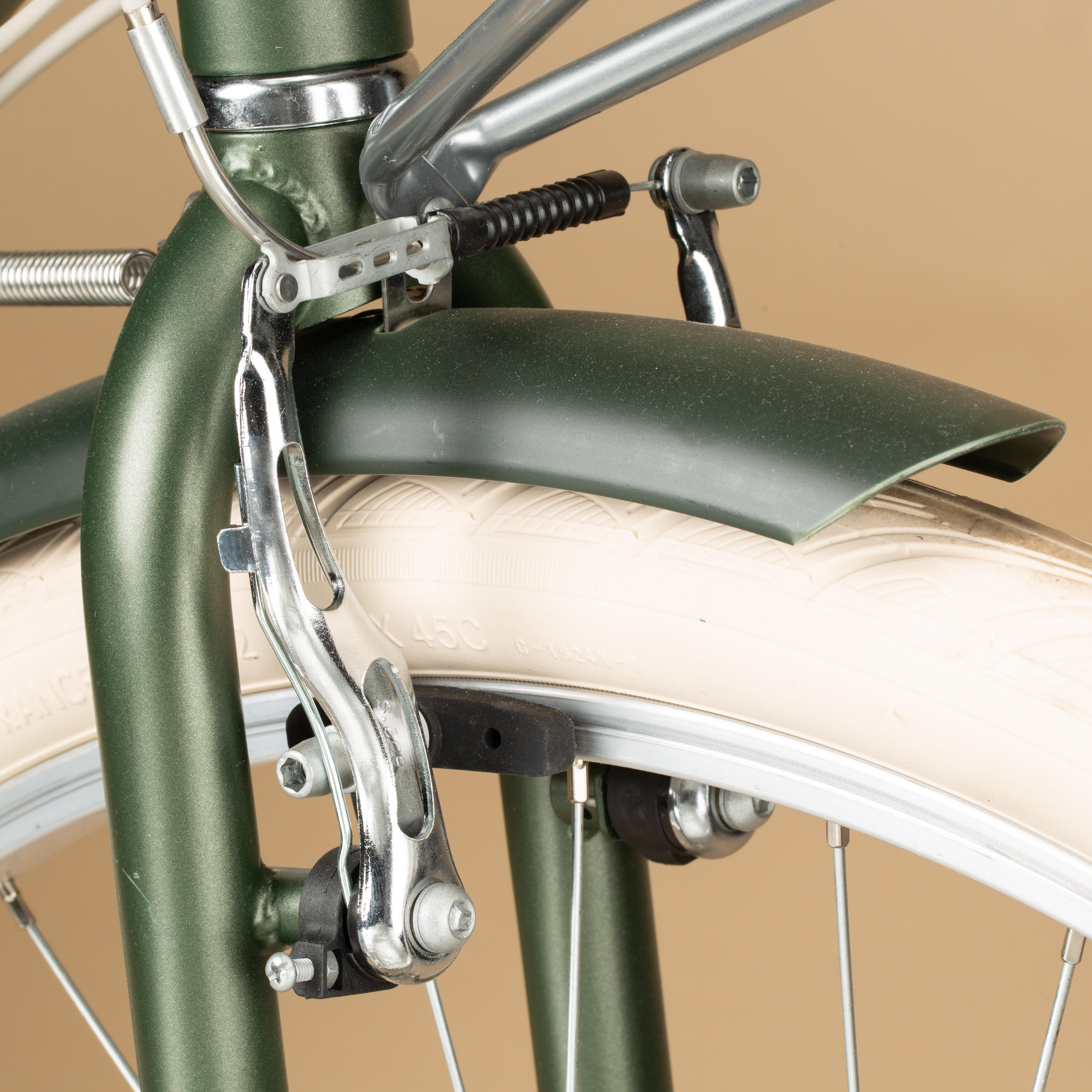

Front and rear steel calliper V-brakes positioned under the frame, giving the bike a nice streamlined look. Aluminium brake levers.
Handlebar / stem / steering

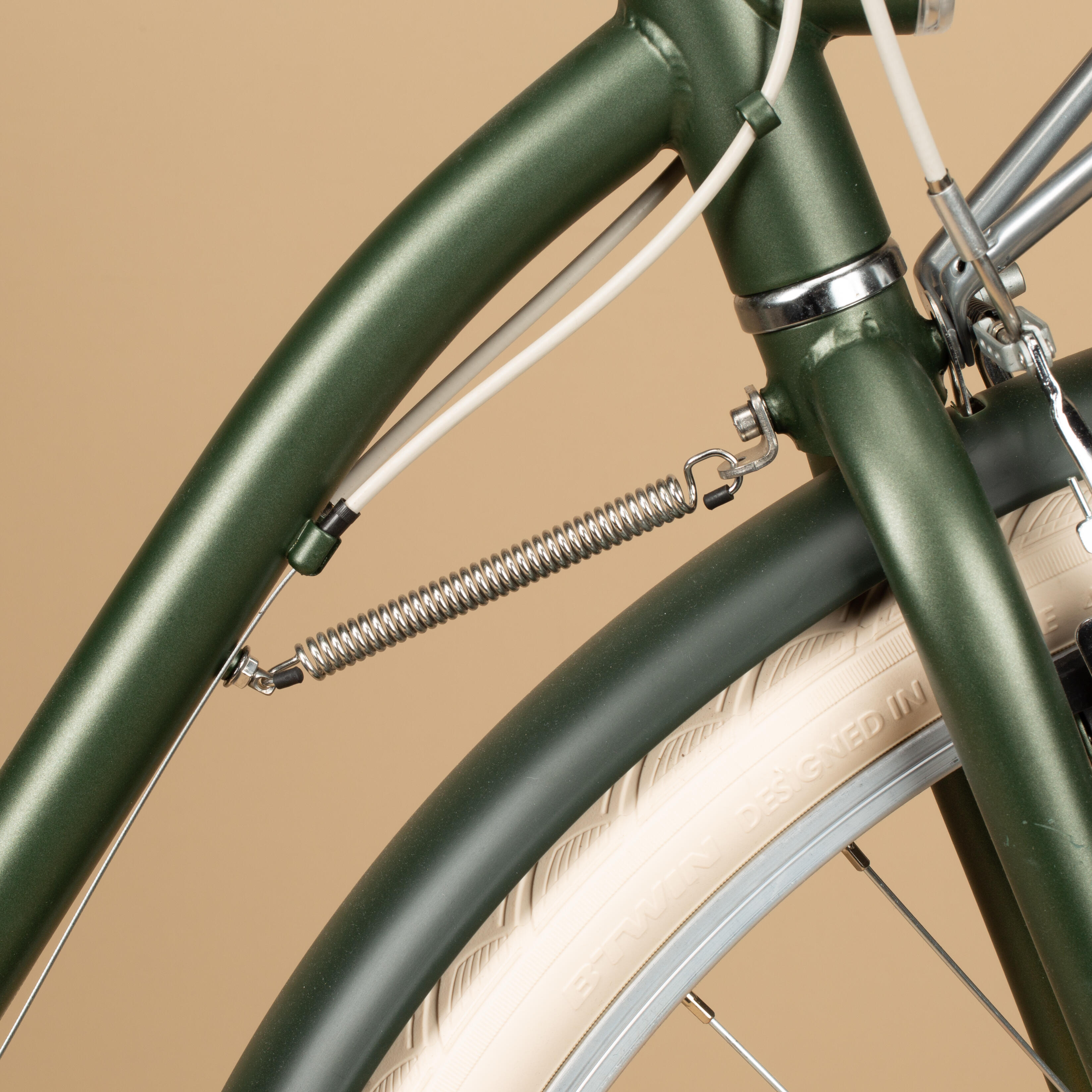

Classic Dutch-style steel handlebar, aluminium damper stem (22.2 diameter), height adjustable and can be set to a very comfortable upright position. Ergonomic grips for greater comfort when riding regularly; equipped with holders into which you can slide VIOO clips to keep you visible from the sides. A self-centring spring was added between the fork and the frame to help stabilize your bike with a loaded front rack or basket, while riding or parked.
Saddle/Seat post

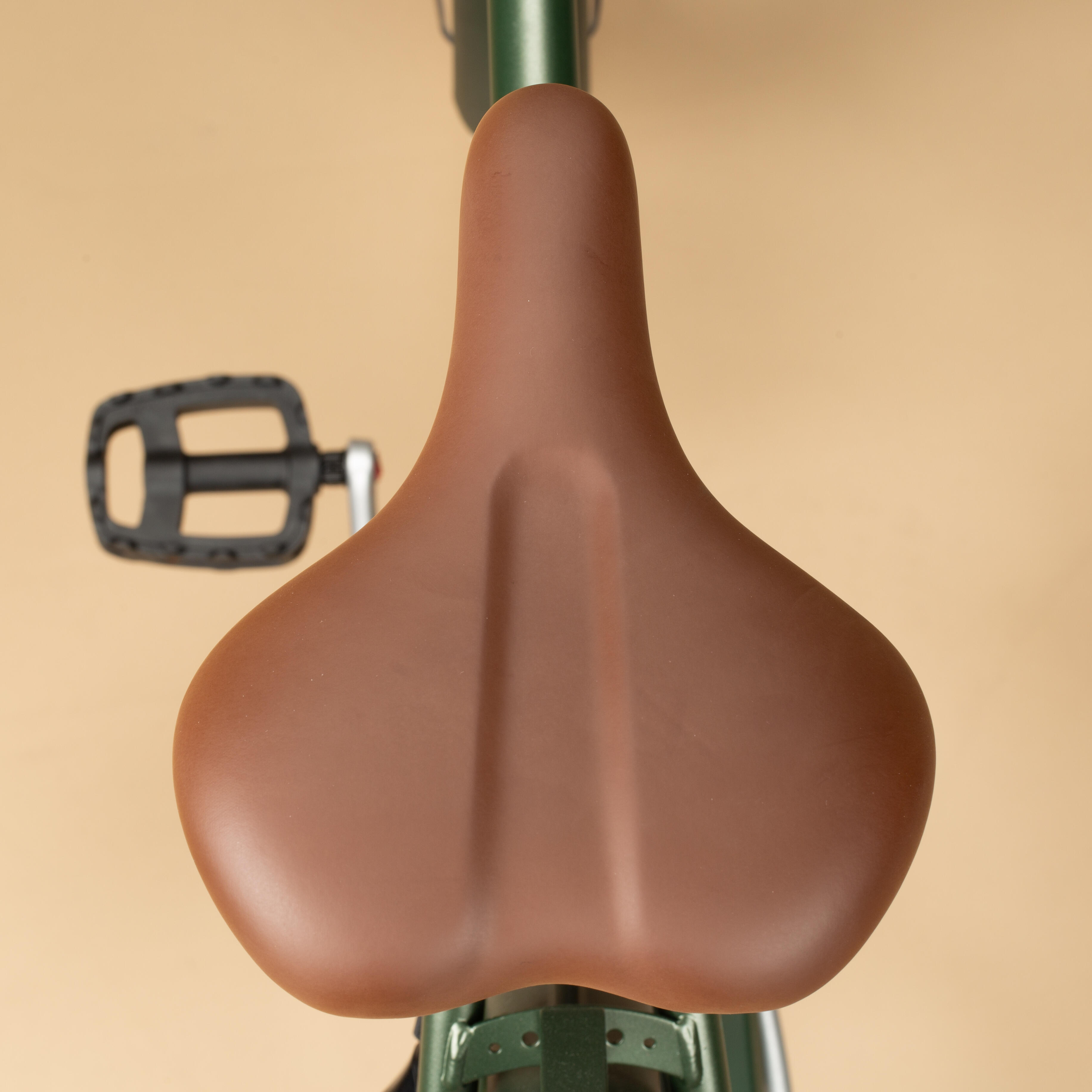

Height-adjustable seat post (28.6 mm diameter), made of steel to more effectively absorb vibrations and provide a more comfortable ride. Wide saddle whose foam padding varies in hardness based on the pressure points between your bum and the saddle. Saddle is set at a 12° angle for greater comfort; welded in place for added safety. Lockable seat clamp (diameter: 31.8 mm) so opportunist thieves can't steal your saddle / seat post.
Visibility
Front and rear lights powered by a rim dynamo.

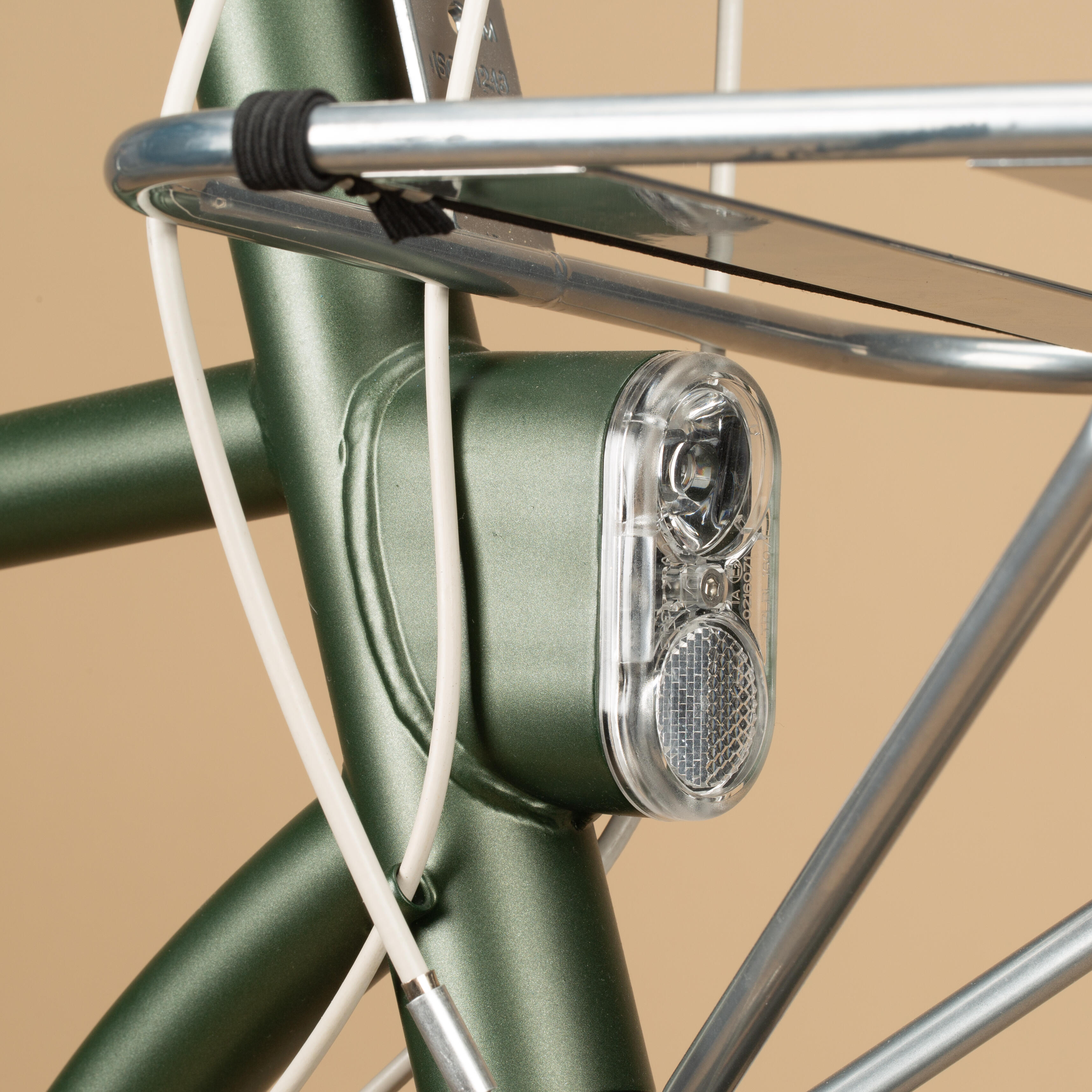

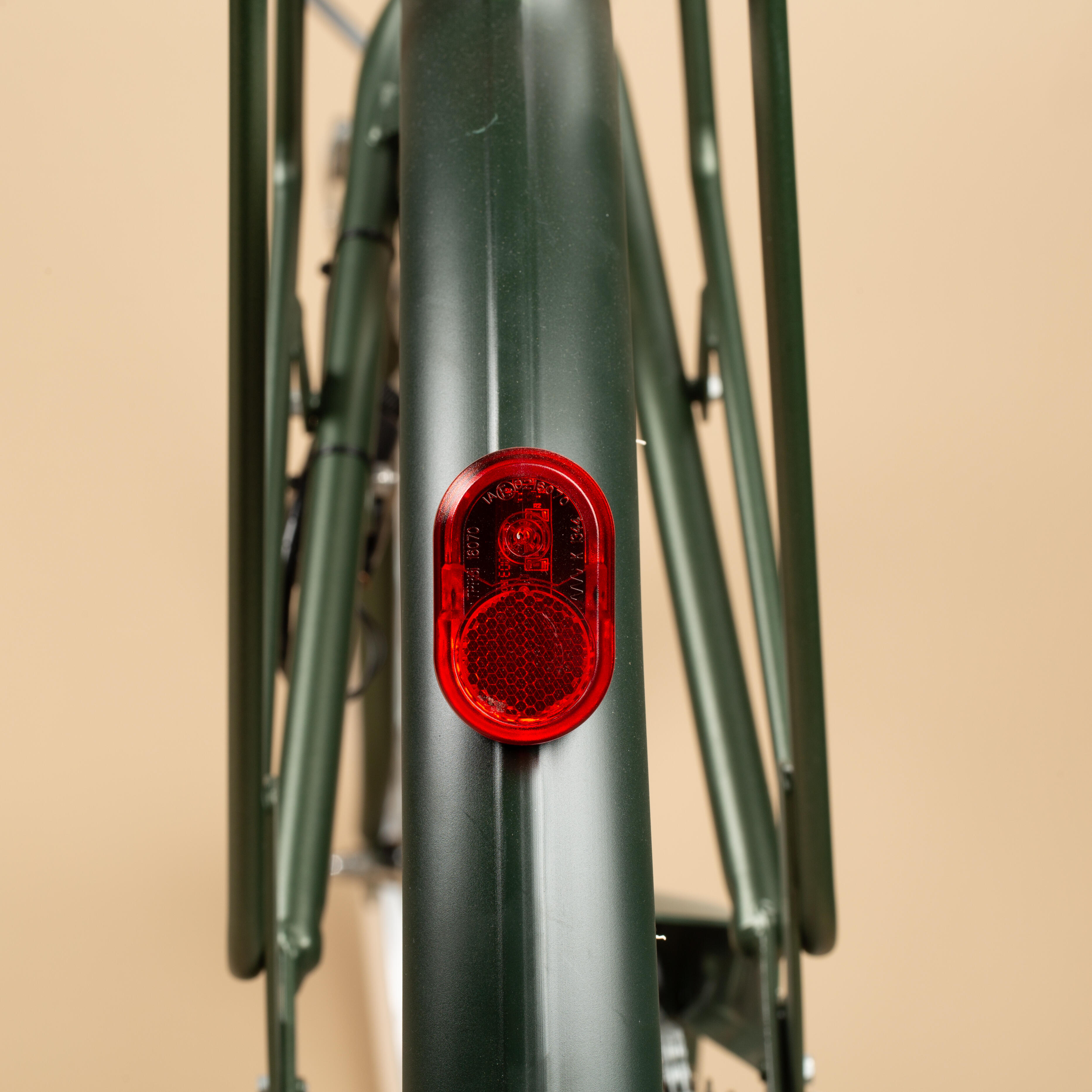

Back light built into the rear mudguard and front light built into the frame to prevent theft.
Rear reflector built into the pannier rack.
Drivetrain / Pedals

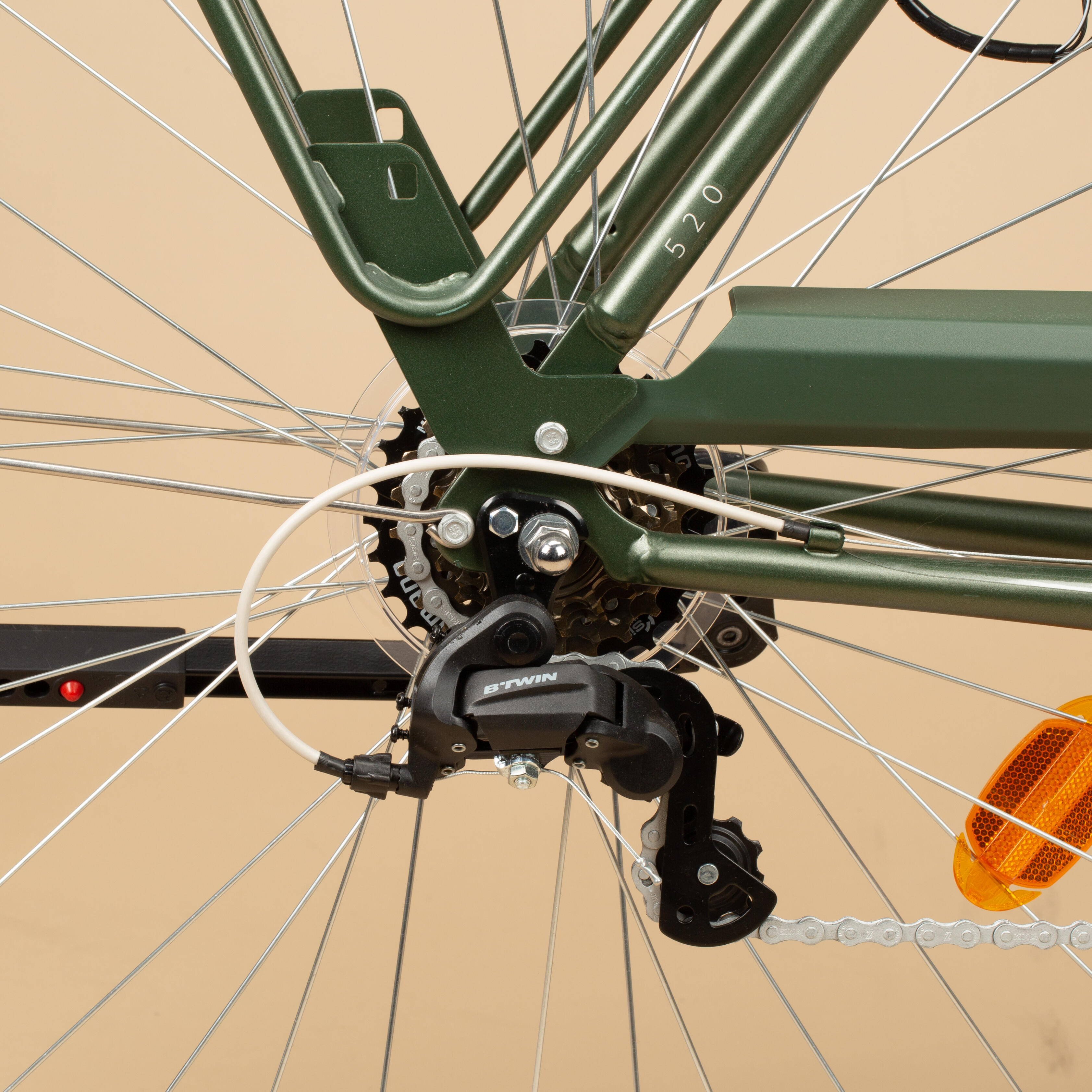

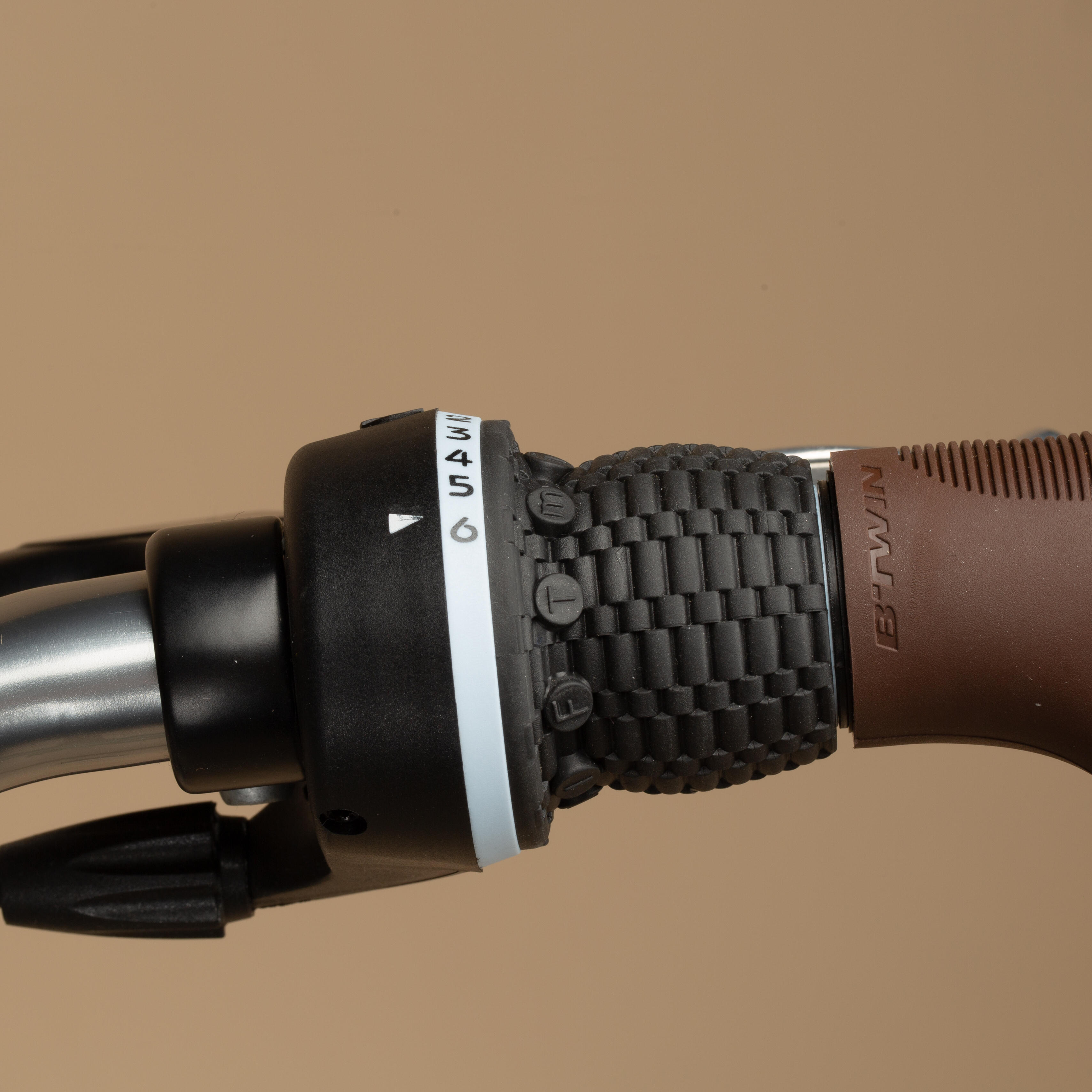

BTwin by Microshift 6-speed drivetrain. 40-tooth single chainring crankset, 170 mm steel cranks, 6-speed 14x28 freewheel, rust-resistant KMC chain. 6-speed BTwin by Microshift grip shifter. Development: 3.15 m to 6.29 m.
Wheels
28" aluminium single-walled front and rear wheels, 36 spokes. Why this size? Because it provides our users with the added comfort and rolling quality that a 28" wheel delivers. The front and rear wheels are tightened with bolts to discourage opportunistic theft. To easily transport your bike in a vehicle, use a 15 mm wrench to remove the front wheel. 9 mm threaded front/rear wheel axles.
Tyres
Balloon-type tyres to smooth out lumps and bumps in the road and keep you more comfortable as you ride while providing better rolling.
The Schrader valves make the tyres easier to inflate, even at a garage.
Ideal tyre pressure is between 3.5 and 4 bar.
1 mm puncture-prevention nylon tyre liner built into the tyre tread.
Tyres sizes S/M and L/XL: Etrto 44-622 (700*45C / 28" x 1.62)
Equipment

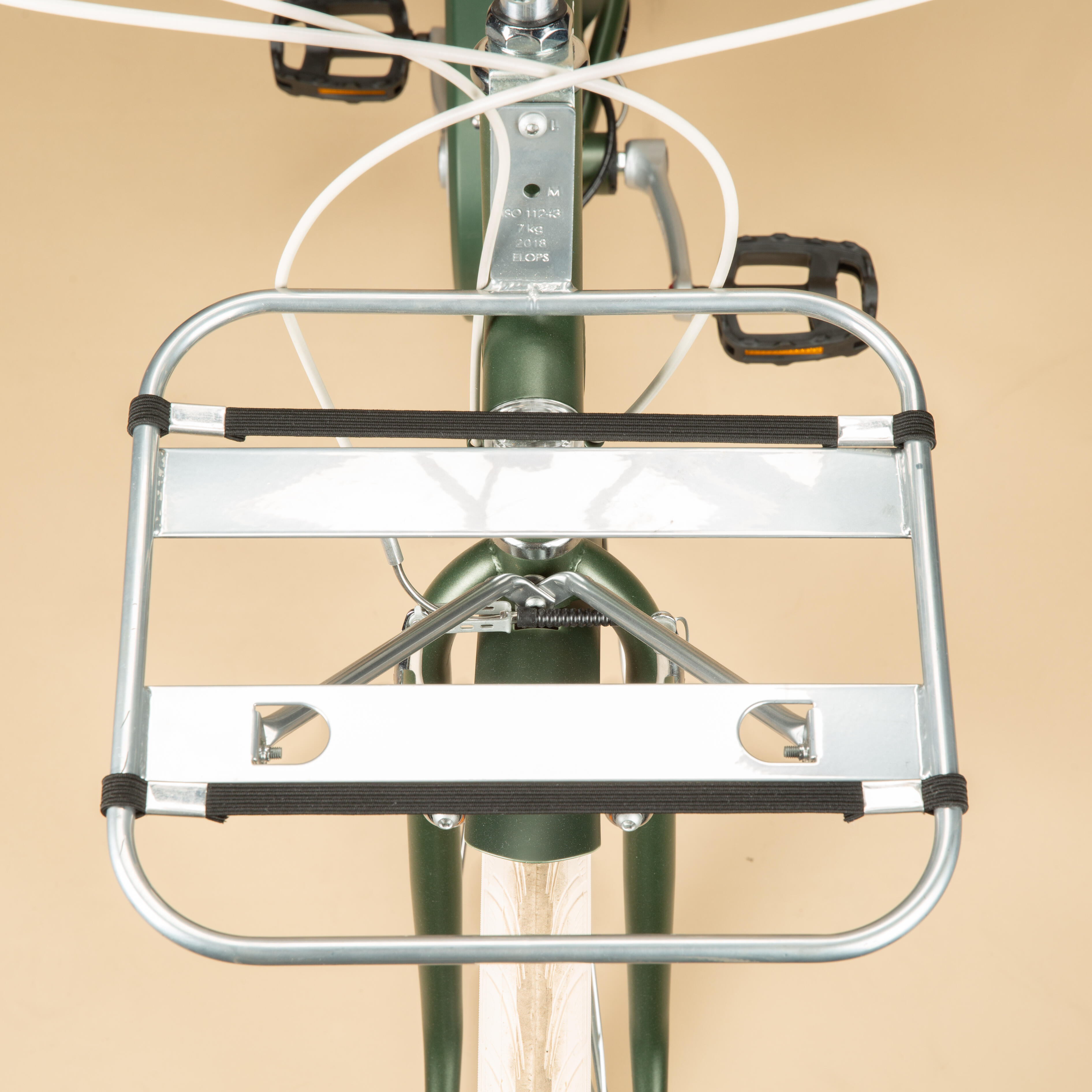

Bolted on front basket, rear pannier rack, rim dynamo powered lights, front/rear mudguards, side-mounted bike stand, chainguard.
Stand

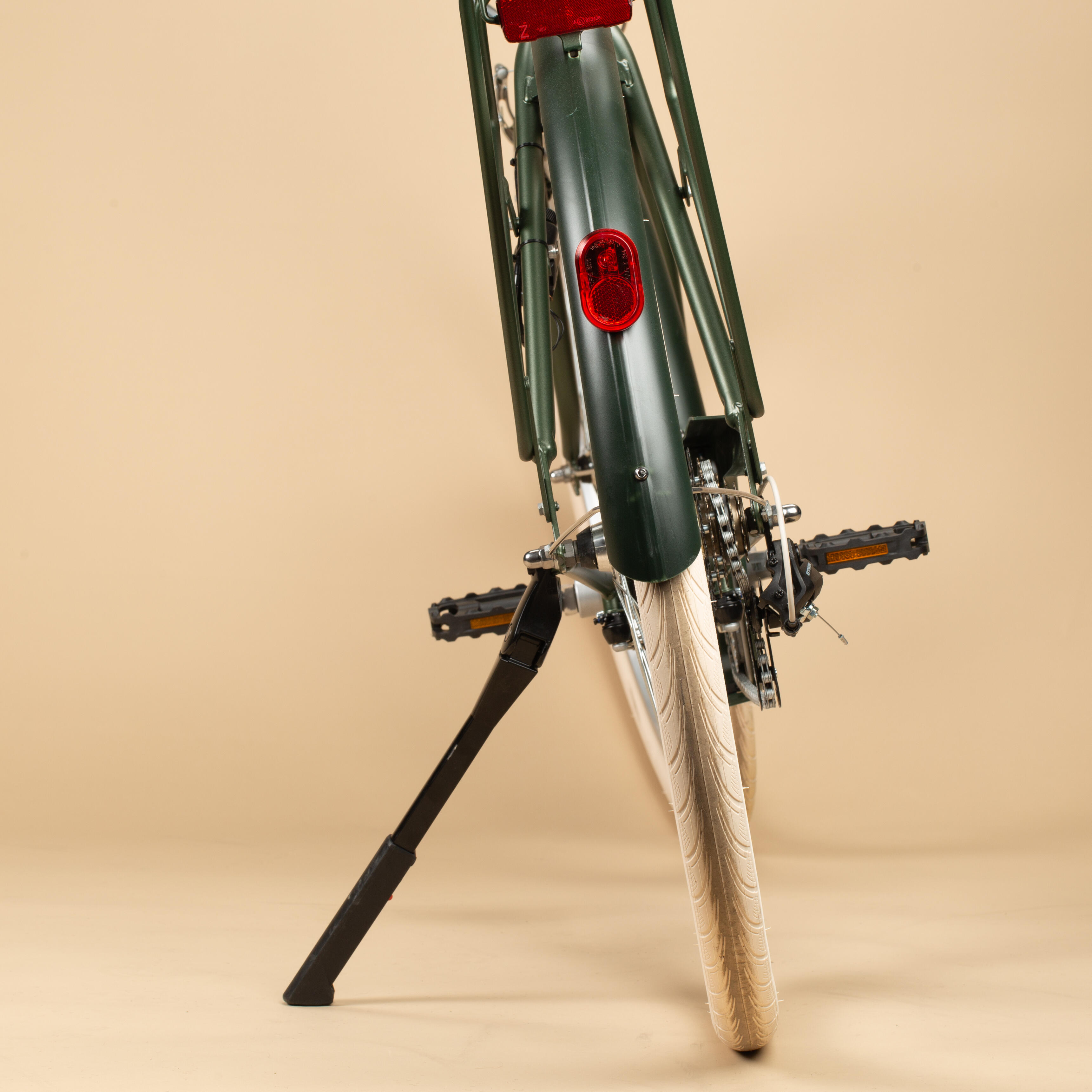

Reinforced side stand to keep the bike stable when parked with the pannier rack and front basket/rack fully loaded.
Compatible accessories
The certified pannier rack can hold 27 kg and can fit a pannier-mounted child seat or any of our ELOPS bags.
The frame has been drilled so you can attach a bottle cage or folding lock to the seat tube. The back of the frame is drilled with mount holes for attaching a Ring Lock type bike lock (available as an accessory). Compatible with a child bike tow (attached to the rear wheel axle).
CHOOSING YOUR SHOE SIZE
Size S/M is designed for riders 1.55 m to 1.75 m tall. Size L/XL is designed for riders 1.75 m to 1.95 m tall. If you are between the two sizes, choose the larger size for a more comfortable ride.
Weight
Size S / M:19.1 kg; Size L/XL: 19.45 kg
Maximum weight
This bike supports a maximum total weight of 100 kg (bike + rider + load).
Care tips
To prevent punctures and to get the most out of your bike, check the tyre pressure every fortnight when you're using the bike daily, or before each ride if you only use it occasionally. Degrease and lubricate the chain as soon as dirt begins to accumulate. Wash the frame with soapy water; do not use a high pressure water jet.
Storage/transport tips
Store your bike in a dry, cool place. If riding near the sea, clean your bike regularly to protect it from salt damage.
Transporting this bike on a boot bike rack may require an adapter bar.
Use restrictions
Not suitable for off-road use. As this Dutch bike has very wide handlebars, take care when riding along narrow passages indoors or outdoors.
Design
Designed in Lille by a team of Engineers and Designers.
Assembled in the European Union.
A word from the team
"Riding a bike around town is one of the best alternatives to using a car, and an efficient way to get from A to B.
To ensure your urban cycling remains a pleasure in all conditions and to be prepared for any eventuality, don't forget to equip yourself with the safety essentials: helmet, two bike locks, wet weather clothing and additional lighting accessories."
COMPOSITION
composition
Frame: 100.0% Steel
Tips for storage and maintenance
Storage tips
When possible, store the bike in a sheltered place or cover it with a tarp.
Restrictions on use
Not designed for all-terrain or mountain biking.
TESTS AND WARRANTY
Agree by
This bike has been developed and honed by our design teams, before being tested and approved by our testers out on the roads to make sure it perfectly meets the needs of urban cyclists.
Parts guarantee
Lifetime on frame, stem, handlebar and fork. 2 years (excluding normal wear) on other components.
