In a nutshell
Weight: 24.5 kg (size M without pedals)
Rear wheel motor
Torque: 43 Nm
Power:316 W max
Battery:360 Wh
Connectivity: NO
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 100 mm
Drive train: 1x07
Brakes: Mechanical disc
Seat post: Fixed
Motor
Vision VRNH105 motor
Rear wheel
43 Nm torque
Cadence sensor
Electric assistance cuts out above 25 km/h in accordance with European regulations
Battery

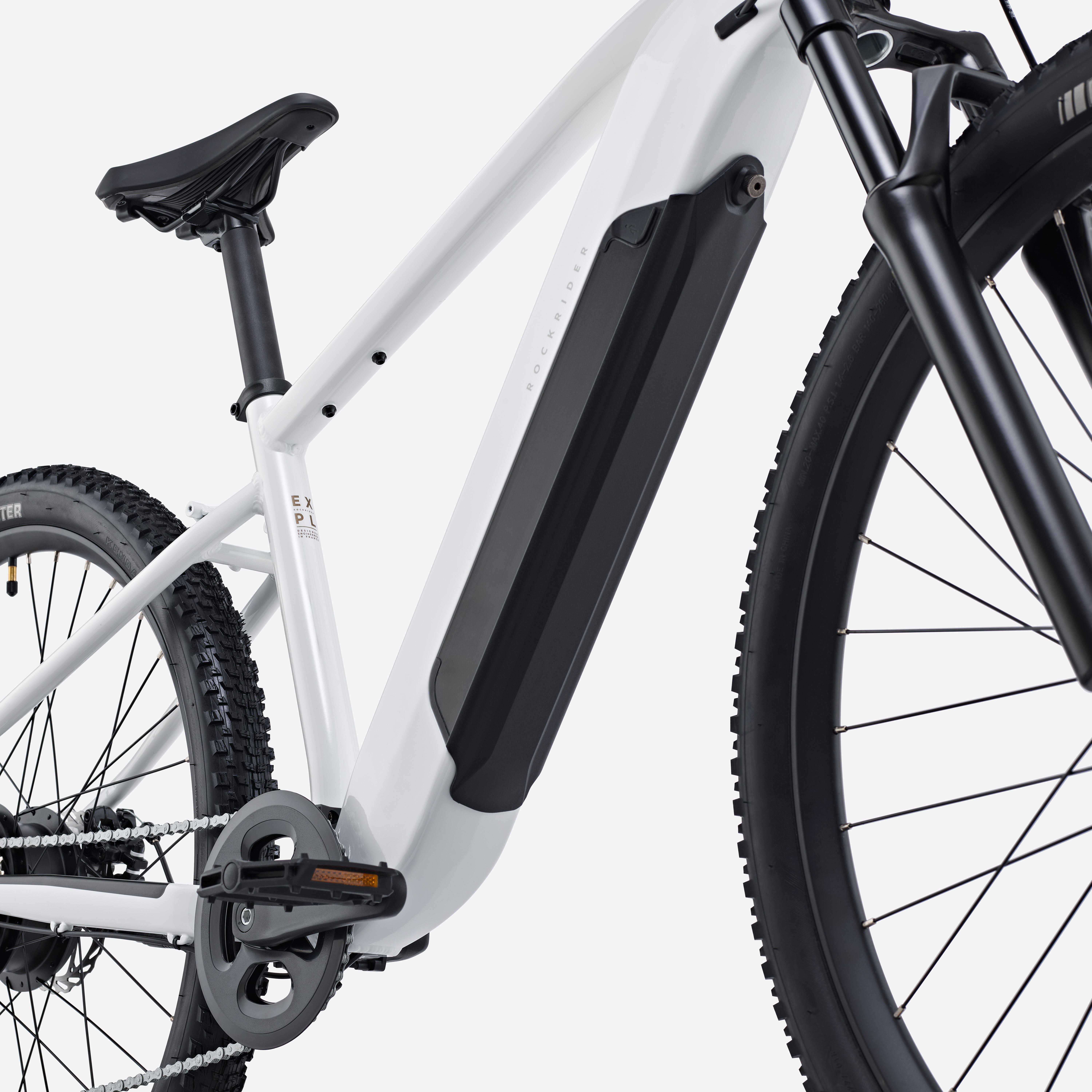

Battery fully integrated into the frame with low output and protective cover.
Capacity: 360 Wh
Display
Display E410 LED VISION
LED display
3 assistance modes:1, 2, 3
Pedestrian mode with walking assistance.
Port USB C (5V 500 mAh)
The control unit is installed on the left side and tilted downwards for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Weight
S: 24.4 kg
M : 24.5 kg
L: 24.6 kg
XL : 24.7 kg
Net weight without pedals
Frame
Composition: Aluminium
Travel: 100 mm fork
Rear axle: 9x145mm
Axle type: Quick Release
Seat tube diameter: 31.6 Mm
Bottle cage mount:yes (2 water bottles)

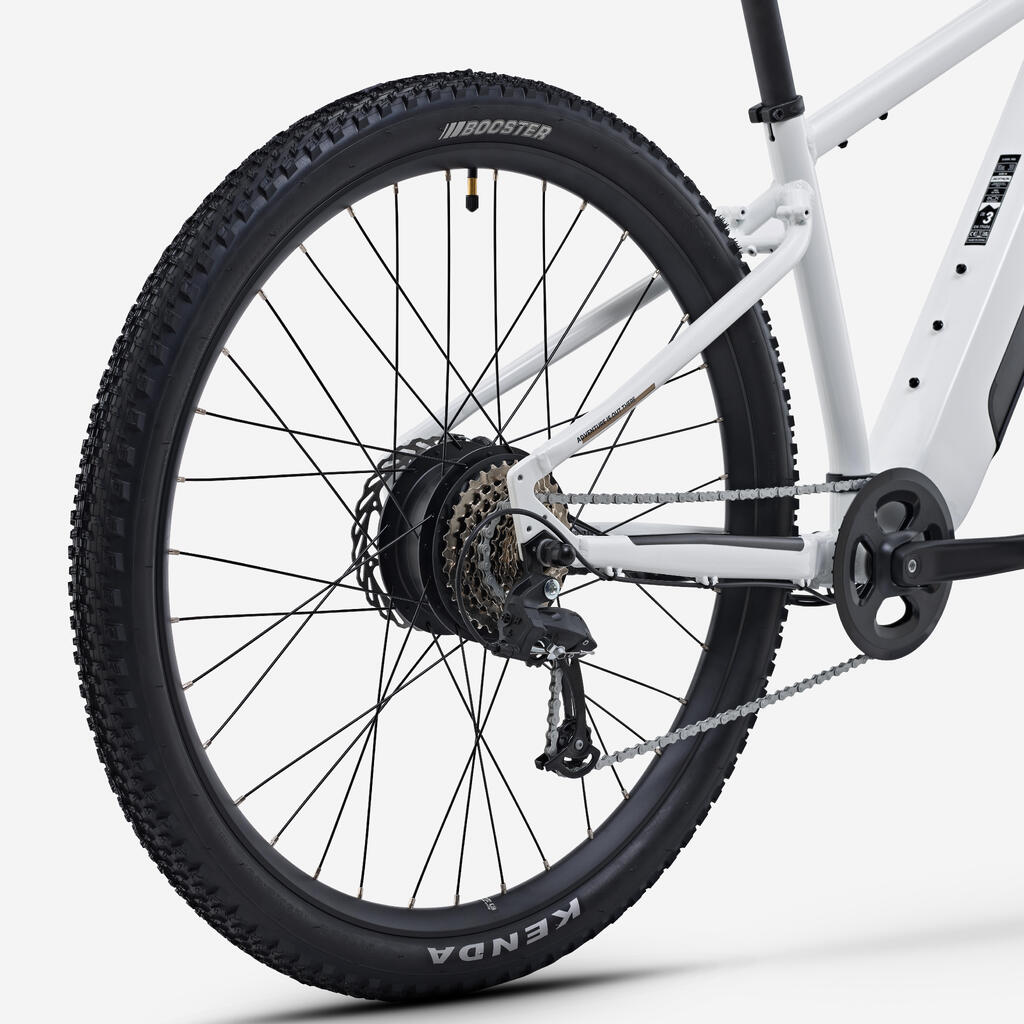

Transmission
Microshift RD-M25L X7
Single chainring: 38 teeth.Cranks: 165 mm
Rear derailleur: 7 speeds
Freewheel: 14-34
KMC Z7-RD chain
Suspension
Fork: Zoom
Travel: 100 mm
Dampers: 30 mm
Axle: QR 9x100 mm
Wheels
29" ZY 30 double-wall aluminium wheel
Internal width:30 mm
Number of spokes: 32 at the front, 36 at the rear
Disc attachment:6 holes
Freewheel hub: screw-on
Types of axles:QR, 9 mm at the front and fixed solid axle with nut at the rear.
TUBELESS READY: No"
Brakes
Mechanical disc brake
Number of pistons:1
Front disc: 180 mm
Rear disc: 160 mm
Disc mount: 6 bolts

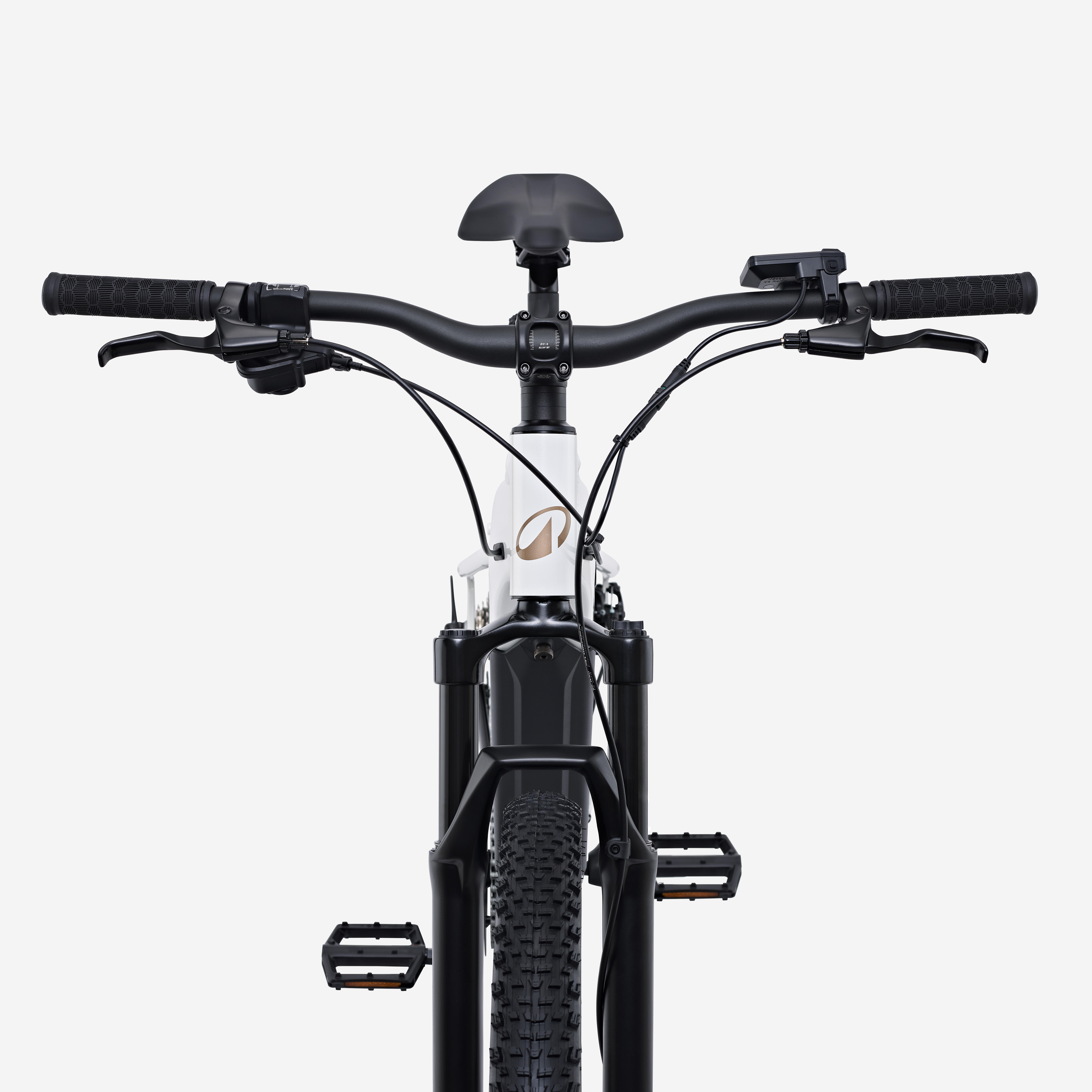

Riding position
Zoom MTB handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 720 mm
Rise: 30 mm
Stem: Material: Aluminium
Angle: 6°
Sizes: 60 mm
Grips:
HL-G187
Saddle & seat post
GESKO saddle
Seat post
Material: Aluminium
Diameter: 31.6 mm
Length: S/M 350 mm, L/ XL 400 mm"""
Tyres
Kenda
BOOSTER K1227 29""X2.4
ACCESSORIES INCLUDED
Your MTB comes with:
bell,
lights,
wheel reflectors
and pedals.
