In a nutshell
Weight: 12.8 kg in size M (without pedals)
Frame material: Aluminium
Type: Hardtail
Wheel size: 29" (M / L / XL), 27.5" (S)
Fork travel: 120 mm
Drivetrain: 1x10
Brakes: Hydraulic
Seatpost: Aluminium
Frame, stem and handlebar warranty: lifetime
Weight
S: 12.6 kg
M: 12.8 kg
L: 12.85 kg
XL: 12.95 kg
Net weight without pedals
FRAME
Composition: 6061 butted aluminium
148 mm x 12 mm Boost rear axle
Bolt through axle
73 mm threaded bottom bracket (BSA)
Protective cover for dropper seat post cable and housing
31.6 mm seat tube
Tapered head tube
2 bottle cage mounts (1 on size S) / Pannier rack mounts

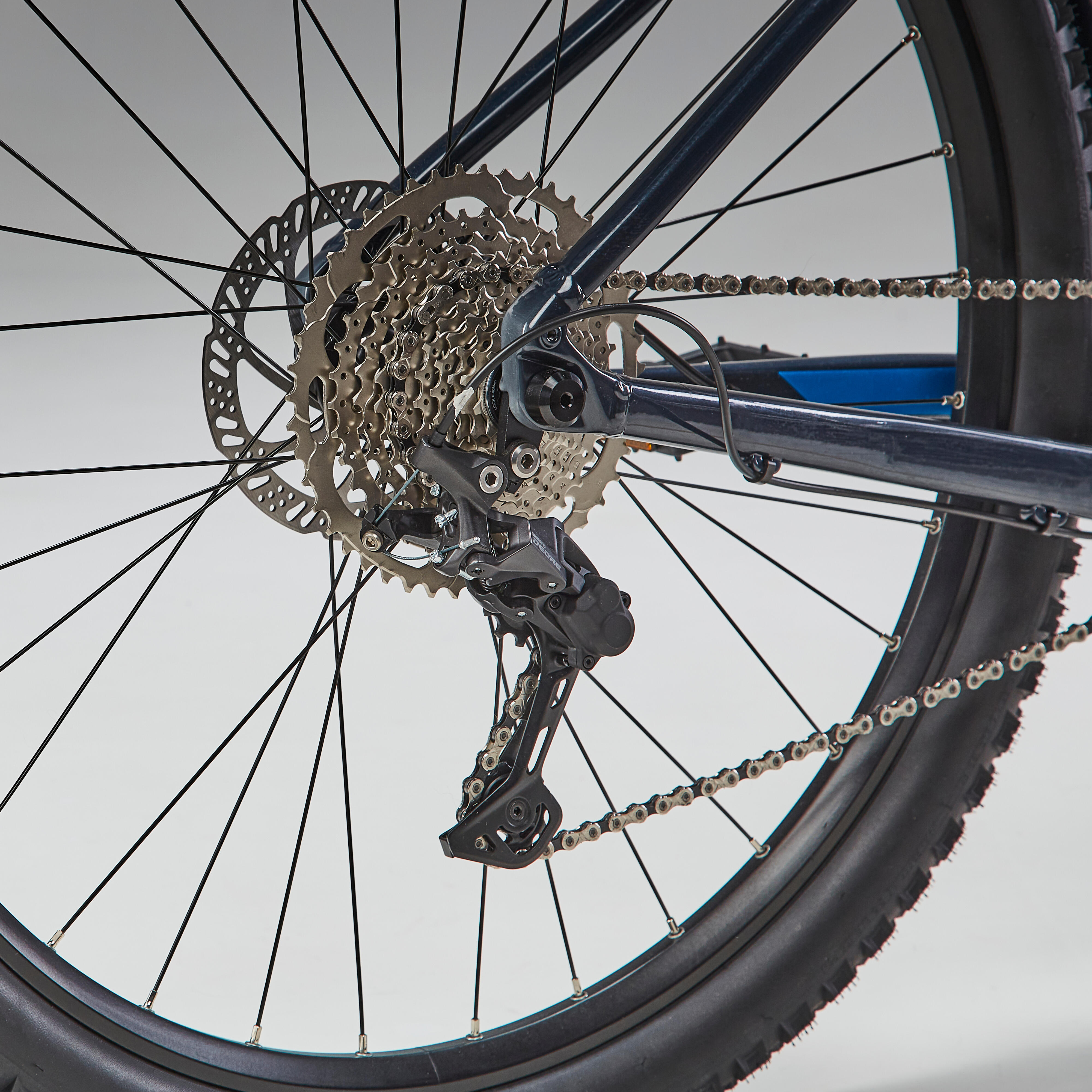

DRIVETRAIN
Shimano CUES
30 T single chainring (compatible with 32 T)
175 mm crank
"Thru axle / external bearing" bottom bracket
10-speed shifter and rear derailleur
11-46 cassette
KMC X10 chain
Suspension
Suntour RC32 X-Fusion fork
AIR fork
120 mm travel
Stanchion diameter: 32 mm
6-sided through-axle bolt
15 x 110 mm Boost format
Turnkey lockout on the fork
Wheels
29" (M / L / XL), 27.5" (S)
Tubeless ready rims, Presta valve
23 mm inner width (28 mm outer)
32 spokes
Thru axle / Boost format hub
6-bolt disc
Shimano/Sram freehub
Sealed bearings
BRAKES
Hydraulic disc brakes
Tektro TK-M276
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm
Adjustable reach: Yes
Riding position
Handlebar: Rockrider Sport
Material: Aluminium
Width: 740 mm (M / L / XL), 700 mm (S)
Stem: Rockrider
Material: aluminium
Size: 60 mm
4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm
Compatible with Garmin, Mio or Bryton bike computer / GPS brackets
Grips: Rockrider Ergonomic
Saddle and seat post
Rockrider Ergofit PRO saddle
Rockrider Sport seat post
Material: Aluminium
Diameter: 31.6 mm
Length: 400 mm (S / M / L), 450 mm (XL)
With tool holder (4 mm and 6 mm Allen keys included)
Compatible with dropper posts
Tyre
Hutchinson Kraken
29"x2.3" (M / L / XL), 27.5"x2.3" (S)
Carcass: 60 TPI
Tubeless ready
PEDALS
Rockrider 520 Grip resin flat pedals.
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
