Powerful, discreet electric system
The Mahle X35 assistance system on our electric gravel bike amplifies your effort up to 40 Nm, allowing you to overcome the toughest obstacles thanks to the choice between 3 levels of assistance. However, it knows how to be discreet with its battery built into the frame and its weight of just 3.5 kg, making it nearly imperceptible when you don't need it.
Make your adventures last for hours
The 250 Wh battery integrated into the frame provides a maximum battery range of 100 km to let the miles fly by. The optional battery extender, built discreetly into the spot for one of the bottle cages, brings the maximum battery life up to 180 km for full-day expeditions. Of course, the battery life will be reduced based on the assistance level used, the route, the cyclist's weight, the temperature, the wind, etc.
All-around handling and comfort!
With the intuitive offset assistance controls on the handlebar, you keep control of both your effort and your steering at all times. The endurance riding position is upright enough to stay comfortable for hours and keep control on rough terrain, all while remaining dynamic. The wide 700x45mm Hutchinson Touareg tyres and the Sram Apex 1x12 groupset allow you to overcome all challenges.
Fully equipped
The E-GRVL AF HD is one of the best-equipped bikes on the gravel e-bike market and comes with:
- powerful front and rear lighting fuelled by the bike's battery
- Mahle Pulsar One display, a cycle computer that communicates wirelessly with your bike

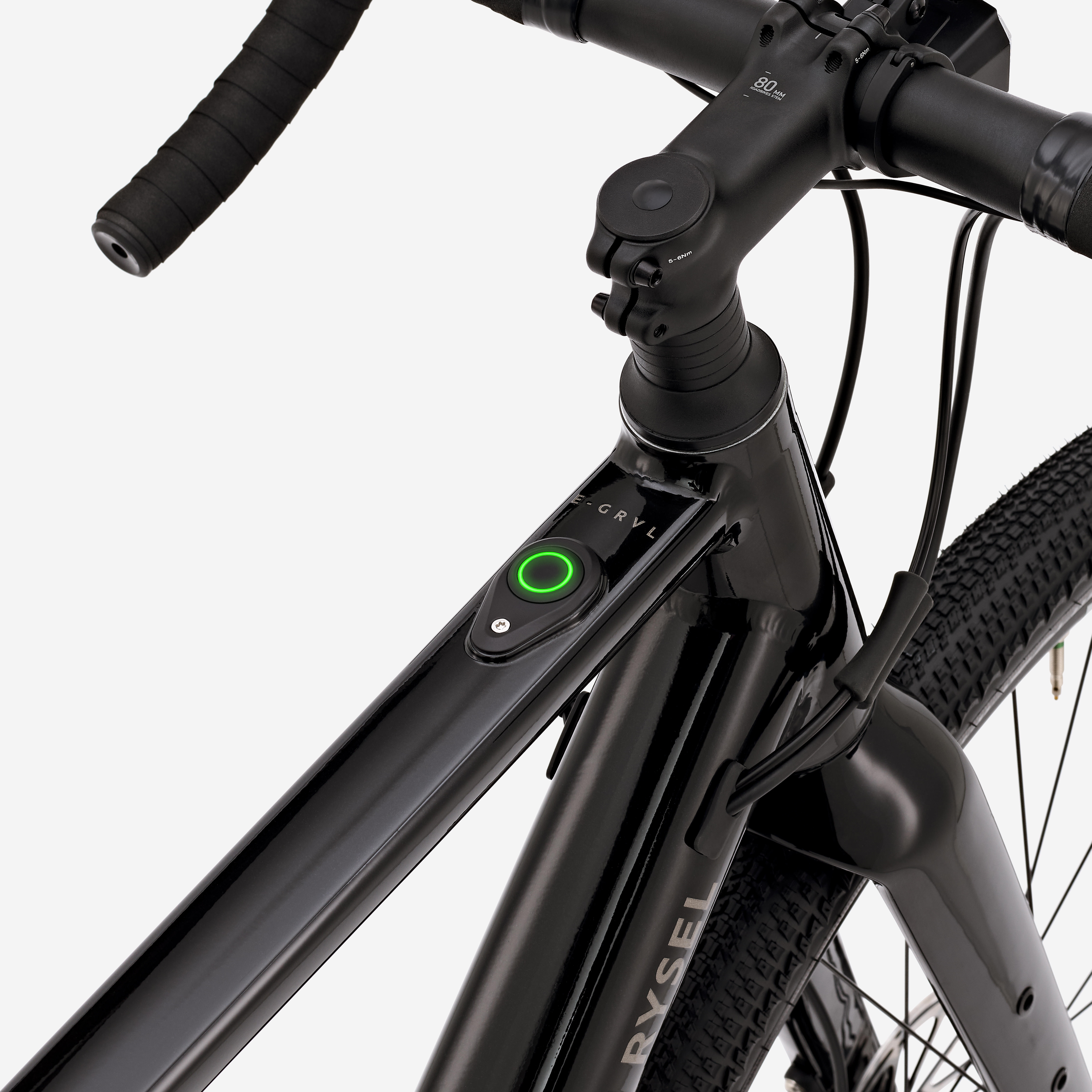

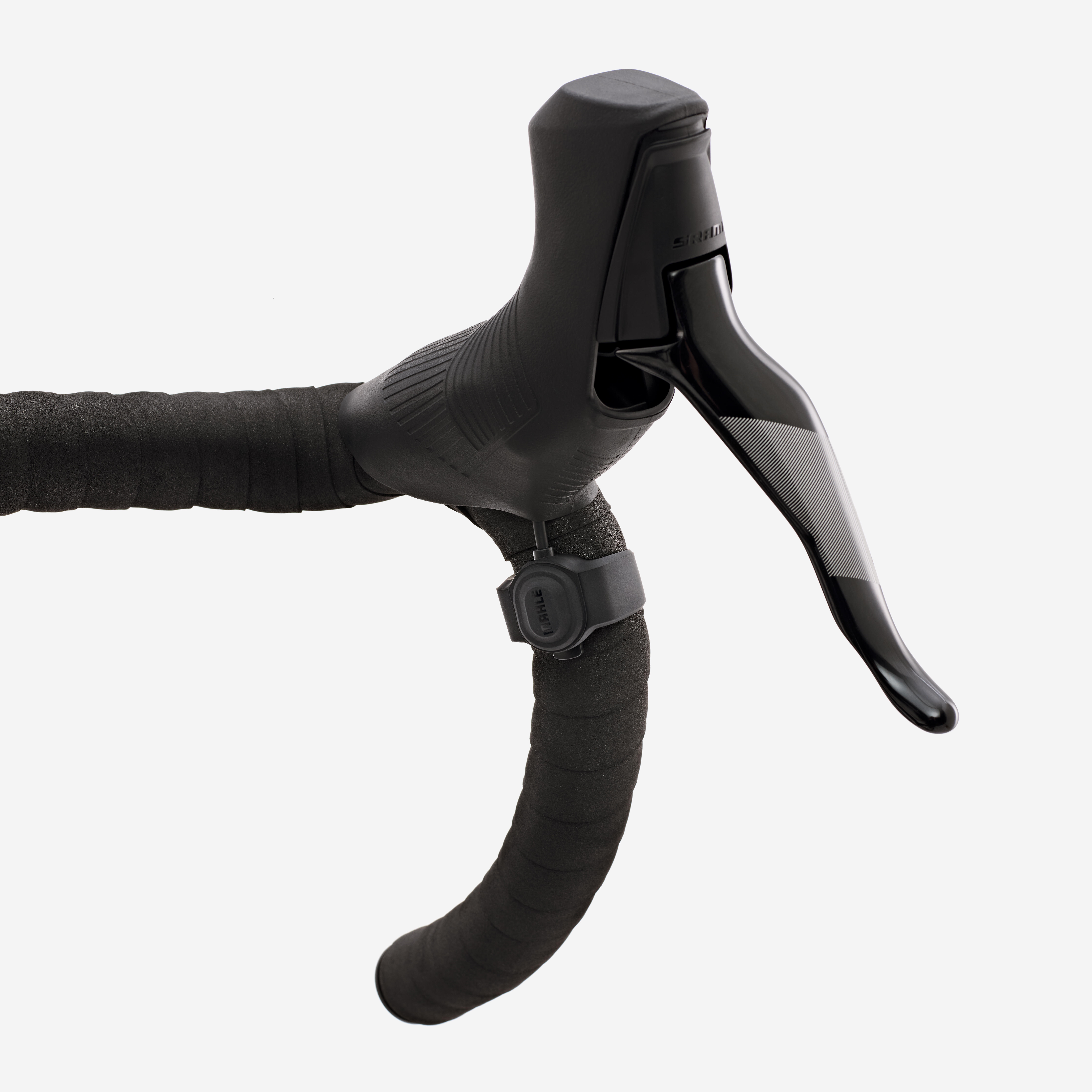

- offset control buttons on the handlebar (below the shifters) to change the assistance level (without letting go of the handlebar)

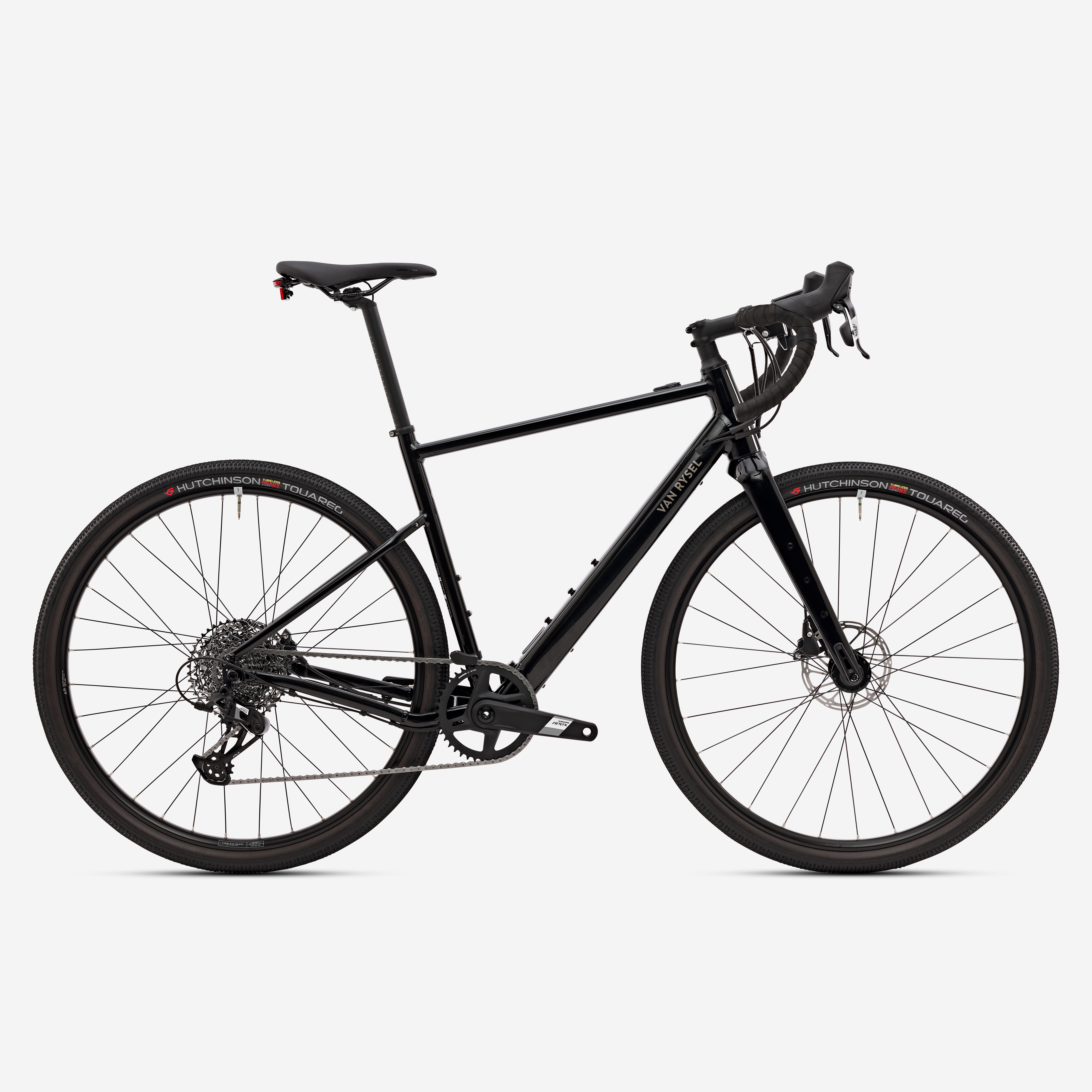

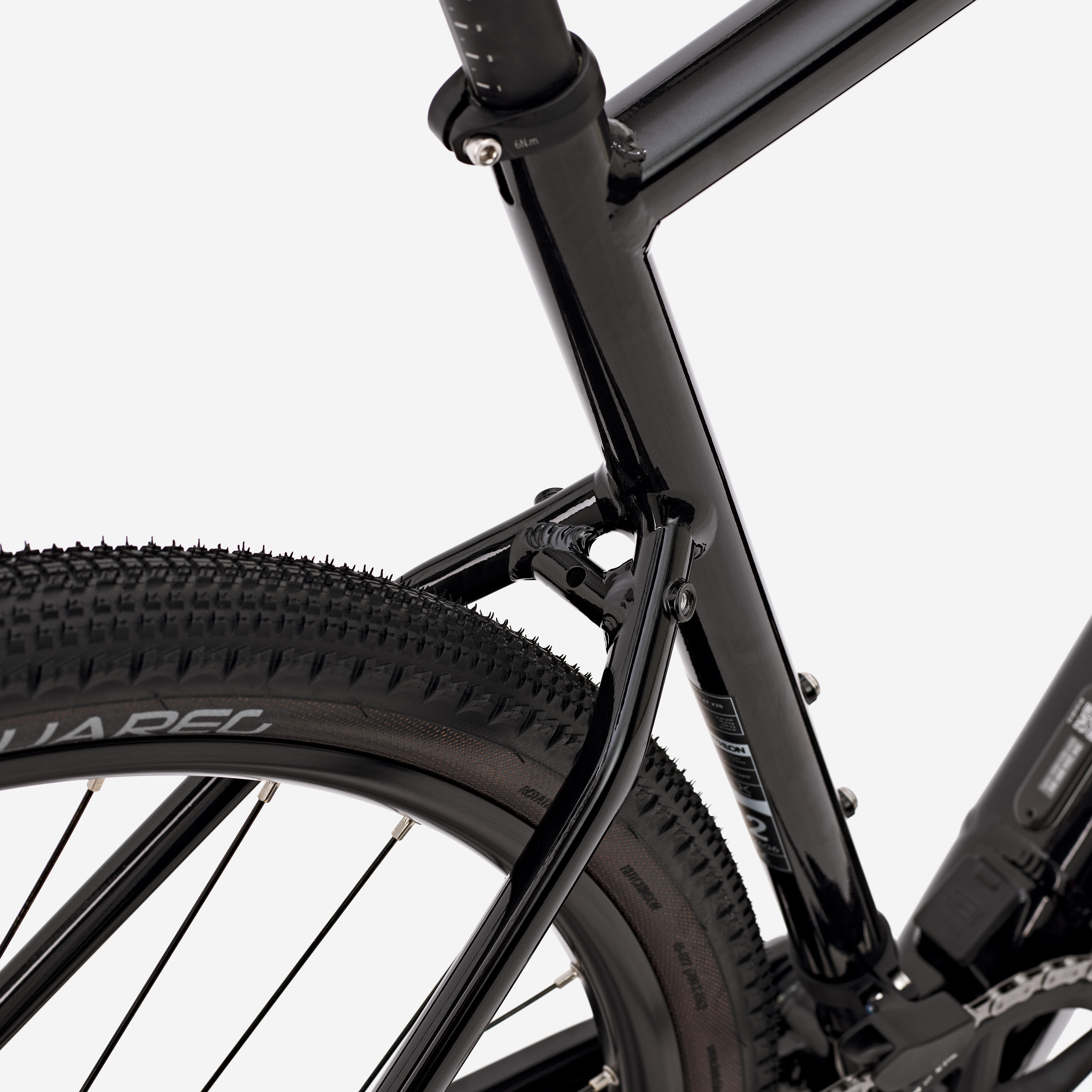

Frame
6061 T6 aluminium

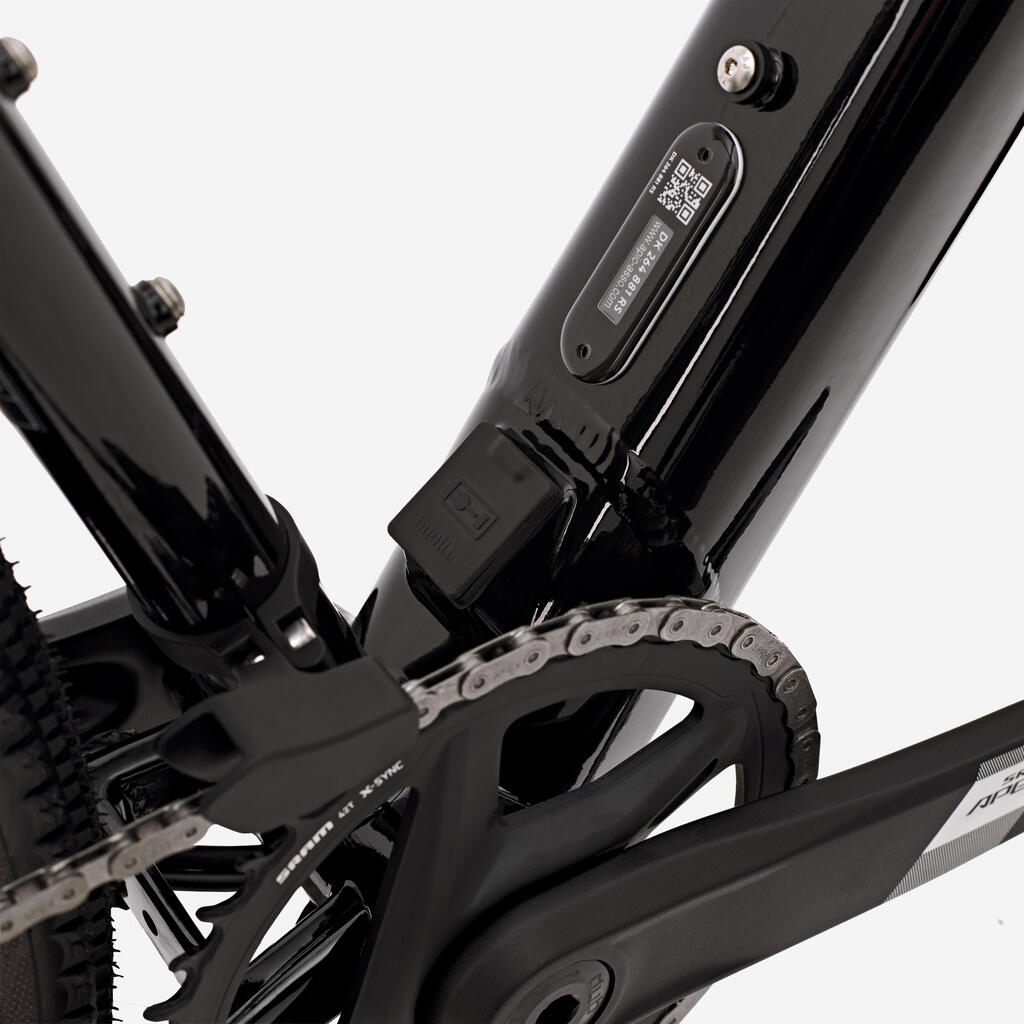

fully-integrated diagonal tube battery
flat mount disc brake
internal cable routing
attachment points for mudguard/pannier rack
700x50mm tyre clearance

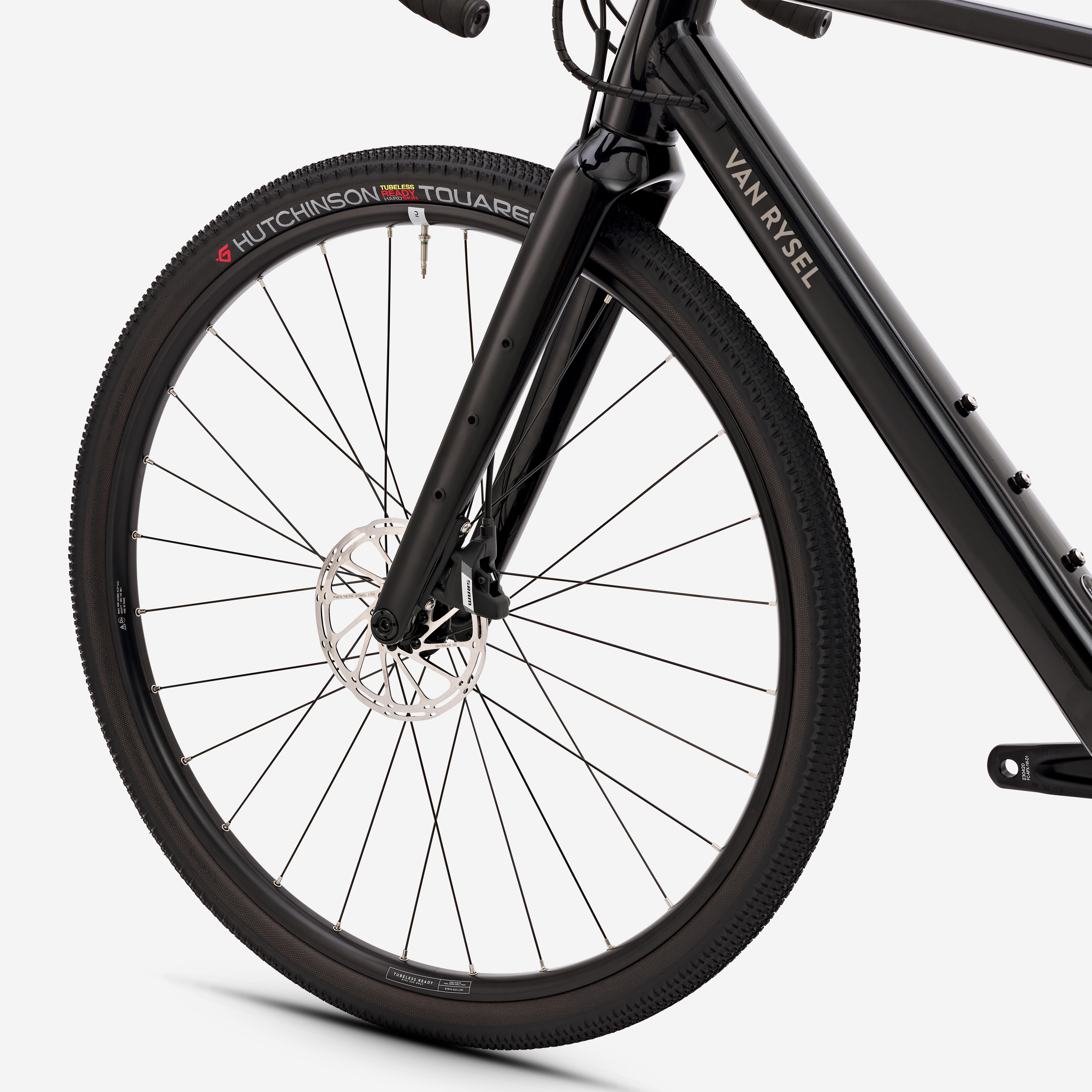

Fork
full carbon
flat mount disc brake
12x110 "road boost" thru axle
mudguard attachment points
internal cable routing
2x3 attachment points on the legs of the fork (perfect for a "cargo cage")
700x50 mm tyre clearance
Brakes
SRAM Apex
hydraulic disc brakes
flat mount
160 mm rotors

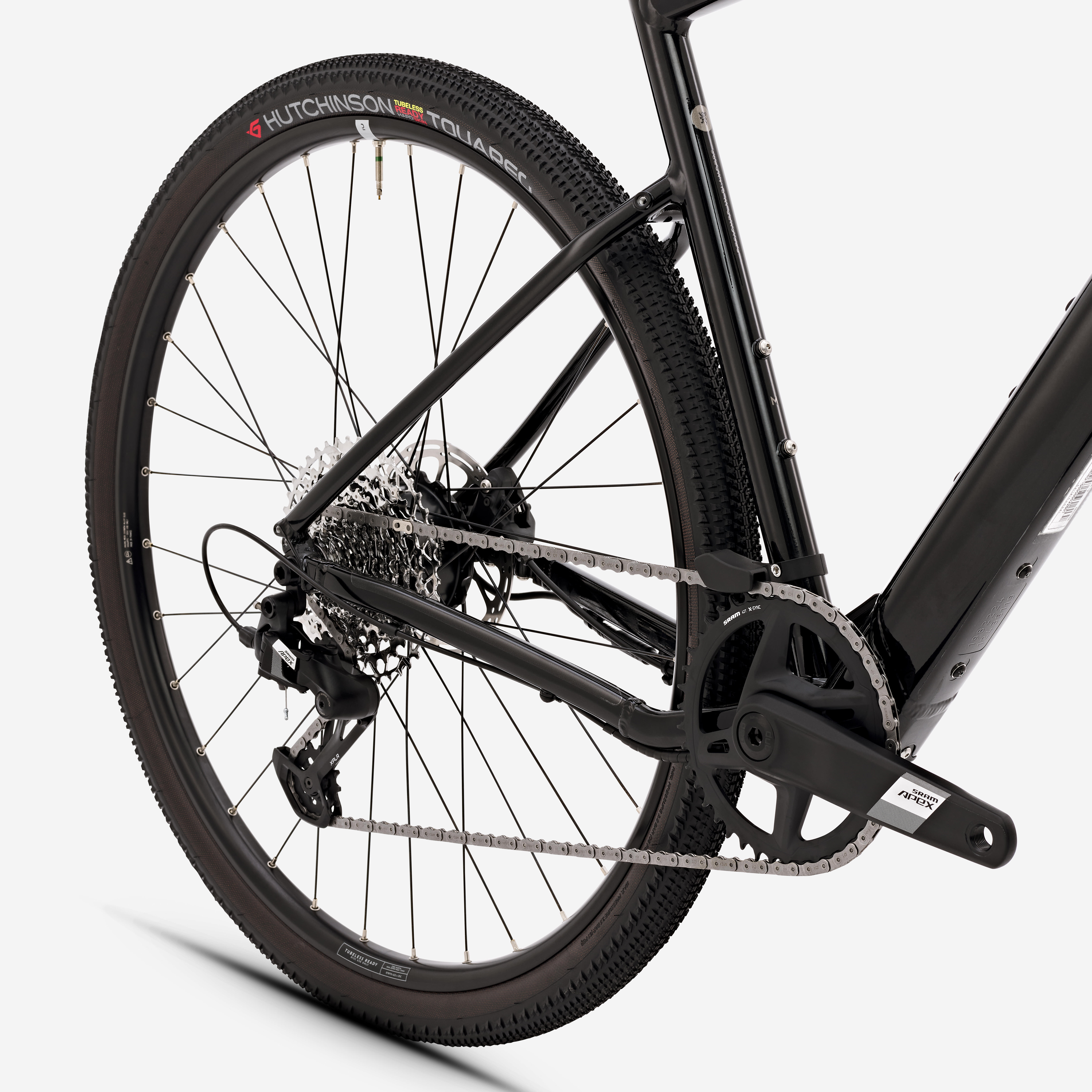

Drive train
SRAM Apex 1X12
11-44 cassette (11/12/13/15/17/19/21/24/28/32/38/44)
42T chainring guard
crank: XS S 170 mm/ M L 172.5 mm / XL XXL 175 mm
TYRES AND WHEELS
25C 700mm tubeless ready asymmetrical aluminium rims
28 front spokes, 32 rear spokes
front: boost 12x110mm thru axle
Hutchinson Touareg Hardskin Tubeless Ready 45mm tyres
Position

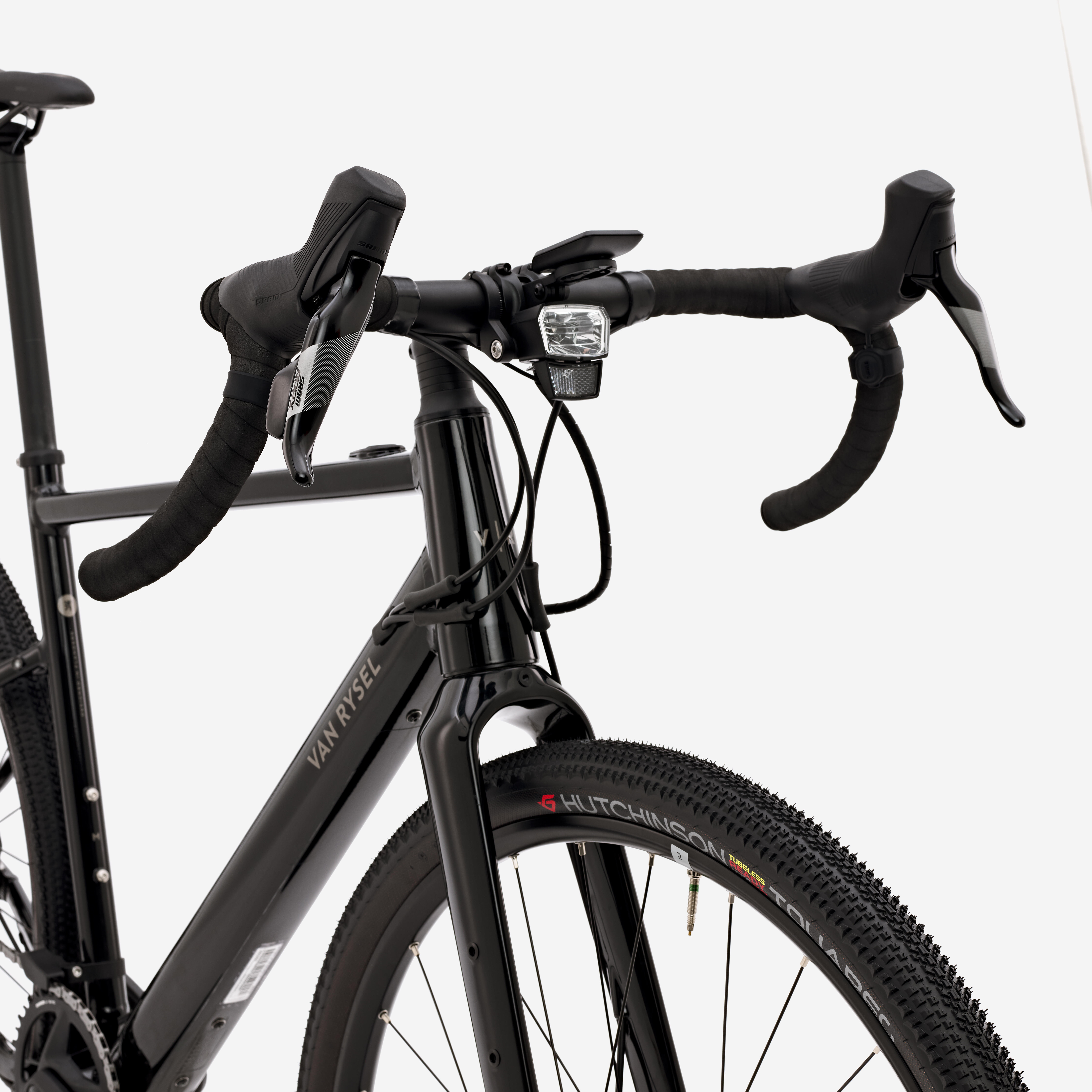

gravel handlebar with 16° flare (width: XS 400 mm/ S 420 mm/ M L 440 mm/ XL XXL 460 mm)
6° alu stem (length: XS 60 mm/ S 70 mm/ M 80 mm/ L 90 mm/ XL XXL 100 mm)
Comfort Gel bar tape

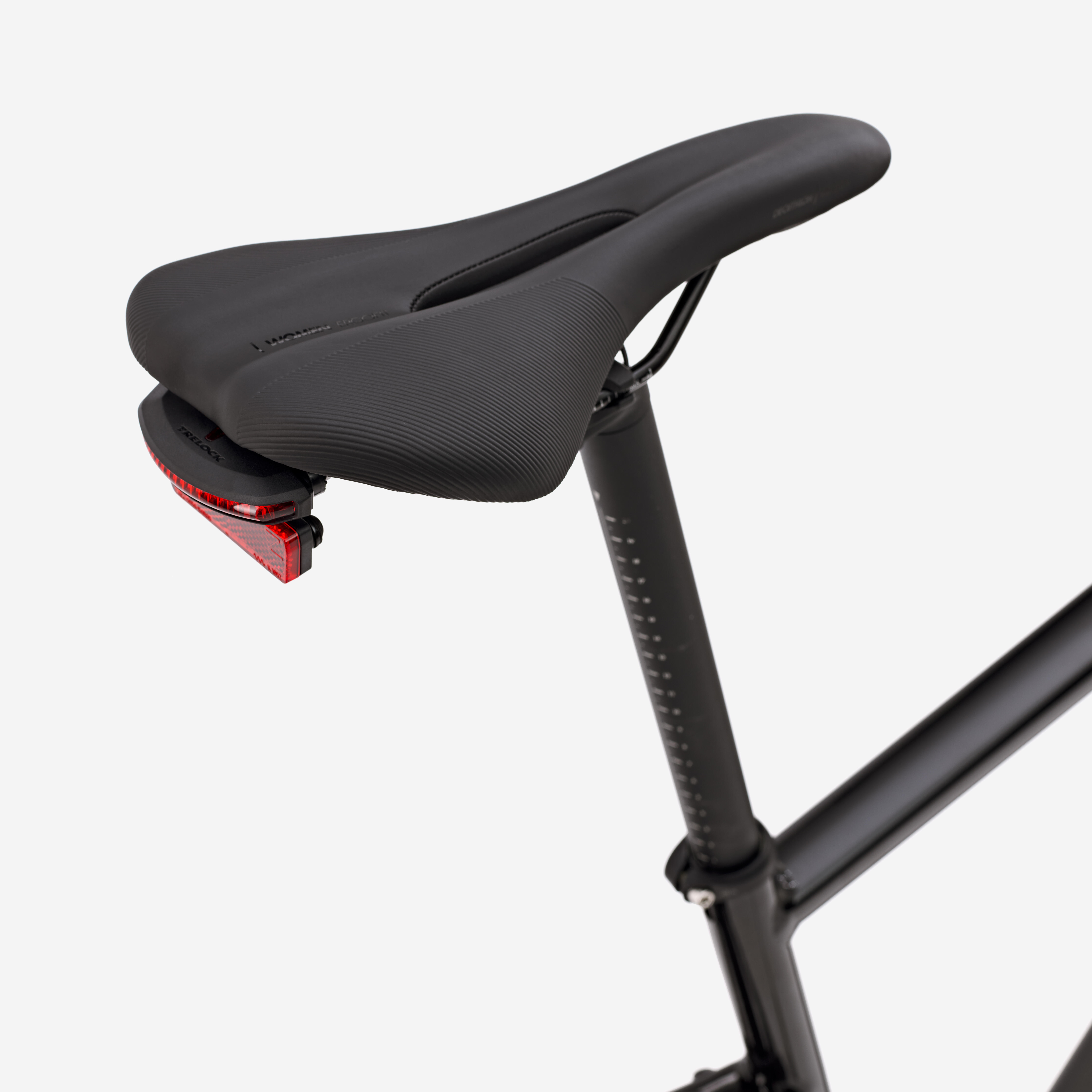

Comfort saddle
Motor

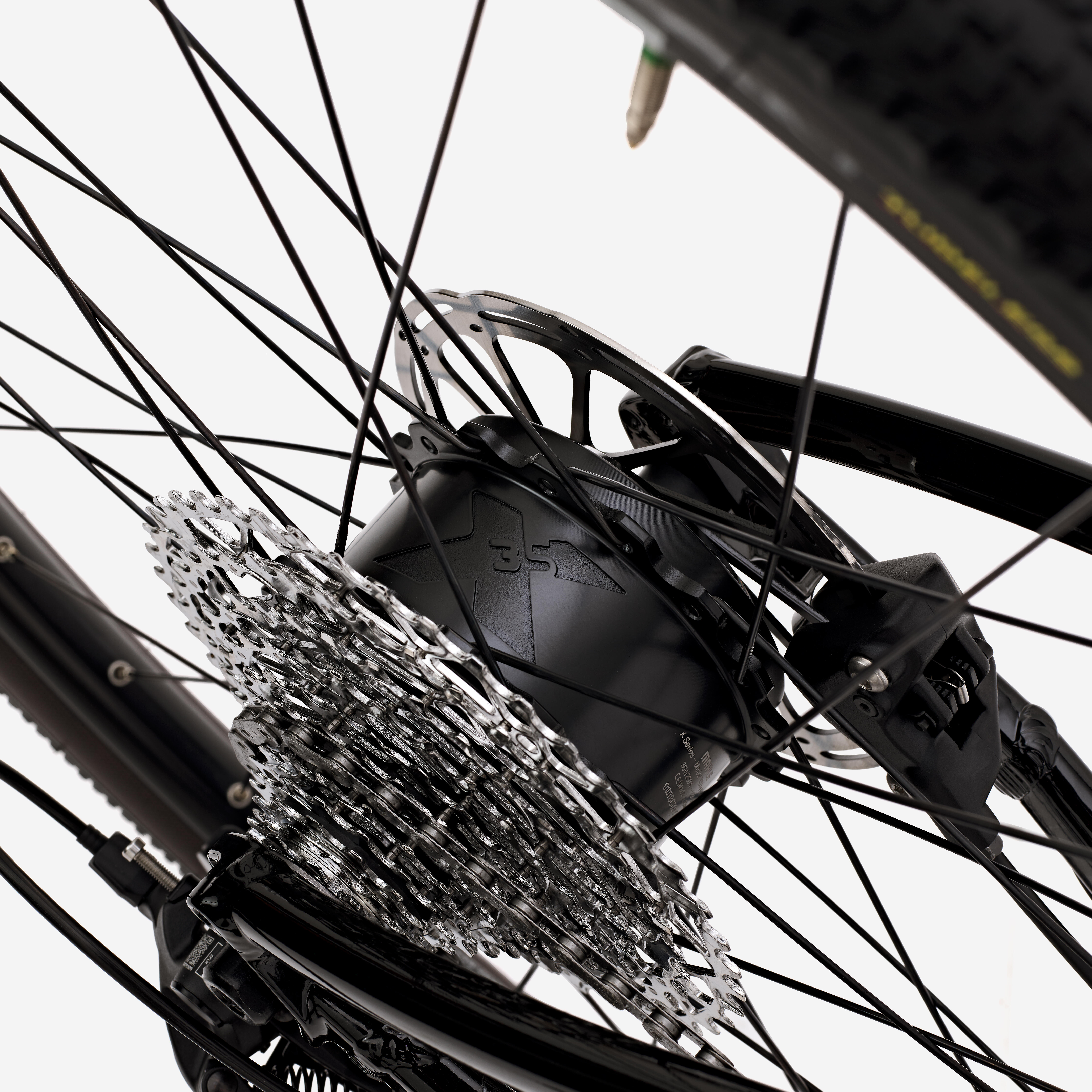

Mahle X35 rear hub motor
36V – 250w, 40N.m
up to 25km/h
Battery
Mahle 36V 250Wh

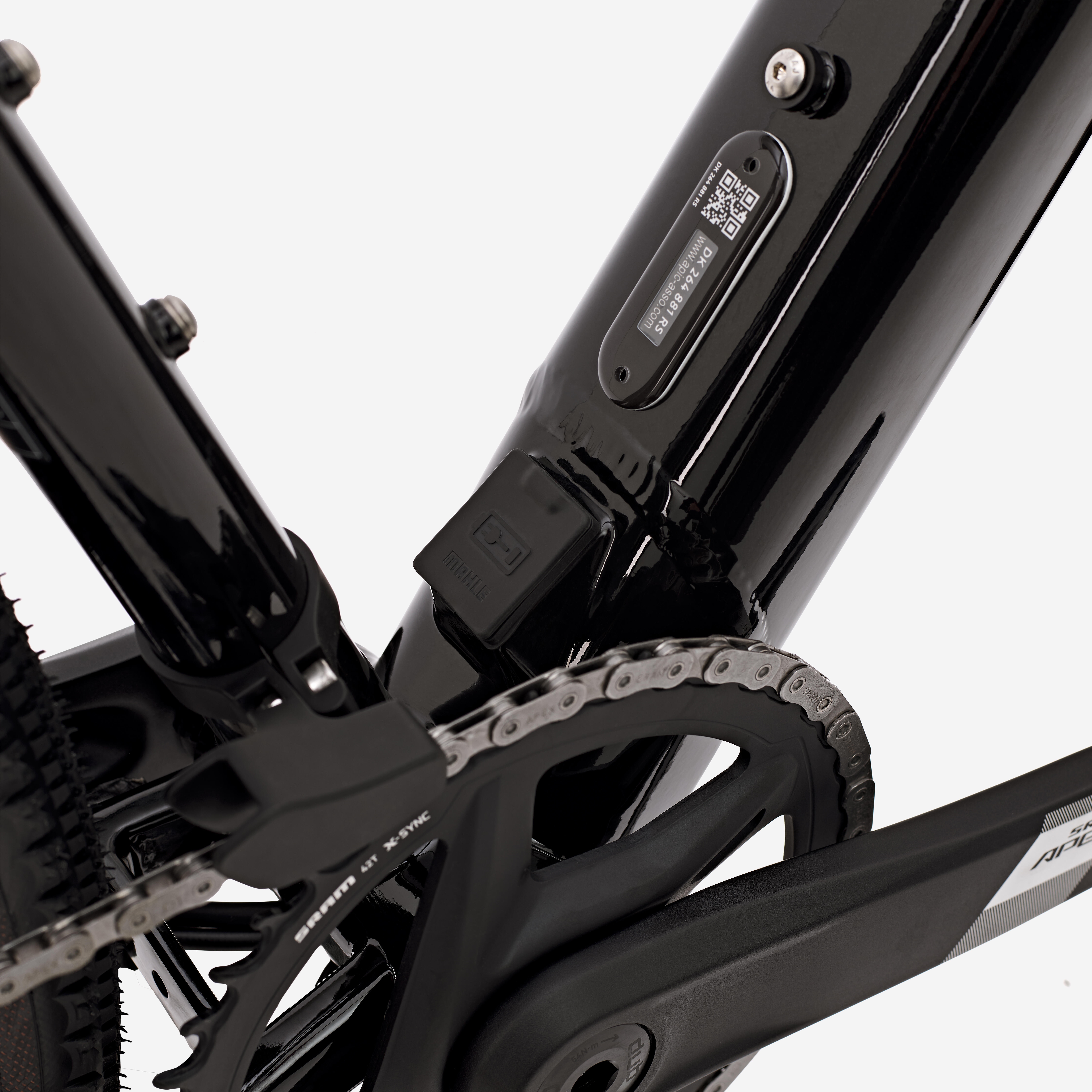

built into the diagonal tube with charging point on the frame
Compatible with the battery extender available for bottle cage (208Wh) (not included)
Lighting

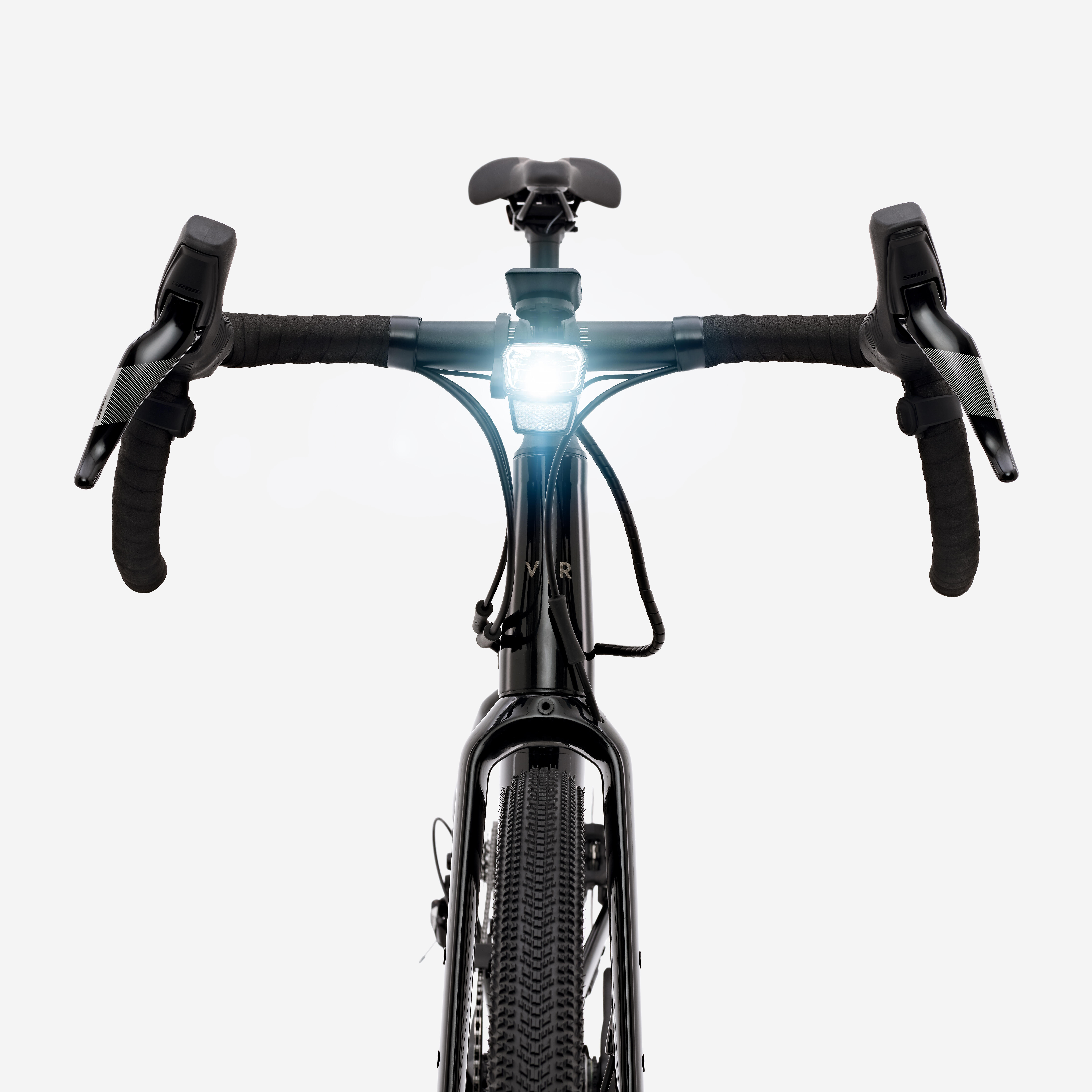

Front: Axa Lighthammer 60 lux

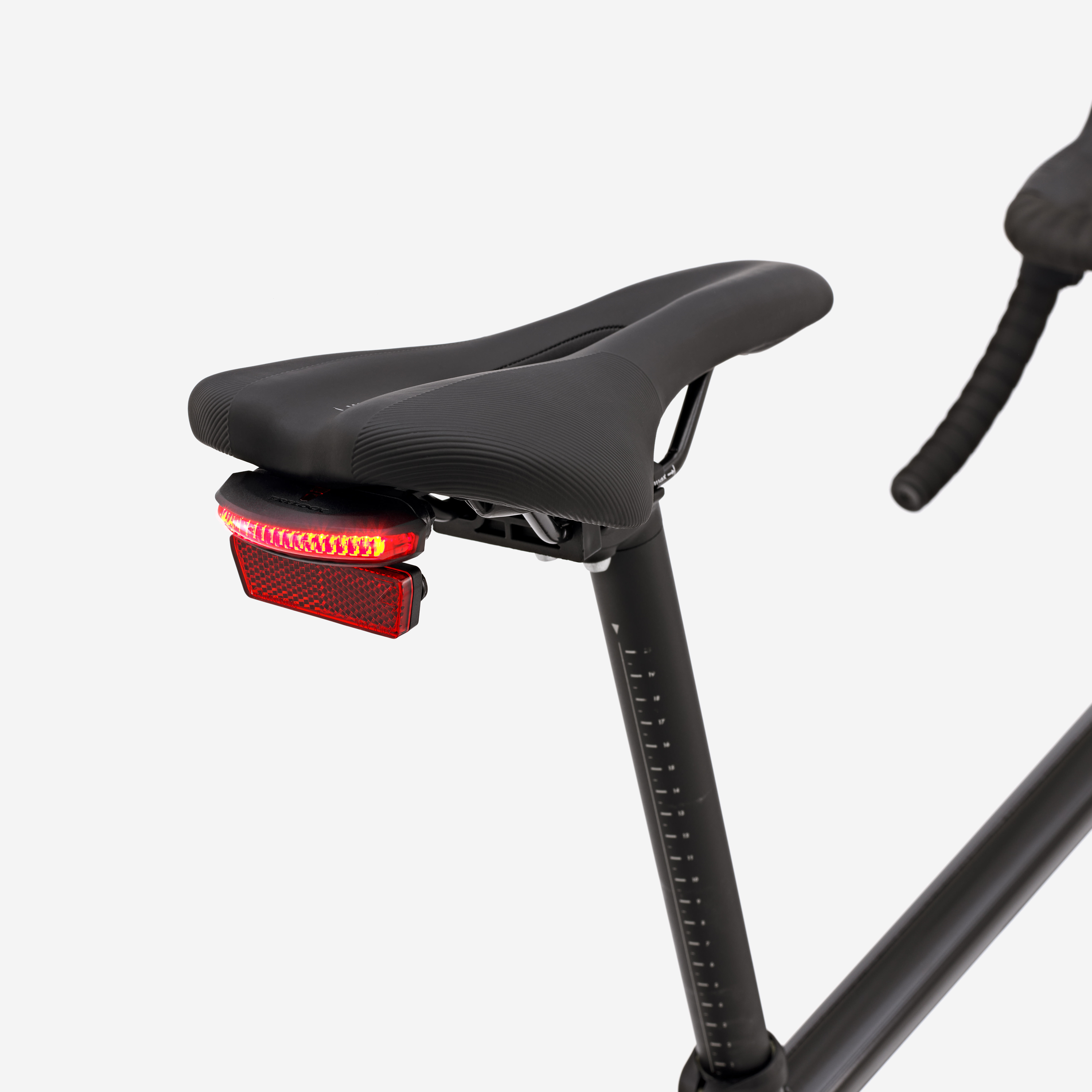

rear: Axa LS 651 cob line
powered by the bike battery
compatible with German, French, and European regulations

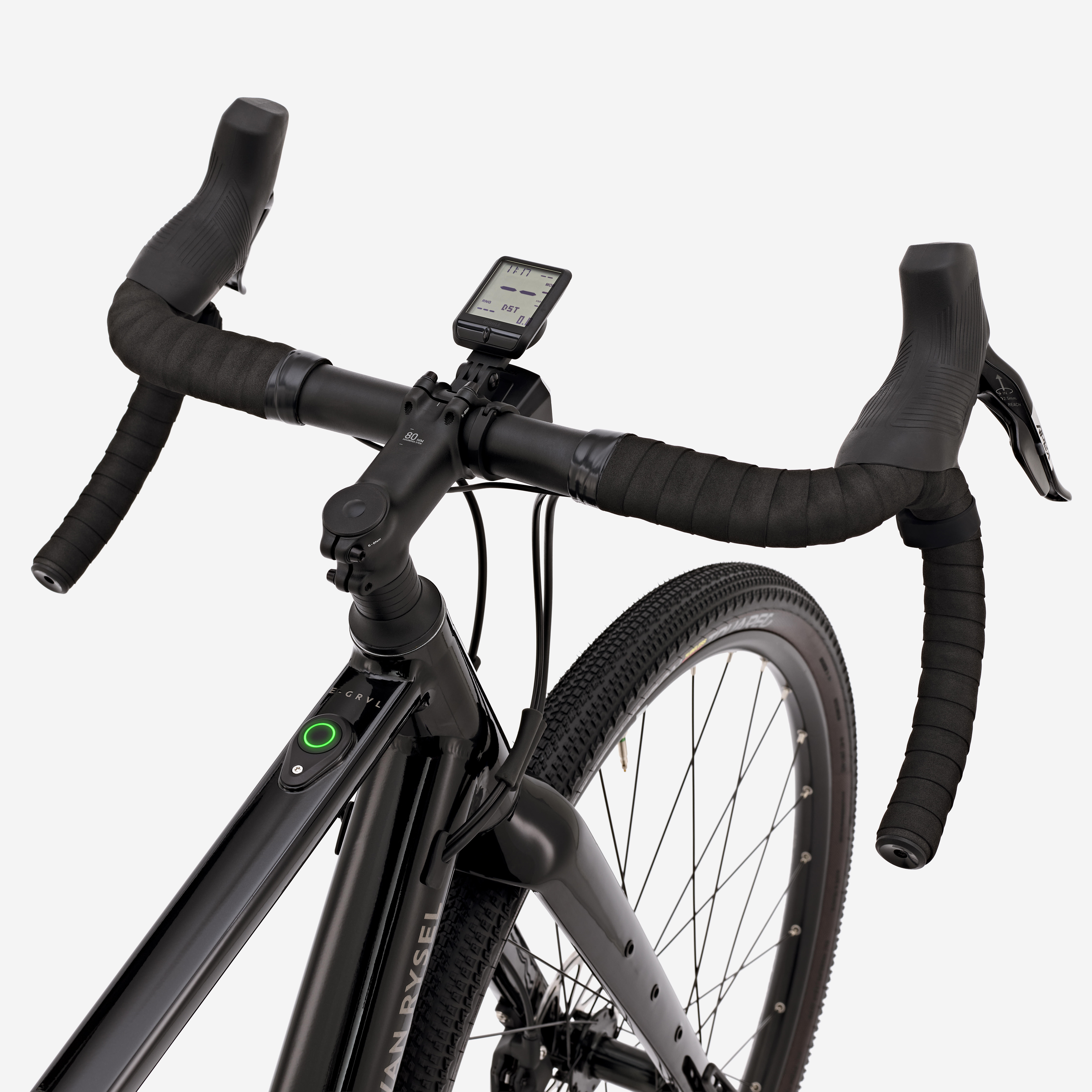

Display
Wireless, the new Mahle PulsarONE cycle computer enables you to interact with your bike and gives you access to data such as speed and distance, remaining battery life, chosen level of assistance, and so on.
Take control of your electric bike! You can increase or decrease the level of assistance and control the lights.
Connectivity
Bluetooth with Mahle "MySmartBike" app (assistance level settings, among other things)
ANT+ LEV with compatible devices (Garmin and others)
Weight
XS: 14.3 kg
S: 14.4 kg
M: 14.5 kg
L: 14.7 kg
XL: 14.9 kg
XXL: 15 kg
Maximum load
120 kg maximum total load (bike + rider + cargo)
