| INNOVATION |

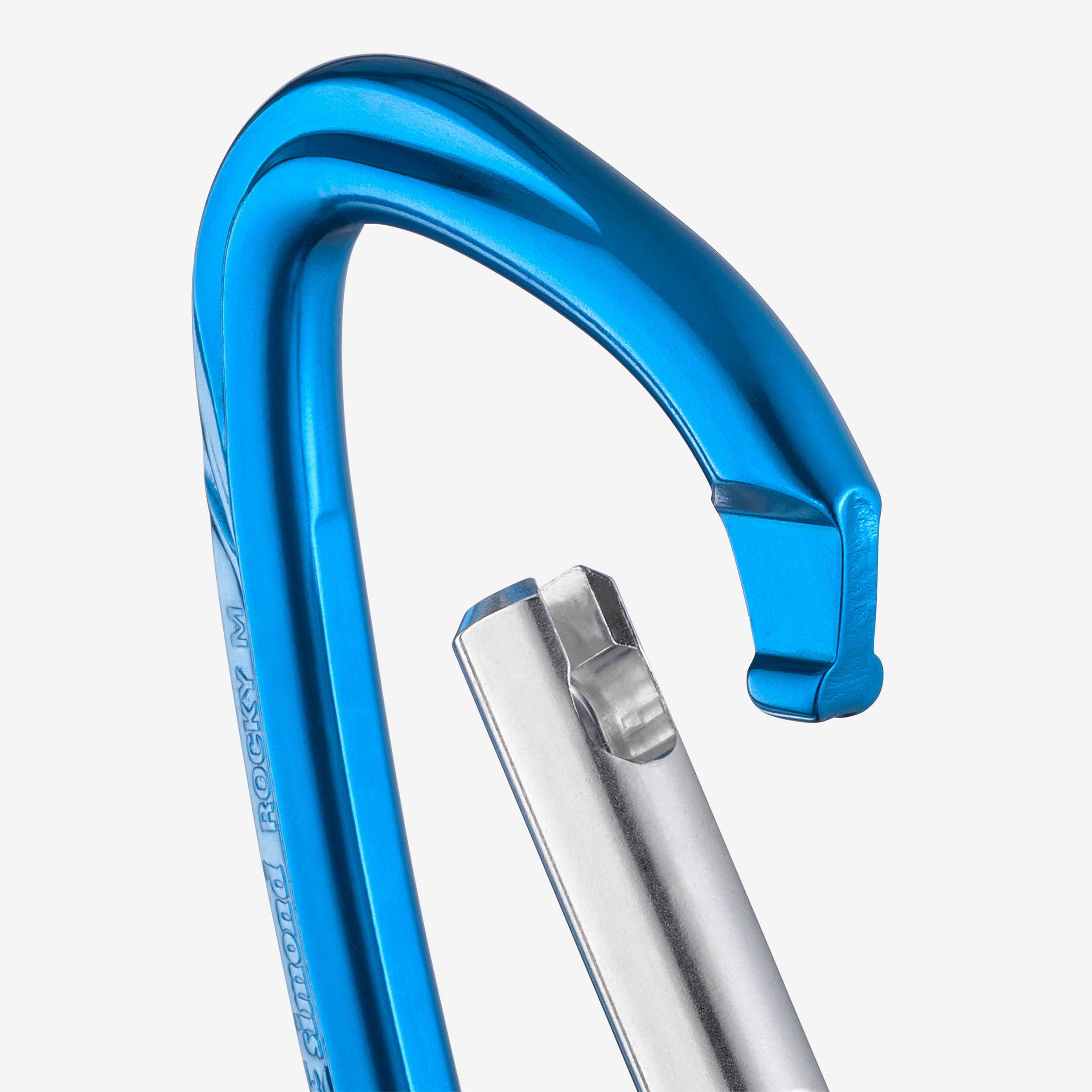

New patented system for gate opening/closing. The spring located inside the gate is held in place by a plastic runner which slides over the carabiner body. This new system replaces the strip system. It boasts the advantage of being more reliable during the assembly phase and in use. This system has been lab-tested in line with the applicable standards and in the field by our team of technical partners. |
| TECHNICAL FEATURES |

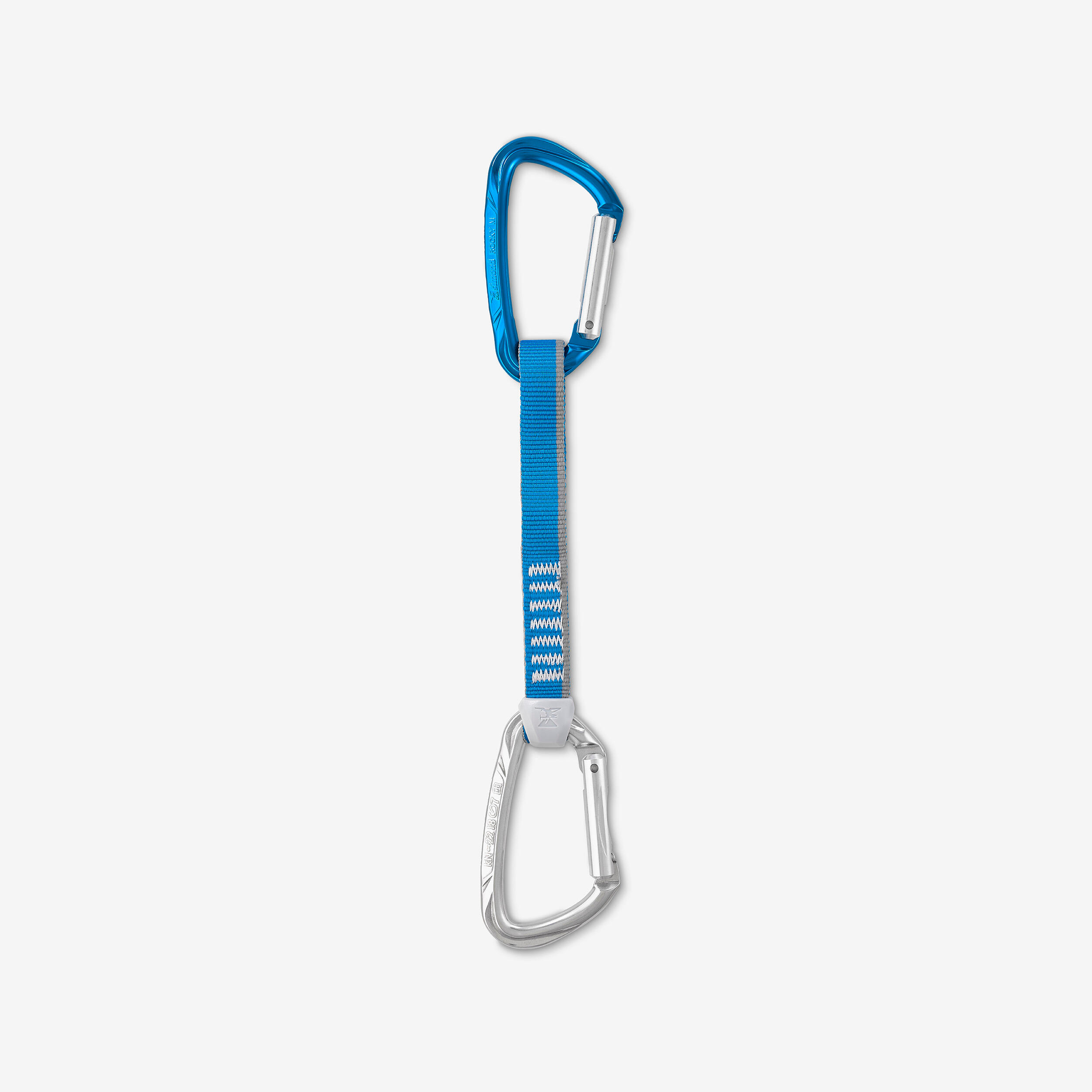

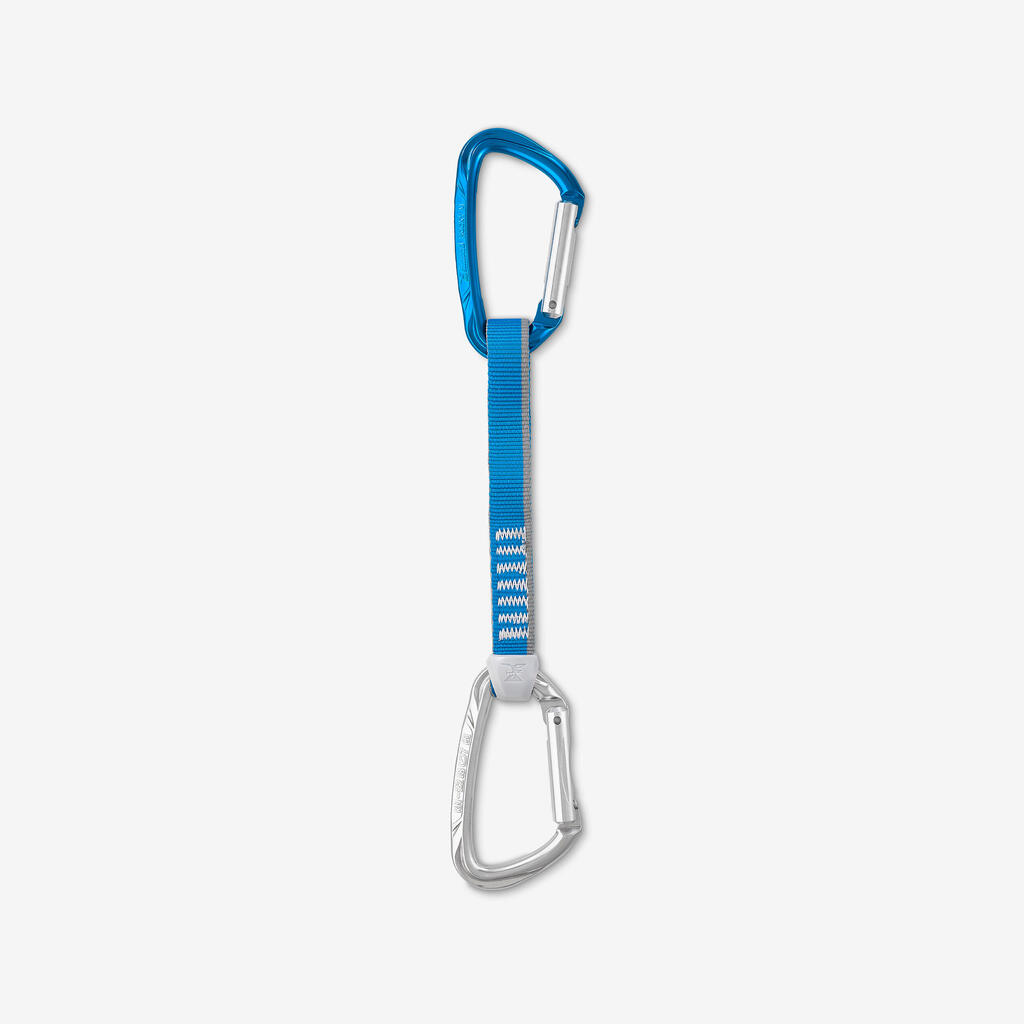

Full gate carabiner
Main axis: 22 kN
Minor axis: 8 kn
Open gate: 7 kn
Bent gate carabiner
Main axis: 22 kN
Minor axis: 8 kn
Open gate: 7 kn
Strap
Length: 17 cm
Width: 18 mm

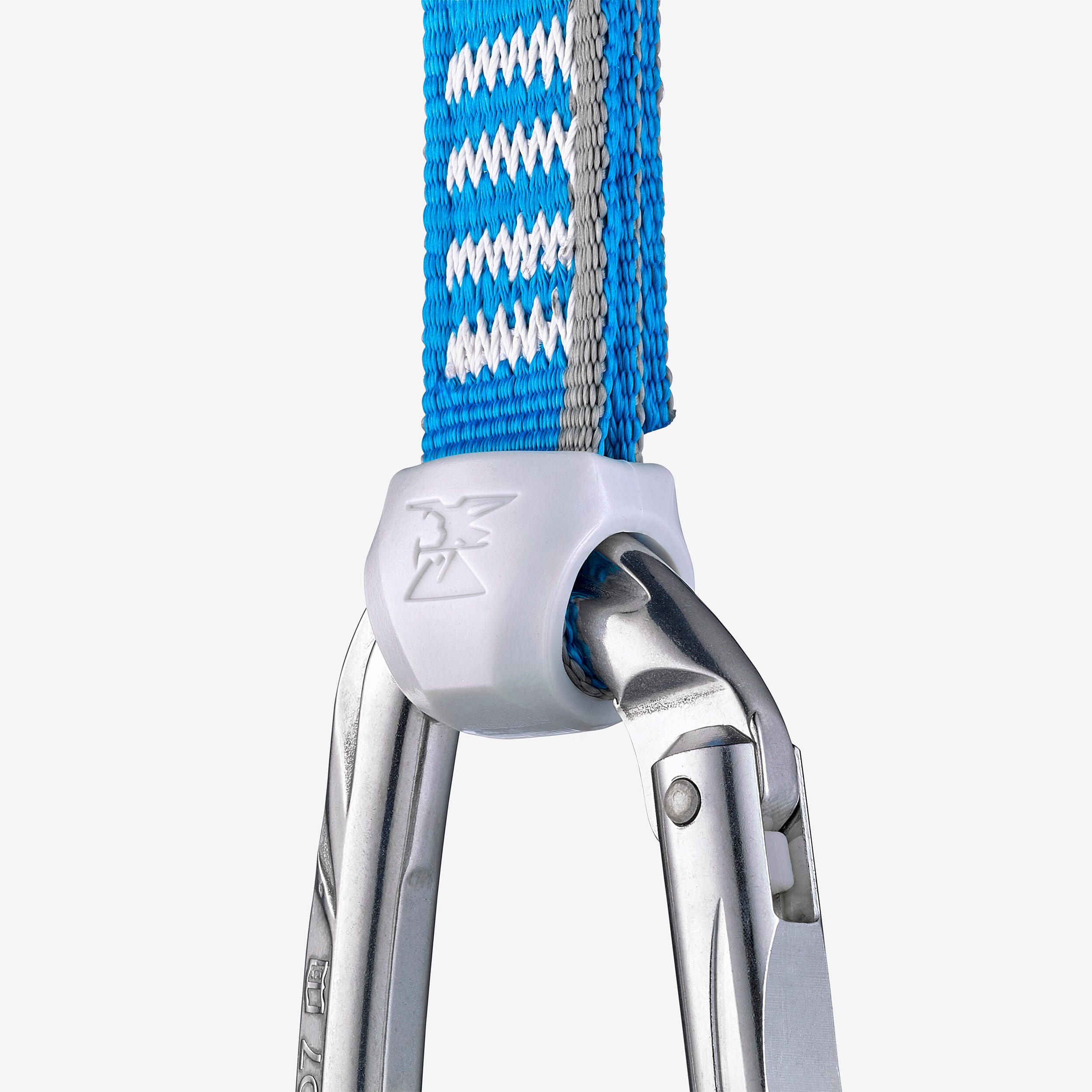

There is a plastic string on the bottom carabiner. It keeps the carabiner next to the quickdraw rope, and protects a relatively large part of the strap from wear. |
| CLEANING AND MAINTENANCE |
Quickdraws should be cleaned with fresh water and dried away from a source of heat. Do not use chemicals.
For more details, refer to the instructions for use. |
| STORAGE AND TRANSPORT CONDITIONS |
Store the quickdraw in a dry, cool and ventilated place, away from UV and chemicals.
For more details, refer to the instructions for use. |
| GUIDELINES FOR USE |
Carefully read the instructions before using the product |
| CERTIFICATION |
The carabiners are certified: EN 12275: 2013 and UIAA 121: 2018
The straps are certified EN 566: 2017 |
