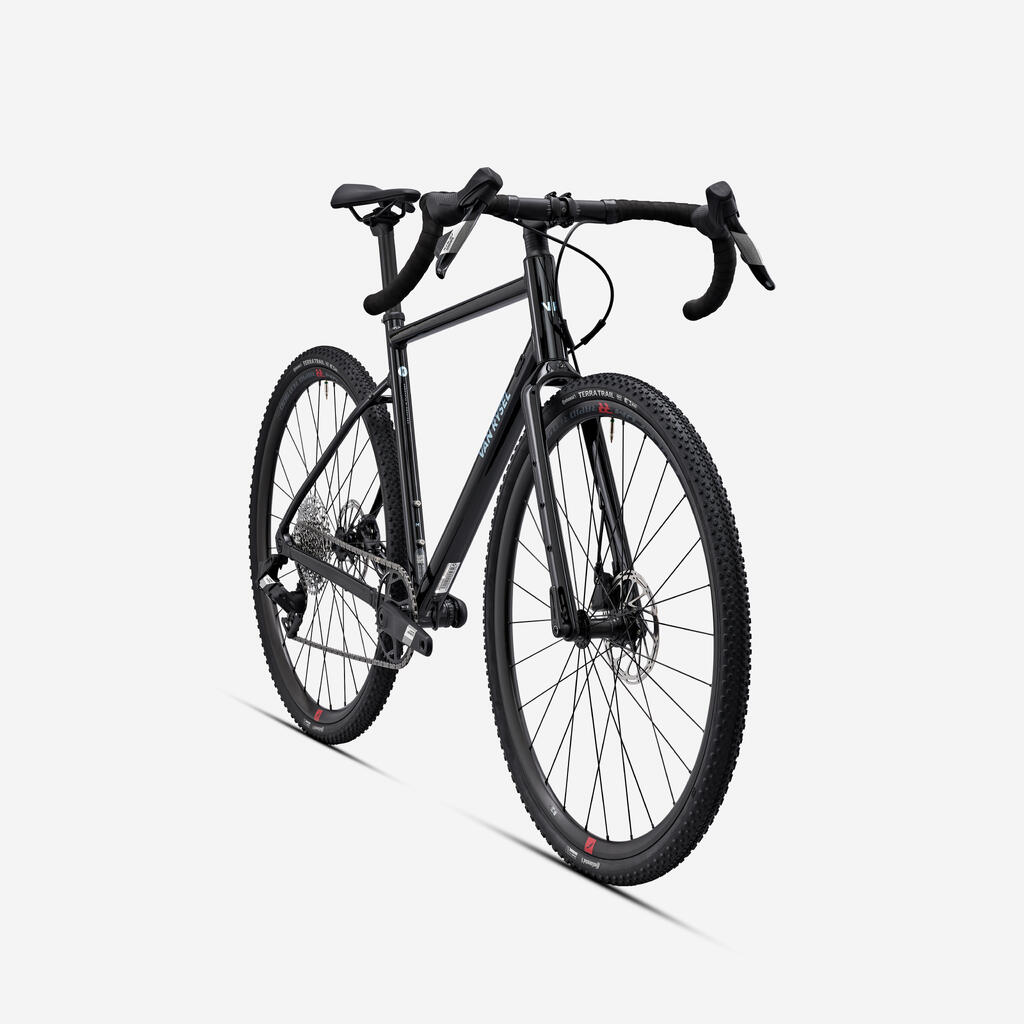

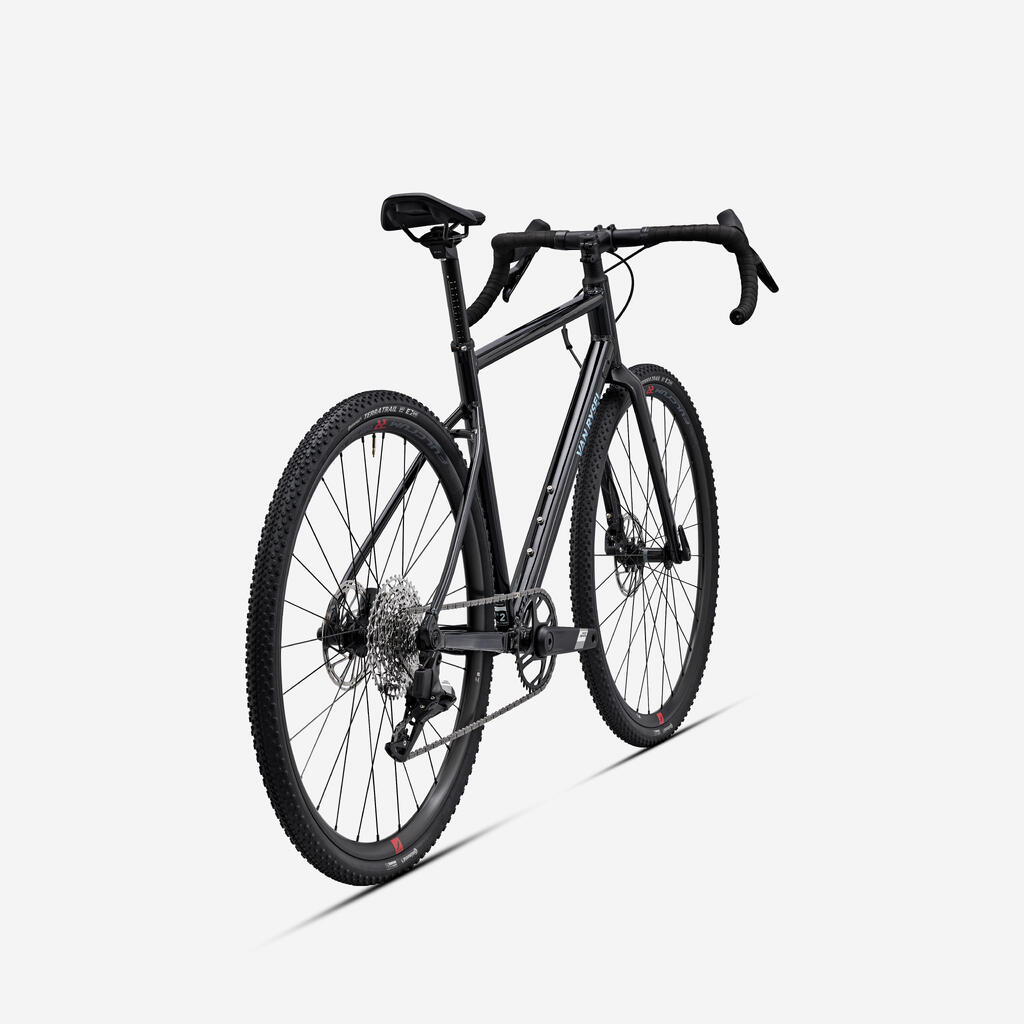

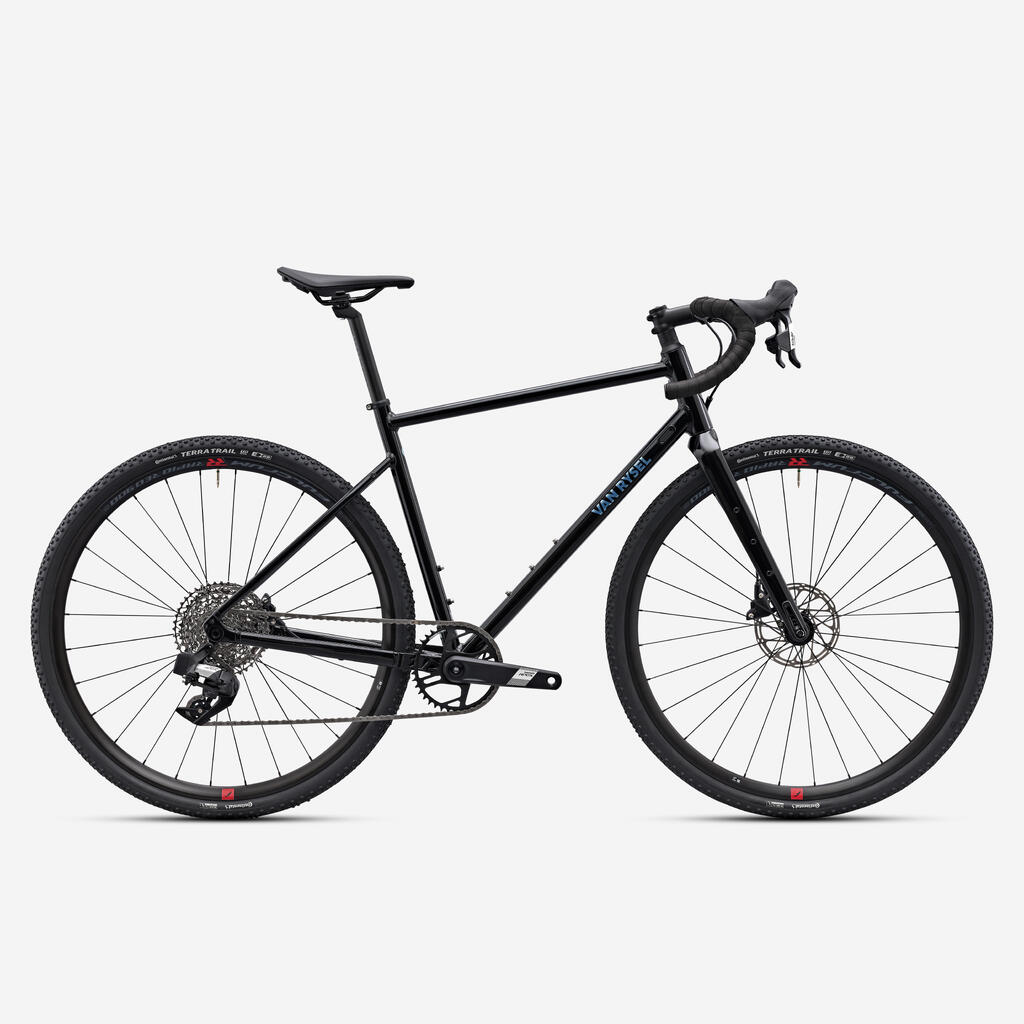

THE GRVL AF RANGE
The GRVL AF was developed for your regular gravel rides and your first adventures in bikepacking. If you want to get way from it all and have some fun, this bike is for you.The geometry has been improved to make the bike comfortable and versatile.You can mount tyres up to 50 wide (in 700!) to venture out on long winding trails in search of freedom and thrills.

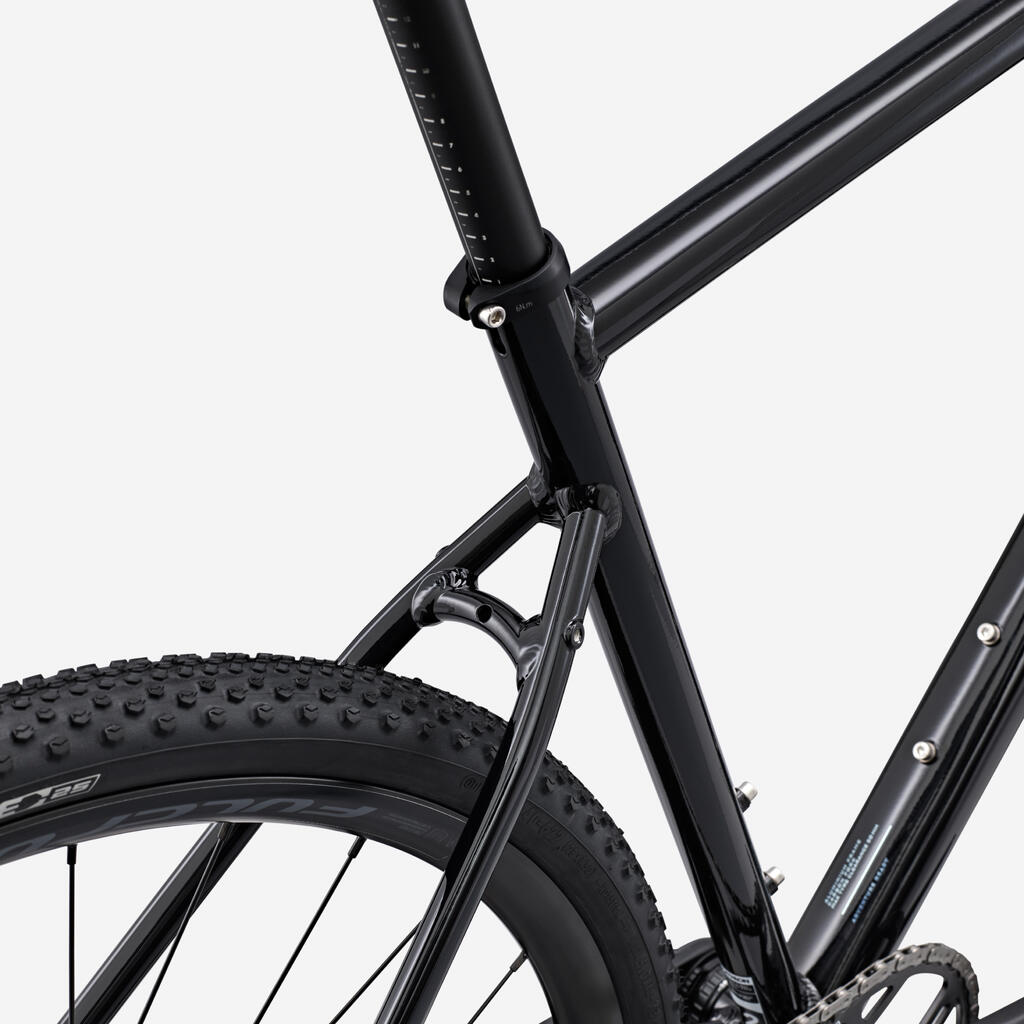

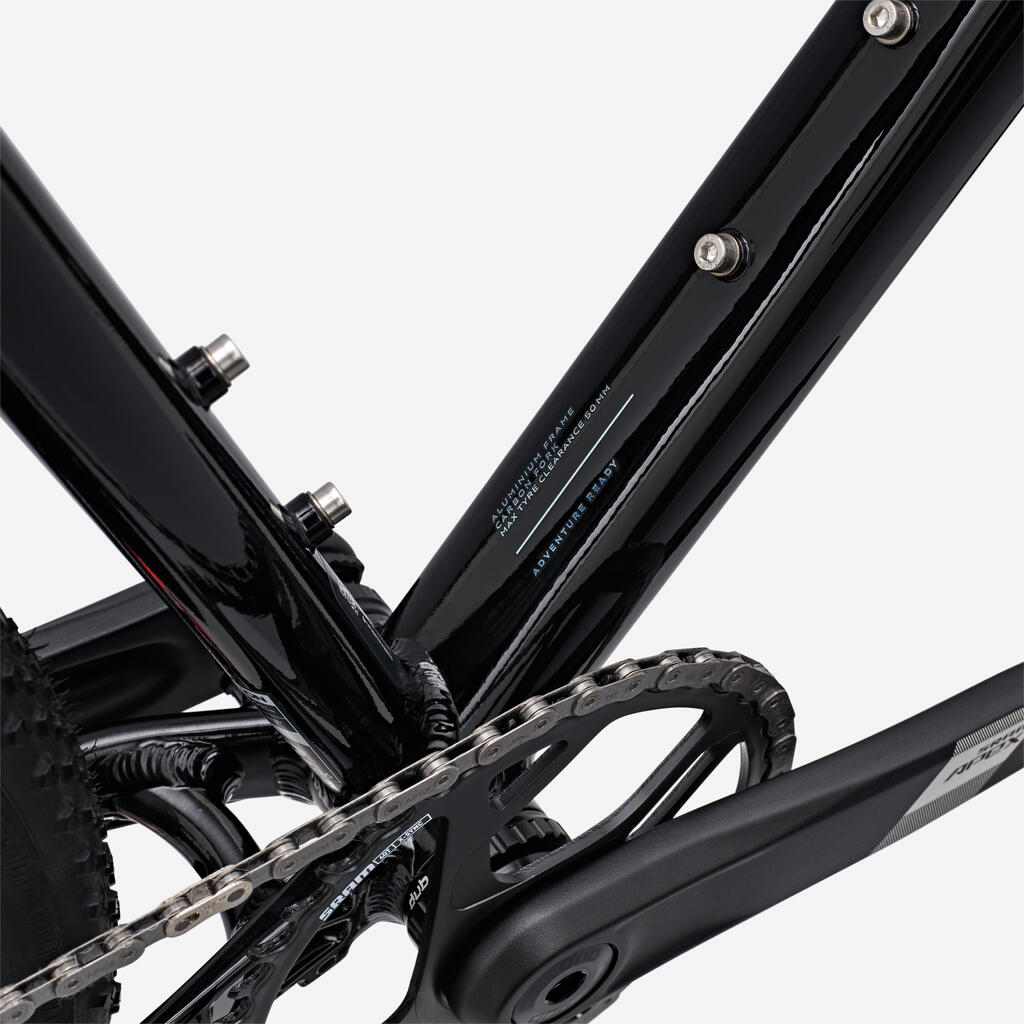

HIGH-QUALITY, COMFORTABLE ALUMINIUM FRAME

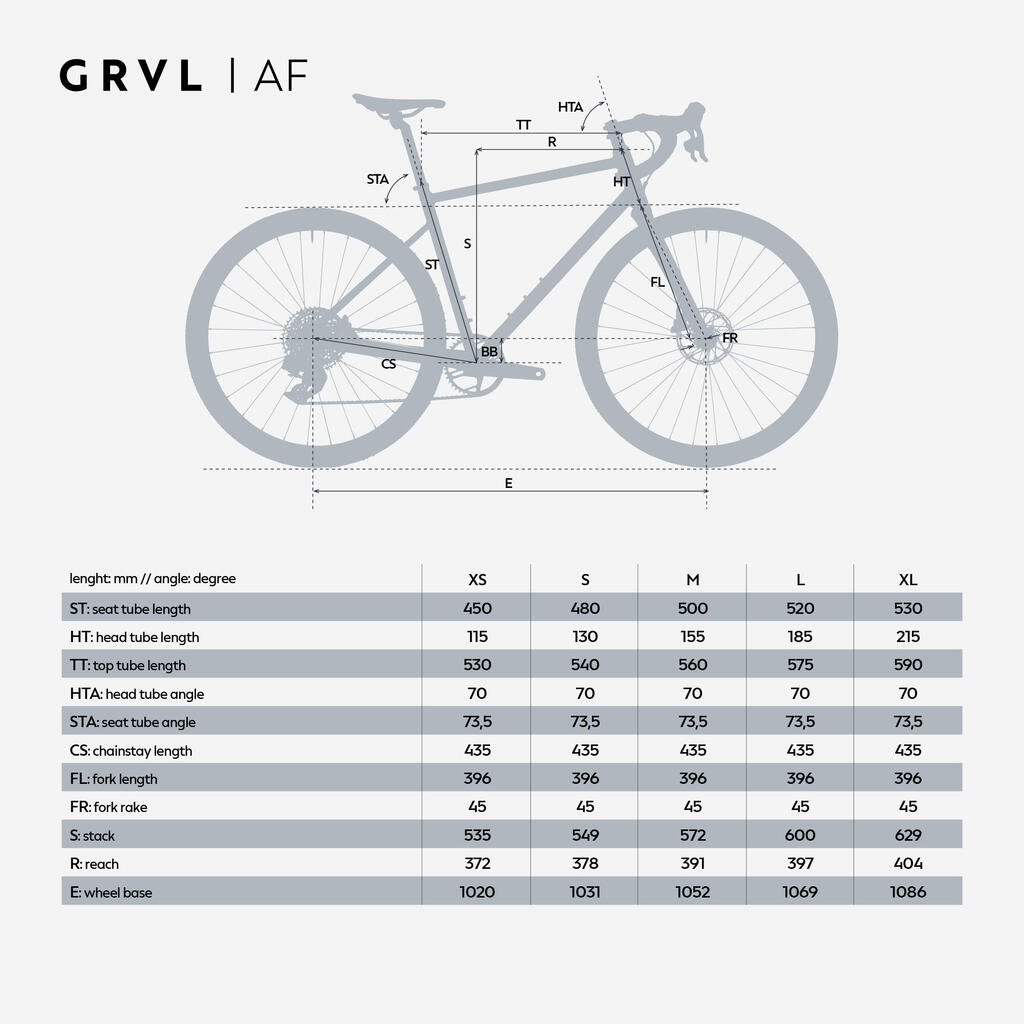

The GRVL AF frame is made from double-thickness 6061 aluminium which reduces its weight and makes it more responsive, for a very playful bike.Its geometry has been adapted to provide a comfortable position that is suited to gravel riding.
The frame is compatible with tyres with a max cross section of 50mmThe frame weighs 1,870g in size M.

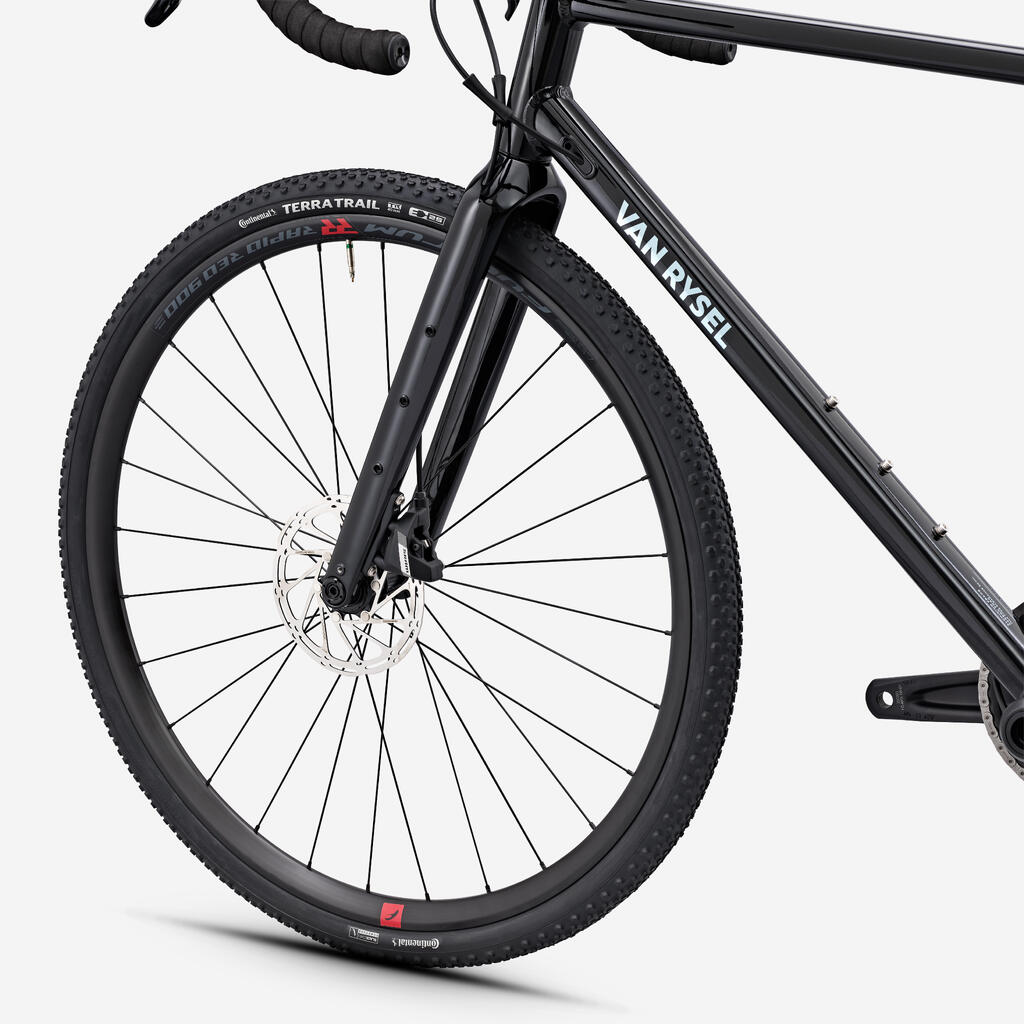

CARBON FORK
The GRVL AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Three side inserts enable you to attach extra bags or bottle carriers to set off on an adventure.The fork is compatible with tyres with a max cross section of 50mmThe frame and fork are compatible with mudguards and a pannier rack.

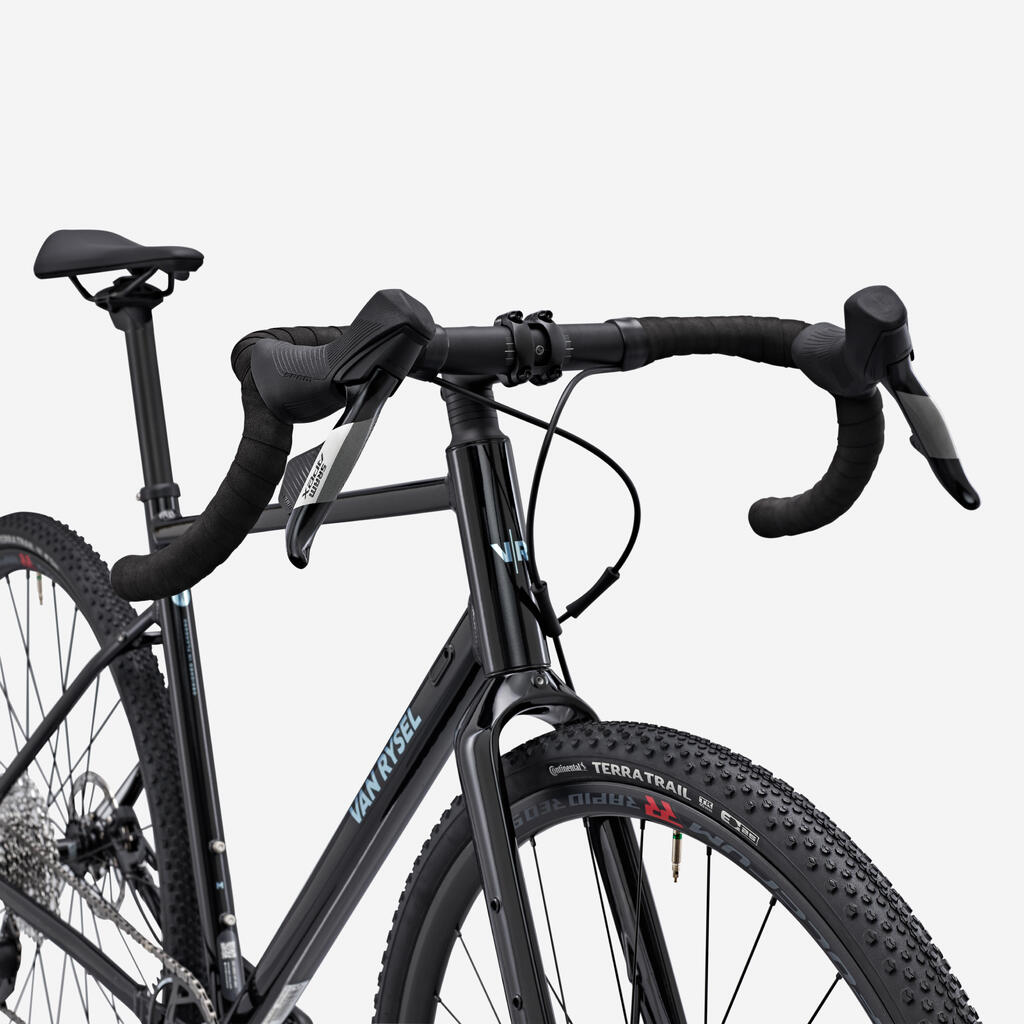

RIDING POSITION:HANDLEBAR AND STEM
The GRVL AF 31.8 mm diameter handlebars are made from 6061 T6 aluminium.The 16º flare is ideal for gravel riding, for a comfortable ride and good manoeuvrability.Handlebar width depends on bike size:
XS - 400 mm
S - 420 mm
M/L - 440 mm
XL - 460 mm
The reach is 70mm and the drop 130mm.The stem is made from 6061 T6 7º/ -7º aluminium
Stem length according to bike size:XS - 60 mm
S - 70 mm
M - 80 mm
L - 90 mm
XL - 100 mm

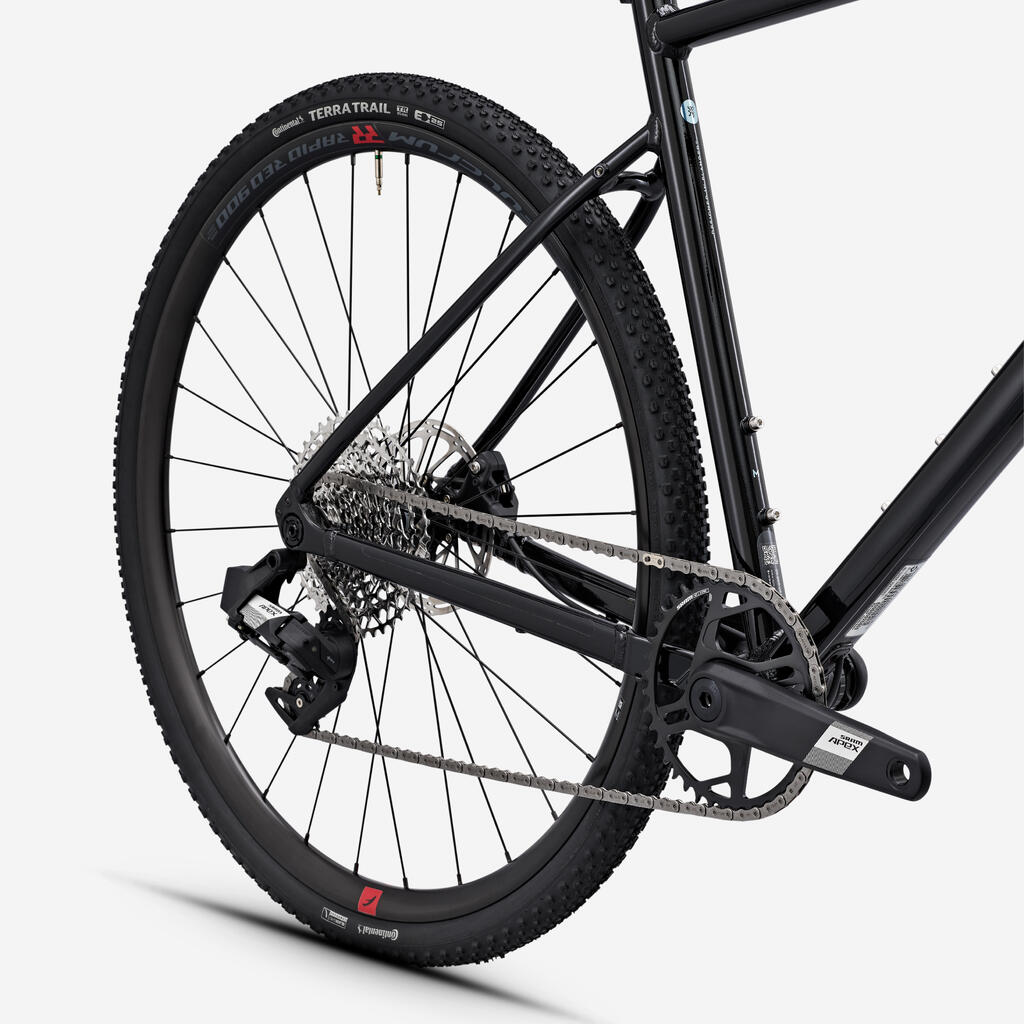

SRAM APEX XPLR ELECTRONIC DRIVE TRAIN 1x12 SPEEDS AXS
This bike comes with a SRAM APEX XPLR AXS single chainring electronic drive train and 12 speeds.
Shifter: SRAM Apex 1x12
Crankset: SRAM Apex 1 D1 DUB WIDE 40T
Crank length:
XS/S - 165 mm
M/L - 172.5 mm
XL - 175 mm
SRAM Apex 12 XPLR AXS rear derailleur
SRAM APEX XPLR PG-1231 12S - 11/44T cassette
SRAM APEX D1 12S chain - 114 links
BSA 68mm crank housing
SRAM DUB ROAD WIDE
Hydraulic disc brakes
Hydraulic brakes: SRAM Apex D1 Flatmount
Front / rear brakes: SRAM paceline 160mm centerlock
Brake levers: SRAM Apex D1
Pads: SRAM Steel-backed organic
Powerful and precise braking through simultaneous activation of two combined brake pads, coupled with highly adjustable settings.It is recommended to bed in the braking system to fully enjoy the benefits of the disc brakes.
ALUMINIUM WHEELS DESIGNED FOR OFFROAD BIKING
Fulcrum Rapid Red 900 wheels
24.1 mm high wheel rims
Internal width 22 mm
External width 27.1 mm
Number of spokes: 28
Front thru axle 12x100mm M12x1.5
Rear thru axle 12x142mm M12.x1.5
Fulcrum TLR rim base
Tubeless ready (kit not supplied)
Weight of wheels: 1950 g
CONTINENTAL TERRA TRAIL GRIPPY TYRES
Continental Terra Trail tyres 700 x 40 mm
Weight 460g per tyre.
Inner tube pressure: min:2.5 bar/38 psi
max:3.5 bar / 51 psi
Check out our tips here:https://conseilsport.decathlon.fr/comment-gonfler-ses-pneus-en-gravel
The tyres are fitted with inner tubes, but there is an option to convert them to tubeless using valves ref 8664210 and sealant ref 8363393.

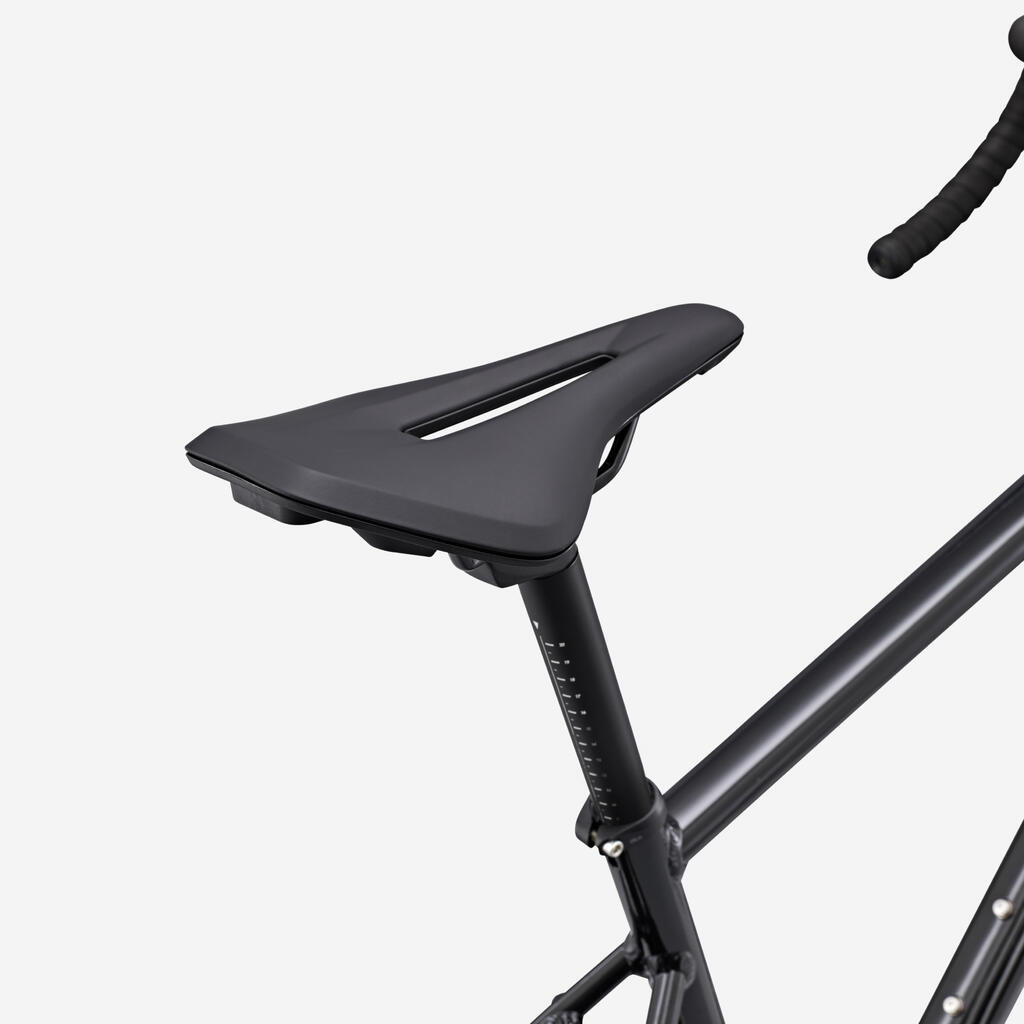

SEATING COMFORT
DECATHLON LIGHT 30º saddle
Width: 155 mm
Length: 250 mm
Steel clamp
B'TWIN 6061 T6 aluminium seat post
Diameter:27.2 mm
Height:
XS/S: 300 mm
M/L/XL: 350 mm
The natural flex of the seat post (thanks to its 27.2 diameter) filters vibrations and impacts for greater comfort.
LITTLE THINGS TO KNOW ABOUT THE GRVL AF
Your GRVL AF comes with a box that includes:
- Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance
- 2 brake clips
- 1 bell
- 1 front and rear light
- 1 torque spanner
- 1 tube of seat post grease
BIKE WEIGHT
This configuration with a SRAM Apex XPLR AXS drive train weighs approximately:
XS: 10.50 kg
S: 10.70 kg
M: 10,88 kg
L: 10.95 kg
XL: 10.98 Kg
The maximum load (user+load) is 110 kg whatever the bike size.
Care tips
We recommend avoiding high-pressure water jets when washing your gravel bike to avoid damaging it.We recommend cleaning your Gravel bike after each ride, particularly after confronting particularly muddy or dusty terrain. In addition, remember to check your tyre pressure and braking efficacy before each ride.
PROTECTING the FRAME
When using bags or other accessories and in order to protect the varnish, you can use the following transparent protective stickers: 8486947.
