VAN RYSEL

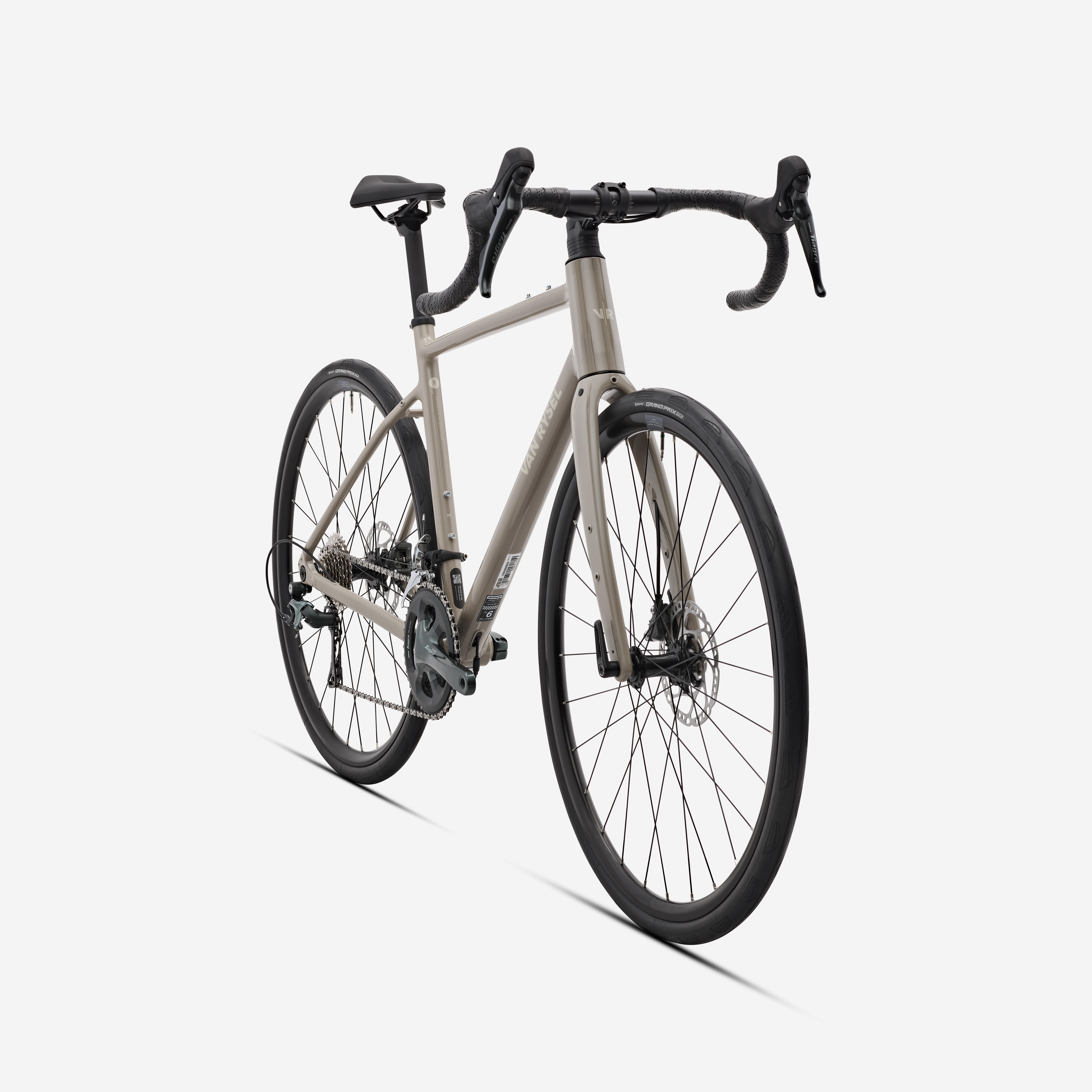

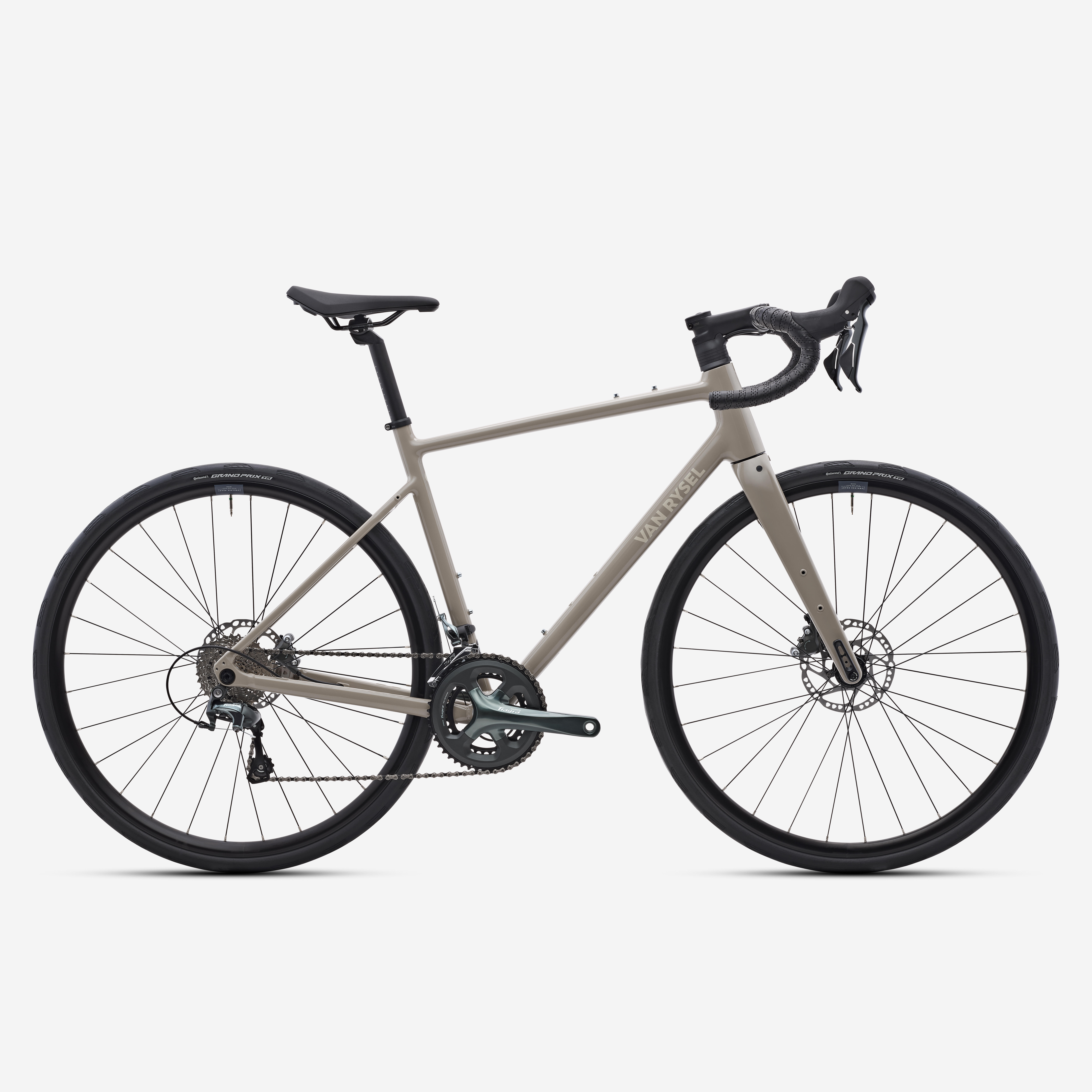

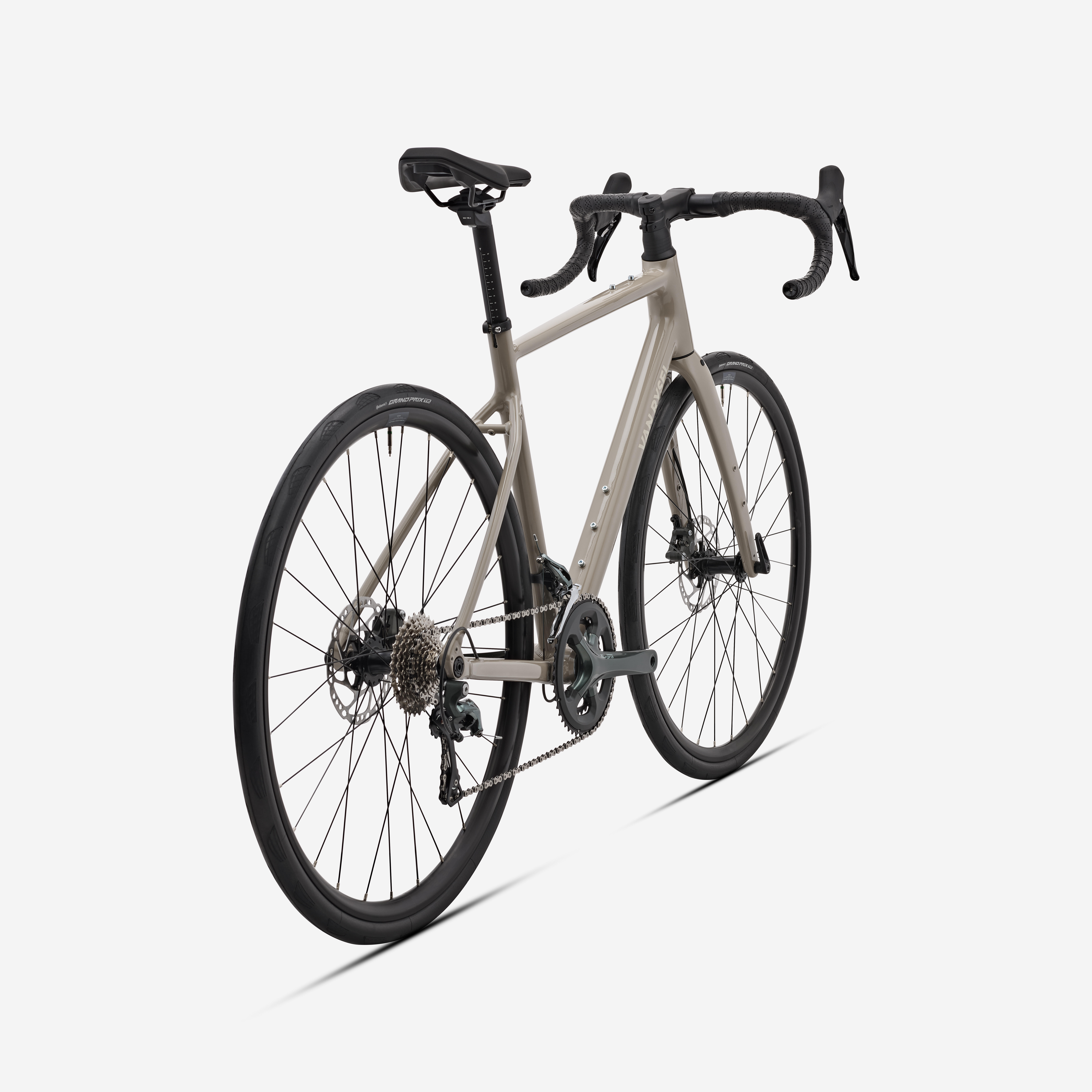

Shimano Tiagra 2x10-speed, EDR AF2 Road Bike - Beige

5.0 out of 5 stars from 1 reviews
1 reviews

This bike has been designed to suit your needs!

Whatever the distance, on roads and cycle paths on roads, the EDR AF2 has lots going for it thanks to its versatility and the quality of its finishes.

ID 8810322

€1,289.99
Tax included
Color: Beige

  • Pick up at Decathlon

    Loading...

  • Pickup with BOX NOW

    Loading...

  • Home Delivery

    Loading...

Design benefits

  • lightweight

    10.2 kg in size M (without pedals)

  • vibration dampening

    Aluminium wheels and 32mm tyres to reduce vibrations

  • number of speeds

    Double chainset and 10-speed cassette for riding on flat roads and mountains

  • braking power

    Hydraulic disc brakes for effective braking

  • Features

    Design details

    Technical specifications

    Frame: Aluminium 6061
    Fork: carbon
    Transmission: Shimano Tiagra 4700 2x10-speed (48/34 - 11/32)
    Brakes: Shimano Tiagra hydraulic brakes
    Wheels: VAN RYSEL EDR aluminium
    Tyres: CONTINENTAL Grand Prix TR (32 mm)
    Weight: 10.2 kg (size M, without pedals)

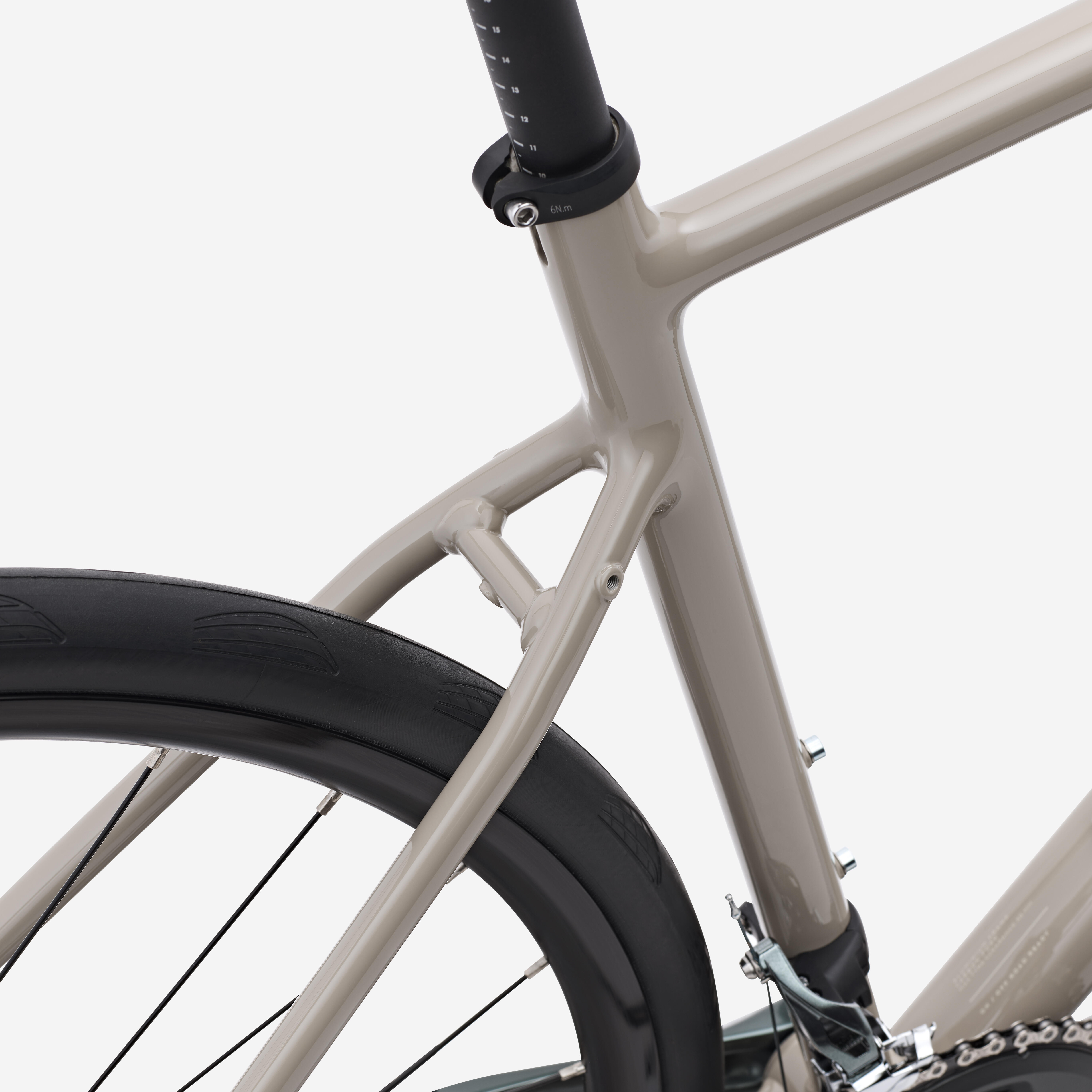

    Frame and Fork

    Frame: VAN RYSEL EDR AF2

    Composition: Double-thickness 6061 aluminium
    Maximum clearance of the tyres: 38 mm
    Nb of inserts: 8 frame inserts - 6 fork inserts - 2 mudguard inserts
    Fork: 100% carbon
    Front axle: 12 x 100 mm
    Rear axle: 12 x 142 mm

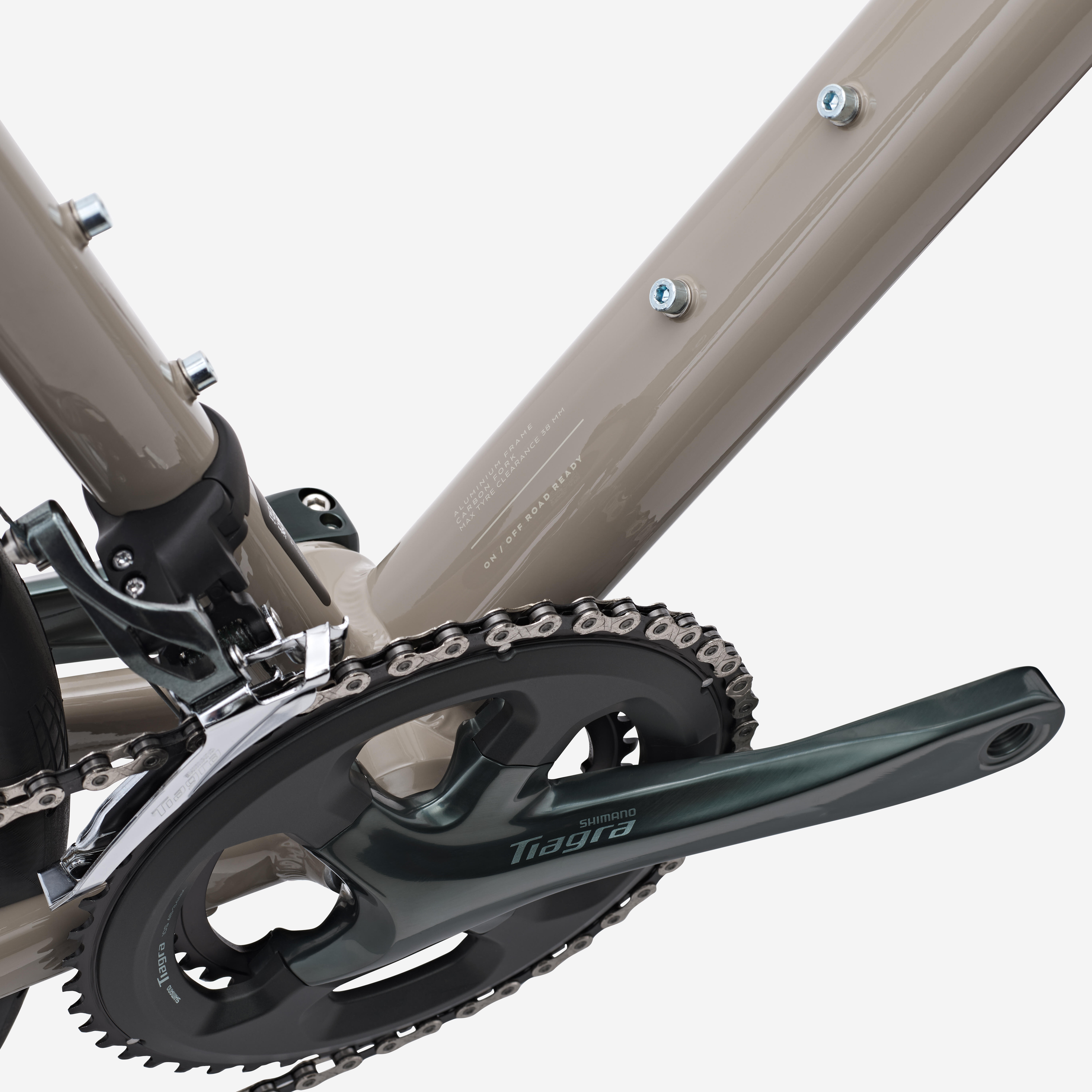

    Drivetrain

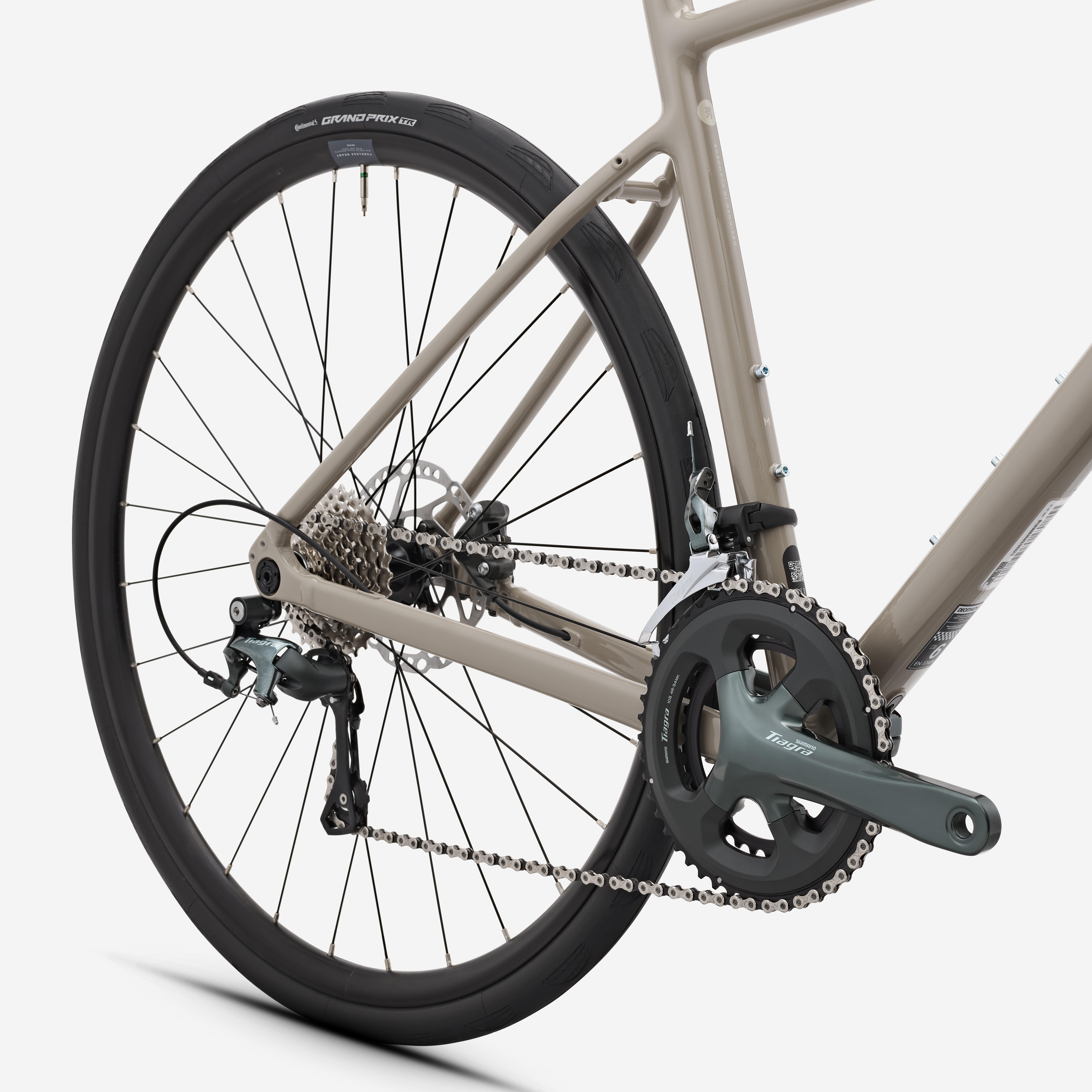

    Groupset: Shimano Tiagra 4700 2x10-speed (mechanical)

    Chainwheel: Shimano Tiagra FC-4700 48/34 teeth
    Crank: Shimano Tiagra FC-4700
    Crank length: 165 mm (XS) / 170 mm (S) / 172,5 mm (M) / 175 mm (L/XL)

    Cassette: Shimano HG500 10-speed 11/32
    Chain: KMC X10
    Front derailleur: Shimano Tiagra 4700
    Rear derailleur: Shimano Tiagra 4700 GS
    Gear shifter: Shimano Tiagra 4721

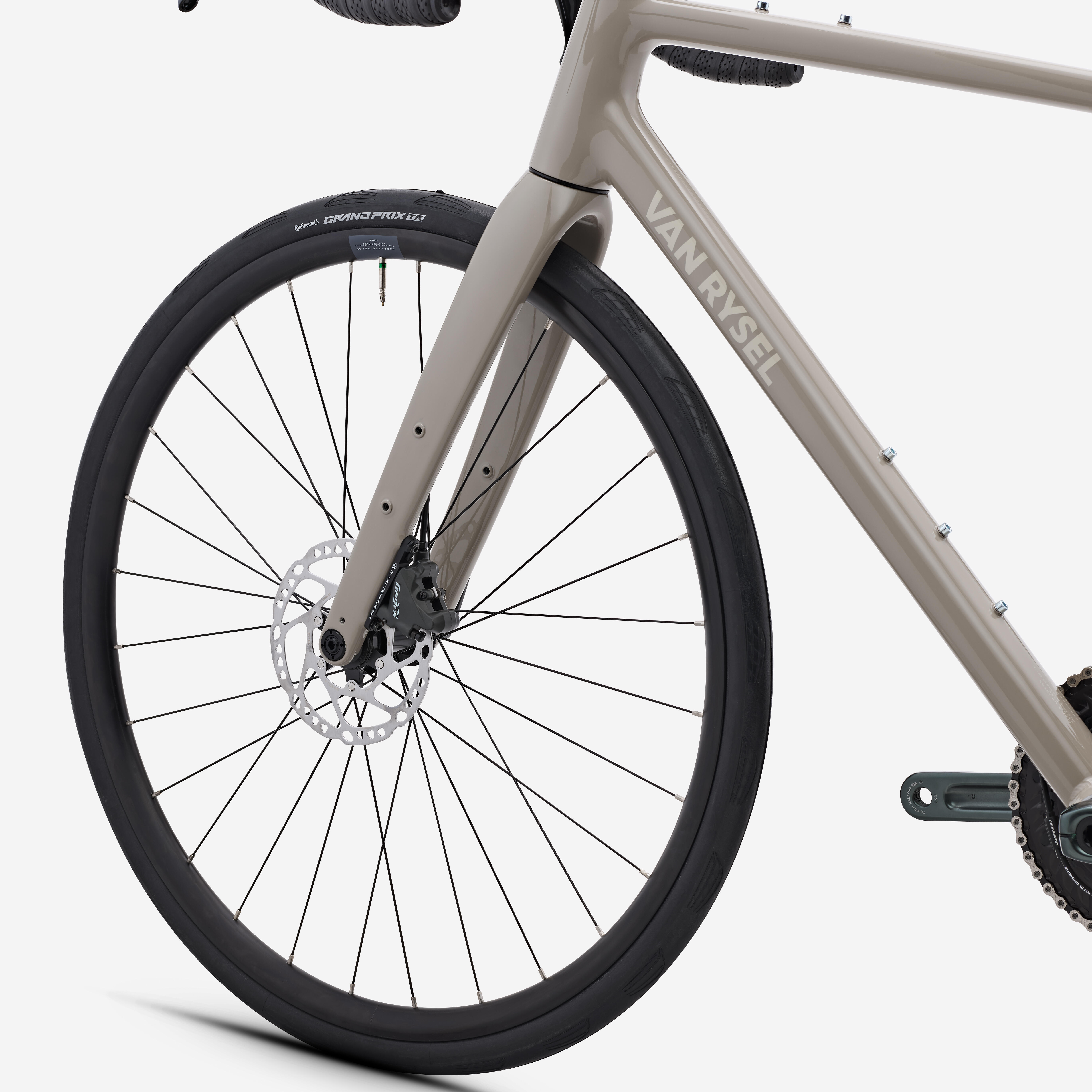

    Wheels

    Wheels: VAN RYSEL EDR

    Rim material: aluminium
    Type of rim: with hooks
    Tubeless Ready: yes
    Rim height: 24mm
    Internal width: 21TC
    Front hub: VR FRONT HUB TA - 28 spokes
    Rear hub: VR REAR HUB TA - 28 spokes

    Weight of pair: 2000 g

    Tyres

    Tyres: CONTINENTAL GRAND PRIX TR

    Front tyre dimensions: 700x32
    Rear tyre dimensions: 700x32
    Tubeless Ready: YES

    Brakes

    Brakes: Shimano Tiagra BR-4720 hydraulic

    Front disc: 160 mm
    Rear disc: 160 mm
    Disc mount: Centerlock

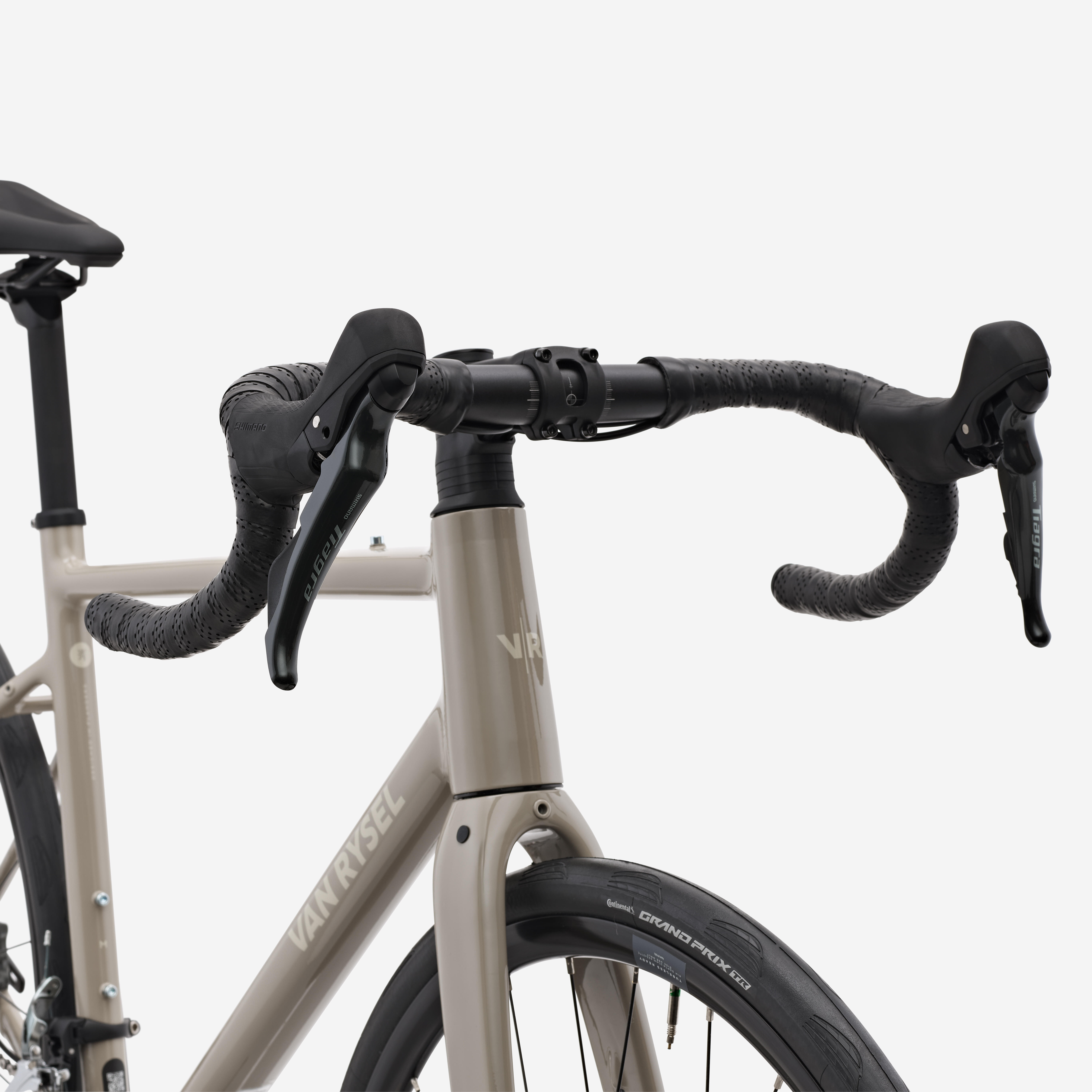

    Riding position

    Handlebar: VAN RYSEL
    Material: Aluminium
    Width:
    XS 380 mm - S 400 mm - M 400 mm - L 420 mm - XL 420 mm
    Flare: 10°
    Internal cable routing: yes

    Stem: VAN RYSEL
    Material: Aluminium
    Length:
    XS 80 mm - S 80 mm - M 100 mm - L 100 mm - XL 110 mm

    Handlebar tape: VAN RYSEL EDR ULTRA

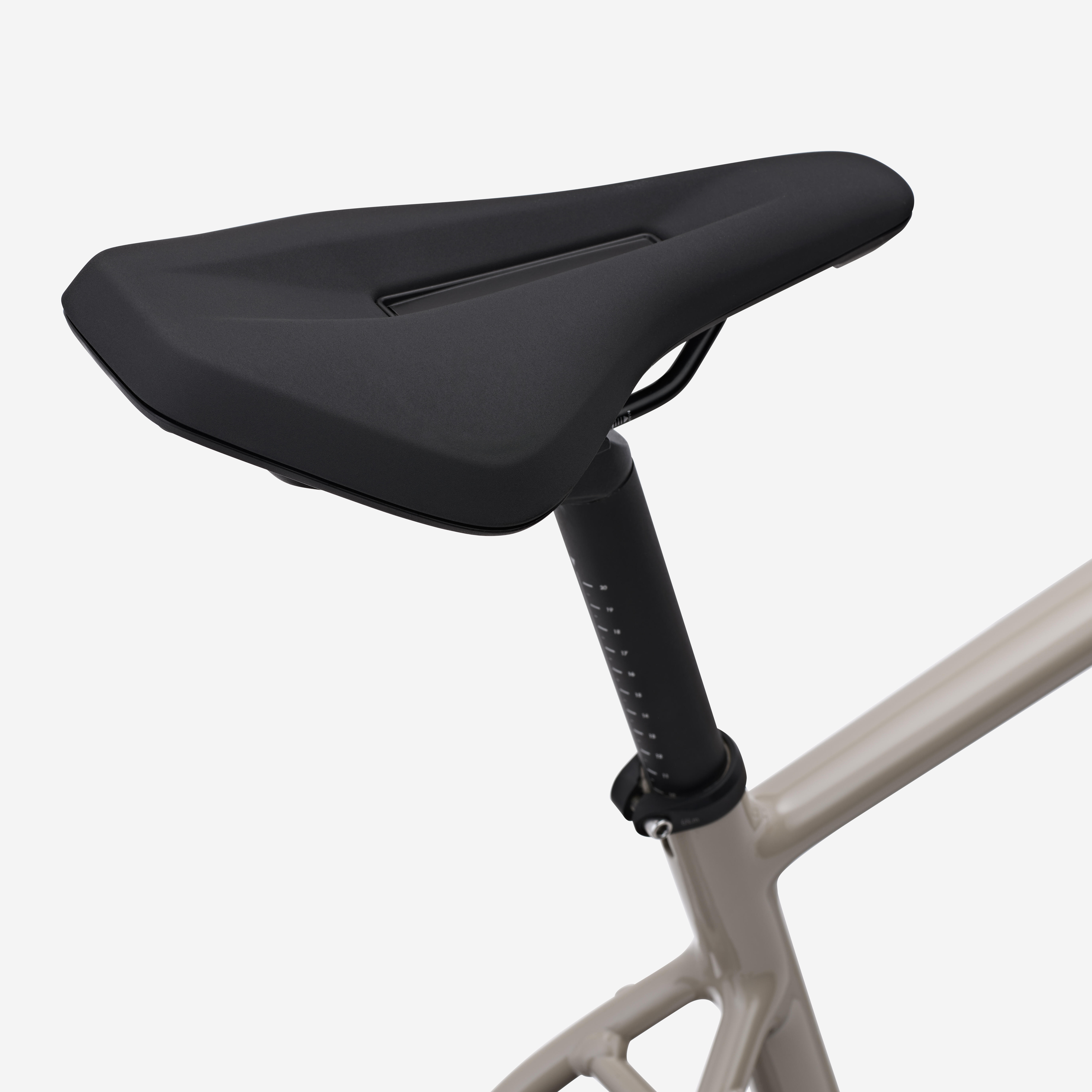

    Saddle and seat post

    Saddle: VAN RYSEL Light 30°
    Seat post: VAN RYSEL aluminium
    Diameter: 27.2 mm
    Height: XS 250 mm - S 350 mm - M 350 mm - L 350 mm - XL 400 mm

    ACCESSORIES INCLUDED

    Pedals: flat
    Torque spanner: included
    Lights: included (front and rear)
    Bell: included

    Weight

    M: 10.3 kg

    * Weights based on painted frames in production as illustrated. Actual weights will vary depending on colour, frame size and component variation.

    Maximum load (cyclist + load): 110kg

  • Usage & care

    Warranty

    2 Years

    Care Instructions

    Usage precautions

    Maximum user weight + load: 110kg

    Cleaning

    • DO NOT WASH.

    • DO NOT DRY CLEAN.

    • DO NOT IRON.

    • DO NOT TUMBLE DRY.

    • BLEACHING EXCLUDED.

  • Specifications

    Composition

    Bike frame: 100.0% Aluminium;Front derailleur cage: 100.0% Carbon

  • Testing

    Parts guarantee

    Lifetime warranty on the frame, handlebar, and stem; 5-year warranty on the fork.
