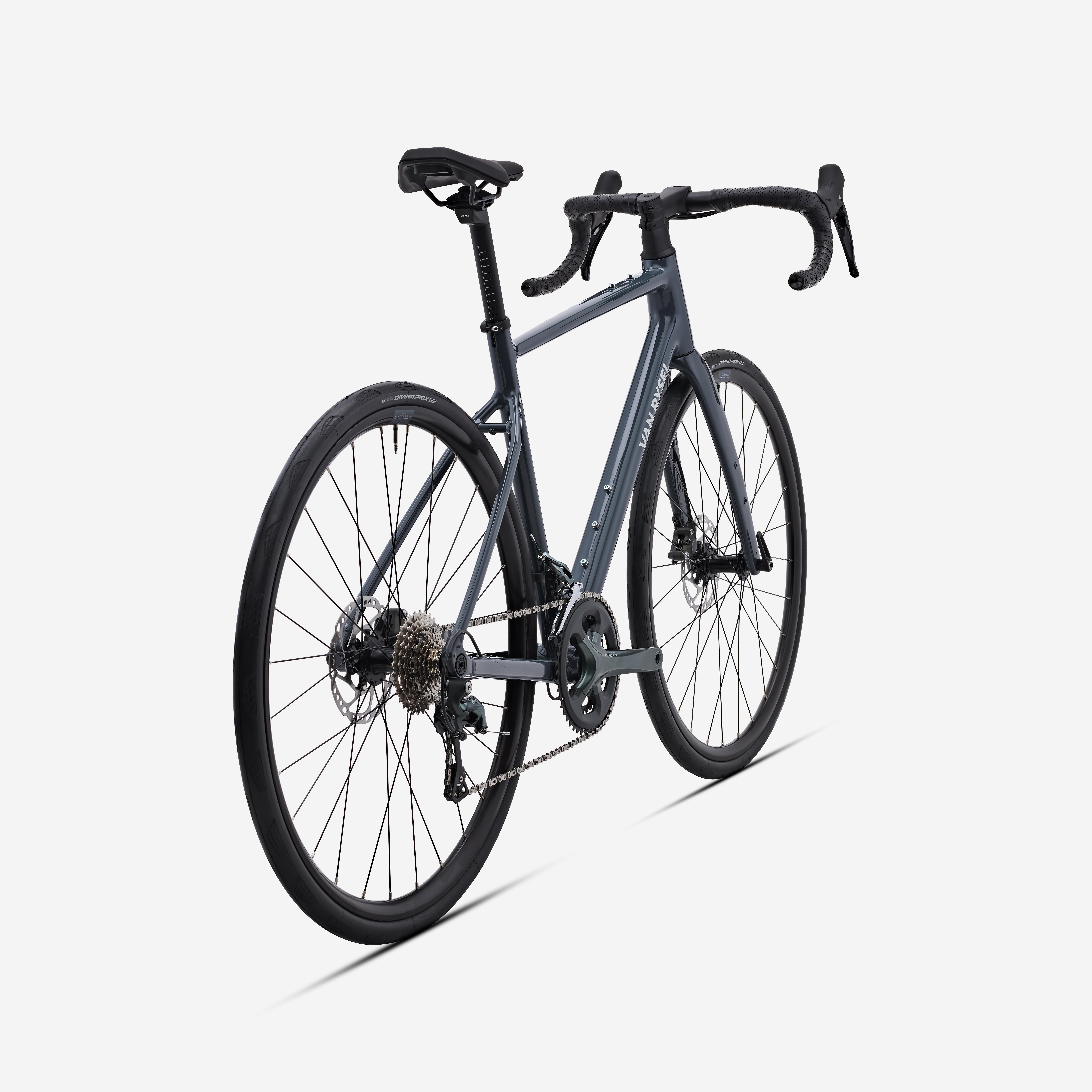

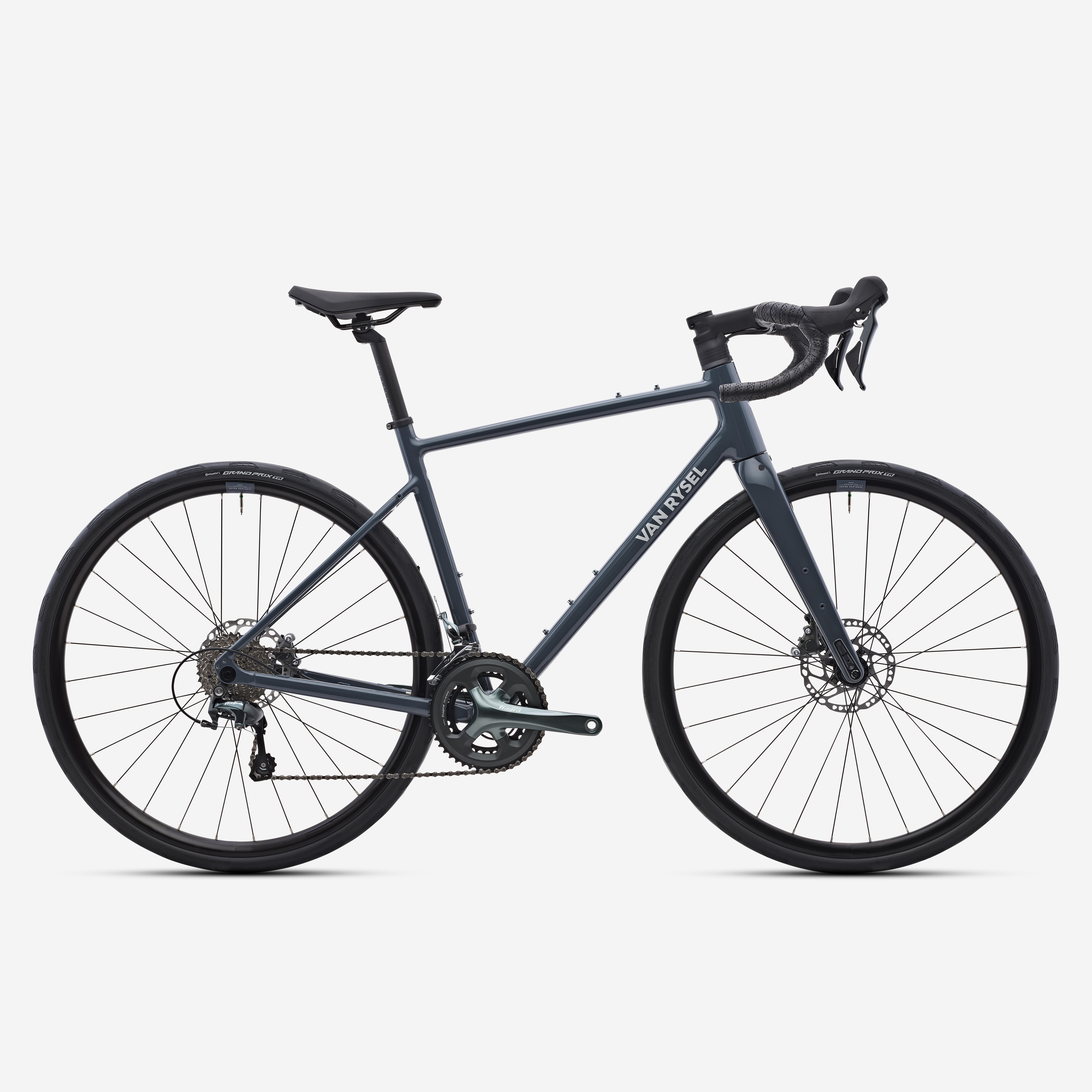

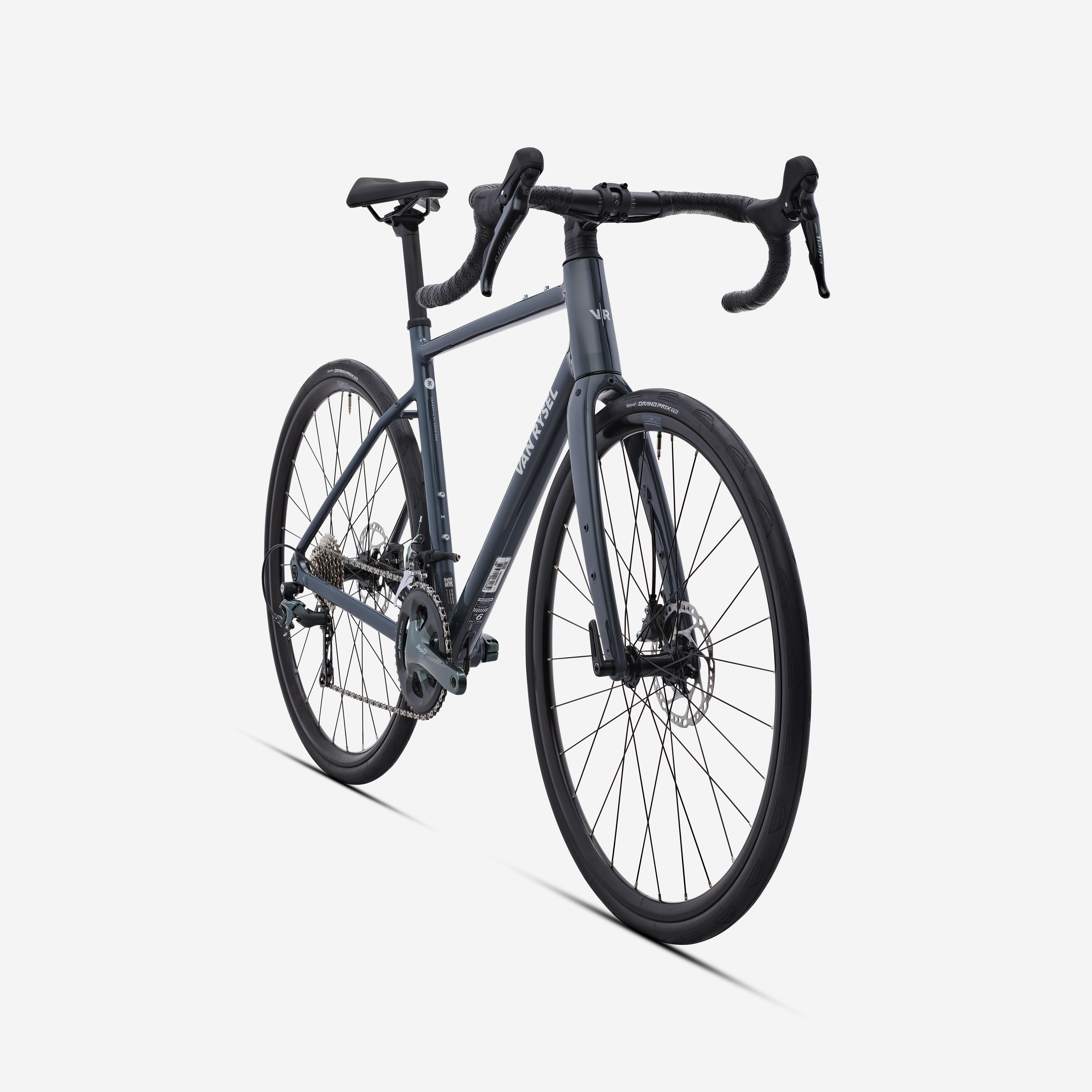

Technical specifications
Frame: Aluminium 6061
Fork: carbon
Transmission: Shimano Tiagra 4700 2x10-speed (48/34 - 11/32)
Brakes: Shimano Tiagra hydraulic brakes
Wheels: VAN RYSEL EDR aluminium
Tyres: CONTINENTAL Grand Prix TR (32 mm)
Weight: 10.2 kg (size M, without pedals)

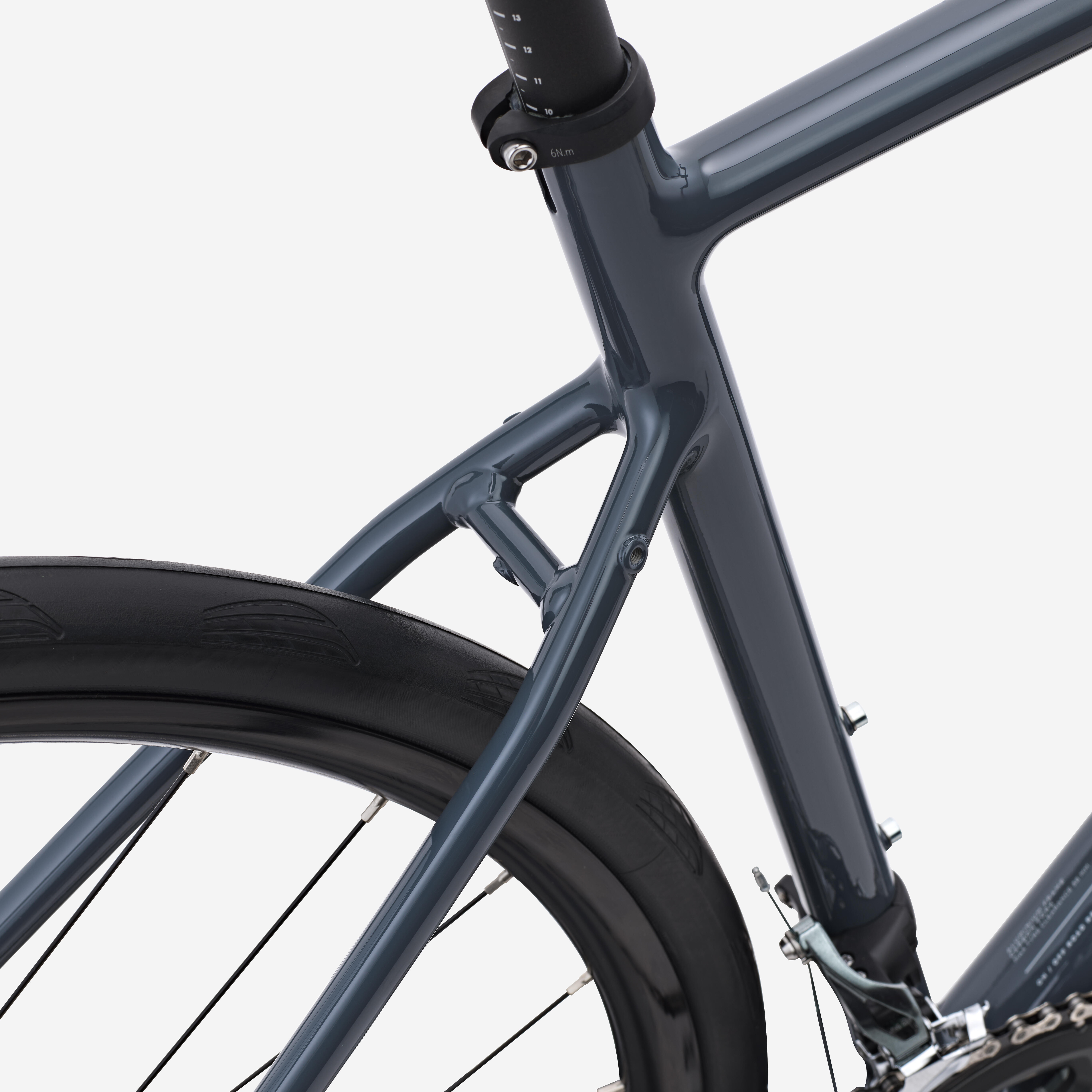

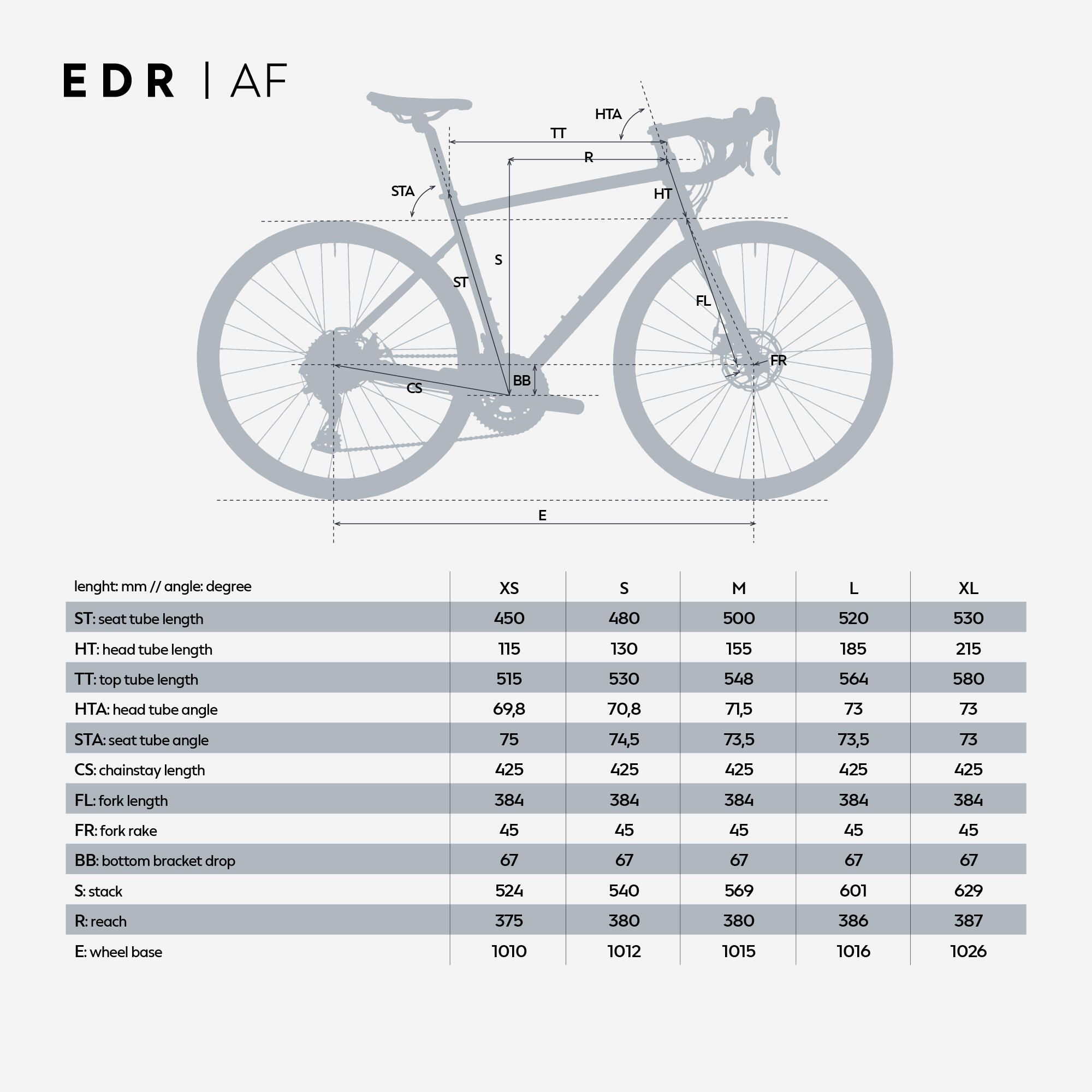

Frame and Fork
Frame: VAN RYSEL EDR AF2
Composition: Double-thickness 6061 aluminium
Maximum clearance of the tyres: 38 mm
Nb of inserts: 8 frame inserts - 6 fork inserts - 2 mudguard inserts

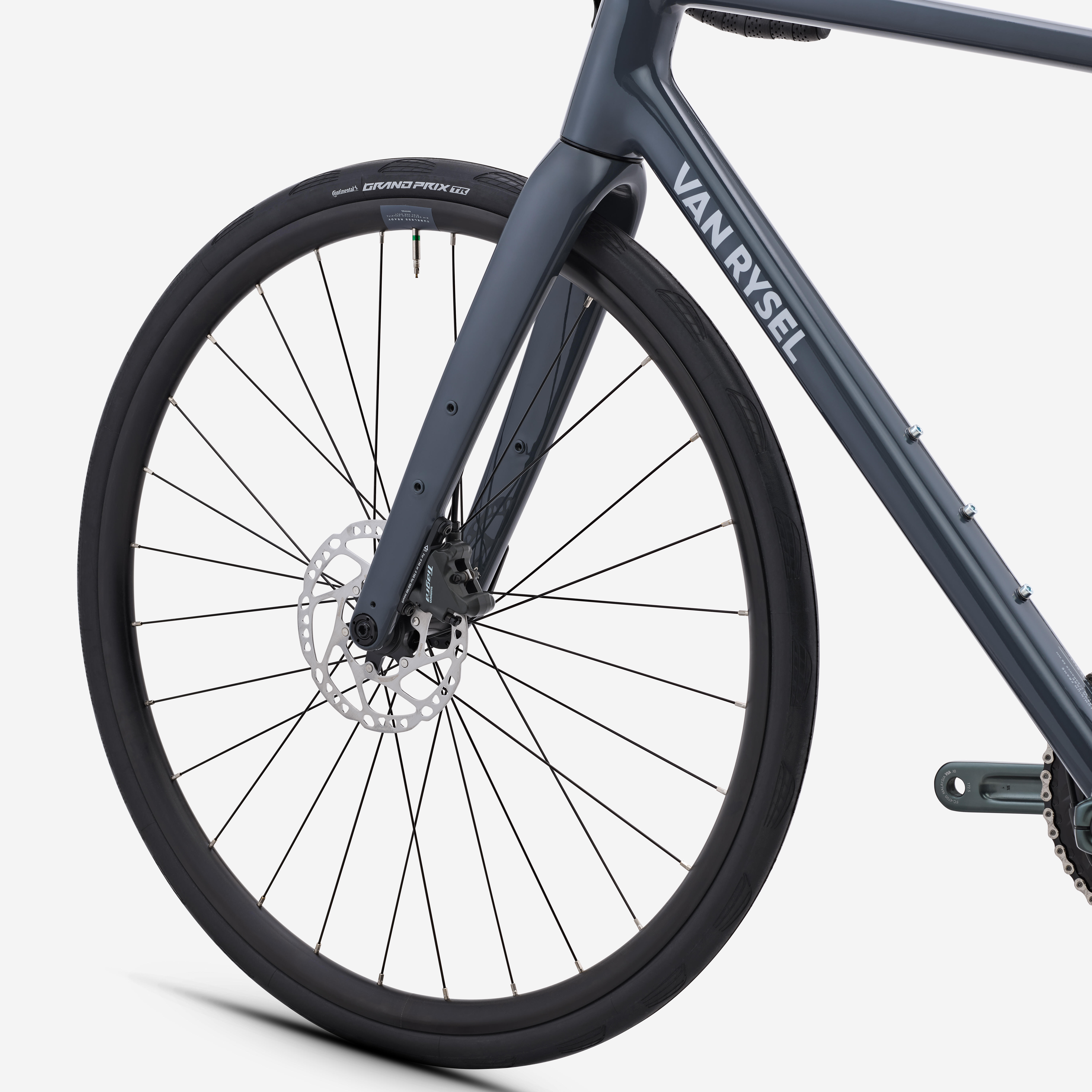

Fork: 100% carbon
Front axle: 12 x 100 mm
Rear axle: 12 x 142 mm

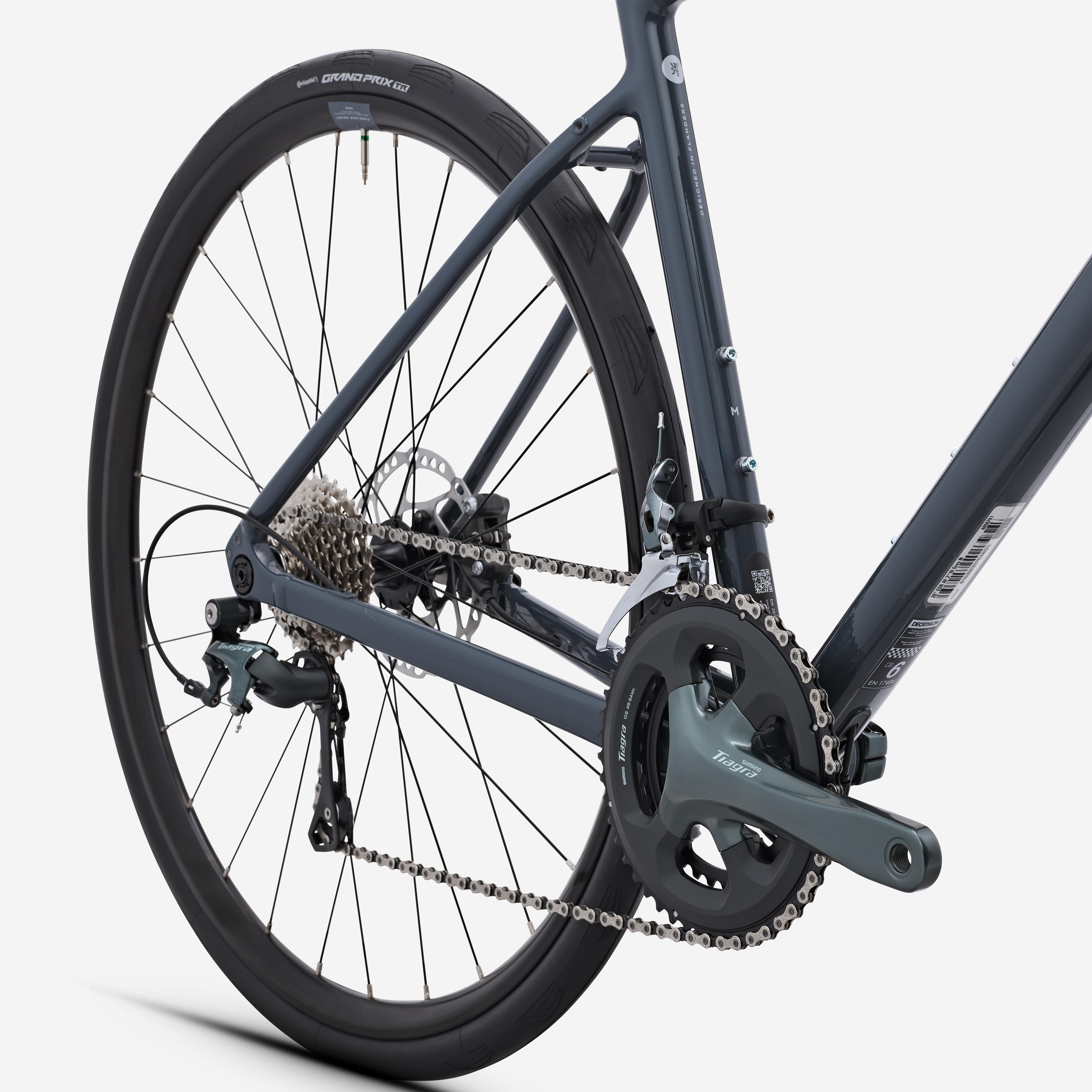

Drivetrain
Groupset: Shimano Tiagra 4700 2x10-speed (mechanical)

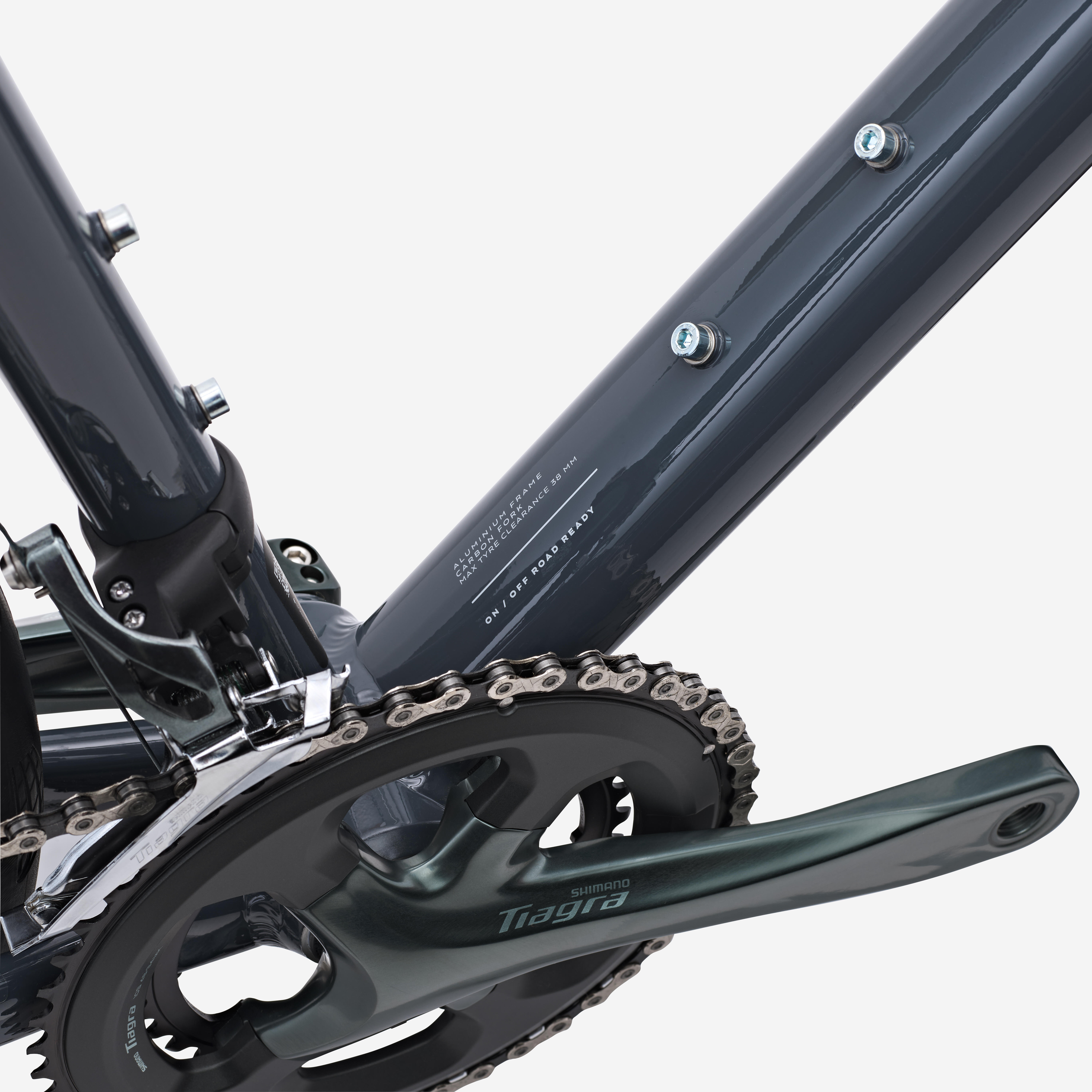

Chainwheel: Shimano Tiagra FC-4700 48/34 teeth
Crank: Shimano Tiagra FC-4700
Crank length: 165 mm (XS) / 170 mm (S) / 172,5 mm (M) / 175 mm (L/XL)
Cassette: Shimano HG500 10-speed 11/32
Chain: KMC X10
Front derailleur: Shimano Tiagra 4700
Rear derailleur: Shimano Tiagra 4700 GS
Gear shifter: Shimano Tiagra 4721
Wheels
Wheels: VAN RYSEL EDR
Rim material: aluminium
Type of rim: with hooks
Tubeless Ready: yes
Rim height: 24mm
Internal width: 21TC
Front hub: VR FRONT HUB TA - 28 spokes
Rear hub: VR REAR HUB TA - 28 spokes
Weight of pair: 2000 g
Tyres
Tyres: CONTINENTAL GRAND PRIX TR
Front tyre dimensions: 700x32
Rear tyre dimensions: 700x32
Tubeless Ready: YES
Brakes
Brakes: Shimano Tiagra BR-4720 hydraulic
Front disc: 160 mm
Rear disc: 160 mm
Disc mount: Centerlock

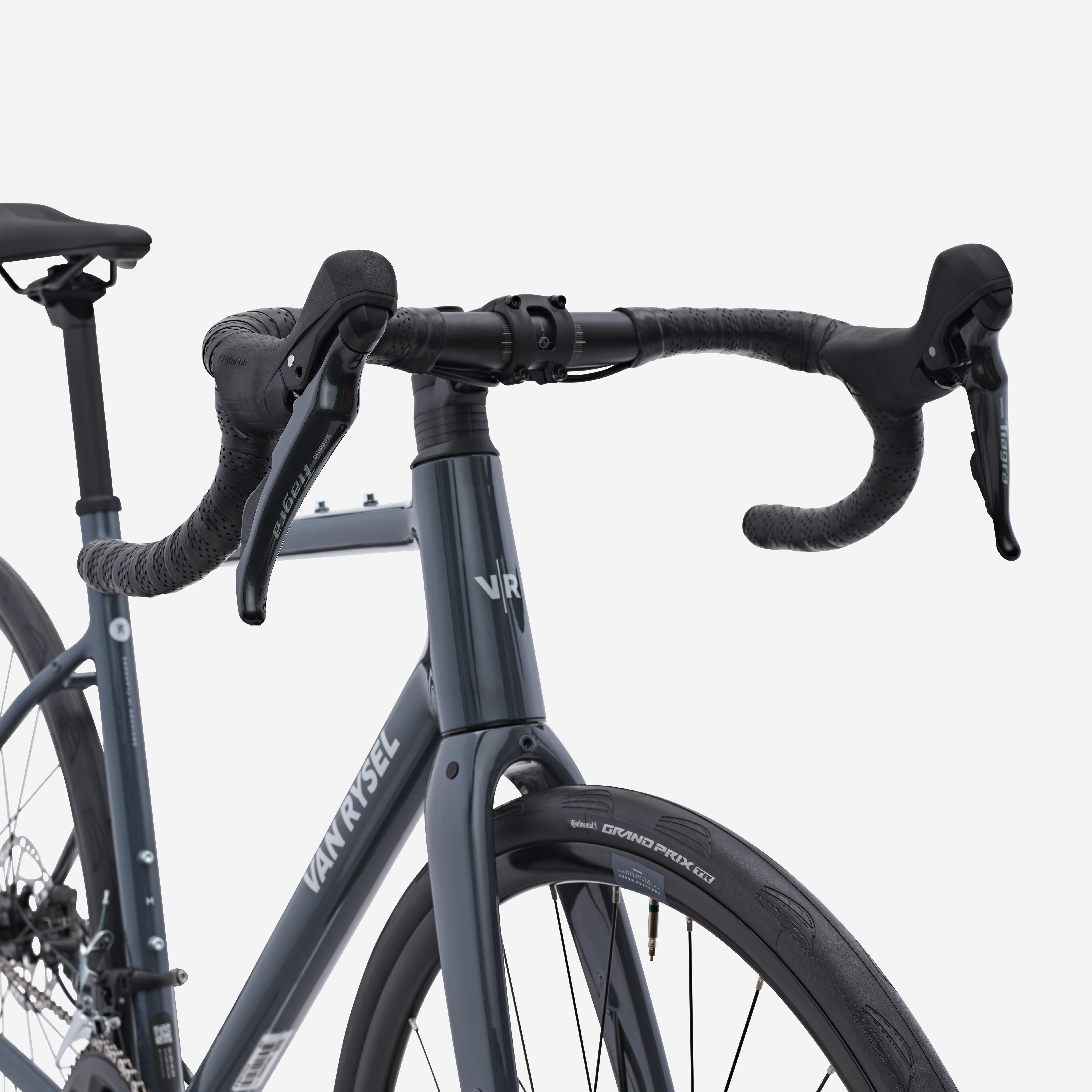

Riding position
Handlebar: VAN RYSEL
Material: Aluminium
Width:
XS 380 mm - S 400 mm - M 400 mm - L 420 mm - XL 420 mm
Flare: 10°
Internal cable routing: yes
Stem: VAN RYSEL
Material: Aluminium
Length:
XS 80 mm - S 80 mm - M 100 mm - L 100 mm - XL 110 mm
Handlebar tape: VAN RYSEL EDR ULTRA

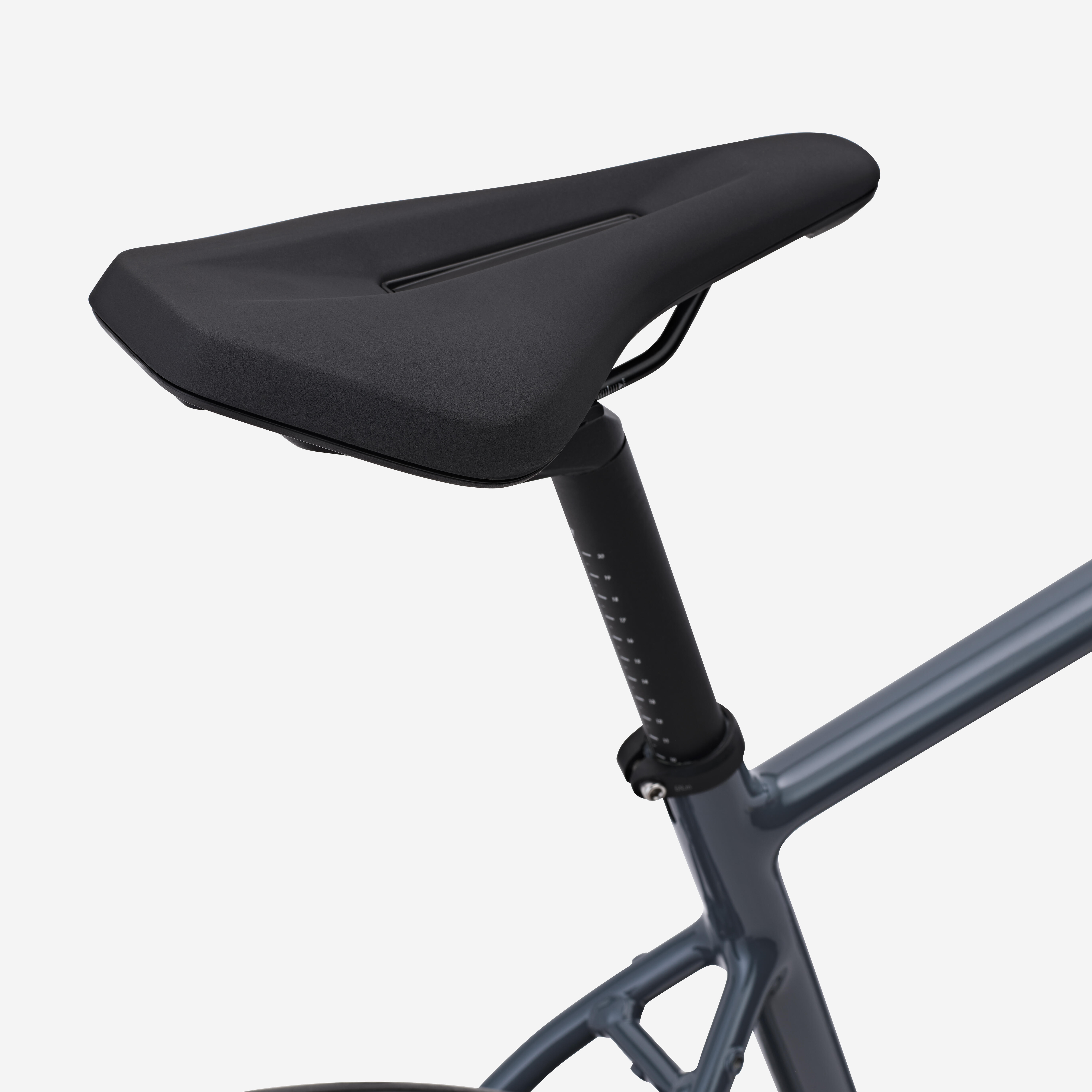

Saddle and seat post
Saddle: VAN RYSEL Light 30°
Seat post: VAN RYSEL aluminium
Diameter: 27.2 mm

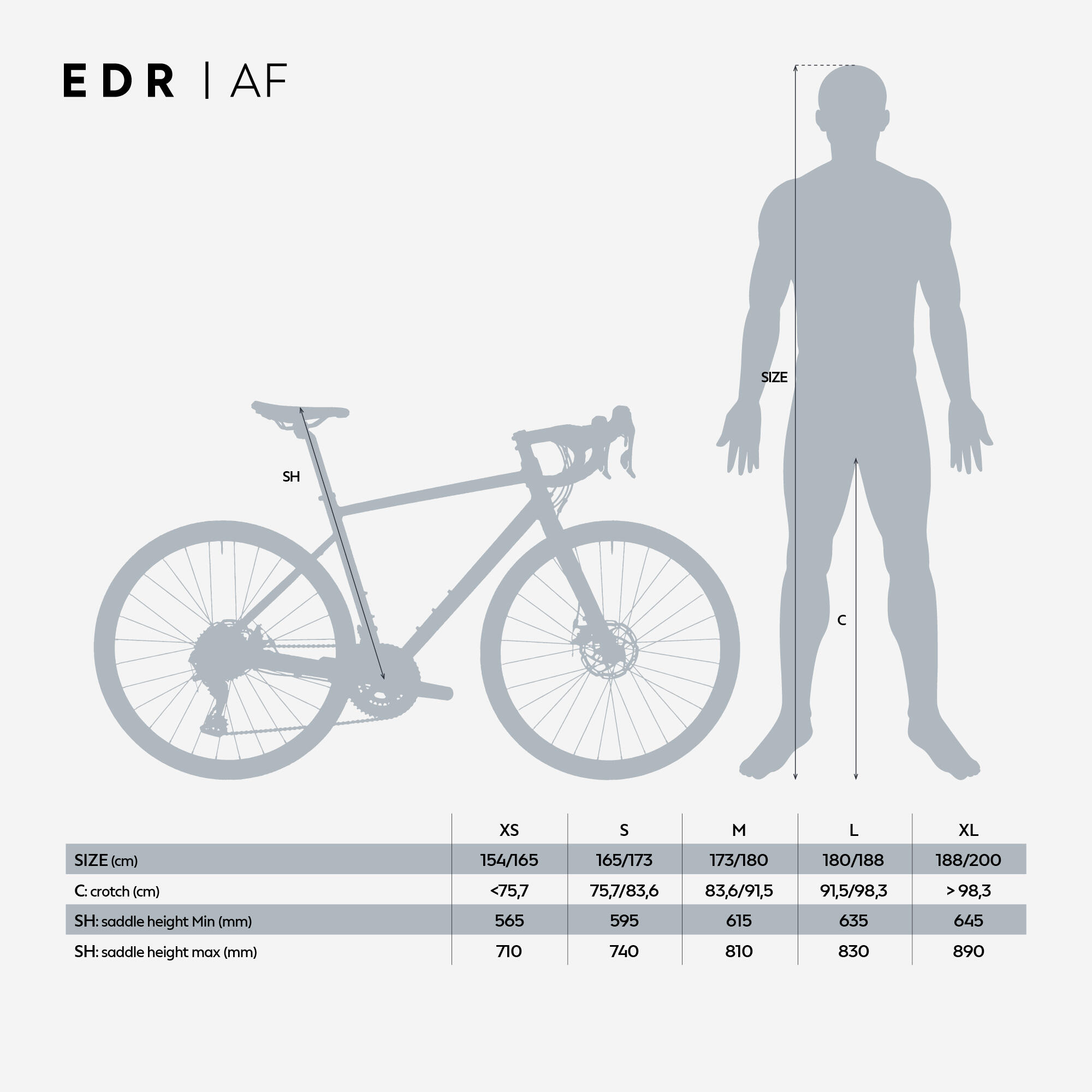

Height: XS 250 mm - S 350 mm - M 350 mm - L 350 mm - XL 400 mm
ACCESSORIES INCLUDED
Pedals: flat
Torque spanner: included
Lights: included (front and rear)
Bell: included
Weight
M: 10.3 kg
* Weights based on painted frames in production as illustrated. Actual weights will vary depending on colour, frame size and component variation.
Maximum load (cyclist + load): 110kg
