ROTH

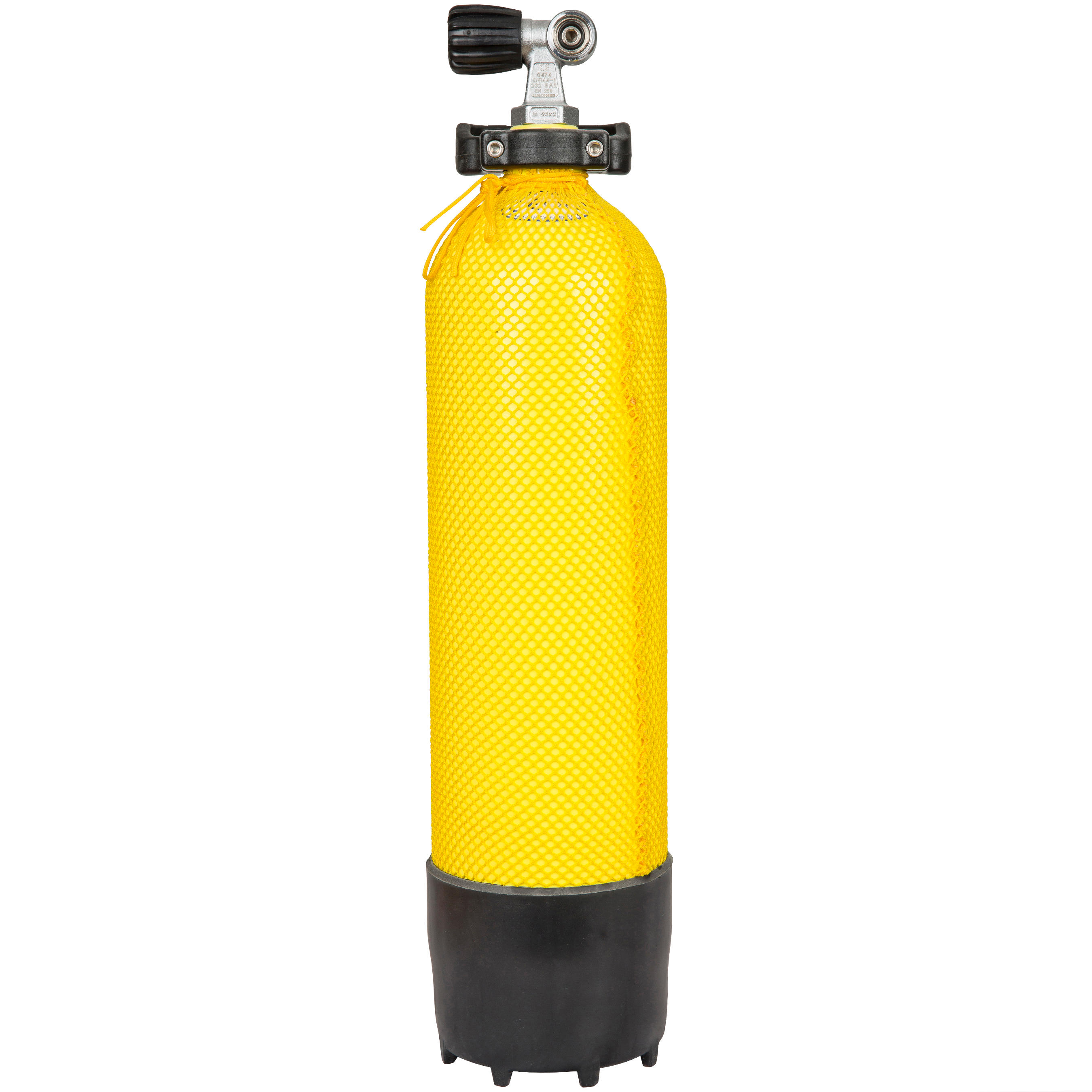

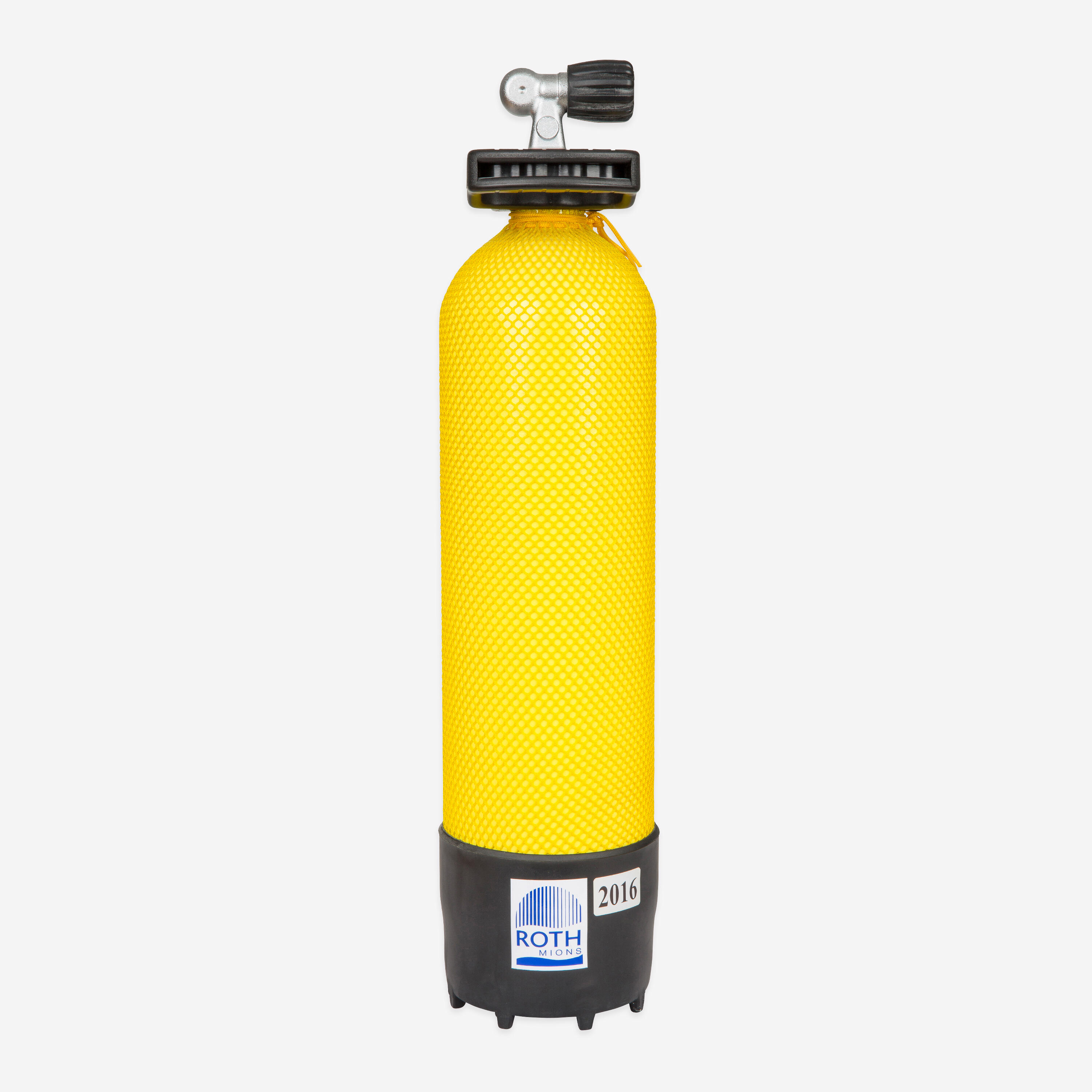

Scuba Diving Tank 6 litres 230 bar - yellow
The Roth brand designed this lightweight block with a small volume!
A 6 litre steel SCUBA tank ideal for short sorties or diving in very shallow waters. Also ideal for young divers aged 8 and over.
ID 4981075
BENEFITS
Capacity
6-litre capacity. Valve certified for 230 bar.
Modularity
One outlet with adapter to switch to DIN or INT
Instructions
Download it hereTECHNICAL INFORMATIONS
Roth diving tank

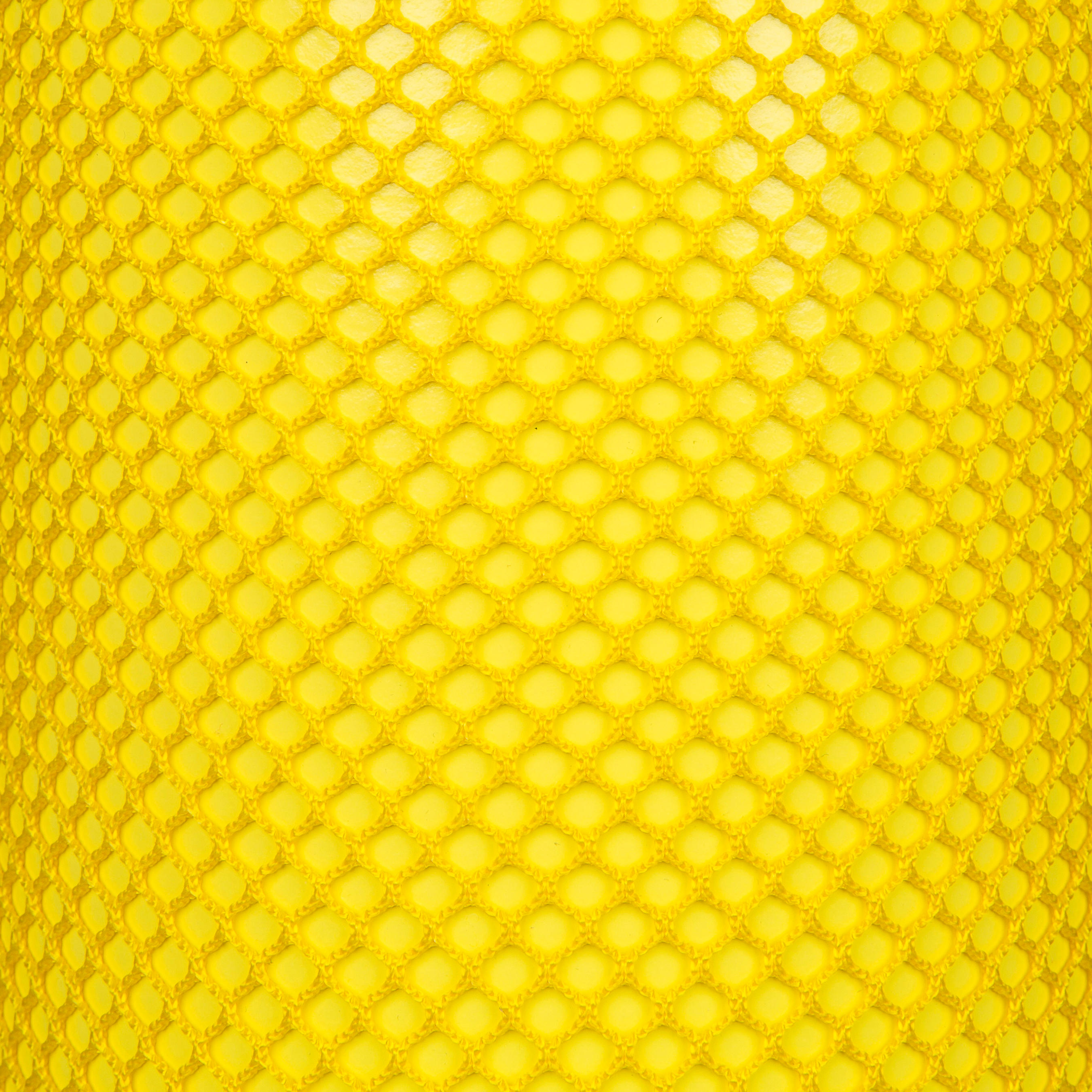

The tank is made up of a steel cylinder, an outlet, a yoke valve, a PVC boot, a carry handle, a protective net,
Boot and handle

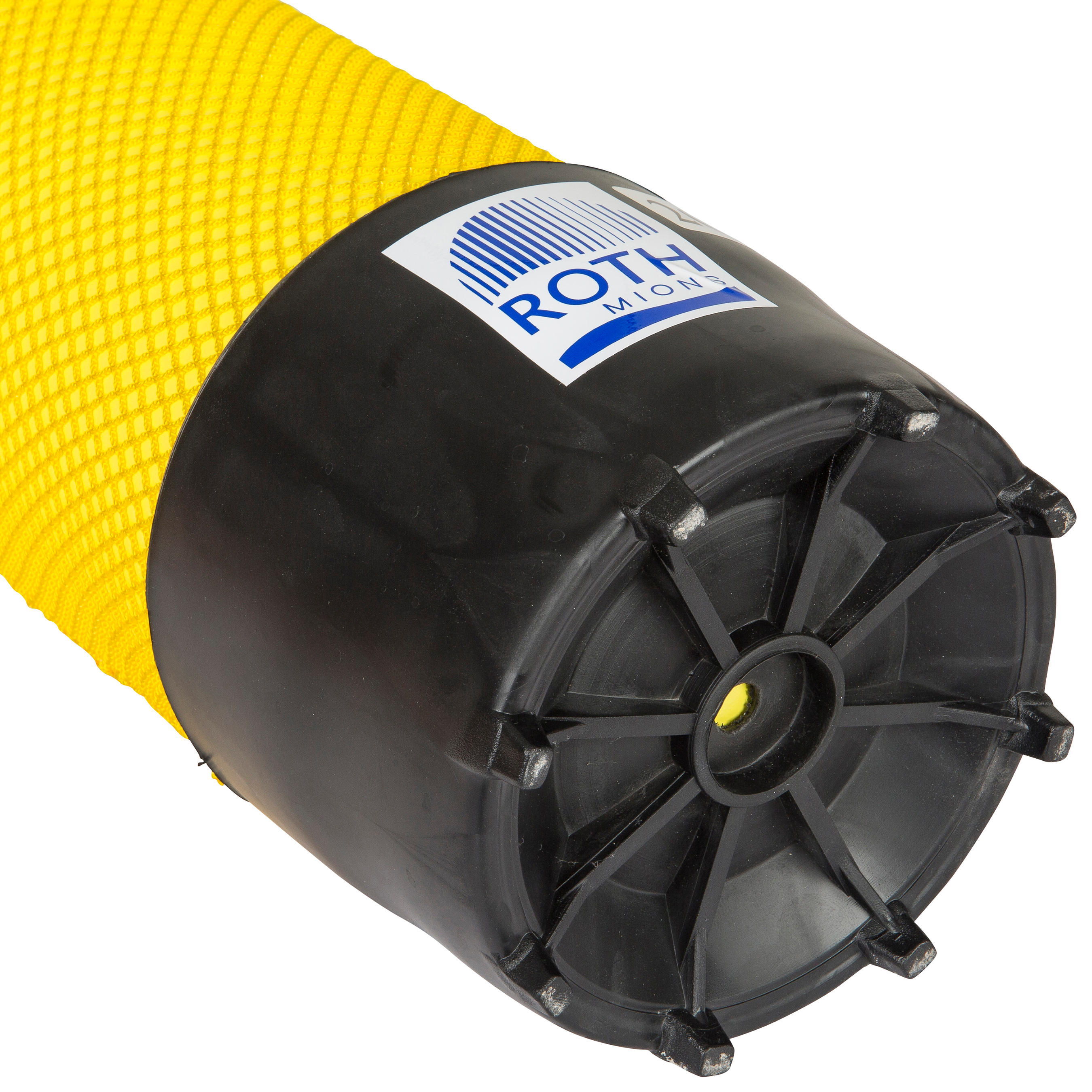

The PVC boot is tailored to fit the diameter of the bottles and allows them to stay in a vertical position. An opening is provided at the bottom to evacuate residual water and to make it easier to remove. The carry handle is made of two parts enabling it to be assembled and removed without having to unscrew the valve.
Maintenance
It is forbidden to carry out repairs by welding, riveting or drilling the cylinder or any operations involving removal of material or significant rises in temperature of the cylinder (maximum 300°C).
Routine maintenance
We recommend rinsing the cylinder after every dive with fresh water without forgetting the bottom: hole provided for this purpose in the PVC boot. This drains seawater, removes sand and avoids abrasion of the paint and premature corrosion. Immediately touch up areas of chipped paint due to impact or abrasion.
Periodical maintenance
This tank is subject to regular periodic inspections as required by the legislation in force in the country of use. These checks must only be performed by qualified establishments or persons. (in France, the decree of 15 March 2000 makes annual inspections by TIV compulsory, and requalification after 5 to 2 years).
Storage
Before prolonged storage, it is advisable to perform the maintenance actions outlined above as well as rinsing with fresh water and thoroughly drying the inside of the cylinder. Moreover, you are strongly recommended to store the cylinder upright in a temperate, clean and dry place and to maintain low residual pressure inside the cylinder in order to remove any dust and condensation that may have entered through the valve opening.
Recommendations 1/2
Never inflate a lifting bag with bare valve gear (without a regulator). Never leave a cylinder empty with the valve open. Never leave cylinder exposed to spray and waves or in the water at the bottom of a boat.
Recommendations 2/2
Keep residual air pressure in the cylinder in order to drain any water that has entered by the valve opening. If the cylinder was fully emptied when diving, leave the regulator in place until it is under shelter. Never empty cylinders too quickly in order to prevent the valve gear from frosting and significant condensation inside the cylinder.
Block dimensions
Height: 51,5 cm.Diameter: 14 cm.
COMPOSITION
composition
Metallic structure: 100.0% Steel
Tips for storage and maintenance
Storage tips
Stock the tank upright with minimum internal pressure (1 bar) in a dry place away from direct sunlight.
Restrictions on use
Tanks must be retested every 2 years.
TESTS AND WARRANTY
Warranty
2 Years
