What does E-EXPL 100 mean?
The EXPL refers the word "EXPLORE ".We've designed this bike for anyone thinking about riding around on a bike to explore their surroundings and reconnect with nature.The "e" means that this is an electrical assistance bike
Motor Features
36V Rockrider brushless motor on the rear wheel.
Rated output:250W
Max power: 316 W
Max torque: 43 Nm
Ideal for terrain with a moderate slope, up to 10% incline and 500 m of continuous elevation gain. Not recommended for mountain passes.The electrical assistance cuts out above 25 km/h in accordance with EU regulations.
3 levels of assistance to manage your effort
You can choose from 3 levels of assistance at any time. Simply press the + or - button on the controller located on the handlebars to switch between modes.
Mode 0 – No assistance
Mode 1 - Slight assistance (100W)
Mode 2 - Moderate assistance (175W)
Mode 3 - Maximum assistance for the harder climbs
Up to 100 km of range with your trekking e-bike
The battery range varies depending on the weight being transported (user + load), the elevation gain, the wind and the outside temperature.
Our tests have assessed the maximum battery range on relatively flat terrain without a load (no pannier bags or trailer):
Eco Mode: up to 100km
Normal Mode: up to 80 km
Boost Mode: up to 50 km

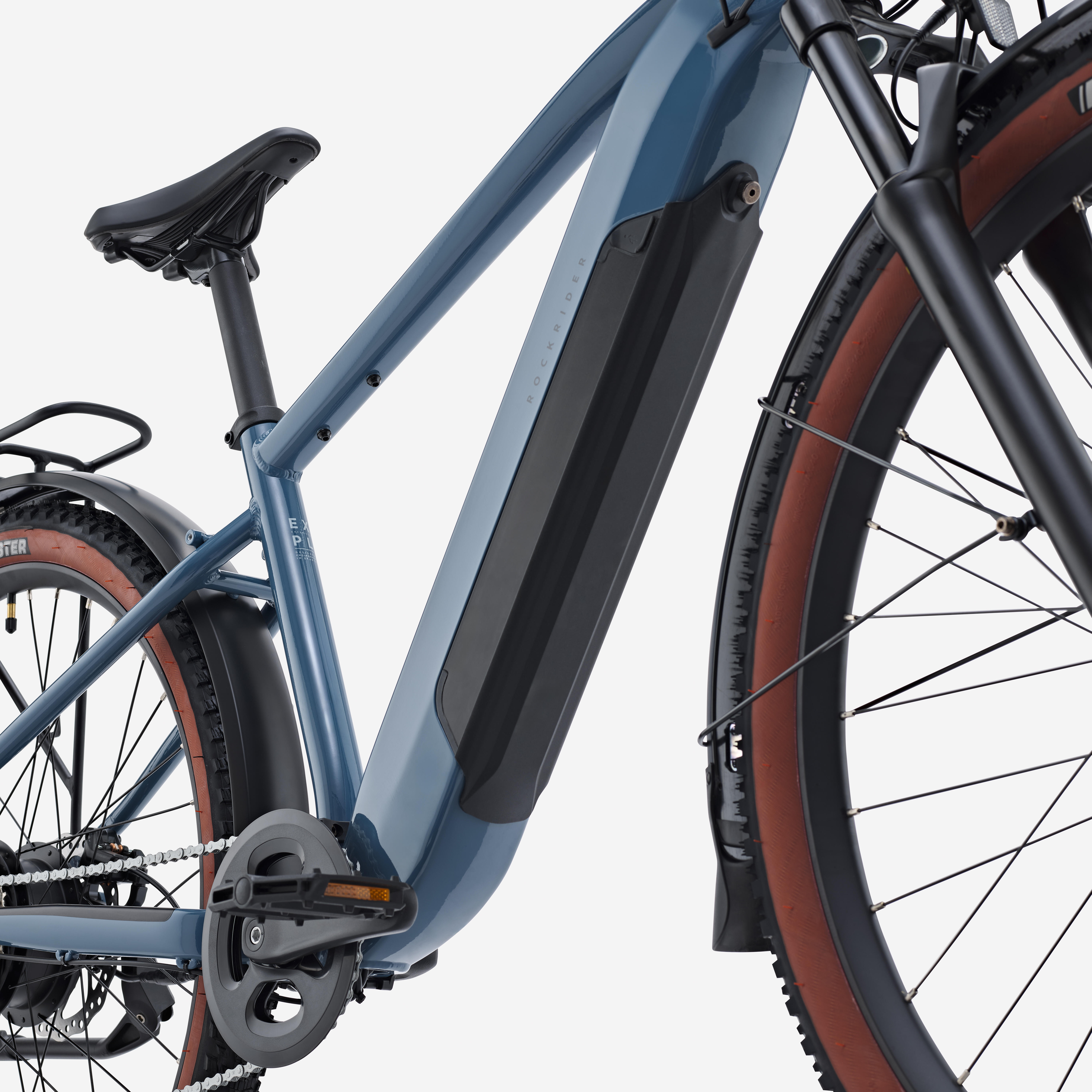

Built-in, removable battery
Lithium-ion 36 V - 499 Wh battery.
Locked into the bike's frame for better integration and protection.
Quick release with key (2 keys included) to recharge it.
500 charge cycles guaranteed without loss of battery life.
Weight 2.9 kg
Can you ride with a flat battery?
Yes.If the battery is flat, the weight of the electric kit makes the bike less easy to ride than a traditional hybrid bike but it remains rideable to get you out of trouble.
Battery Charging
Fully charges in 7 hours with the 2A charger provided.
To charge the battery, you can remove it from the bike using the keys provided.
When should I charge my battery?
Lithium-ion batteries have no memory effect, so they can be charged at any time.
We recommend charging your battery regularly before it is completely flat to maintain optimal performance.

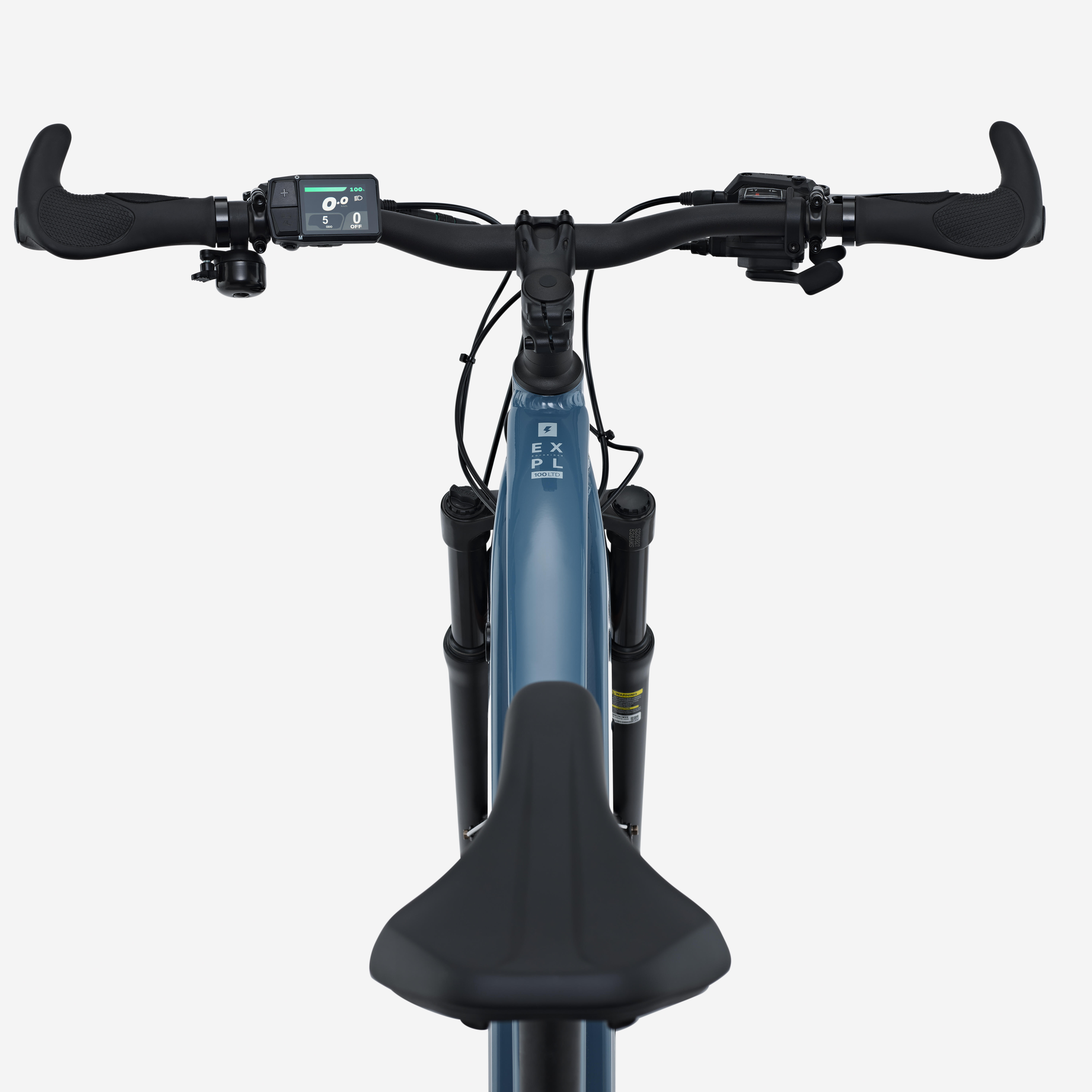

Controller
LED control screen on the handlebars, next to the left grip.
Information available:
- Current assistance mode
- Remaining battery level
- Light status (on/off)
- Current speed
- Kilometres travelled
Functions:
- Switch the bike on / off
- Select assistance mode
- Switch lights on / off
- Assistance mode on the go
- USB-C Port, 1 A/h
Electrical and electronic components that resist dust and rain.
All of the electrical components (controller, motor, battery, etc.) are resistant to dust and rain (IPX5).
This means that you can leave your bike outside in the rain without the battery. Any water that might get into the hole where the battery would normally be will run off the bike and won't damage the components.
Do not wash with a pressure washer.

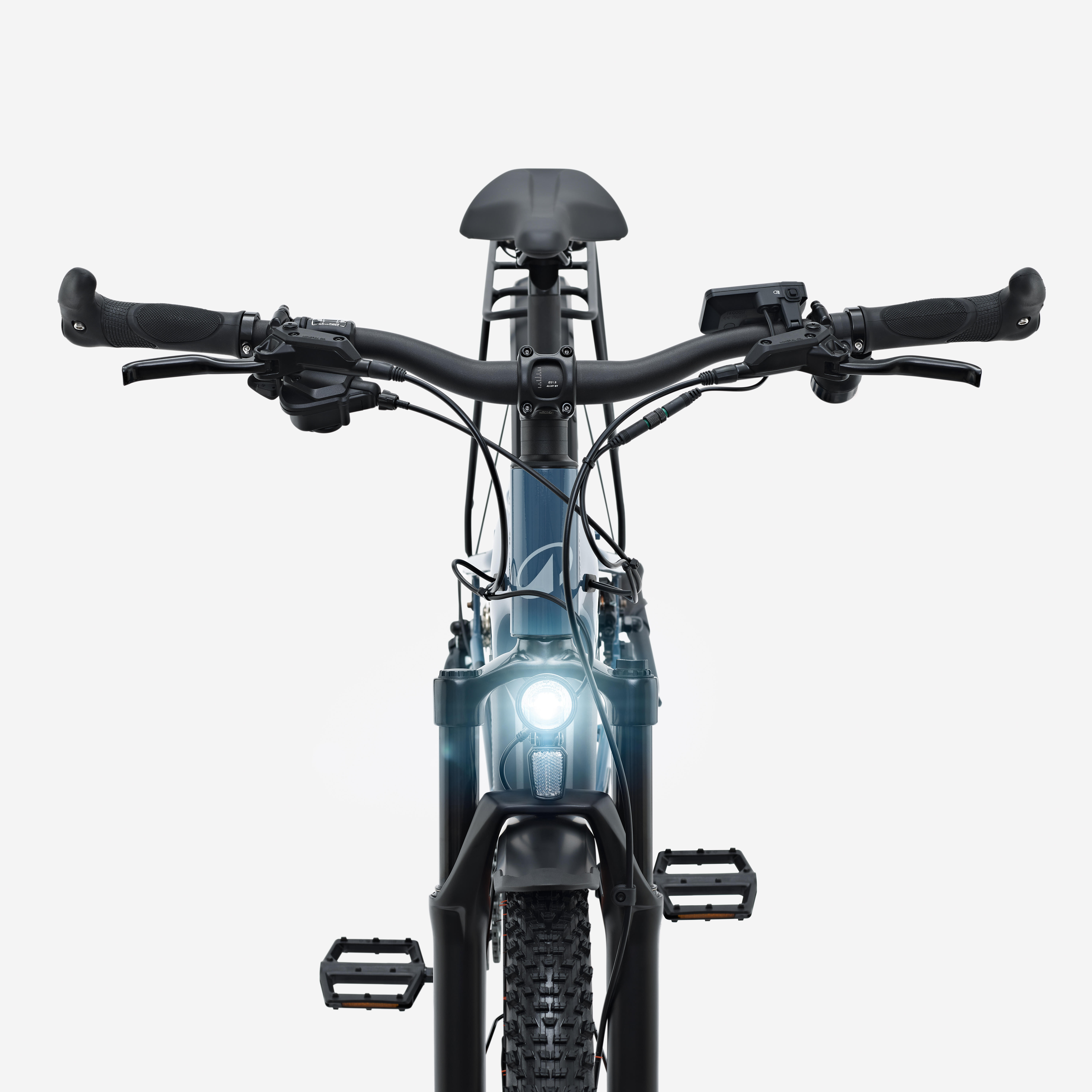

Built-in lights
Lights powered by the bike's battery:
- Front LED light Power 15 lux.
- Rear LED light attached to pannier 15 Lux.
The rear light remains active (on lower power) for 4 minutes after turning off the bike.
SIZES
S: 1m50 to 1m65
M: 1m65 to 1m75
L: 1m75 to 1m90
If you're between sizes:
Go for the smaller size if you want a more upright position.
Go for the bigger size if you want more of a leaning-back position.
Handle bar
Handlebar: Zoom MTB-AL-330 BT
MaterialAluminium
Diameter: 31.8 mm
Width: 760 mm
Rise: 30 mm
Stem: Material: Aluminium
Angle: 6°
Sizes: 60 mm
Ergonomic grips with extenders for additional comfort
Suspension
Fork: Zoom
Travel: 100 mm
Dampers: 30 mm
Axle: QR 100mm
Tires
Kenda BOOSTER K1227 29""X2.4 beige sides

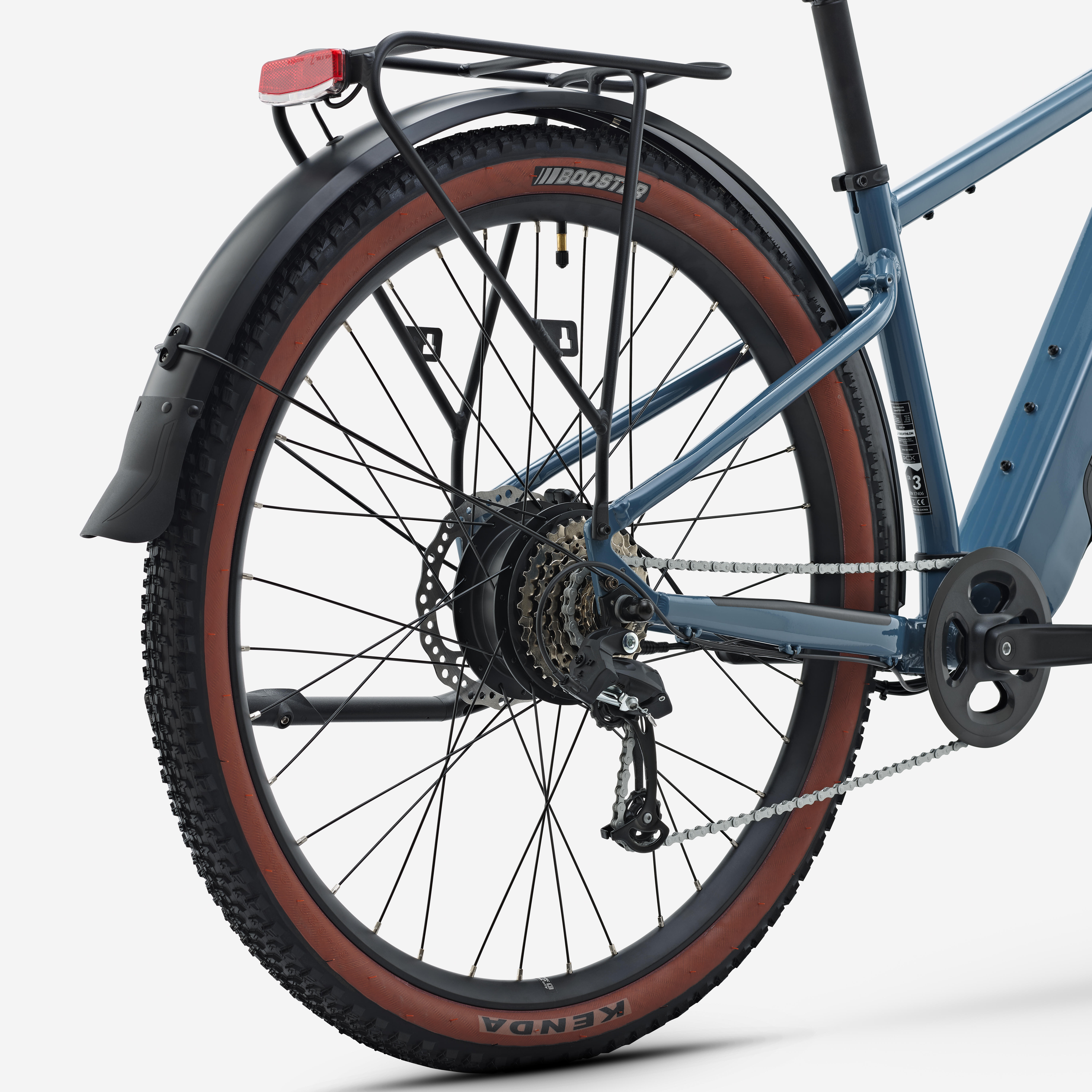

Drivetrain
Microshift RD-M25L X7
Single chainring: 38 teeth.
Cranks: 165 mm
Rear derailleur: 7 speeds
Freewheel: 14-34
KMC Z7-RD chain: 7 speeds
Wheels
29" ZY 30 double-wall aluminium wheel
Inner width:30 mm
Number of spokes: 32 at the front, 36 at the rear
Disc attachment:6 holes
Freewheel hub: screw-on
Axle type:QR , 9 mm at the fron and screw-on solid spindle at the rear.
Equipped with a watertight rim strip:no
Tubeless Ready:No
Frame
Composition: Aluminium
Rear axle:Solid spindle with 145 mm screws
Diameter of seat tube: 31.6 mm
Bottle cage mount:yes (2 water bottles)
Brakes
Double piston hydraulic disc brakes
180 mm discs
Mudguard
Stiff mudguards with plastic blades and steel rods
STAND
Rear kickstand, factory-installed
COMPATIBLE ACCESSORIES
Compatible with:
Child seat on the frame
Bottle holder: 2 fixing points on the frame.
Bike trailer compatibility
The E-EXPL 100 LTD is compatible with the following trailers:
- Decathlon
- Hamax
- Bike Original
Thule and Croozer trailers are not compatible.
Max load
100 kg, bike not included (user plus gear / baggage)
Type approval
EPAC EN 15194 standard
The type approval certificate is available on the Decathlon support website.
GUARANTEE
Lifetime on frame / seat post / handlebar
2 years on other components except wear parts
Maintaining your bike
To carry out comprehensive bike maintenance, we recommend that you follow these 3 steps:
01 degrease your drive train
02 clean your bike
03 lubricate your chain
Our bike cleaning kit (8751194) will be your best ally! You’ll find the 3 essential products inside, allowing you to perform 3 complete maintenance sessions on your bike.Regular maintenance keeps your bike in good condition, extending its lifespan and ensuring that it keeps working properly.
