Glide performance
We designed an exclusive shape, in collaboration with shaper Erwan Le Gallic, with the aim of encouraging glide and rapid take-off while ensuring excellent stability when not in the air.
- The flat hull on the tail and the double concave at the front reduce friction for effortless take-offs.
- Advanced max. width on the front of the board to promote the glide.
- Slightly slimmer nose that reduces the risk of movement

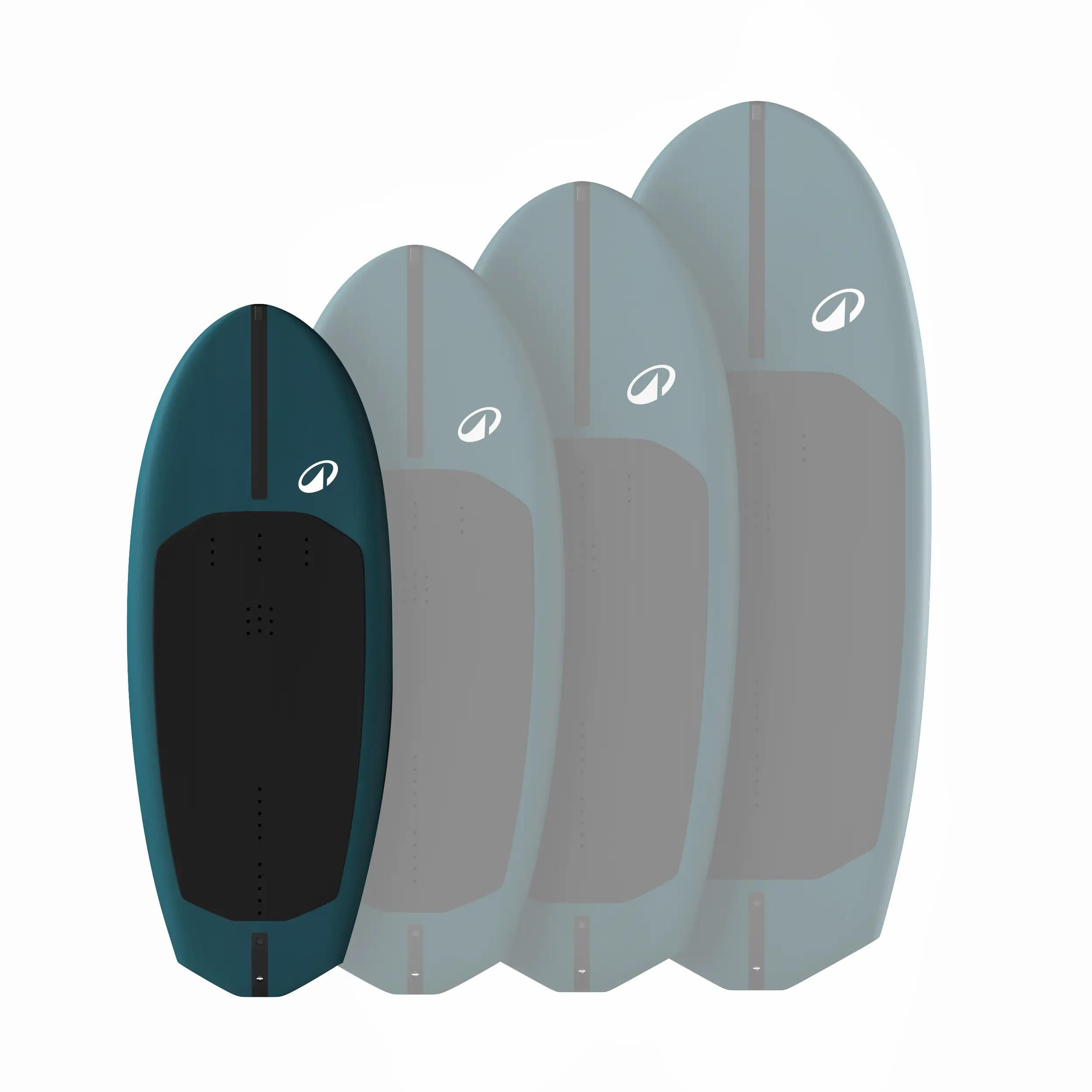

How to choose your board
Our board comes in 4 sizes, all based on the same shape. The bigger the board, the more stable it will be and the easier it will be to learn. The smaller the board, the easier it will be to handle and to do tricks.
120 L: better lateral stability thanks to the wider tail
100 L: best compromise between glide, stability and handling
85 L: compact for smoother manoeuvring
70 L: smallest board for confident riders of a small build
Technical specifications
WINGFOIL BOARD 500 V2 Blue
70 L
Length: 5’1’’/155 cm
Width: 24’’/60 cm
Max. thickness: 11 cm
Weight (Pad included): 5.9 kg (+/- 5%)
Evolution
WINGFOIL BOARD 500 V3 Red/White
This V3 has more volume at the front for greater stability. It’s forgiving of placement errors and allows advanced users to undercut without the risk of snagging.
The 70 L and 85 L models have a longer, slimmer shape: this optimised glide allows you to generate greater speed and take off in lighter winds.
A perfect combination of compactness and performance.
Technical specifications
WINGFOIL BOARD 500 V3 Red/White
70 L
Length: 5’2’’/157.5 cm
Width: 22.3’’/56.5 cm
Max. thickness: 11 cm
Weight (Pad included): 5.9 kg (+/- 5%)
85L
Length: 5’6’’/167.5 cm
Width: 24’’/61 cm
Max. thickness: 11.6 cm
Weight (Pad included): 6.6 kg (+/- 5%)
100 L
Length: 5’8’’/173 cm
Width: 27.1’’/69 cm
Max. thickness: 11.7 cm
Weight (Pad included): 7.3 kg (+/- 5%)
120 L
Length: 6’4’’/193 cm
Width: 30.3’’/77 cm
Max. thickness: 11.5 cm
Weight (Pad included): 8.6 kg (+/- 5%)
Which board for which level?
Autonomous riders:
70 L OK if < 60 kg
85 OK if < 75 kg
100 L OK if < 90 kg
120 L OK if > 90 kg
Beginner riders:
70 L - board not recommended
85 L OK if < 50 kg
100 L OK if < 70 kg
120 L OK if > 70 kg
Tolerance
- We’ve designed the lines to allow you to soften light touches, ensuring good tolerance. The board is forgiving of navigation errors or during jumps: it easily gets going again and doesn’t stop when it touches the water.
- The distribution of volumes has been optimised in order to enable the rider to have a centre of gravity (foot position) positioned in the same place as you stop, during the take-off phase, and in flight.
Construction and robustness
- Board constructed with a 2 mm PVC sandwich (100 kg/m3) on the deck and hull - for maximum robustness.
- 200 g/m² carbon fibre reinforcements on the box and rails.
- PVC box reinforcement crossing the whole board.
Comfort 1/2
- Slightly concave on the deck (topside of the board) for comfort and confidence in pressures. This allows for good reactivity and less effort required when pressing on your heels
- Board is extremely stable during the assembly of the foil thanks to 3 points of contact with the ground
- Reinforcement on the nose (EVA patch) to avoid damaging the board while you’re assembling the foil
- The deck of the board has rounded corners to avoid discomfort as you get onto the board
Comfort 2/2
- Pad with thin grooves to ensure good traction (essential for strapless riding and when weight shifting) without reducing comfort.
- Handles under the board to make it easier to transport (the board is horizontally balanced when the foil is assembled).
Resistance
- The corner of the tail is curved, which means that you won’t damage the board with the leash.
- Decompression valve with a membrane on the rear of the board: avoids heat and pressure damaging the board (e.g. transit by plane, heat, storage in a car).
- You must not unscrew the valve as this may compromise the seal of your board.
Compatibility

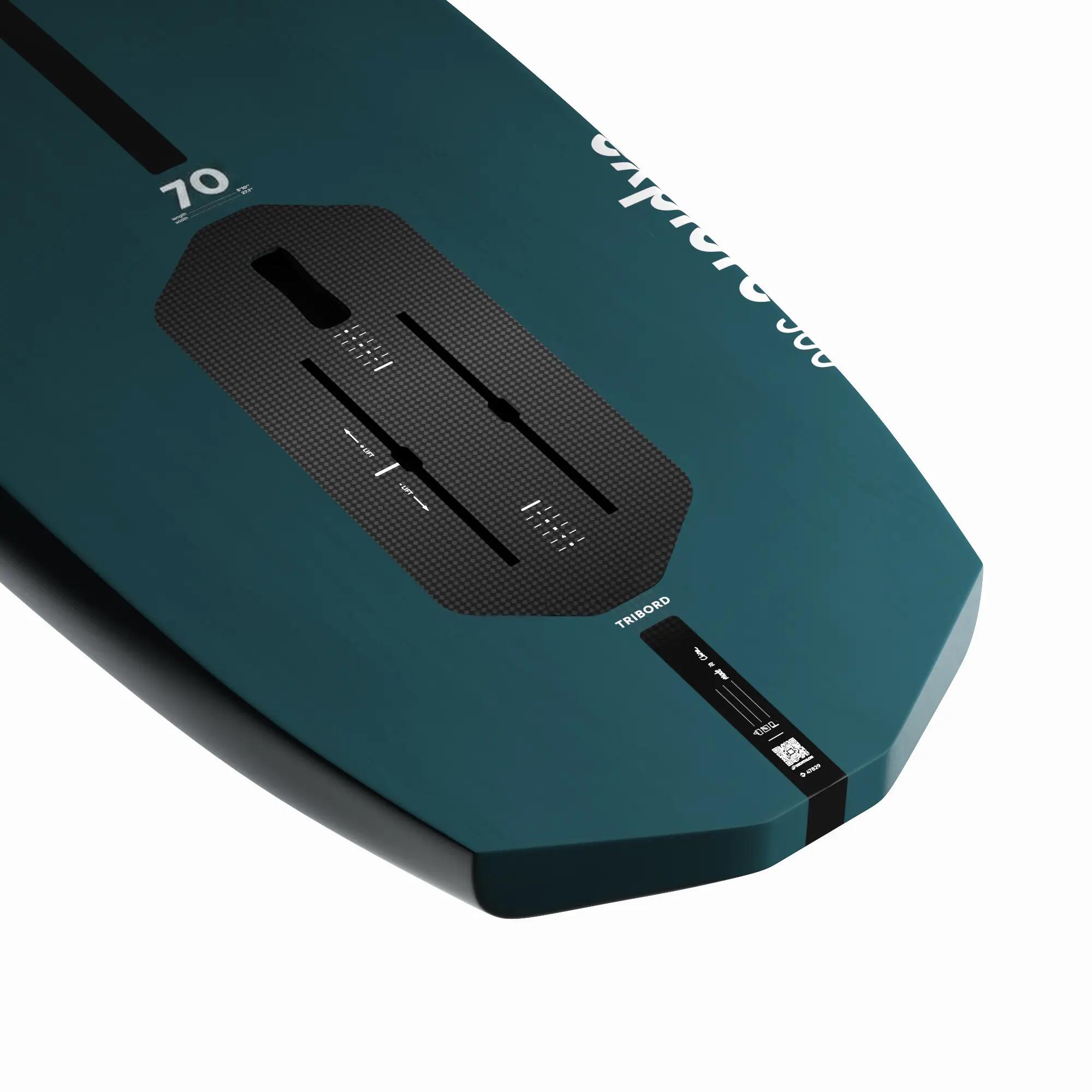

- Compatible with various strap set-ups thanks to its 5 x 3 inserts at the front (double strap/V-straps/diagonal strap) and 5 straight strap adjustments at the rear.
- Double US box 27 cm assembly system.
Leash and straps
The board is sold without accessories: the leash and straps are not included.
Our leash belt (8953536) is compatible.
For the straps, you can use any model. The important thing is to use screws with a diameter of 6 mm. The length of the screw must not exceed 20 mm when it is passed through the strap, as this may damage your board.
Contact
If you have any questions, please don’t hesitate to get in touch via the following address: [email protected]
