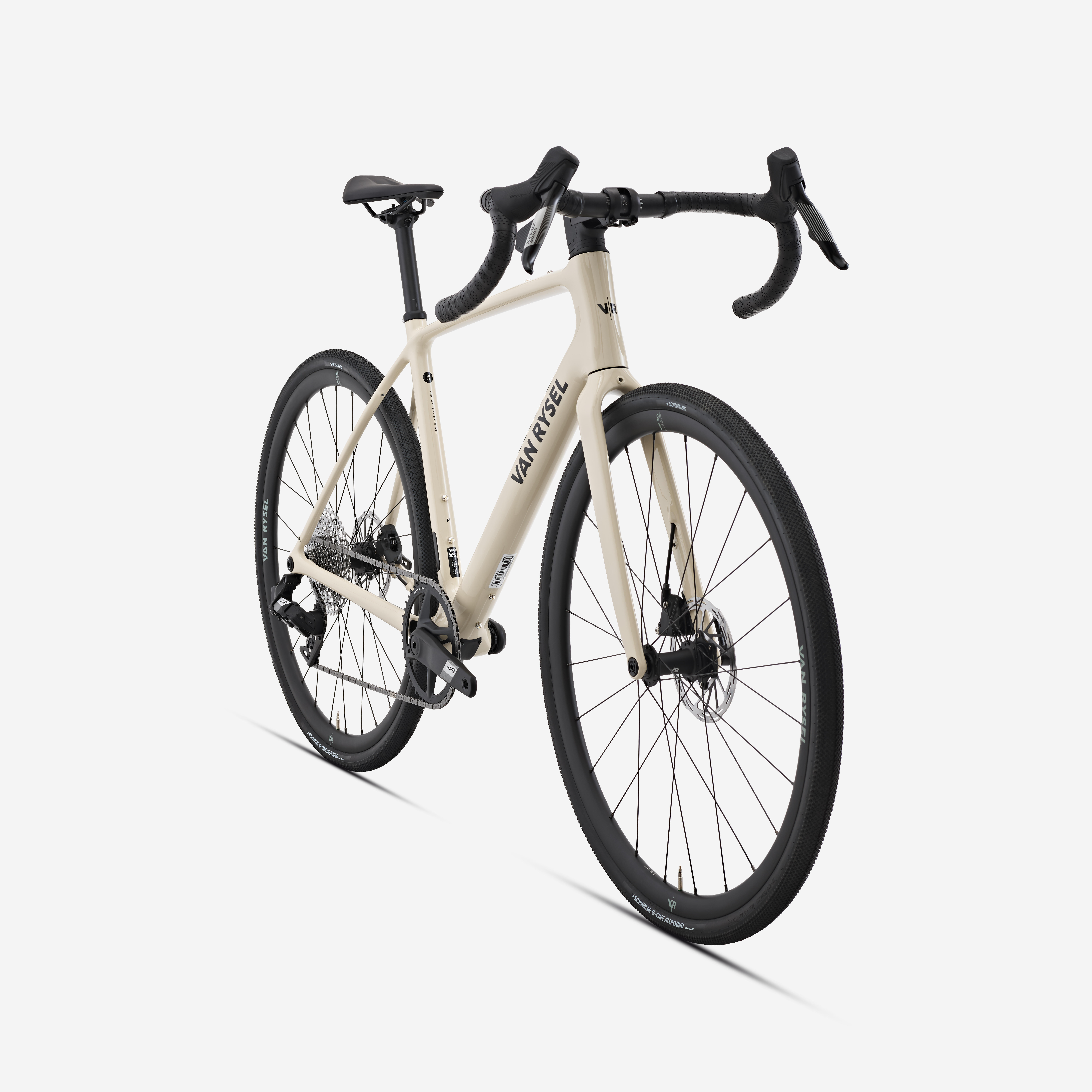

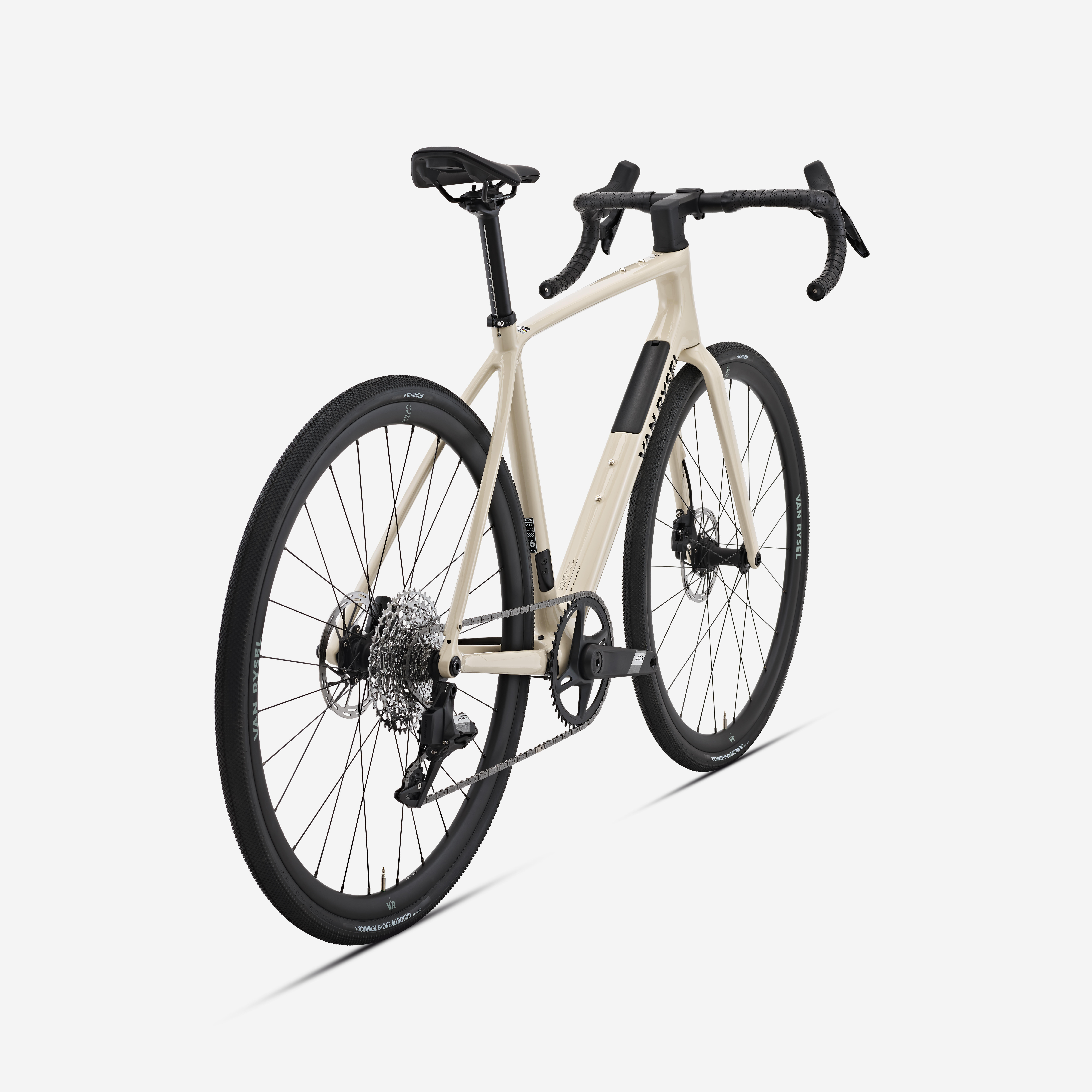

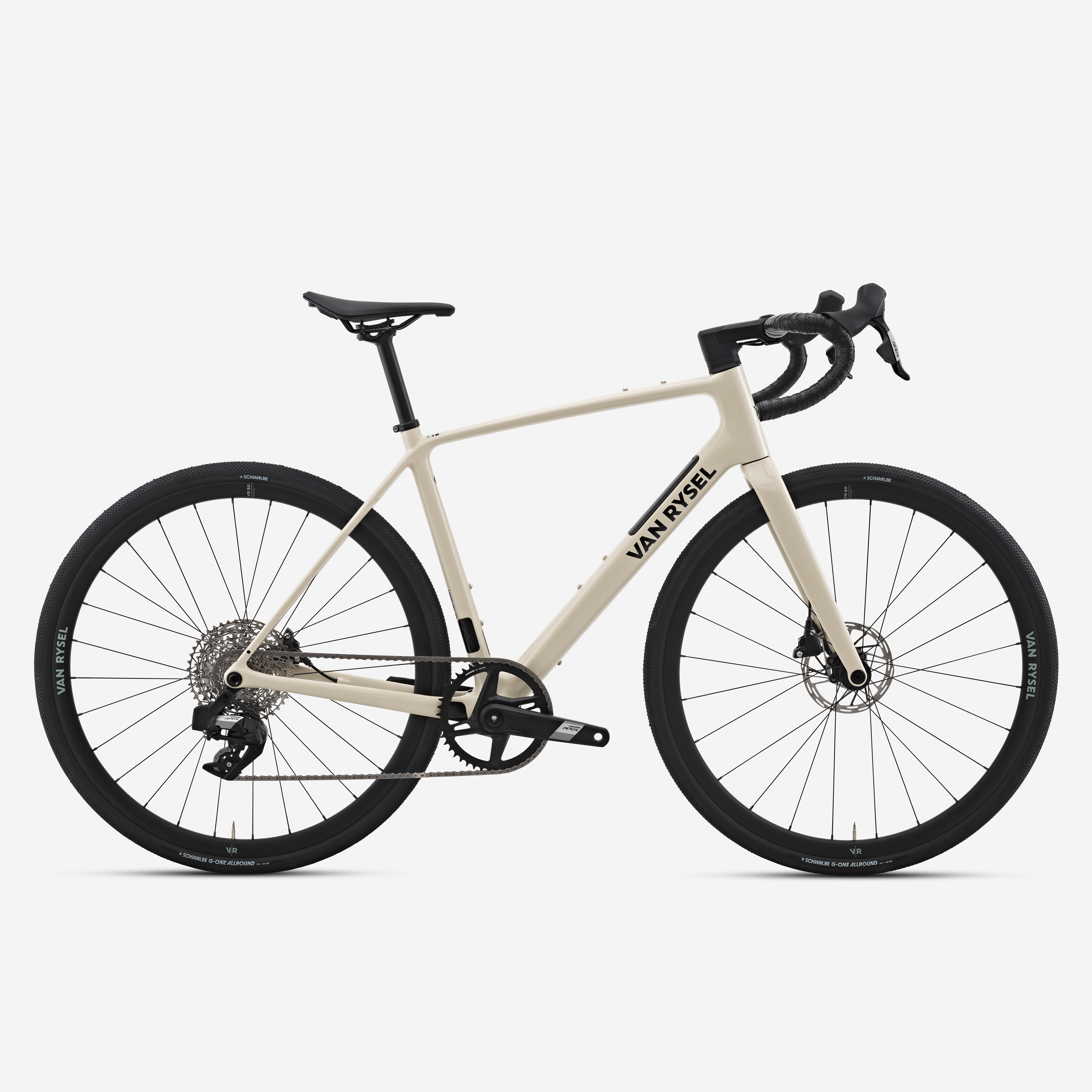

THE NEW EDR CF 2026 RANGE
The new EDR CF enriches our range of bikes designed for ENDURANCE, for regular to intensive rides whatever the terrain.It' a very versatile bike aimed at the widest possible range of cyclists looking for a carbon bike at an affordable price.

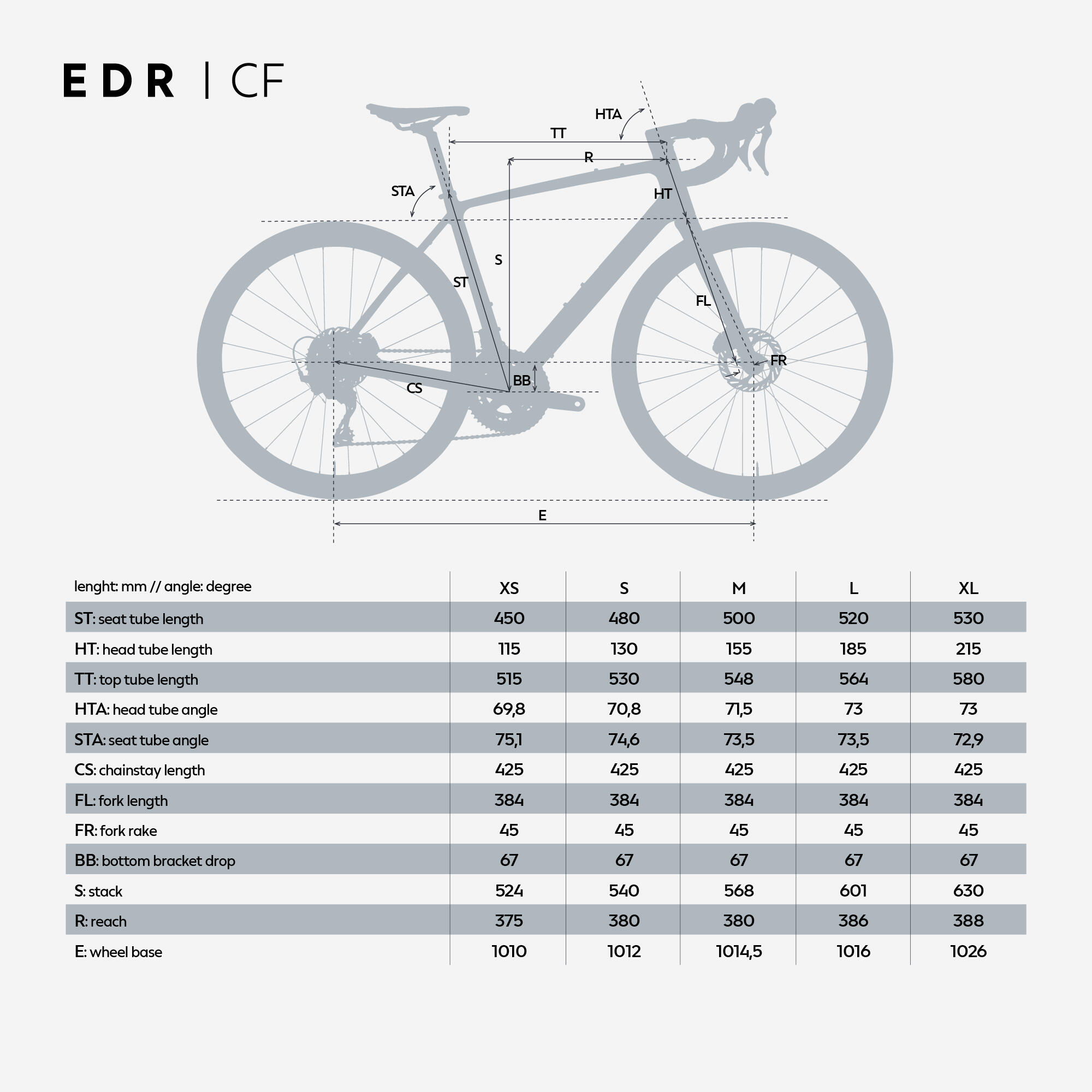

The geometry has been redesigned to offer a more relaxed position and greater comfort, without compromising on performance, which remains part of VAN RYSEL's DNA.

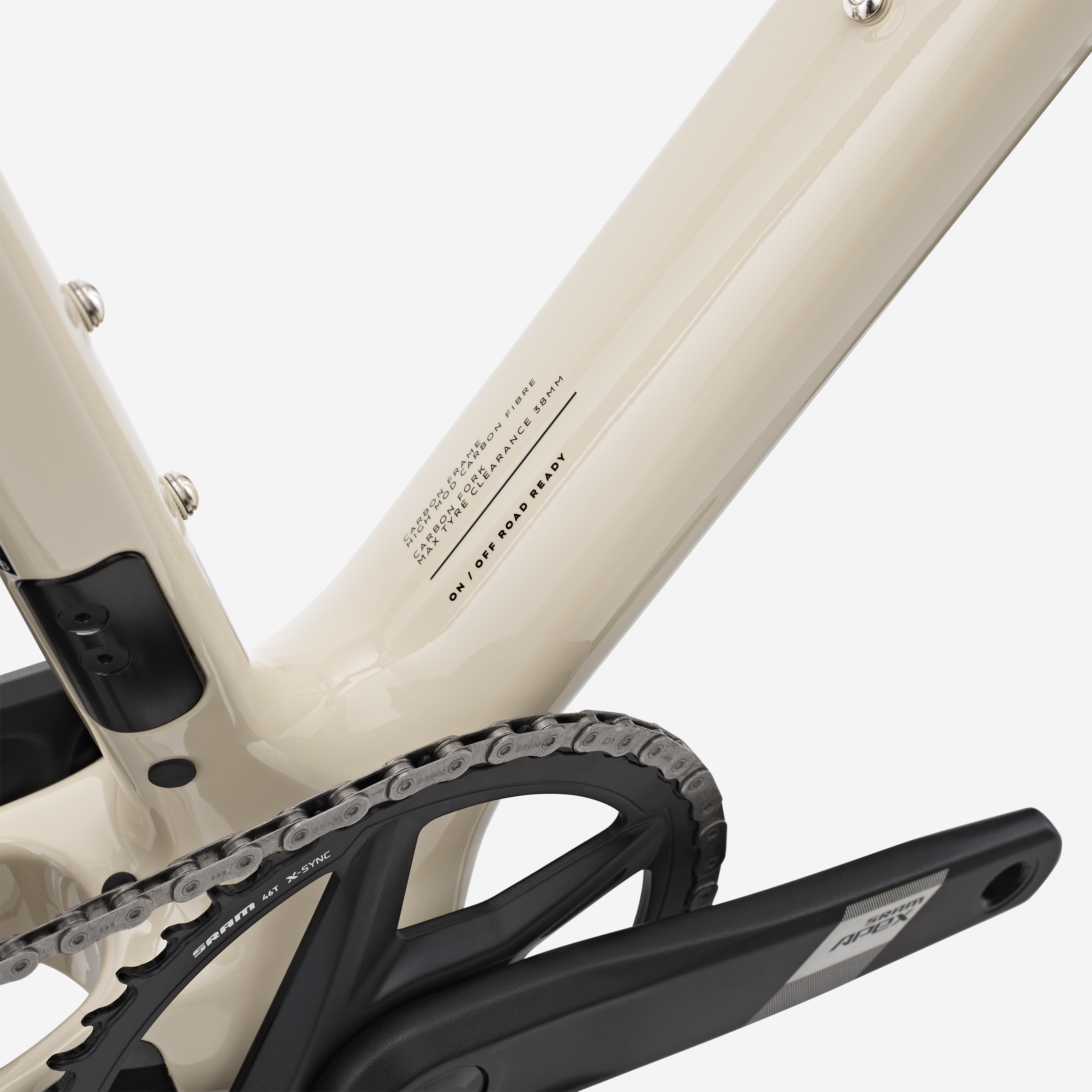

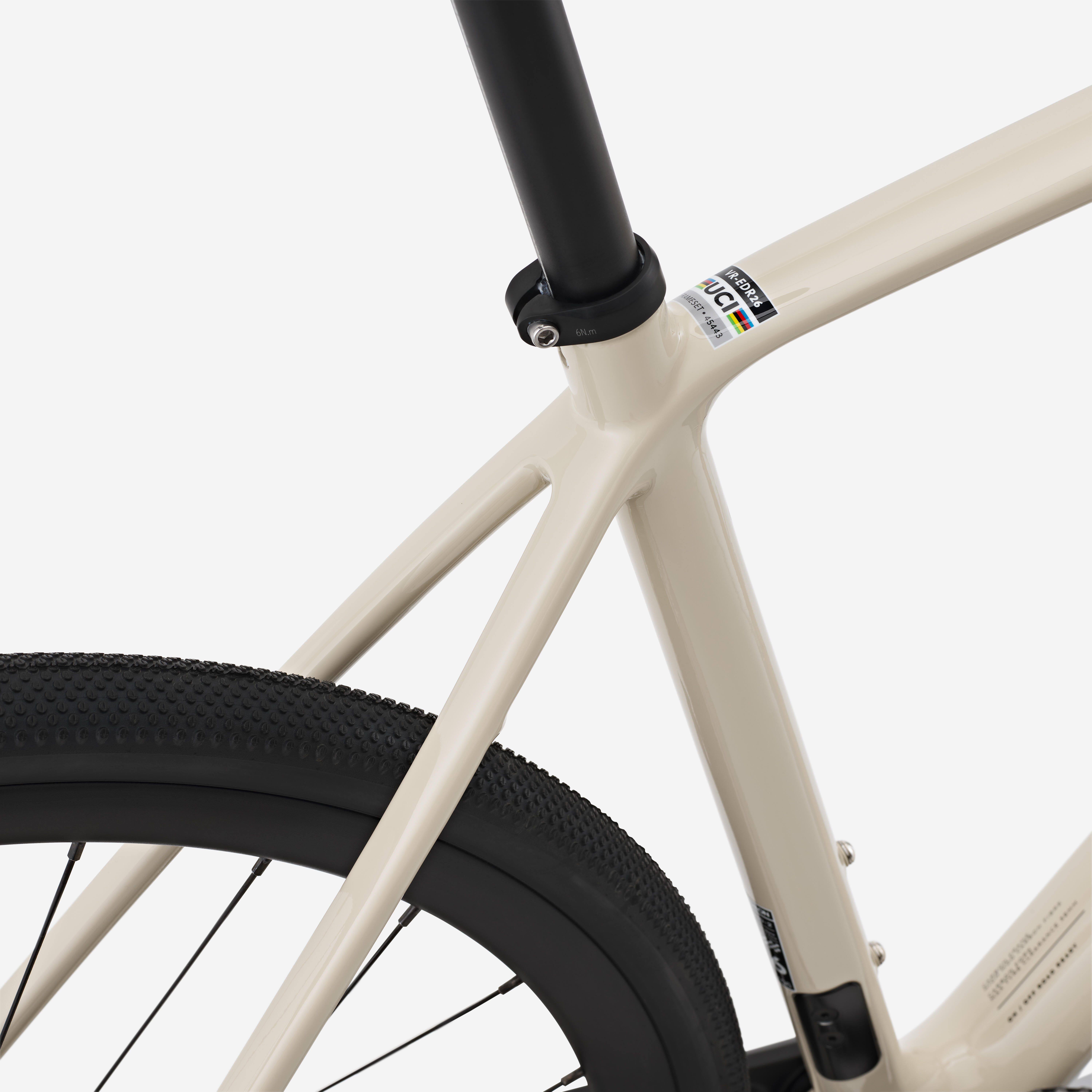

A CLOSER LOOK AT THE CARBON FRAME
"The carbon frame offers weight savings compared to an aluminium frame, greater rigidity and excellent dynamism.
All the cables are integrated into the headset for a more aesthetic finish.

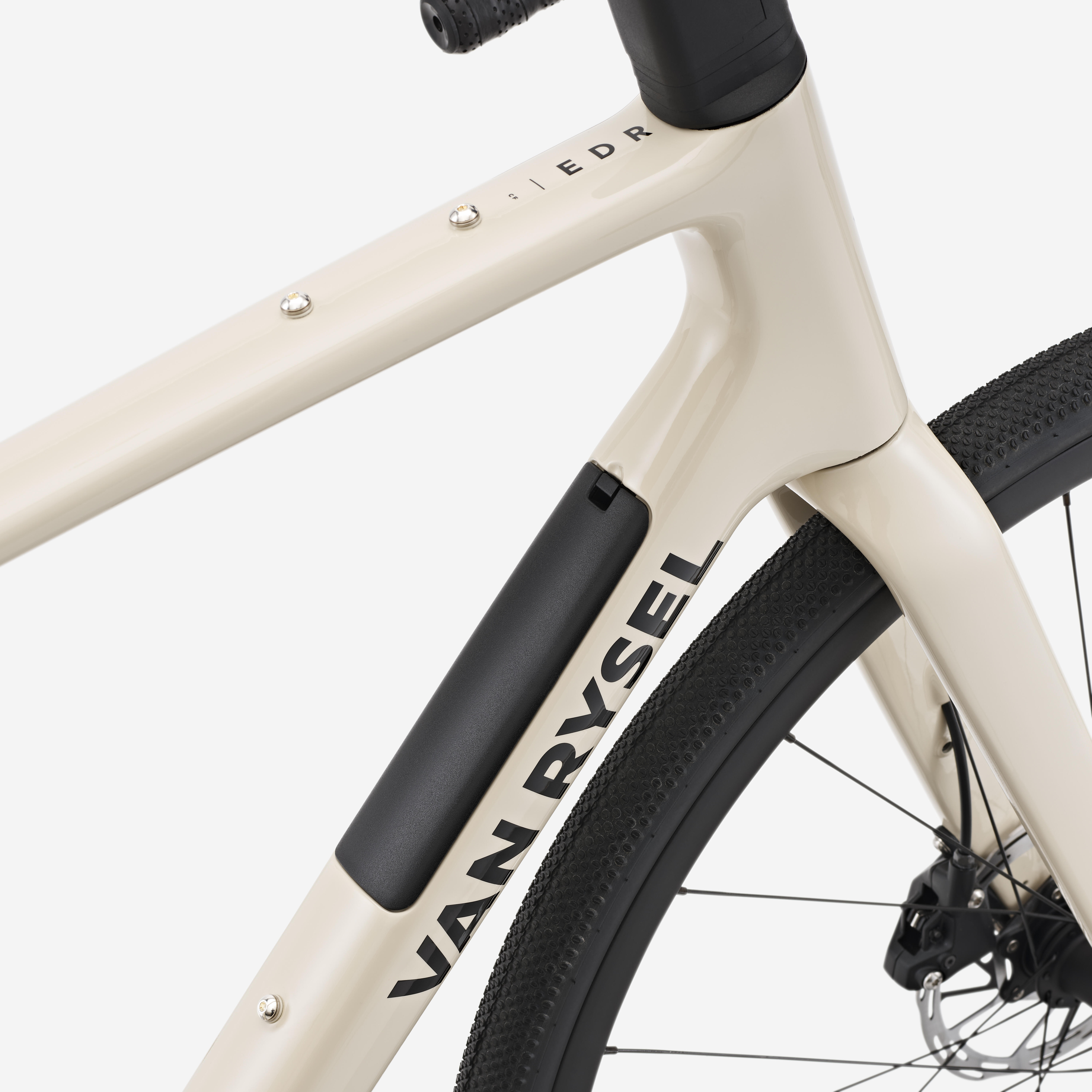

We have dedicated storage space in the down tube to accommodate an optimised repair kit, supplied with the bike.
There are 8 inserts on the frame for attaching bottle cages and accessories.
The bare EDR CF frame weighs 1000g in size M.

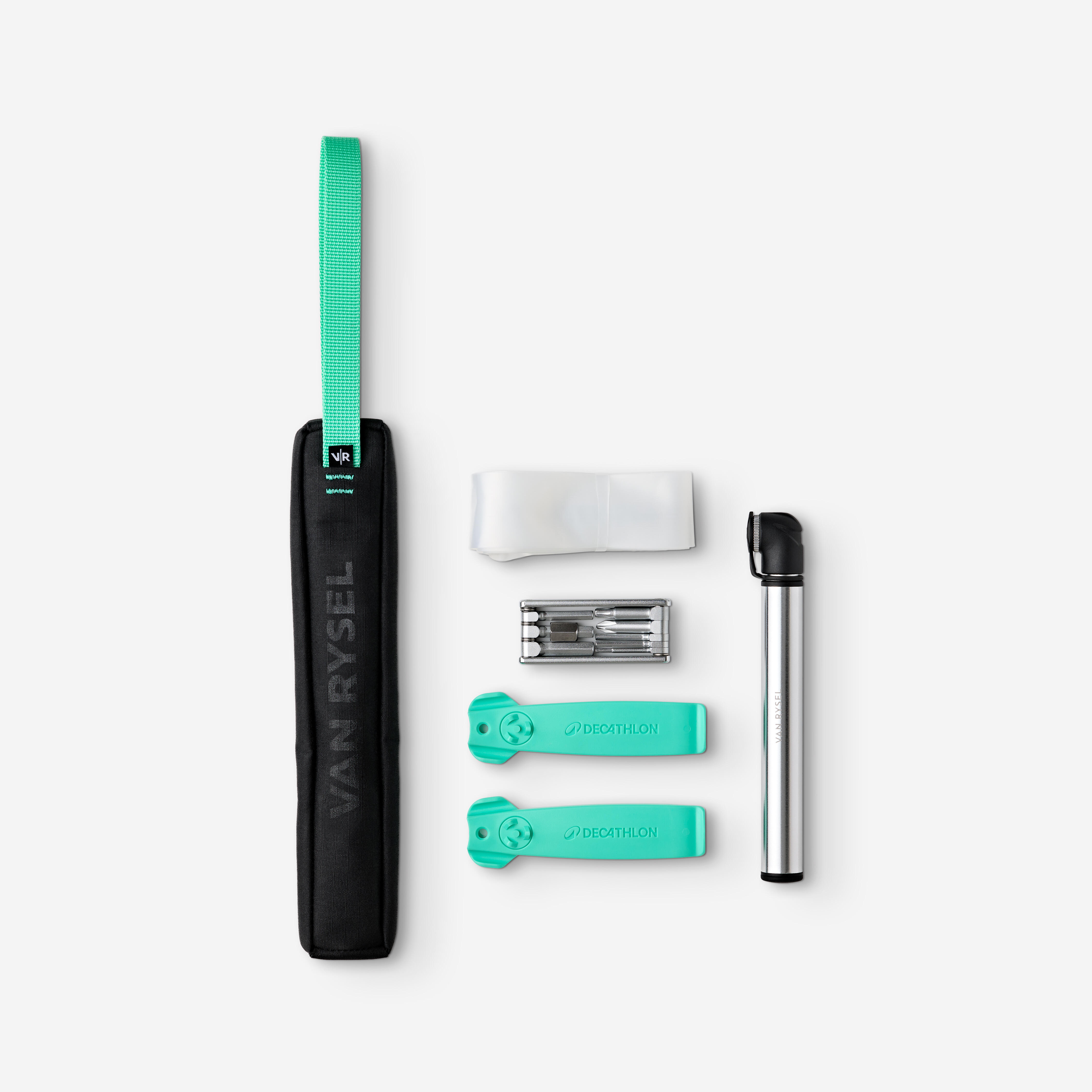

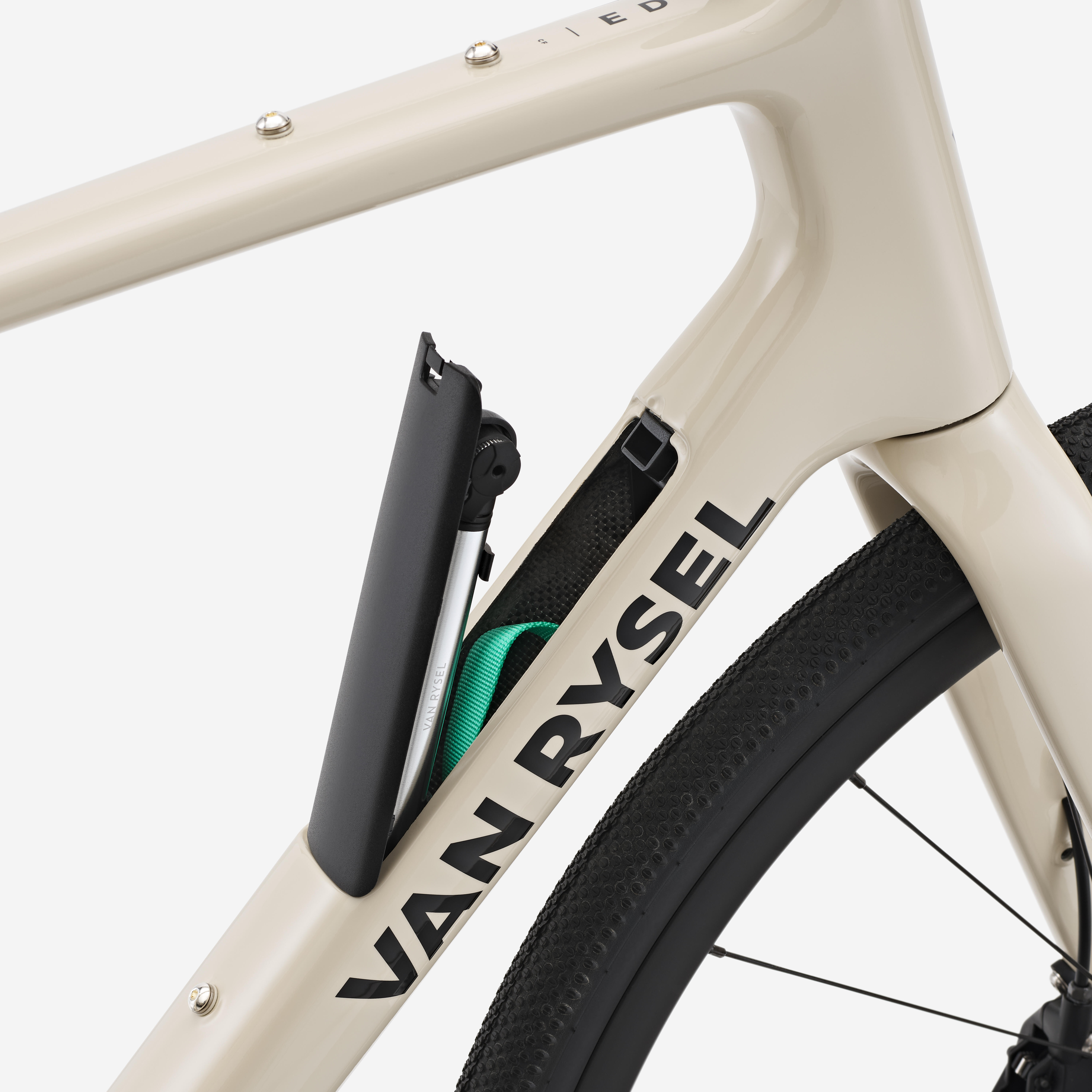

REPAIR KIT INTEGRATED INTO THE BIKE FRAME
A repair kit is supplied with the bike and can be found in the designated space in the frame.
This kit contains:
- 1 TPU inner tube
- 2 tyre levers
- 1 multitool (8/6/5/4/3/2.5/2/T25/PH2 cross-head)
- 1 pump
The entire kit weighs only 260g.

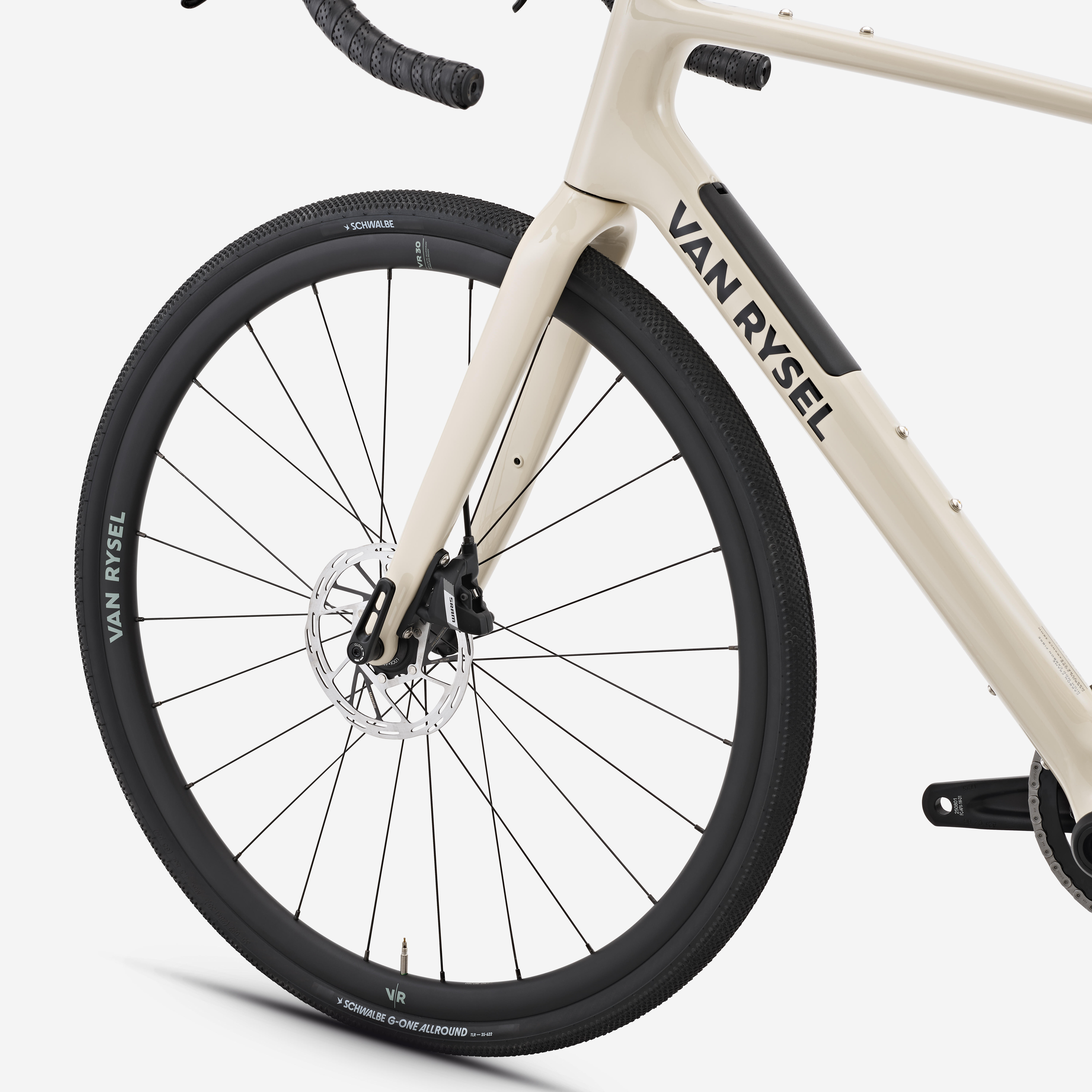

100% CARBON FORK
The fork is 100% carbon for direct and precise handling.
The fork weighs 400 g.
The frame and fork clearance allows for tyres up to 38 mm.

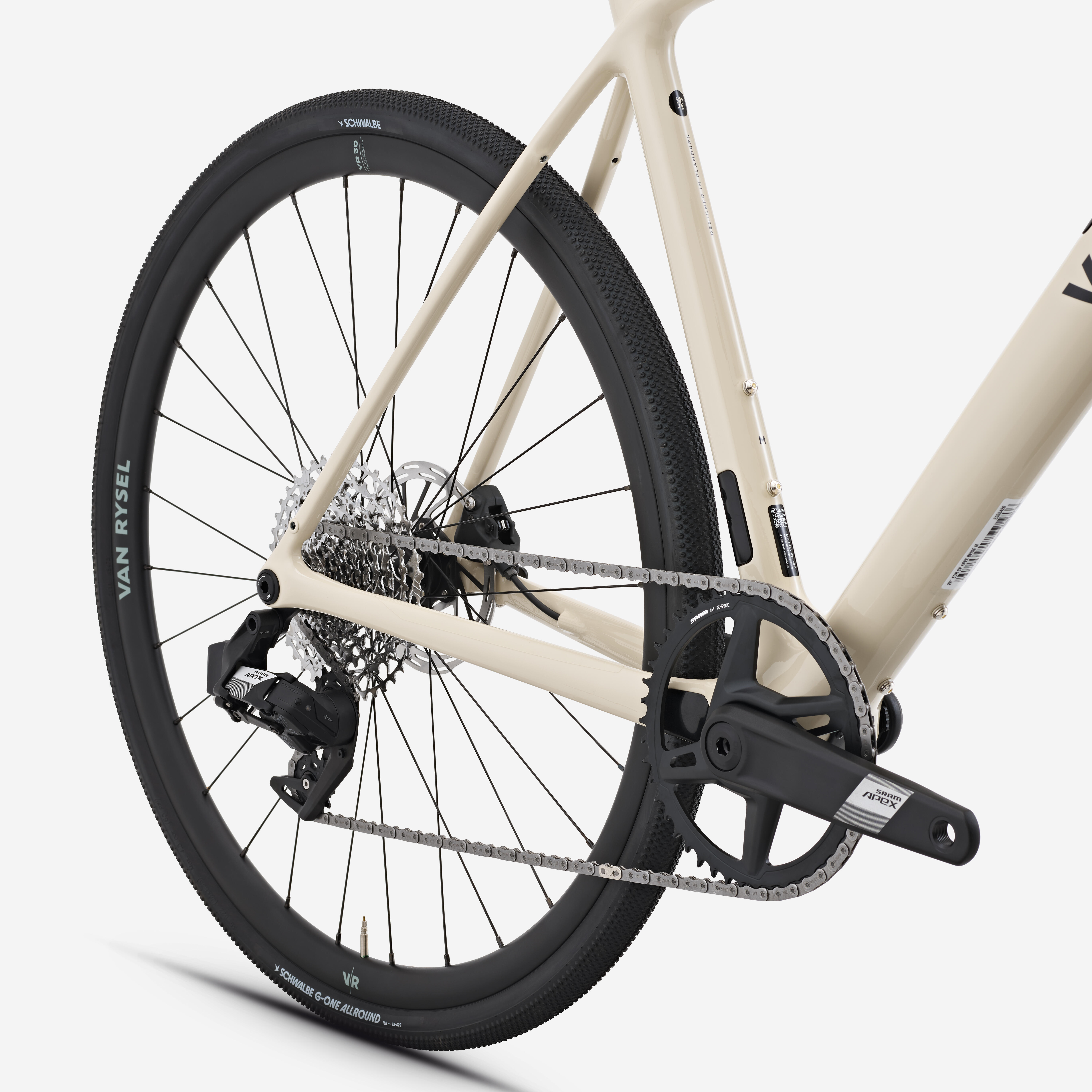

SRAM APEX AXS ELECTRONIC DRIVE TRAIN
SRAM APEX AXS 12-speed electronic drive train
SRAM APEX D1 bottom bracket
46T single chainring
Crank sizes:XS: 165 mm
S: 170 mm
M: 172,5mm
L/XL: 175mm
SRAM APEX XPLR PG-1231 cassette - 12-speed - 11-44T
Cassette spacing:11, 12, 13, 15, 17, 19, 21, 24, 28, 32, 38, 44
APEX chain
BB SRAM DUB WIDE
DRIVE TRAIN MAINTENANCE TIPS
Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.
The values below are average values given for information purposes only and vary depending on maintenance.
The average lifespan of a well-maintained chain is 5,000 km and for a cassette 10,000 to 12,000 km.
Hydraulic disc brakes
SHIMANO 105 BR-R7170 hydraulic disc brakes
Resin brake pads
Centerlock
160 mm discs at front and rear
Breaking in the brake pads is essential when using a bike for the first time.
For optimal running-in, we recommend 20 to 30 braking actions without locking the wheel from 25 km/h.Also, be sure not to stop between braking actions to avoid ‘gluing’ the pads to your discs.
VAN RYSEL ALUMINIUM WHEELS
VAN RYSEL VR30 AL aluminium wheels
Height: 30 mm
Internal width:21 mm
24 spokes at the front - 28 spokes at the rear
VR centerlock hub
Thru axles with levers:front 12x100 - rear 12x142
Tubeless-ready rims
Weight of wheel set:1657 g
SCHWALBE ALLROAD TYRES
ALL ROAD tyres for use on both roads and trails.
Schwalbe G one Allround Perf 700x35 mm

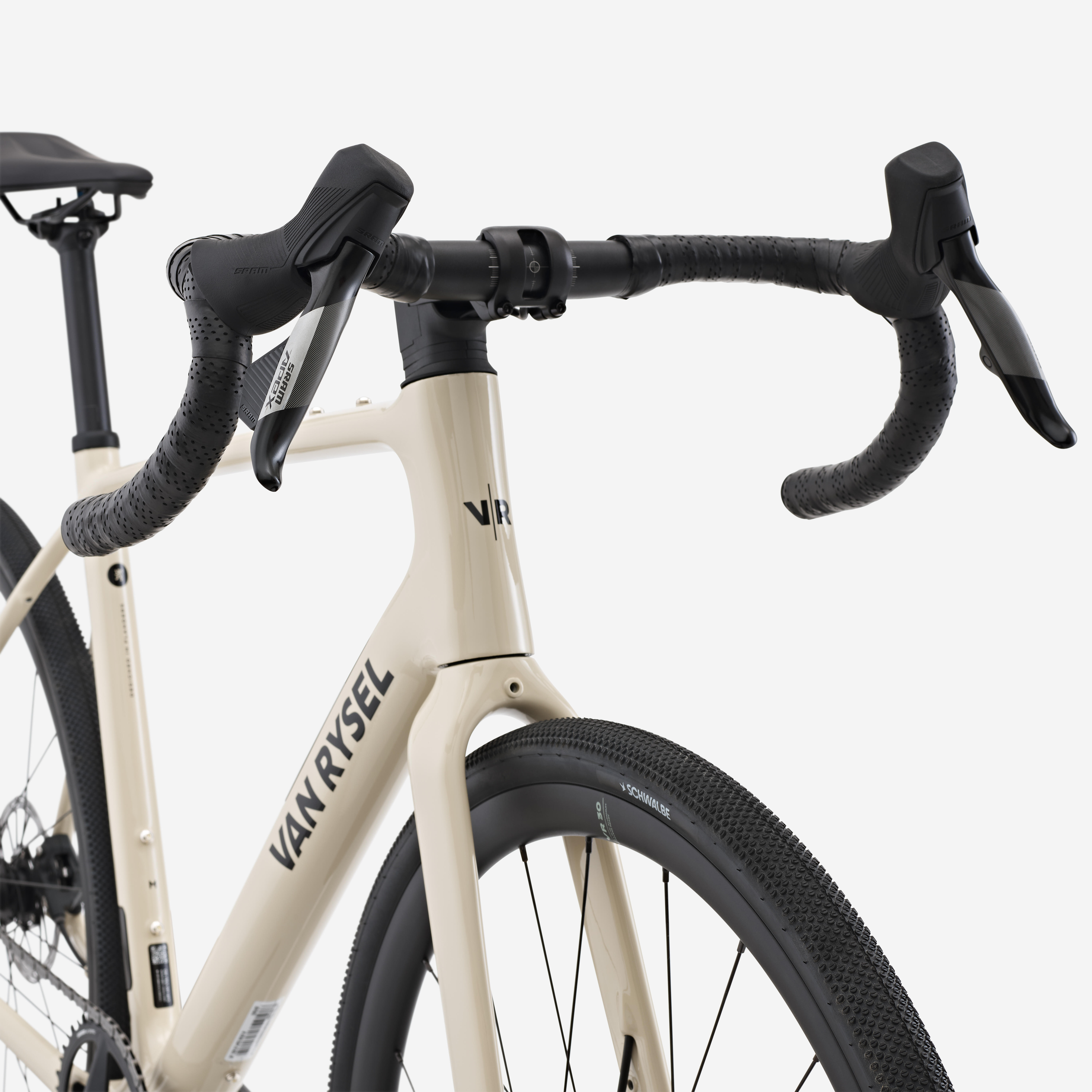

RIDING POSITION:HANDLEBAR AND STEM
The VAN RYSEL handlebar is made of aluminium with a 10° sweep.
Handlebar dimensions:
XS - 380 mm
S/M: 400mm
L/XL: 420 mm
The VAN RYSEL stem is made of aluminium
Stem length:
XS: 70 mm
S: 80 mm
M : 90 mm
L: 100mm
XL : 110 mm
EDR ULTRA bar tape

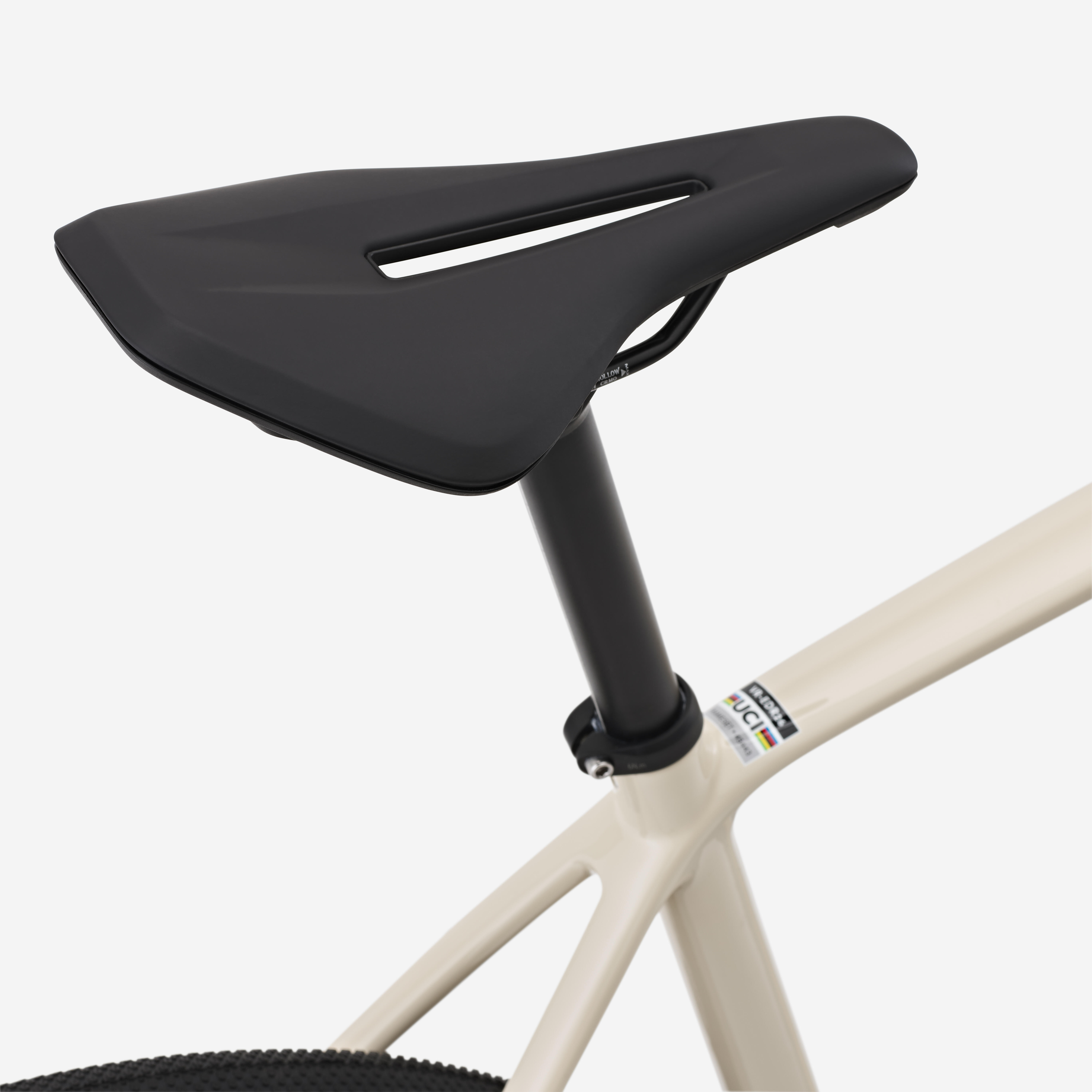

SEATING COMFORT
LIGHT 30° saddle 155 mm
Aluminium seat post with a diameter of 27.2 mm.
Seat post length:
XS: 300 mm
S/M/L: 350 mm
XL: 400 mm
LITTLE THINGS TO KNOW ABOUT THE EDR CF
The EDR CF comes with the following accessories:- Flat pedals; we recommend using clipless pedals to take full advantage of this bike's qualities
- 2 brake pads
- Tubeless valves
- 1 additional spacer
- 1 bell
- 1 front and rear light
- 1 torque wrench
- Reflectors
BIKE WEIGHT
Weight of the bicycle with inner tube and without repair kit or pedals:XS: S:
M: 8.86kg
L : XL:
Care tips
We recommend avoiding high-pressure water jets when washing your bike to avoid damaging it.We recommend cleaning your bike after each ride, particularly after tackling especially muddy or dusty terrain. In addition, remember to check your tyre pressure and braking efficacy before each ride.
