What does e-actv 100 mean?
The abbreviation ACTV stands for "ACTIVE". We've designed this bike for everyone looking to adopt a more active lifestyle and reconnect with nature. The "e" means that this is an electrical assistance bike
Motor Features
36V Rockrider brushless motor on the rear wheel.Max light output: 250W
Max torque: 45 Nm
Ideal for terrain with a moderate slope, up to 10% incline and 500 m of continuous elevation gain. Not recommended for mountain passes.The electrical assistance cuts out above 25 km/h in accordance with EU regulations.
3 levels of assistance to manage your effort
You can choose from 3 levels of assistance at any time. Simply press the + or - button on the controller located on the handlebars to switch between modes.
Mode 0 – Assistance off (0 Watt)
Eco Mode - Light assistance (70 Watts)
Normal Mode - Moderate assistance (125 Watts)
Boost Mode - Maximum assistance for more challenging climbs (250 Watts)
Up to 70 km of range with your trekking e-bike
The battery range varies depending on the weight being transported (user + load), the elevation gain, the wind and the outside temperature.
Our tests have assessed the maximum battery range on relatively flat terrain without a load (no pannier bags or trailer):
Eco Mode: up to 70km
Normal Mode: up to 50 km
Boost Mode: up to 30 km
Built-in, removable battery
Lithium-ion 36 V - 356 Wh battery.
Locked into the bike's frame for better integration and protection.
Quick release with key (3 keys included) to recharge it. Built-in carry handle.
500 charge cycles guaranteed without loss of battery life.
Weight 2.3 kg
Can you ride with a flat battery?
Yes.If the battery is flat, the weight of the electric kit makes the bike less smooth to ride than a traditional hybrid bike. But you can still ride it if you break down.
Battery Charging
Fully charges in 4.5 hours with the 2A charger provided.
The battery must be removed using the keys provided to charge it.
Compatible with Rockrider 4A chargers (Ref.: 8753941) for quicker charging.
When to charge my battery?
Lithium-ion batteries have no memory effect, so they can be charged at any time.
We recommend charging your battery regularly before it is completely flat to maintain optimal performance.

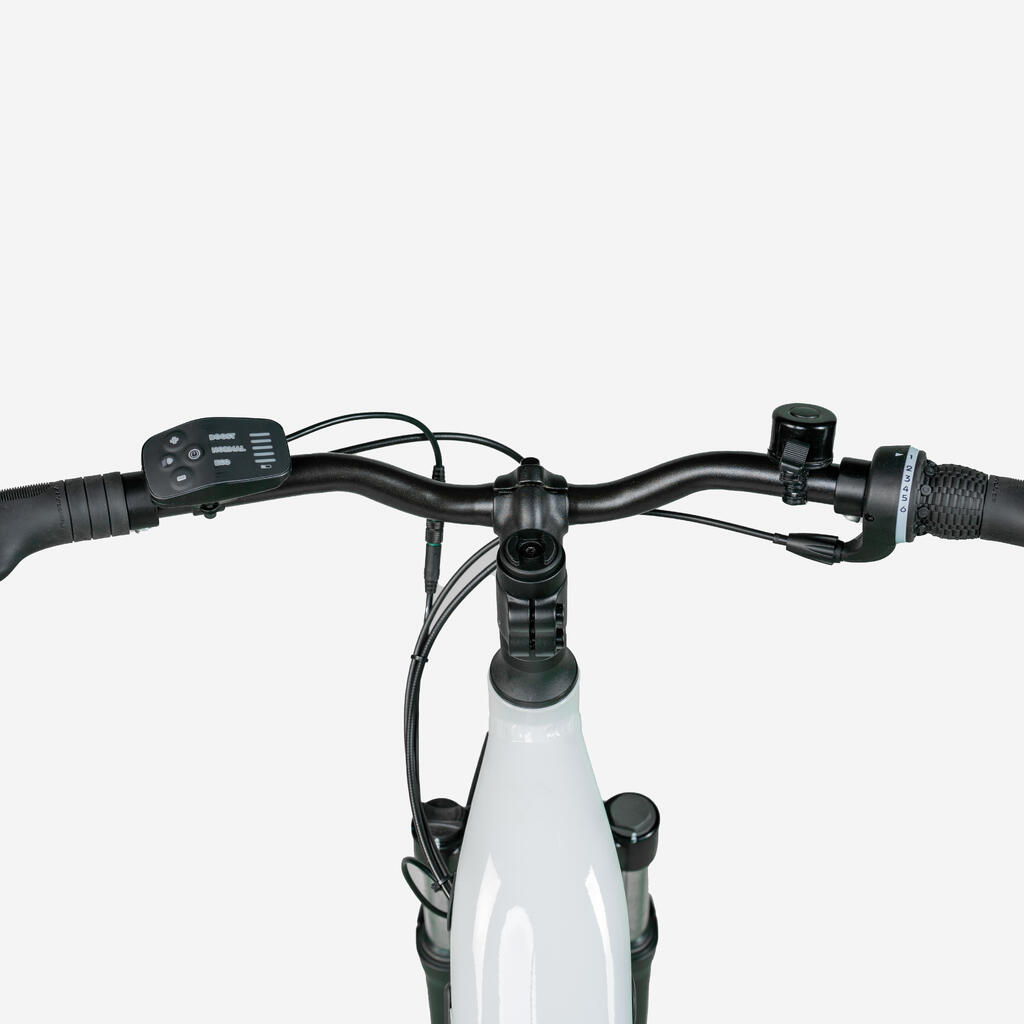

Controller
LED control screen on the handlebars, next to the left grip.
Information available:
- Current assistance mode
- Remaining battery level
- Light status (on/off)
Functions:
- Turn the bike on/off
- Select assistance mode
- Turn the lights on/off
Connect your bike to your phone to access speed, distance, and GPS route information.
Connectivity

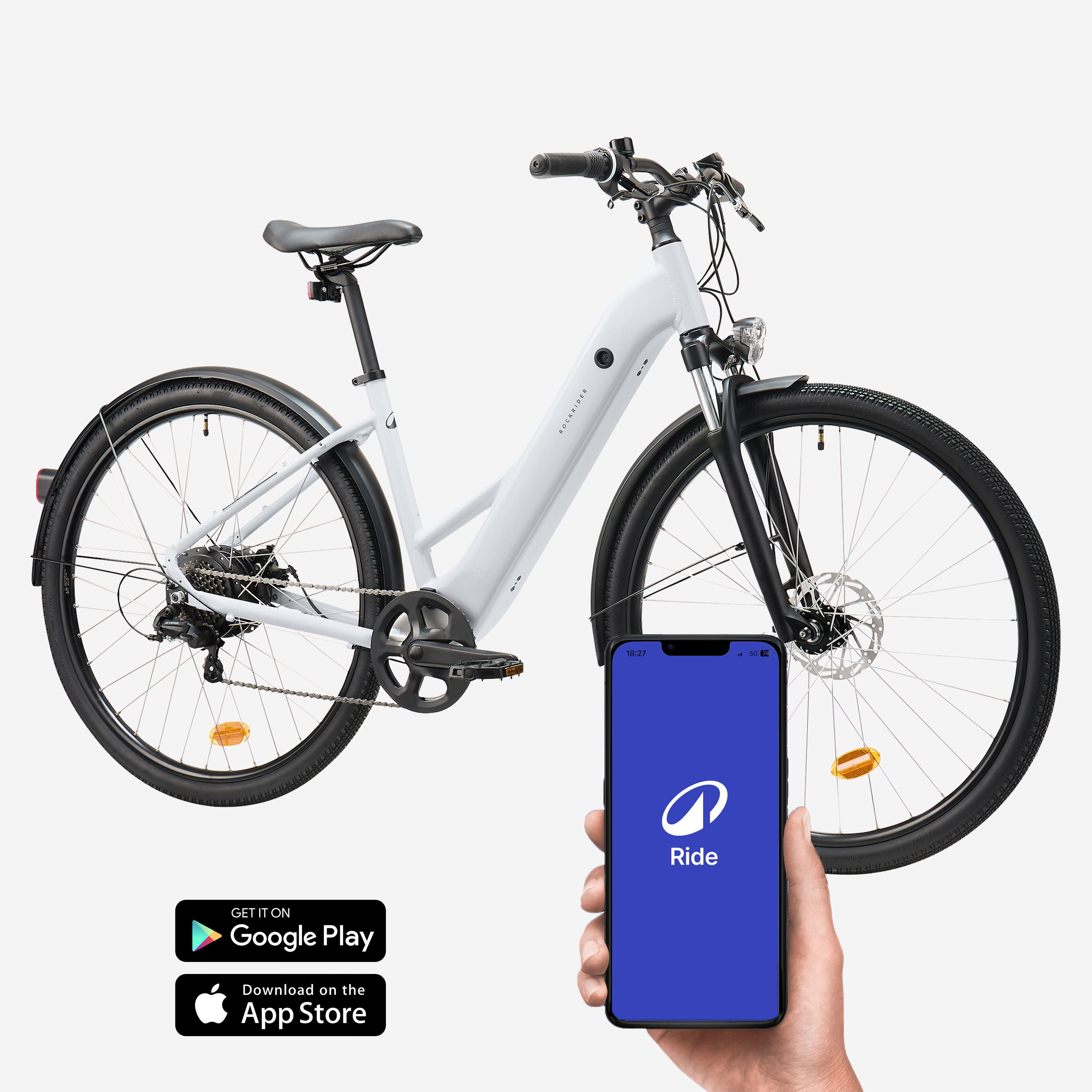

Download the Decathlon Mobility app and turn your smartphone into a smart dashboard with live tracking and Auto Mode.Review your ride history and battery usage after your ride, and manage your bike’s maintenance with ease (tutorials, workshop appointments, updates and insurance).
Decathlon Ride App Connectivity
Activity History:view statistics on your rides (duration, mileage), including an energy page to understand your consumption and mode usage.
Datasheet: Access technical information about your bike on a dedicated page.
Updates:Update your bike's display via the app, without having to go anywhere.
Support and loyalty:Access experts and the Decathlon programme.

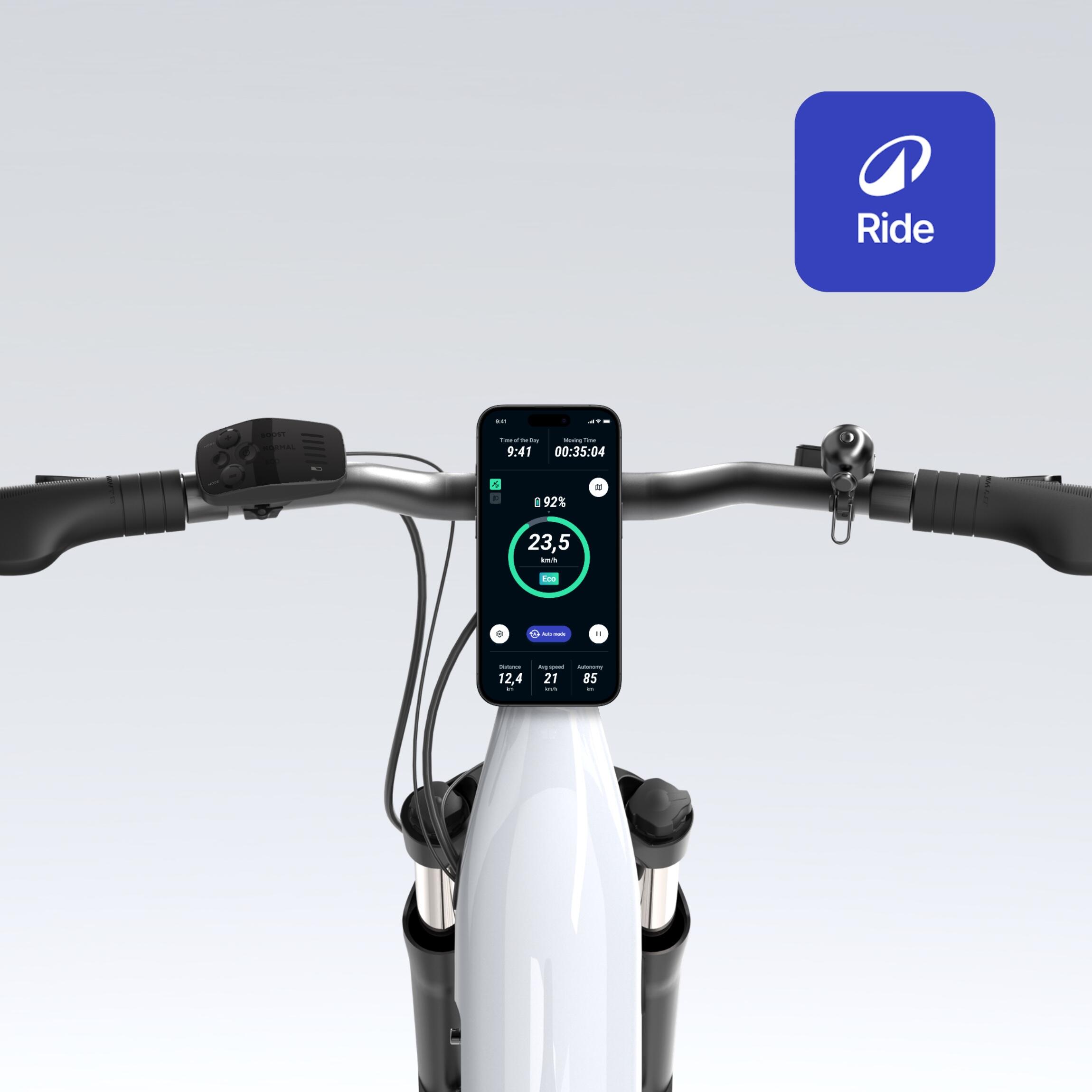

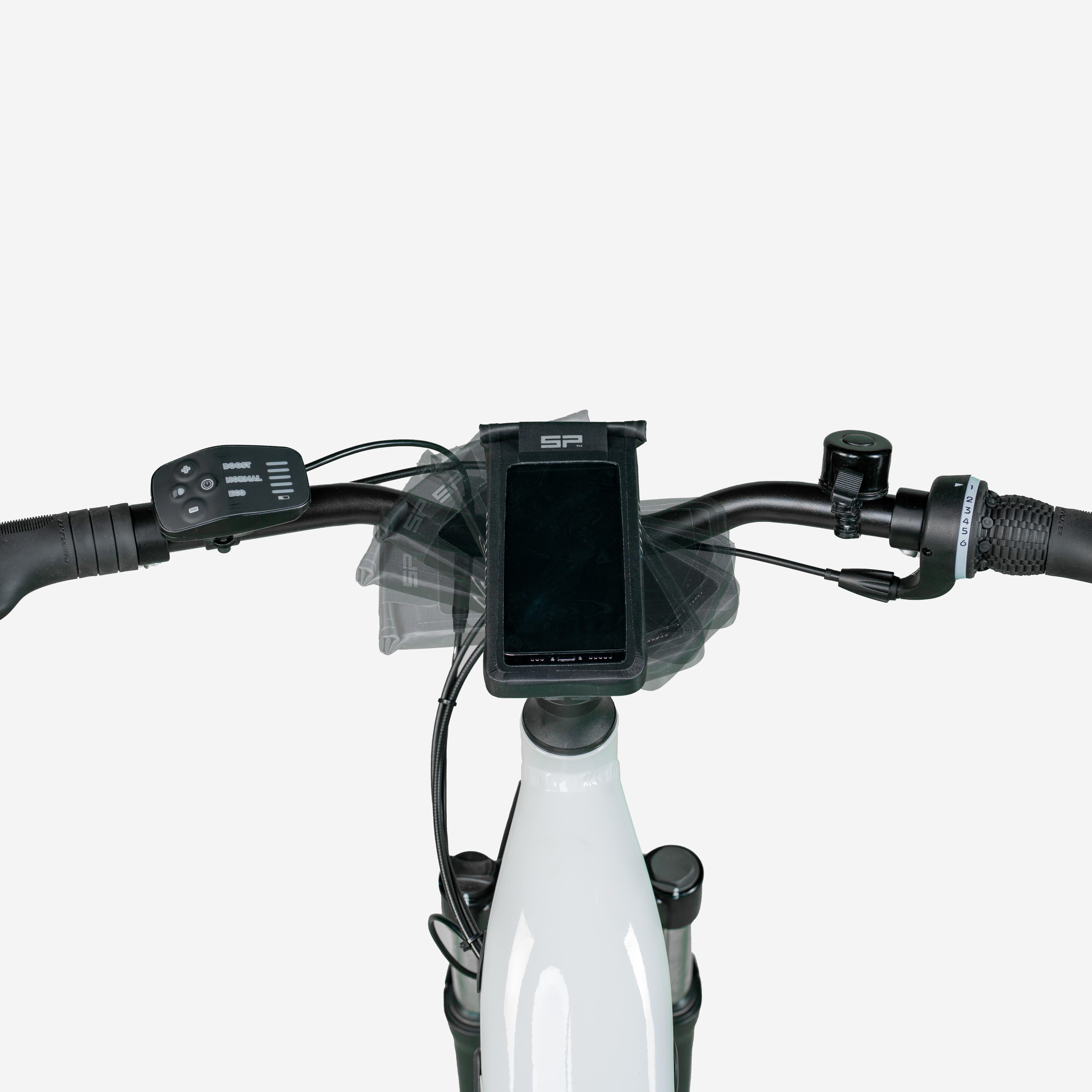

Built-in SP Connect Smartphone Mount

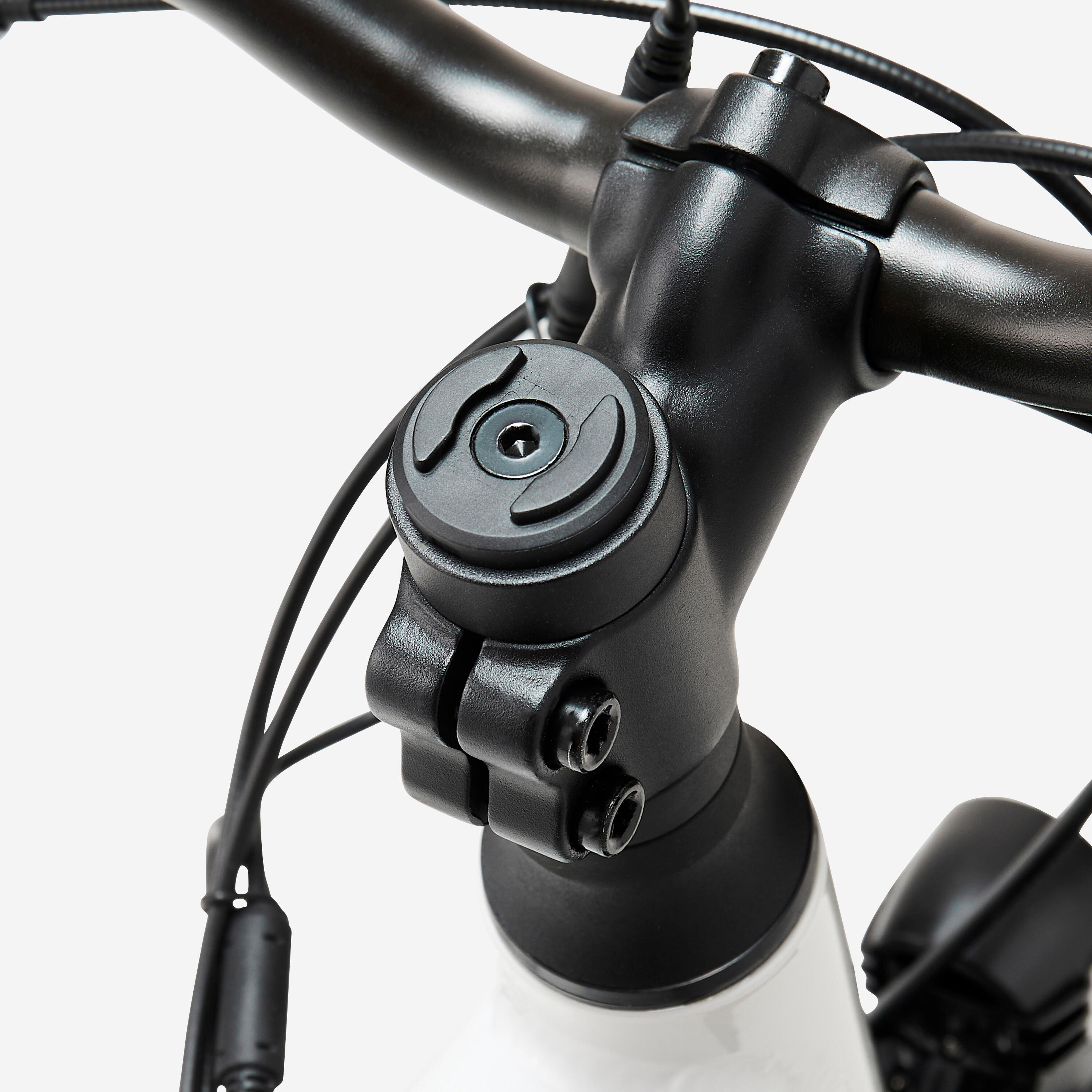

The e-ACTV 100 is equipped with an SP Connect mount, making it easy to attach your smartphone to the stem.
A wide range of SP Connect smartphone cases and universal mounts are available on the Decathlon website.The case or pouch is not included with the bike. SP Connect offers a quick, simple, and robust mounting solution for bikes and motorcycles.
Electrical and electronic components that resist dust and rain.
All of the electrical components (controller, motor, battery, etc.) are resistant to dust and rain (IPX5).
This means that you can leave your bike outside in the rain without the battery. Any water that might get into the hole where the battery would normally be will run off the bike and won't damage the components.
Do not wash with a pressure washer.

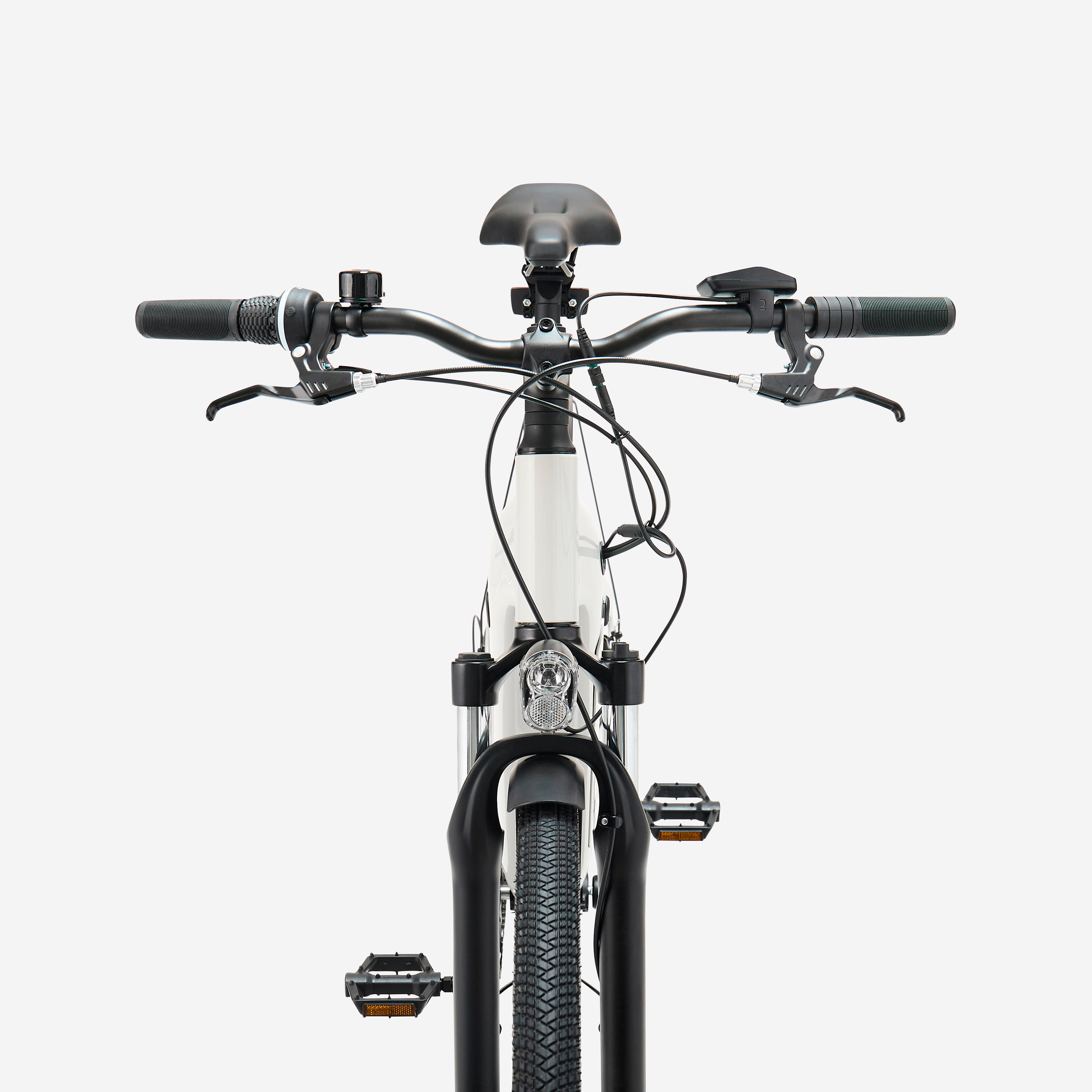

Built-in lights
Lights powered by the bike's battery:
- LED AXA Echo 15 front light. Power: 15 lux.
- LED rear light fixed to the rear mudguard.
The rear light remains active (on lower power) for 4 minutes after turning off the bike.

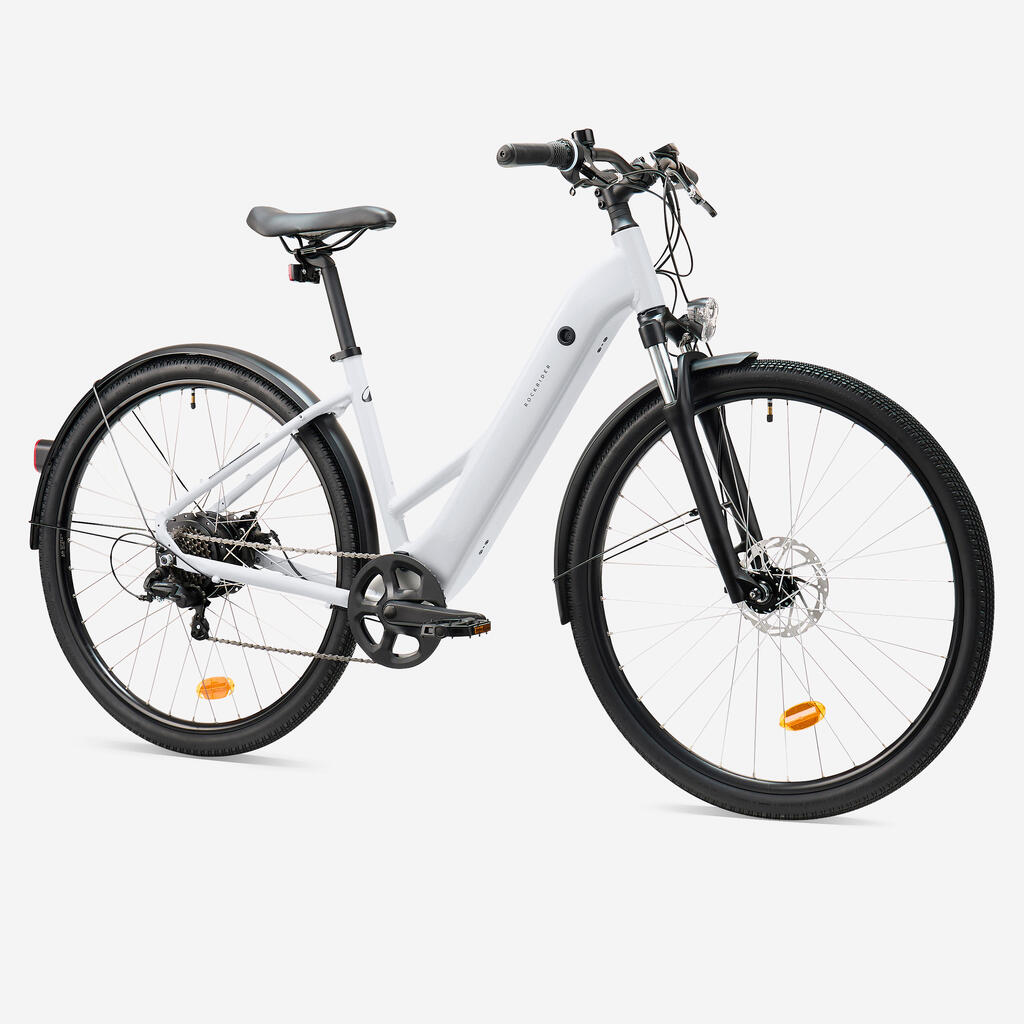

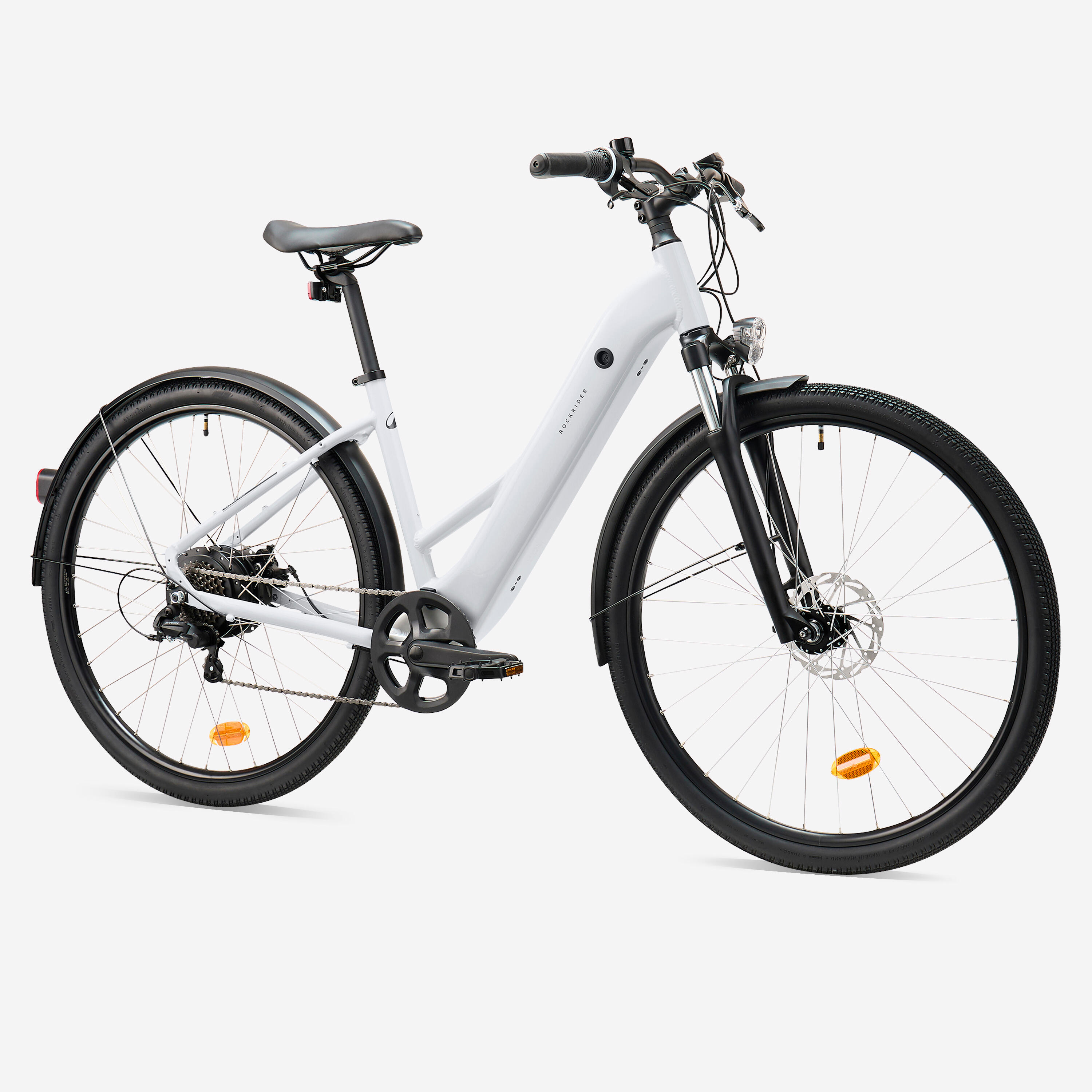

Getting on and off

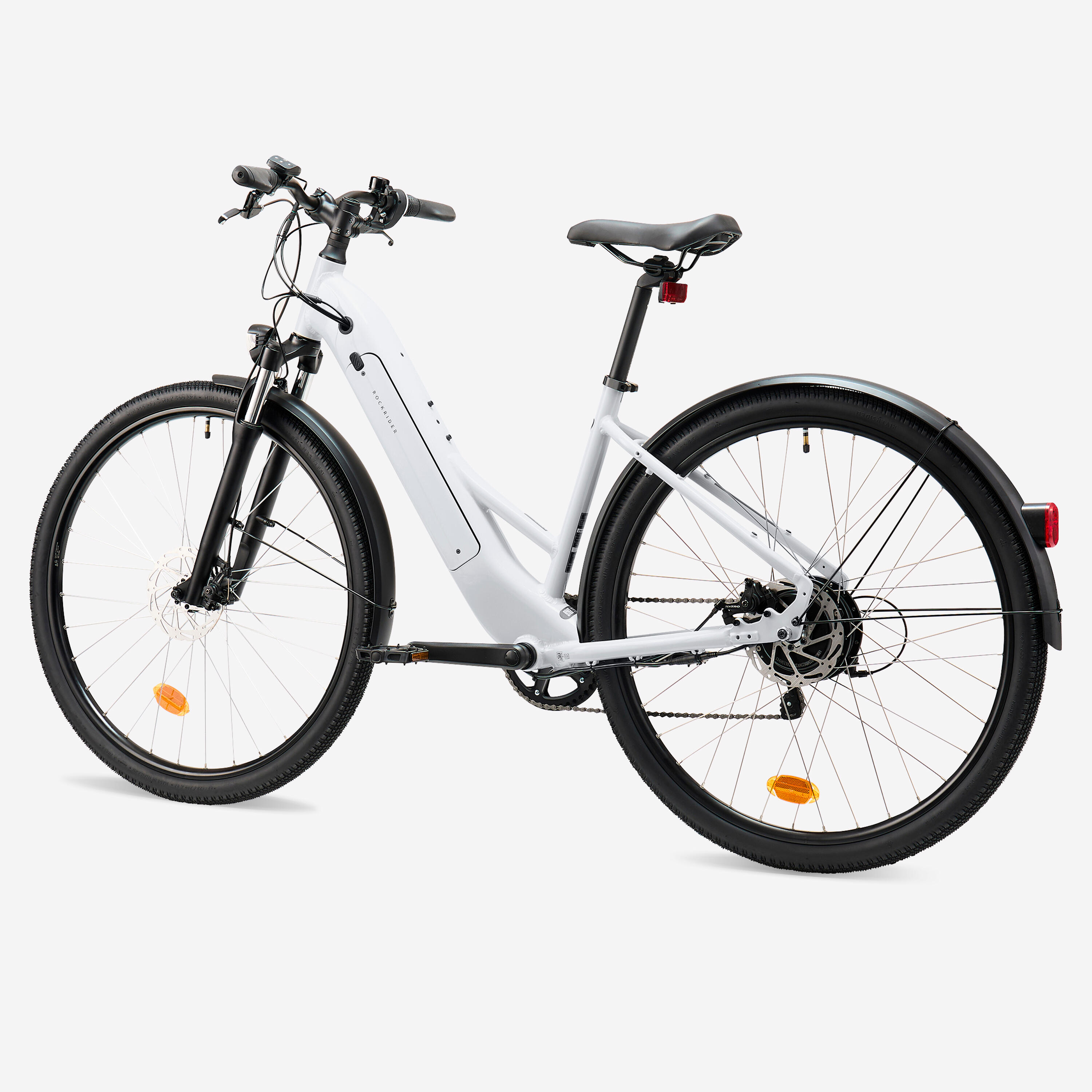

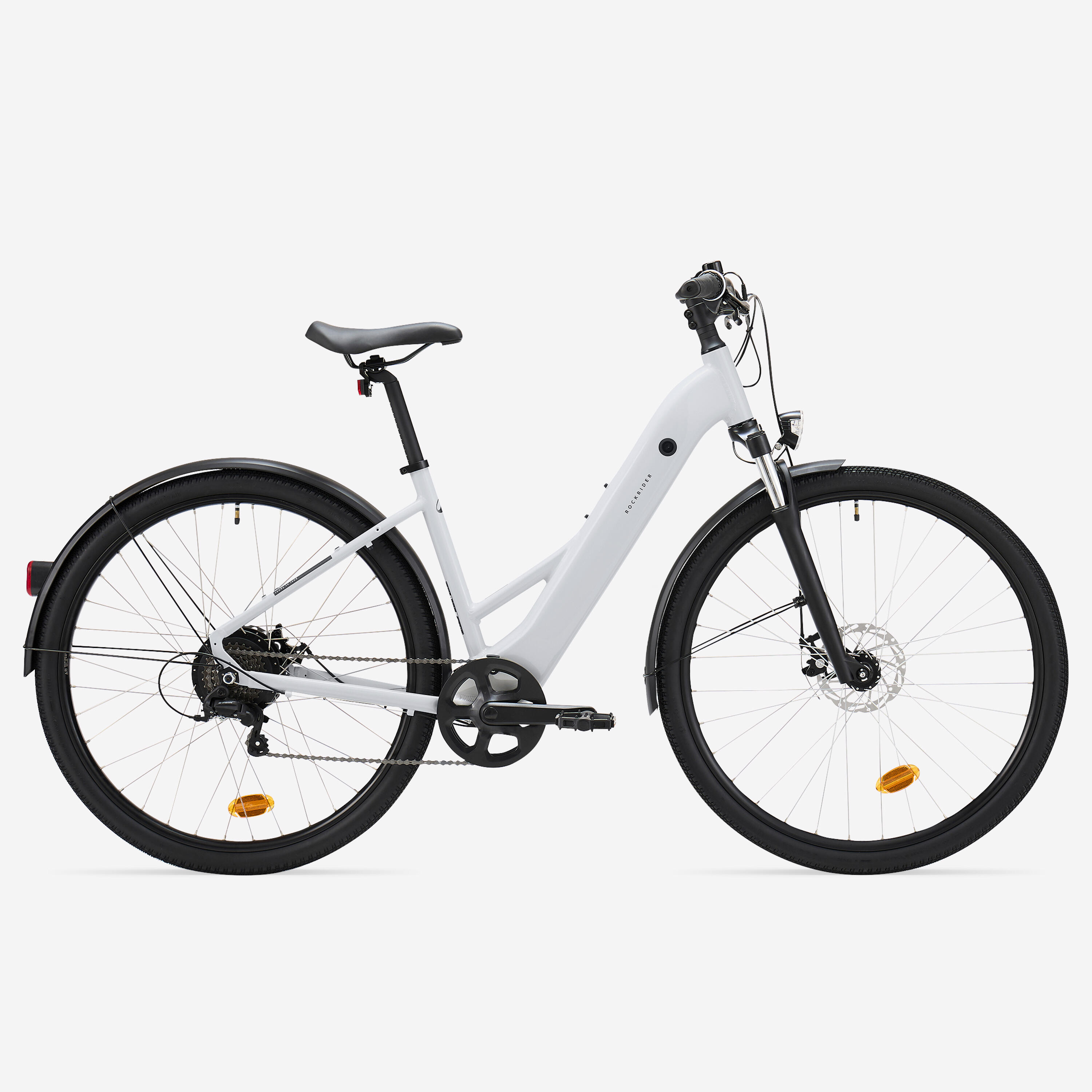

We have designed two versions of the e-actv 100:
- Low frame version: The low frame version is easy to get onto. This is particularly useful when you're using a child seat (ref.8893262).
- High frame version: The high frame version is stiffer and gives you more precise steering, particularly on rough terrain and when you're carrying a heavy load (ref.8893260)
SIZES
Sizes available: • Size S/M: 1.50 m to 1.72 m tall.
• Size L/XL: 1.72 m to 1.95 m tall.
If you're between 2 sizes:
Get the smaller size if you want a more upright position.
Get the bigger size if you want a more stretched-out position.

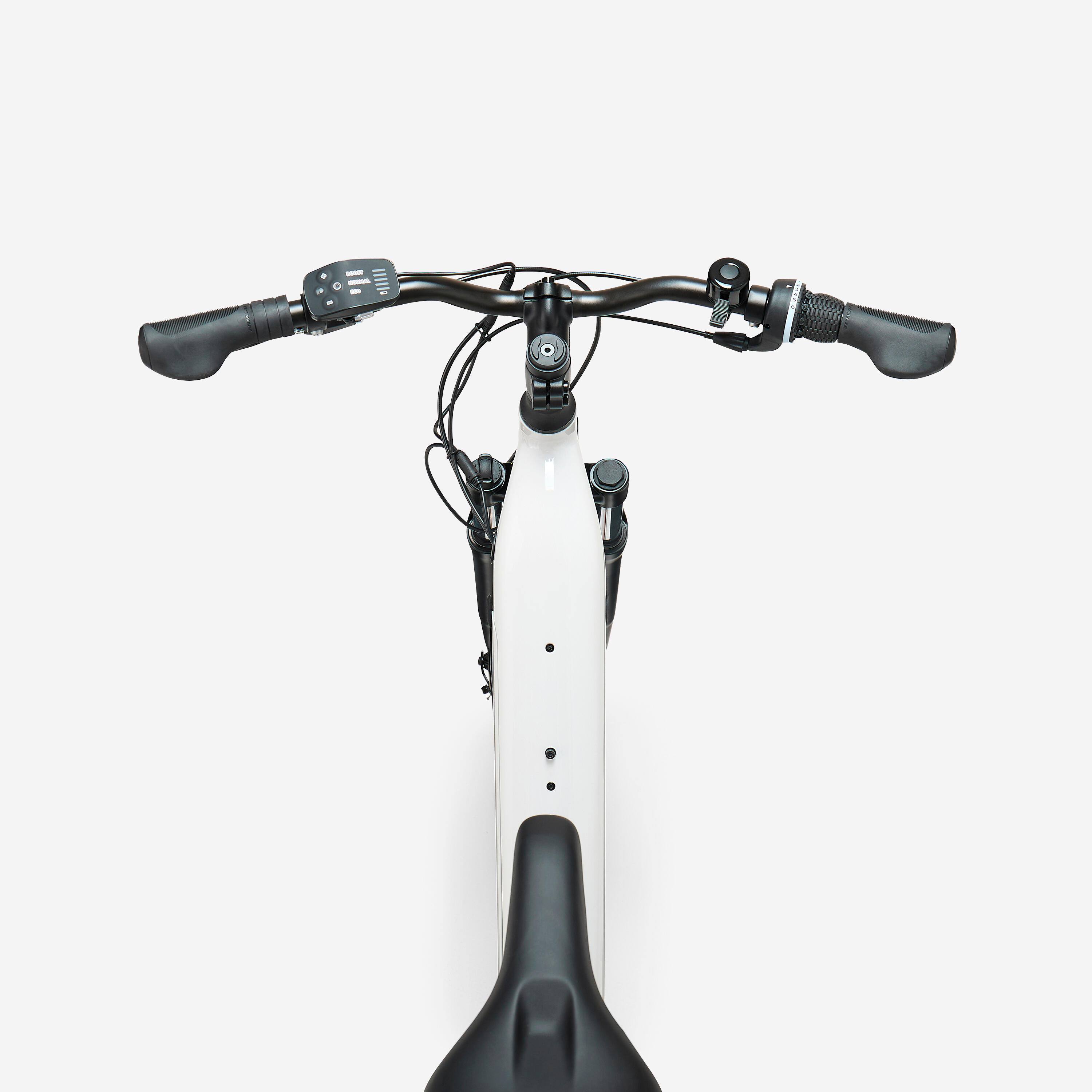

Handle bar
Handlebar:
- Width: 640 mm
- Diameter at centre: 25.4 mm
- Material: steel
Stem:
- Length size S/M: 60 mm
Size L, XL: 75 mm
Diameter: 25.4 mm
- Material: aluminium
Headset: 1⅛".
BTWIN city 500 ergonomic grips.
SUSPENSION
Rockrider Trekking suspension fork.
- Spring: coil
- Steerer tube: 1⅛" aluminium
- 60 mm travel
TYRE
Rockrider Trekking all-terrain tyres offering excellent puncture protection (maximum level of 4.5/5).
Dimensions: 700x47 mm (ETRTO 47-622)
Puncture protection level: 4.5/5
Type of protection: Double protection polyamide
Carcass: 60 TPI
Tubeless compatible: No
Recommended pressure: about 3 bar.
Saddle
Rockrider Trekking saddle.
The saddle height can be adjusted using an Allen key to reduce the risk of theft. A quick-release clamp can be installed. Ask your sales assistant.

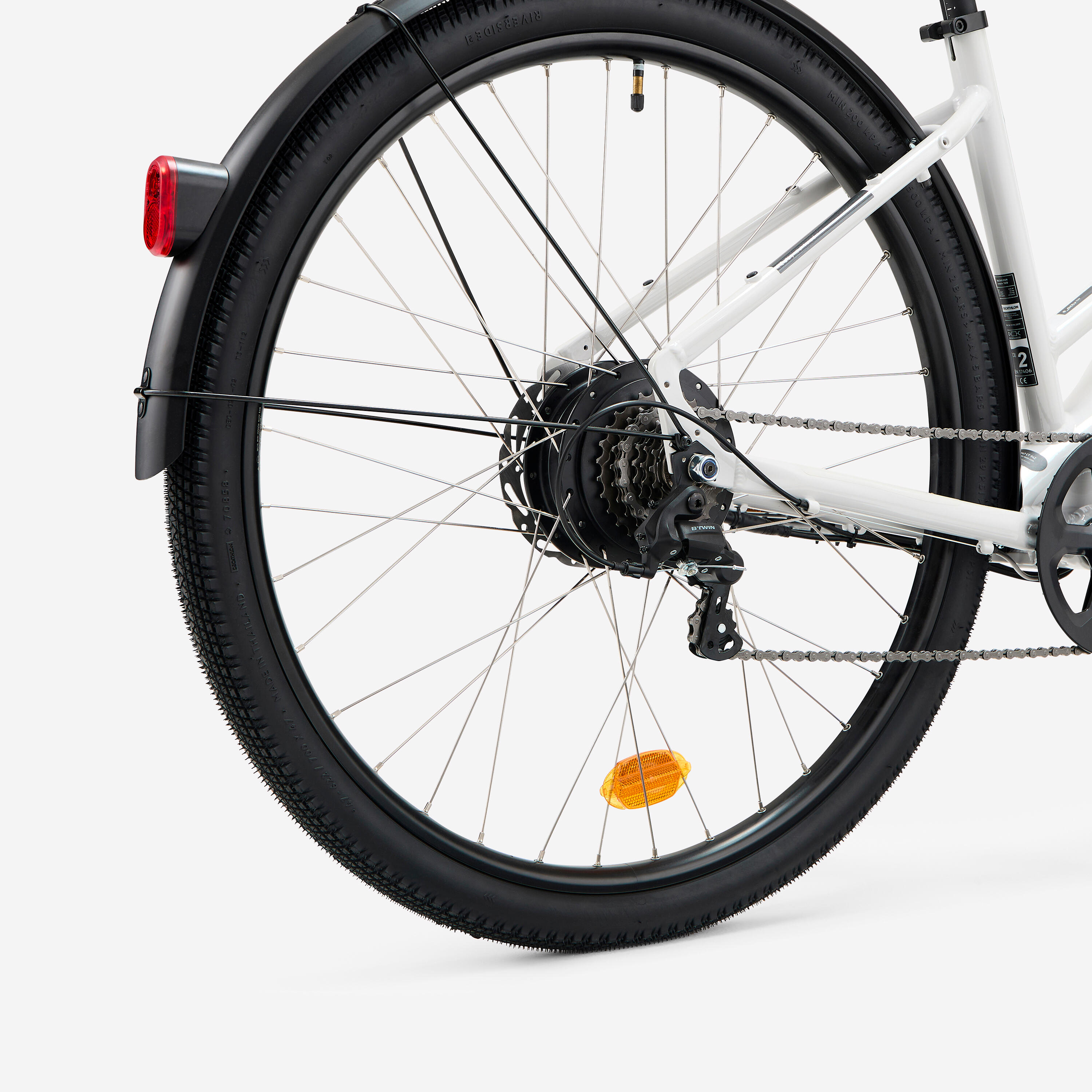

TRANSMISSION
- Gear shifter: Twist grip
- Number of speeds: 6 speeds
- Freewheel: Screw-on
- Single chainring: 44 teeth
- Cogs: 14/28
- Corrosion-resistant KMC Z6 CL573 chain with quick-release link
- Rear derailleur: Microshift RD M21
- Anti-derailment ring
WHEELSET
RimsReinforced asymmetric rims (double-wall)
Rim dimensions: 25-622 (ETRTO).
Not tubeless compatible
Spokes:
32 front and 36 rear
Rustproof treatment (galvanised)
Front hub:
Sealed cartridge bearings.Anti-theft axle.Requires a 5mm Allen key (provided) to remove the front wheel. Compatible with a quick-release axle.
Rear hub: Motor.Full axle fixed with a nut.Requires a 19mm wrench to remove the rear wheel.

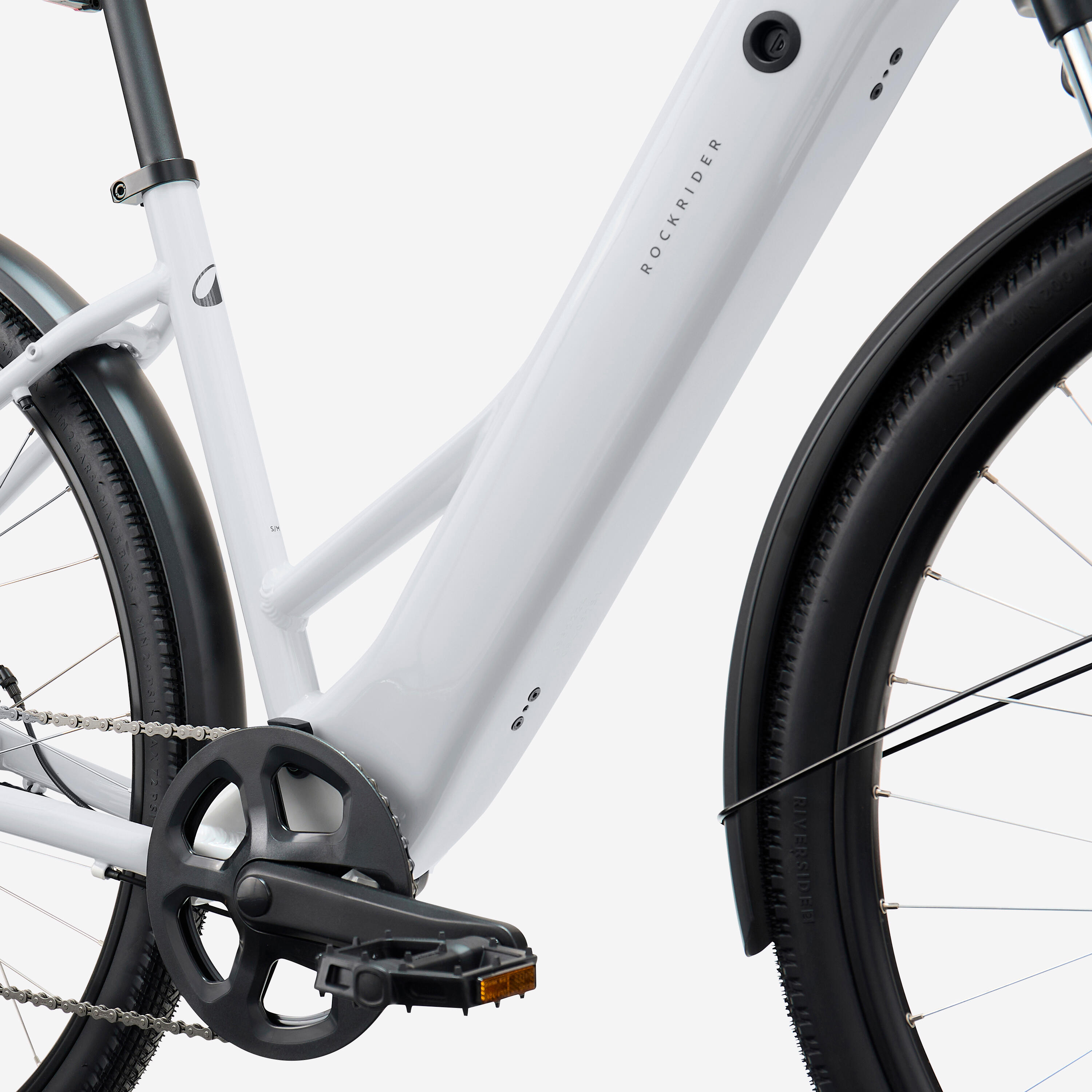

Frame
Aluminium frame. Hydroformed diagonal tube.
Maximum tyre size compatible with the mudguard: 700x47mm.
BRAKES
Mechanical disc brakes. 160 mm front and rear disc.
Pedals
We've chosen to use wide platform pedals to keep you more comfortable and give you a feeling of stability. Resin pedals.
Compatible Accesories
Compatible with: • rear kickstand (ref. 8784182). Installation of kickstand requires only two screws.• rear pannier rack: compatible with most pannier racks available on the market. We recommend our dedicated rack (ref: 8828232).
• frame lock (ref. 8735625)
• child seat on the pannier rack
• child seat on the frame
• bottle holder:1 fixing point on the frame. If you need a second bottle, we recommend using a fabric bottle holder on your handlebar (ref. 8487122).
Bike trailer compatibility
The e-actv 100 is compatible with trailers:- Hamax
- Bike Original
Thule and Croozer bike trailers are not compatible.
Mudguard
The mudguards ensure that there is always 6 mm of space between the tyre and mudguard. They allow you to ride on dirt tracks without mud getting clogged between the tyre and the mudguard.
Weight
22.9 kg in size L/XL.
Max load
The e-actv 100 is approved for a total maximum load of 120 kg:
user + bike + additional load (bags, child, etc.).
