Powerful, discreet electric system
The Mahle X30 assistance system on our electric gravel bike amplifies your effort up to 45 Nm, allowing you to overcome the toughest obstacles thanks to the three levels of assistance to choose from. However, it knows how to be discreet with its battery built into the frame and its weight of just 3.5 kg, making it nearly imperceptible when you don't need it.
Make your adventures last for hours
The 250 Wh battery integrated into the frame provides a maximum battery range of 100 km to let the miles fly by. The optional battery extender (eX1, 171Wh), which fits discreetly into one of the bottle cages, extends the maximum range to 150km for all-day rides. Naturally, battery life will drop based on the assistance level used, the route, the cyclist's weight, the temperature, the wind, etc.
All-around handling and comfort!
With the intuitive offset assistance controls on the handlebar, you keep control of both your effort and your steering at all times. The endurance riding position is upright enough to stay comfortable for hours and keep control on rough terrain, without compromising on speed and acceleration. The wide 700x45mm Hutchinson Touareg tyres and the Sram Apex 1x12 groupset can overcome any challenge.
Fully equipped

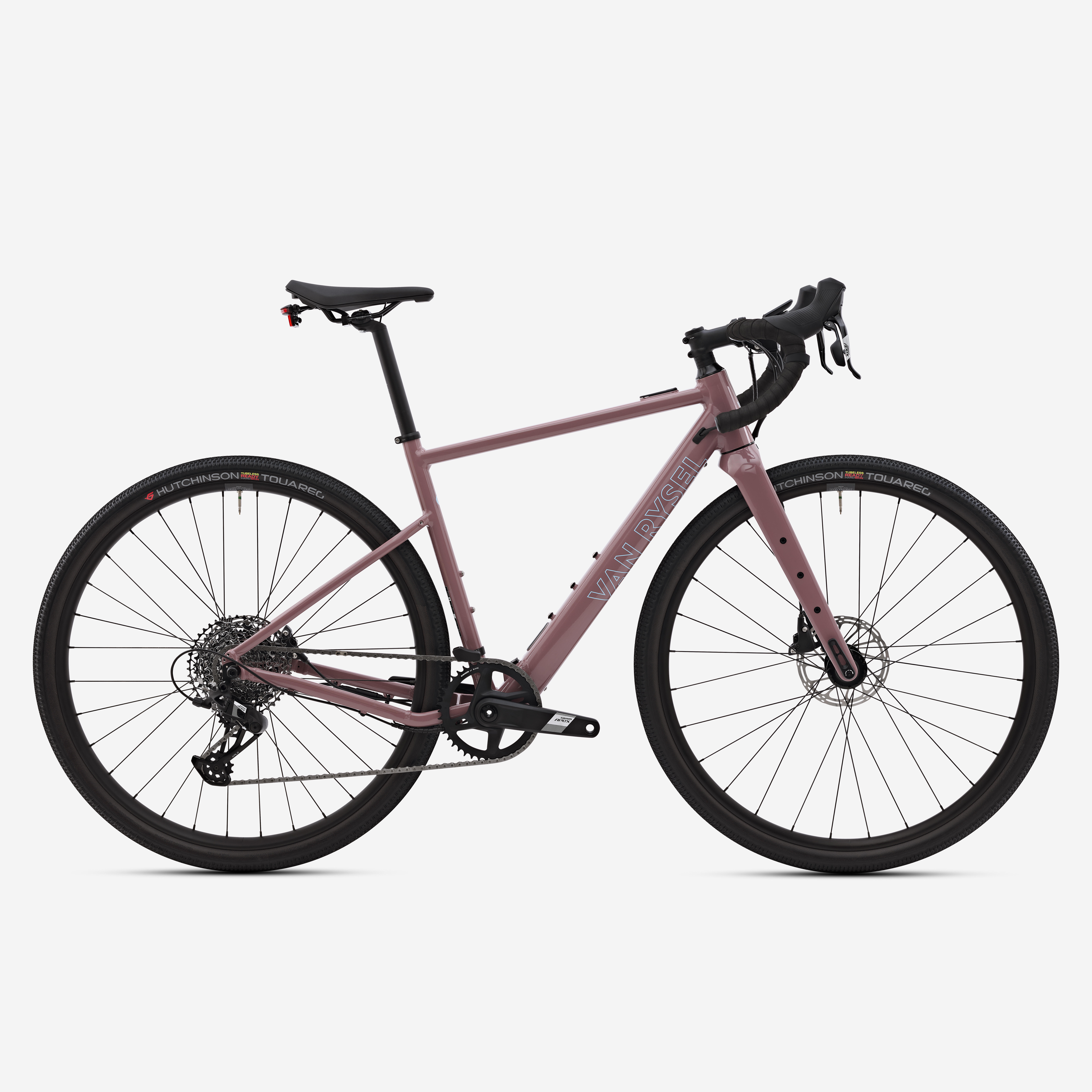

The E-GRVL AF HD is one of the best-equipped bikes on the gravel e-bike market and comes with:
- powerful front and rear lighting powered by the bike's battery
- Mahle Pulsar One display, a computer that communicates wirelessly with your bike

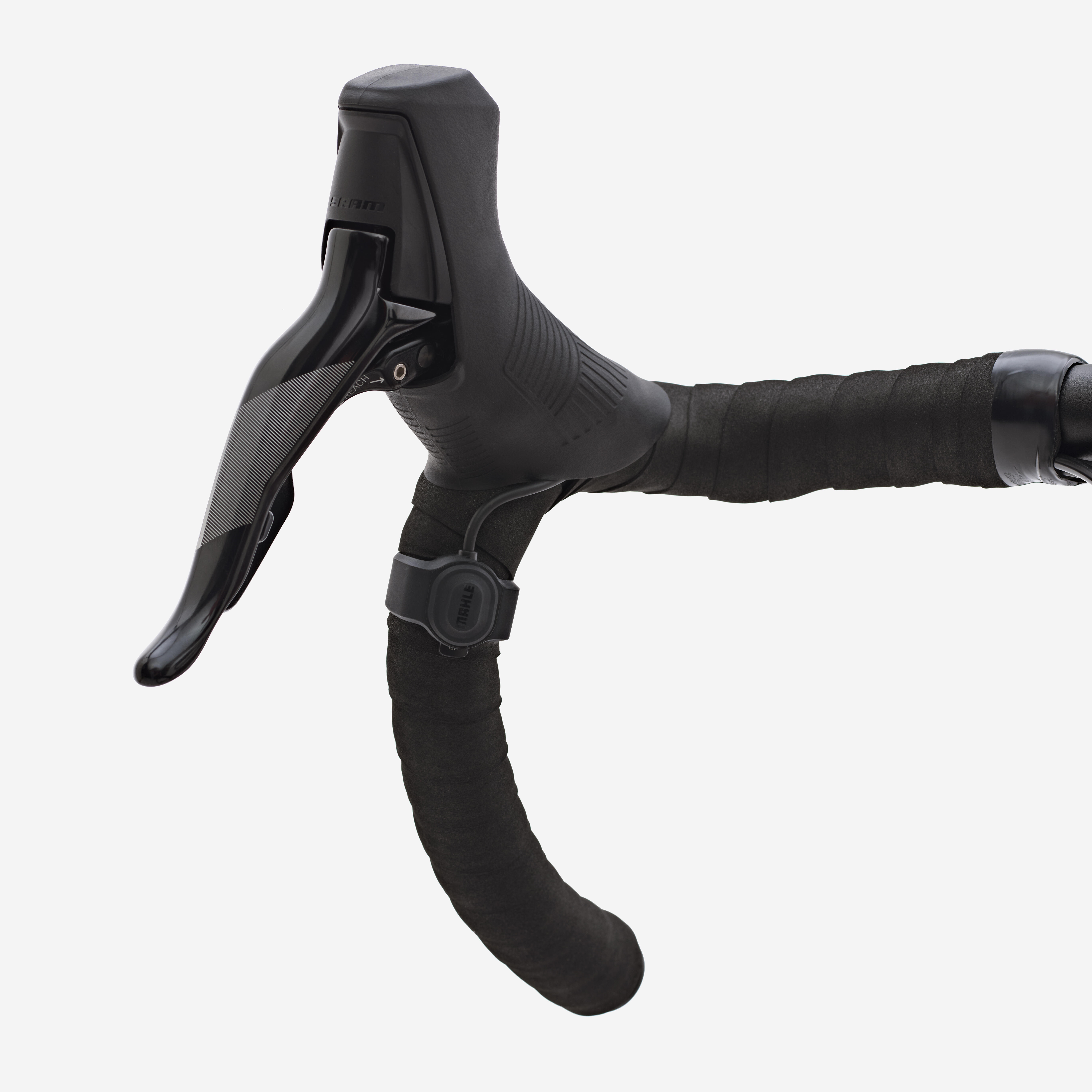

- remote control buttons on the handlebar (below the shifters) to change the assistance level (without letting go of the handlebar)

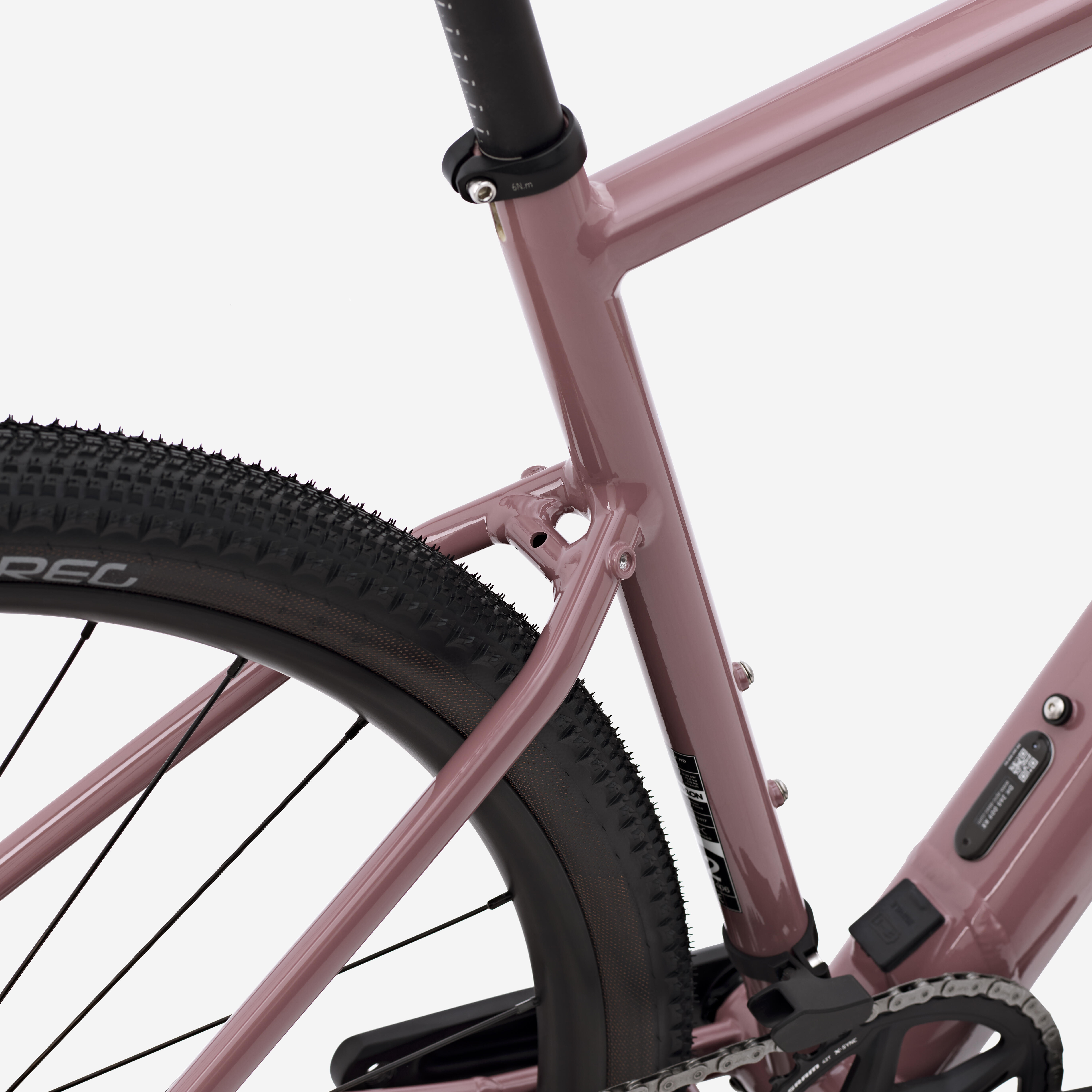

Frame
6061 T6 aluminium
fully-integrated diagonal tube battery
flat mount disc brake
internal cable routing
attachment points for mudguard/pannier rack
700x50mm tyre clearance
Fork
full carbon
flat mount disc brake
12x110 "road boost" thru axle
mudguard attachment points
internal cable routing
2x3 attachment points on the legs of the fork (perfect for a "cargo cage")
700x50 mm tyre clearance
Brakes
SRAM Apex
hydraulic disc brakes
flat mount
160 mm rotors

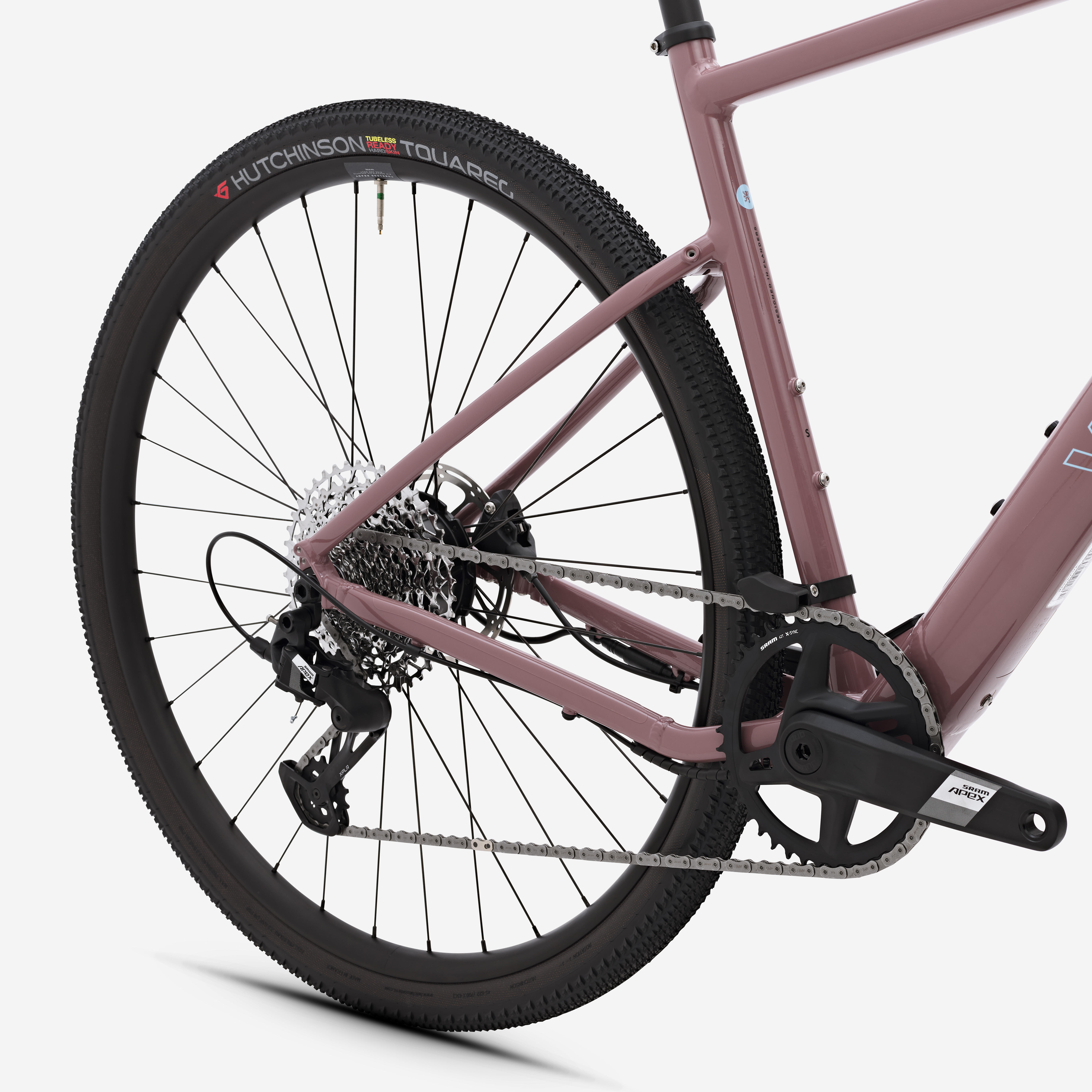

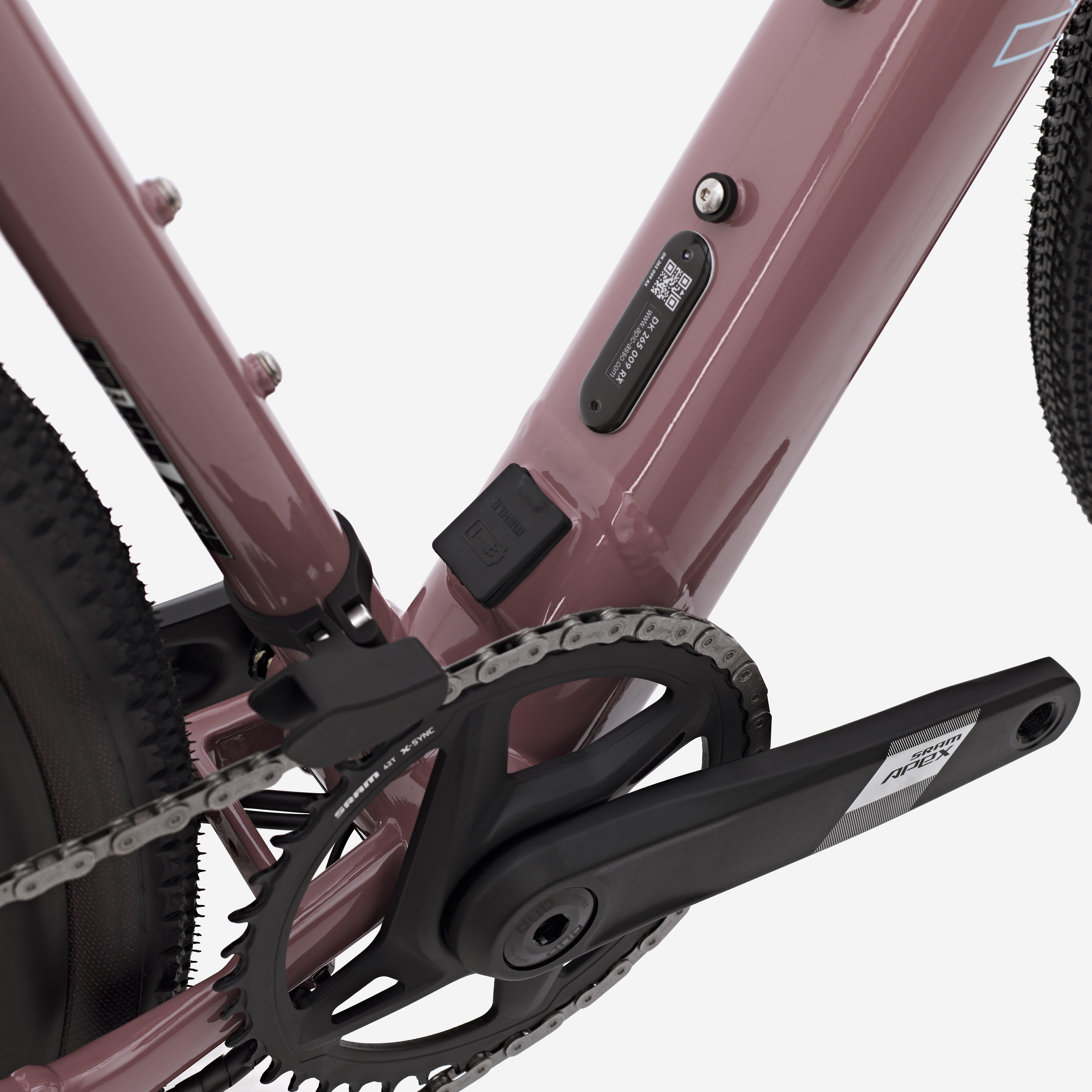

Drivetrain
SRAM Apex 1X12
11-44 cassette (11/12/13/15/17/19/21/24/28/32/38/44)
42165 T chainring guard
crank: XS S 165 mm/ S M 170 mm / L 172.5 mm / XL XXL 175 mm

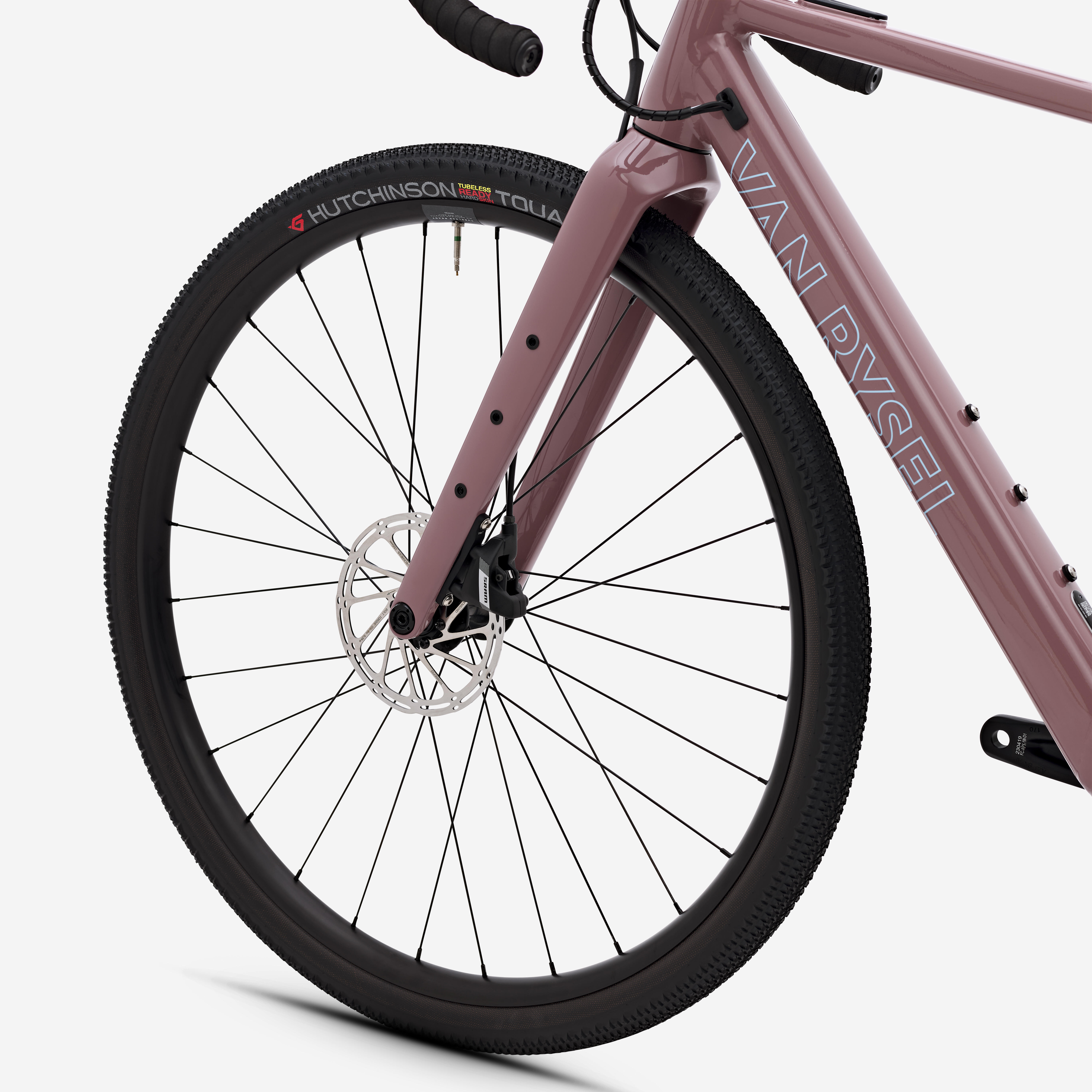

Wheels and Tires
25C 700mm tubeless ready asymmetrical aluminium rims
28 front spokes, 32 rear spokes
front: boost 12x110mm thru axle
Hutchinson Touareg Hardskin Tubeless Ready 45mm tyres
Position
gravel handlebar with 16° flare (width: XS S 420 mm / M L 440 mm / XL XXL 460 mm)
6° alu stem (length: XS 60 mm/ S 70 mm/ M 80 mm/ L 90 mm/ XL 100 mm/ XXL 110 mm)
Comfort Gel bar tape
Comfort saddle
Motor

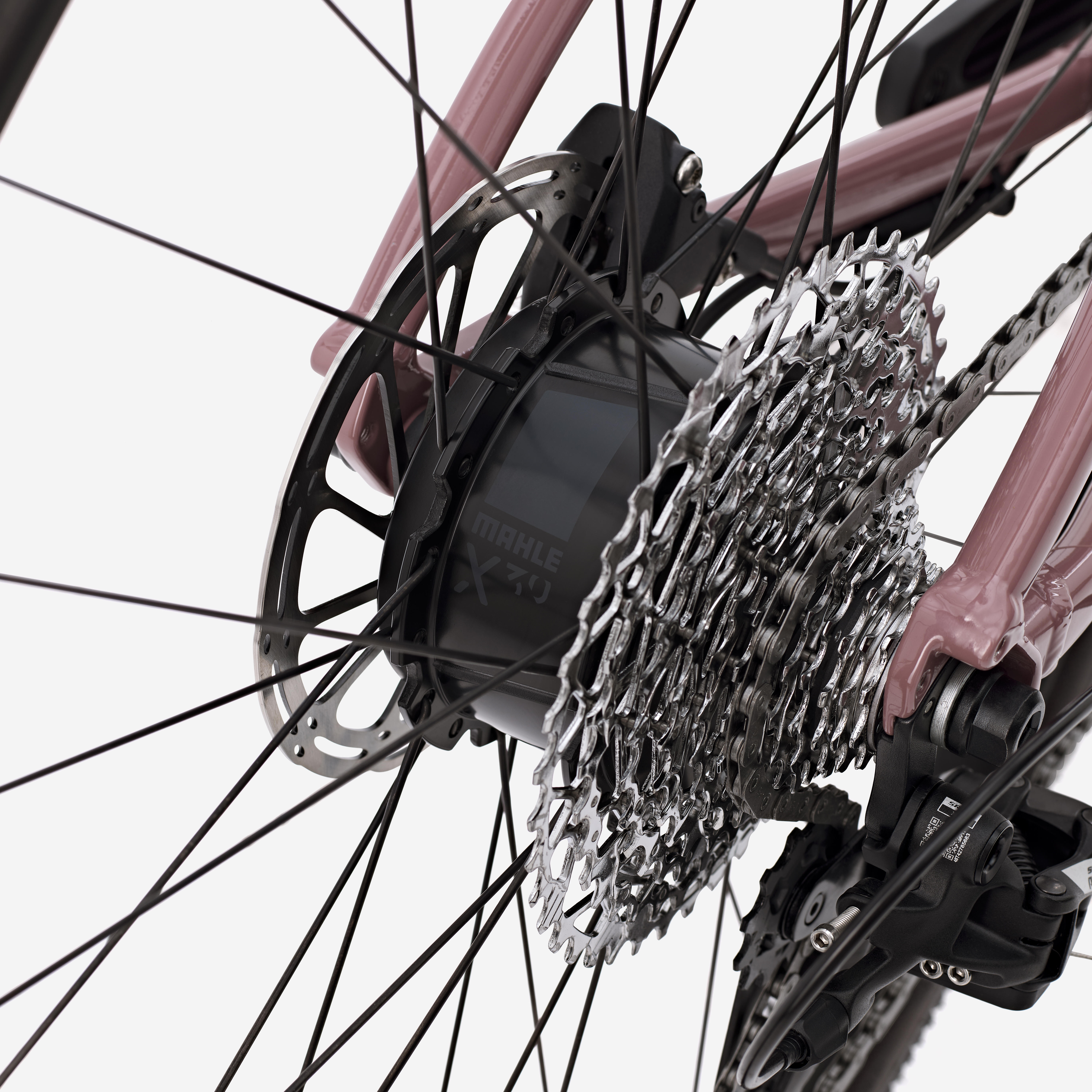

Mahle X30 rear hub motor
36V – 250w, 45N.m
up to 25km/h
Battery
Mahle 36V 250Wh

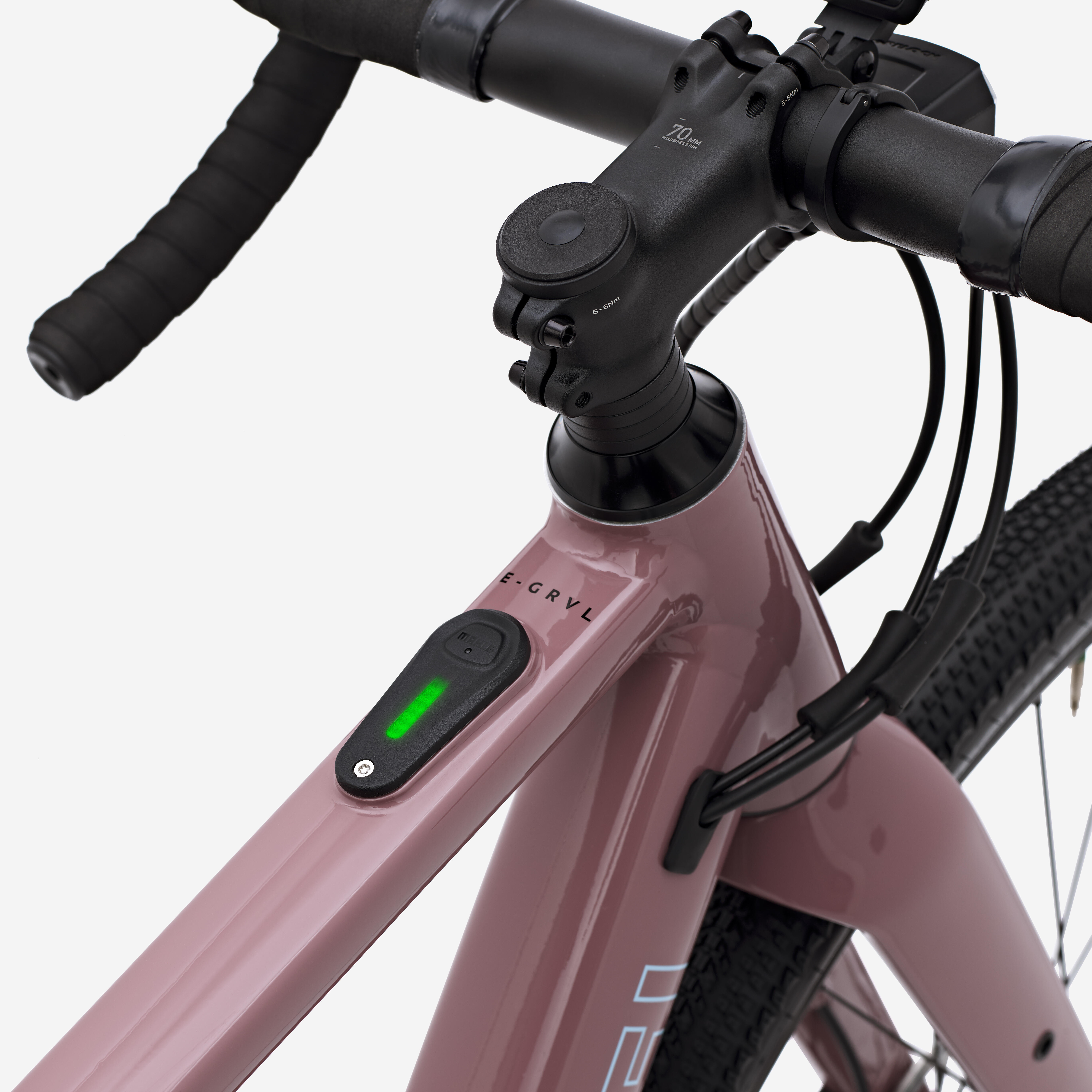

built into the diagonal tube with charging point on the frame
Compatible with the battery extender available for bottle cage (eX1, 171Wh) (not included)
Lights

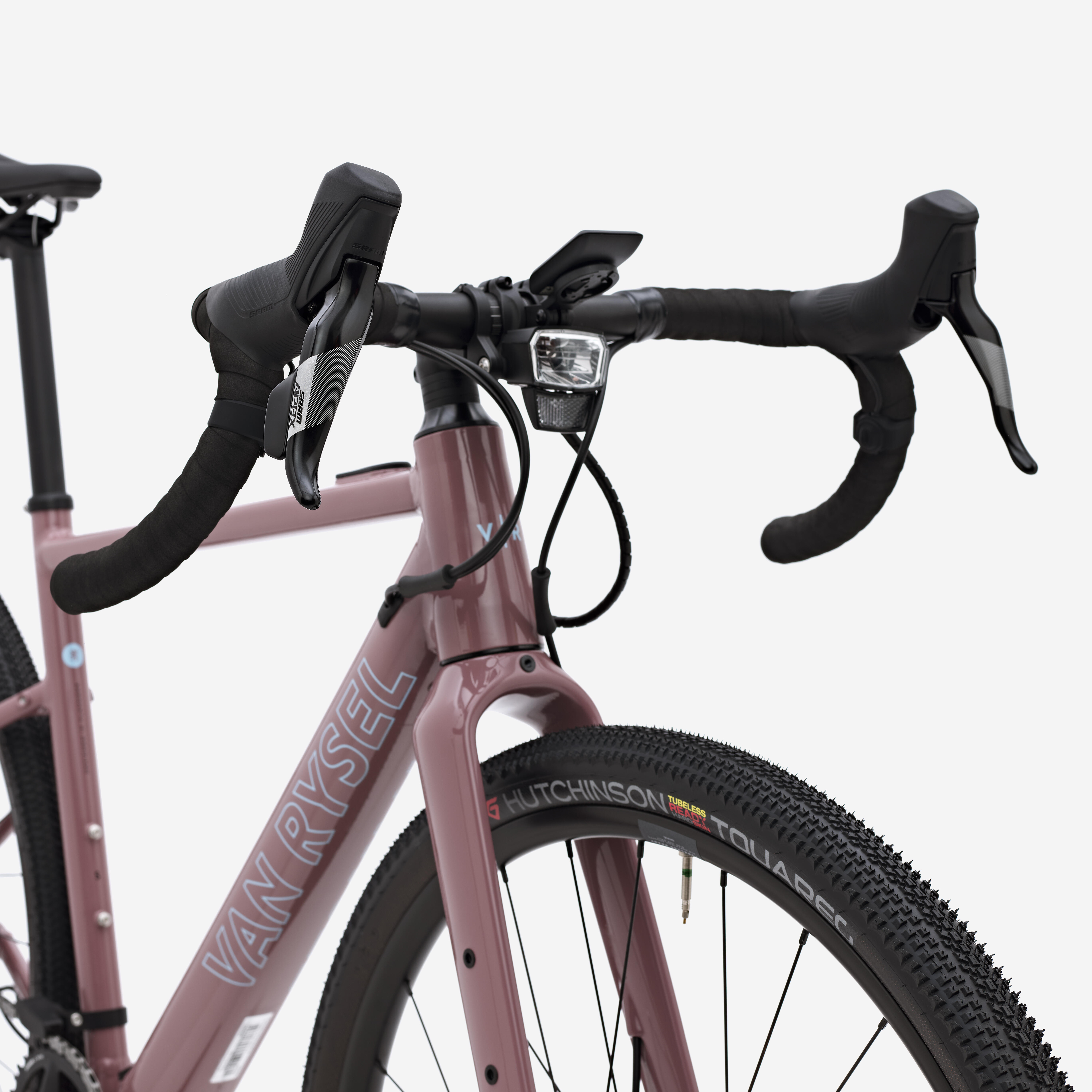

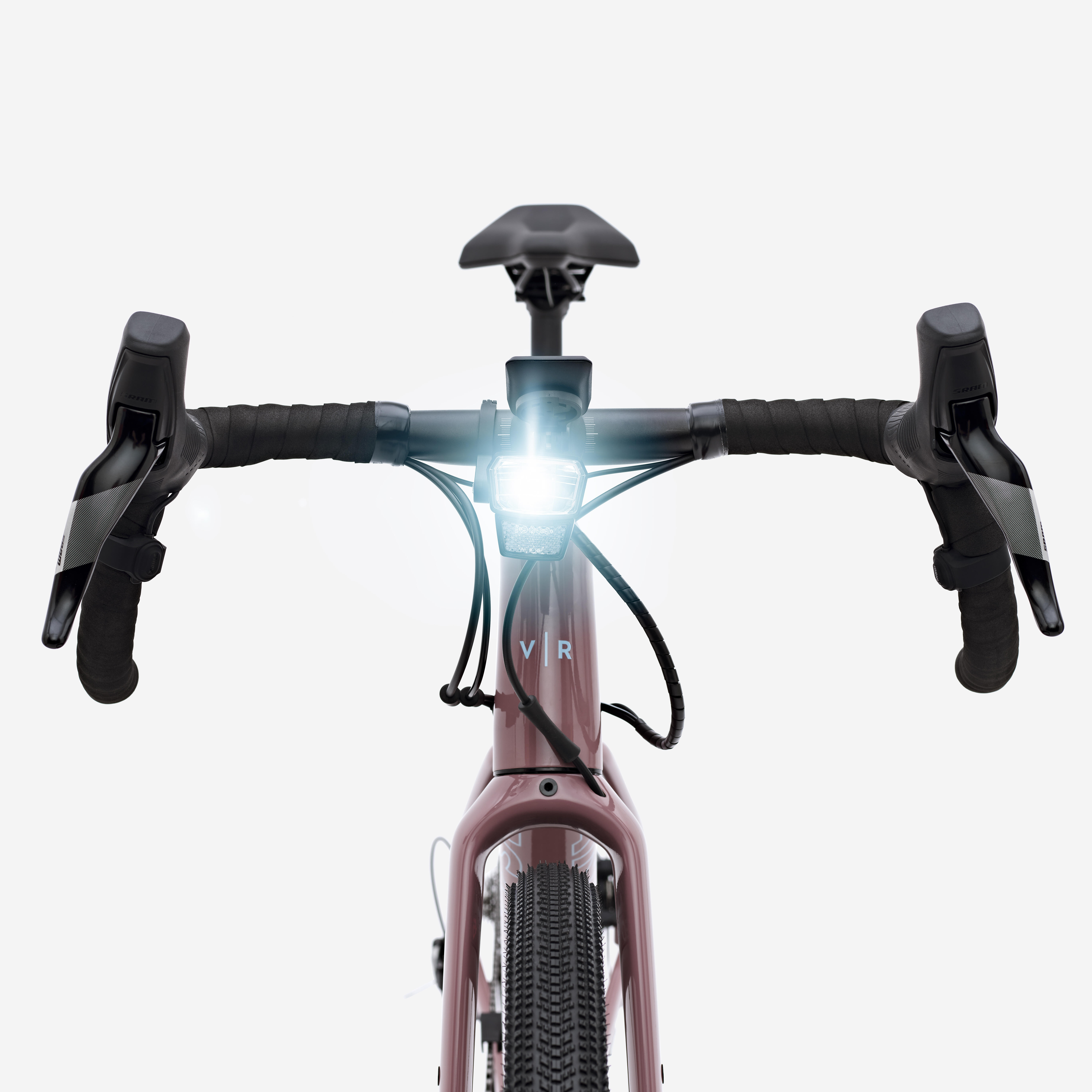

Front: Axa Lighthammer 60 lux

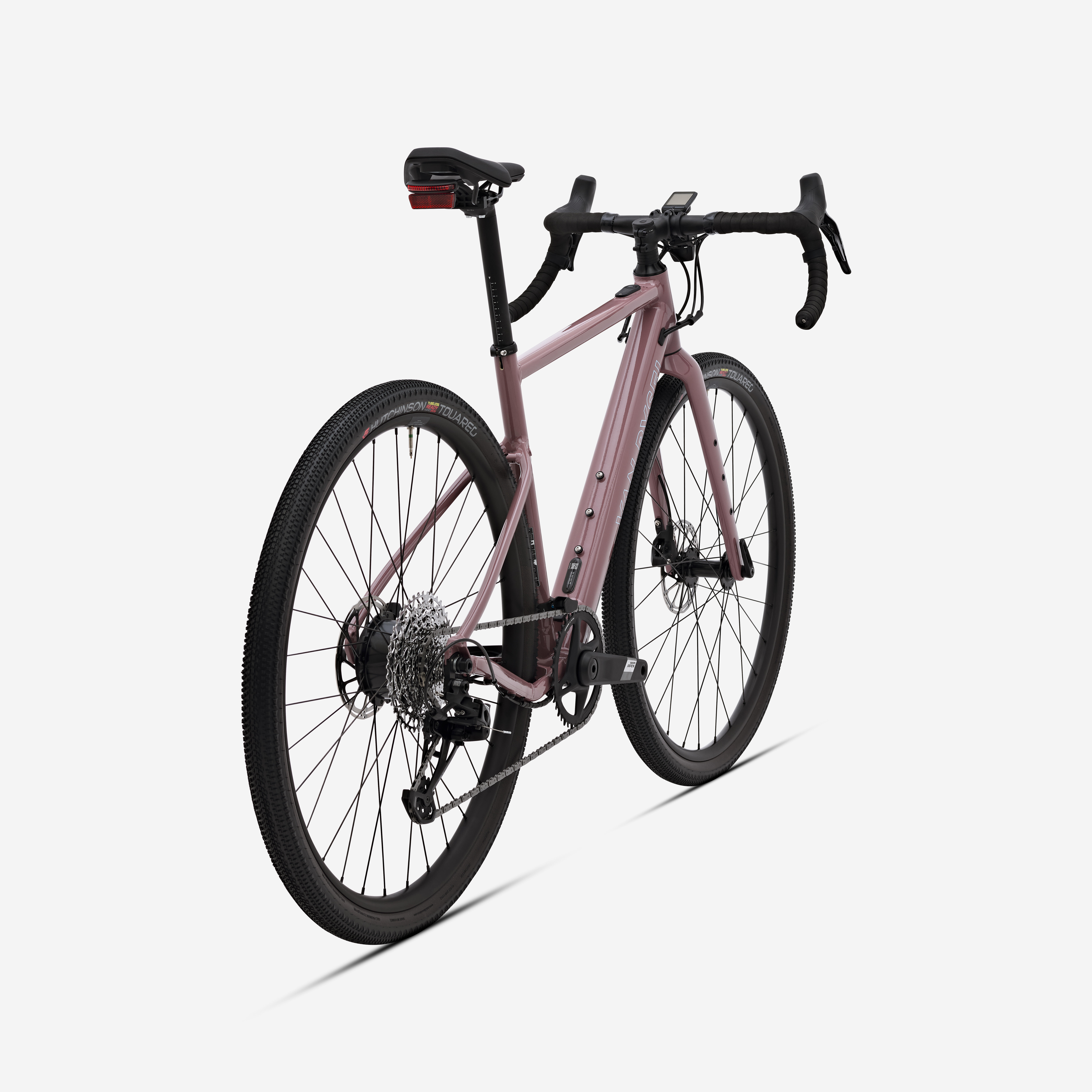

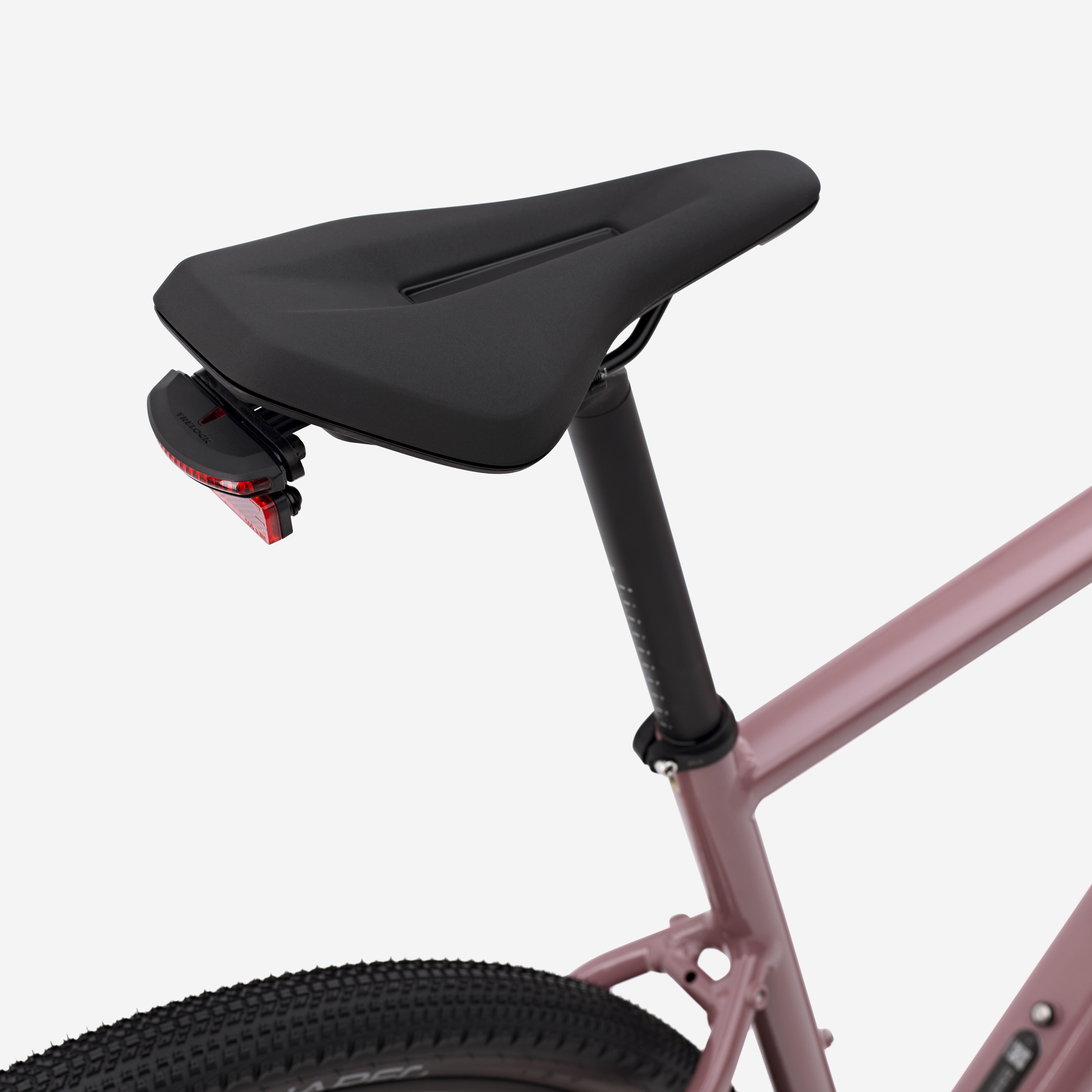

rear: Axa LS 651 cob line
powered by the bike battery
compatible with German, French, and European regulations

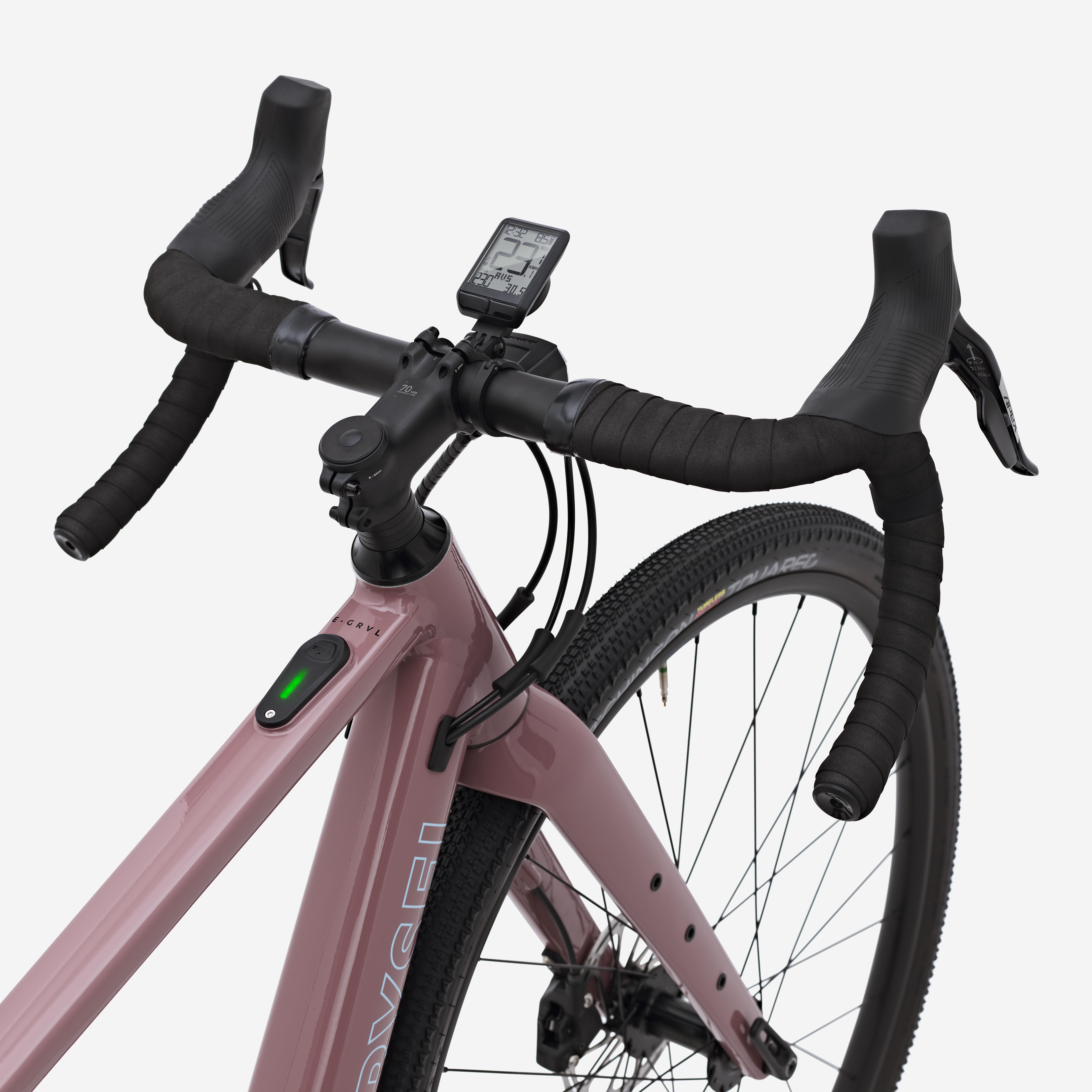

Display
Wireless, the new Mahle PulsarONE cycle computer enables you to interact with your bike and gives you access to data such as speed and distance, remaining battery life, chosen level of assistance, and so on.
Take control of your electric bike! You can increase or decrease the level of assistance and control the lights.
Connectivity
Bluetooth with Mahle "MySmartBike" app (assistance level settings, among other things)
ANT+ LEV with compatible devices (Garmin and others) Connect your Garmin device to display all bike info (battery life, selected assistance level, etc.) directly on your computer.
Weight
XS: 14.3 kg
S: 14.4 kg
M: 14.5 kg
L: 14.7 kg
XL: 14.9 kg
XXL: 15 kg
Maximum load
120 kg maximum total load (bike + rider + cargo)
