| Roof bar compatibility |

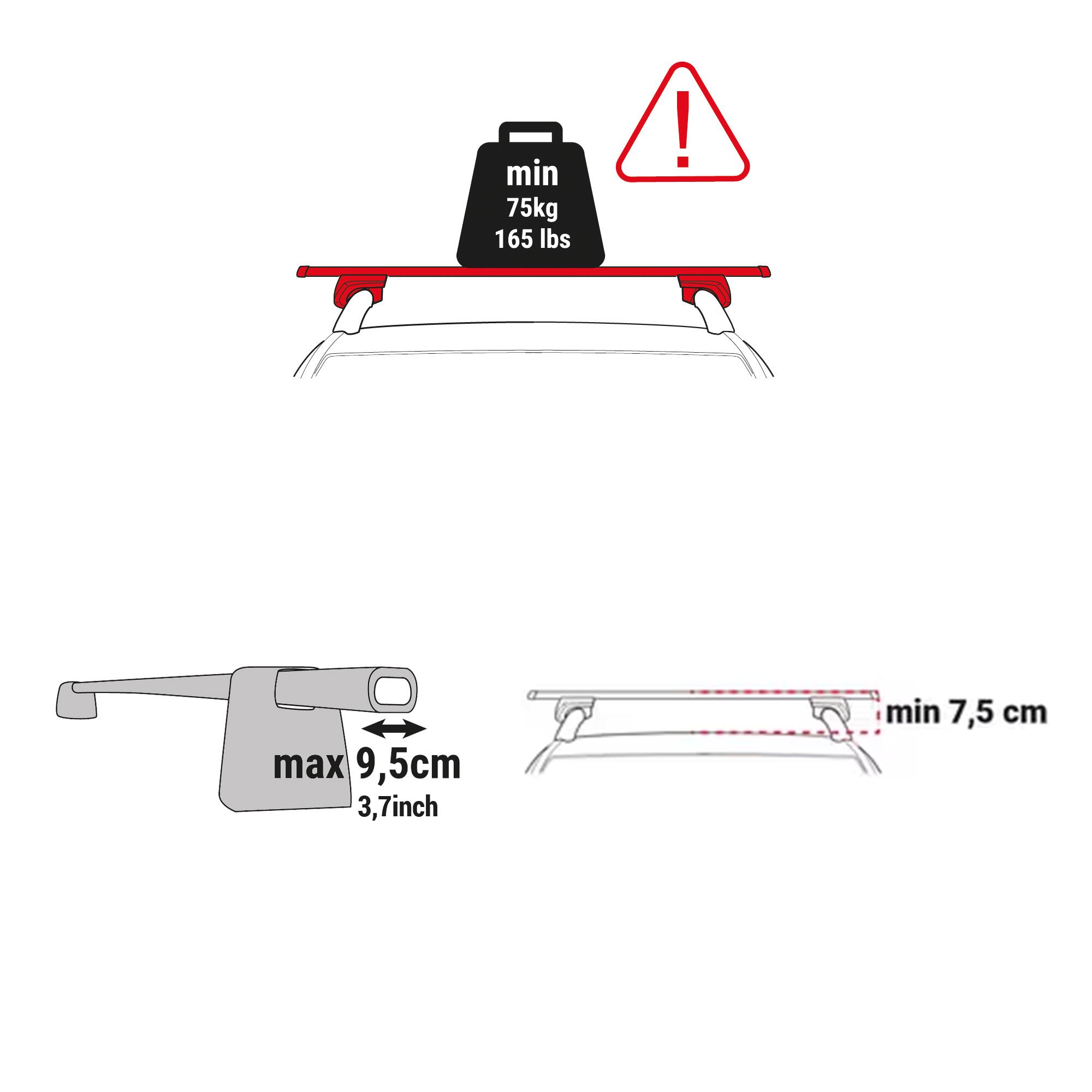

Compatible with ISO11154 certified roof bars for a load greater than 75kg (dynamic weight).
The distance between the roof and the top of the roof bar must be greater than 7.5 cm and the width of the roof bar tube must be less than 9.5 cm (see the diagrams in the product sheet photos).
Check that your roof bars and tent are properly fastened each time you use it.
It’s not compatible with longitudinal roof bars. |
| What are dynamic and static loads? |
This tent needs a 75 kg load capacity, a so-called "dynamic" load, i.e. when the vehicle is moving. When the vehicle is stationary, the maximum static load capacity is much higher.
Don't worry, once installed and stationary, your roof bars will be able to support the roof tent, as well as the weight of the people inside (200 kg in total). |
| Pitching |
Ideally, it takes 4 people to assemble it.
Watch the pitching tutorial video and/or read the instructions in the bag carefully.
Remove the cover and unclip the two side buckles.
Grab the ladder and use it to tilt the tent.
Adjust the ladder so that the tent is flat, and properly secure the bars, so that they are locked in place before you can stand on them.
Tilt the 3rd board before inflating your tent, following the pressure instructions (7 psi). |

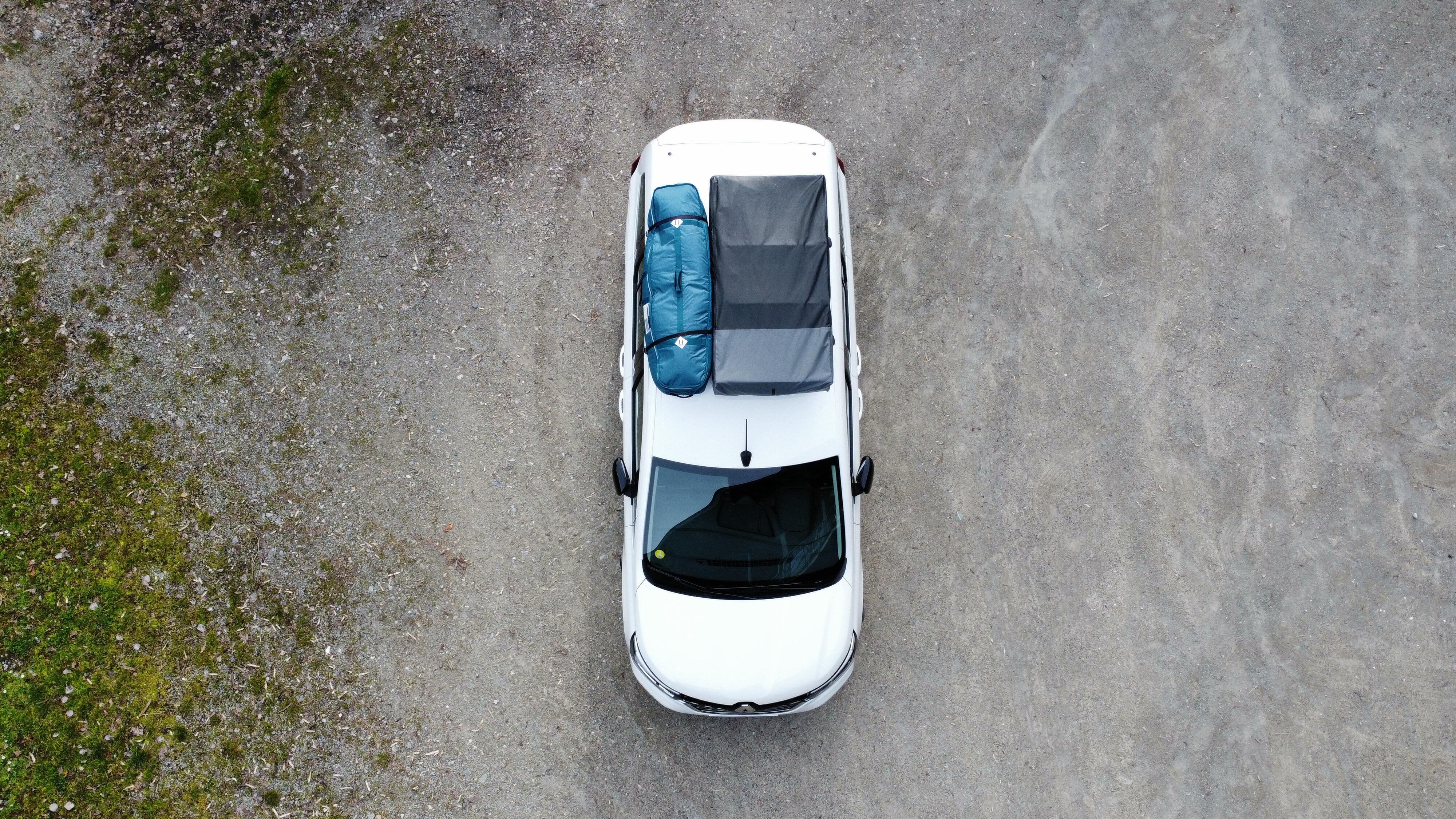

| Why choose a more compact roof tent? |
Its 3-panel structure increases the compactness so that:

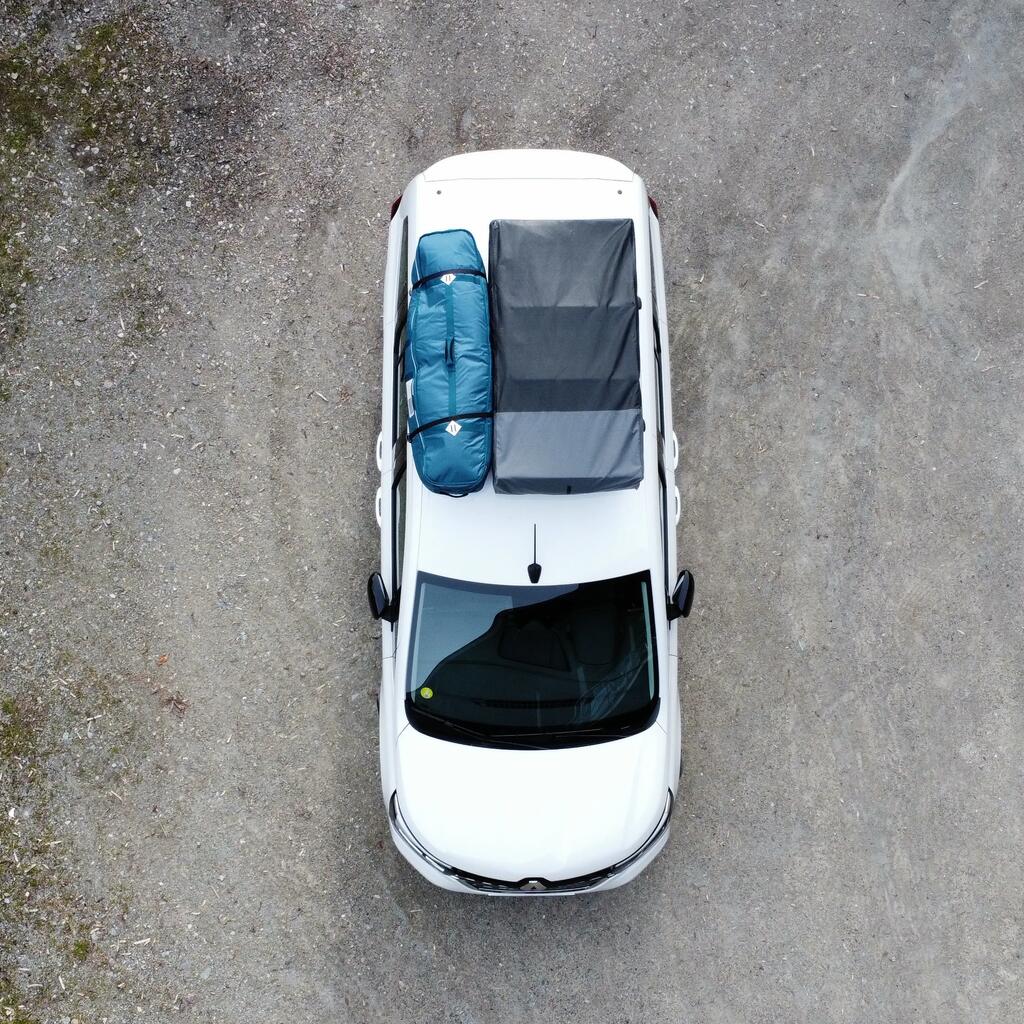

Space is freed up on the roof bars when you are driving, therefore enabling you to carry sports equipment to your holiday destination (depending on the dimensions of your vehicle).
Installing it on the roof bars is easier.
Wind surface area is reduced and therefore overconsumption while driving.
Storage is easier.
It is better suited to smaller cars and has less overhang. |

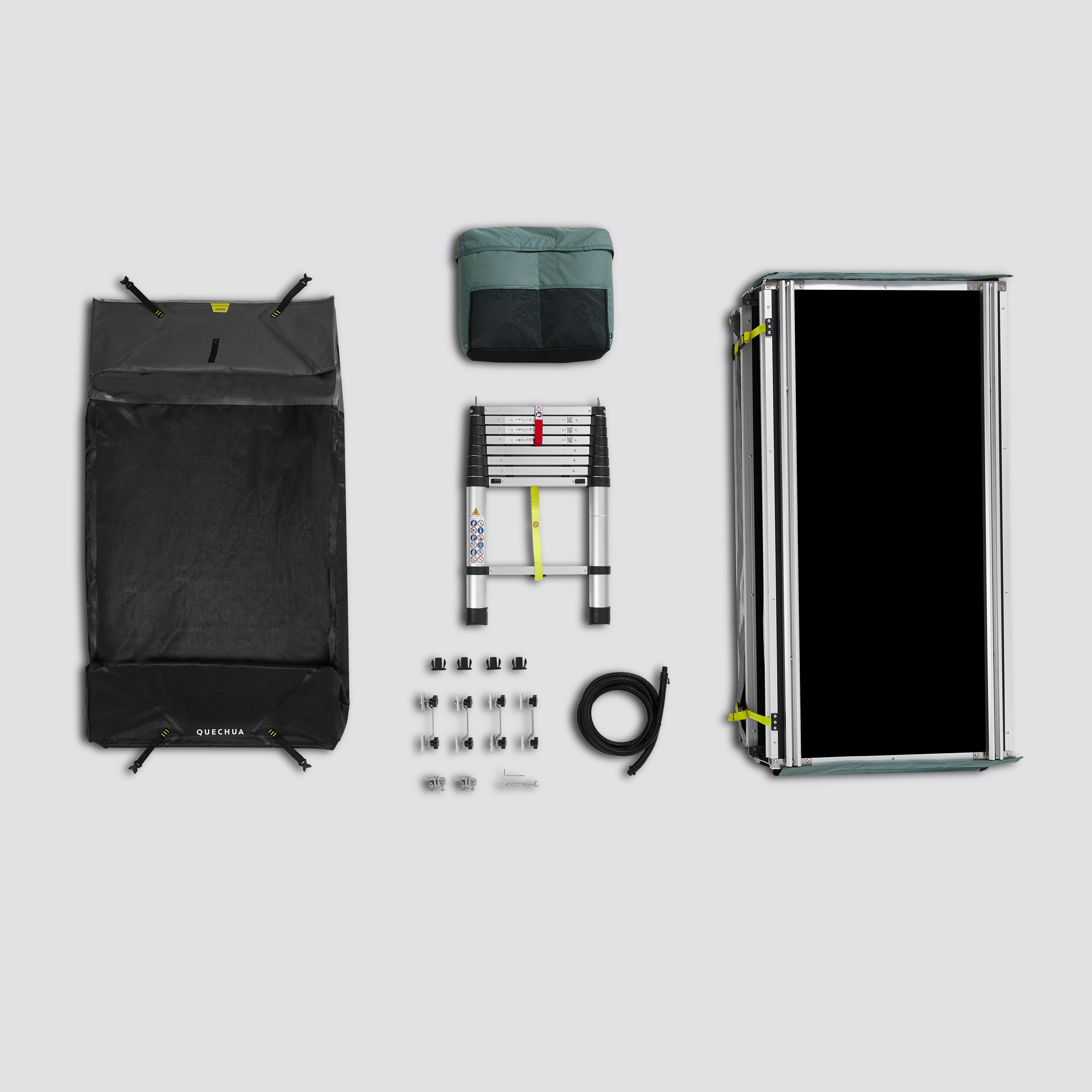

| Product contains: |

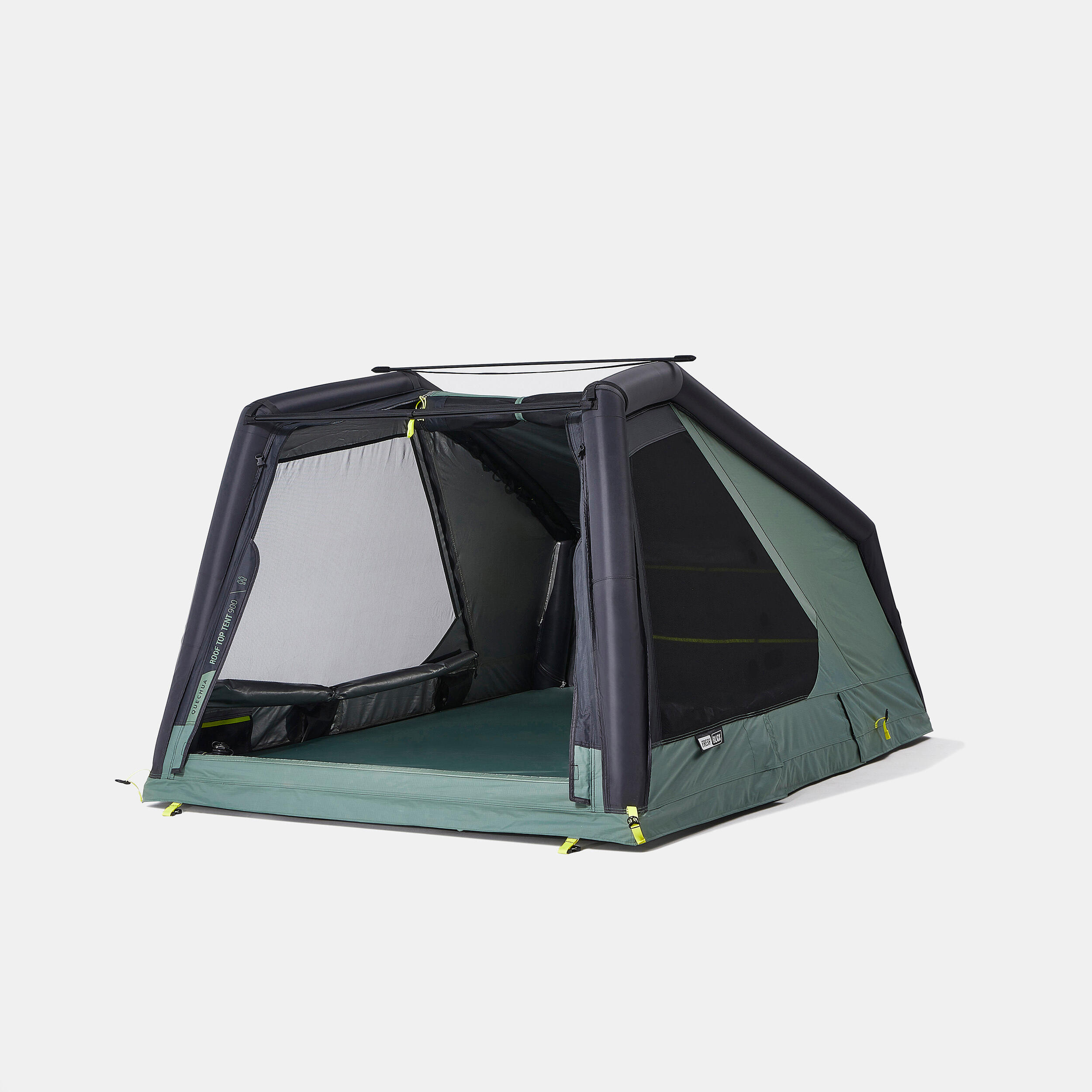

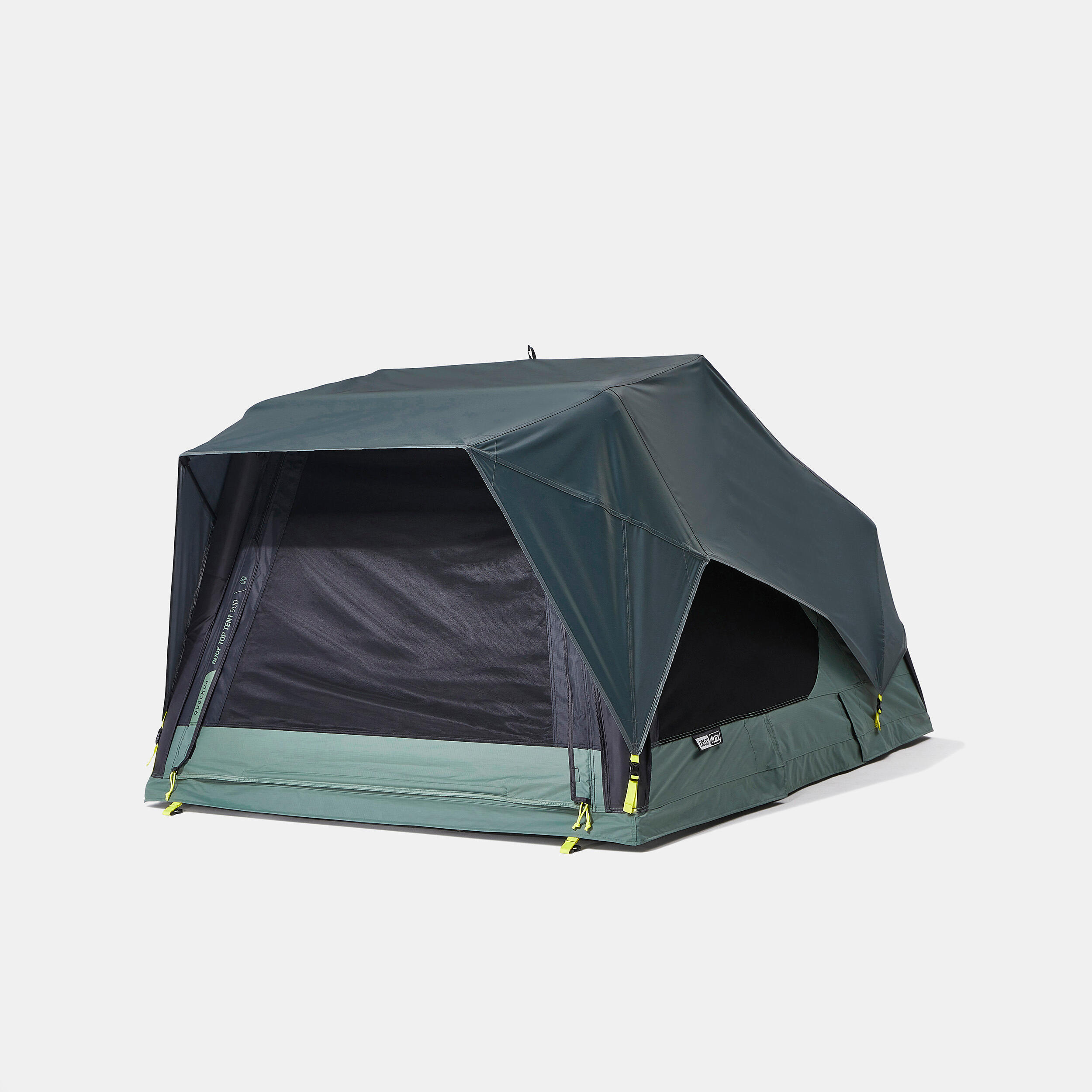

- 1 inflatable tent structure (bedroom + flysheet) (compatible with the 8243066 and 8601387 pump)
- 1 x 5 cm built-in foam mattress
-1 x 2.5 m maximum unfolded length aluminium ladder
- 1 screw kit (4 plates + screws and washers)

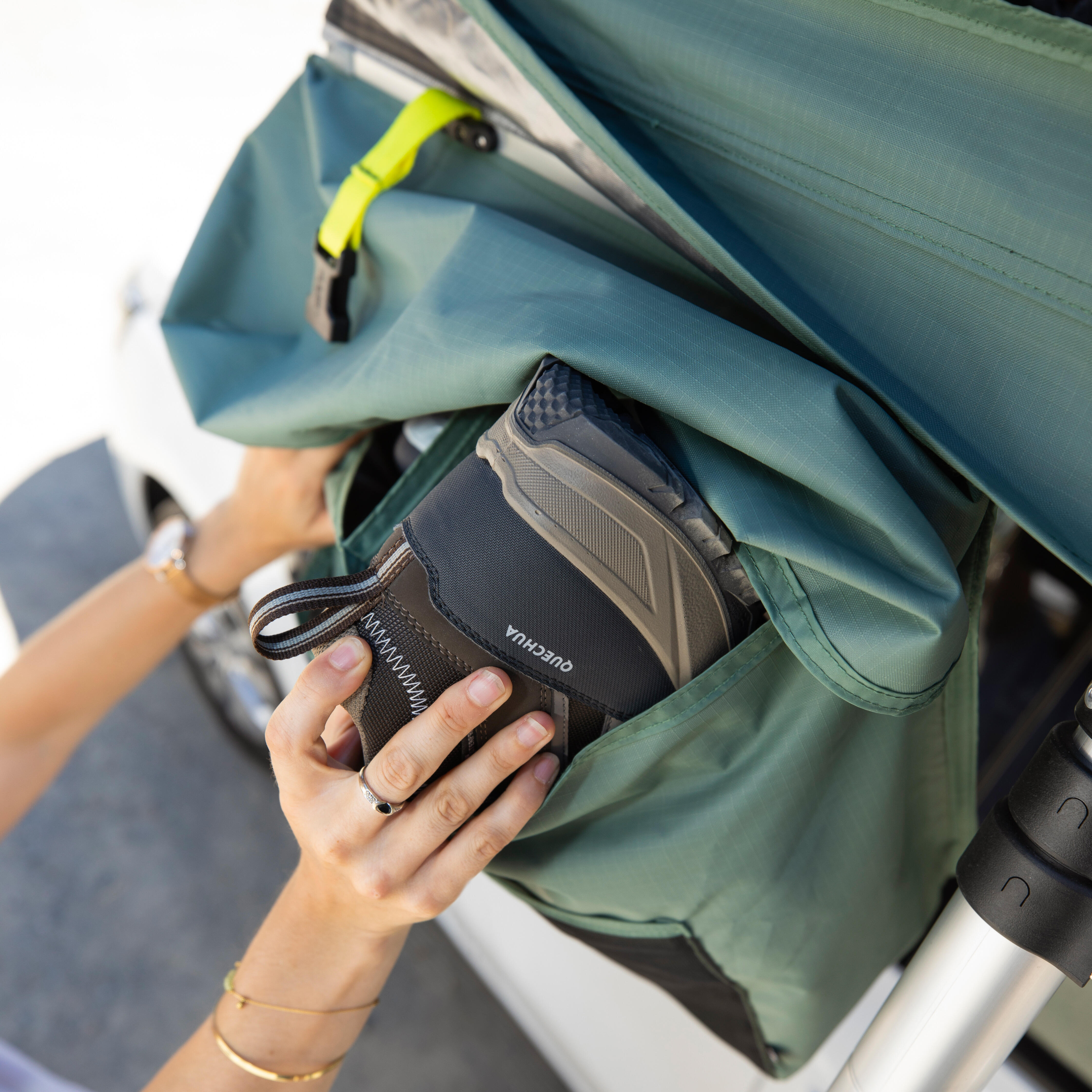

- 1 shoe pocket

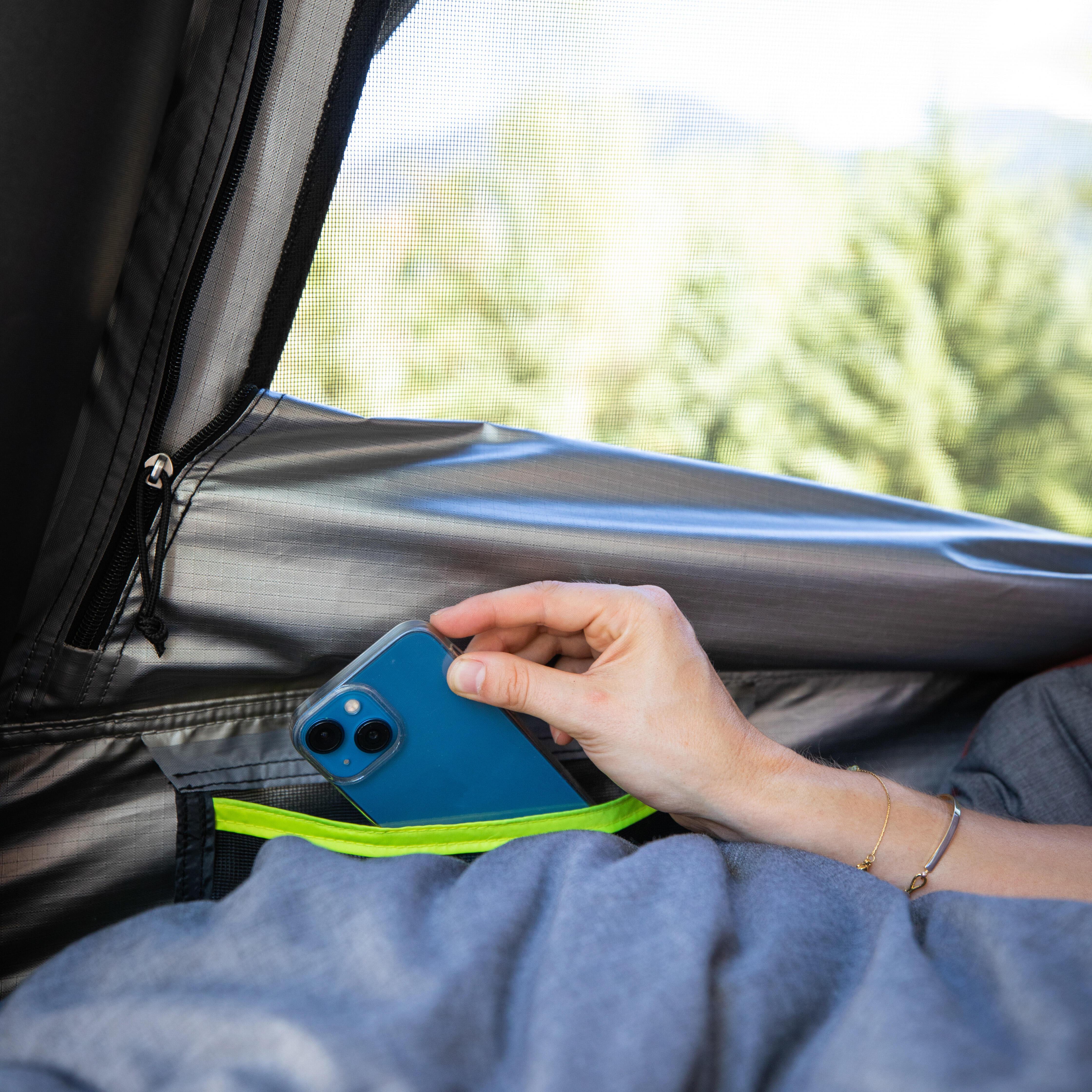

- - 1 removable storage pocket
- 1 x 2 m extension tube

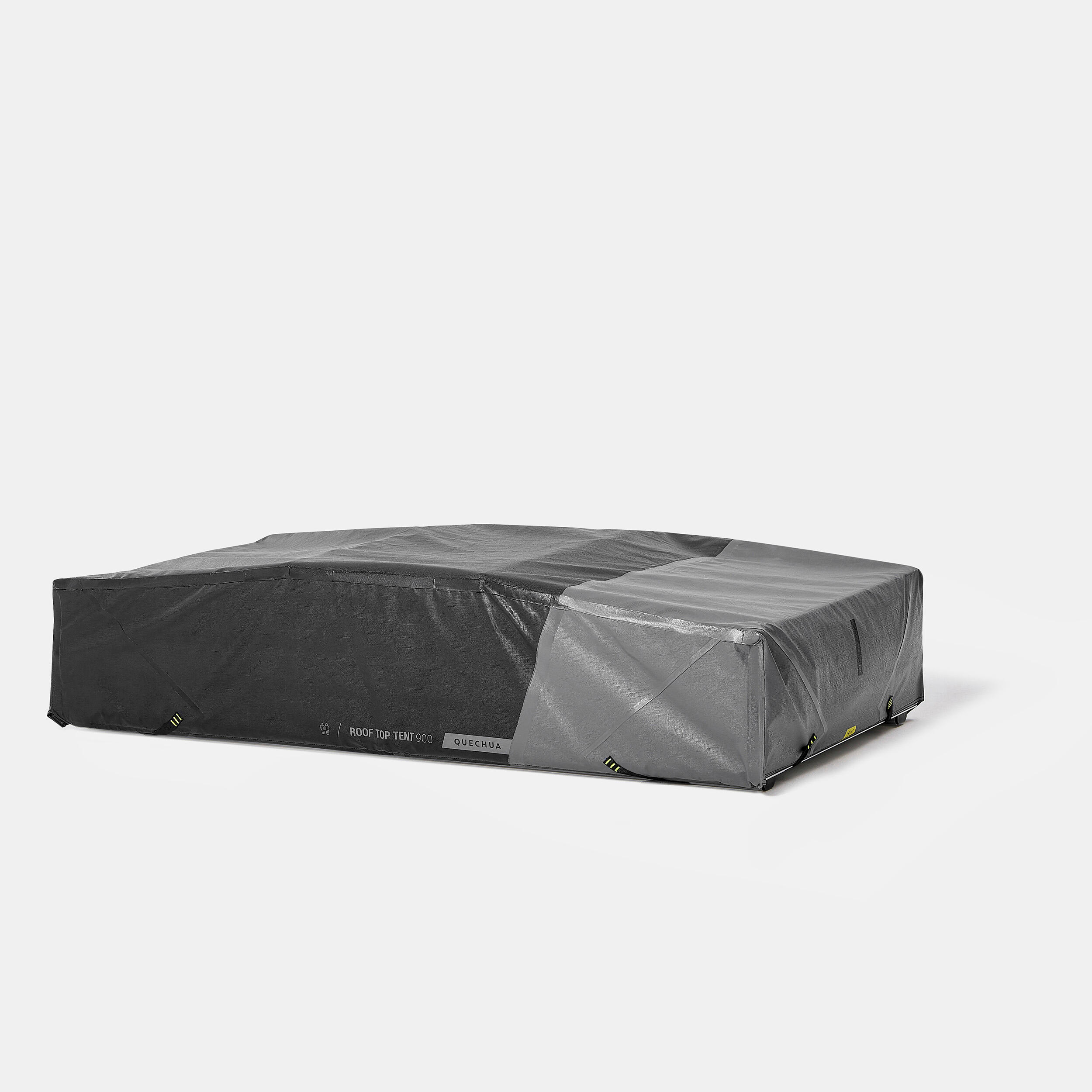

- 1 cover
N.B: PUMP NOT INCLUDED |
| AFTER-SALES SERVICE: Don't throw away, repair ! |
As designers and users who love our playing field, we care about the resistance of our products, that’s why all our tents are designed to be repairable.
You will find the following parts for this tent in after-sales service:
- the cover
- the mattress cover
- the flysheet
- TPU draught excluder
- hardware kit |
| Restrictions on Use 1/2 |
Caution: NEVER GET INTO THE TENT IF THE LADDER BARS ARE NOT LOCKED IN PLACE.
FALL HAZARD. (see instructions)
Do not use the ladder for anything other than its intended purpose.
COMMON ERRORS:
Forgetting to insert the transport cover in the rail before starting off.
Tightening the screws too much (risk of damaging the rails and/or aluminium floor)
Forgetting the pump. |
| Restrictions on Use 2/2 |
Do not drive with the tent up.
Do not drive if the edge of the cover is not inside the front rail.
Do not use any accessories other than those supplied with the tent.
Always set up the tent on a level surface so that it is stable.
Do not install on vehicles with a sunroof.
Do not pitch the tent facing the wind.
Keep the instructions accessible.Don’t put all your weight on the tilting floor if it’s not supported by the ladder. |
| Components: |
Room component: 300 denier ripstop polyester.
Flysheet: 150 denier dope dyed polyester. |
