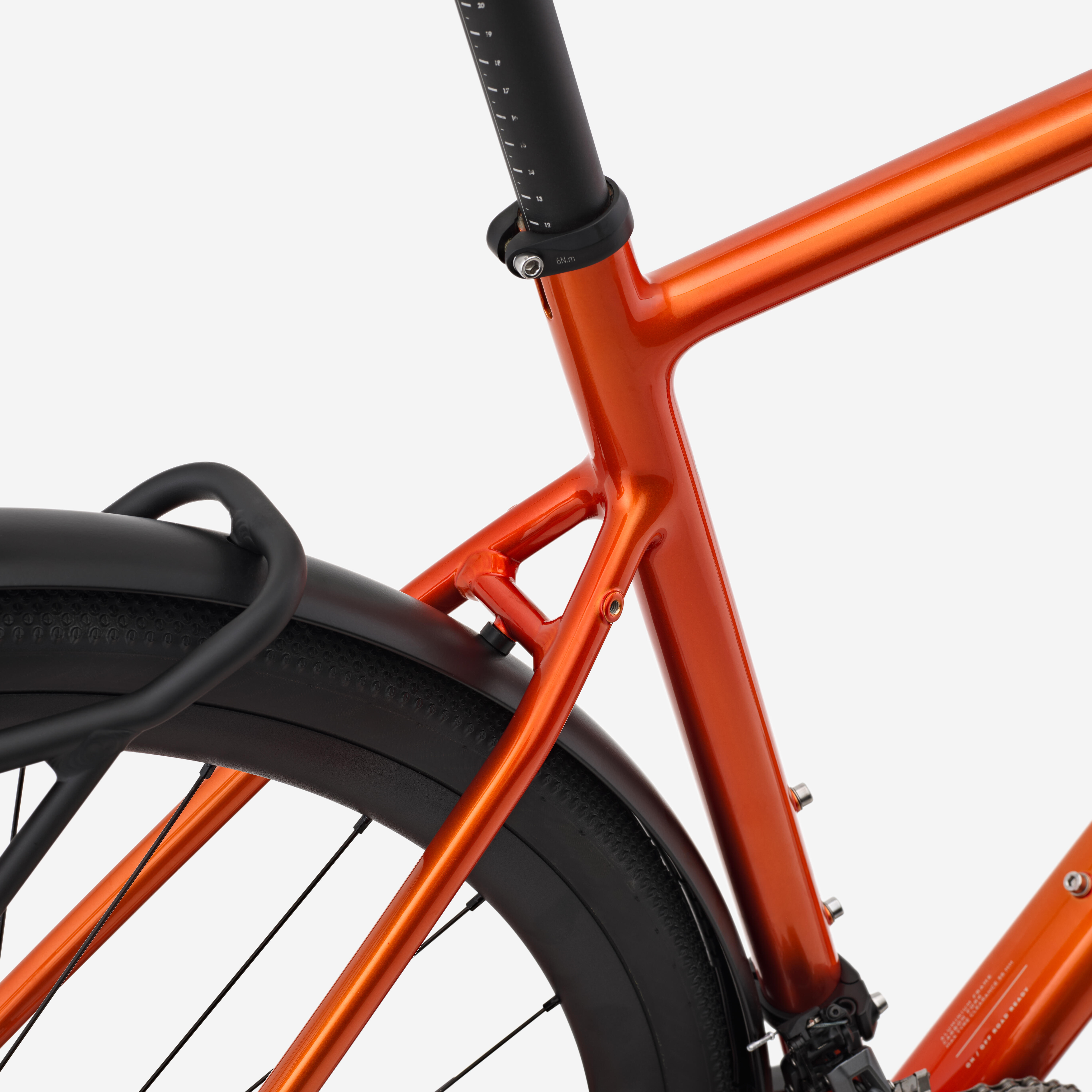

HIGH-QUALITY, COMFORTABLE ALUMINIUM FRAME
Double-thickness 6061 aluminium frame.
The frame has 7 inserts.
Weight of frame without finish in size M: 1600g
The frame clearance accepts tyres up to 38mm

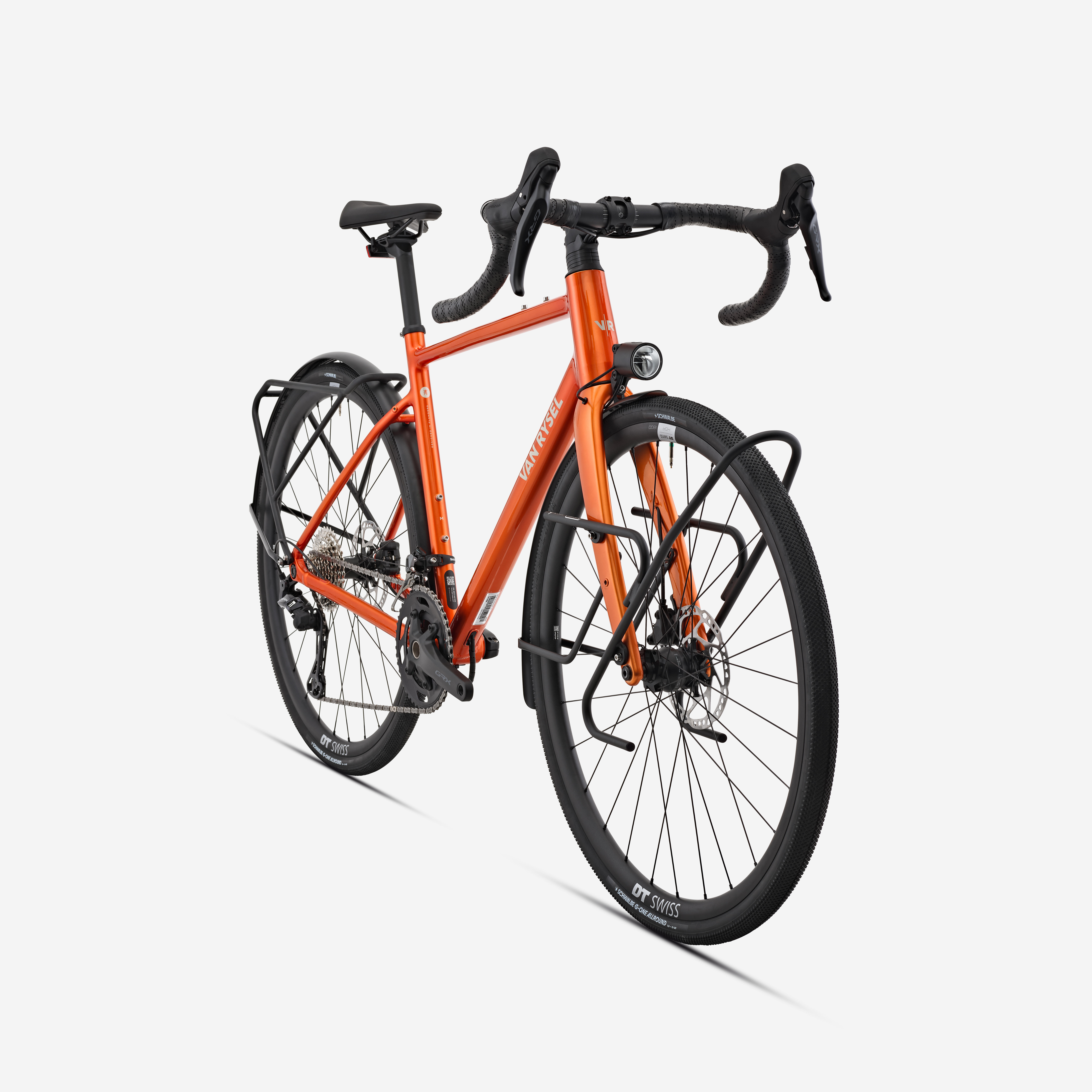

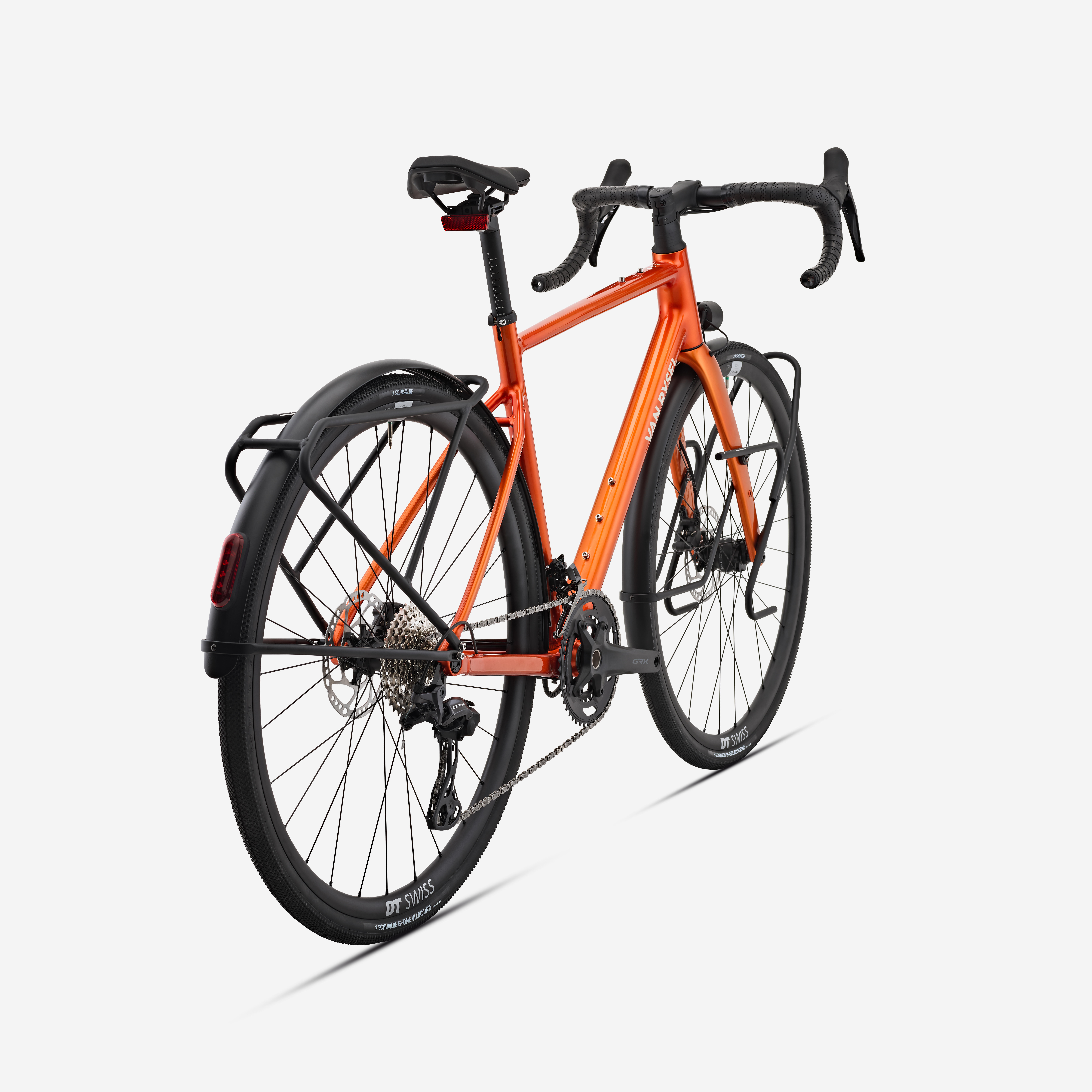

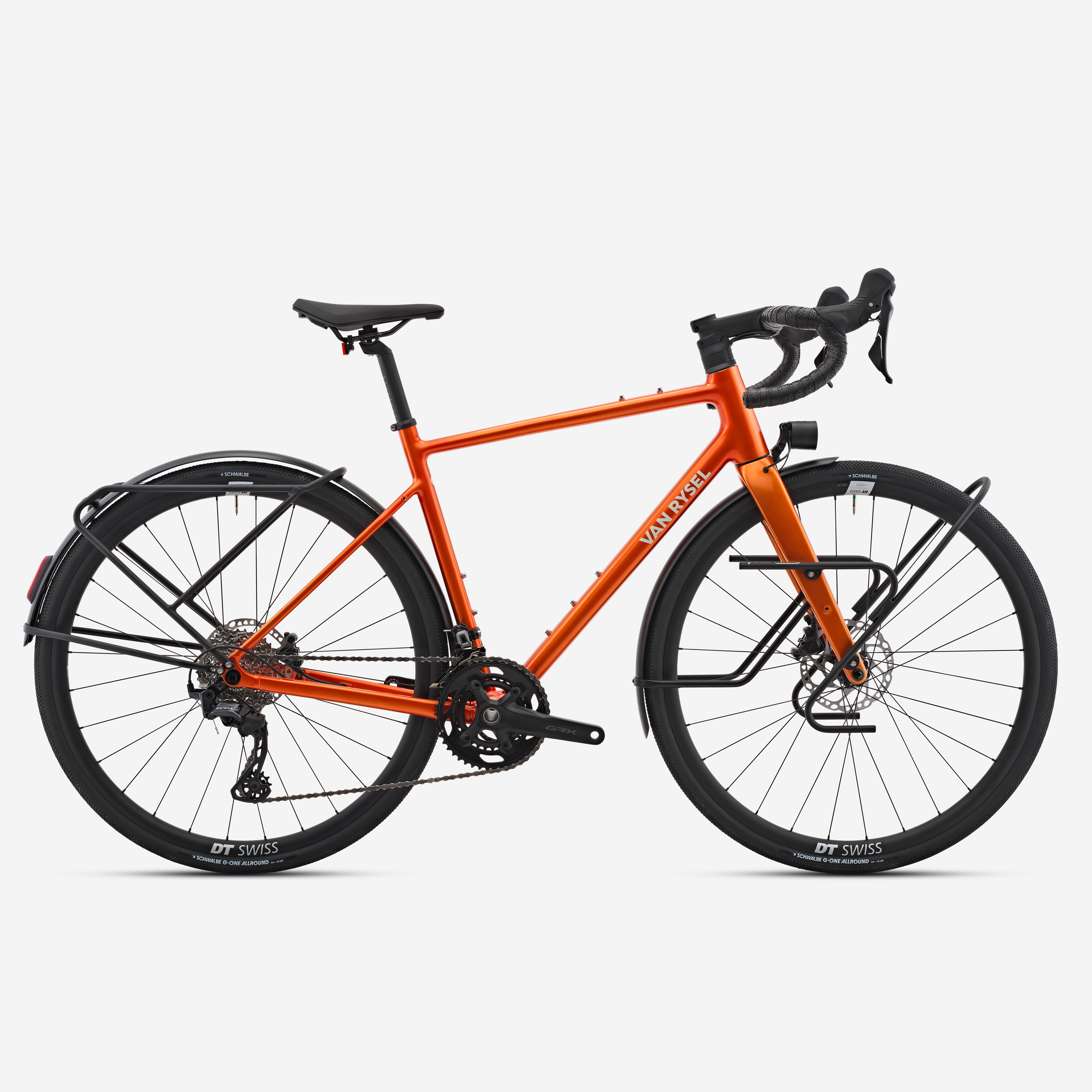

NEW ALUMINIUM ENDURANCE BIKE

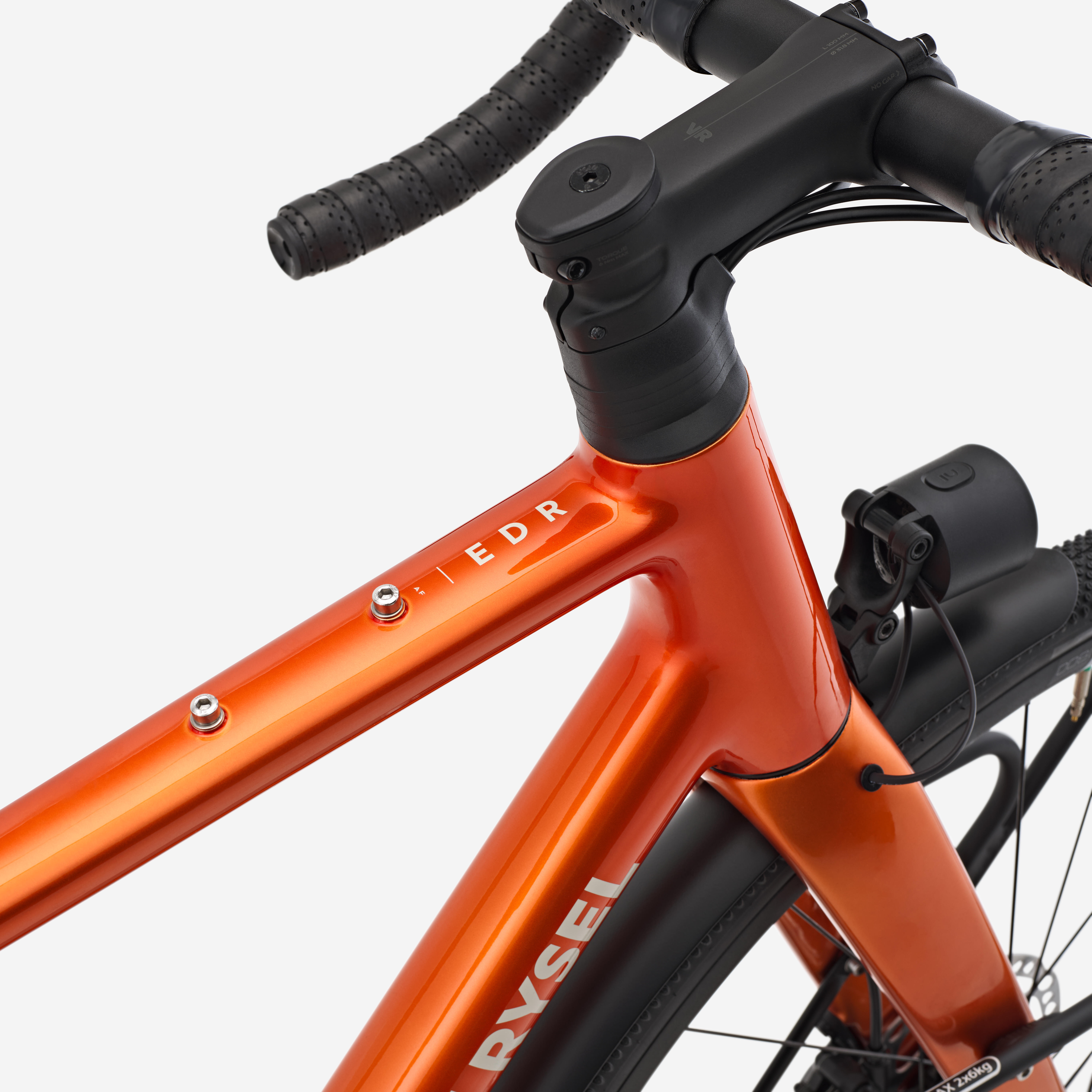

This new EDR AF2 bike is a welcome addition to our range of aluminium ENDURANCE bikes. We focussed particularly on offering high-quality finishes: Cables integrated into the headset and concealed welding to offer you a bicycle that is as beautiful as it is functional!
Our users love the aluminium for its comfort and durability.
HYDRAULIC DISC BRAKES
SHIMANO GRX hydraulic disc brakes
Resin brake pads
Centerlock
160 mm discs at the front and rear
It is essential to run in the brake pads when using a bike for the first time.
For optimal running-in, we recommend 20 to 30 braking actions without locking the wheel from 25 km/h.Also, be sure not to stop between braking actions to avoid ‘gluing’ the pads to your discs.

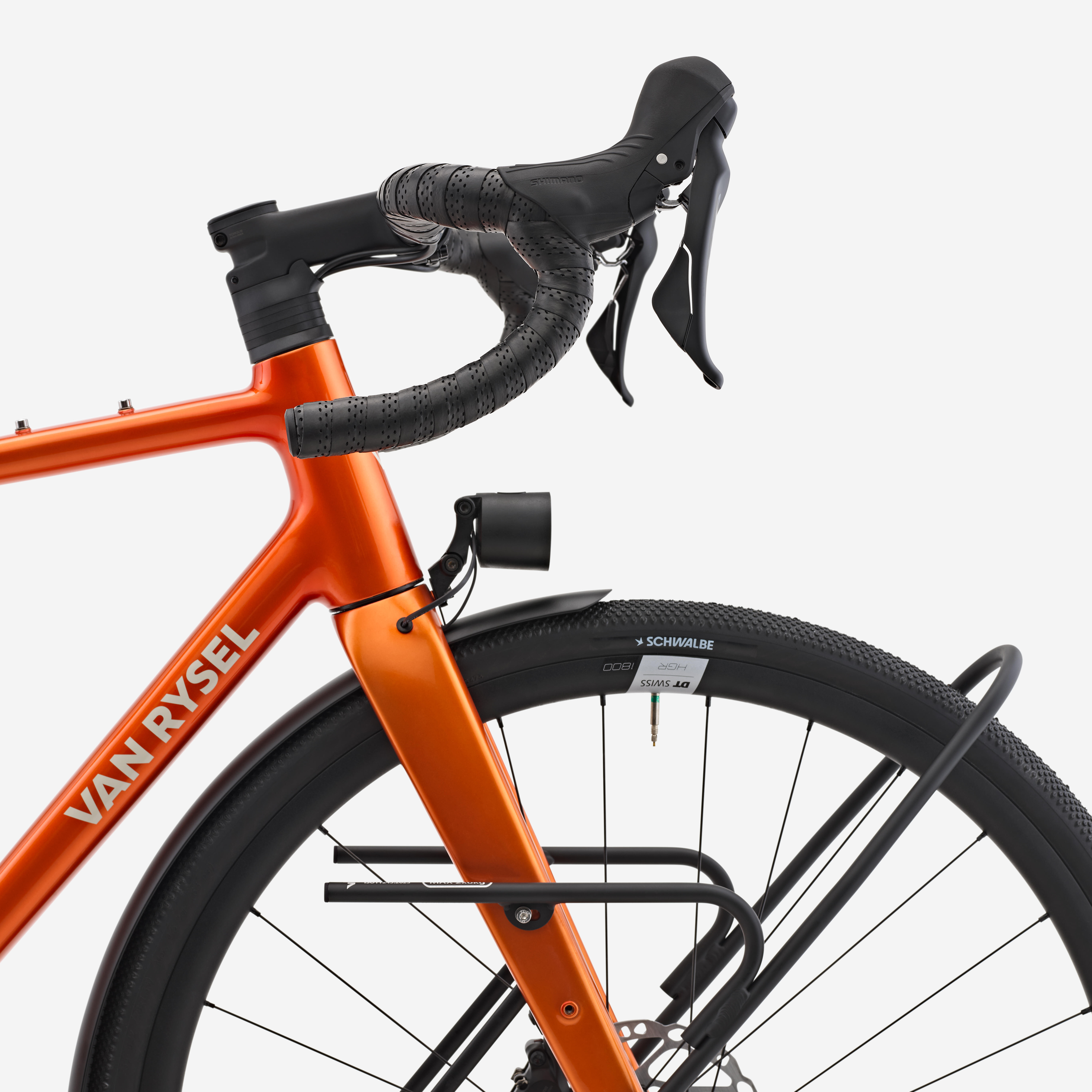

RIDING POSITION:HANDLEBAR AND STEM
The VAN RYSEL handlebar is made of aluminium with a 10° sweep.
Handlebar dimensions:
XS - 380 mm
S/M: 400mm
L/XL: 420 mm
The stem is made of aluminium.
Stem length:
XS / S: 80 mm
M: 100mm
L/XL: 110 mm
EDR ULTRA bar tape
100% CARBON FORK
100% carbon fork with 6 side inserts.
The fork weighs 490g.
The fork clearance accepts tyres up to 38mm.
FRONT AND REAR LIGHTS STANDARD
Rear light:- "Steady" function:the light remains on so that the bicycle can be seen when it stops.(4 min)
- Good visibility at the sides
- Resistant to bad weather.(IPX4)
- Dynamo-powered light

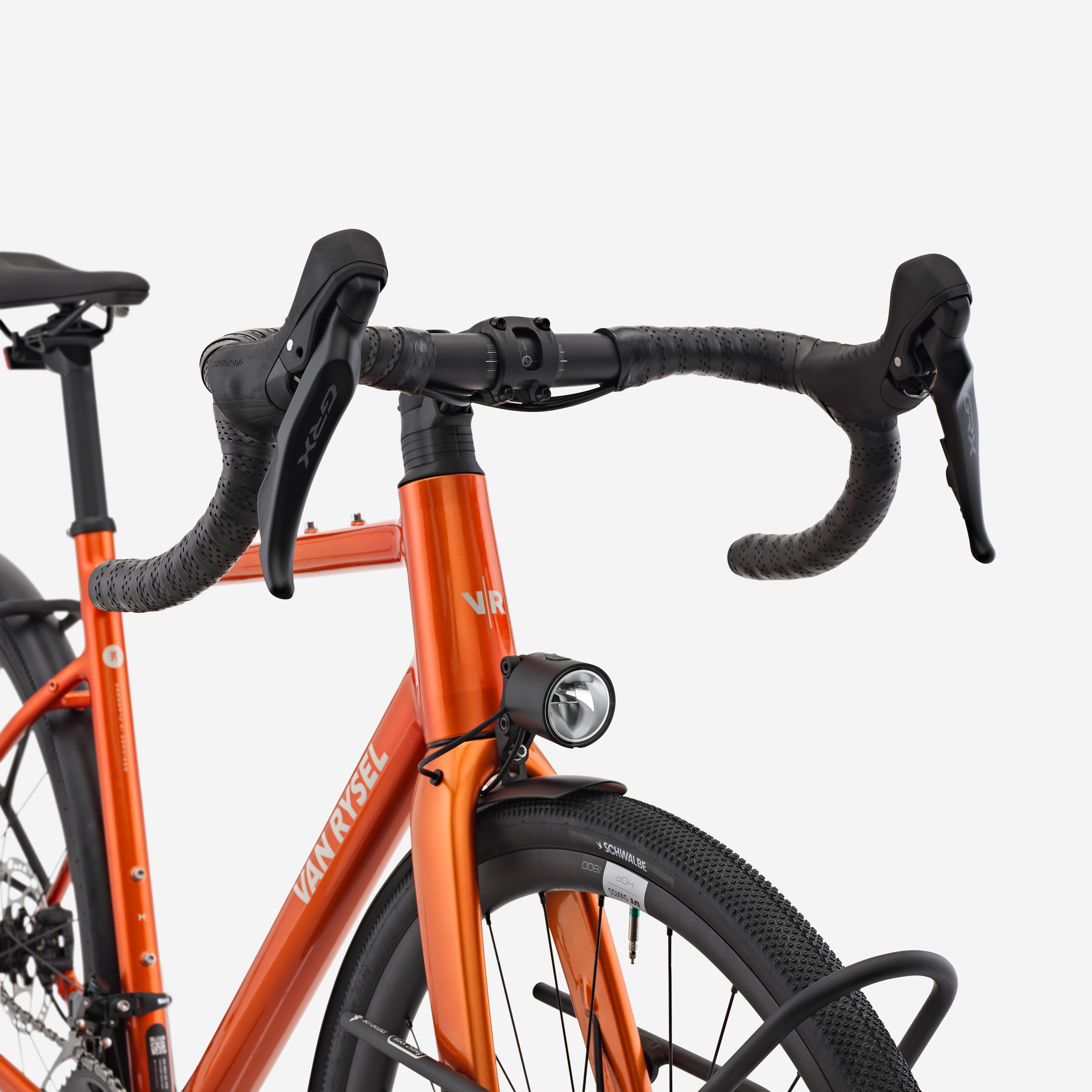

Front light:- "Steady" function:the light remains on when the bicycle stops. (4 min)
- Good visibility because of its 30 lux.- Wide, consistent beam for viewing ease.- IPX4 weather resistant
- Dynamo-powered light
DRIVE TRAIN MAINTENANCE TIPS
Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.
The values below are average values given for information purposes only and vary depending on maintenance.
The average lifespan of a well-maintained chain is 5,000 km and for a cassette 10,000 to 12,000 km.

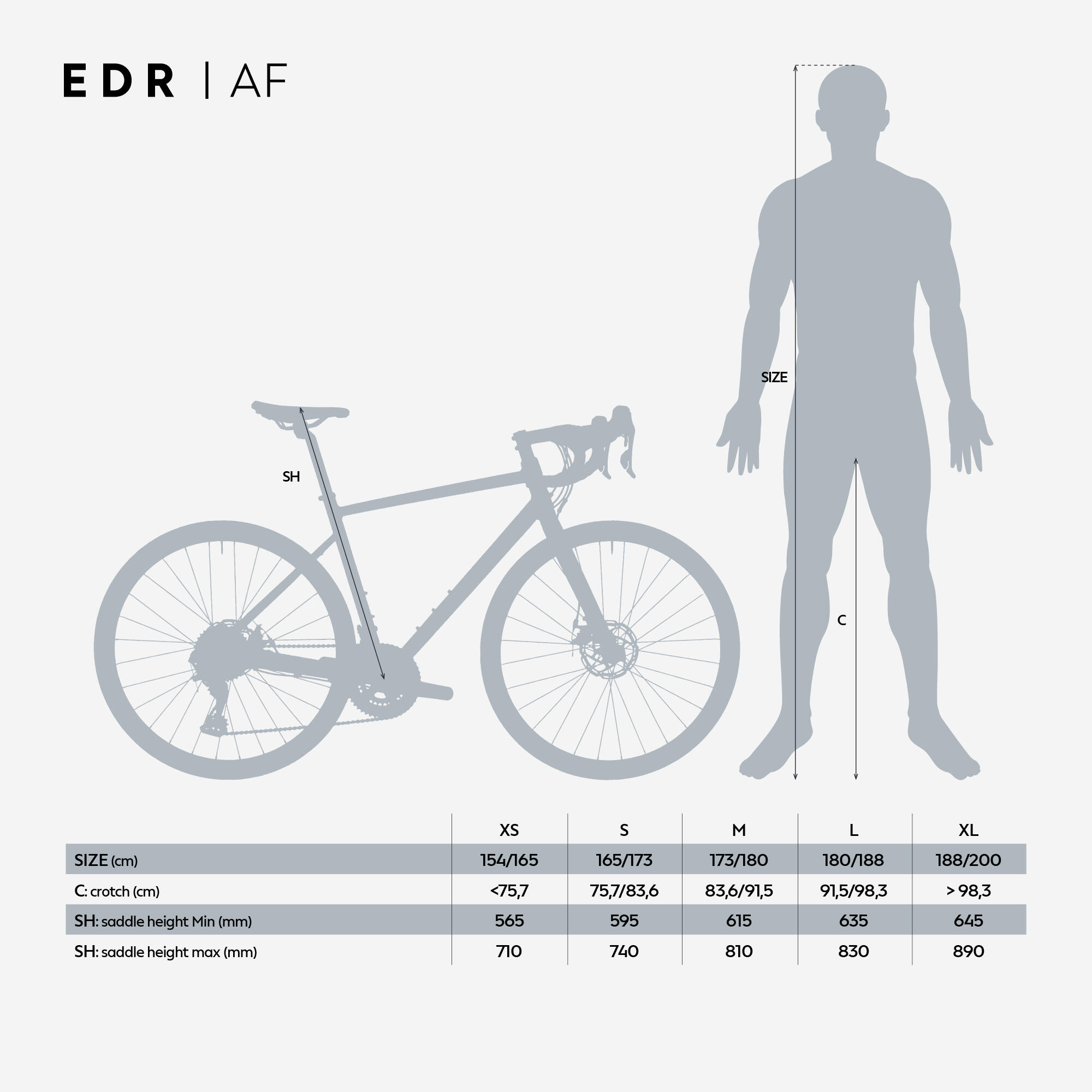

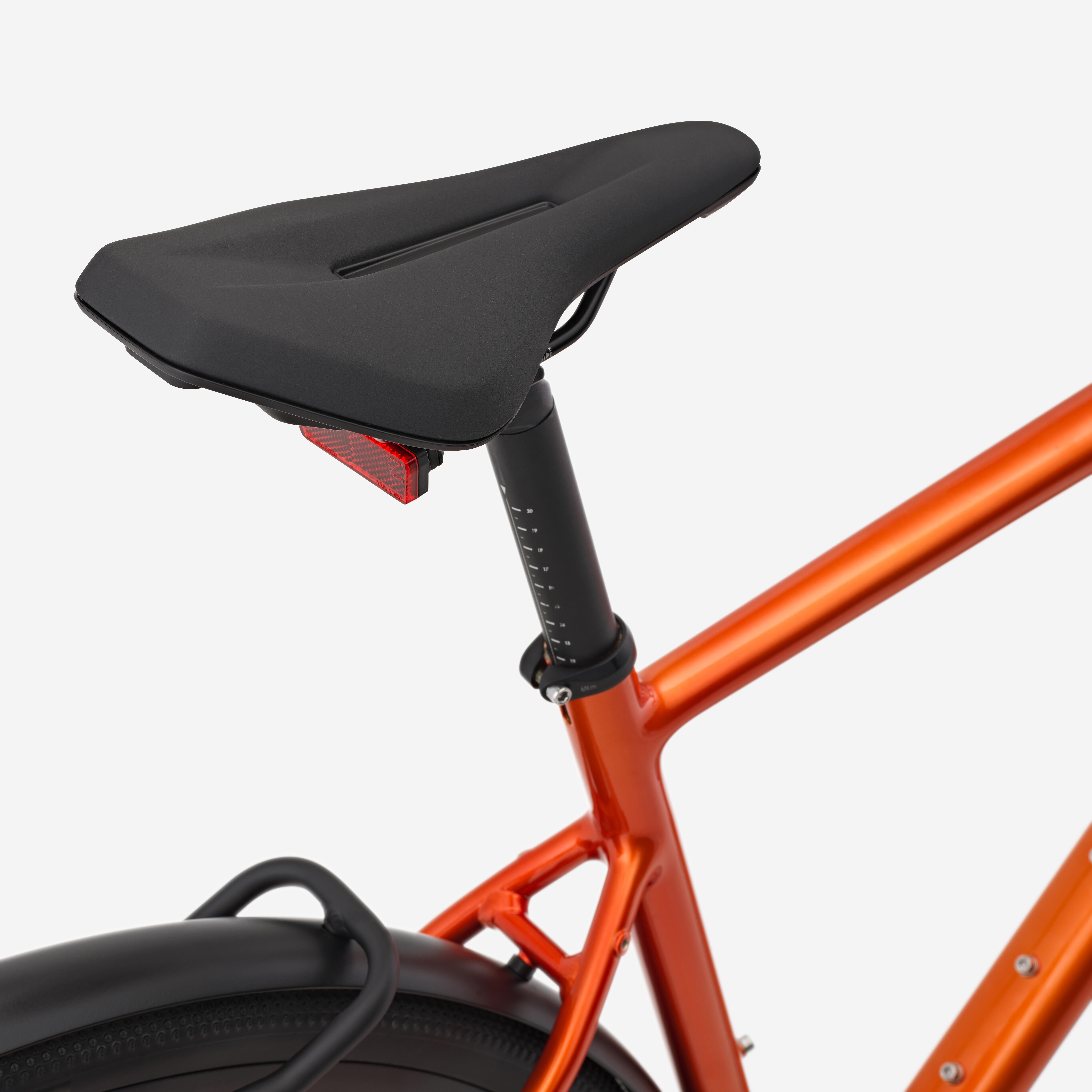

Position
COMFORT 30° saddle, 155 mm
VR aluminium seat post, 27.2 mm diameter
Seat post length: XS: 250mm
S / M / L: 350 mm
XL: 400mm
WEIGHT OF THE BICYCLE AND ACCESSORIES
Full bike weight in size M: 11.8kg
Weight of front/rear mudguards:610g
Front rack weight: 310g
Rear rack weight: 330g

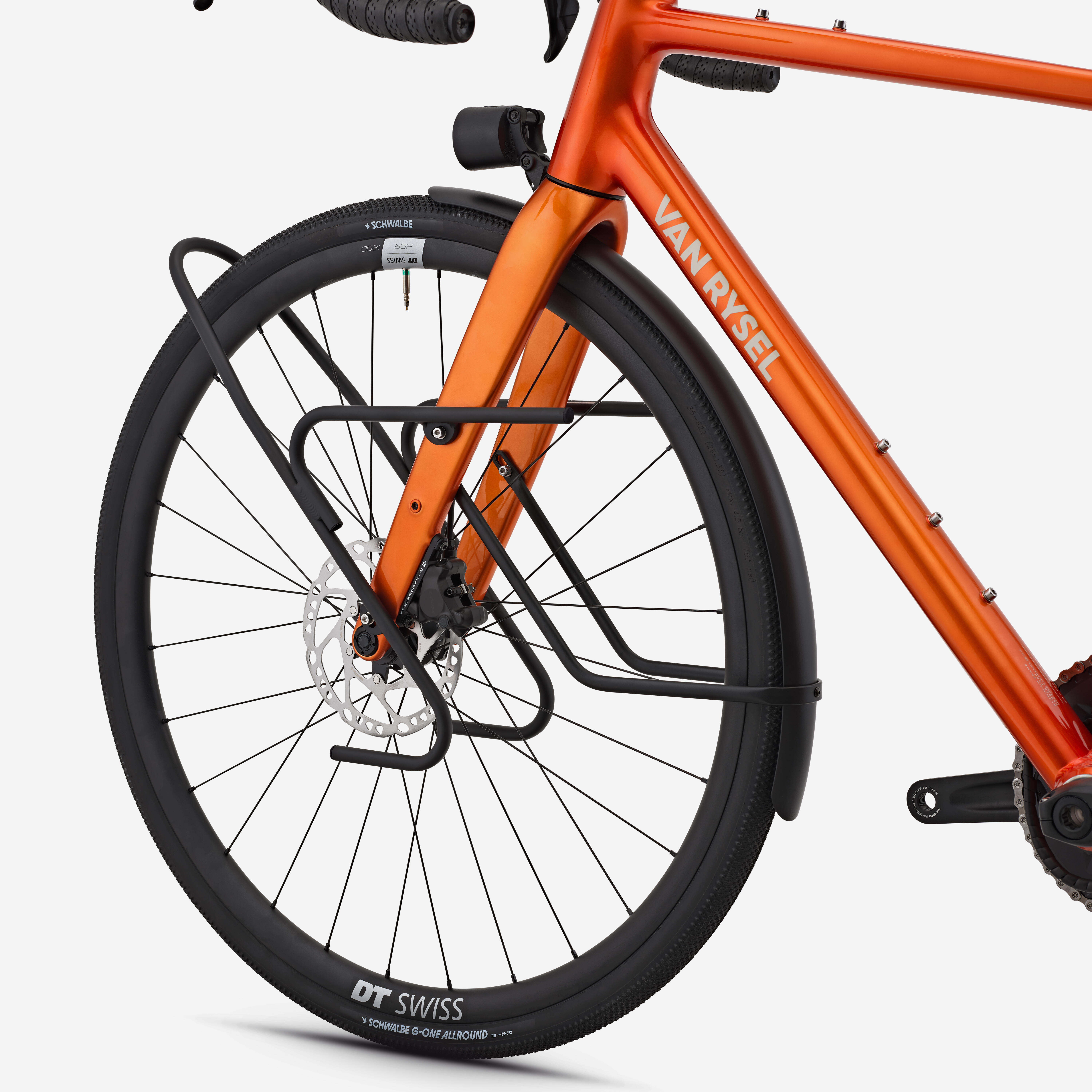

ALUMINIUM WHEELS SUITABLE FOR ALLROAD USE
DT SWISS HGR 1800 SP wheels equipped with a DT SWISS x SHUTTER PRECISION dynamo hub to power the front and rear lights of the bicycle.
Rim height:25 mm
Internal width: 24mm
Reinforced spokes
Front hub: DT Swiss x Shutter Precision dynamo, 6V3W (German Regulation)
Rear hub:DT Swiss DT 370 Hybrid, LN 18 ratchet
Weight of wheel set: 2130g
Front wheel: 1130g and rear wheel: 1000g
Care tips
We recommend avoiding high-pressure water jets when washing your bike to avoid damaging it.We recommend cleaning your bike after each ride, particularly after tackling especially muddy or dusty terrain. In addition, remember to check your tyre pressure and braking efficacy before each ride.
LITTLE THINGS TO KNOW ABOUT THE EDR AF2
to be filled in
A ENDURANCE AT HEART
This bicycle is equipped to help you enjoy adventures!
It comes standard with a DT Swiss dynamo hub that powers front and rear lights so you can see and be seen, day or night!

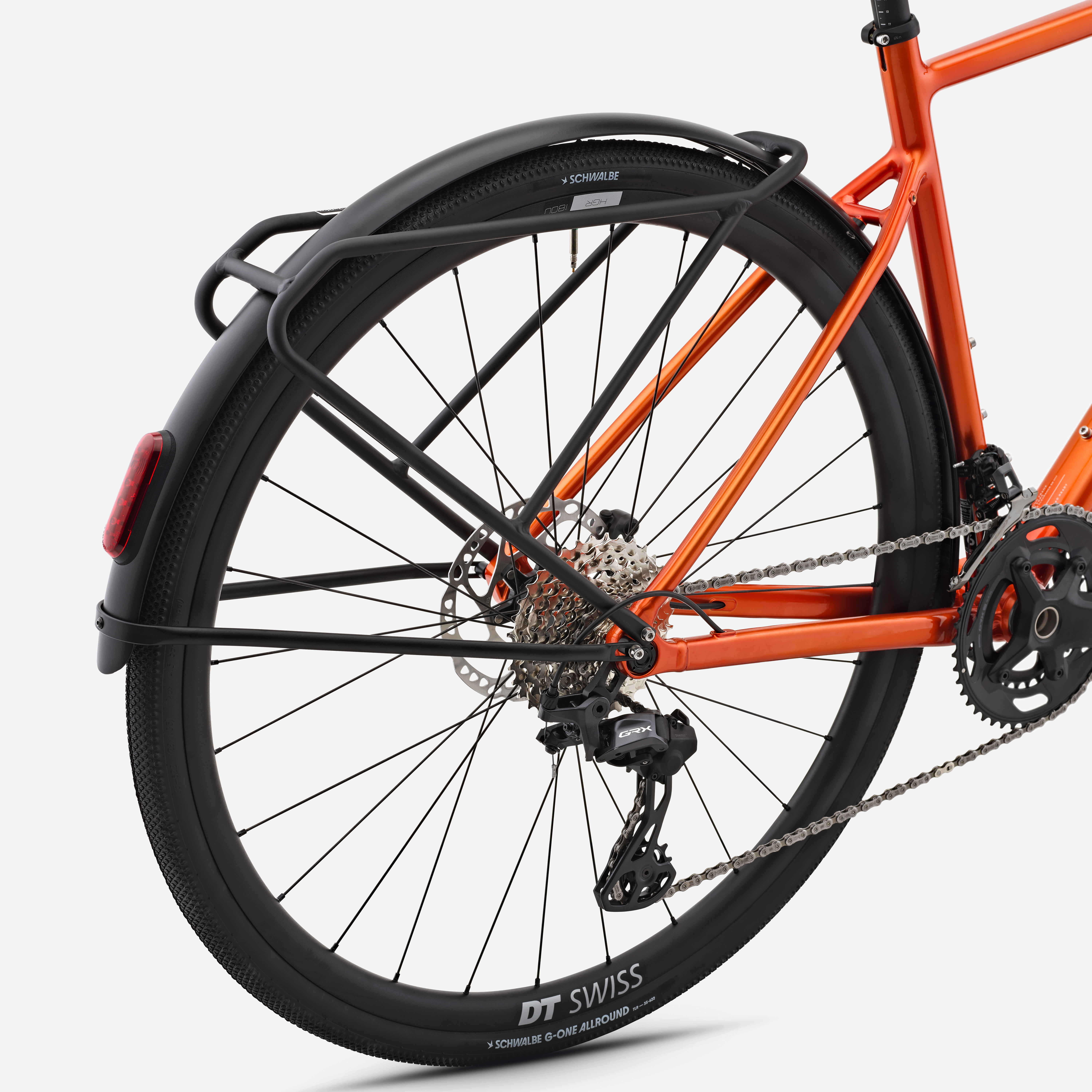

It also features aluminium mudguards and front/rear racks for easy attachment of panniers.
All you have to do now is pedal!

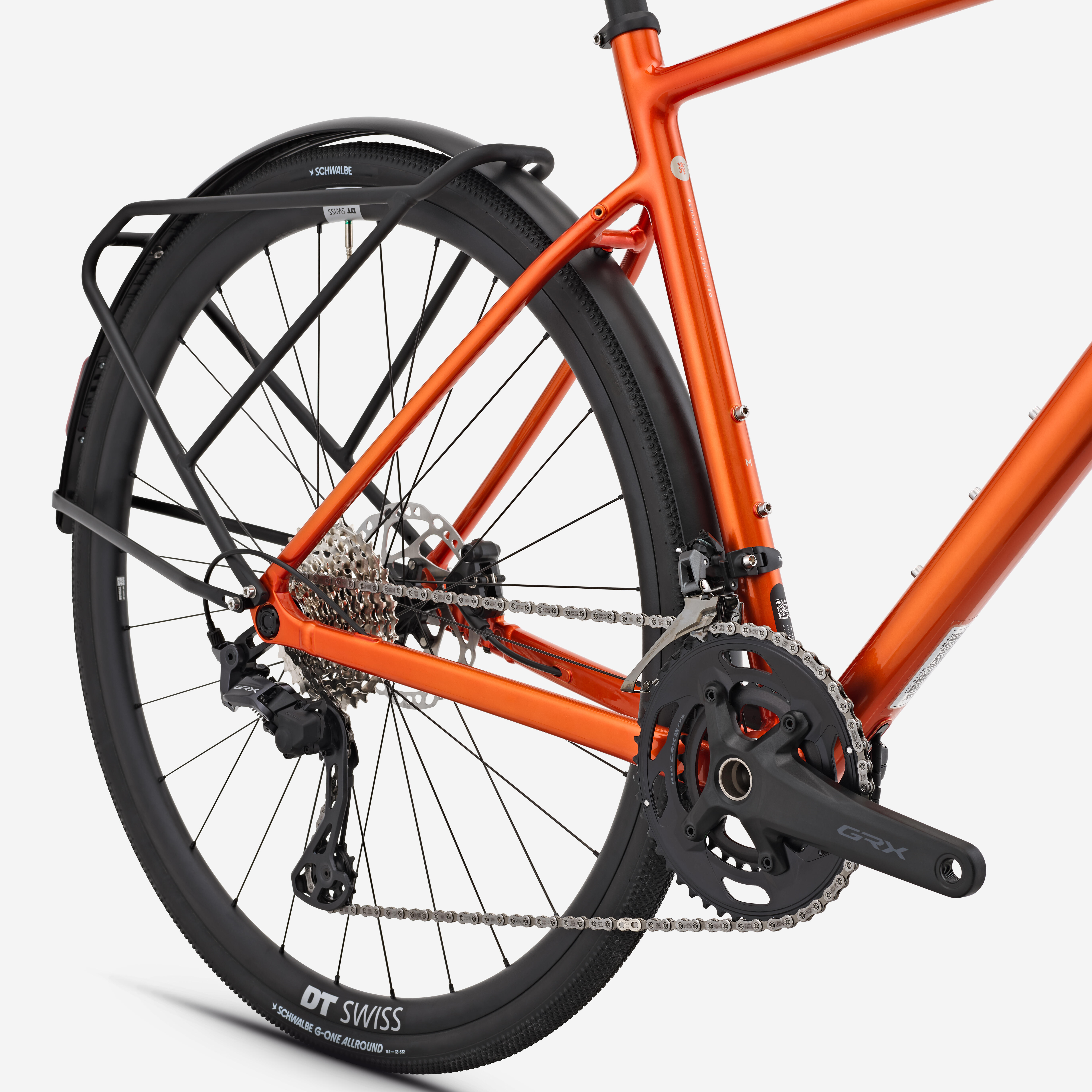

SHIMANO GRX 2x12 SPEED DRIVETRAIN FOR EASY ADAPTATION TO ALL TYPES OF TRAILS
"SHIMANO GRX drivetrain
46-30T double chainring
11-36T cassette
Cassette spacing:11-12-13-14-15-17-19-21-24-28-32-36
This drivetrain is suitable for use on all types of terrain, with or without a load, allowing you to pedal smoothly during your adventures.
Crank lengths:
XS / S: 165mm
M / L: 172.5mm
XL: 175mm
KMC chain: SH SLX 12sKMC7100112Q - 112
BB PRESS FIT 105 KSMBB7141B- 86 mm"
PROTECTING the FRAME
When using panniers or other accessories, and in order to preserve the finish, you can use the following transparent protective stickers:8486947.
ALLROAD SCHWALBE 35MM TYRES
SCHWALBE G-ONE ALLROUND PERF 700x35mm tyres
Tubeless ready
We chose these tyres for their grip and performance on both roads and smooth trails..
