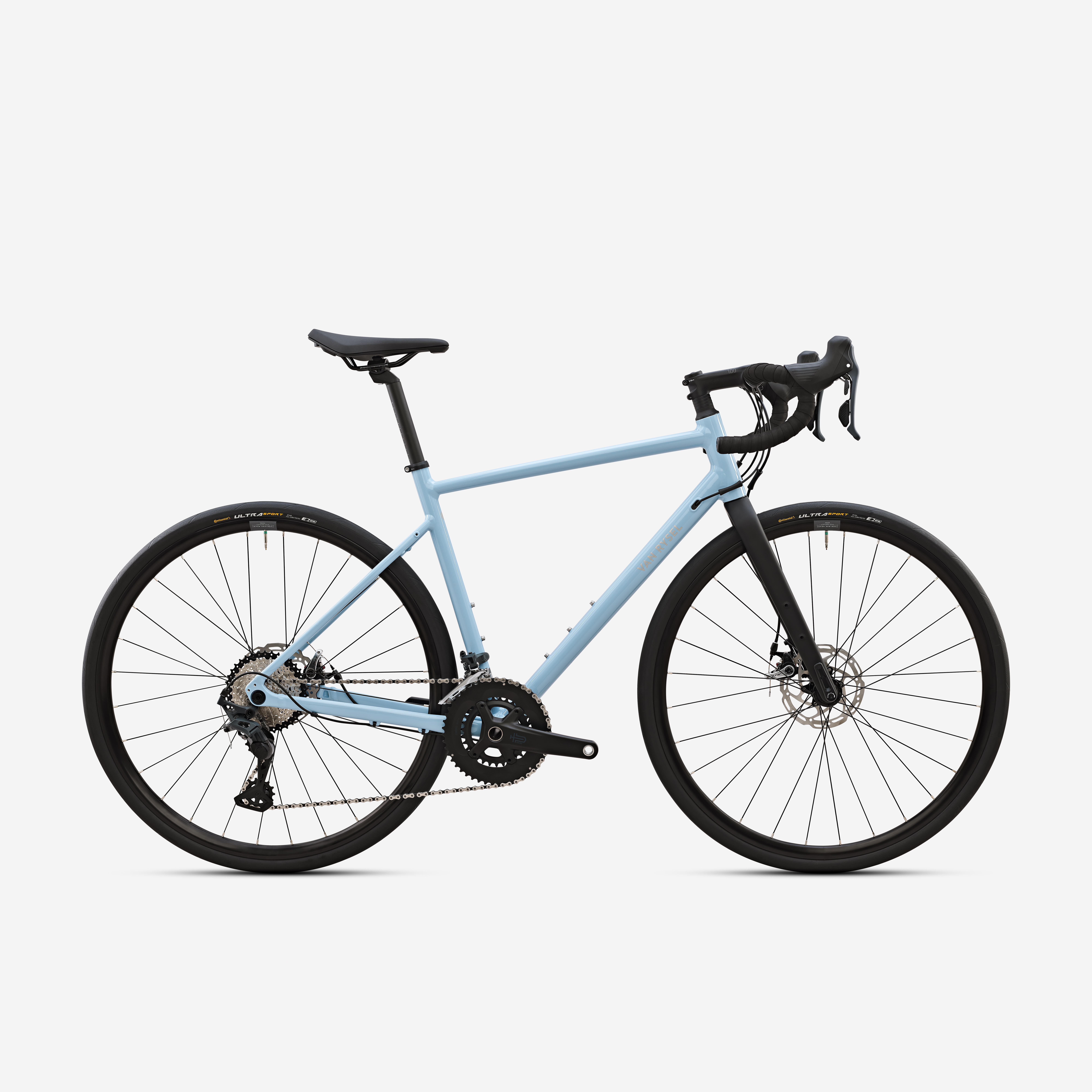

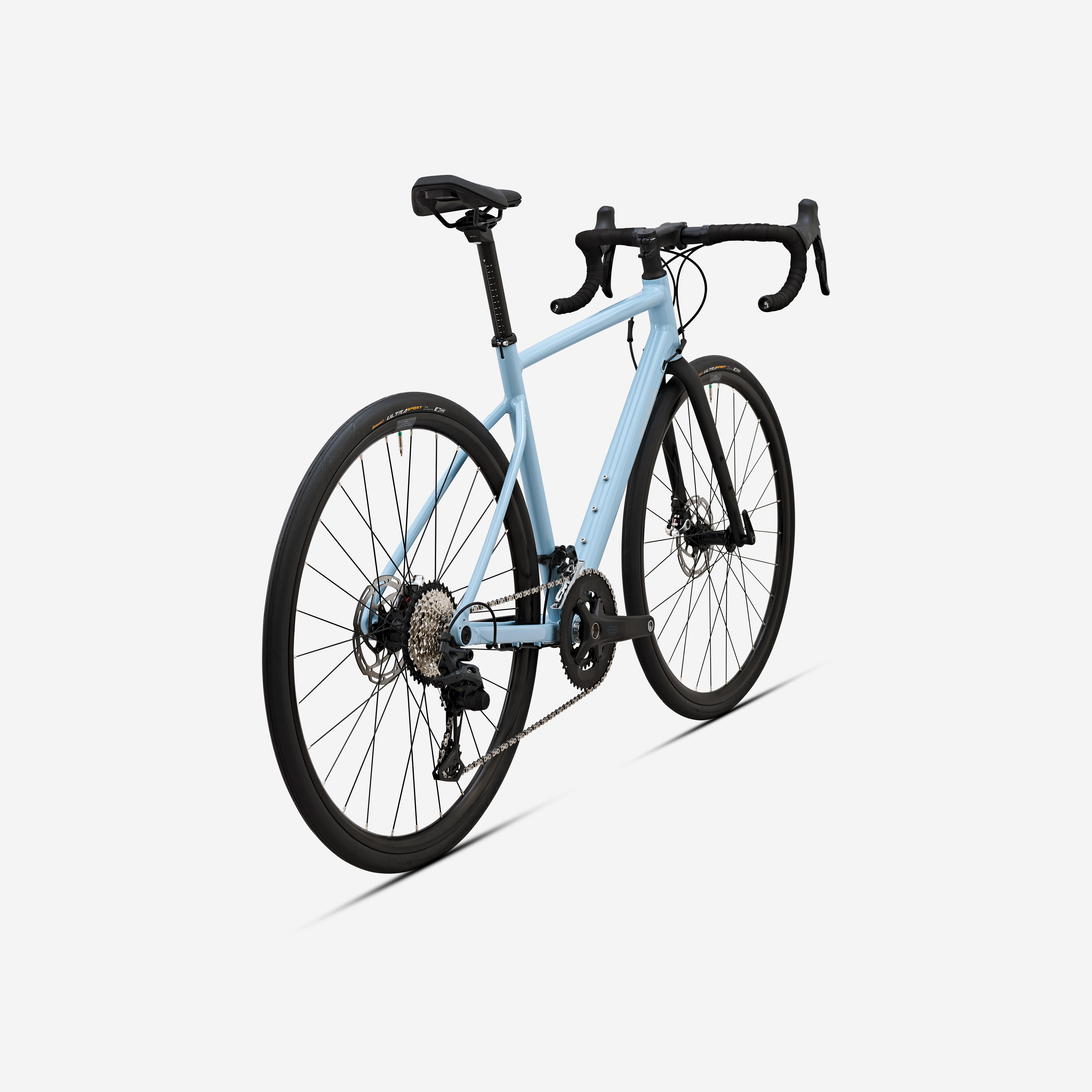

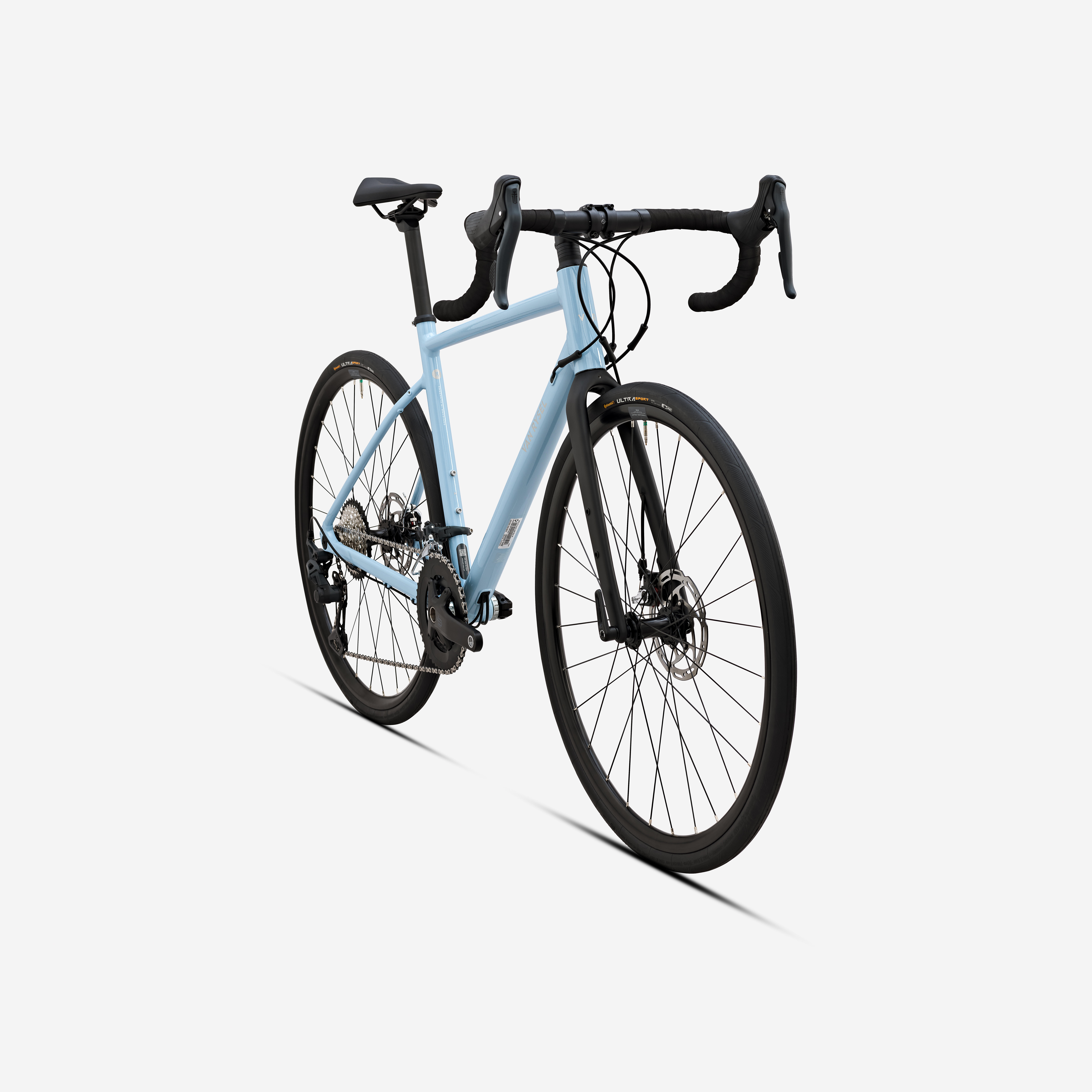

THE "EDR AF" ENDURANCE BIKE RANGE
Our ENDURANCE EDR AF range of bikes is designed for starting out and learning to enjoy road cycling.Whether to make your daily rides more athletic, share bike rides with friends or family or adventure out in your neighbourhood at the weekend, you will enjoy the pleasure of road cycling with our EDR AF bikes.The ergonomics of our EDR AF range have been designed for you to eat up the miles with optimal comfort.

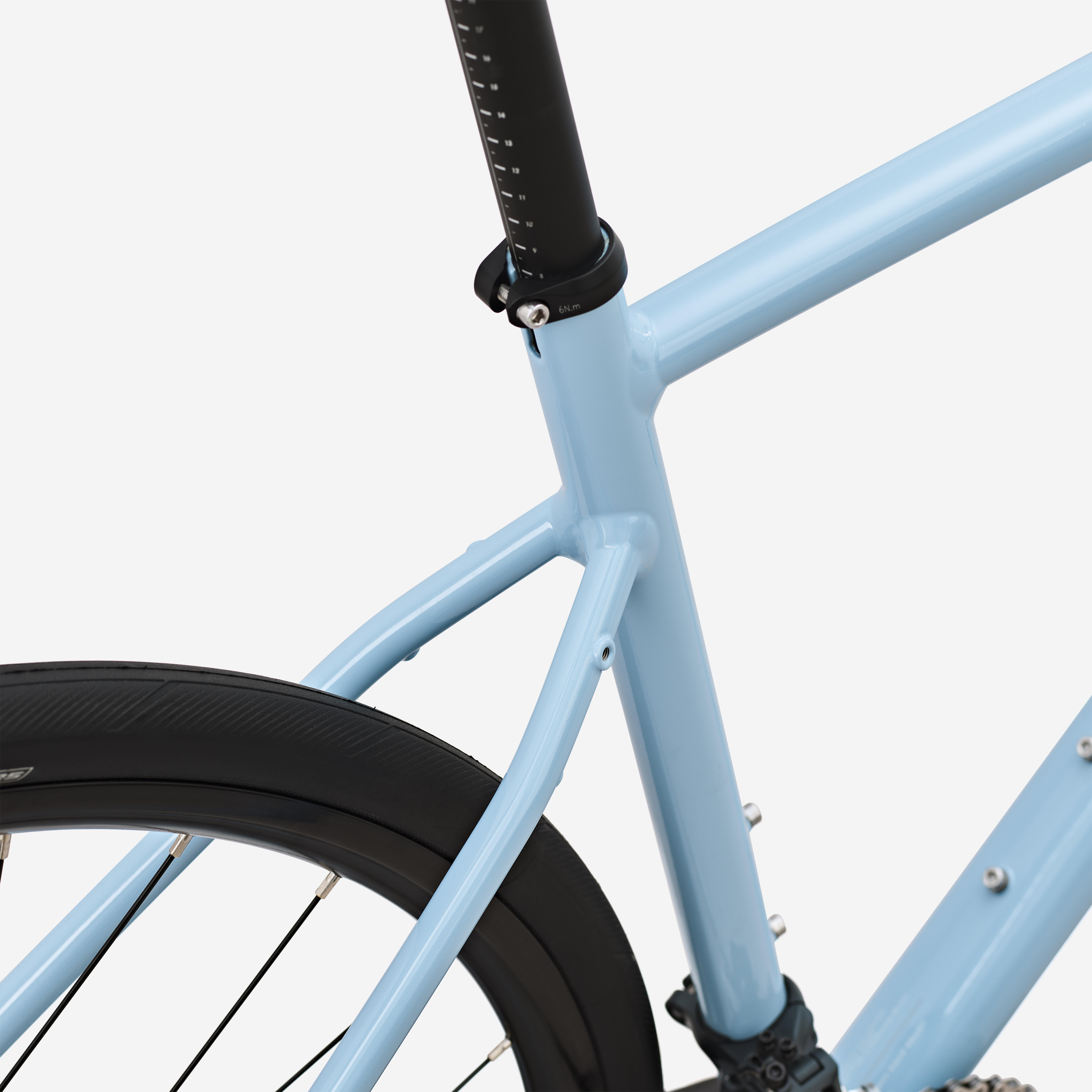

ALUMINIUM FRAME FOR BETTER COMFORT
The EDR AF frame has been improved, while maintaining a geometric design that is already popular with our customers.It is made with double-walled 6061 aluminium for a more sporty, playful bike yet with the comfort of aluminium.Part of the cables has been built into the frame for a more modern look, but they're still easy to adjust and maintain on the handlebar.The size M frame weighs 1,586 g.The frame can fit a maximum tyre width of 38 mm or 35 mm with mudguards.
CARBON FORK FOR GREATER PRECISION
The EDR AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Weight: 642 g in size M
Maximum tyre width 38mm or 35mm with mudguards.

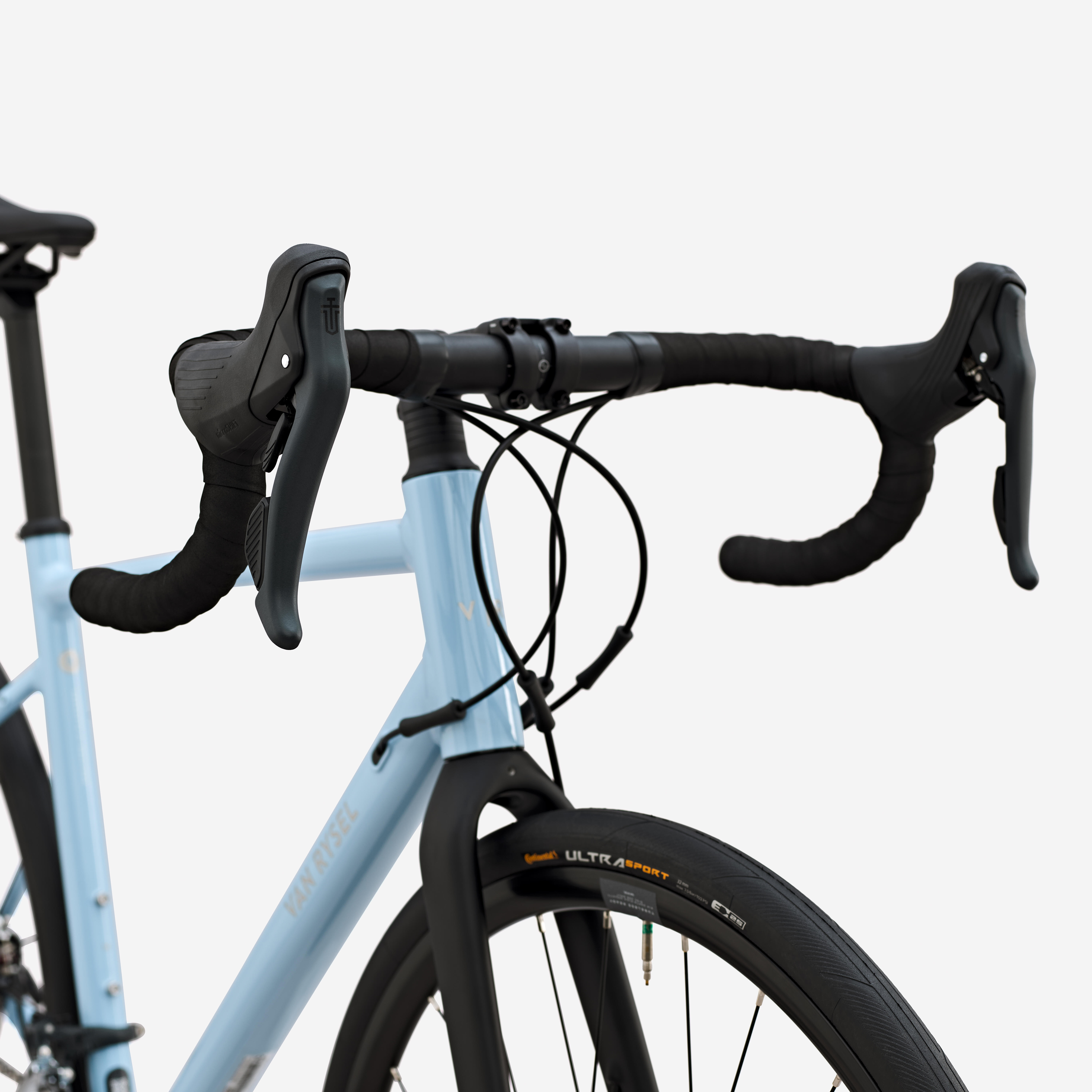

RIDING POSITION:HANDLEBAR AND STEM
Handlebar: Aluminium 6061 T6 diameter 31.8 mm AERO
4° backsweep, 130mm drop
Handlebar size depending on the bike size:XS: 380 mm
S : 400 mm
M - L: 420 mm
XL: 440 mm
Stem: 6061 T6 7º/ -7º aluminium
Stem size according to frame size:XS: 80 mm
S : 80 mm
M : 100 mm
L : 110 mm
XL: 120 mm
Bar tape: EDR Ultra bar rape

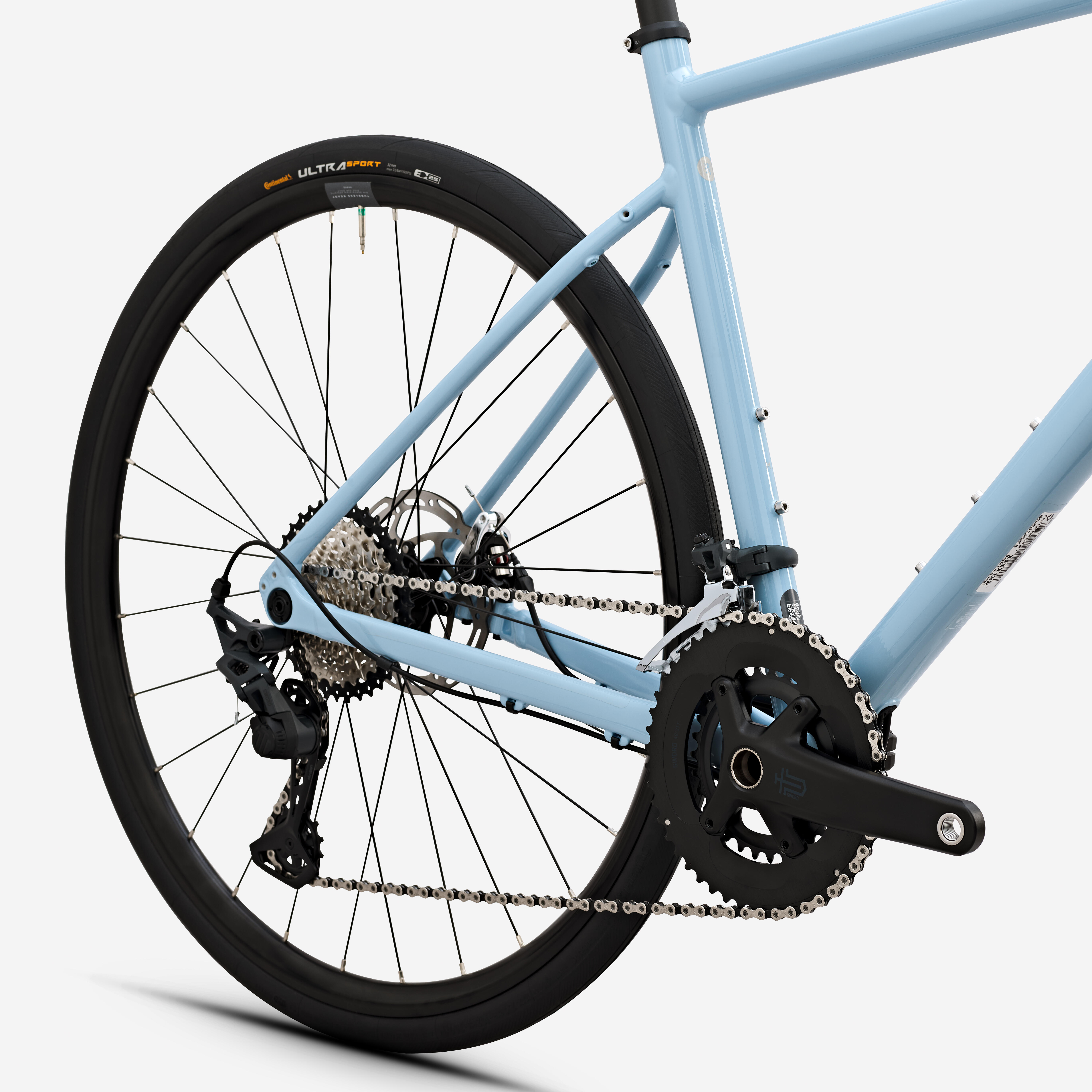

MICROSHIFT SWORD 2x10 speed DRIVE TRAIN
This bike comes with a MICROSHIFT SWORD double chainring drive train and 10 gears.SB-G7000-R-10S and SB-G7020-2L shifter
Microshift Sword FC-G7000 31/48T bottom bracket
Crank length:XS -165 mm
S -170 mm
M -172.5 mm
L/XL -175 mm
FD Sword High clamp FD G7020 front derailleur
RD-G7025L rear derailleur
CS-G105-10 cassette - 10 speed -11/38T

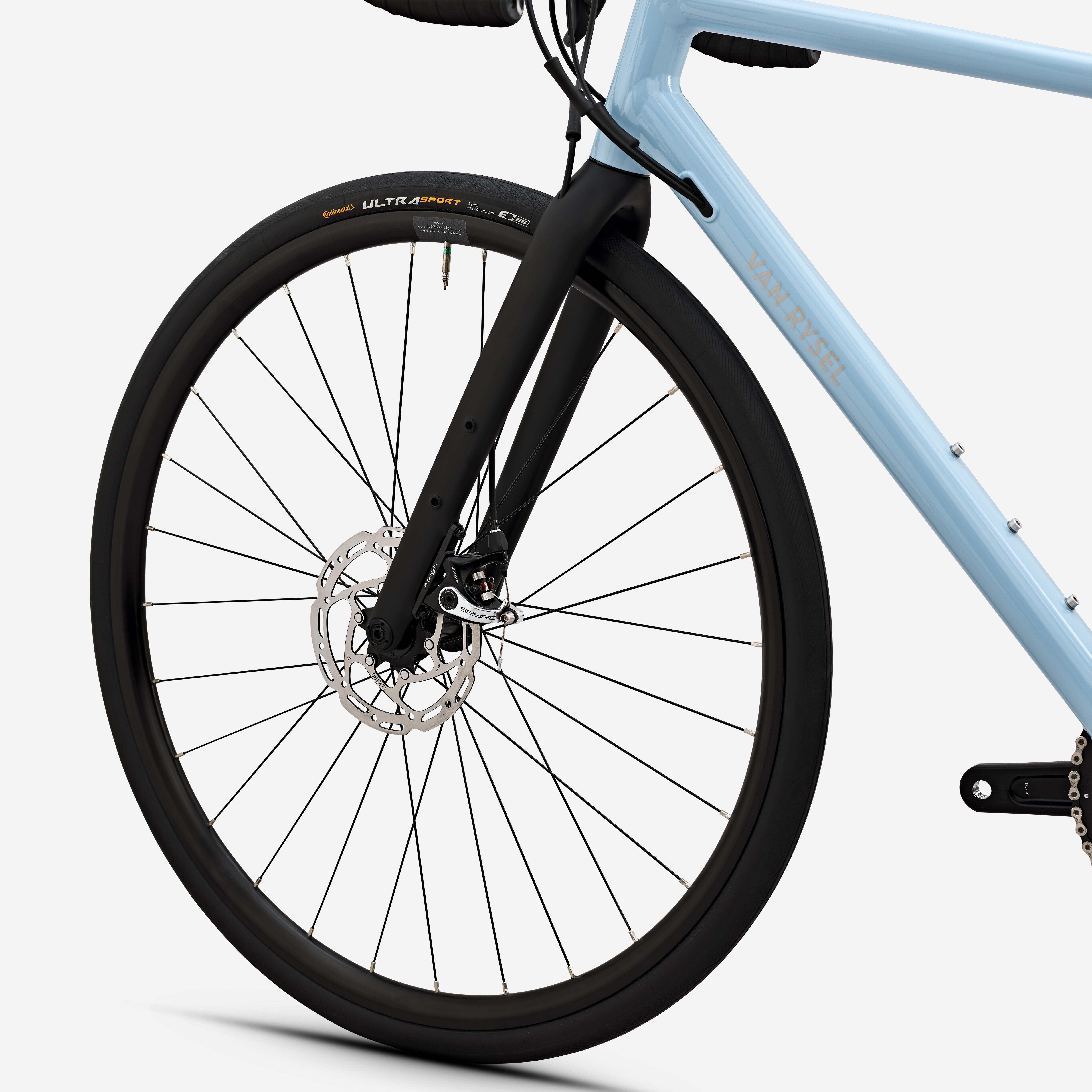

MECHANICAL DISC BRAKES
The EDR AF Microshift Sword is equipped with TRP Spyres double-piston mechanical disc brakes for better braking efficiency.Brake levers: SB-G7000-R-10S and SB-G7020-2L
Front and rear disc size 160 mm - centerlock
WHEELS AND TYRES FOR GOOD PERFORMANCE
Wheels: Aluminium asymmetrical rims
Internal width:21mm
External width: 26mm
Rim height: 24 mm
28 spokes
centerlock fastening
Front thru axle 12x100mm
Rear thru axle 12x142mm
Tubeless ready (kit not supplied)
Wheel weight:2 kg

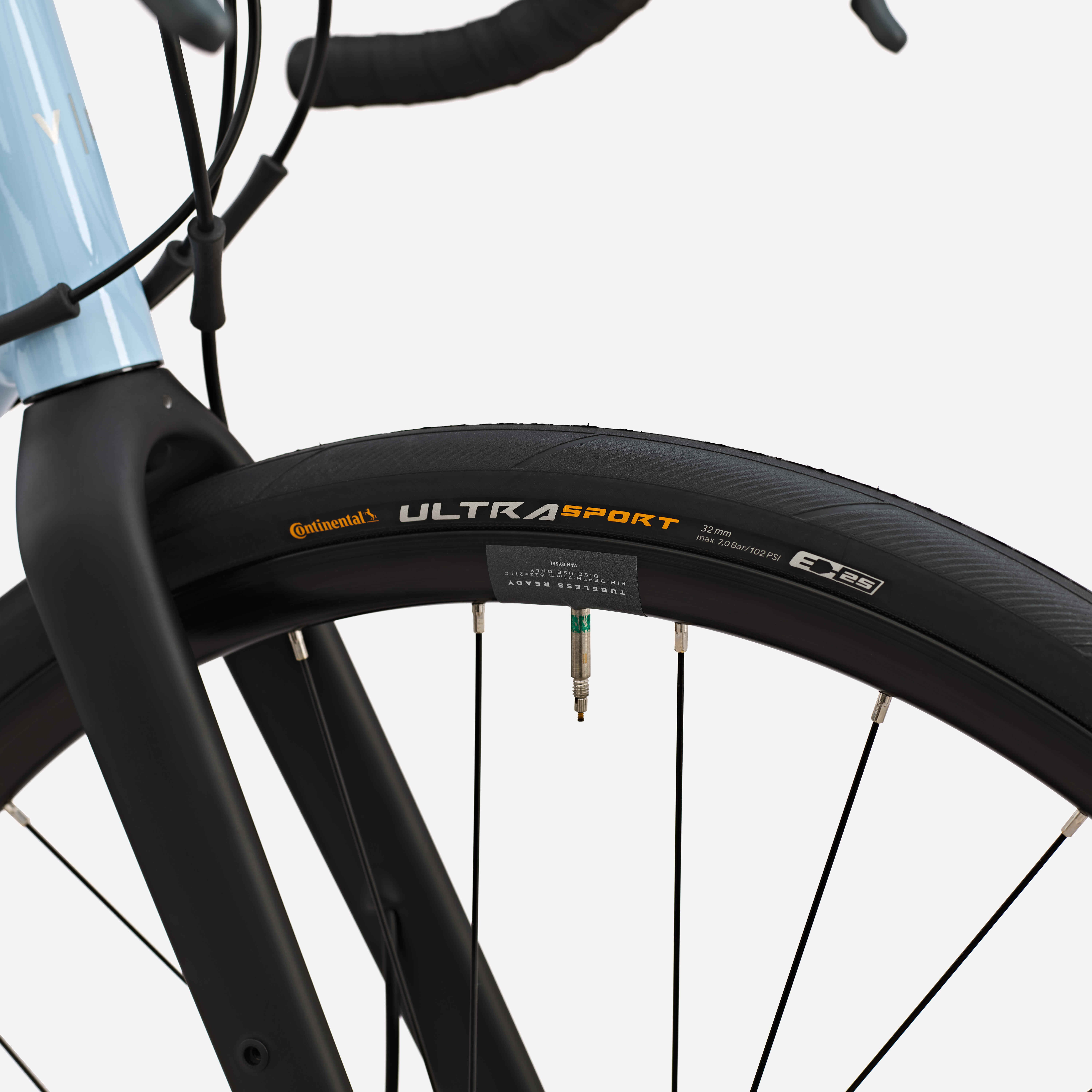

Wheels compatible with a minimum tyre width of 25 mm.TyresContinental Ultra sport II (700x32)
PureGrip COMPOUND
3*60 TPI = 180TPI
Recommended pressure 4.5 bar

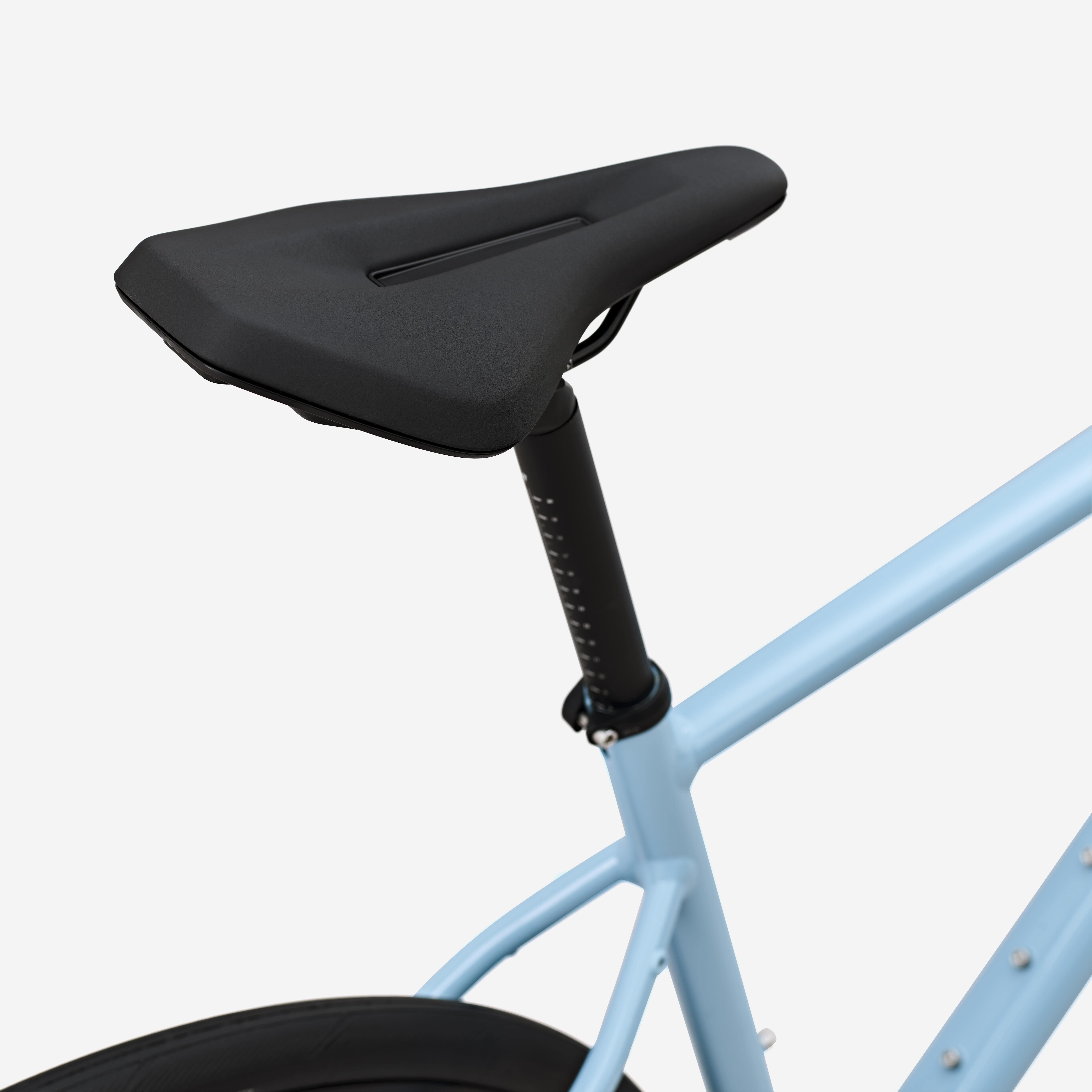

Position:Saddle and seat post
DECATHLON COMFORT 30º saddle
Width:155 mm
Length: 250 mm
Steel clamp
Seat post:VAN RYSEL 6061 T6 aluminium
Diameter 27.2 mm
Seat post length:XS: 250 mm
S - M - L: 350 mm
XL: 400 mm
The natural flex of the seat post thanks to its 27.2 diameter filters vibrations and impacts for greater comfort
LITTLE THINGS TO KNOW ABOUT THE EDR AF
Your EDR AF comes with a box that includes:
- Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance
- 2 brake clips
- 1 bell
- 1 front and rear light
- 1 torque spanner
BIKE WEIGHT
This EDR AF Microshift Sword configuration (without pedals or preventative liquid) weighs approximately:Size XS: 10.3 kg
Size S:10.35 kg
Size M: 10.45 kg
Size L: 10.75 kg
Size XL: 11 Kg
The maximum load (user + load) is 110 kg whatever the bike size.
CARE TIPS
We recommend avoiding high-pressure water jets when washing your bike to avoid damaging it.We recommend cleaning your bike after each ride, particularly after confronting difficult weather conditions. In addition, remember to check your tyre pressure and braking efficacy before each ride.
PROTECTING the FRAME
When using bags or other accessories, you can use the following transparent protective stickers: 8486947.
Resistant to temperature variations, water, tears and UV rays.
CHOOSING THE SIZE OF YOUR BIKE
You should choose the size of your bike based on your height, as well as your build (arm span and leg length).
If you are between sizes, opting for the smaller size will be more comfortable and make it easier to tackle gravel trails.
XS: 154 - 165 cm
S: 165 - 173 cm
M : 173 - 180 cm
L: 180 - 188 cm
XL: 188 - 200 cm
