DRIVE TRAIN MAINTENANCE TIPS
Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.
The values below are average values given for information purposes only and vary depending on maintenance.
The average lifespan of a well-maintained chain is 5,000 km and for a cassette 10,000 to 12,000 km.

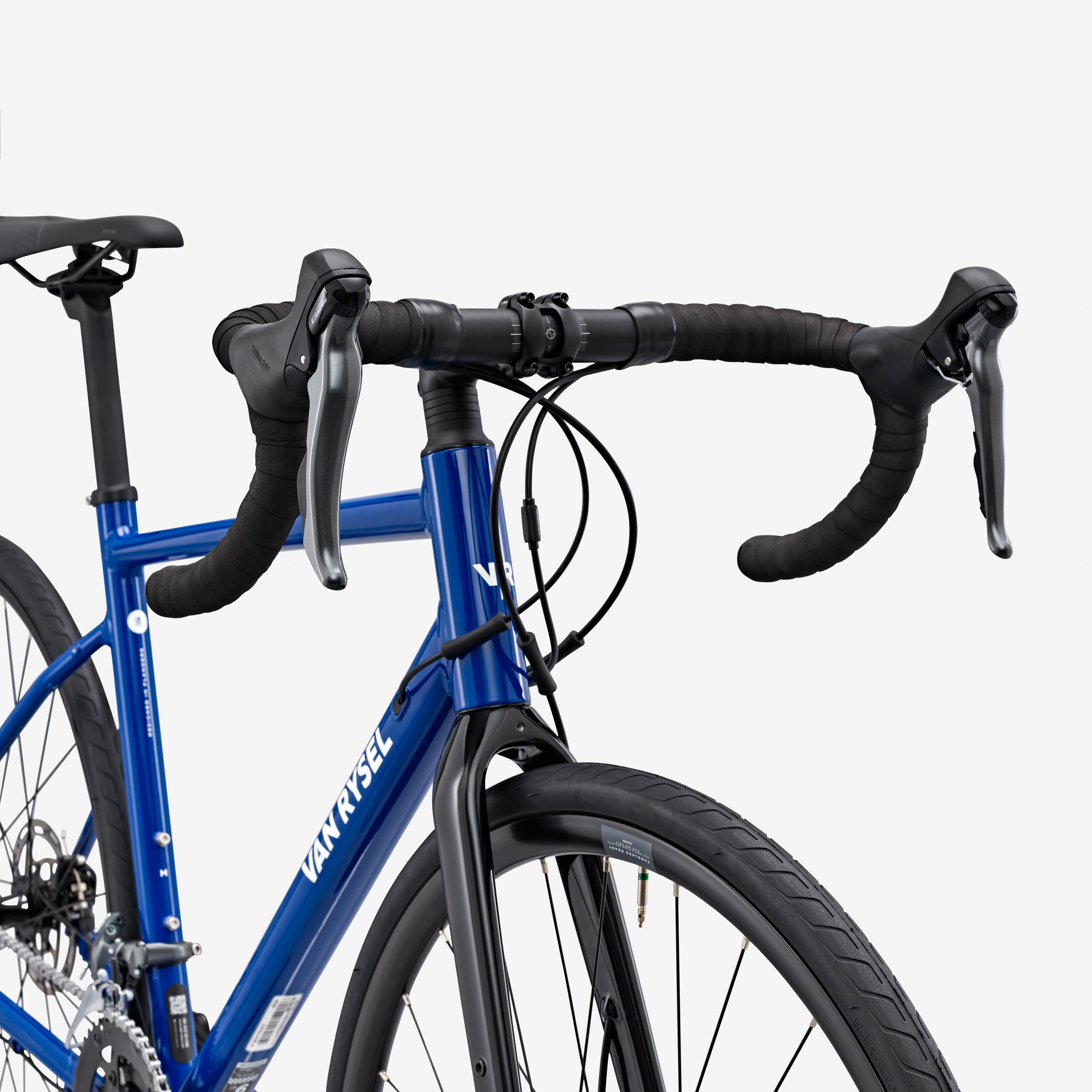

RIDING POSITION:HANDLEBAR AND STEM
Aluminium handlebars
Handlebar size:
XS - S: 400 mm
M - L: 420 mm
XL: 440 mm
Aluminium stem
Stem size:
XS - S: 80 mm
M : 100 mm
L : 110 mm
XL: 120 mm
Bar tape: EDR Comfort
MECHANICAL DISC BRAKES
TEKTRO MD-C550 mechanical disc brakes
160 mm discs at the front and rear
Running in the brake pads is essential when using a bike for the first time.
For optimal running-in, we recommend 20 to 30 braking actions without locking the wheel from 25 km/h.Also, be sure not to stop between braking actions to avoid ‘gluing’ the pads to your discs.
Care tips
We recommend avoiding high-pressure water jets when washing your bike to avoid damaging it.We recommend cleaning your bike after each ride, particularly after tackling especially muddy or dusty terrain. In addition, remember to check your tyre pressure and braking efficacy before each ride.

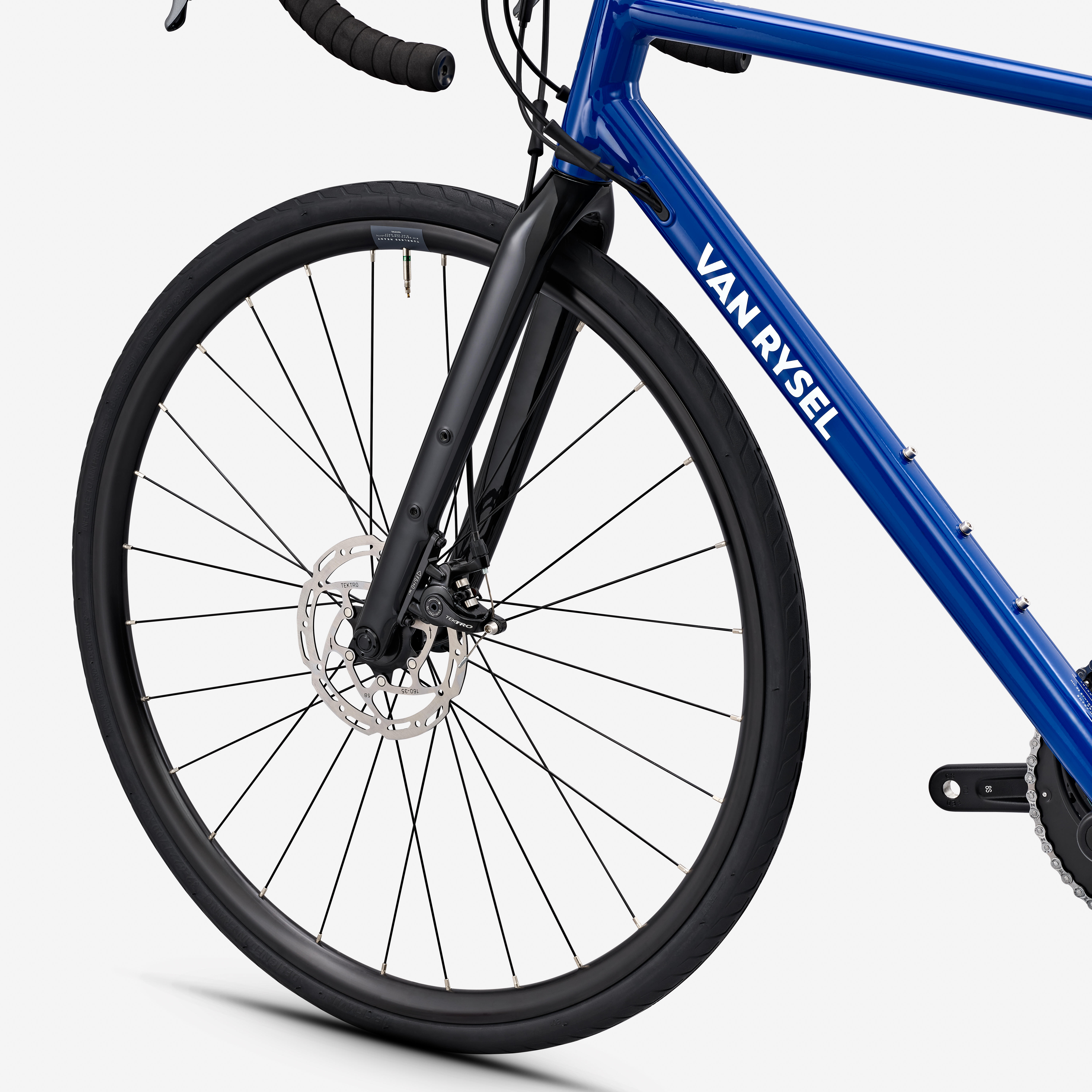

CARBON FORK FOR GREATER PRECISION
The EDR AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Weight: 642 g in size M
Maximum tyre width 38mm or 35mm with mudguards.

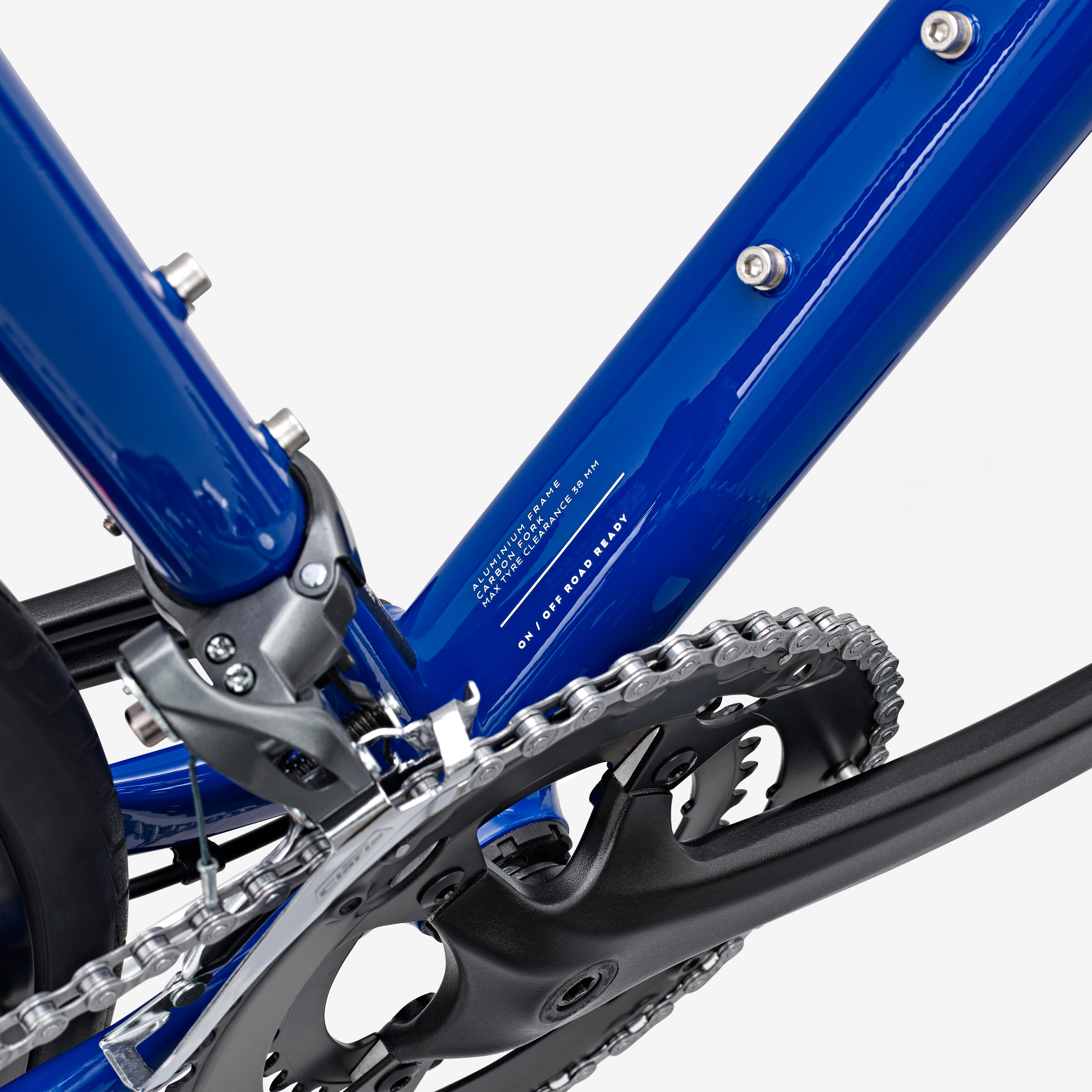

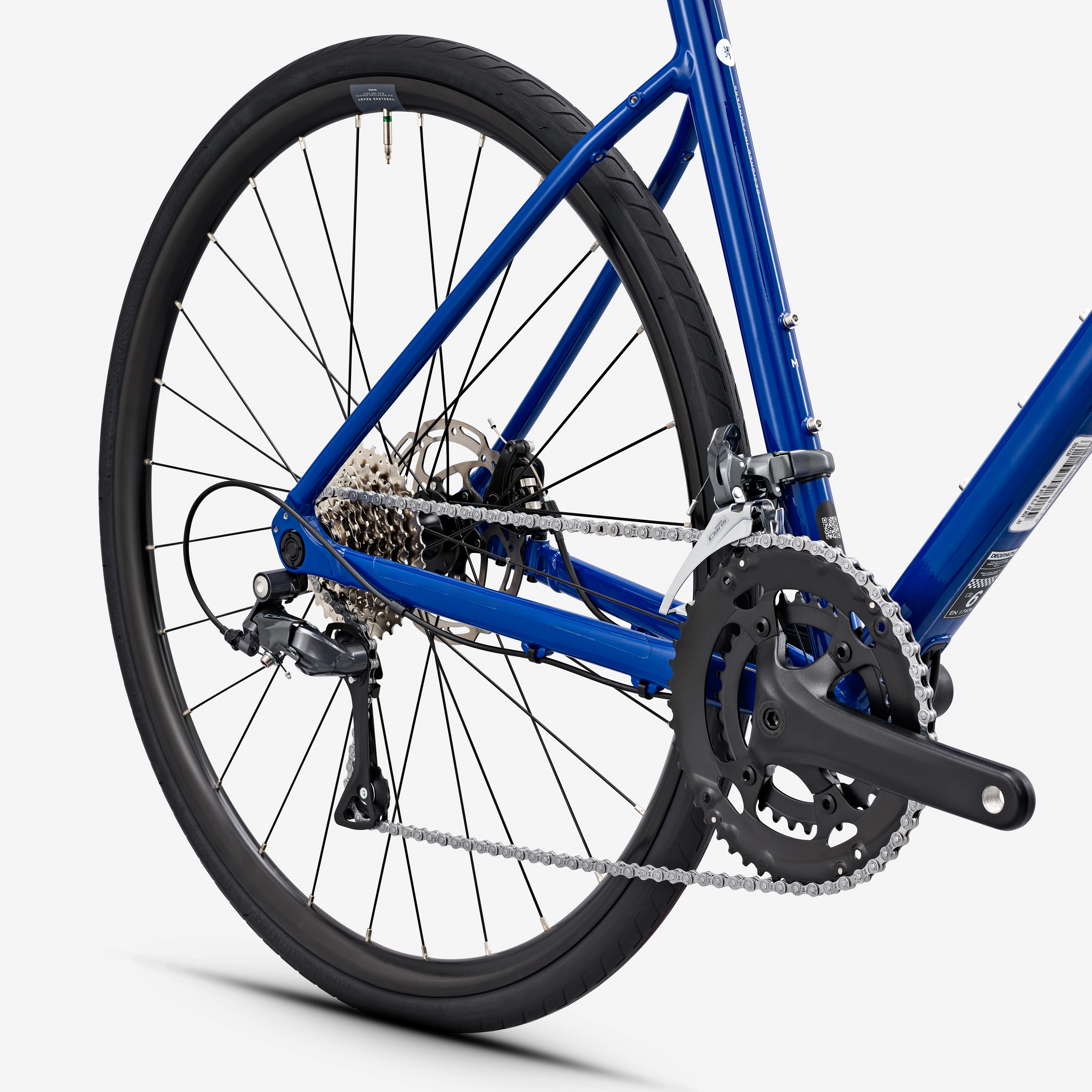

SHIMANO CLARIS DRIVE TRAIN
SHIMANO CLARIS front and rear derailleurs
Prowheel bottom bracket - 50/34T double chainring
Crank length:
XS - S - M: 170mm
L - XL: 175mm
Shimano Claris 11/34 cassette
KMC Z8.3 chain - 112
THUN IBEX BB - 119mm
BIKE WEIGHT
to be filled in

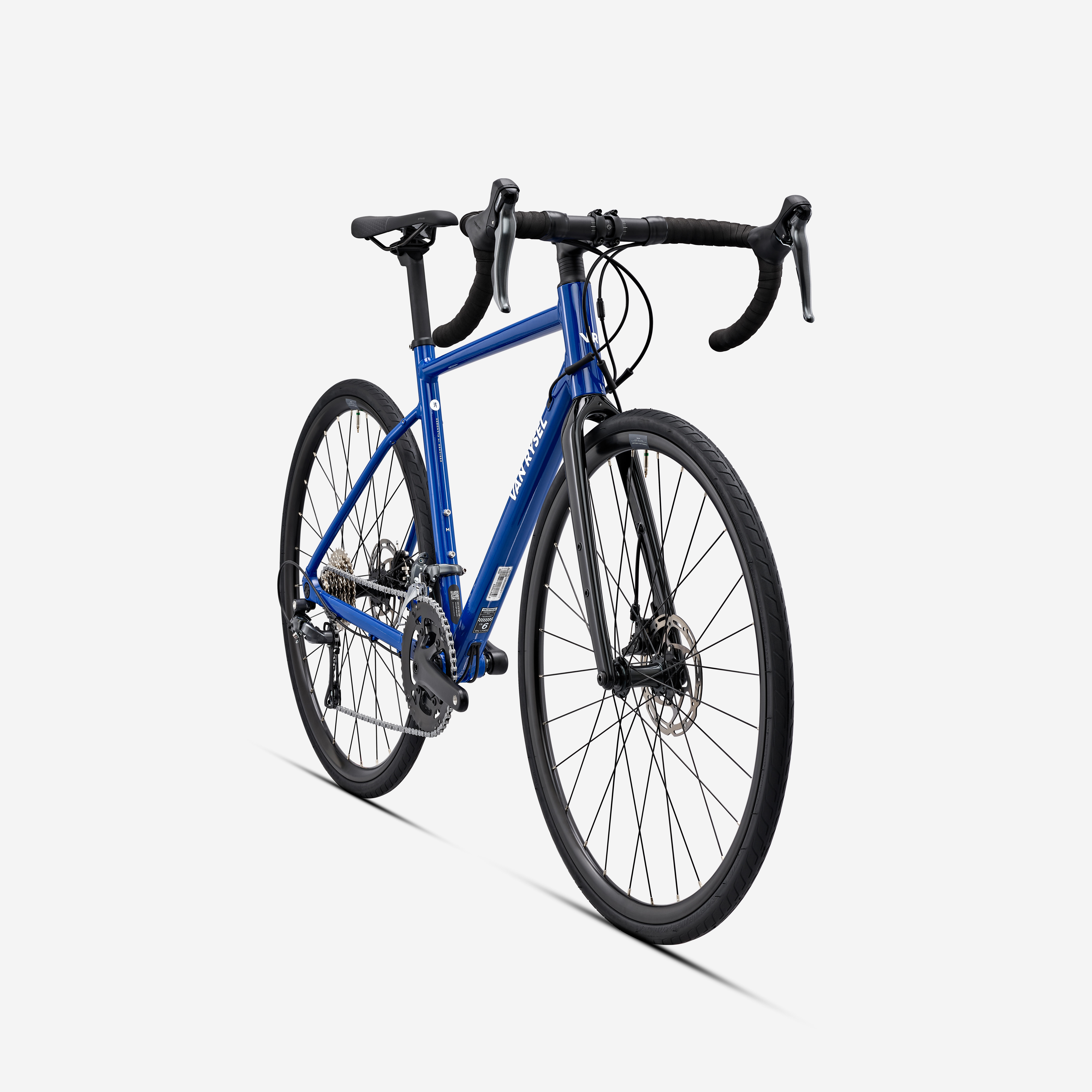

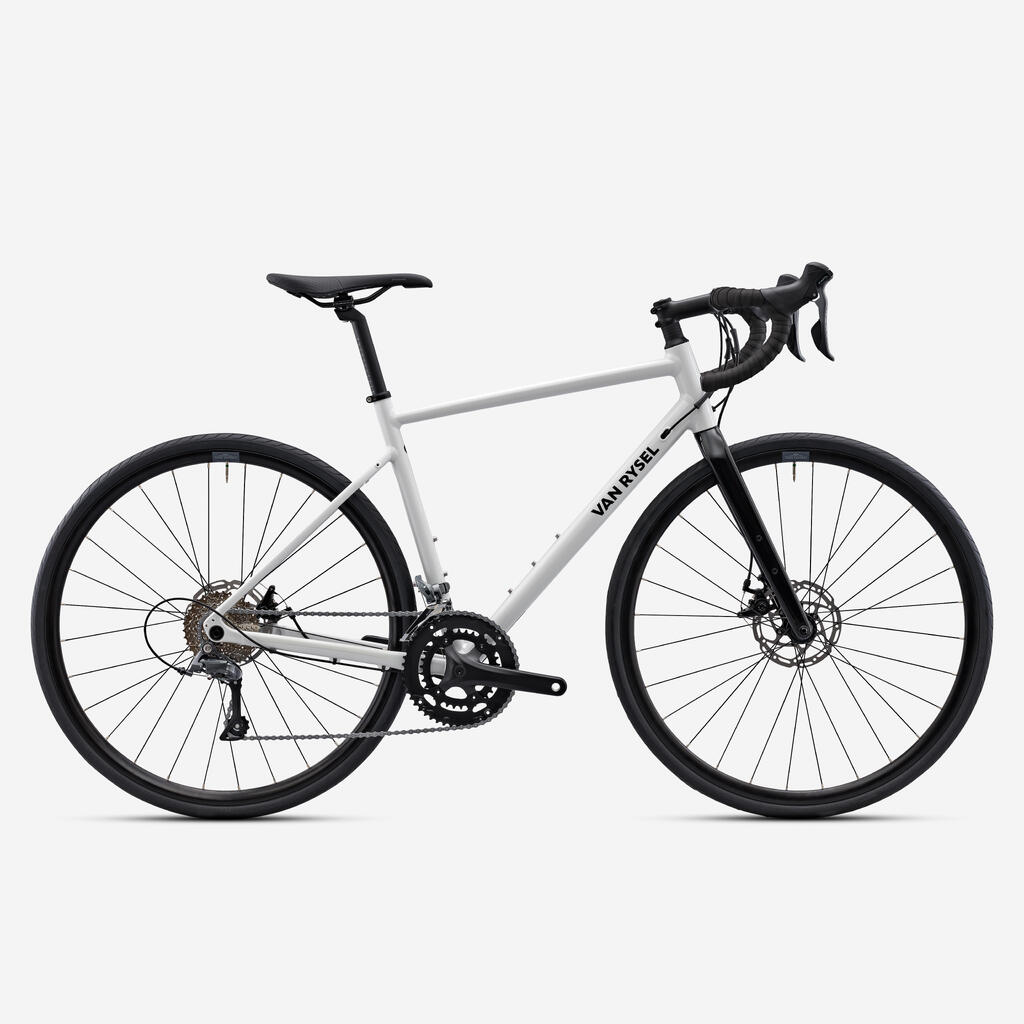

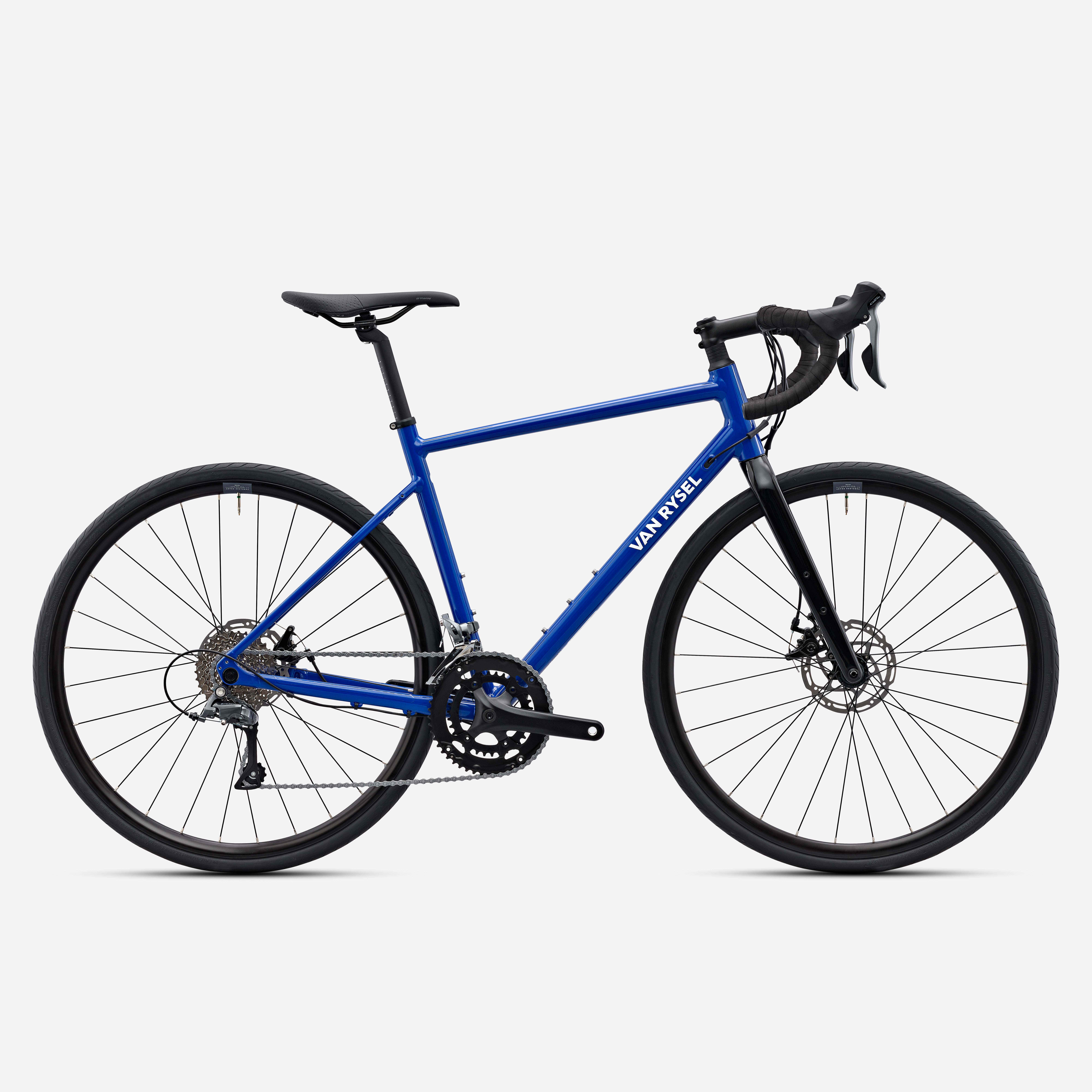

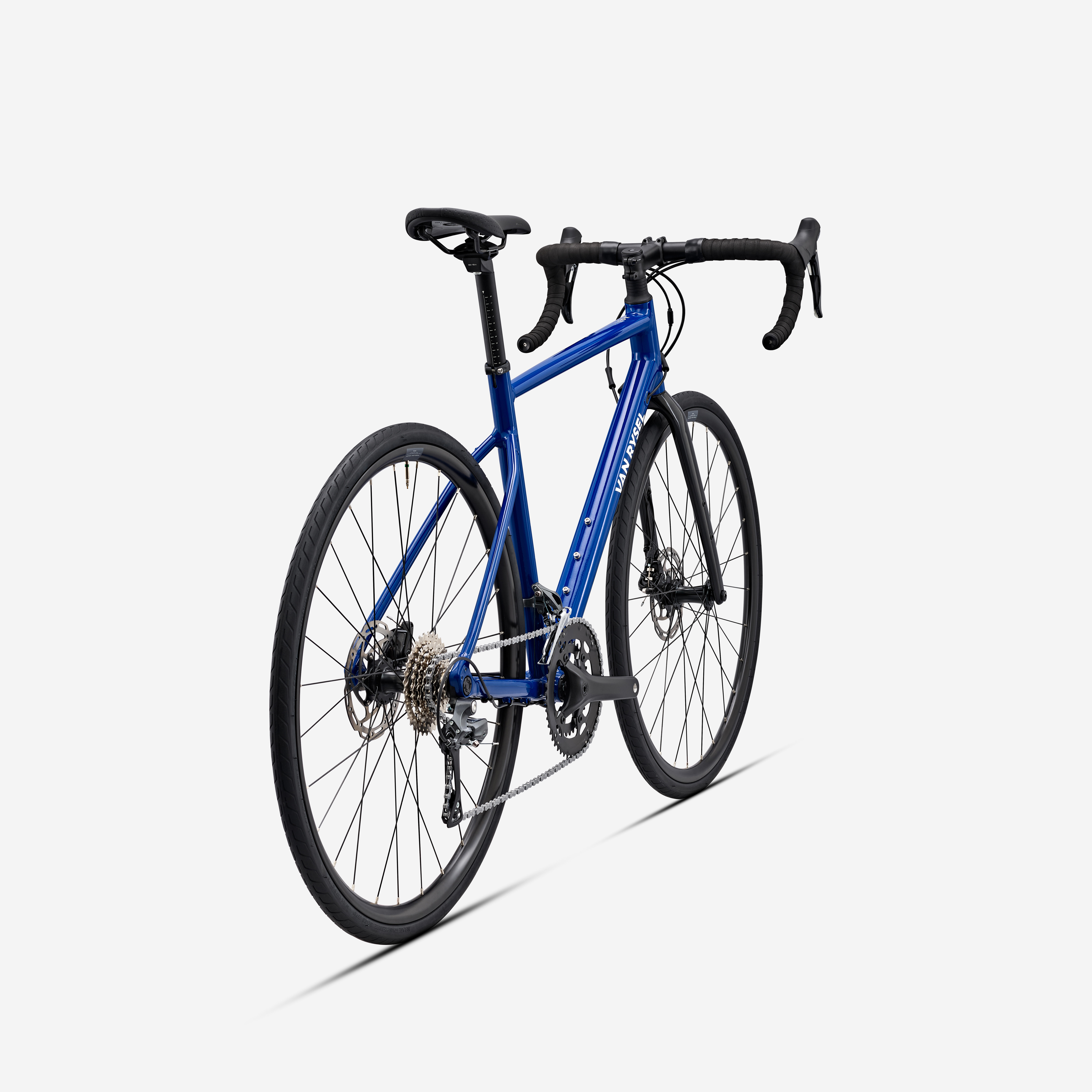

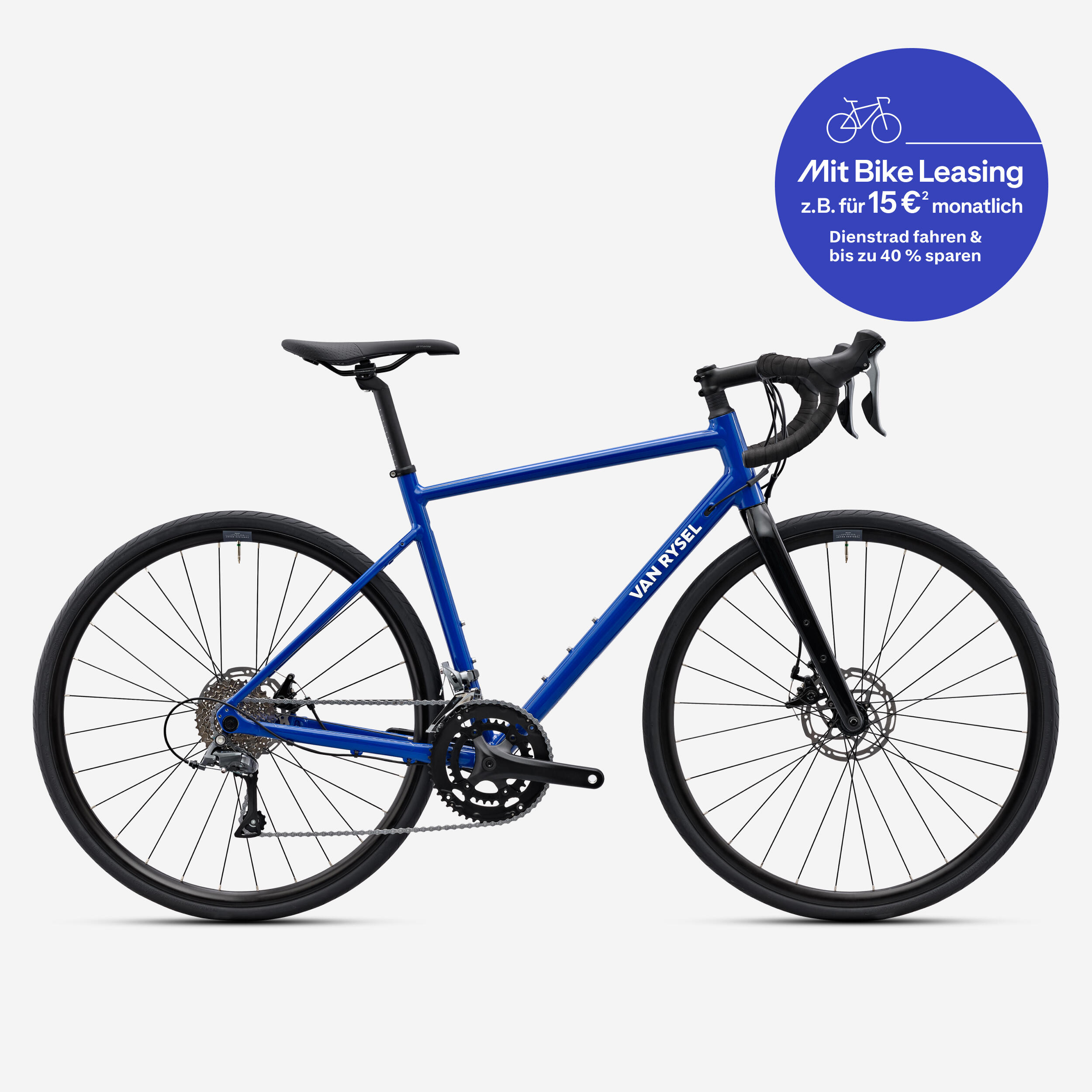

THE ‘EDR AF’ ALUMINIUM ENDURANCE BIKE RANGE
Our ENDURANCE EDR AF range of bikes is designed for starting out and learning to enjoy road cycling.Whether to make your daily rides more athletic, share bike rides with friends or family or adventure out in your neighbourhood at the weekend, you will enjoy the pleasure of road cycling with our EDR AF bikes.The ergonomics of our EDR AF range have been designed for you to eat up the miles with optimal comfort.
PROTECTING the FRAME
When using panniers or other accessories, and in order to preserve the finish, you can use the following transparent protective stickers:8486947.

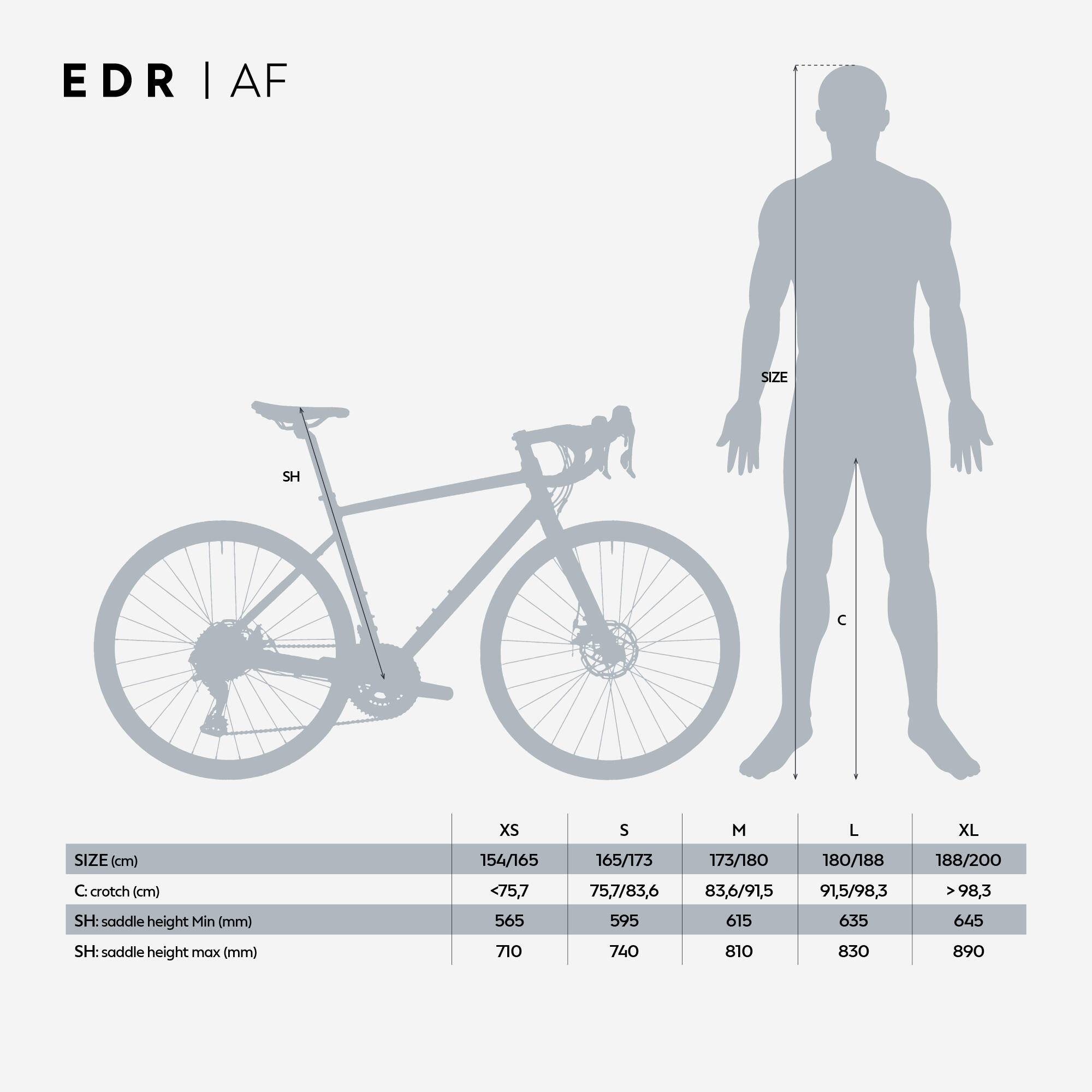

Position:Saddle and seat post

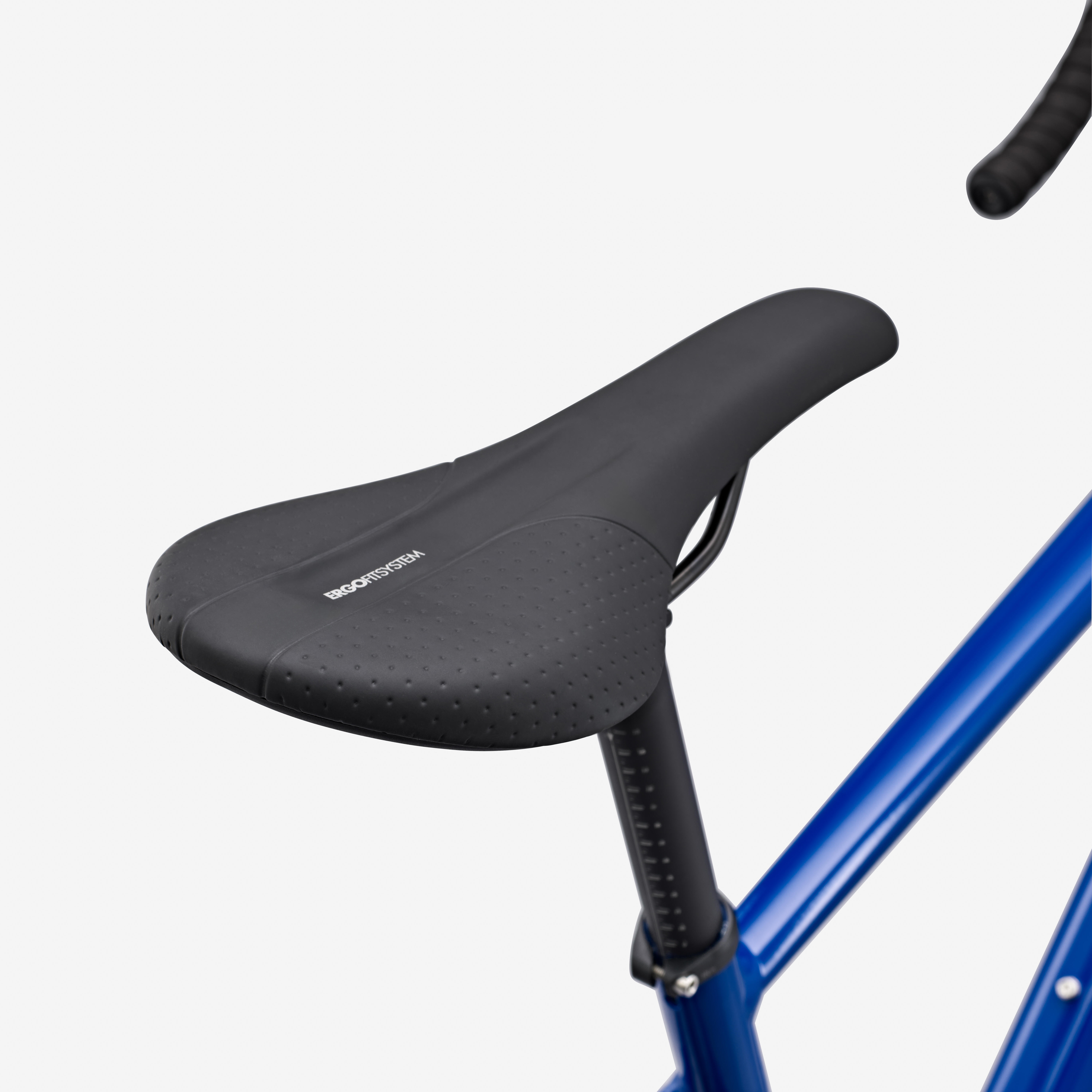

DECATHLON BTWIN SPORT saddle
Width:
Aluminium seat post
Diameter 27.2 mm
Seat post length:
XS - S: 300mm
M - L: 350 mm
XL: 400 mm
The natural flex of the seat post (thanks to its 27.2 diameter) filters vibrations and impacts for greater comfort
ALUMINIUM WHEELS AND 32MM TYRES FOR GREATER COMFORT
Wheels with asymmetrical aluminium rims
Rim height:24 mm
Internal width: 21mm
28 spokes
12x100mm front thru-axle
12x142mm rear thru-axle
Wheel weight:2 kg
TRIBAN PROTECT 700x32mm road tyres with rigid beads
Tubeless ready (kit not included)

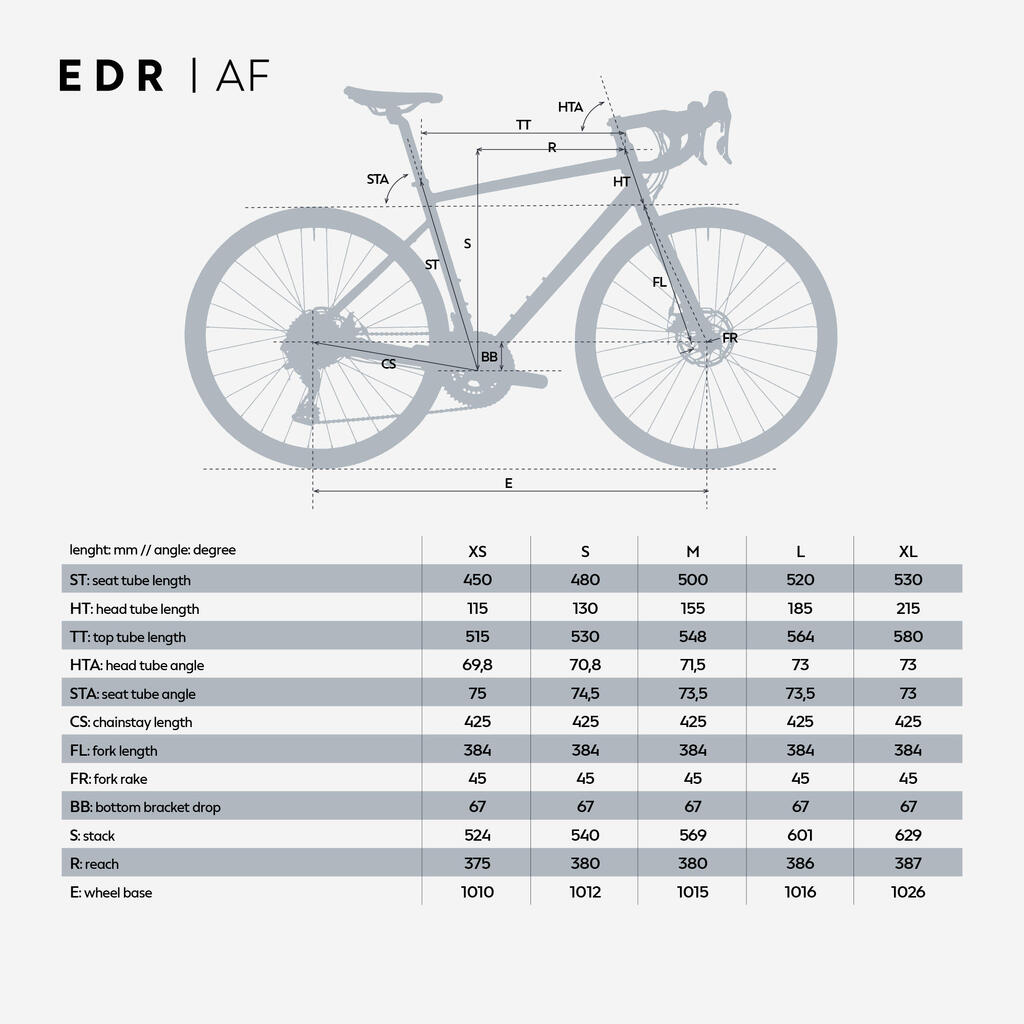

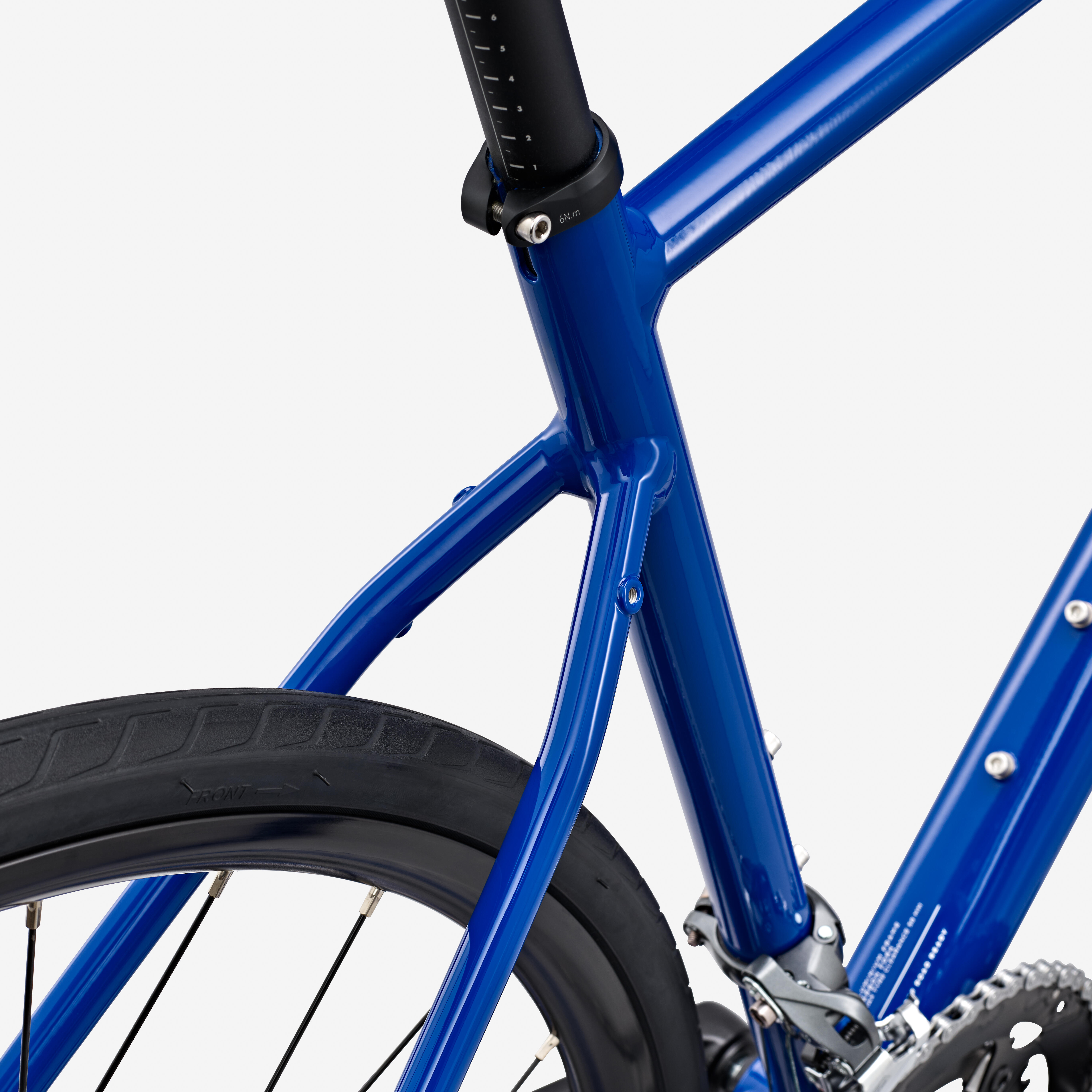

ALUMINIUM FRAME FOR BETTER COMFORT
The EDR AF frame has been improved, while maintaining a geometric design that is already popular with our customers.It is designed with double-thickness 6061 aluminium to create a sportier, more playful bike while retaining the comfort of aluminium.
Part of the cables has been built into the frame for a more modern look, but they're still easy to adjust and maintain on the handlebar.The size M frame weighs 1,586 g.The frame can fit a maximum tyre width of 38 mm or 35 mm with mudguards.
