What does ACTV 500 mean?
The acronym ACTV stands for "ACTIVE". We've designed this bike for everyone looking to adopt a more active lifestyle every day and reconnect with nature.

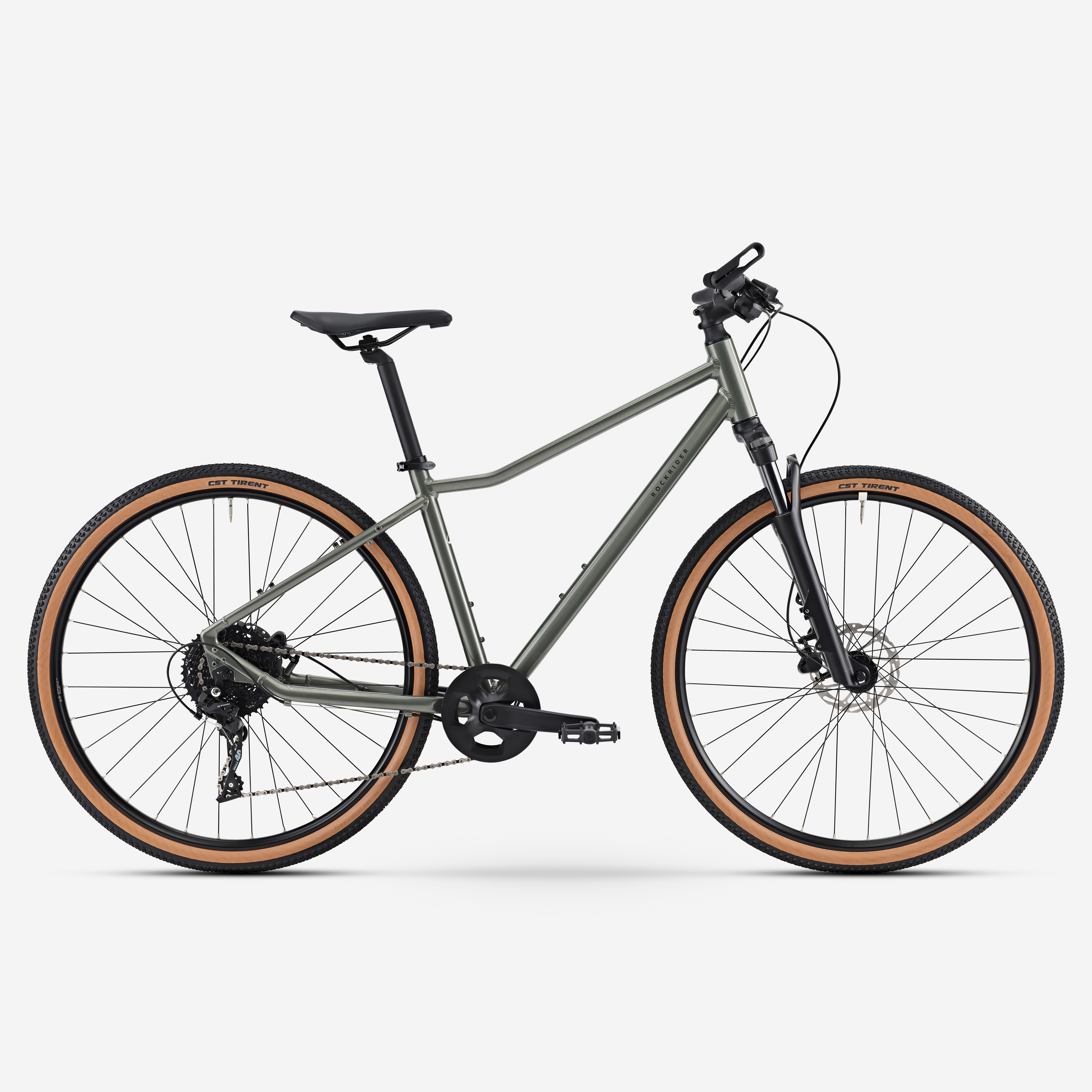

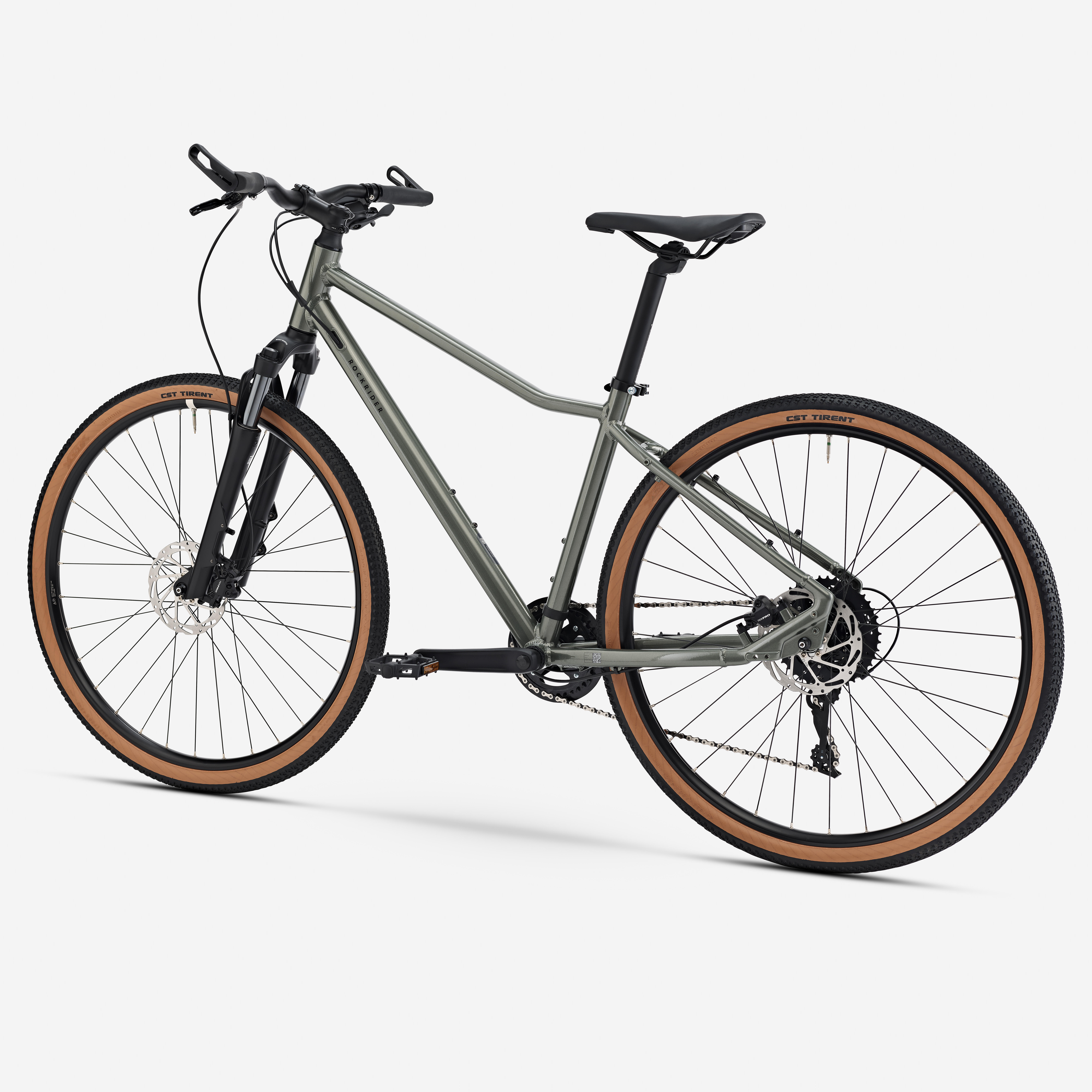

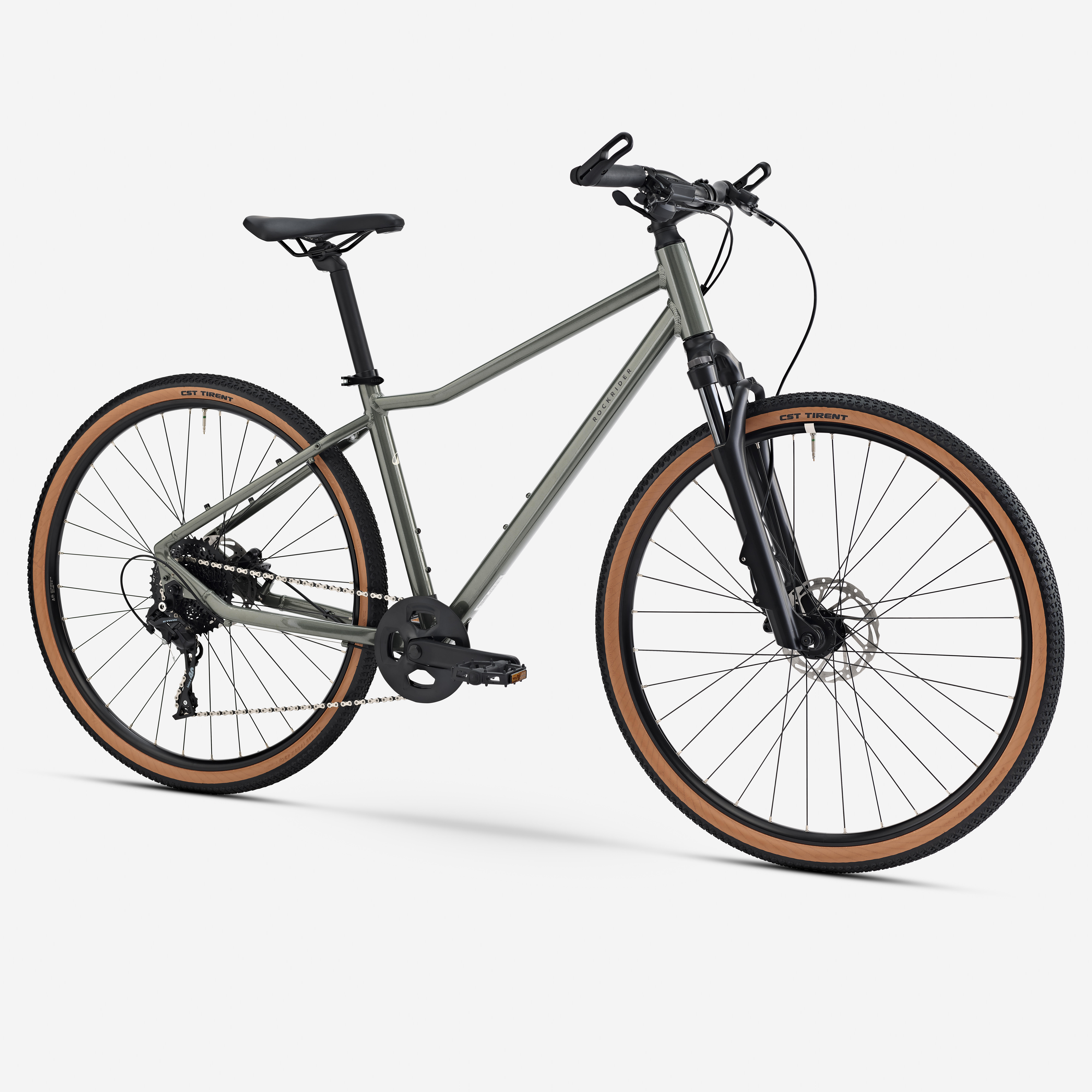

Frame
The ACTV 500 frame is an improved and modernised version of the Riverside 500/700/900/920 frame.We kept its dynamic and comfortable geometry for a 60° back position.Improvements:- More open steering angle for greater stability
- Cables built in to the lower tube for a more refined style.- New rear triangle for better pannier compatibility, baby seat, frame lock and rear kick stand.
Material:6061 series aluminium

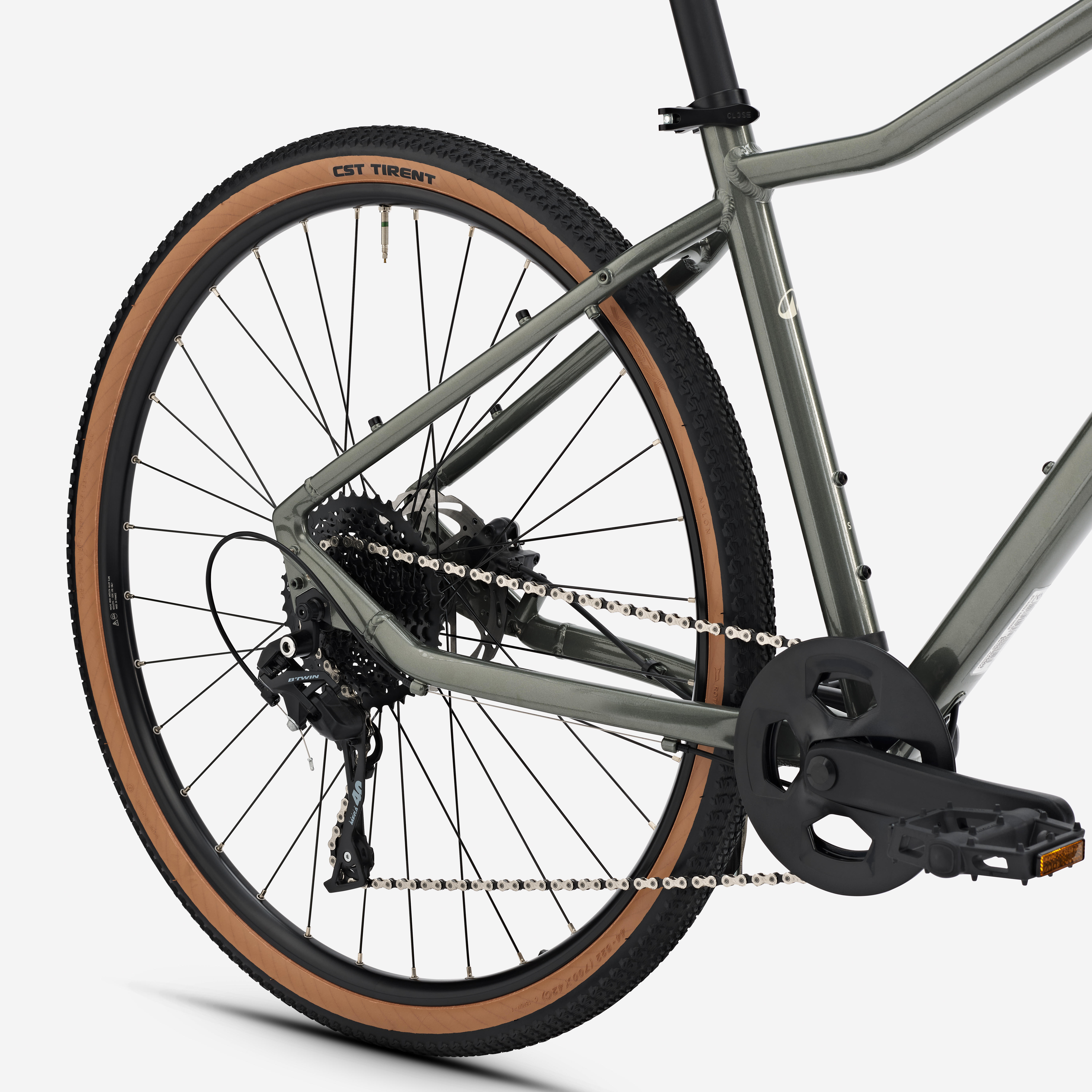

Drivetrain
We opted for a single chainring drivetrain for ease of use and lightness. The 11/42 cassette enables you to climb steep hills.
- 10-speed MICROSHIFT H100 cassette
- Single chainring:36 teeth
- Cogs: 11/ 42
- KMC X10 chain with quick-release system
- Rear derailleur: BTWIN by MICROSHIFT RD M62-L
- Anti-derailment ring mount
Brakes
Ride safely over any terrain (dry/wet) thanks to the sharp and precise hydraulic disc brakes.
Caliper brakes:Tektro T280
Discs:160 mm

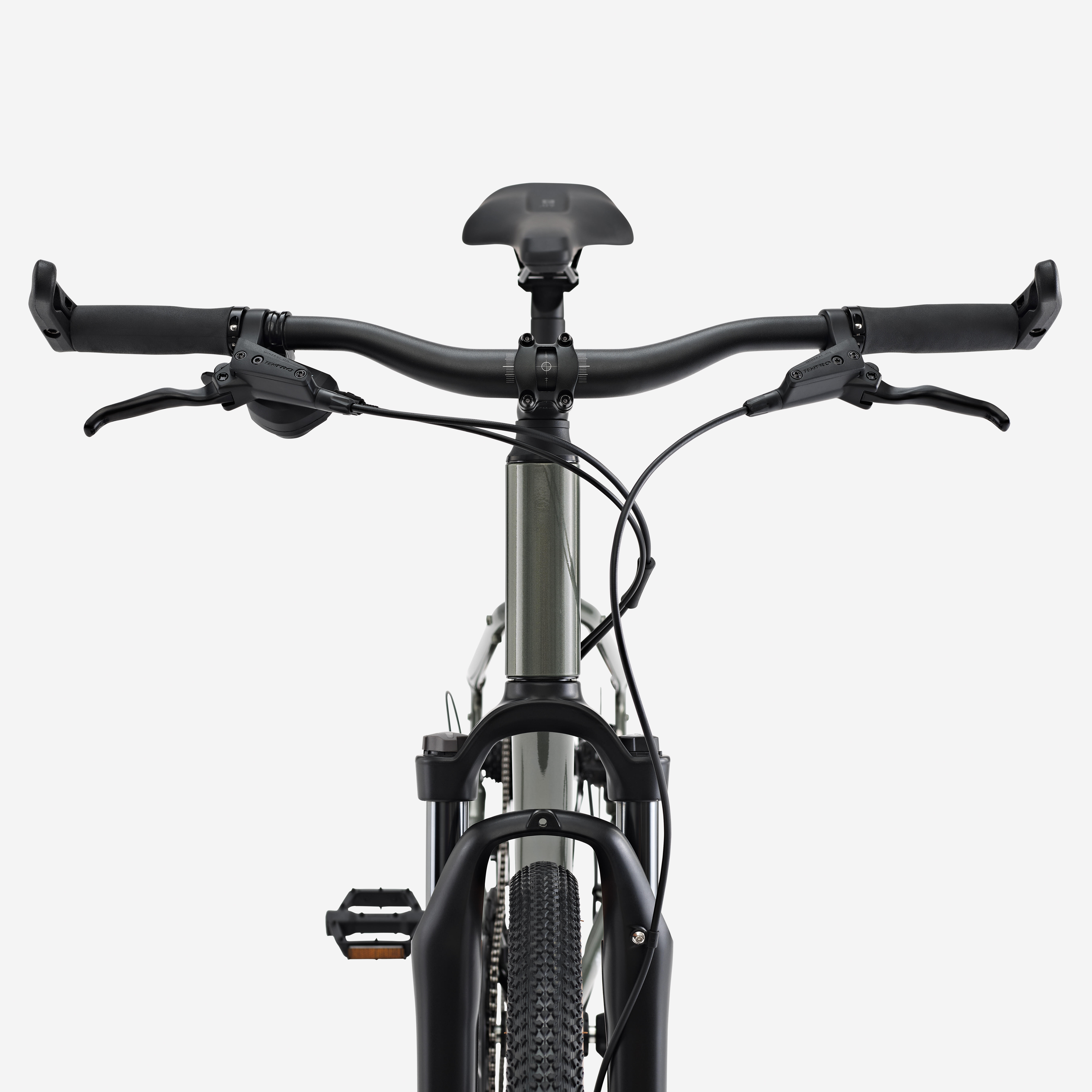

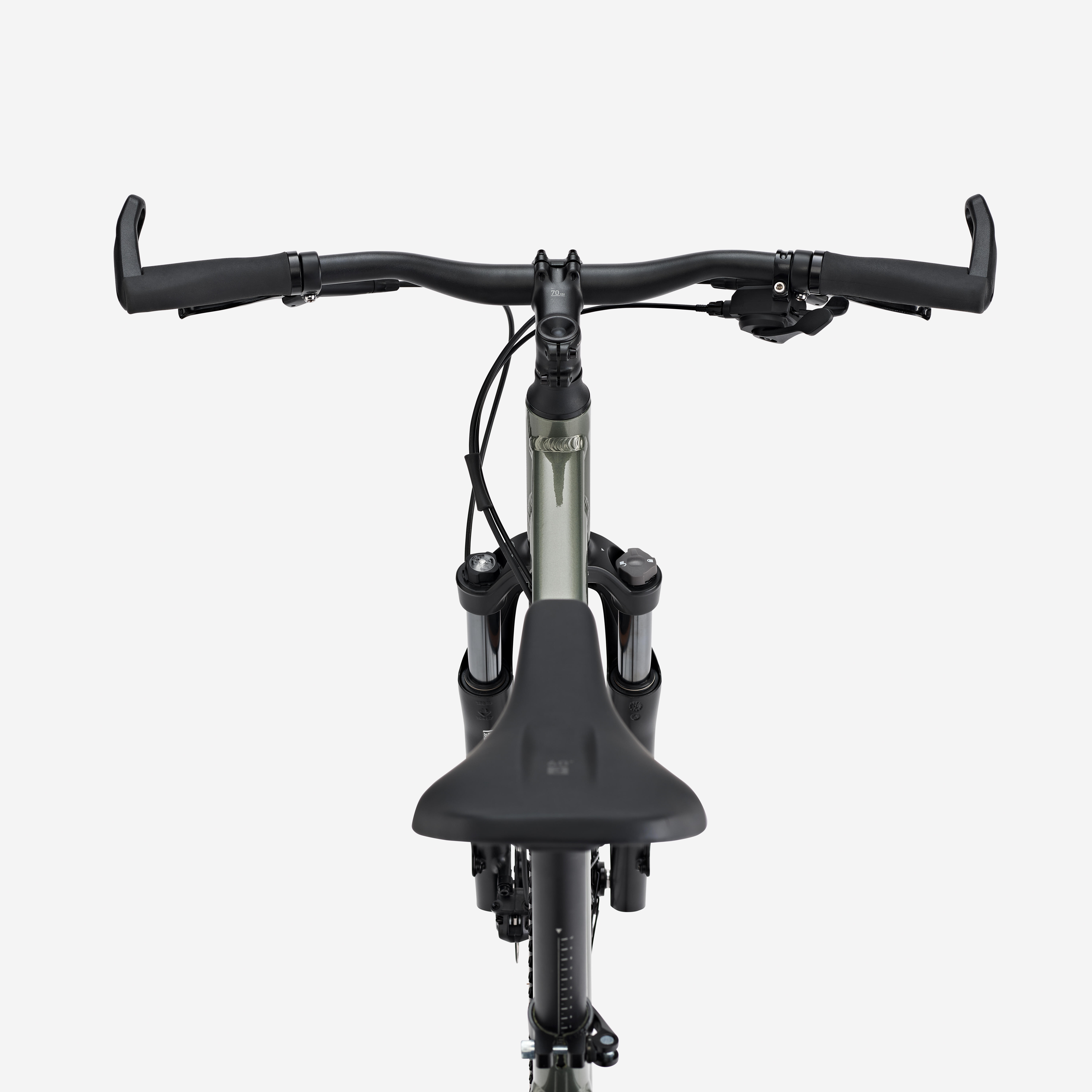

Riding position
The ACTV 500 gives you a 60° riding position. This position guarantees comfort, good manoeuvrability and propulsion.
You can change your riding position thanks to the bar ends.
- Aluminium stem, 31.8 mm diameter, 70 mm length
- Aheadset semi-integrated headset in 1 inch 1/8
- 2 aluminium spacers height 5 mm
- Ergonomic handles for a natural grip

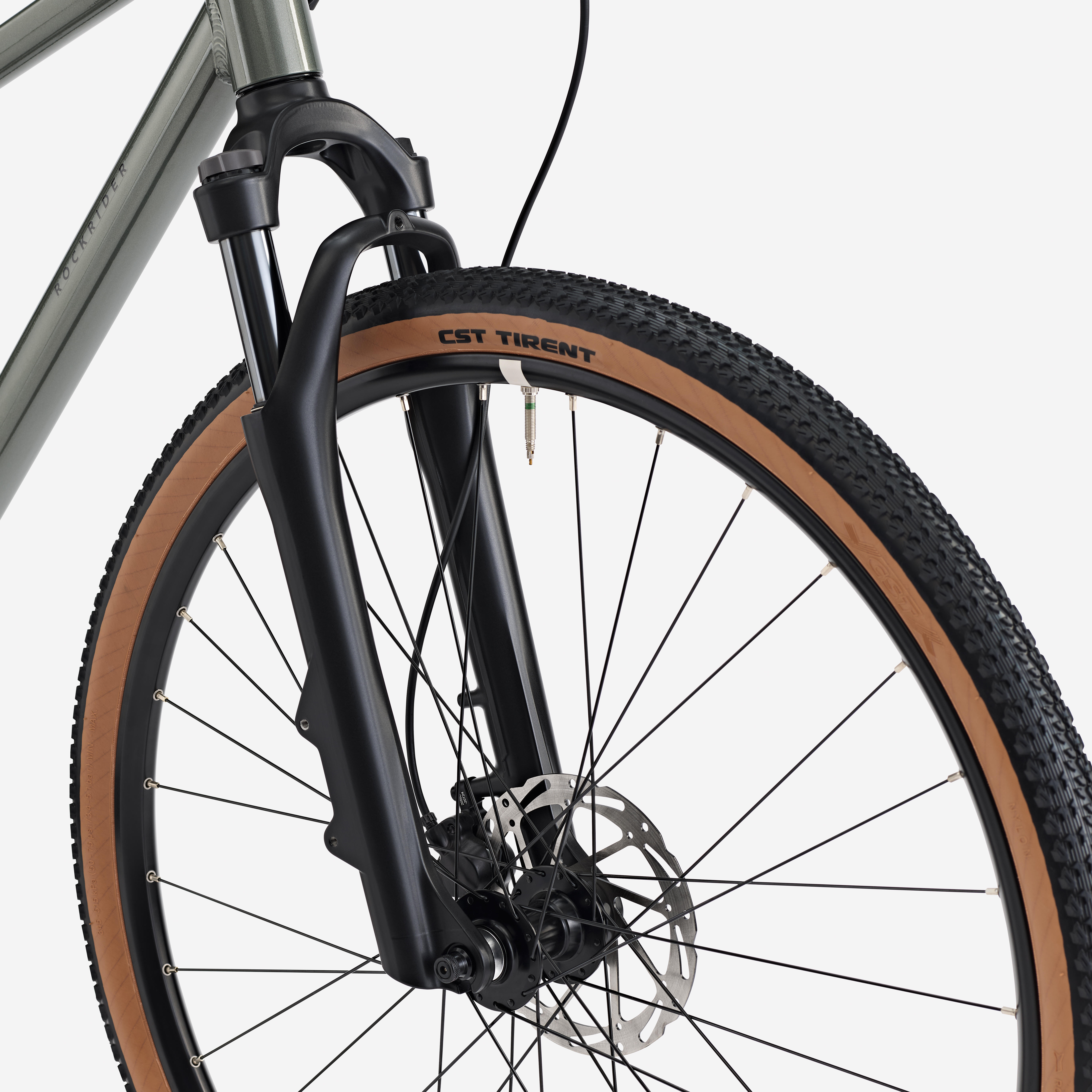

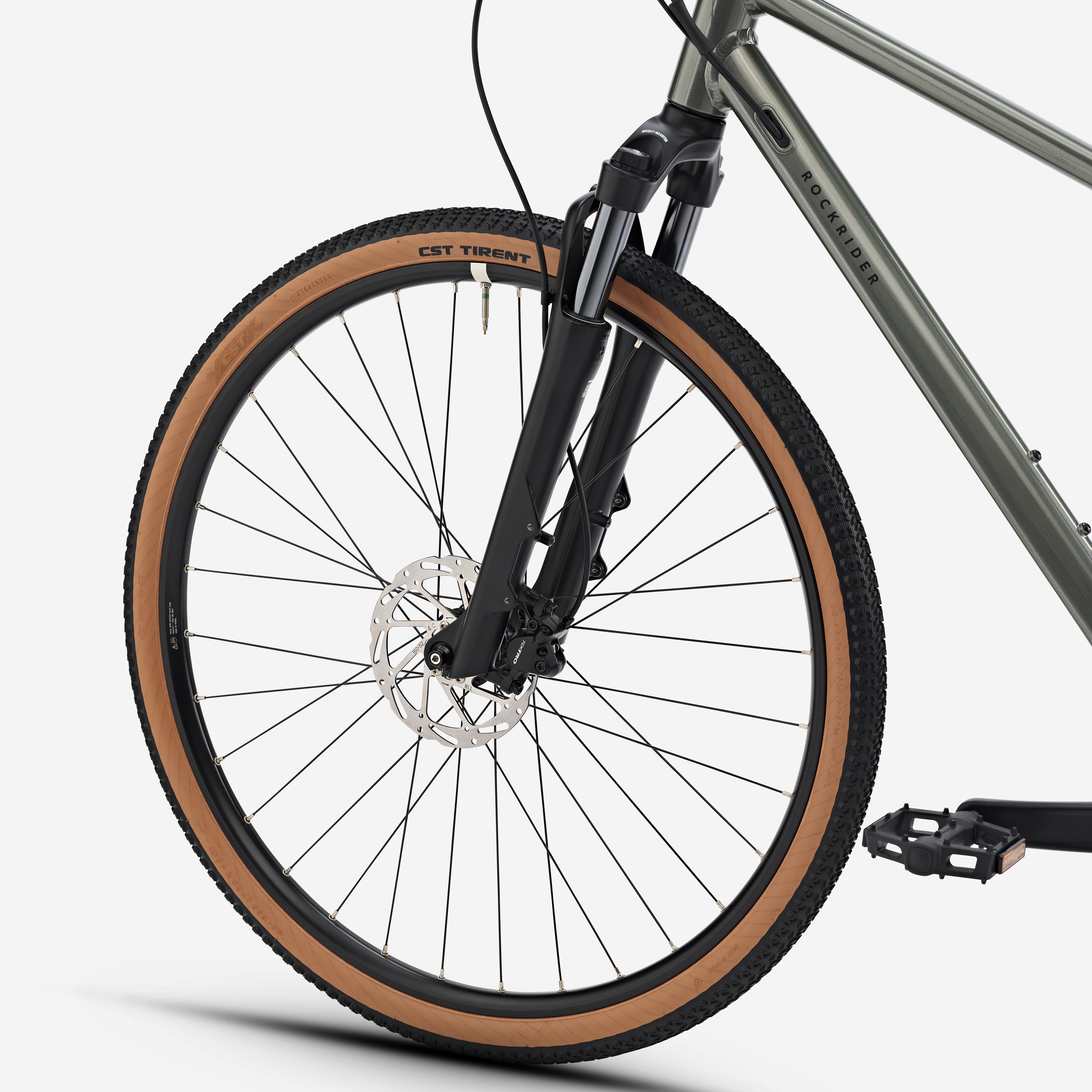

Suspension
ROCKRIDER lockable and adjustable fork with preload.Adjusting the preload adapts the behaviour of the fork to your weight to maximise comfort.The adjuster is graduated in kg.Just adjust it to your weight.- Shock absorbers:Hydraulic spring and cartridge.- Turnkey lockout on fork
- 60 mm travel
- Aluminium fork blade and steerer tube (1" 1/8)
- 2 bottle holders or bottle cages on the fork blade

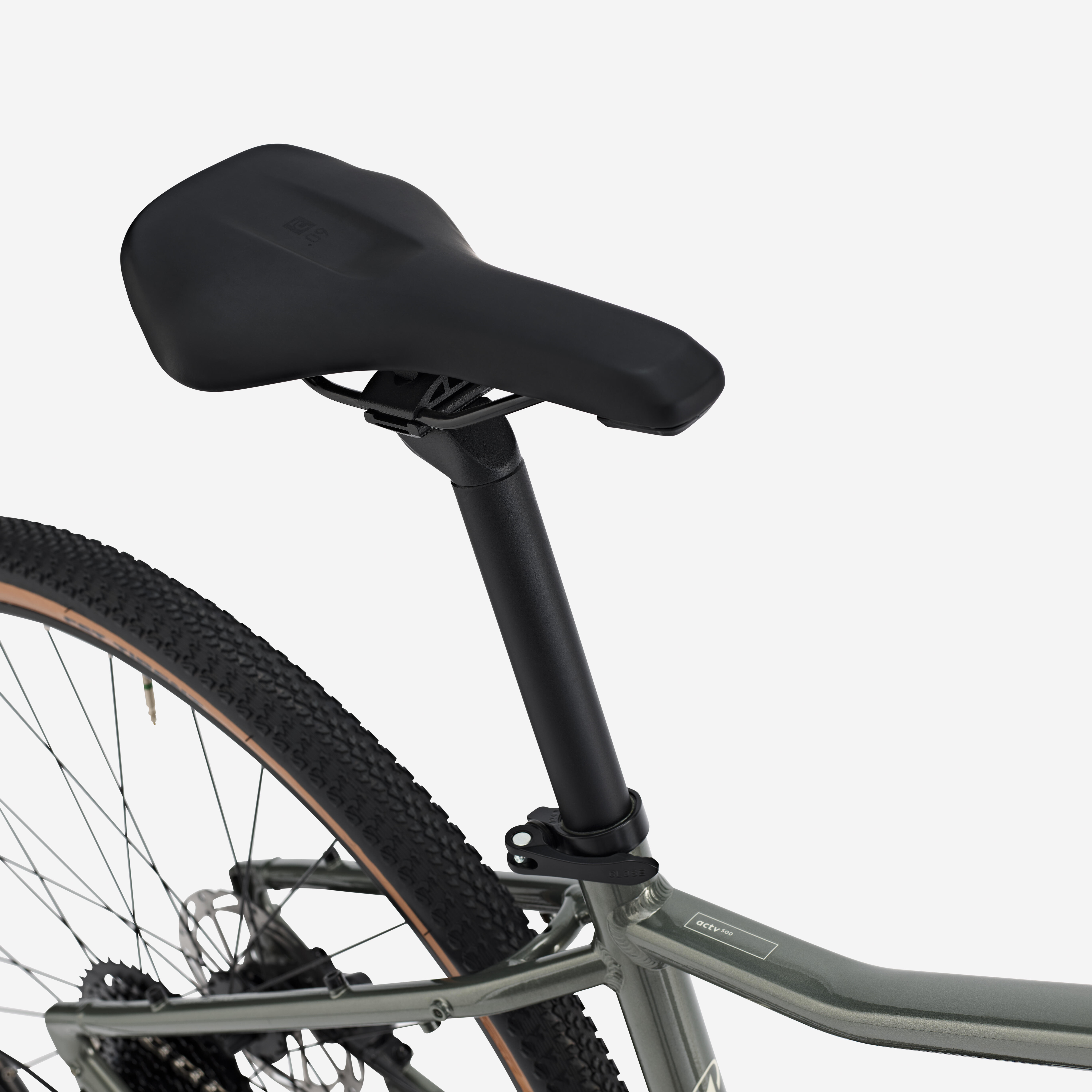

Saddle
- Rockrider 60° saddle
- Aluminium seat post, graduated for easy adjustment
- Seat clamp collar diameter = 35 mm
- Seat post diameter = 31.6 mm.
The saddle height can be adjusted using an Allen key to reduce the risk of saddle theft.If you want a quick-release, it is possible to install one.Ask your sales assistant.
WHEELS
RimsDouble-walled aluminium rims
Inner width: 25c
Not tubeless compatible
Spokes:
32 front and 32 rear
Rustproof treatment (galvanised)
Hubs: Sealed cartridge bearings
Anti-theft wheel axles requiring a 5 mm Allen/BTR key to remove the wheel.
Wheel axle and seat post lock
Many cyclists use the ACTV 500 both for nature outings and getting around town.In the aim of reducing the risk of theft in town, we chose to fit the ACTV 500 with anti-theft wheel axles (5 mm BTR key) and a quick-release seat clamp collar.We recommend you include a multitool in your anti-puncture kit (ref.8386669) so you can remove your wheels.If necessary, you can easily replace the seat clamp collar and wheel axles.
Tyre
Versatile CST Tirent road and trail tyres.EPS (Exceptional Puncture Safety) puncture-resistant reinforcement from CST.Flexible Skinwall sidewalls for greater comfort and lightness.
Dimensions: 700 x 44 (44-622).60 TPI carcass
Tyres for use with inner tubes only - not tubeless ready.
PEDALS
The ACTV 500 is supplied with versatile resin one-piece pedals with a wide pedalling surface to help keep the foot on the pedal.
Accessories included
Your ACTV 500 is supplied with a bell, battery-powered lights (front/rear), wheel reflectors and pedals.
Compatible Accessories
Compatible with: • rear kickstand (ref.8784182).Just 2 screw to fasten the stand.• rear pannier rack: compatible with most pannier racks available on the market. We recommend our dedicated rack (ref: 8828232).
8828232)
• frame lock (ref. 8735625)
• baby carrier on the pannier rack
• baby seat on the frame
• bottle holder:2 Slots on the frame and 2 on the fork.
