Weight
Weight, in basic GX version and Mavic Crossmax tyres
S: 11.6 kg
M: 11,7 kg
L: 11.8 kg
XL: 12.0 kg
Weight without pedals but with inner tubes
Frame
Full carbon (frame and connecting rod)
Internal routing
1980 grams in size M with connecting rod and screws
120 mm travel
31.6 mm seat post
Compatible with telescopic seat posts (internal passage)
Thru axle
Boost format
PressFit 92 casing
Compatible with 1 bottle cage
Sram UDH derailleur hanger
Transmission
2 derailleur/shifter set-ups depending on the model chosen:
Option 1.
Sram GX Eagle 12-speed rear derailleur and Sram GX Eagle shifter.
Option 2.
Sram GX AXS rear derailleur and Sram GX AXS shifter.
Truvativ Stylo 6K aluminium crankset (170 mm in S and M, and 175 mm in L and XL)
34T chainring (compatible with 30, 32, 34 and 36T)
SRAM PG1275 10-52 cassette (520%)
Sram PF 92 bottom bracket
Suspension
Fork: RockShox SID 120 mm
35 mm damping rods
Thru axle
Boost format
RockShox Twist Lock 2022-position remote lockout

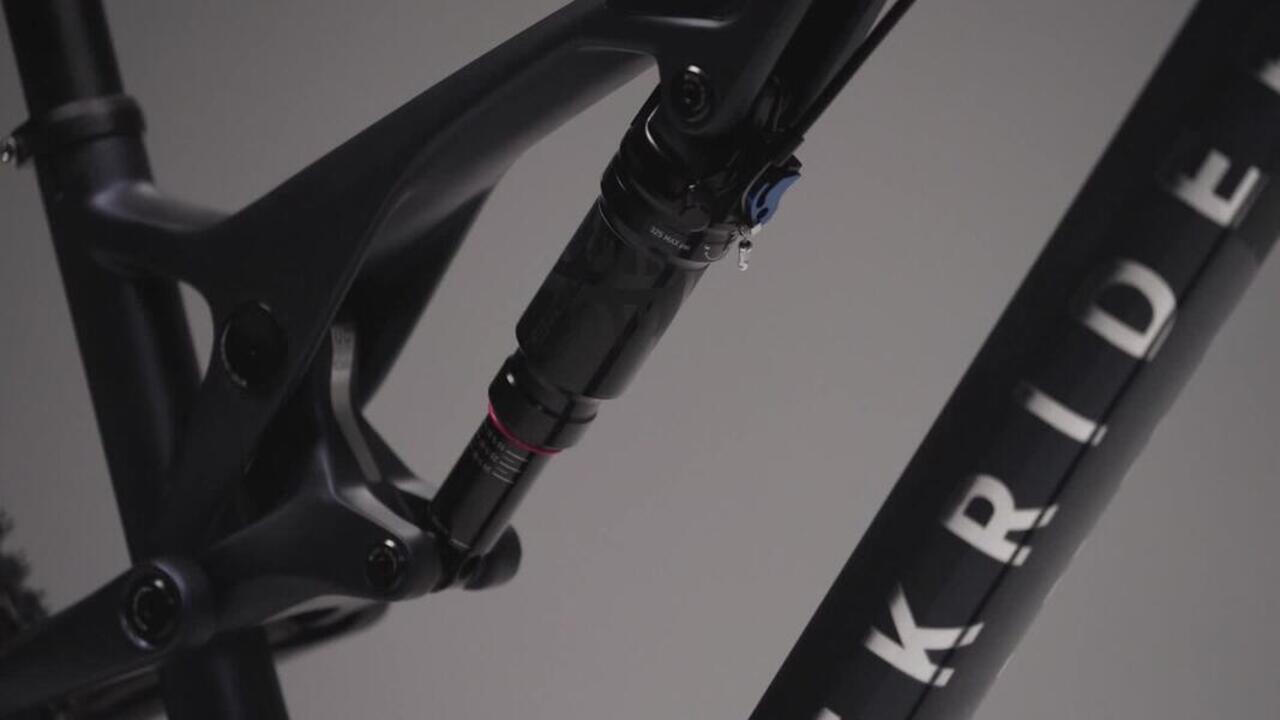

Shock: RockShox SidLuxe Select + 190 x 45 mm
Specific model suited to the kinematics of the bike
Wheels
2 wheel set-ups depending on the model chosen:
Option 1
Mavic Crossmax Tubeless Ready
1760 g
Inner rim width: 25 mm
24 flat spokes
6-bolt rotors
XD freehub
Sealed cartridge bearings
Option 2:
Reynolds TR309/289 XC 29
1665 g
Carbon fibre, hookless, Tubeless Ready rims
Inner width: 30 mm / 28 mm
Freehub: Reynolds TR MTN
Spokes (front/rear): 28 / 28
Centerlock rotor mounting
Lifetime warranty (when registered on the Reynolds website)
Brakes
Hydraulic
Sram Level TL
Nomber of pistons: 2
Front disc: SRAM Centerline 180 mm
Rear disc: Sram Centerline 160 mm
6-bolt mounting
Riding position
Rockrider aluminium stem
-20° angle
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL
Rockrider aluminium flat handlebar
760 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On
Saddle and seat post
Rockrider Control Short Nose saddle
Steel rails
Weight: 270 g
Seatpost: Tranz X Dropper telescoping seat post
Diameter: 31,6 mm
Length: 400 mm
Travel: 120 or 150 mm
Insertion limit: 80 mm(120) - 120 mm(150) - 140 mm(170)
Max height (at insertion limit): 281 mm(120) - 318 mm(150) - 358 mm(170)
Control: on the handlebar
Cable routing: Internal routing
Material: 6061 aluminium
Head offset: 15 mm
Interface: 2 rails _ 43mm pitch
Tires
Front tyre
Vittoria Barzo 29x2.25
Tubeless ready
Tan wall 120 TPI

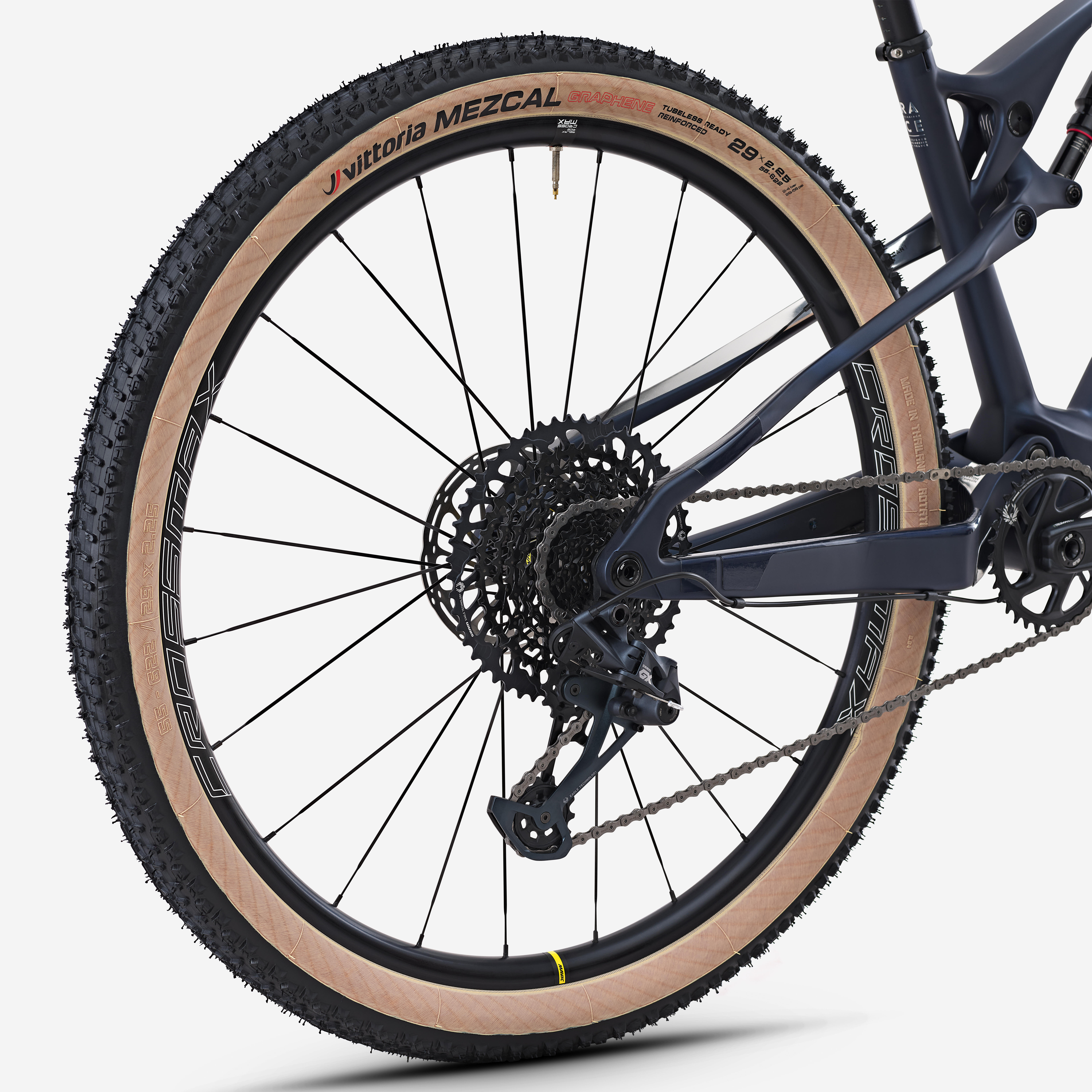

Rear tyre
Vittoria Mezcal reinforced 29 x 2.25
Tubeless ready
Tan wall 120 TPI
PEDALS
Flat Rockrider resin
