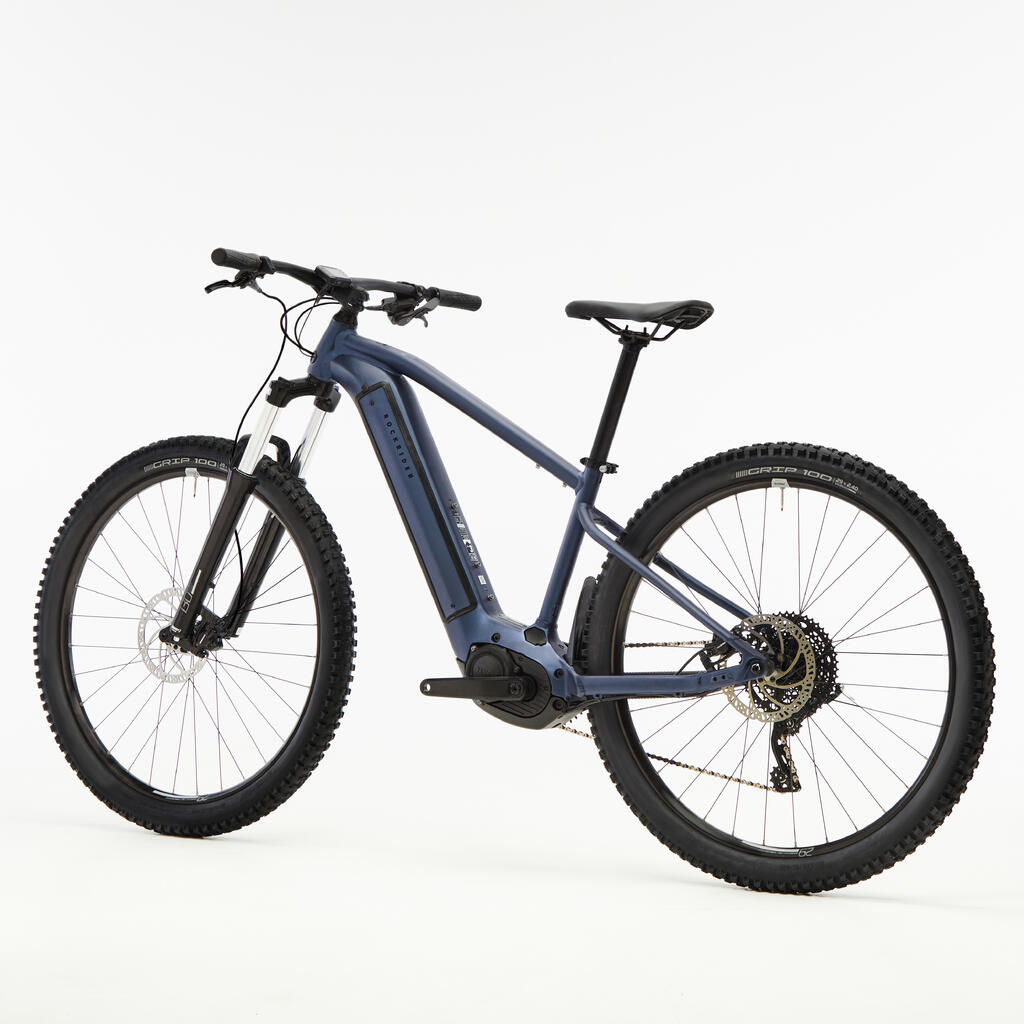

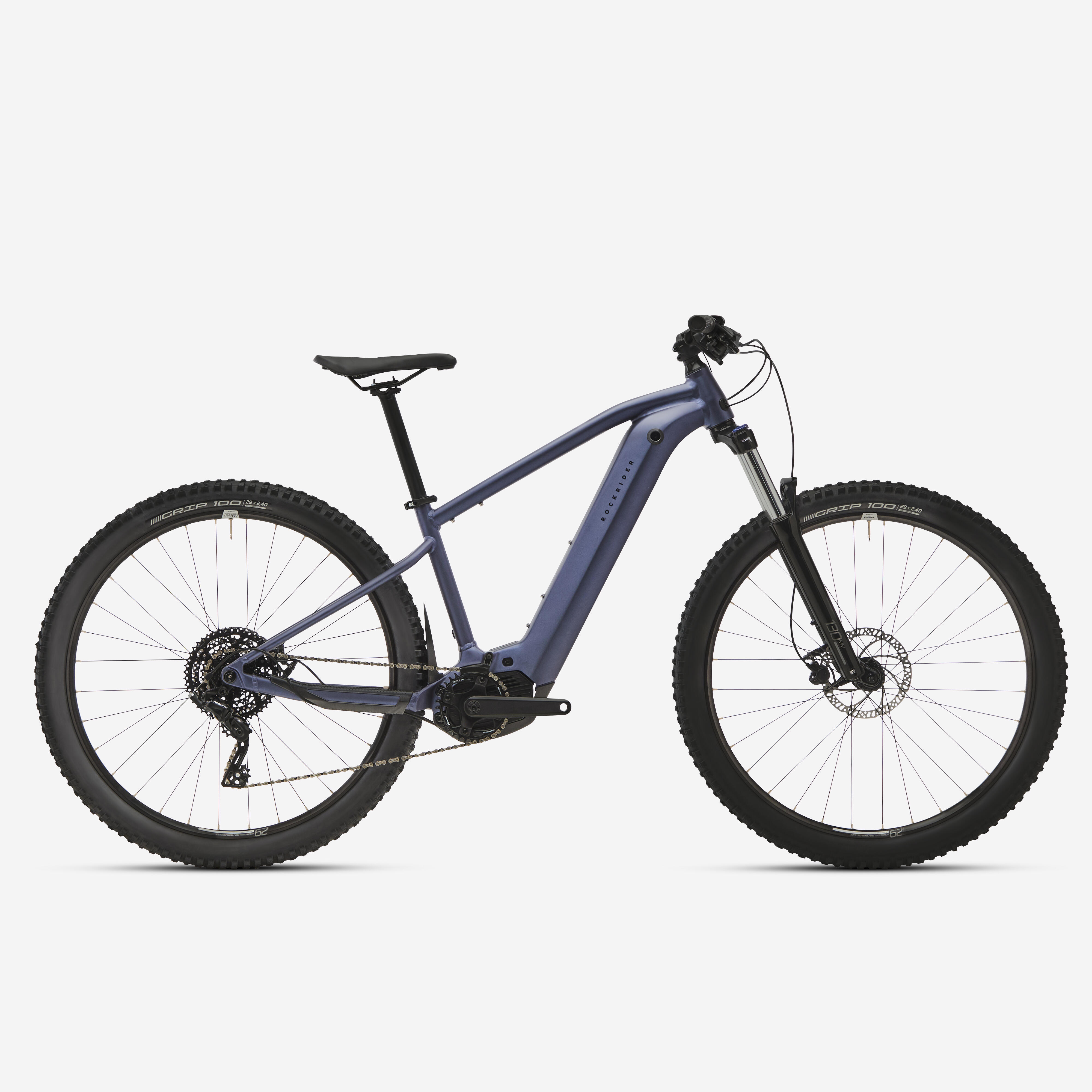

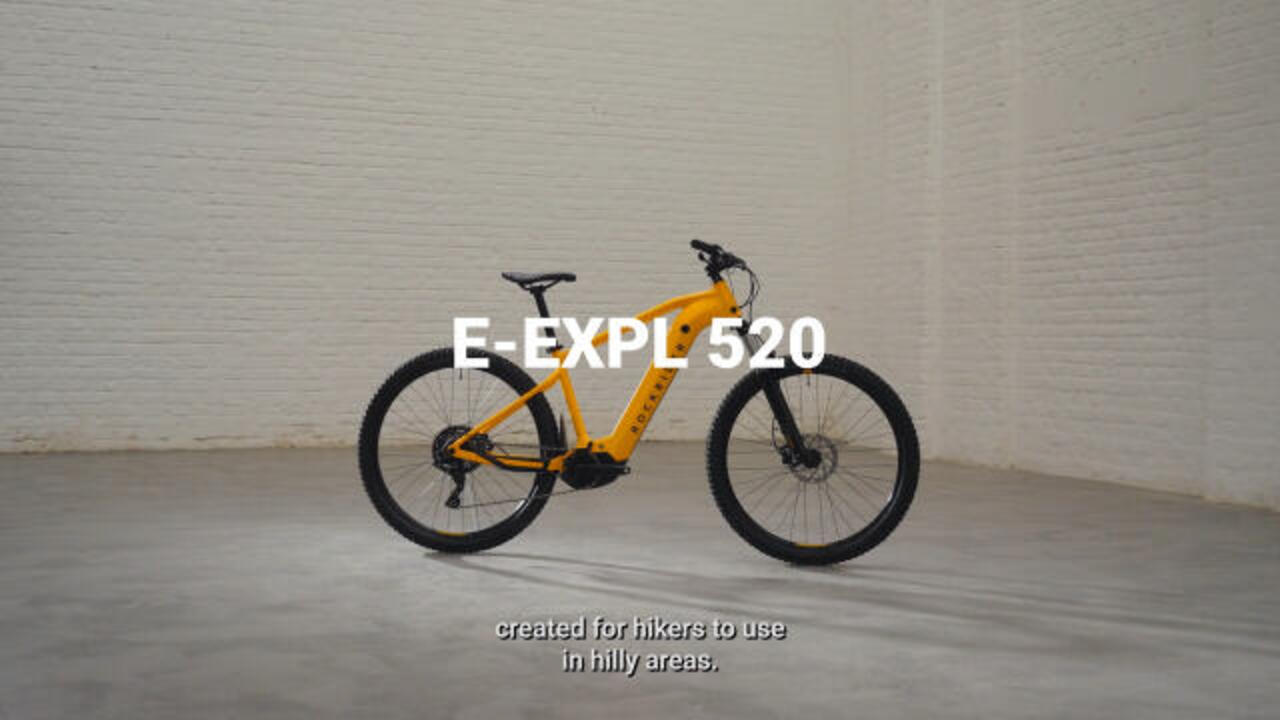

29" Hardtail Electric Mountain Bike E-EXPL 520 - Midnight Blue
Store Availability
Designed for all-terrain rides with a moderate amount of climbing (hilly and slightly mountainous routes).
This versatile electric mountain bike is perfect for all-terrain rides with a moderate amount of climbing. And don't forget to download the Decathlon Ride app and unleash your bike's full potential!
BENEFITS
Autonomy
Ride up to 80 km + 44 km with the battery extension
Directional control
Suntour XCM 130 mm fork and large balloon tyres (29" x 2.4)
Power
Attack your climbs with the 420 W motor with 50 Nm of torque.
Connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
Smooth pedalling
The built-in motor automatically assists you when needed. Perfect for MTBing.
Cycling comfort
Enjoy: raised position, 130 mm front suspension, Core 60° saddle
TECHNICAL INFORMATIONS
In a nutshell
Weight: 23.8 kg (in size M without pedals)
Mid-drive motor: Yamaha PWCE 50 Nm
Battery: 500 Wh
Connectivity: Decathlon Ride mobile application
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 130 mm
Drive train: 1x08
Brakes: Hydraulic
Seatpost: Fixed
Frame, handlebar and stem warranty: lifetime
Motor
Yamaha PW-CE motor
Mid-drive position
50 Nm torque
Torque sensor
Max assistance: 280%
The electrical assistance cuts out above 25 km/h in accordance with EU regulations
Battery

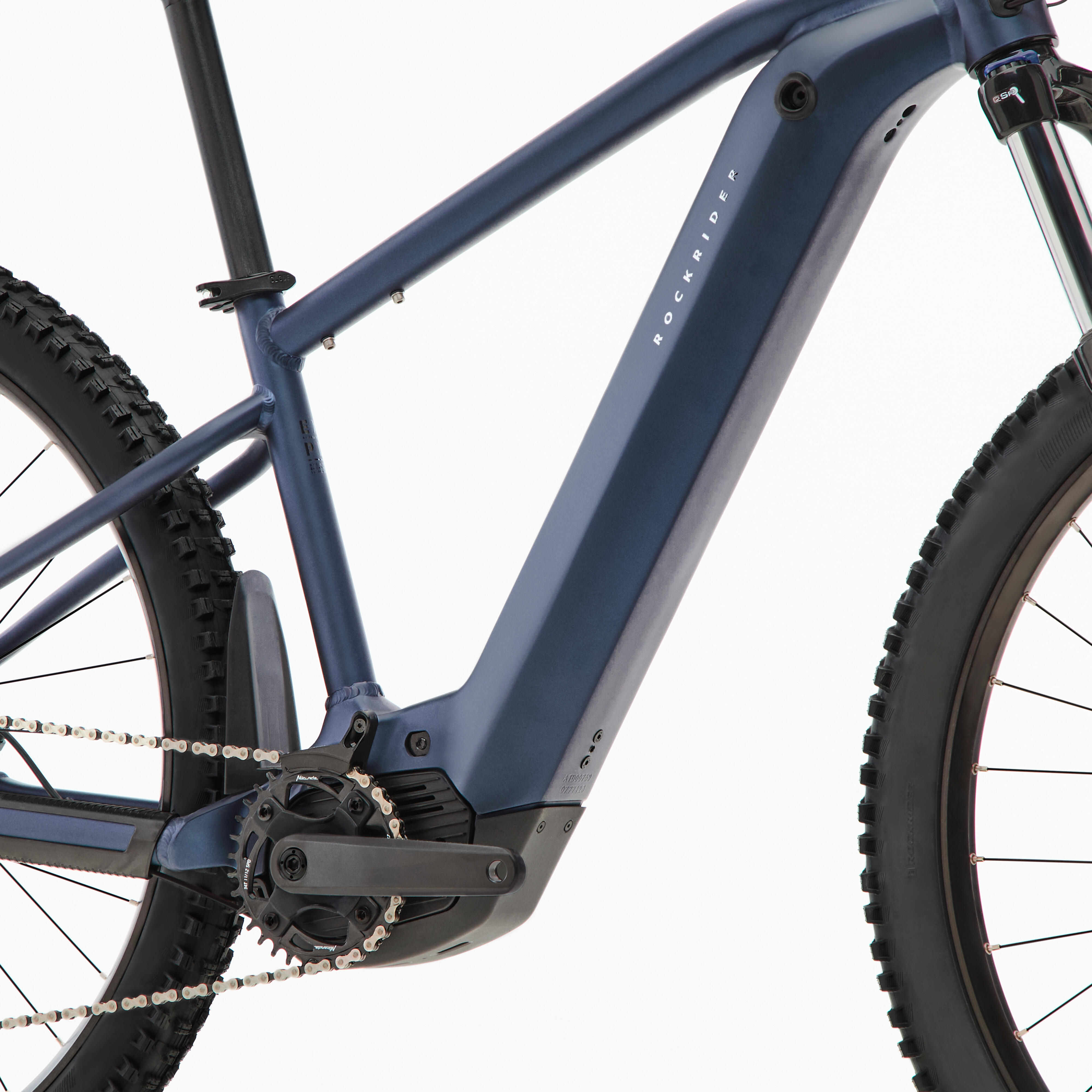

Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 500 Wh
With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles).
Compatible with a 360 Wh battery extension, sold separately (up to 44 additional km, at a low gradient)
Display
ERGO 900
TFT colour screen,
5 assistance modes: 1,2,3,4 and Auto
Pedestrian assistance mode.
Connected via Bluetooth.
The control unit is installed on the left side and tilted downwards, for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
The Decathlon Ride app is compatible:
- For Apple devices: iOS 8 and later versions
- For Android telephones: Android 7 and later versions.
Weight
S: 23.7 kg
M: 23.8 kg
L: 23.9 kg
XL: 24 kg
Net weight without pedals
Frame
Frame made of 6061 aluminium
Fully built-in battery, with side outlet
Tapered steering socket
31.6 mm diameter seatpost
2-bottle cage mount

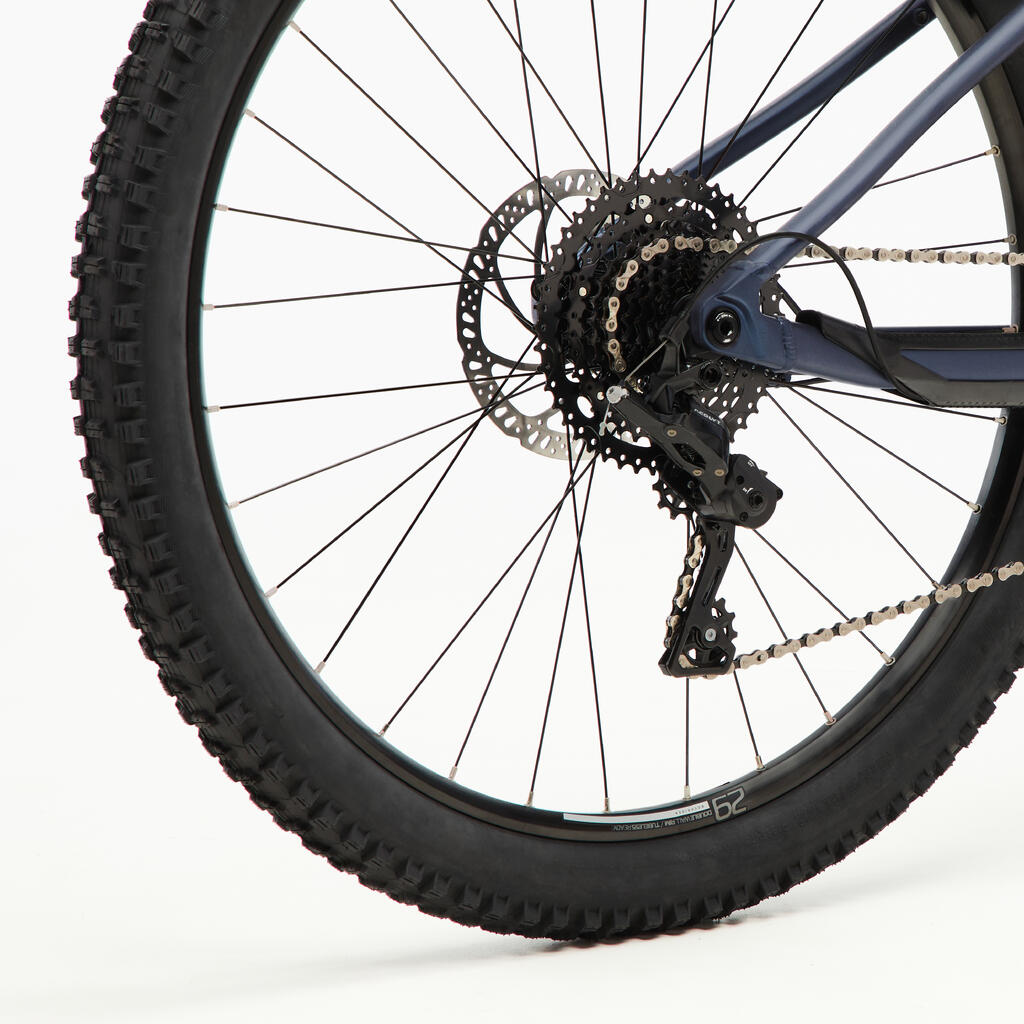

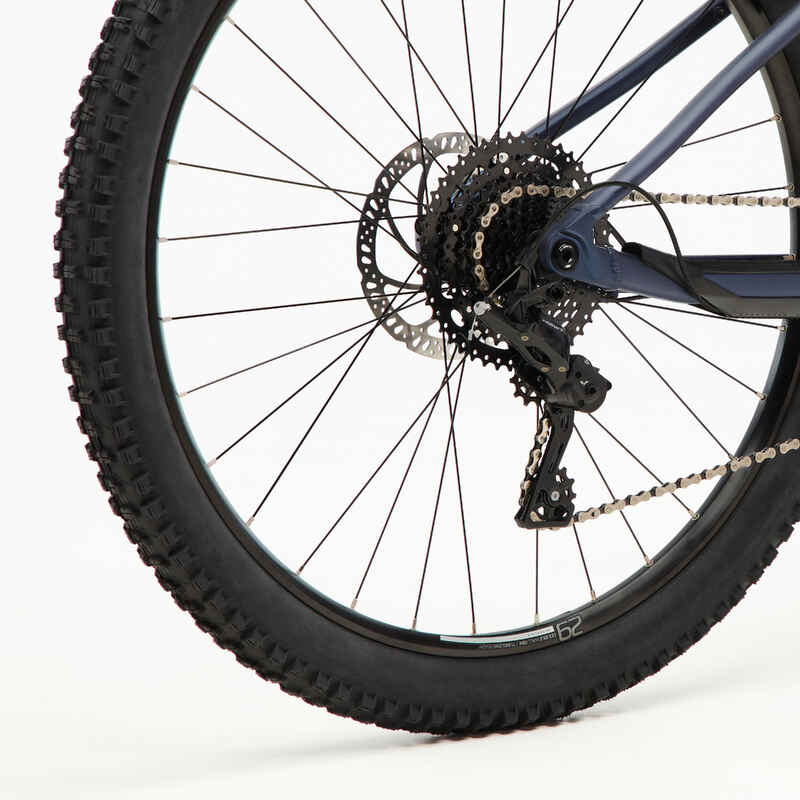

Drive train
Microshift Acolyte
34 T chainring with chain guide
Microshift Acolyte 8-speed rear derailleur
Crank: 170 mm
Microshift Acolyte right shifter with speed indicator
Microshift Acolyte 8-sprocket 12 to 46 T cassette
KMC E8S chain
Suspension
Suntour XCM 130 fork
Travel: 130 mm
Dampers: 34 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 51 mm
Technology: Spring with preload adjustment
Adjustment: preload
Wheels
29" Rockrider wheels
Size 29" compatible with wide tyres: up to 2.6"
25 mm (width between brackets),
32 spokes
Format: Boost
Discs: 6-hole
Cassette body: HG
Tubeless Ready, equipped with a watertight rim base
(requires Tubeless tyres, special Presta valves and puncture-proof liquid)
Brakes
Tektro M276 hydraulic disc brakes
Number of pistons: 2
Front disc: 180 mm
Rear disc: 180 mm
6-bolt mounting

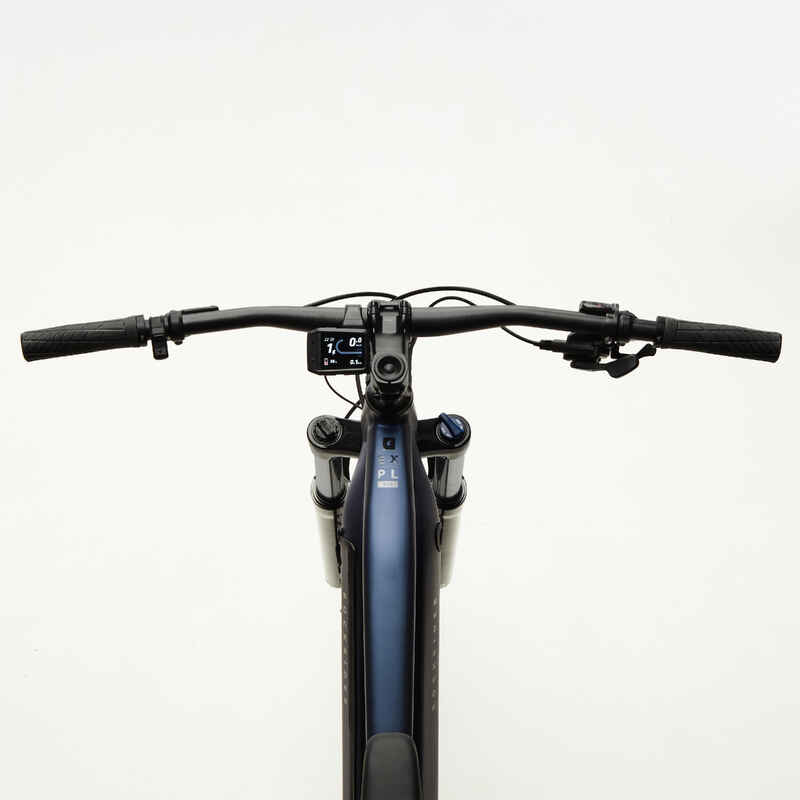

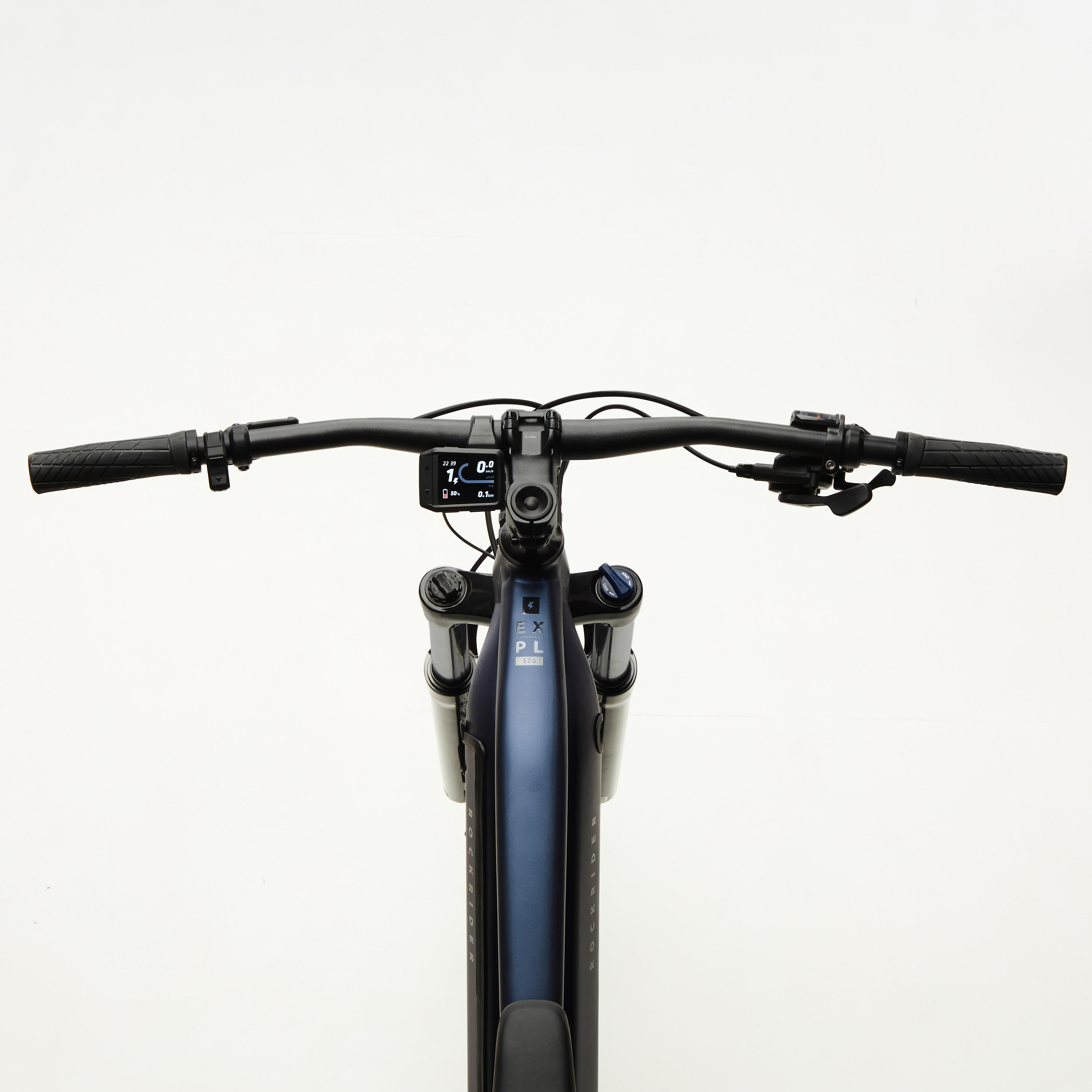

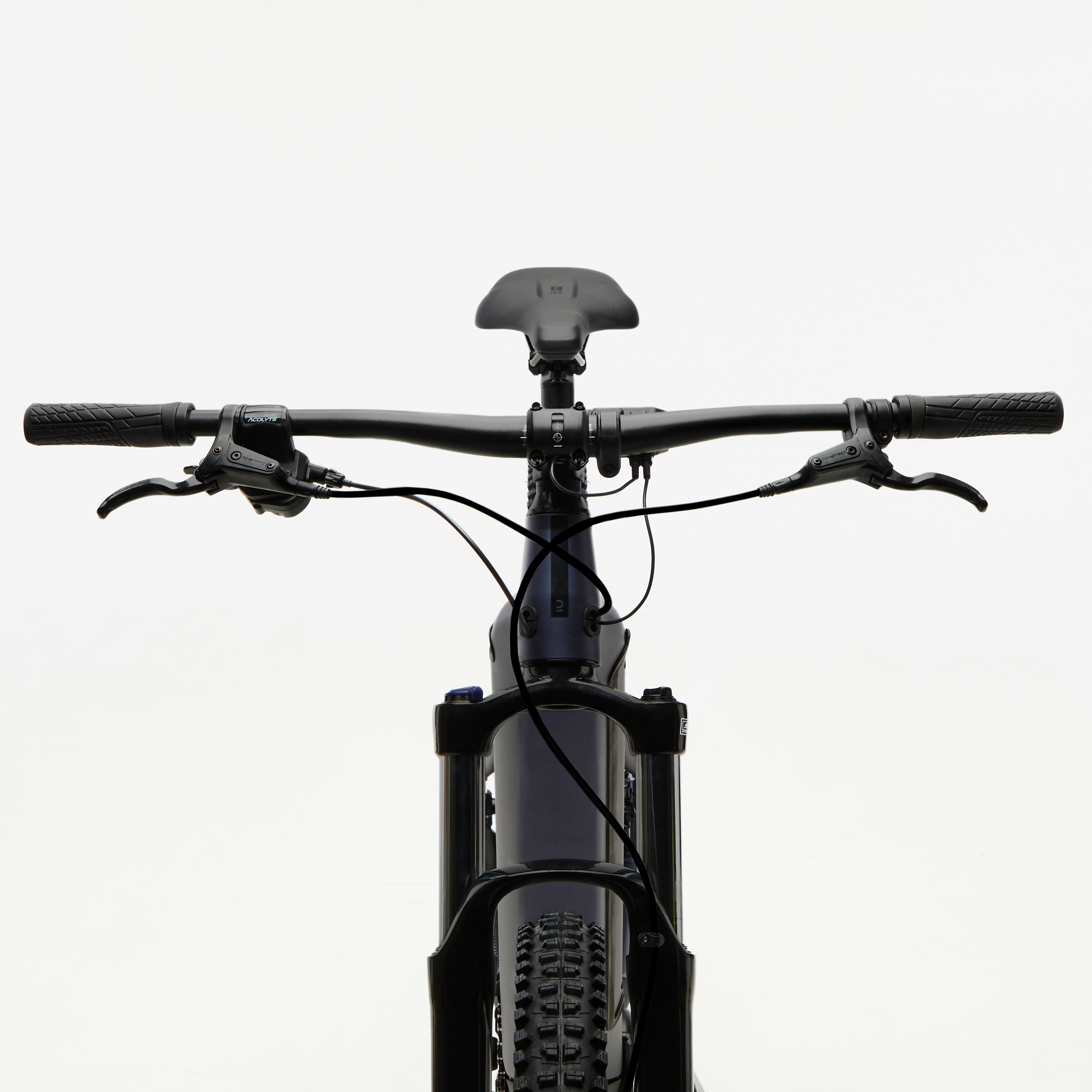

Riding position
Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)
Grips:
Rockrider Ergo Lock On
Headset
ZS 44/28.6 - 56/40
SADDLE / SEAT POST
60° Decathlon Core saddle
Rockrider Sport
aluminium seatpost
diameter: 31.6 mm
Length: 300 mm (S) / 350 mm (M) / 400 mm (L) / 450 mm (XL)
Seat clamp collar: aluminium, fast adjustment
Tyres
Rockrider Grip 100
29" x 2.4"
Tube Type (not compatible with Tubeless)
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall
Tread: single rubber
PEDALS
Rockrider Flat Evo Resin
Accessories included
Your MTB comes with:
2A charger
bell,
lights,
wheel reflectors
and pedals.
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
Store it in a warm, dry place away from corrosive products and salty air. Never store with the battery flat, and remember to recharge it at least once every six months.
Restrictions on use
Max weight: 120 kg (rider + kit + bike).
TESTS AND WARRANTY
Agree by
Our engineers always have real riders test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
Lifetime (frame, stem, handlebars). Availability of spare parts: 2 years.Guaranteed for 500 charges.
