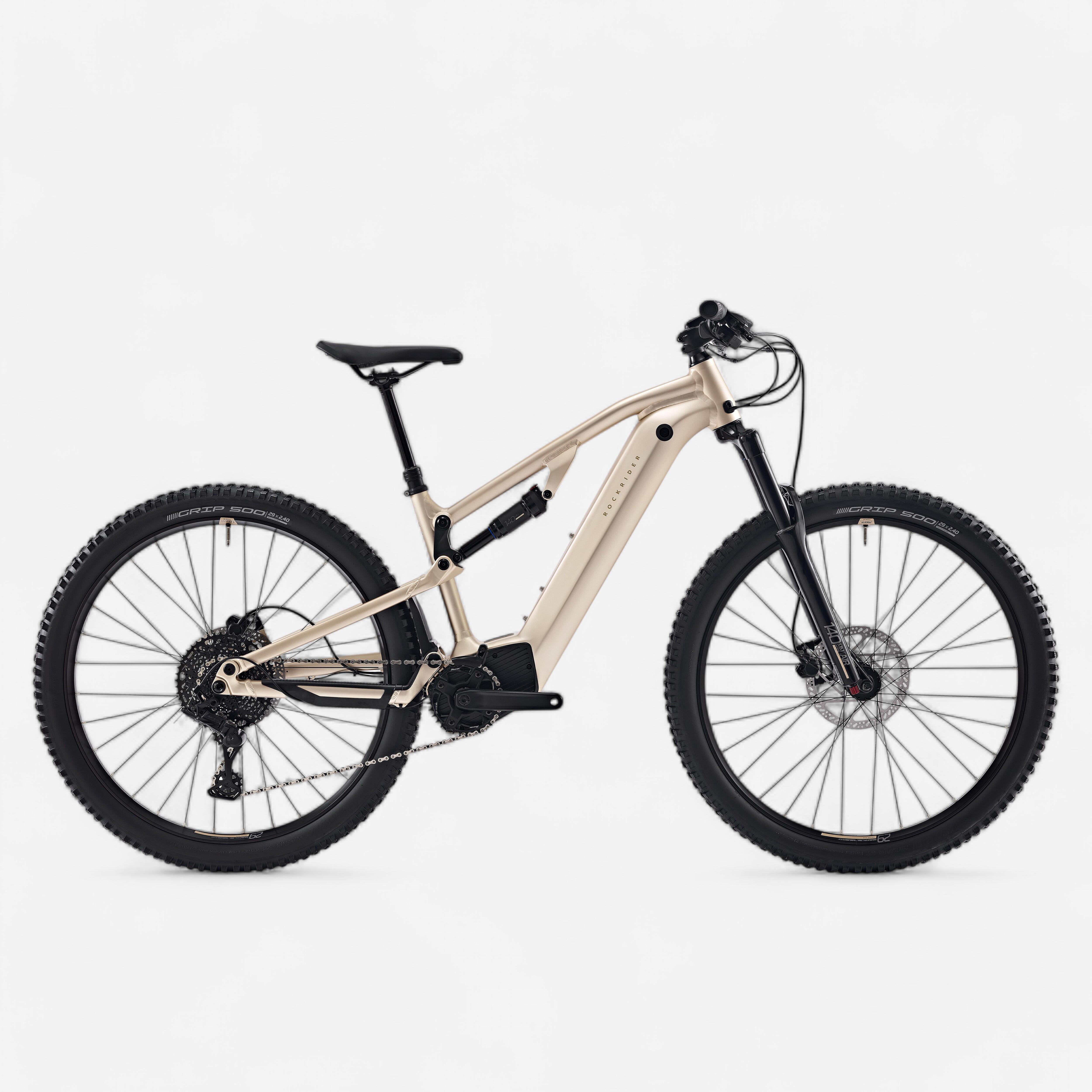

In a nutshell
Weight: 24.4 kg (in size M without pedals)
Mid-drive motor: Brose T aluminium 70 Nm
Battery: 500 Wh
Frame material: Aluminium
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 140 mm / 140 mm
Drive train: 1x10
Brakes: Hydraulic
Seatpost: Telescoping
Frame, handlebar and stem warranty: lifetime

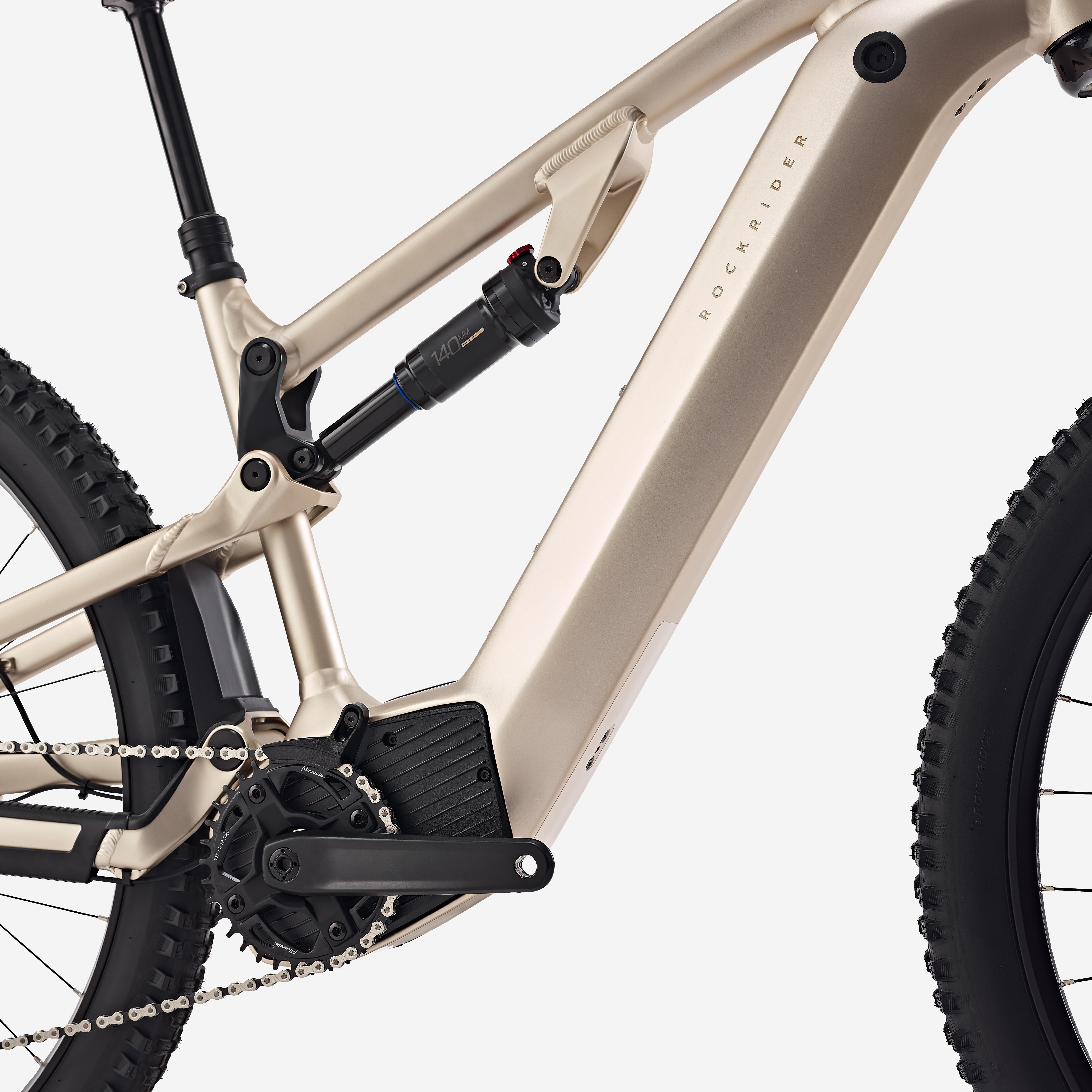

Motor
BROSE DRIVE T Aluminium motor
Mid-drive position
70 Nm torque
Torque sensor
Max assistance: 320 %
Max power: 460 W
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
Battery
Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 500 Wh
With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles).
Compatible with a 360 Wh battery extension, sold separately (up to 50 additional km, at a low gradient)

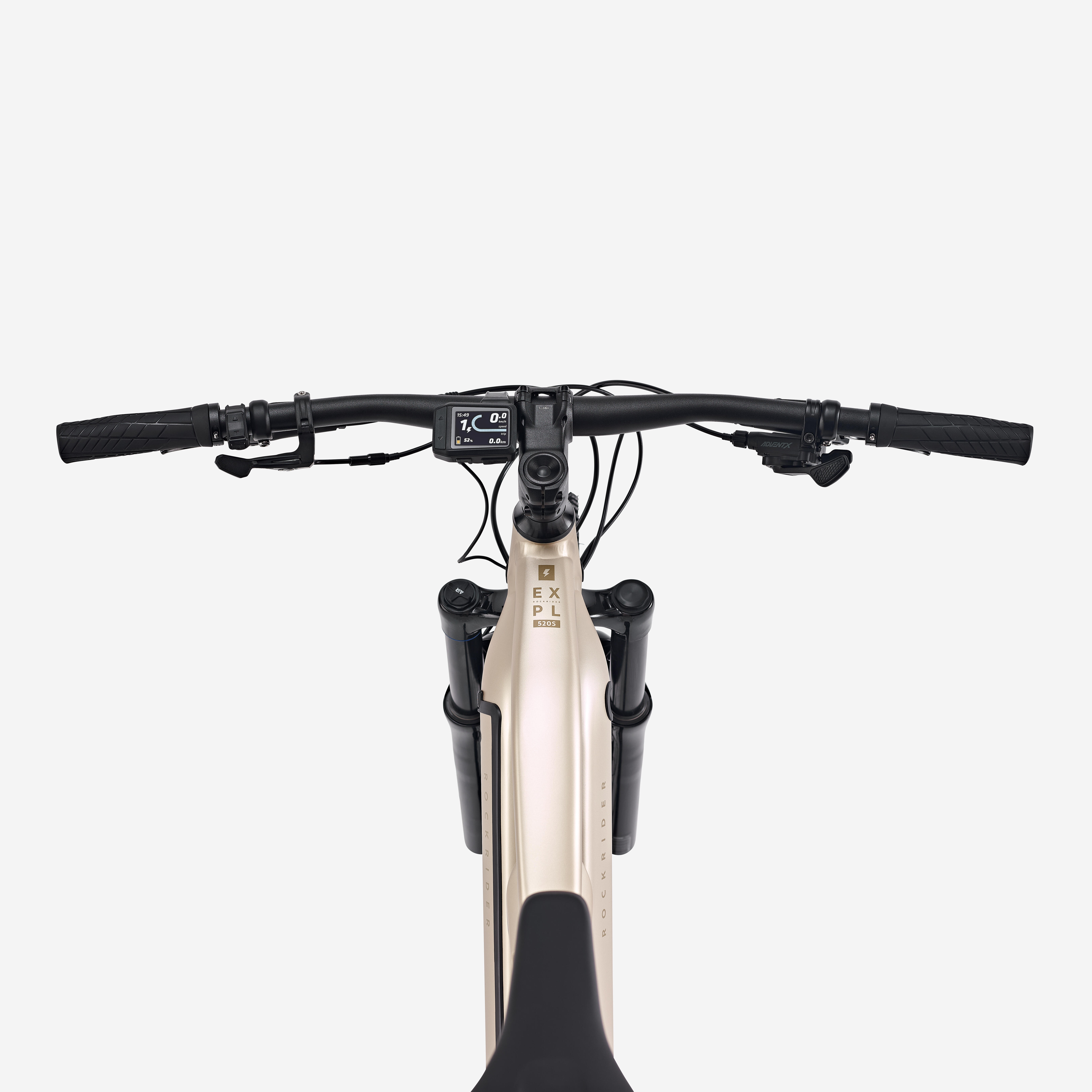

DISPLAY
ERGO 900
TFT colour screen,
5 assistance modes: 1,2,3,4
Pedestrian mode assists with walking.
Connected via Bluetooth.
The control unit is installed on the left side and tilted downwards, for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Frame
6061 aluminium suspended frame
Single pivot with tie rod
Max rear travel 140 mm
Fully built-in battery, removes from the side
Conical steering socket
31.6 mm diameter seat tube
Mount for 1 bottle cage
Drivetrain
Microshift ADVENT X
Chainring: 34 teeth with chain guide
Rear derailleur: Microshift ADVENT X
Crank: 170 mm
Right shifter: Microshift ADVENT X
Cassette: Microshift ADVENT X Series H 11-48 10-speed
Chain: KMC e10S
Suspension
X-Fusion McQueen R fork
Travel: 140 mm
Dampers: 34 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 46 mm
Technology: Roughcut Air
Adjustments: Bounce, air pressure
X-Fusion PRO R shock
Dimensions: 210 x 55 mm
Mount: Standard

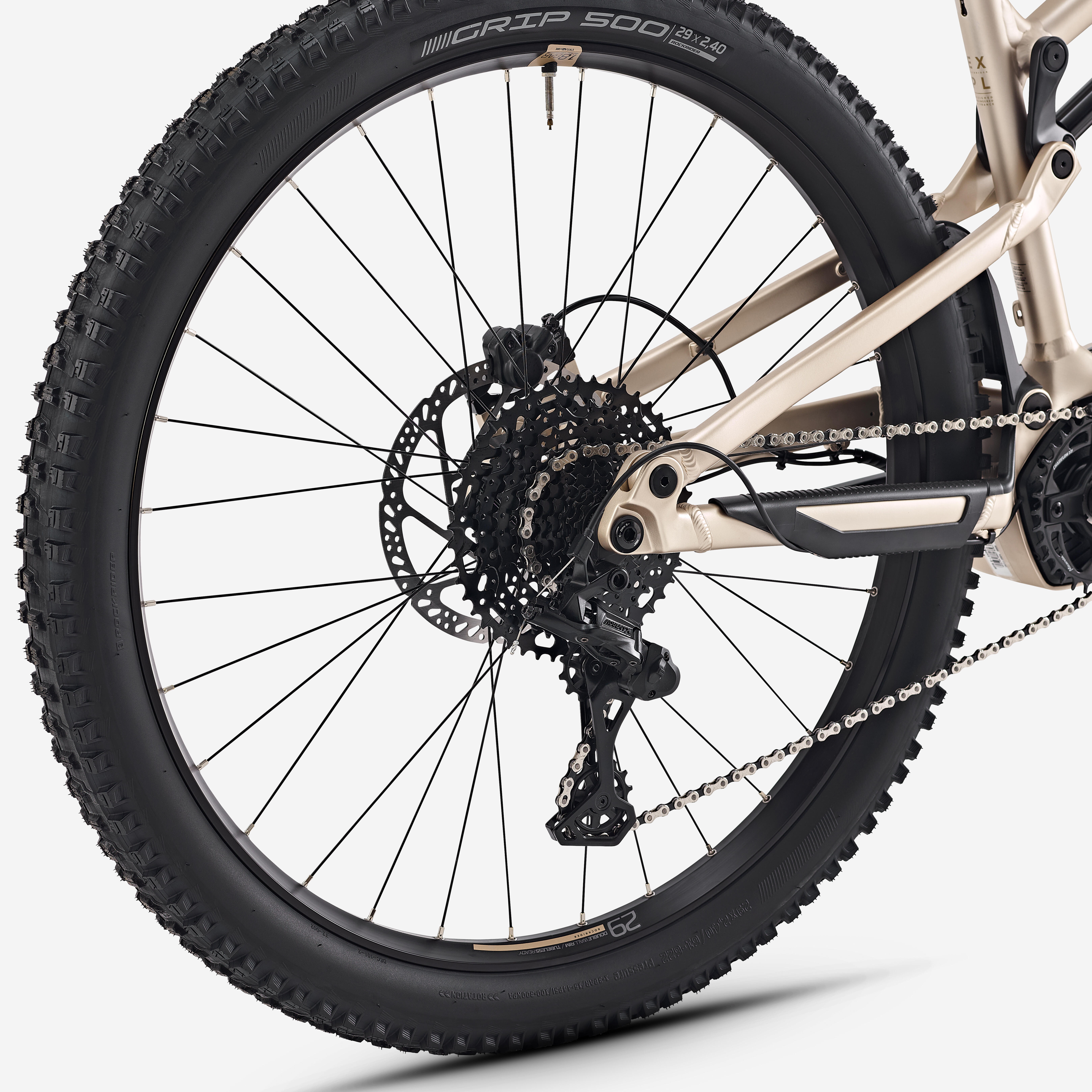

Wheels
Rockrider 29” 30c wheels
29" size compatible with fat tyres: up to 2.6"
Internal width between hooks: 30 mm
32 spokes
Format: Boost
Discs: 6 holes
Freewheel hub: HG
Sealed bearings
Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)
Tyre
Rockrider Grip 500
29" x 2.4"
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug
Brakes
Tektro M276 hydraulic disc brakes
Number of pistons: 2
Front disc: 203 mm
Rear disc: 203 mm
6-bolt mount

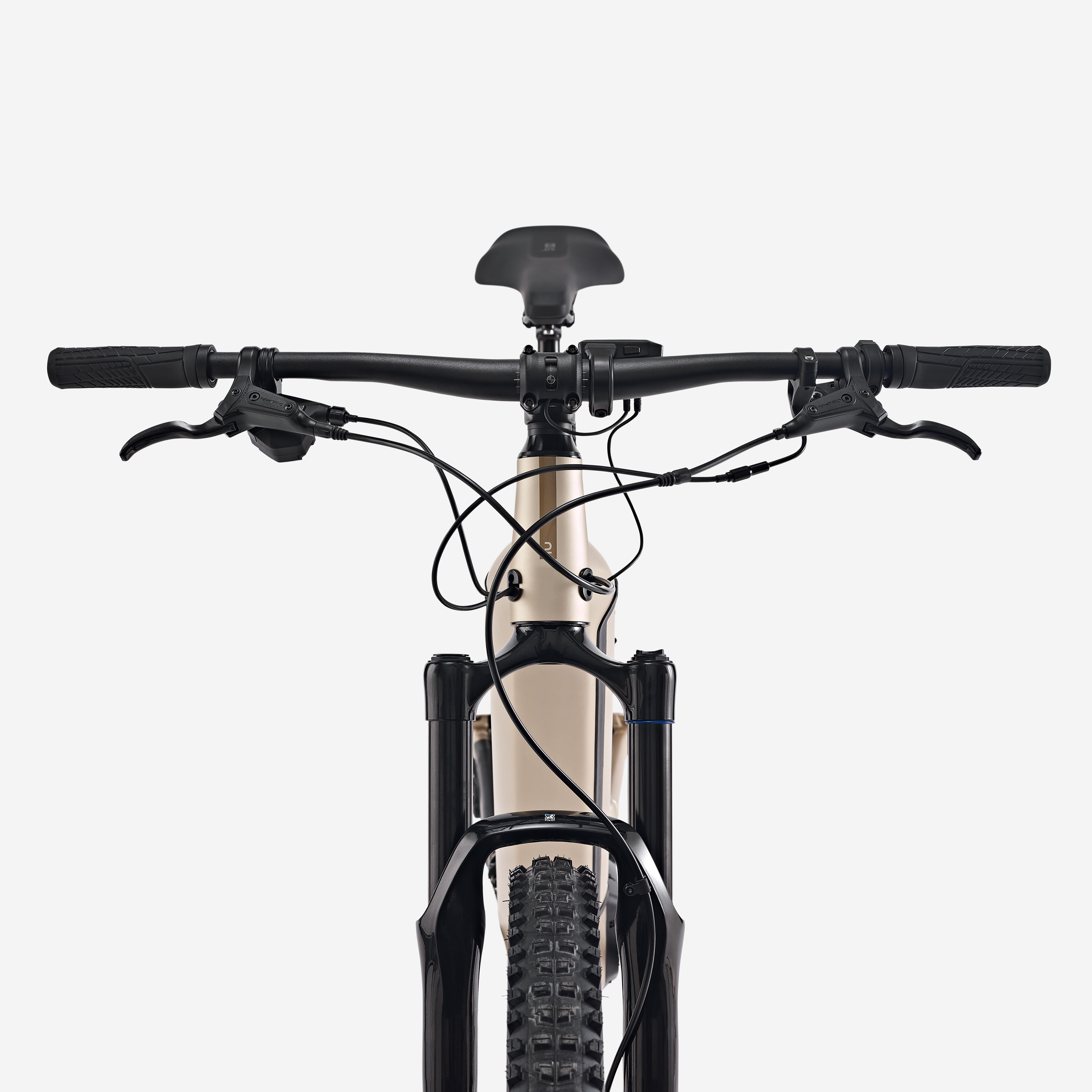

Riding position
Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)
Grips:
Rockrider Ergo Lock On
Headset
ZS 44/28.6 - 56/40
/ Seat post
Saddle: Decathlon Core 60°
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (Ms/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter
Saddle: Decathlon Core 60°
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (Ms/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp:
Pedals
Rockrider Flat Evo Resin
ACCESSORIES INCLUDED
Your MTB comes with:
2A charger
bell,
lights,
wheel reflectors
and pedals.
