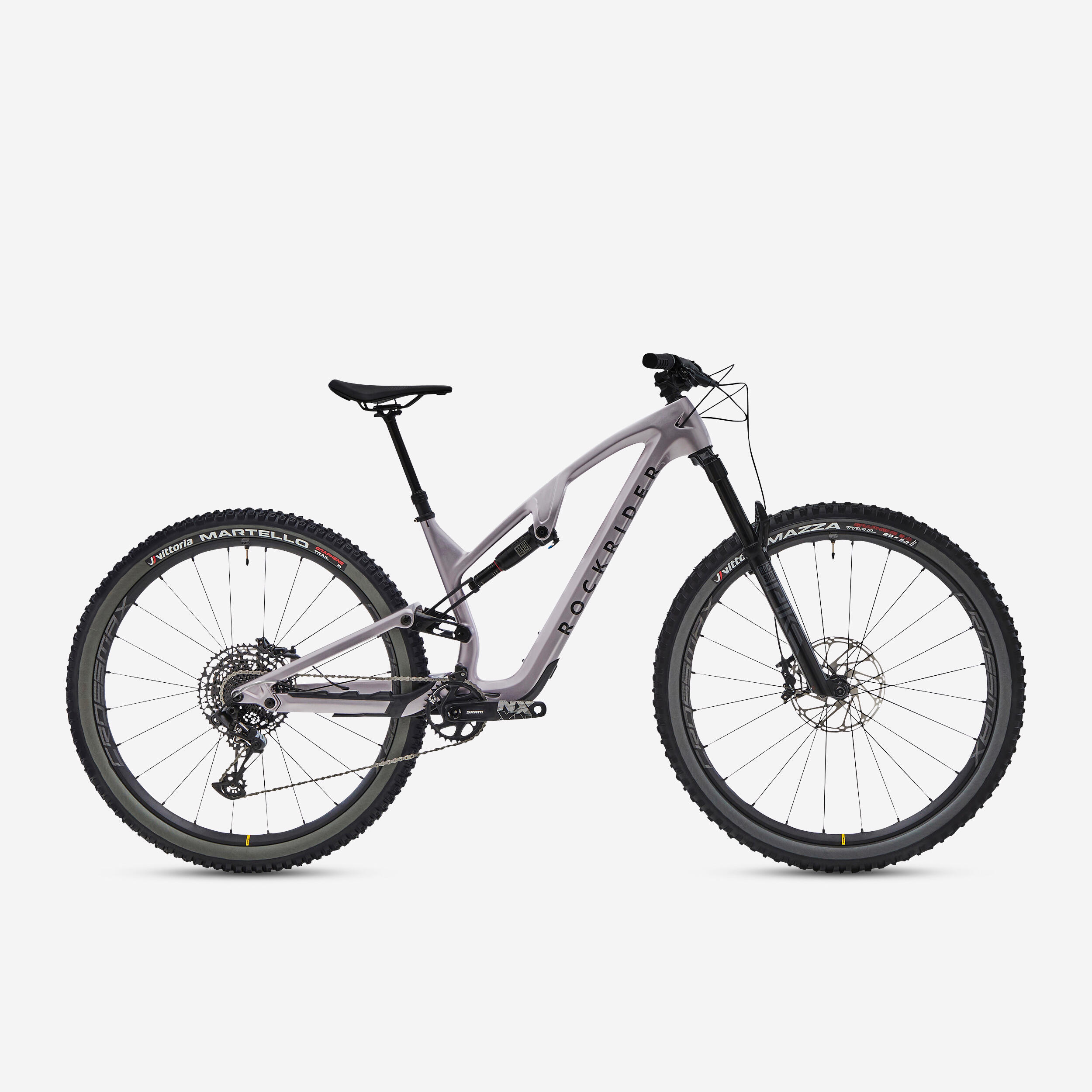

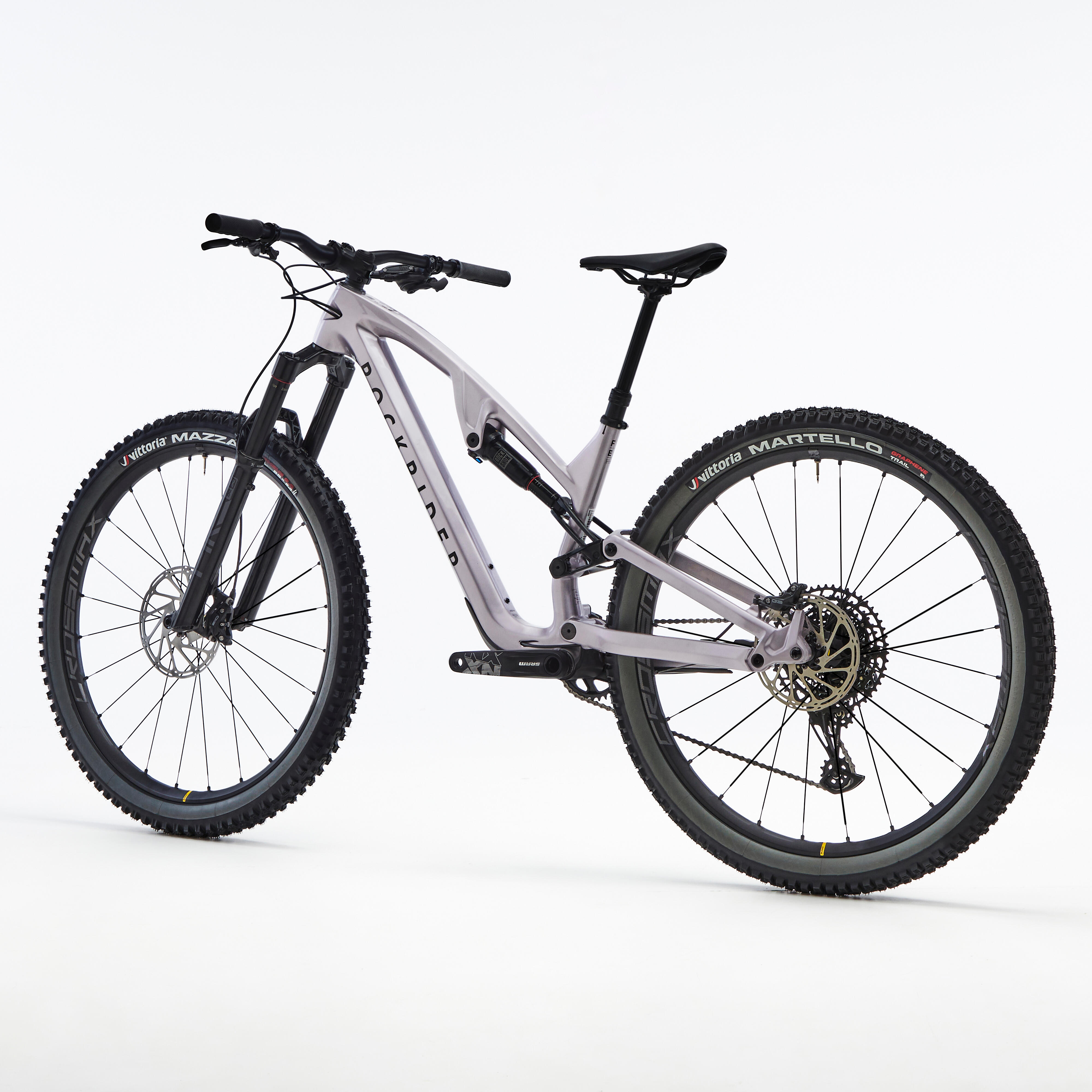

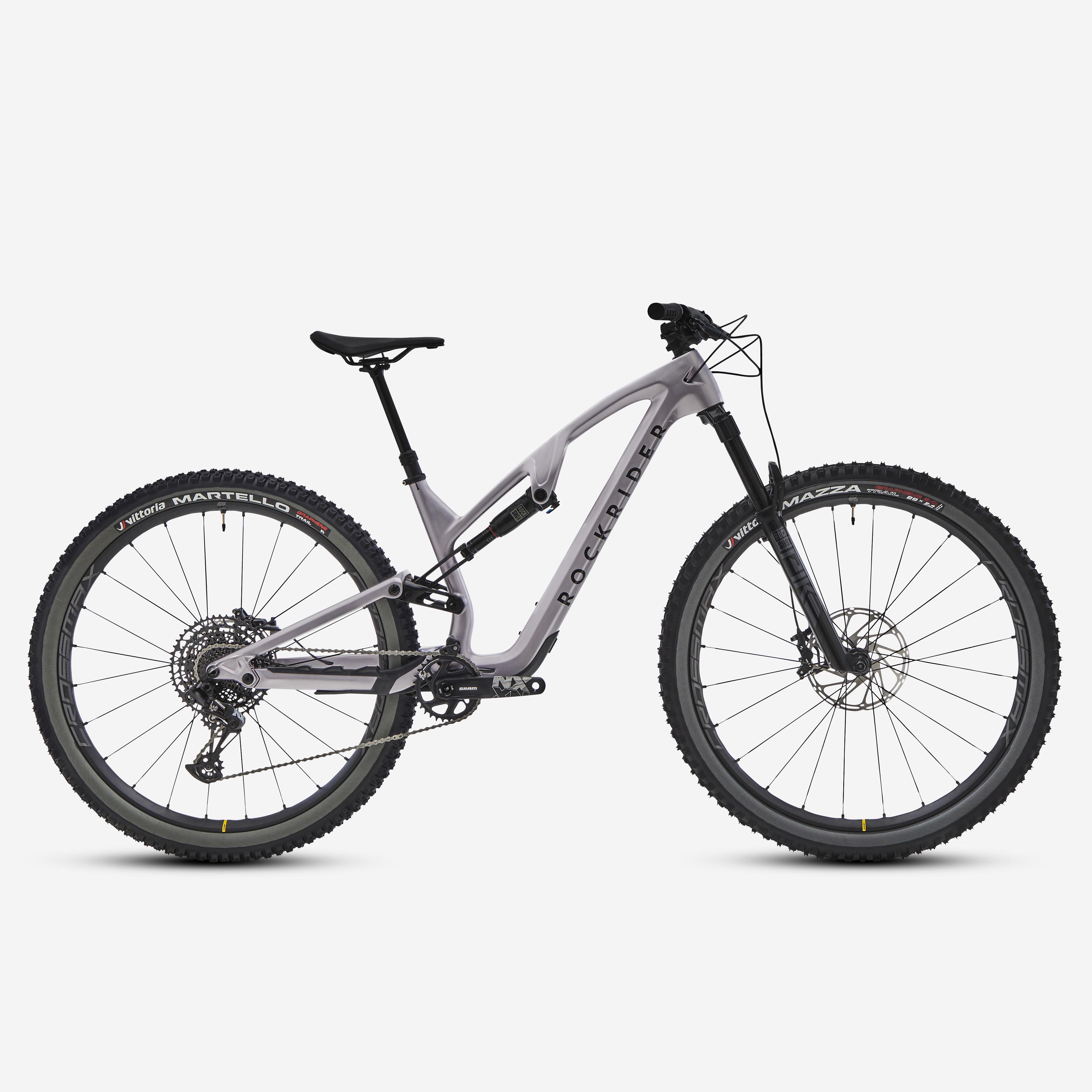

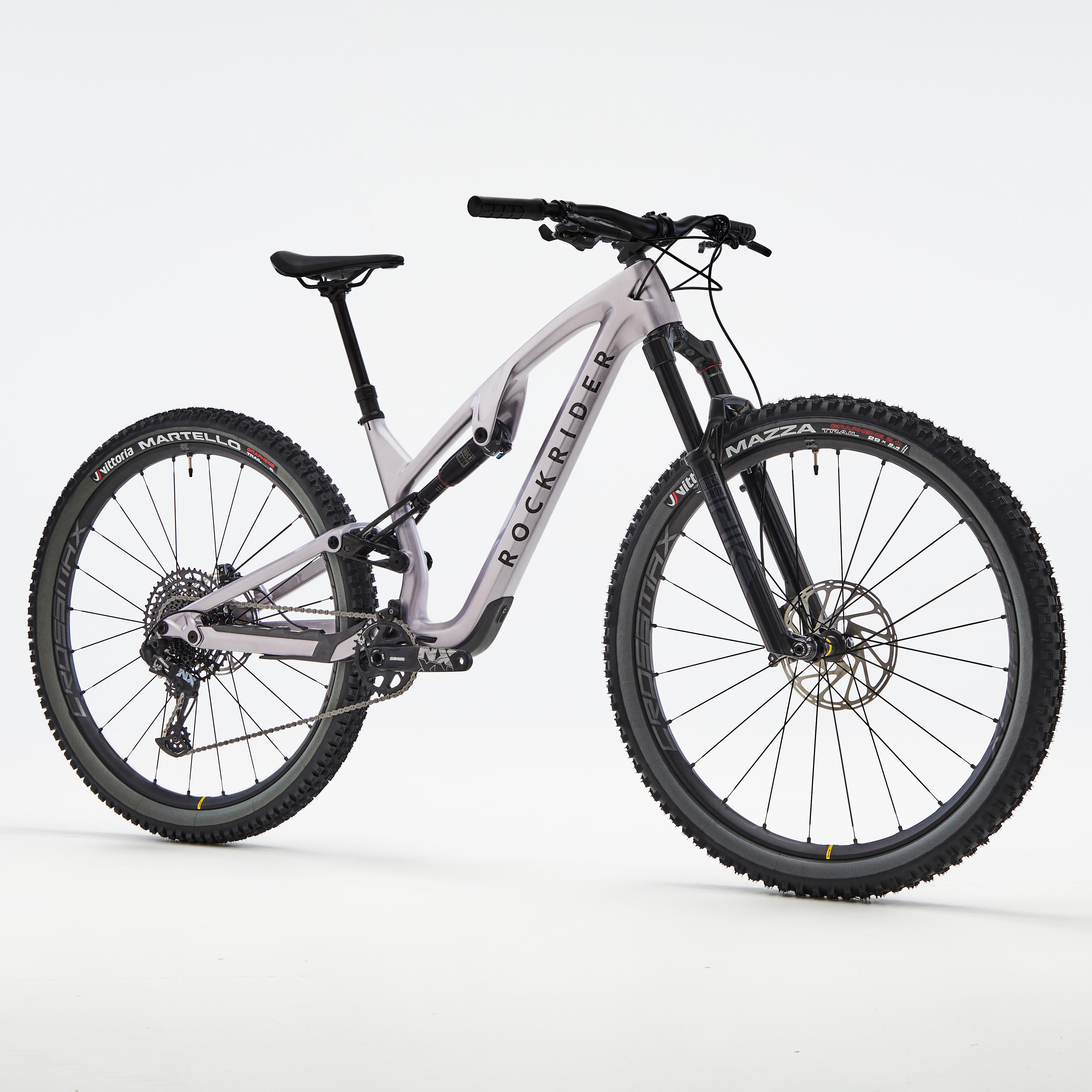

IN SUMMARY
Weight: 13.9 kg in size M (without pedals)
Frame material: Carbon
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 140 mm / 130 mm
Drive train: 1x12
Brakes: Hydraulic
Seat post: Telescoping
Frame, handlebar and stem warranty: 5 years
Weight
13,8 : kg
13.9: kg
14: kg
14.1: kg
Net weight without pedals

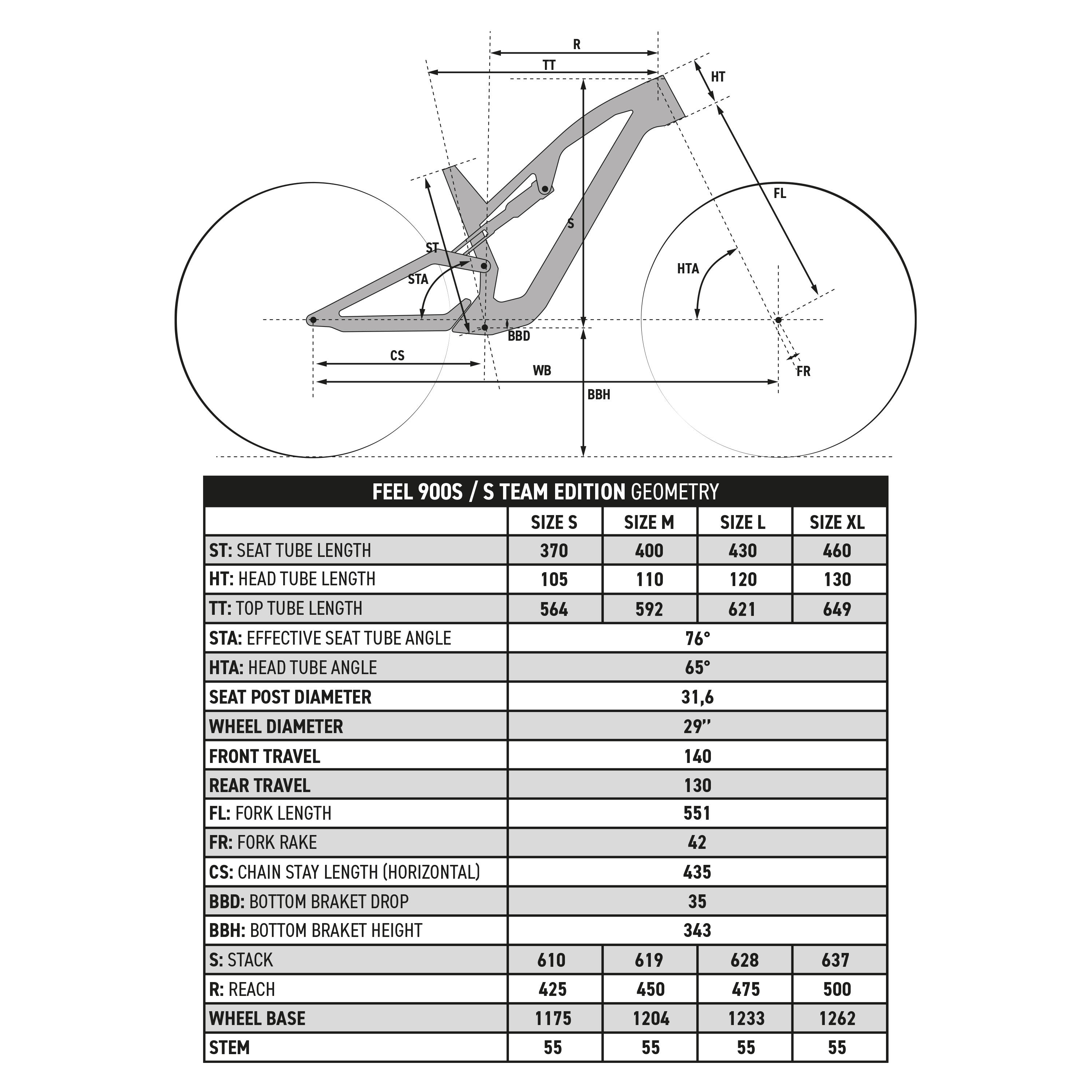

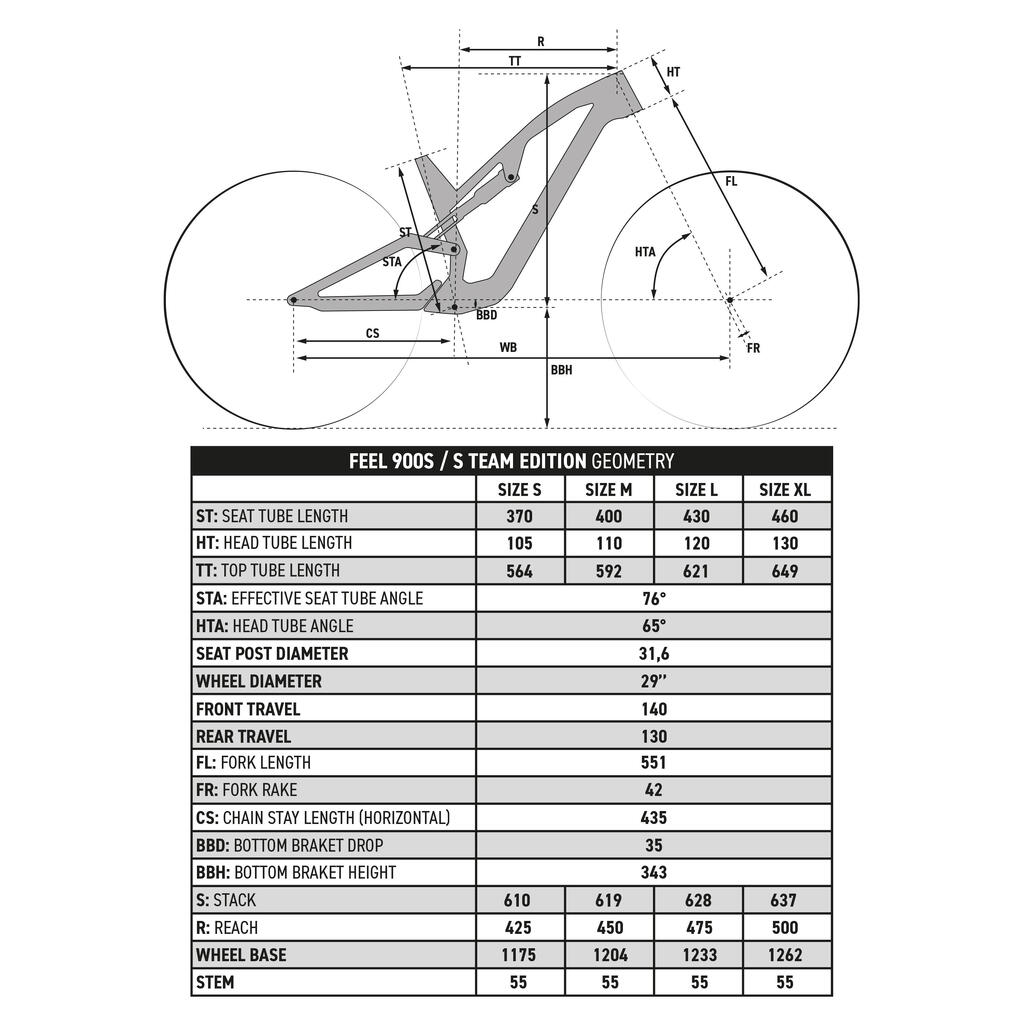

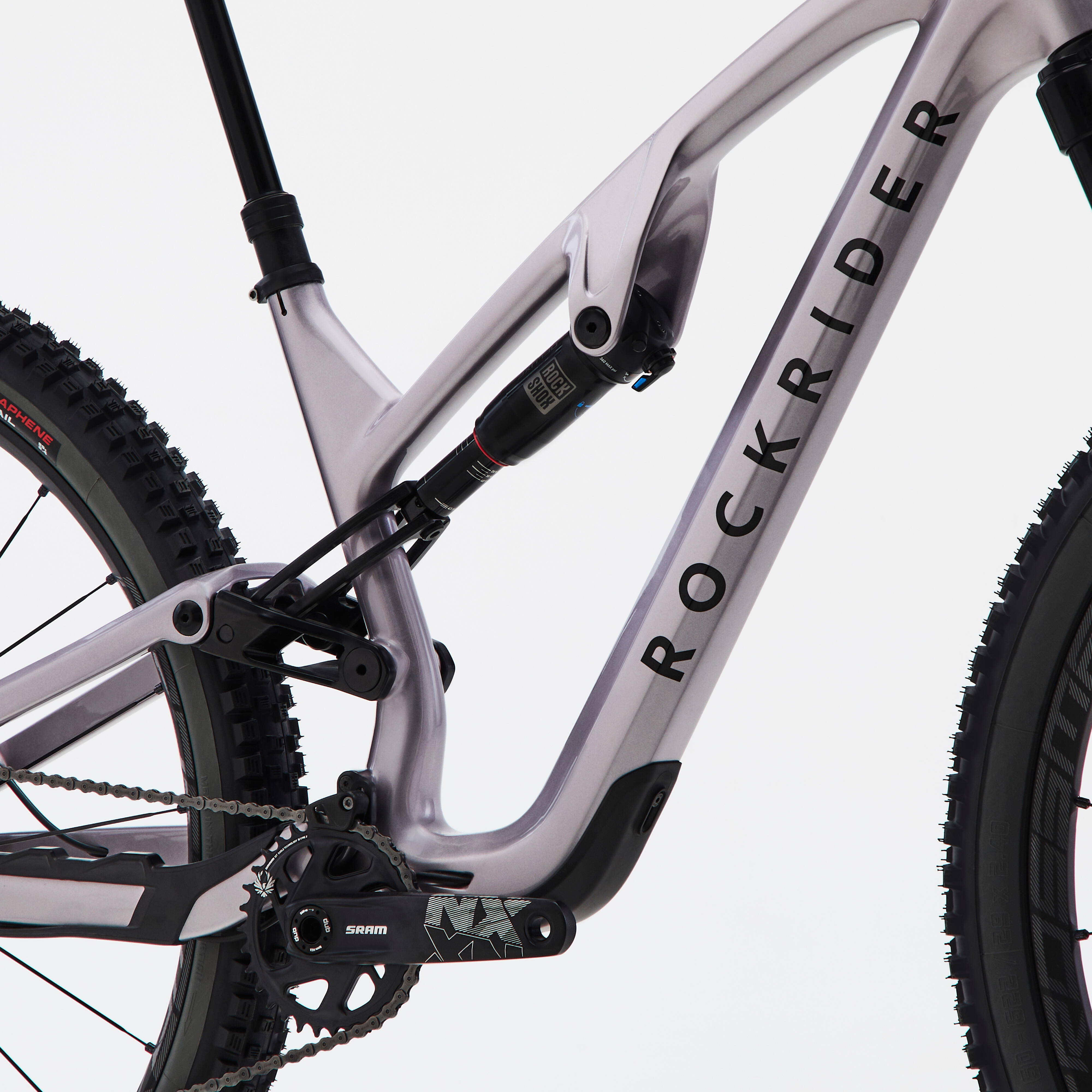

Frame
Composition: Horstlink carbon
Travel: 130 mm
Rear axle: Boost 12x148
Type of axle: 6-sided screw-in thru axle
Bottom bracket: Pressfit 92
Seat tube diameter: 31.6
Bottle cage mount: 1
Full internal routing

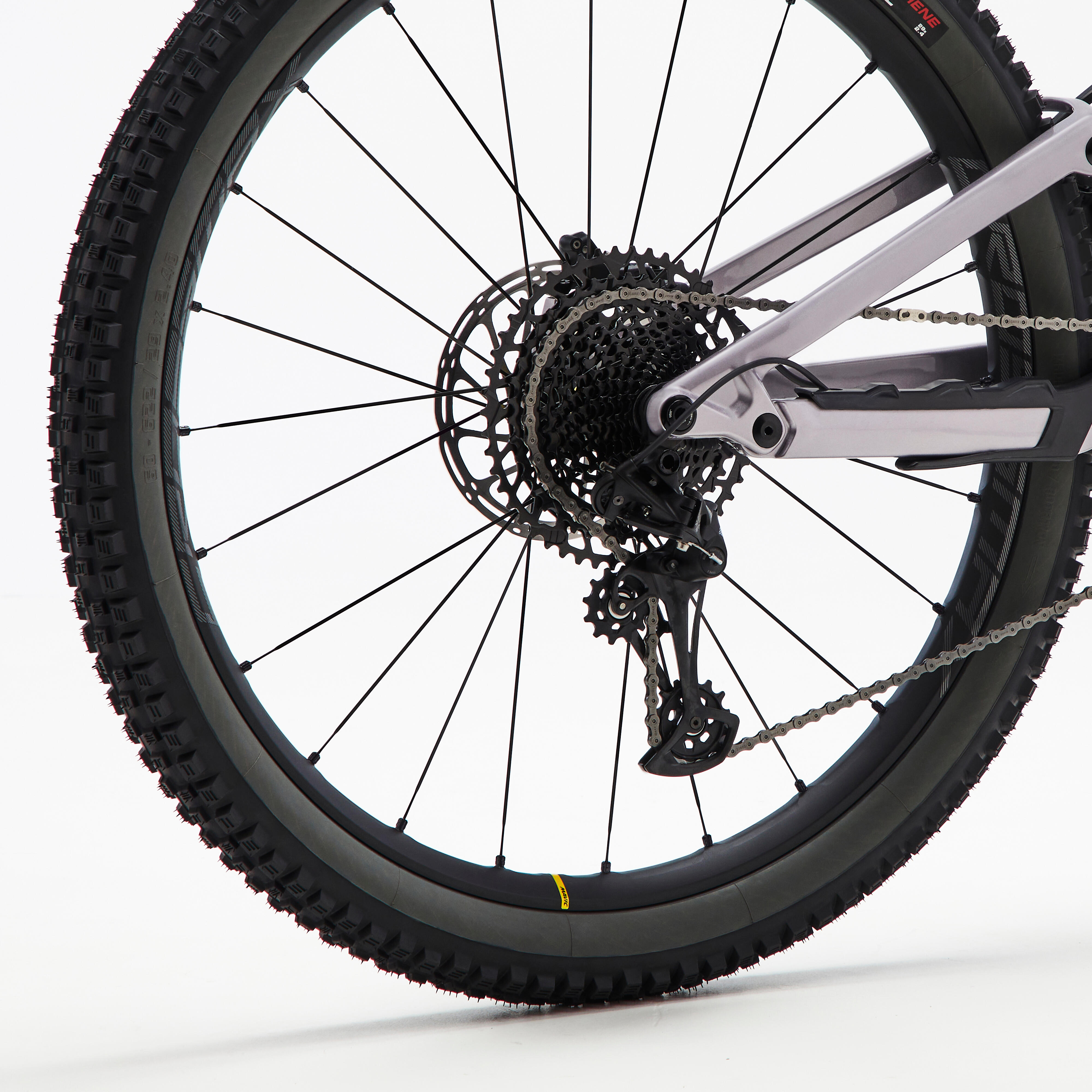

Drive train
SRAM NX EAGLE
Single chainring: 32 teeth with chain guide
Cranks: SRAM NX 175 mm
Rear derailleur: 12 speeds
Cassette: 11-50
SRAM NX EAGLE chain: 12 speeds
Suspension
Fork: Rock Shox PIKE
Travel: 140 mm
Dampers: 35 mm / Offset 44 mm
Type of axle: thru axle
Format: "Standard" 110 x 15 mm
CHARGER cartridge
Shock: Rock Shox DELUXE SELECT +
Travel: 130 mm
Dimensions: Trunion 185 x 47.5 mm / Lockout: 2 positions
Wheels
MAVIC CROSSMAX XLS
Material: aluminium / Inner width: 30 mm
Number of spokes: 24
Disc mount: 6 holes
Freewheel hub: HG
BOOST axle: 110 x 15 mm at the front and 148 x 12 mm at the rear
Tubeless Ready with a sealed rim strip
Tyres
VITTORIA
Mazza 29" x 2.35 TRAIL front
Martello 29" x 2.35 TRAIL rear
Tubeless Ready
Brakes
SRAM G2 R hydraulic disc brakes
Number of pistons: 4
Front disc: SRAM Centerline 200 mm
Rear disc: SRAM Centerline 180 mm
Disc mount: 6 bolts

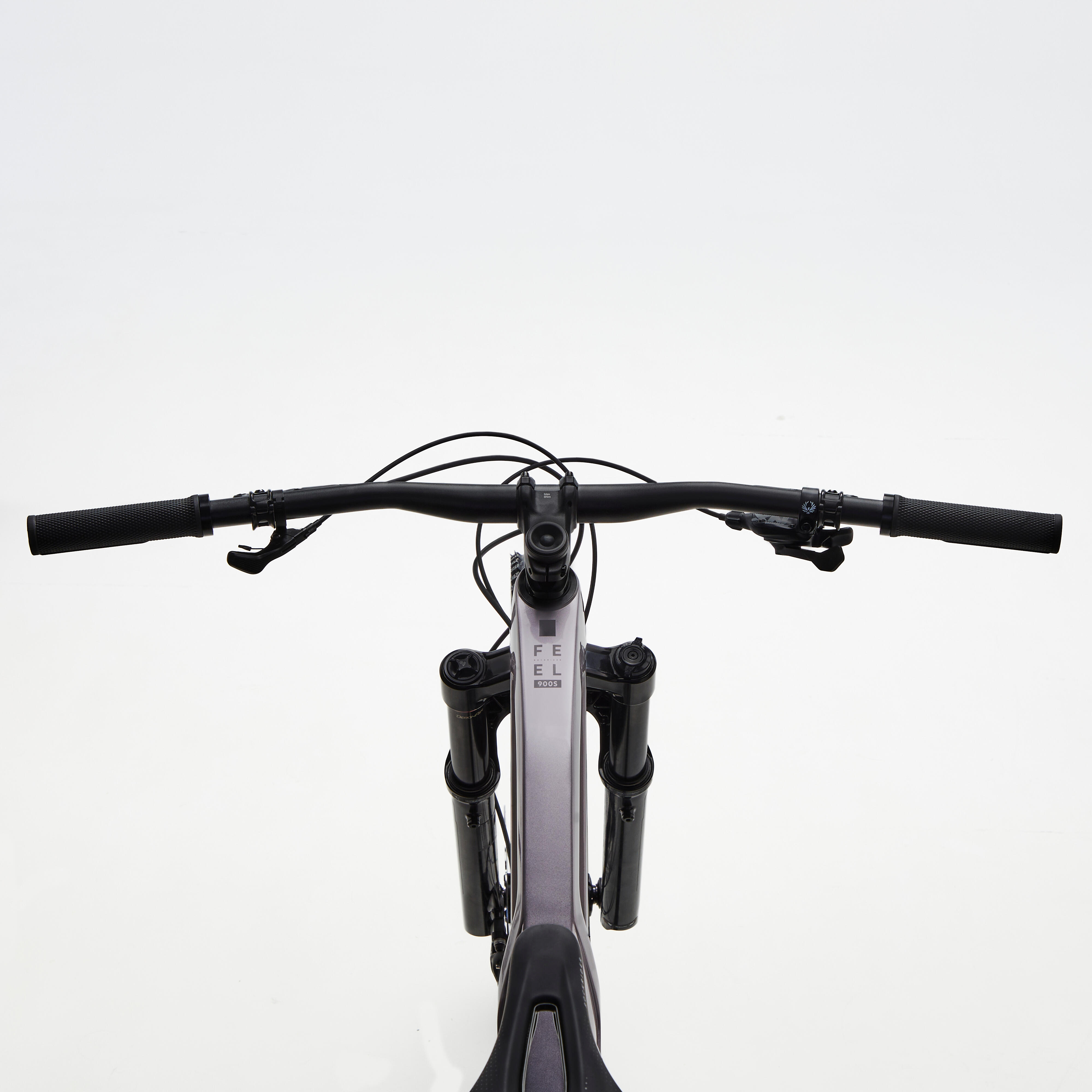

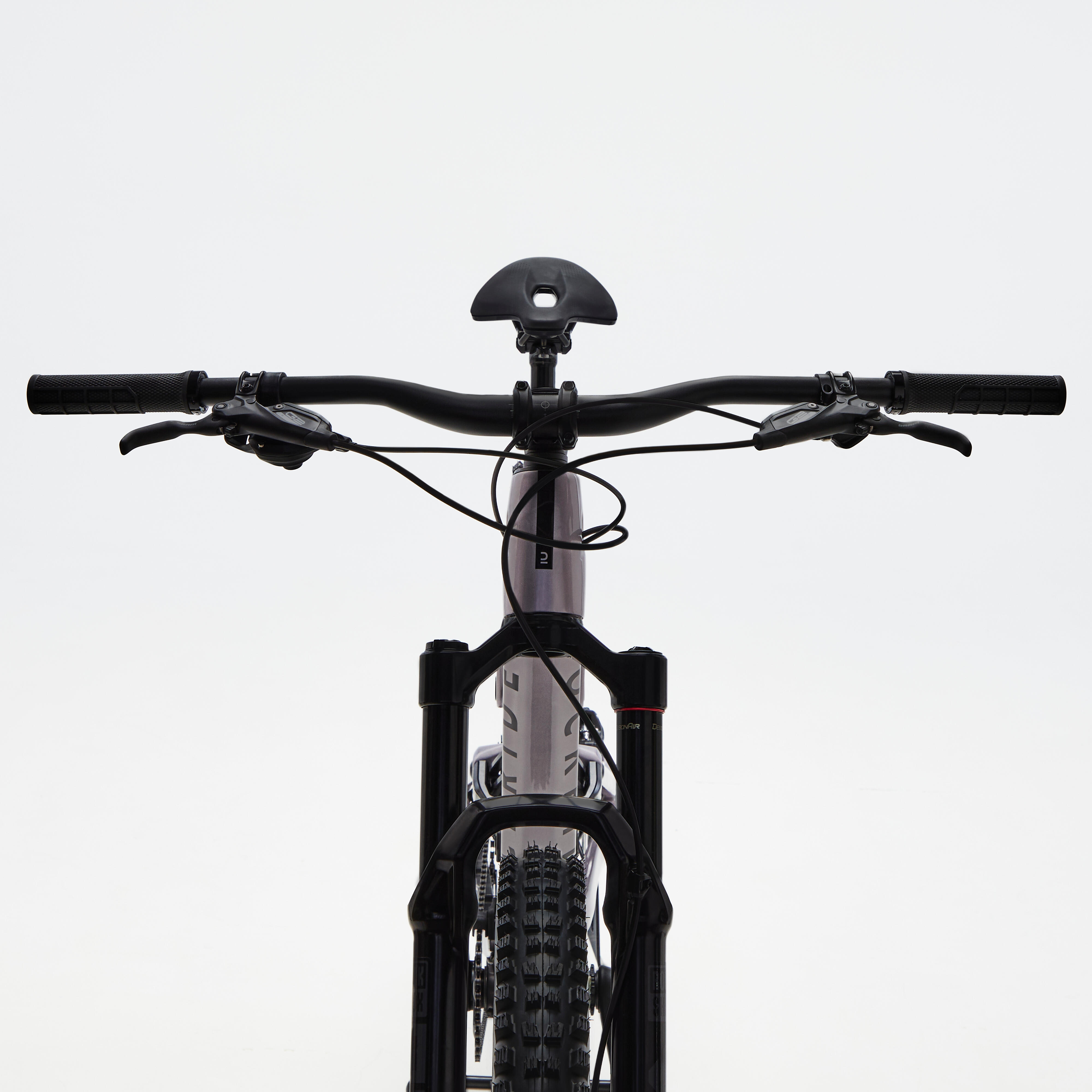

Riding position
ROCKRIDER SPORT handlebar
Material: Aluminium
Diameter: 31.8 mm / Width: 780 mm
Rise: 15 mm / Upsweep: 5° / Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 0° / Size: 55 mm
Grips: ROCKRIDER ERGO LOCK ON
Integrated headset
Saddle / Seat post
Saddle: DECATHLON short nose
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (M) / 170 mm (L/XL)
Weight: from 650 g
Seat clamp: aluminium, 36 mm diameter
PEDALS
Rockrider Flat Evo Resin
Accessories included
Your MTB comes with:
bell,
lights,
wheel reflectors
and pedals.
