ROCKRIDER

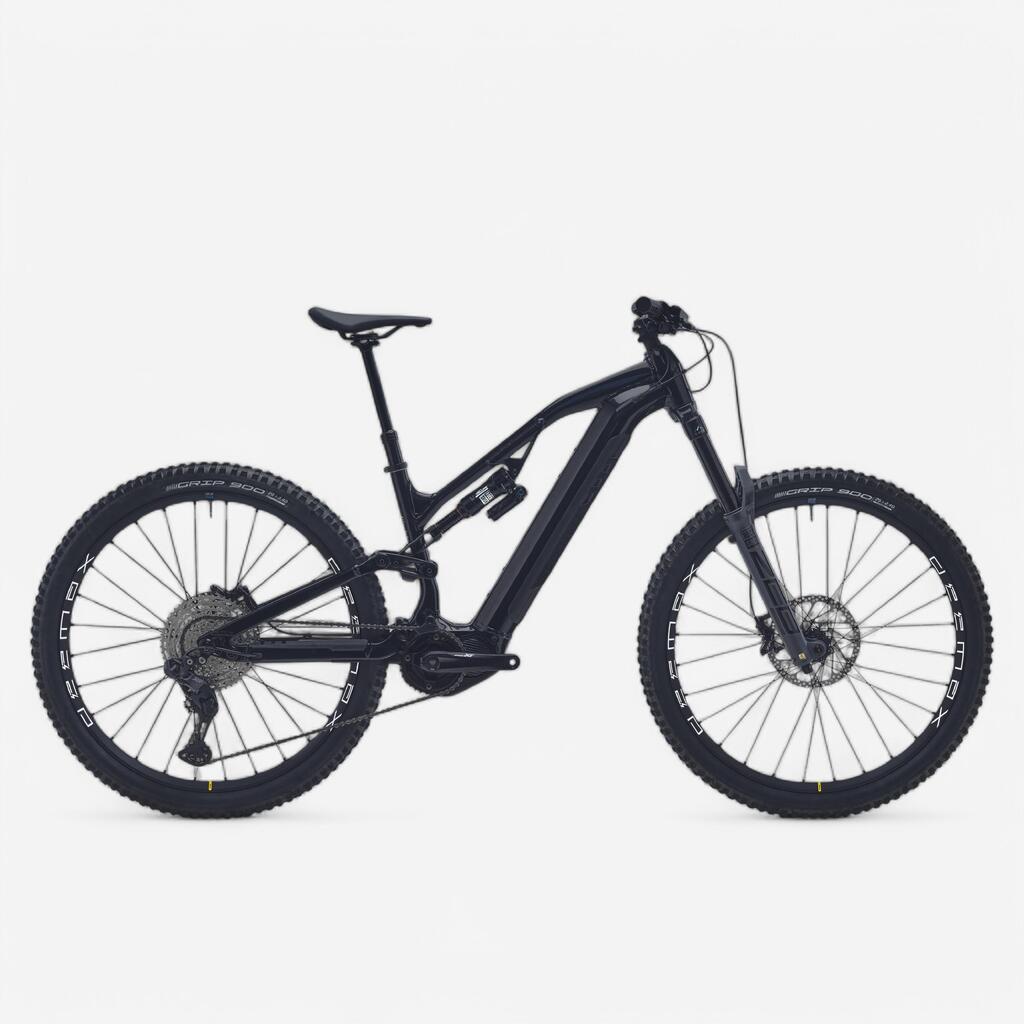

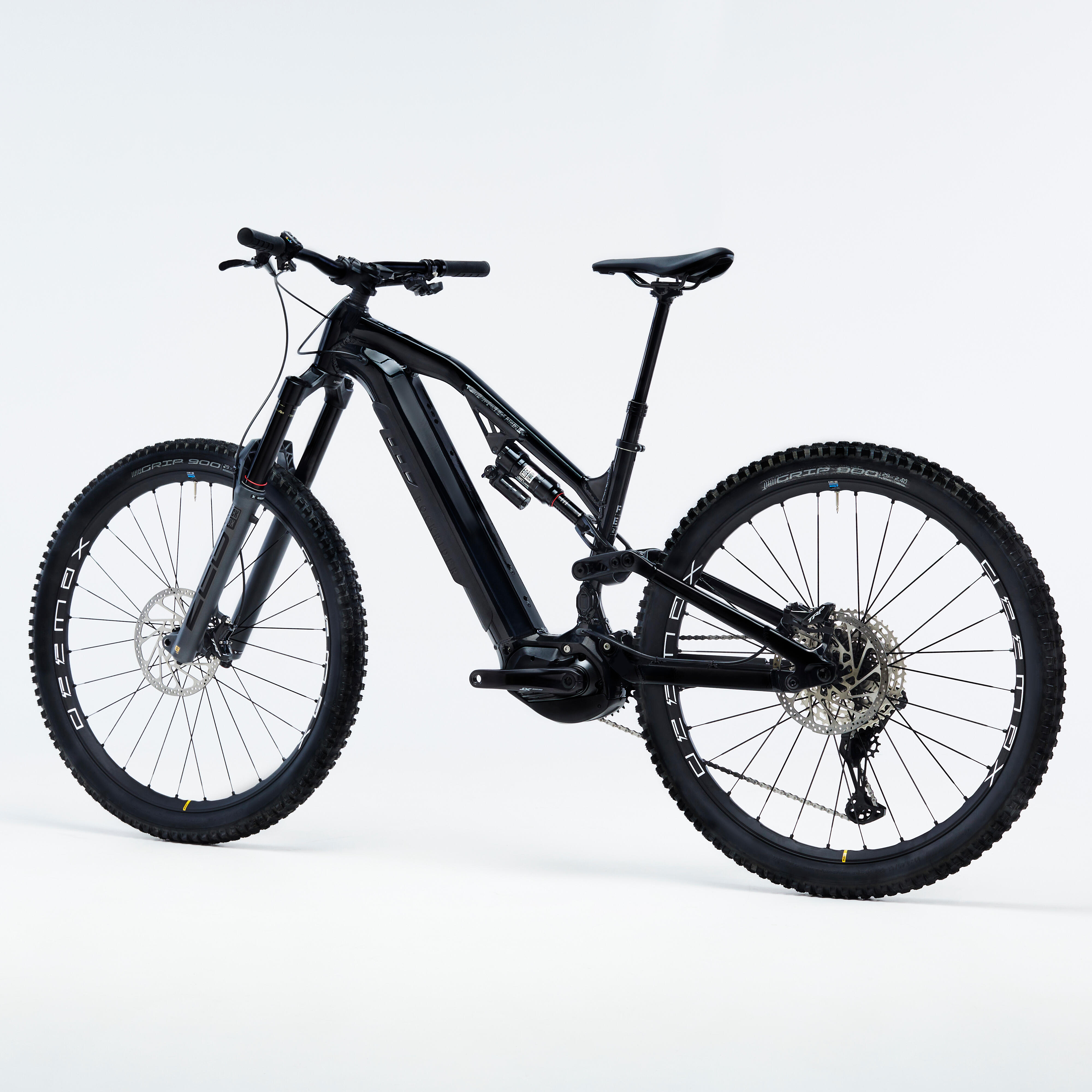

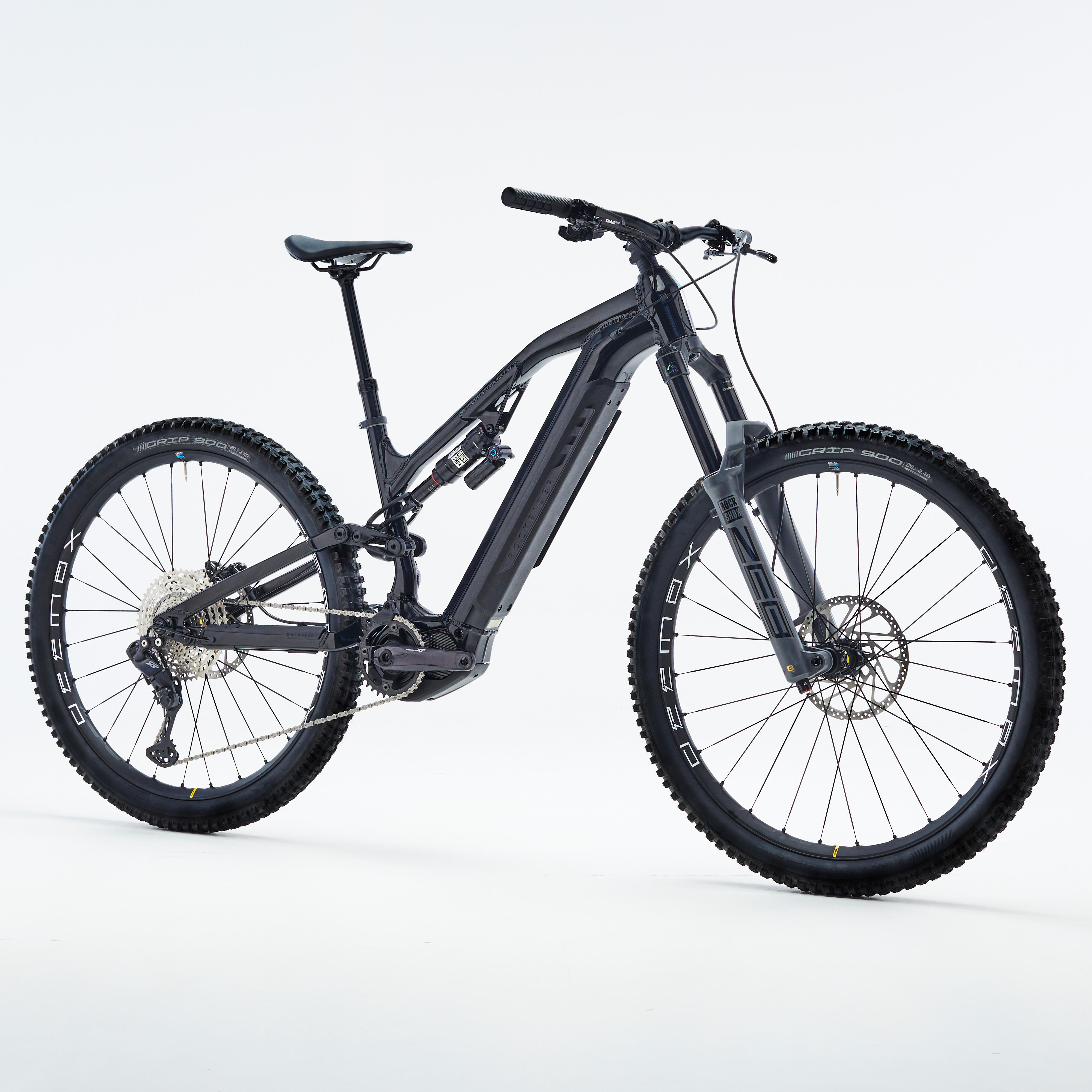

29" Full Suspension Electric All-Mountain Bike E-Feel 900 S Team Edition
Designed for riders who go fast both uphill and down! From roots to steep climbs and big rocks, it's not afraid of anything!
Designed in France and made in Canada. This strong, versatile, playful, easy-to-handle electric mountain bike makes riding more accessible!The benefits: its RockShox Ultimate suspension.
ID 8615094
BENEFITS
Autonomy
Ride up to 90 km on fairly flat ground with the internal 630 Wh battery
Power
Enjoy climbs thanks to its SHIMANO EP801 motor with 85 Nm of torque and 600W.
Control
Enjoy a compact and raised position: perfect for steering
Smooth pedalling
The Shimano mid-drive motor offers low resistance.
Cushioning
ROCKSHOX ZEB Ultimate 160 mm and ROCKSHOX Super Deluxe Ultimate shock
Braking power
TRP Trail Evo brakes, 4 pistons, with 203 mm diameter discs
TECHNICAL INFORMATIONS
In a nutshell
Weight: 24.6 kg (in size M without pedals)
Mid-drive motor: Shimano EP801 85 Nm
Battery: 630 Wh
Frame material: aluminium, made in Canada
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 160 mm / 150 mm
Drivetrain: 1x12
Brakes: Hydraulic
Seatpost: Telescoping
Frame, handlebar and stem warranty: lifetime
Motor
Shimano EP801 motor
Mid-drive position
85 Nm of torque
250W nominal power
600W max power
Torque sensor
Max assistance 350 %
The electrical assistance cuts out above 25 km/h in accordance with EU regulations
motor weight: 2.7 kg
Battery
Battery built into the down tube. It features a compact design with a low centre of gravity to give you a more natural sensation as you ride.
Brand: Shimano BT- EN806
Capacity: 630 Wh (36 V, 17.5 Ah)
Weight: 3.7 kg
Type: Lithium-ion
Full charge: 6 hours with the 4A charger
Charge cycles: 1 000 (more than 60%)
Temperature: 0°C to +40°C (during charging), -10°C to +50°C (in use)
Water resistance: IPX5
DISPLAY
Shimano SC-EN600
Compact 1.4" LCD colour screen installed centrally on the right, and protected from crashes and flips.
Assistance modes: 3 to 15 configurable
User profiles: 2 profiles (comes pre-set with EXPL and FEEL)
Walking assistance mode with two power levels
Connects via Bluetooth.
Ergonomic control (on the left of the handlebar): SW- EN600-L
Frame
ROCKRIDER FRAME -
6061 aluminium
150 mm rear travel
Fully built-in battery, comes out vertically
Conical headset
31.6 mm diameter seat tube
Mount for 1 bottle cage
Made in Canada

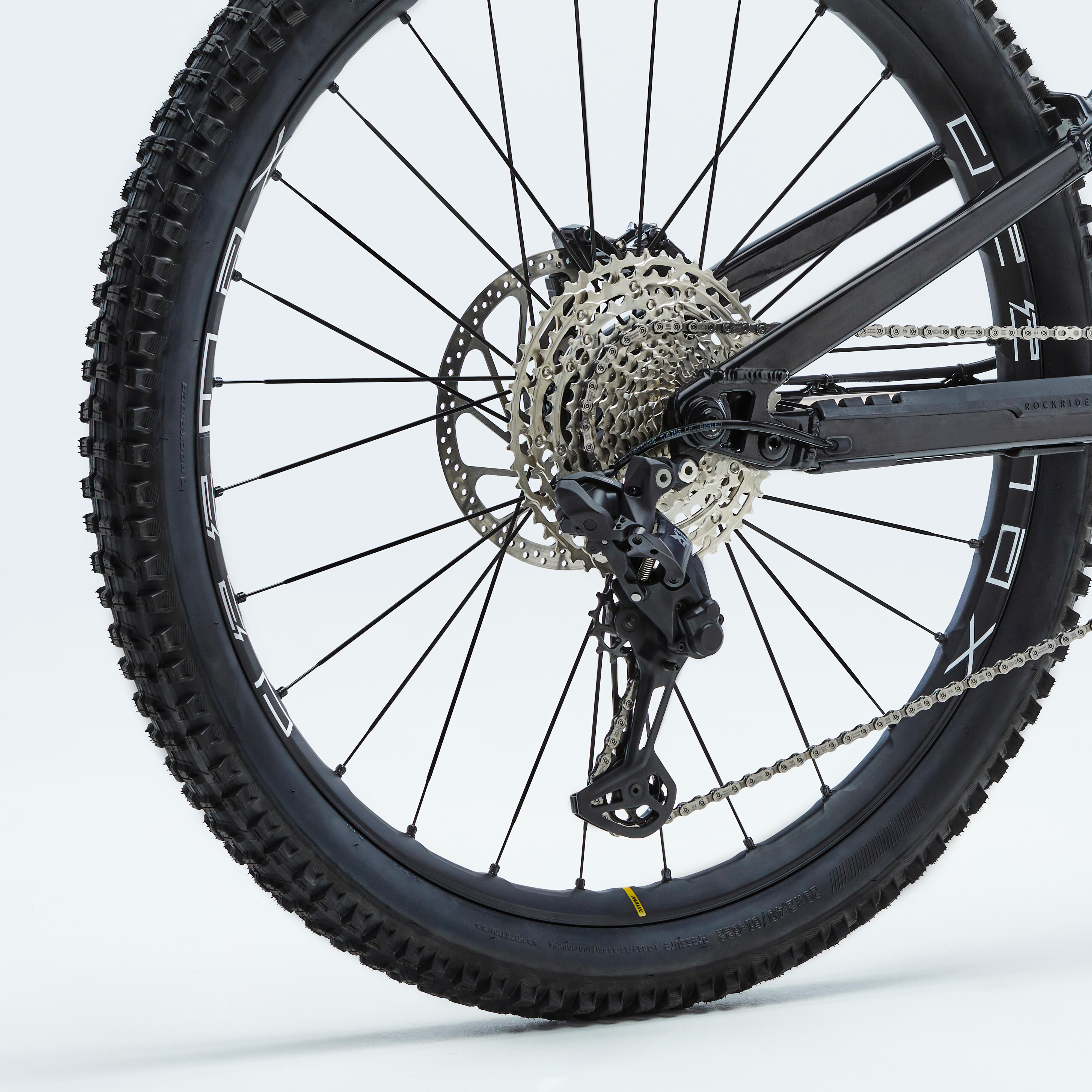

Drivetrain
Shimano XT HyperGlide Di2 12-speed
Chainring: 34 teeth with chain guide
Rear derailleur: Shimano XT 8150 Di2
Chainset: Shimano XT 165 mm
Right shifter: SHIMANO SW-M8150-R
Cassette: Shimano XT M6100 10-51
Chain: Shimano M8100
Functioning: electronic with Freeshift technology
Suspension
RockShox ZEB Ultimate fork
Travel: 160 mm
Dampers: 38 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 44 mm
Technology: DebonAir+ air spring with ButterCups
Tunings: air pressure, rebound, low speed compression damping
RockShox Super Deluxe Ultimate shock
Dimensions: 210 x 52.5 mm
Mount: standard
Tunings: air pressure, rebound, low speed compression damping, 2 positions (open / closed)
Wheels
Mavic E-Deemax S wheels
29"
PFP (pinch flat protection) rims
Joint: SUP welding technology
Inner width between hooks: 30 mm
Drilling: Fore tapeless tubeless technology (28 holes front / rear)
Profile: asymmetric
Format: Boost
Discs: 6 holes
Freewheel hub: Microspline
Sealed bearings
Tubeless Ready: specific UST valves (included), tyre sealant (sold separately)
Brakes
TRP Trail Evo hydraulic disc brakes
Adjustable lever reach
Perforated lever for excellent grip and comfortable use
Number of pistons: 4
Front disc: 203 mm
Rear disc: 203 mm
Compatible with mineral oil
Disc thickness: 2.3mm.6-bolt mounting
Riding position

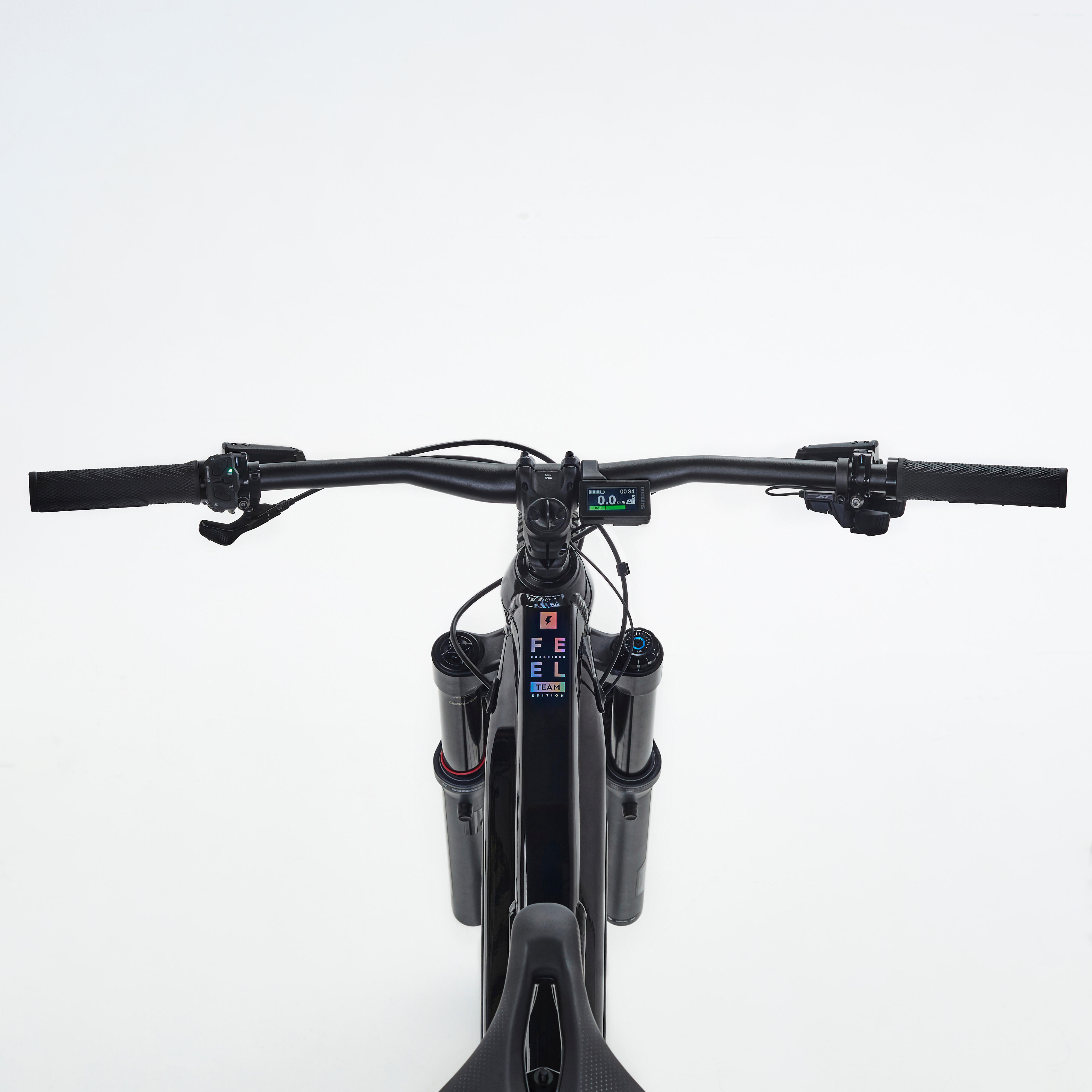

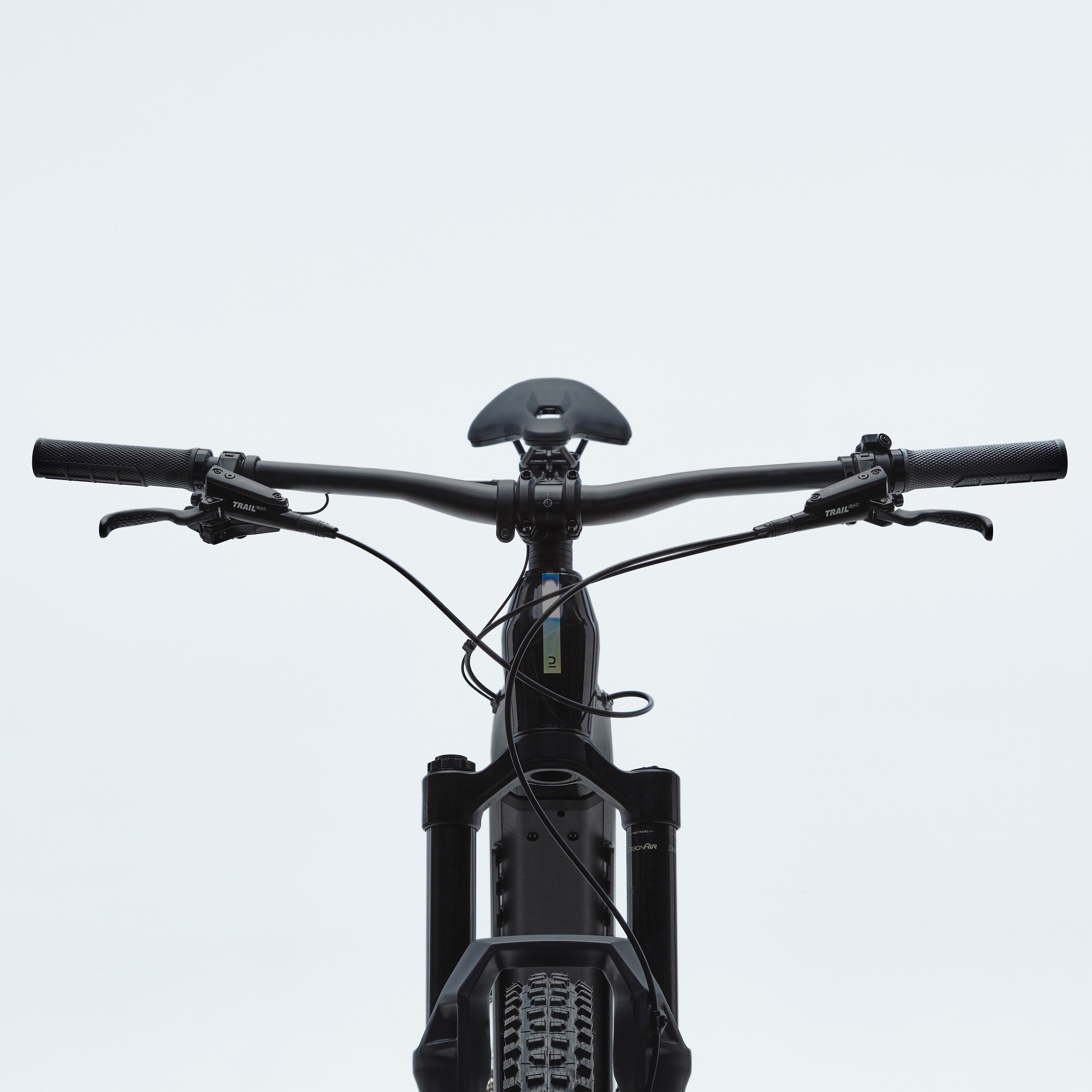

ROCKRIDER SPORT handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 780 mm
Rise: 15 mm
Upsweep: 5°
Backsweep: 9°
Internal electric cable routing
Rockrider stem
Material: Aluminium
Angle: 0°
Sizes: 45 mm
Grips:
Rockrider Ergo Lock On
Headset
44/55.99 _ 39.76
Saddle / Seat post
Saddle: DECATHLON short nose
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (M/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 36 mm diameter
Tyre
Rockrider Grip 500
29" x 2.4"
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug
Pedals
Rockrider Flat Evo basic resin flat pedals.
We recommend customising your bike with a pair of pedals that are suited to your type of riding.
ACCESSORIES INCLUDED
Shimano 4A EC-E8004 charger
SM-BTE80 adapter
Shimano electric cable plug tool
Mavic kit with tubeless valves + spare spokes + spoke nipple tool
RockShox kit with 2 fork tokens + torque caps kit
Your mountain bike comes with a bell, lights, wheel reflectors and pedals.
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
Storage tips
Store it in a warm, dry place away from corrosive products and salty air. Never store with the battery flat, and remember to recharge it at least once every six months.
Restrictions on use
Not suitable for downhill use.
TESTS AND WARRANTY
Agree by
Based at the foot of Mont Blanc in the French Alps, our design team tests every single one of our products in the most demanding conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
Lifetime warranty on (frame, stem, handlebars). Guaranteed for 500 charges.
