Wheels
Rockrider RACE carbon 29"
Internal width:30 mm/front, rear
Number of spokes:24 spokes/front, rear
Disc mount6 holes
Freewheel hub: Shimano HG
Axle types: Standard Boost, 15x110 mm at the front and 12x148 mm at the rear
Tubeless Ready:Yes
Equipped with watertight rim tape: Yes
Weight: 1540g
Brakes
TRP Slate hydraulic disc brakes X2
Number of pistons:2
Front disc: TEKTRO TR35 (180 mm)
Rear disc:TEKTRO TR35 (160 mm)
Disc mount:6 bolts
Weight
S: 11.7 kg
M: 11.8 kg
L: 11.9 kg
XL: 12.1 kg
Net weight without pedals
Suspension
Fork
RockShox SID Base 3 positions (blocked, semi-open, open)
Travel:120 mm
Dampers: 35 mm
Axle: thru axle
Format: 15x110 mm
Shock
RockShox SIDLUXE SELECT+
(with specific internal adjustment for the Race 940S)
Size:190x45 mm

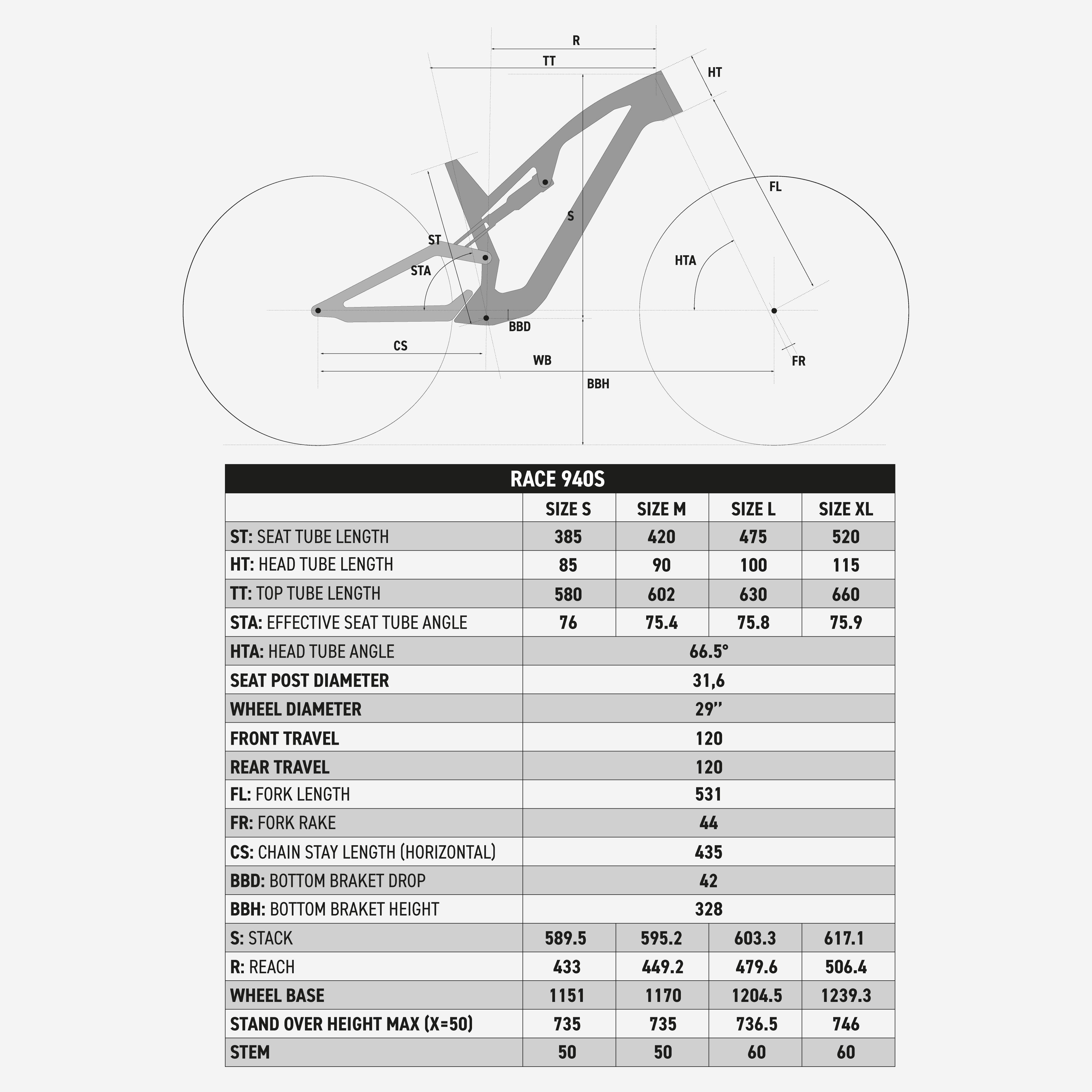

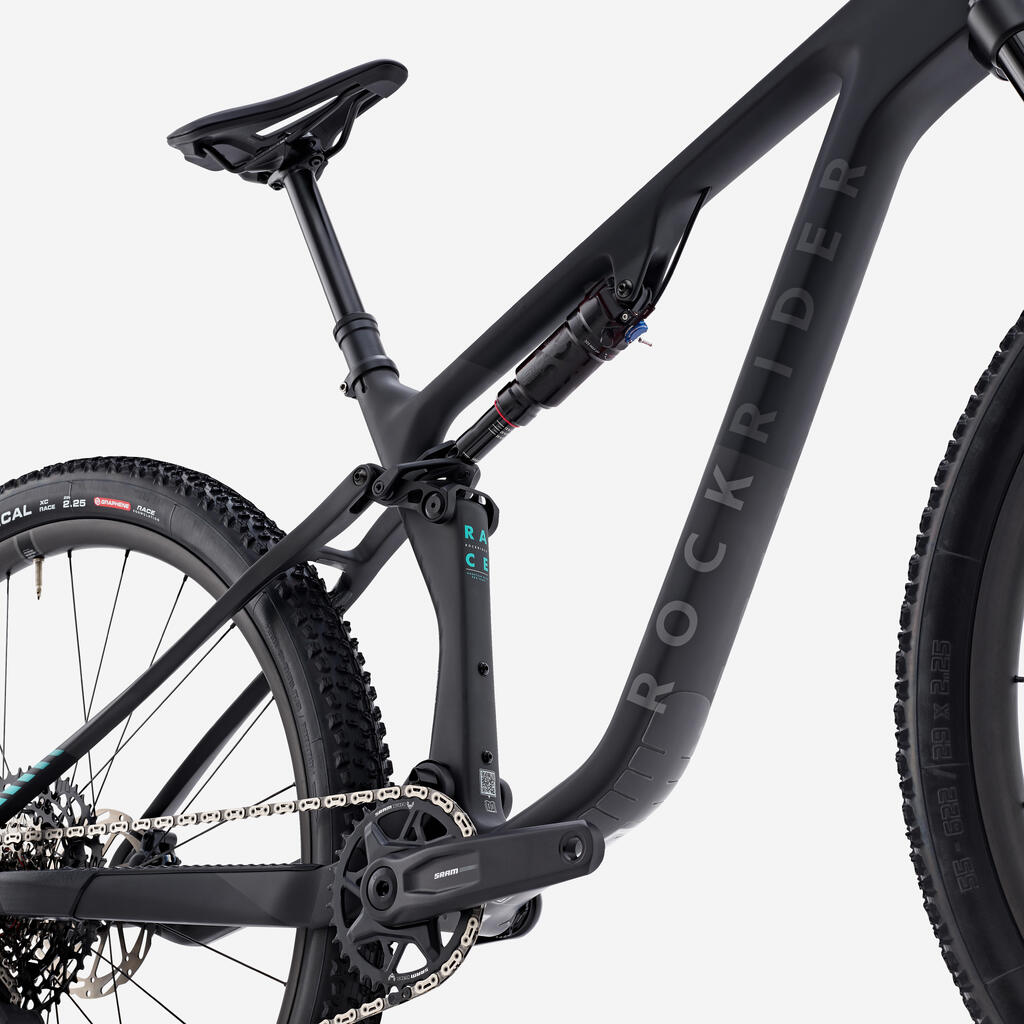

FRAME
Composition: Carbon
Travel:120 mm front/rear
Rear axle:12x148 mm
Type of axle: Thru axle
Bottom bracket:PF92
Seat tube diameter: 31.6 Mm
Bottle cage mount:yes (2 bottles)

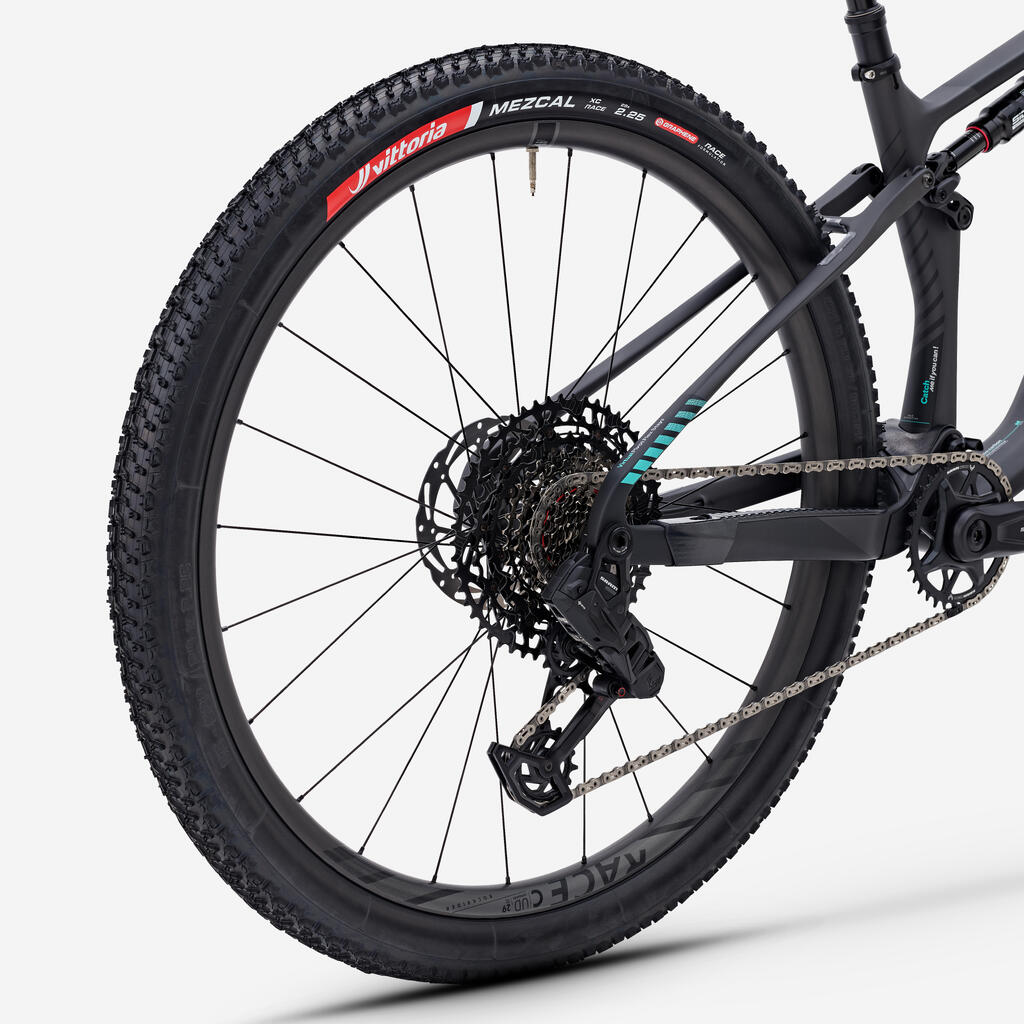

Drivetrain
SRAM AXS
Single chainring: SRAM S1000 EAGLE
34 teeth
Material: Aluminium
Cranks: SRAM S1000 EAGLE
170 mm (sizes S/M) and 175 mm (sizes L/XL)
Material:Aluminium
Rear derailleur: SRAM S1000 EAGLE T-TYPE AXS
12 speeds
Cassette:SRAM EAGLE XS 1270
10-52 teeth
Chain:SRAM EAGLE T-TYPE 70 : 118 links
ACCESSORIES INCLUDED
Your MTB comes with:
- SRAM AXS charger and battery
- 2 x 120 ml bottles of Hutchinson tyre sealant
- 2 tubeless valves
- Torque wrench
- Top tube protector
- Front/rear lights
- Assembly instructions
- Brake calliper spacers

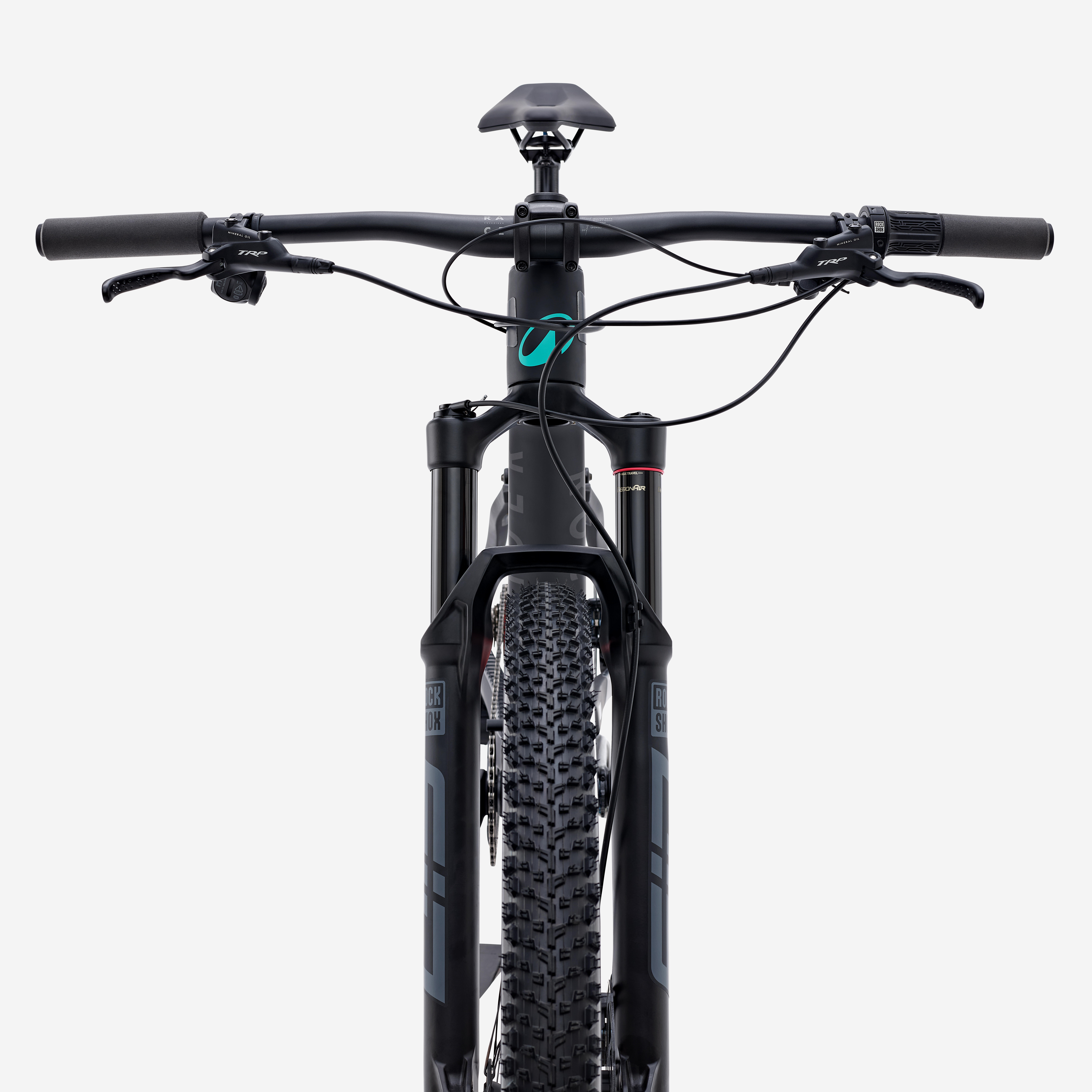

Riding position
Rockrider handlebar
Material:Aluminium
Diameter: 31.8 mm
Width: 760 mm
Rise: 8 mm
Stem: Rockrider
Material: Aluminium
Angle: -20°
Sizes: 60 mm (S/M), 70 mm (L/XL)
Grips: Rockshox silicone
Pedals
Rockrider FLAT EVO platform pedals
Material: resin
/ Seat post
Rockrider light 30° saddle
Width:145 mm
Length: 260 mm
Weight: 240 G
TRANZX seat post YSI36
Material:Aluminium
Diameter: 31.6 mm
Travel: 120 mm (size S), 150 mm (size M/L/XL)
Weight:450 g
In a nutshell
Weight: 11.8 kg in size M (without pedals)
Frame material: Carbon
Type: Full suspension
Wheel size: 29"
Fork travel: 120 mm
Shock travel:120 mm
Drive train: 1x12
Brakes: hydraulic disc
Seat post: Telescopic
5-year warranty on the frame/2 years for the components
Tyres
Vittoria
Mezcal Race 29"" x 2.25""
Tubeless Ready:Yes
