Joint development with the Decathlon CMA CGM team
The RCR-G is the result of a close collaboration with our pro cyclists. Every detail, from the frame geometry to the stiffness points, has been tested on international circuits to give you the same bike as the riders on the Decathlon CMA CGM team. That’s your guarantee of a product built for success.
Technical specifications
Frame: RCR-G carbon (high-modulus fibre)
Fork: carbon (high-modulus fibre)
Drivetrain: SRAM Red AXS E1 XPLR 13-speed (44T - 10/46)
Brakes: SRAM Red AXS E1
Wheels: VAN RYSEL VR50 Carbon
Tyres: CONTINENTAL TERRA COMP TR (45 mm).
Weight: 7.7 kg (size M, without pedals)

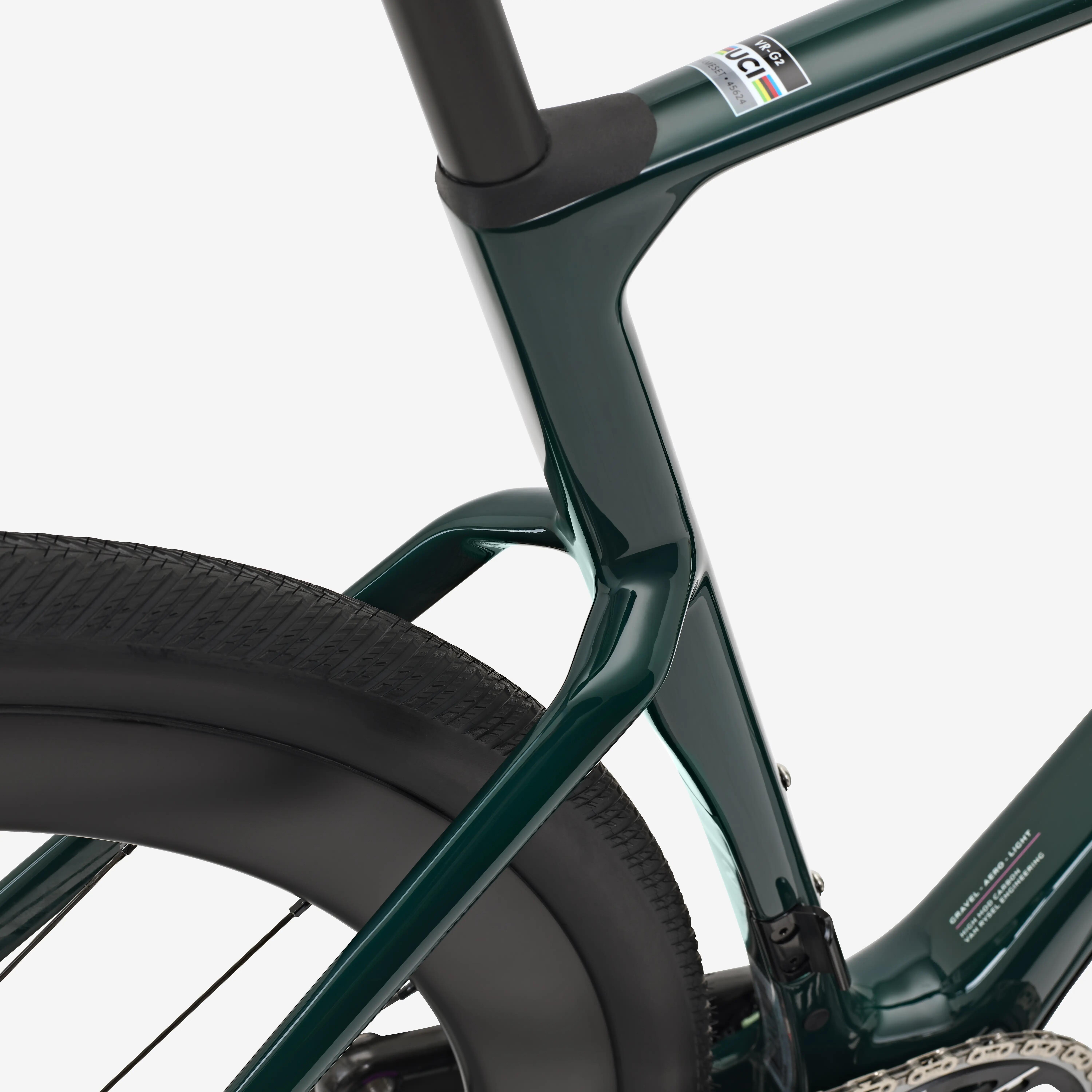

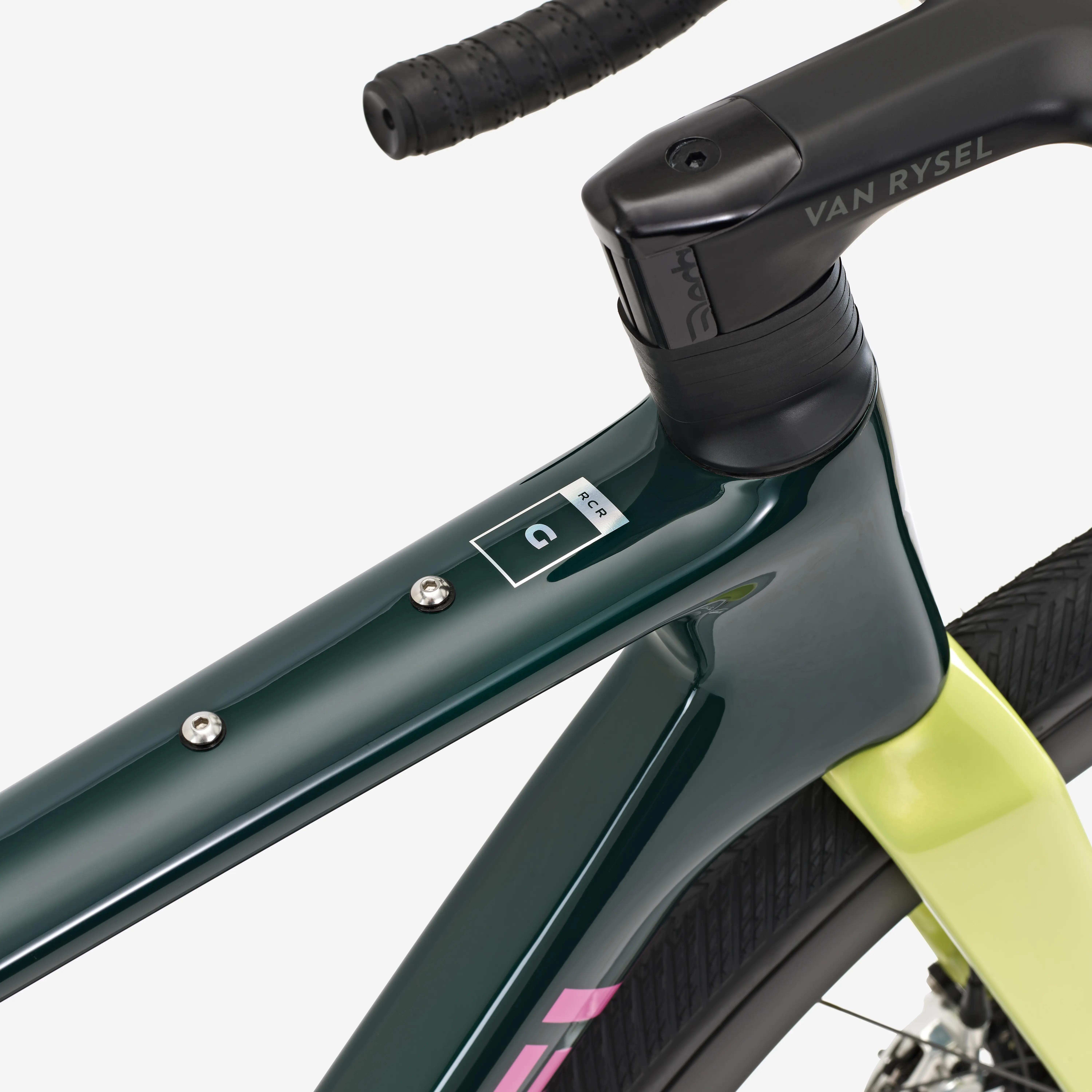

Frame and Fork
frame: VAN RYSEL RCR-G
Composition: High-modulus carbon
Maximum tyre clearance: 50 mm front / 47 mm rear
Number of inserts: 8 frame mounts – 3 bottle cages – 1 nutrition pannier
Fork: high-modulus carbon
Front axles: 12 x 100 mm
Rear axles: 12 x 142 mm
UDH compatibility: yes
Dual-chainring compatibility: yes
Gross frame weight: 895 g (size M)
Gross fork weight: 415 g

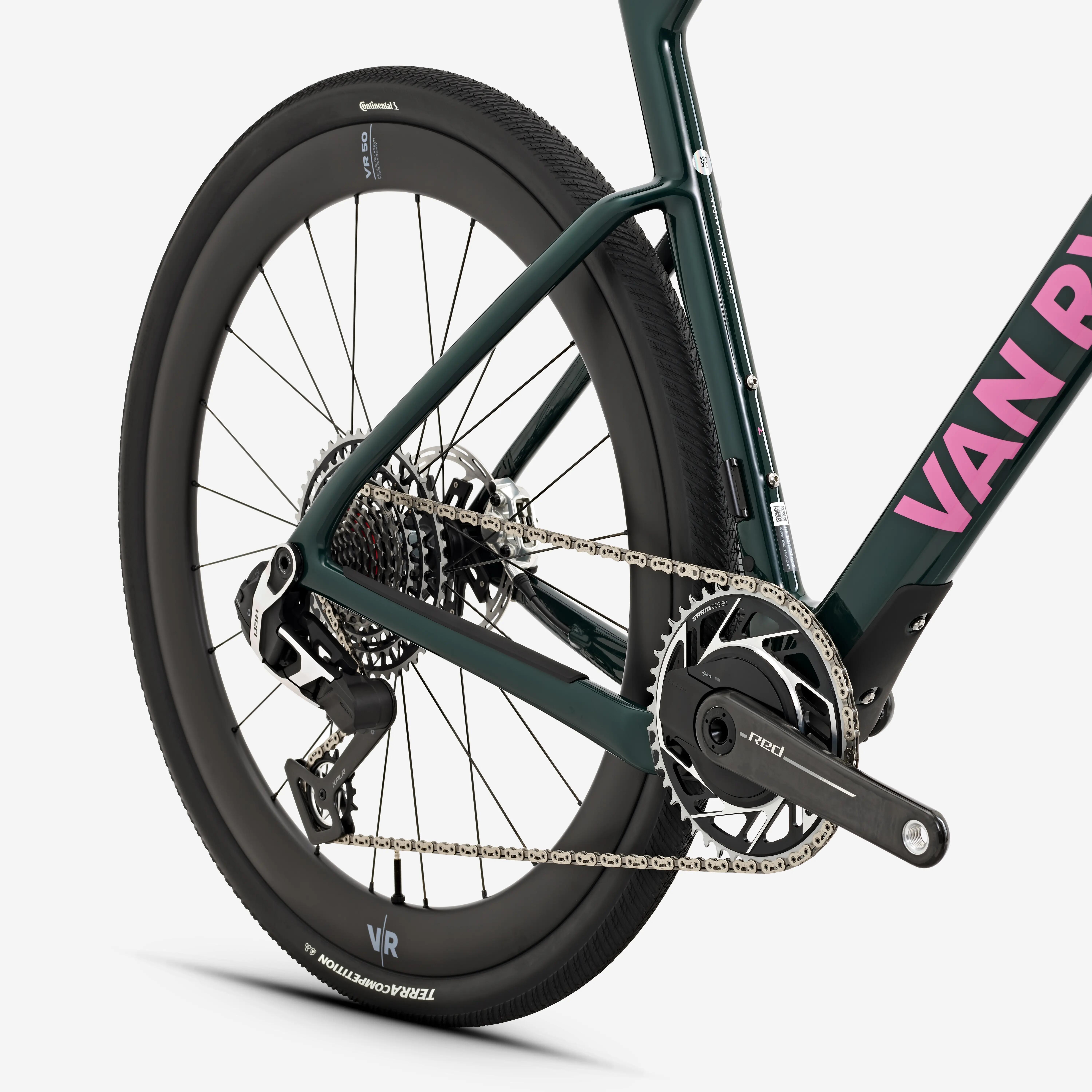

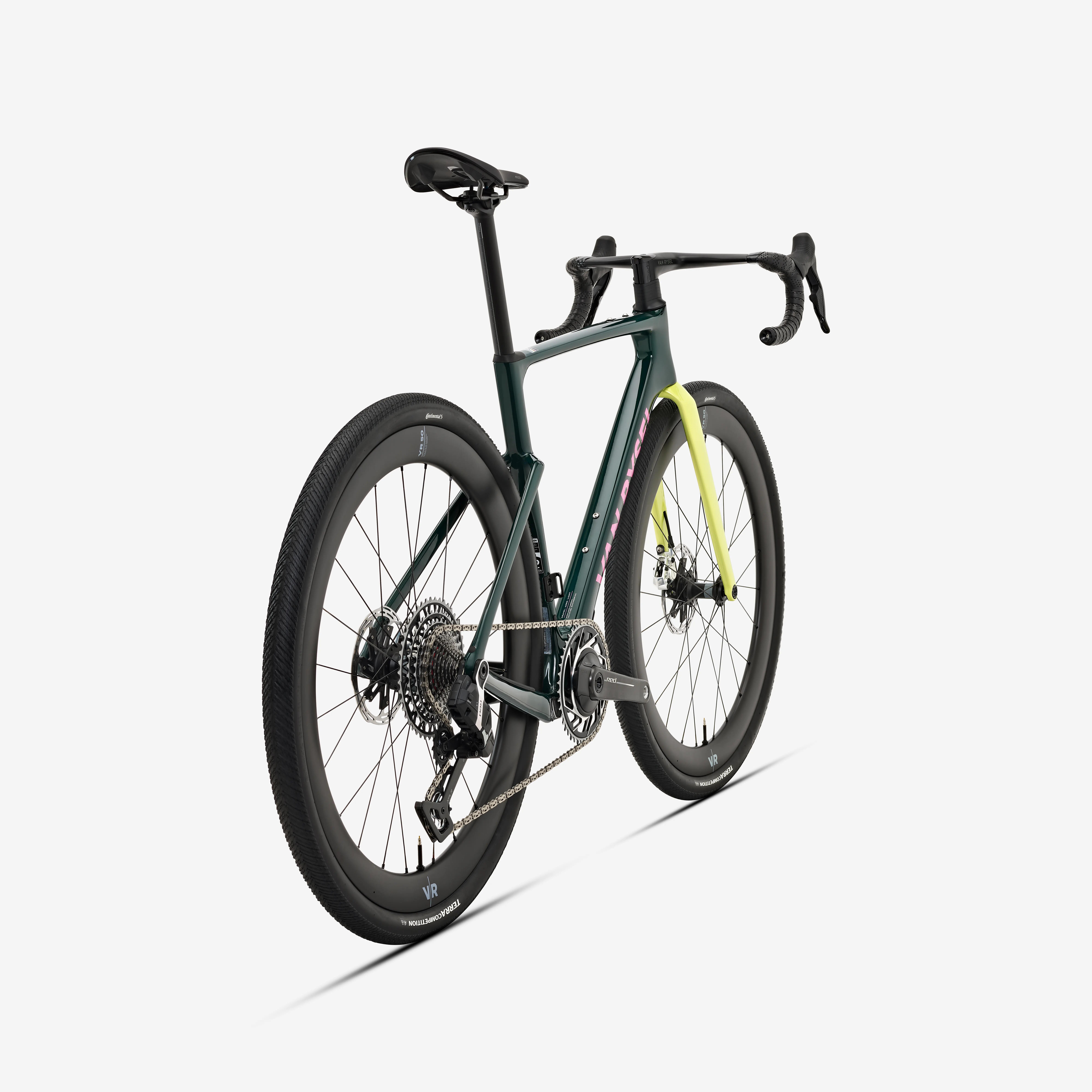

Transmission
Groupset: SRAM RED AXS E1 XPLR 13-speed (Electronic)
Chainring: SRAM RED AXS E1 44-Tooth

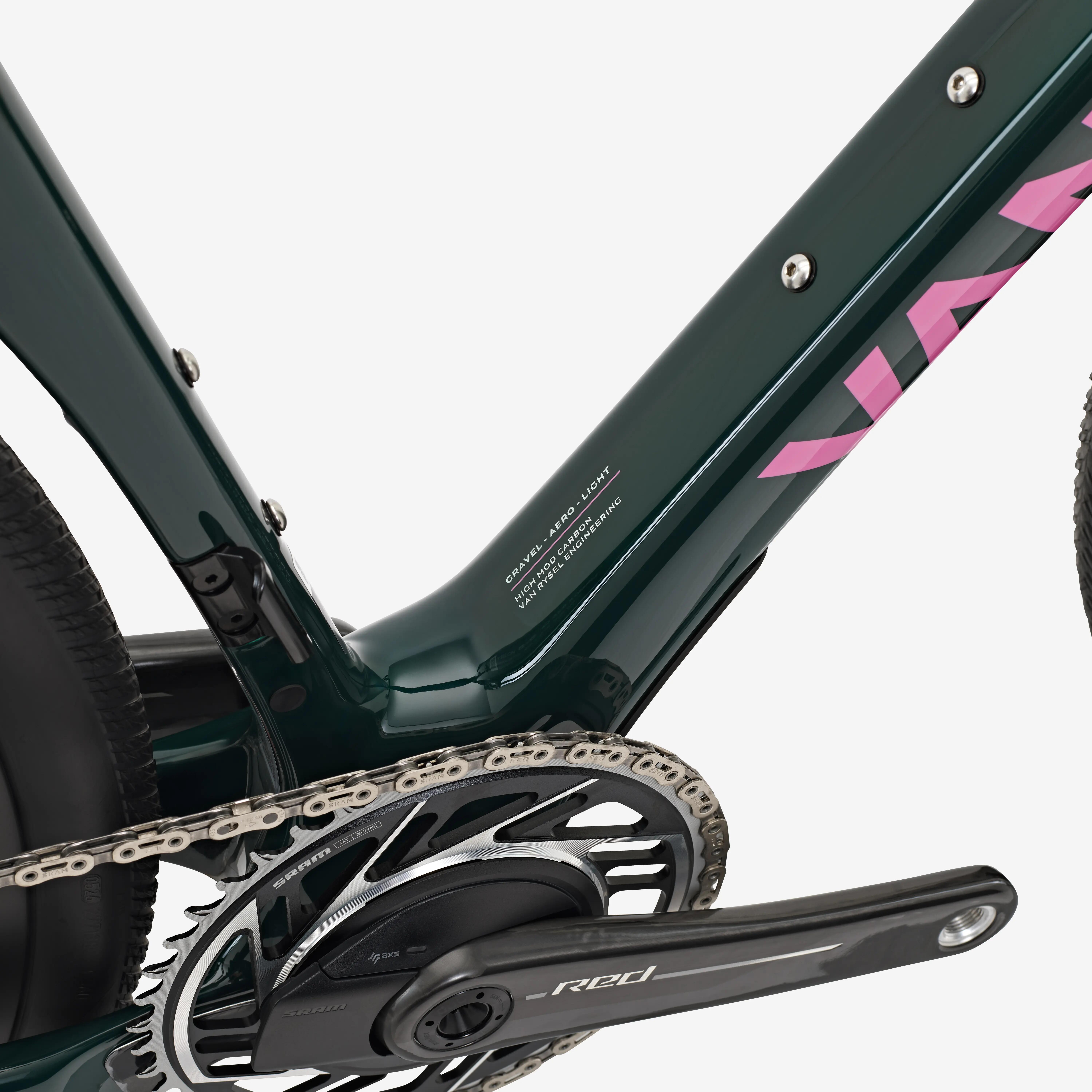

Crank arms: SRAM RED AXS E1 spider power meter
Crankset length: 165 mm (XS/S) / 170 mm (M/L) / 172.5 mm (XL)
Bottom bracket: BB DUB PF 86.5 ROAD WIDE
Cassette: SRAM RED AXS E1 13-speed 10/46
Chain: SRAM RED AXS E1
Front derailleur: Not applicable
Rear derailleur: SRAM RED XPLR AXS E1
Gear shifter: SRAM RED AXS E1
Power meter: SRAM RED spider

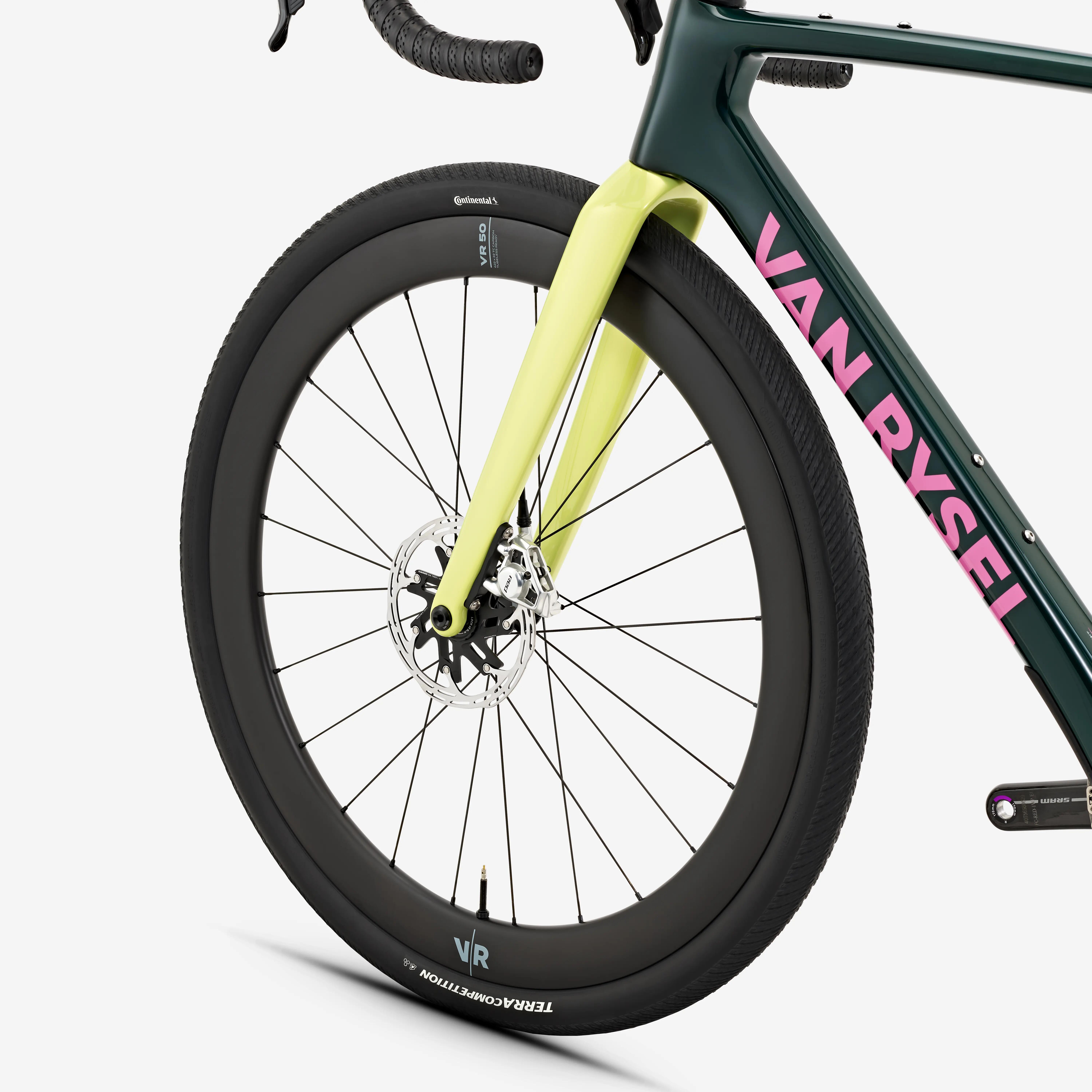

wheelset

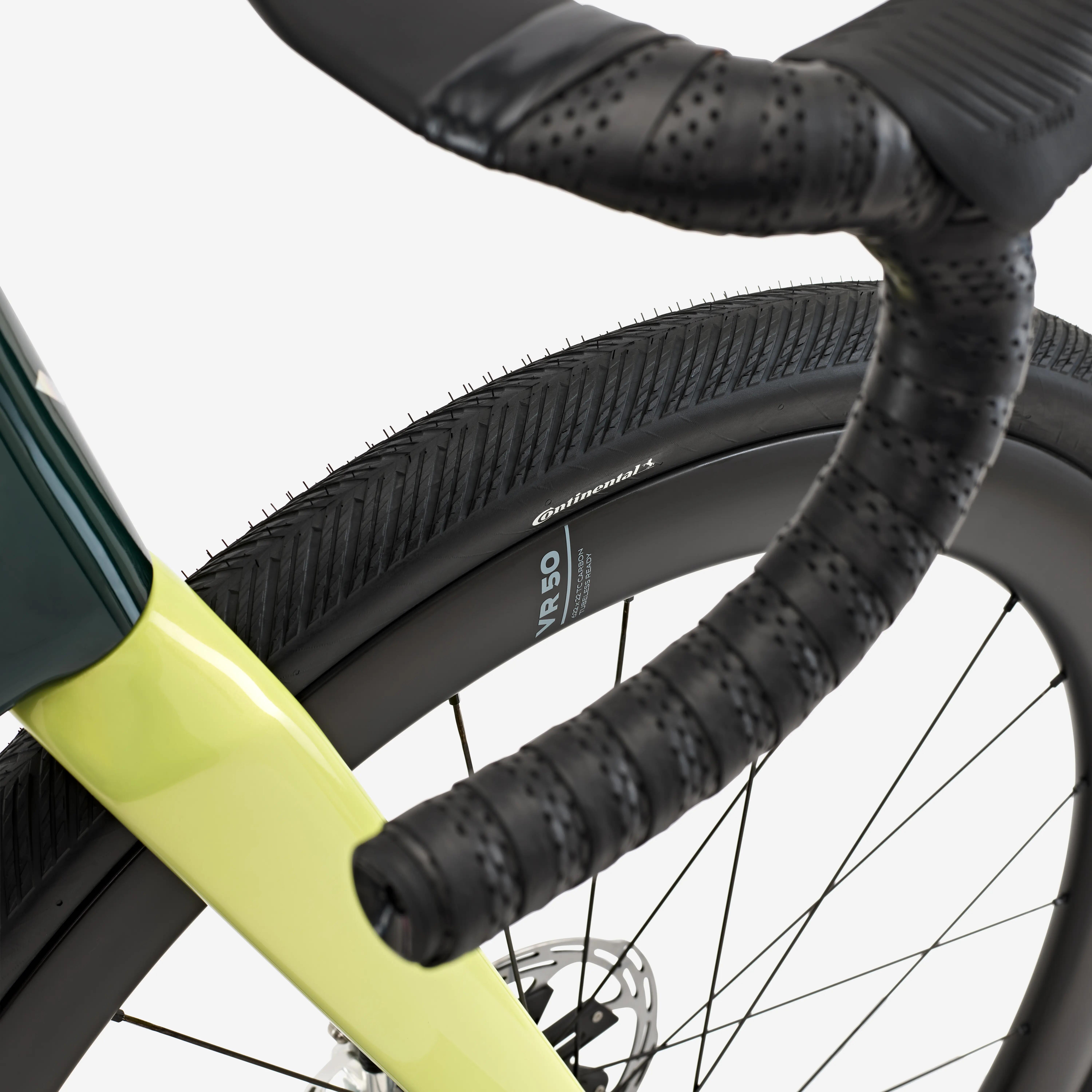

Wheels: VAN RYSEL VR50 Carbon
Rim material: carbon
Rim type: with hooks
Tubeless Ready: yes
Braking: Centrelock disc rotor
Rim height: 50mm
Internal width: 22 mm TC
Front hub: DT Swiss DT370 Classic 24-spoke
Rear hub: DT Swiss DT370 Classic XRG 24-spoke
Weight (pair): 1550 g
Tyres
Tyres: CONTINENTAL TERRA COMP TR
Front tyre size: 700x45
Rear tyre dimensions: 700x45
Maximum pressure: 4.5 bar
Tubeless Ready: Yes
Brakes
Brakes: SRAM RED AXS E1 hydraulic
Front disc rotor: Paceline X 160 mm
Rear disc rotor: Paceline X 160 mm
Disc rotor mount: Centrelock

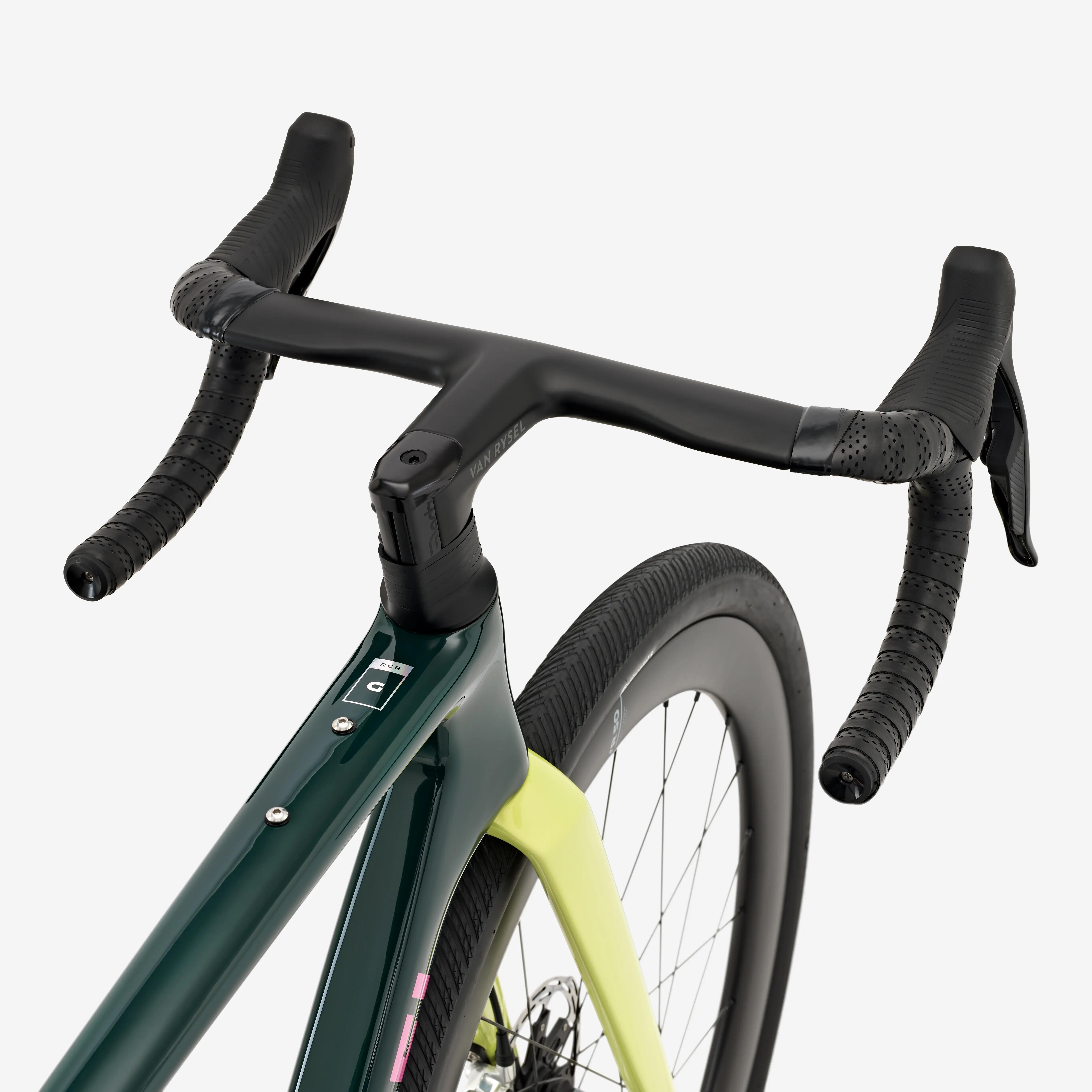

Riding position

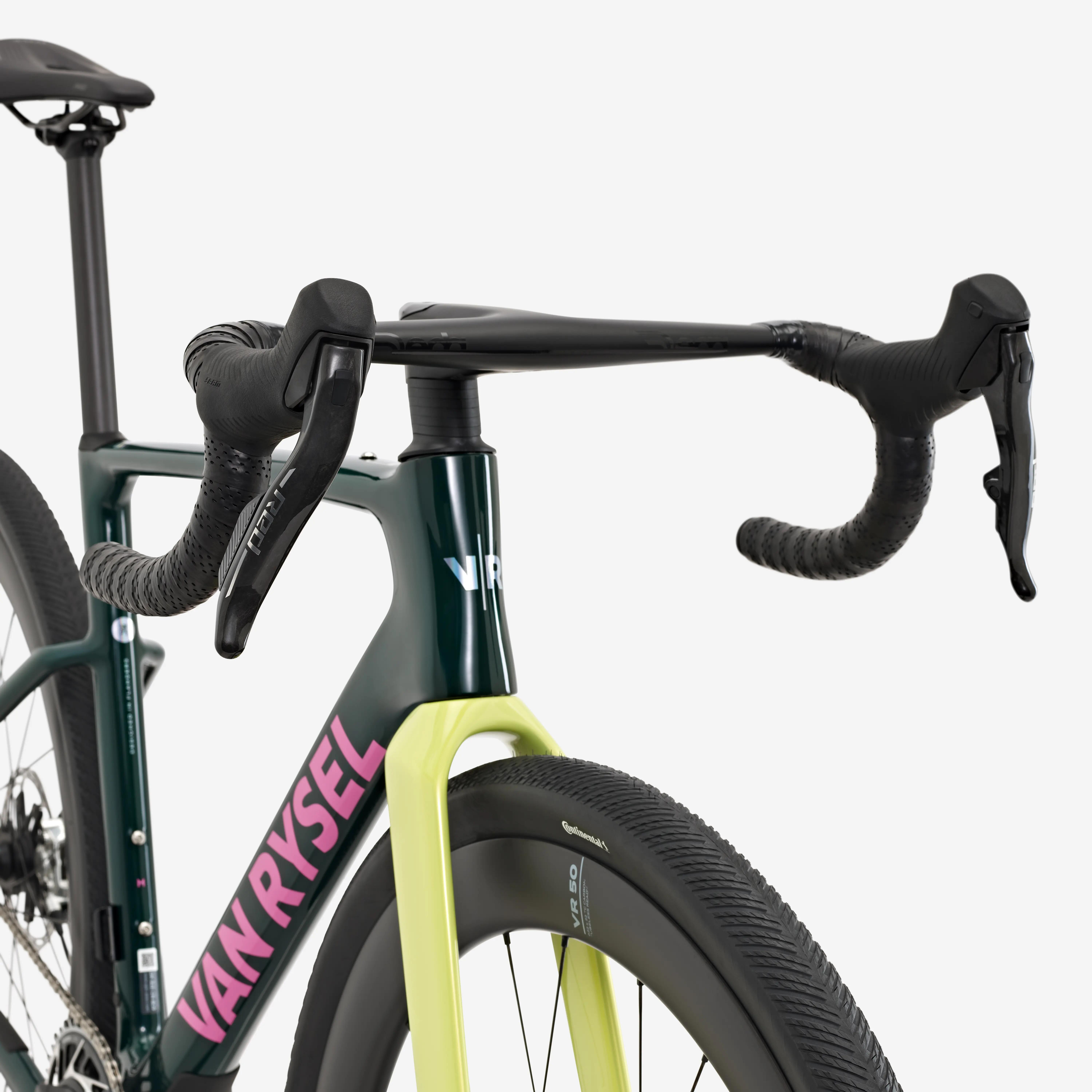

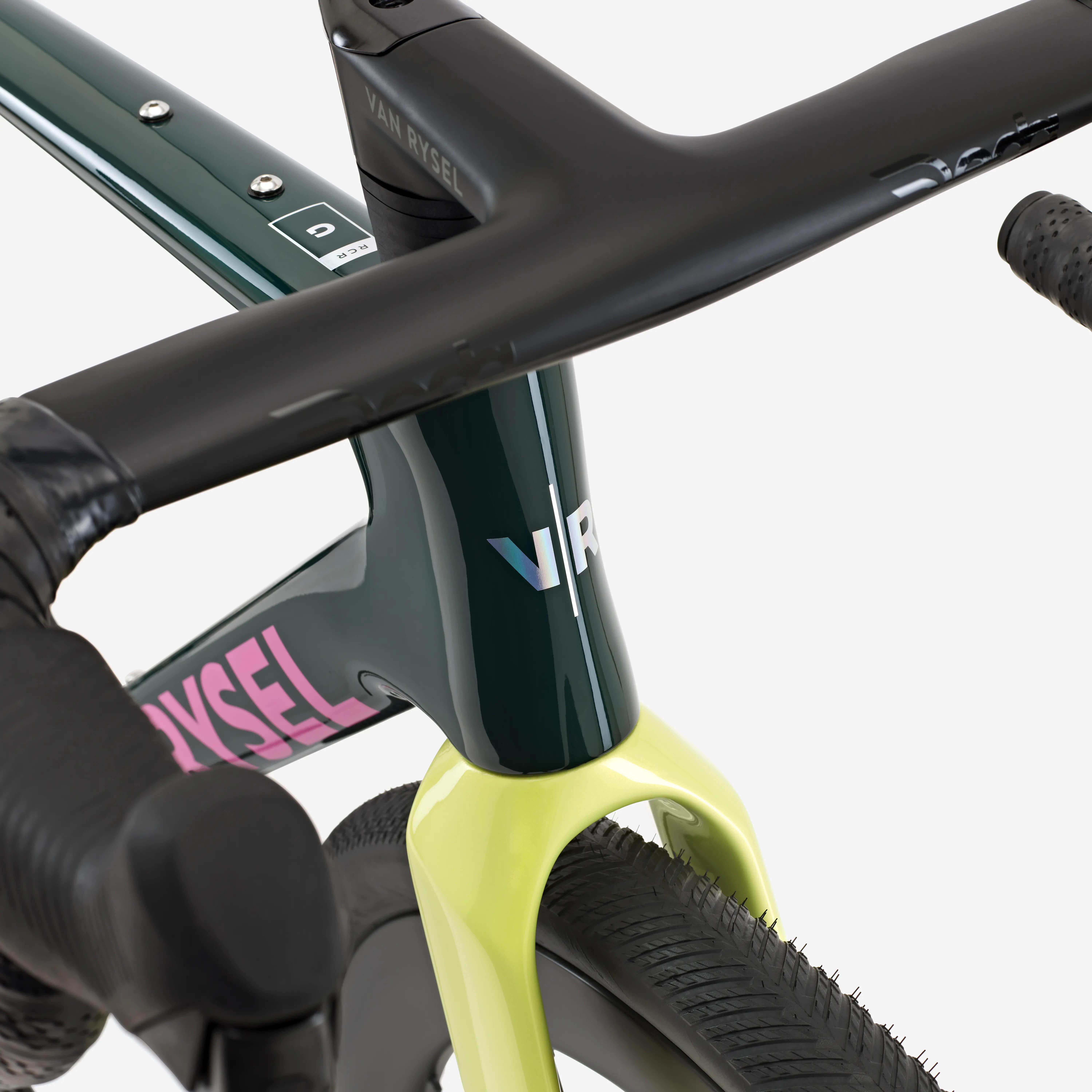

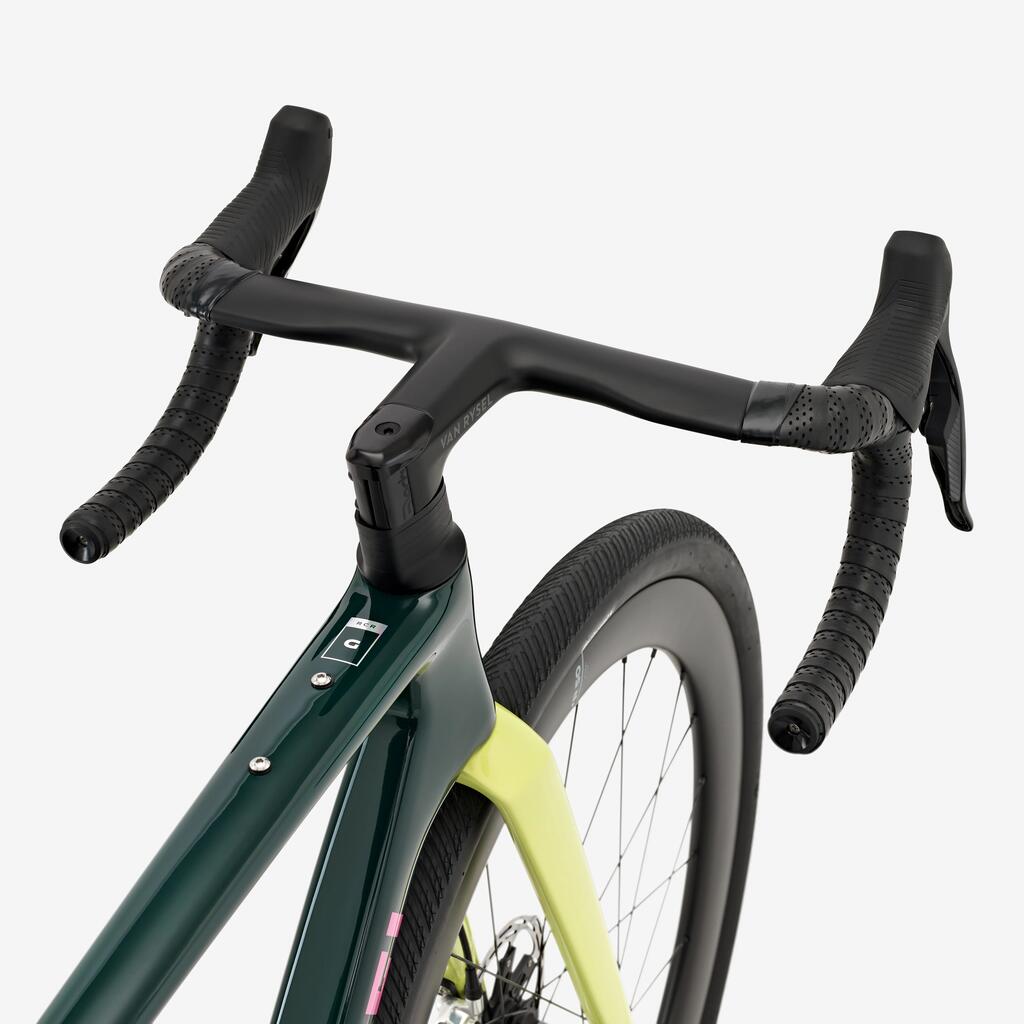

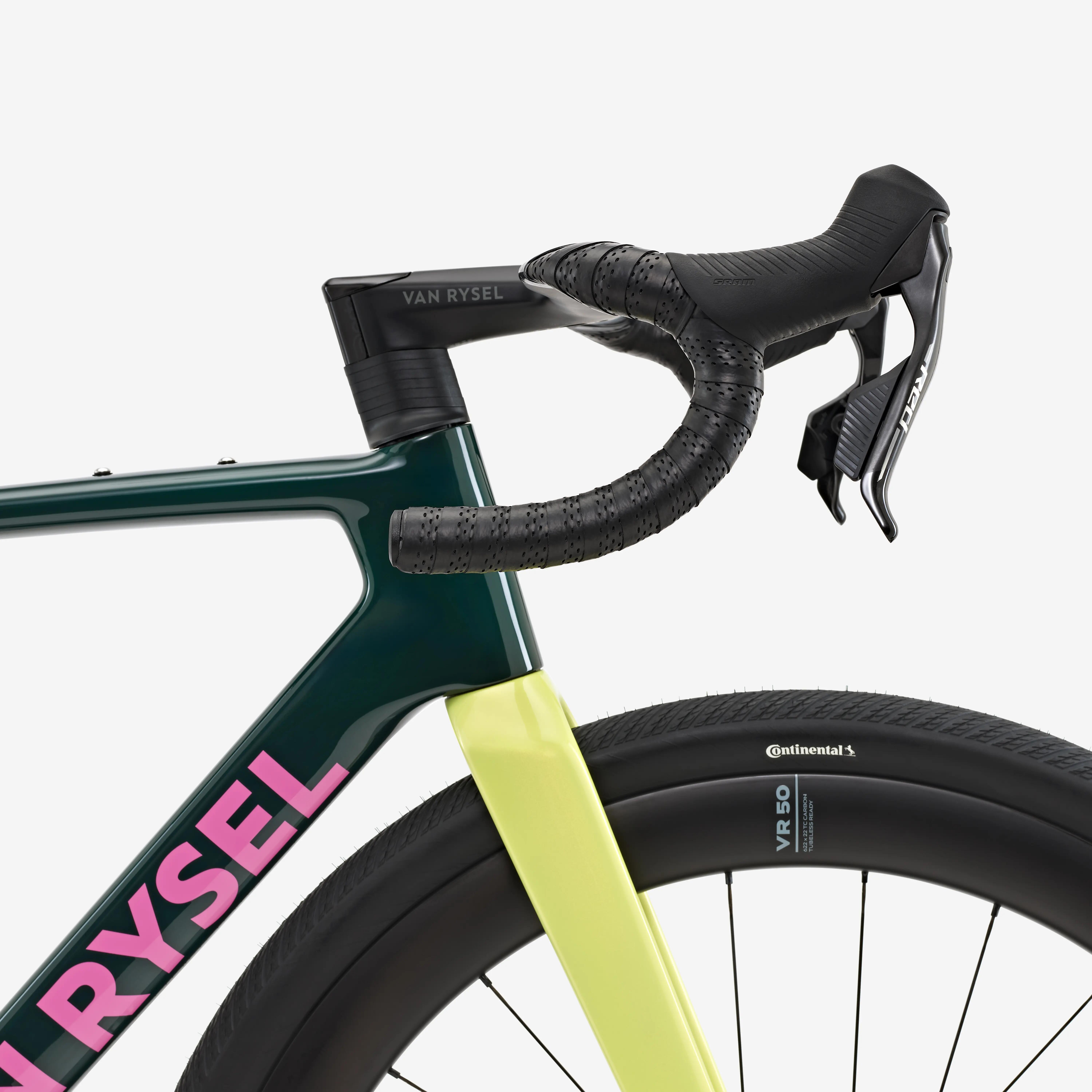

VAN RYSEL RCR Pro Combo
Material: Carbon
Dimensions (Stem length / Handlebar width measured at the ends):
XS 90 mm/380 mm - S 90 mm/400 mm - M 100 mm/400 mm - L 110 mm/400 mm - XL 120 mm/400 mm
Flare: 7°
Internal cable routing: yes
Handlebar tape: VAN RYSEL EDR ULTRA

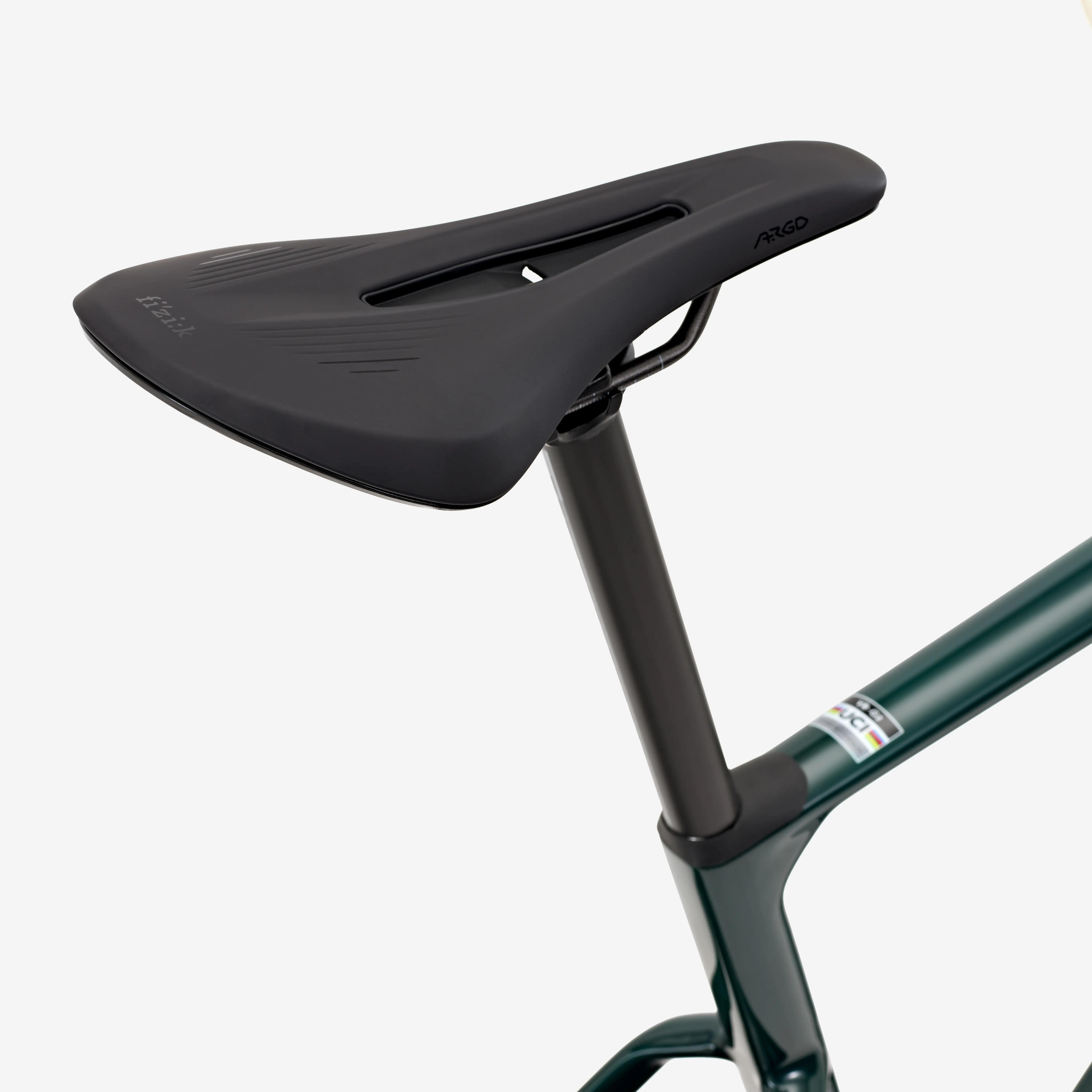

Saddle & seat post
Saddle: Fizik Vento Argo X3
Seat post: VAN RYSEL carbon
Diameter: 27.2 mm
Length: XS/S 300 mm - M 350 mm - L/XL 400 mm
ACCESSORIES INCLUDED
Pedals: flat
Tubeless valves: included
Puncture-proof fluid: included
Torque wrench: included
Lights: included (front and rear)
Bell: included
Battery charger: Comes with:
Weight
Size M: 7.7 kg (tubeless setup, excluding pedals and accessories)
Weights may vary depending on colour, frame size and component specifications.
Maximum load (rider + load): 110 kg
