Joint development with the Decathlon CMA CGM team
The RCR-G is the result of a close collaboration with our pro cyclists. Every detail, from the frame geometry to the stiffness points, has been tested on international circuits to give you the same bike as the riders on the Decathlon CMA CGM team. The guarantee of a product built for success.
Technical specifications
Frame: RCR-G carbon (high-modulus fibre).
Fork: carbon (high-modulus fibre).
Drivetrain: SRAM Rival AXS E1 XPLR 13-speed (40T - 10/46)
Brakes: SRAM Rival AXS E1
Wheels: VAN RYSEL VR30 Aluminium
Tyres: CONTINENTAL TERRA SPEED TR (45 mm).
Weight: 8.6 kg (size M, without pedals)
Frame and Fork

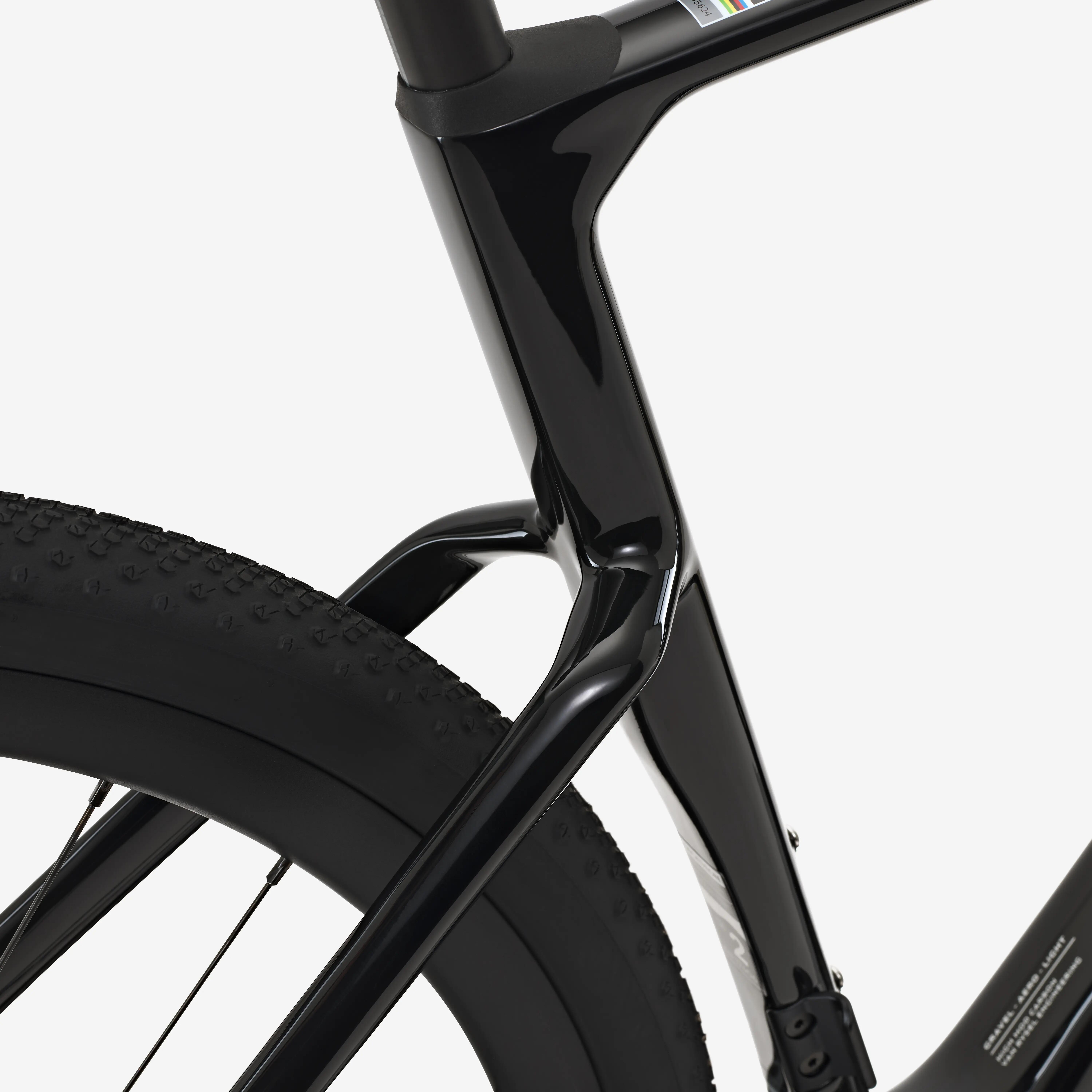

frame: VAN RYSEL RCR-G
Composition:High-modulus carbon
Maximum tyre clearance:50 mm front / 47 mm rear
Number of inserts:8 frame mounts – 3 bottle cages – 1 nutrition pannier
Fork:high-modulus carbon
Front axles:12 x 100 mm
Rear axles: 12 x 142 mm
UDH compatibility:yes
Dual-chainring compatibility:yes
Gross frame weight:895 g (size M)
Gross fork weight: 415 g

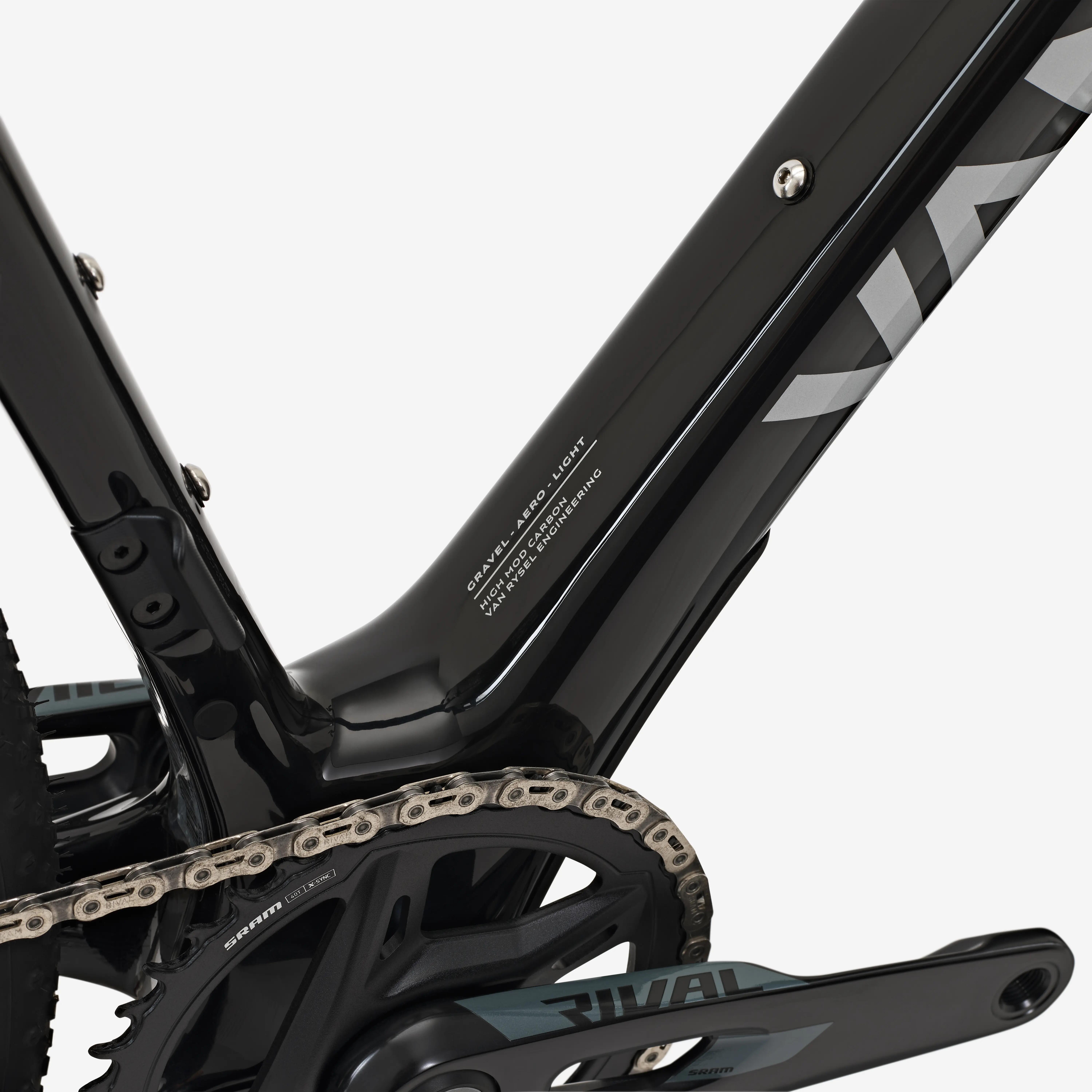

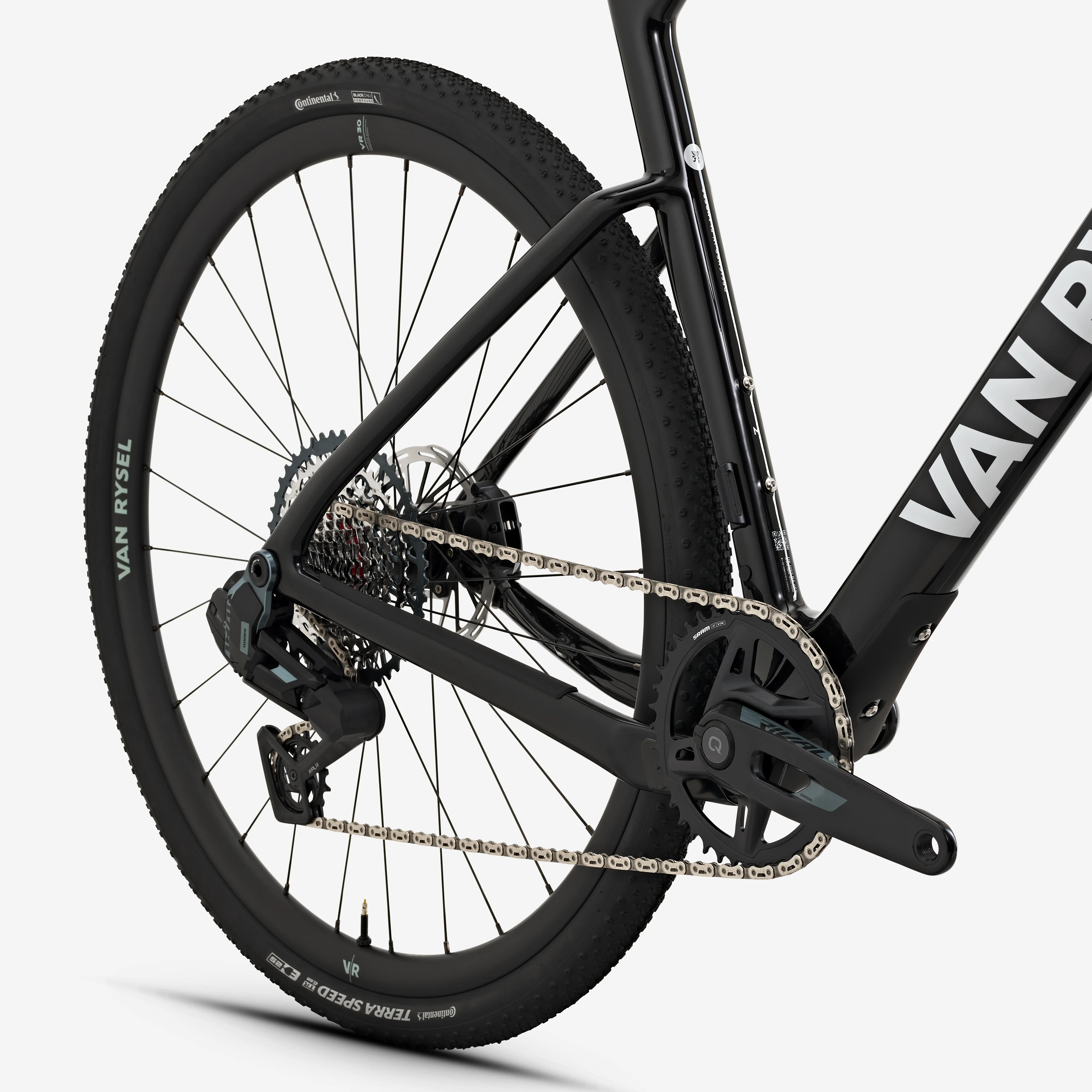

Drivetrain
Groupset: SRAM RIVAL AXS E1 XPLR 13-speed (Electronic)
Chainring: SRAM RIVAL AXS E1 40-tooth
Crank arms: SRAM RIVAL AXS E1 spindle-based power meter
Crankshaft length: 165 mm (XS/S) / 170 mm (M/L) / 172.5 mm (XL)
Bottom bracket: BB DUB PF 86.5 ROAD WIDE
Cassette: SRAM RIVAL AXS E1 13-speed 10/46
Chain: SRAM RIVAL AXS E1
Front derailleur: Not applicable
Rear derailleur: SRAM RIVAL XPLR AXS E1
Gear shifter: SRAM RIVAL AXS E1
Power meter: SRAM RIVAL spindle

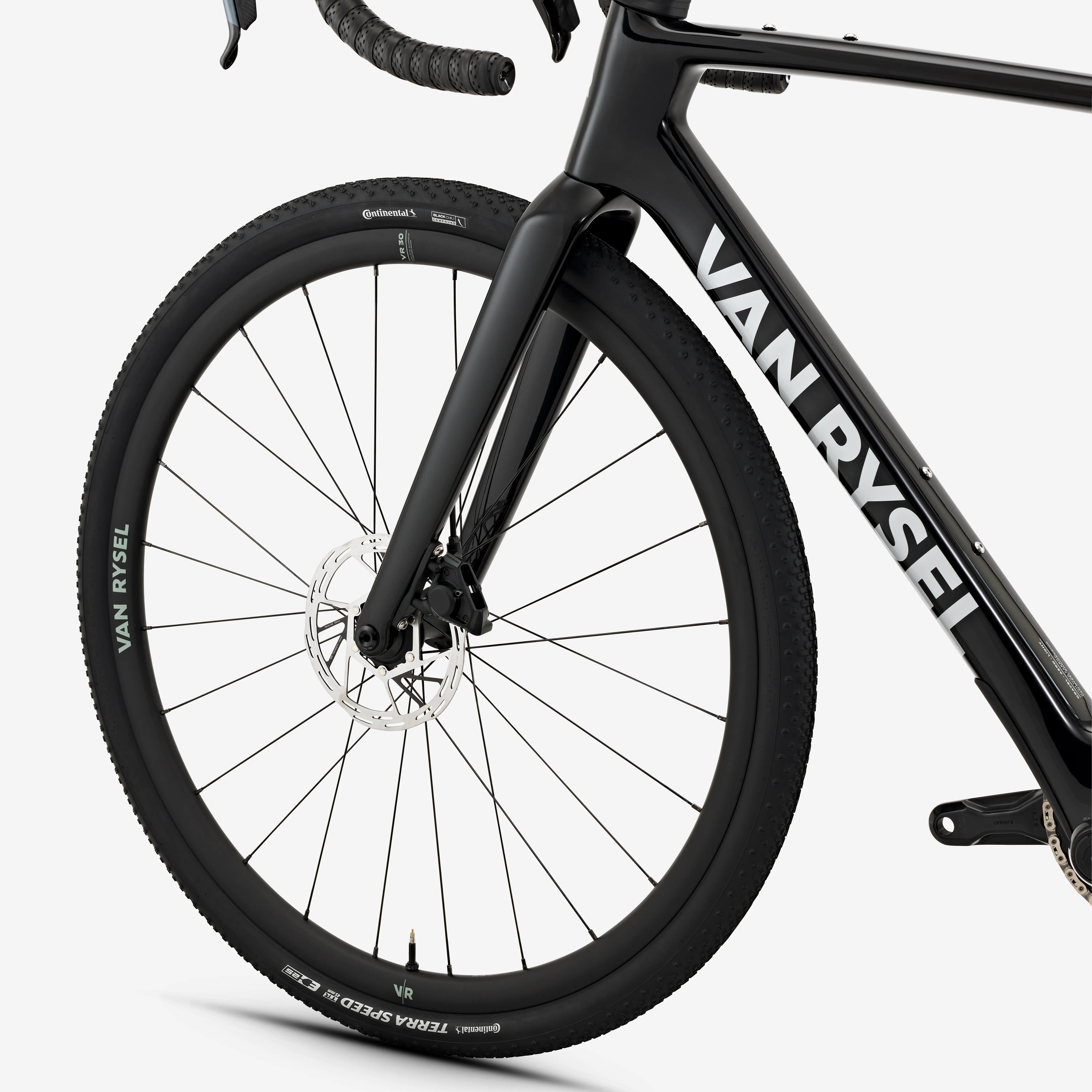

Wheels
Wheels: VAN RYSEL VR30 Aluminium
Rim material: aluminium
Type of rim: with hooks
Tubeless Ready: yes
Braking: Centerlock disc rotor
Rim height: 30mm
Internal width: 21.5 mm
Front hub: 24-spoke VR
Rear hub: VR 28-spoke
Weight per pair: 1750 g
Tyres
Tyres: CONTINENTAL TERRA SPEED TR
Front tyre dimensions: 700x45
Rear tyre dimensions: 700x45
Maximum pressure: 4.5 bar
Tubeless Ready: Yes
Brakes
Brakes: SRAM FORCE AXS E1 hydraulic
Front disc rotor: Paceline 160 mm
Rear disc rotor: Paceline 160 mm
Disc rotor mount: Centerlock

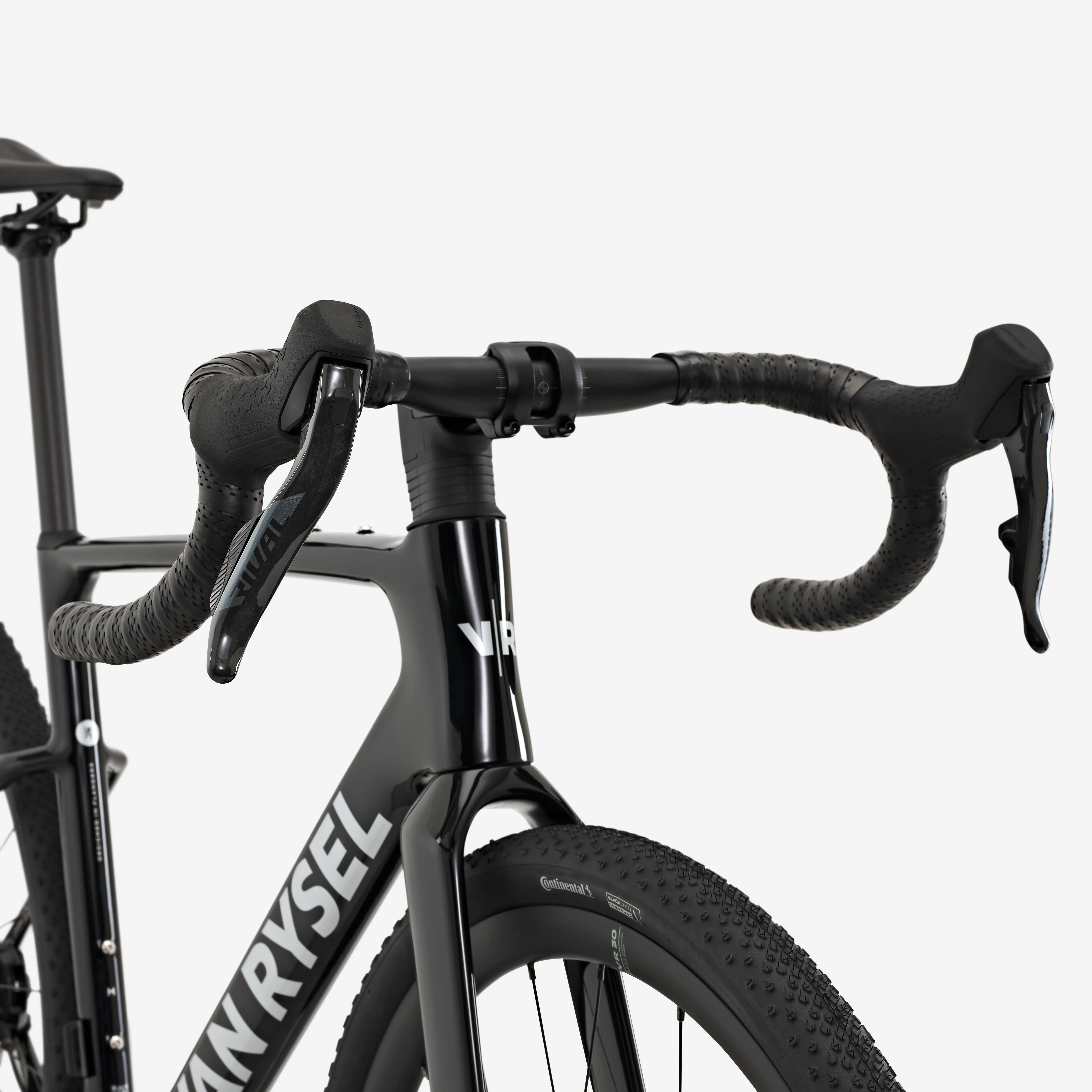

Riding position

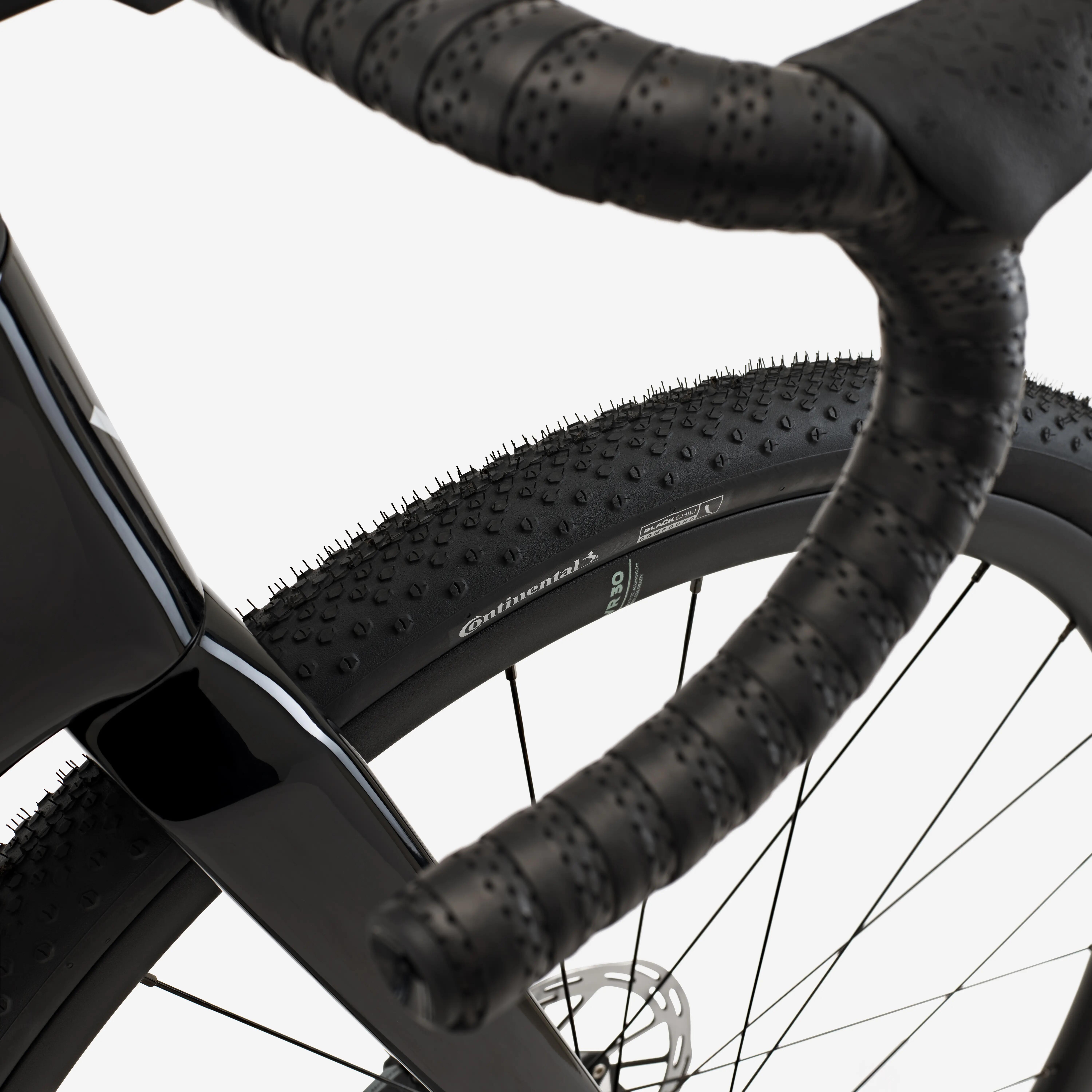

VAN RYSEL VR AL Handlebar
Material: Aluminium
Dimensions (centre-to-centre handlebar width measurement):
XS/S/M 380 mm - L/XL 400 mm
Flare: 10°

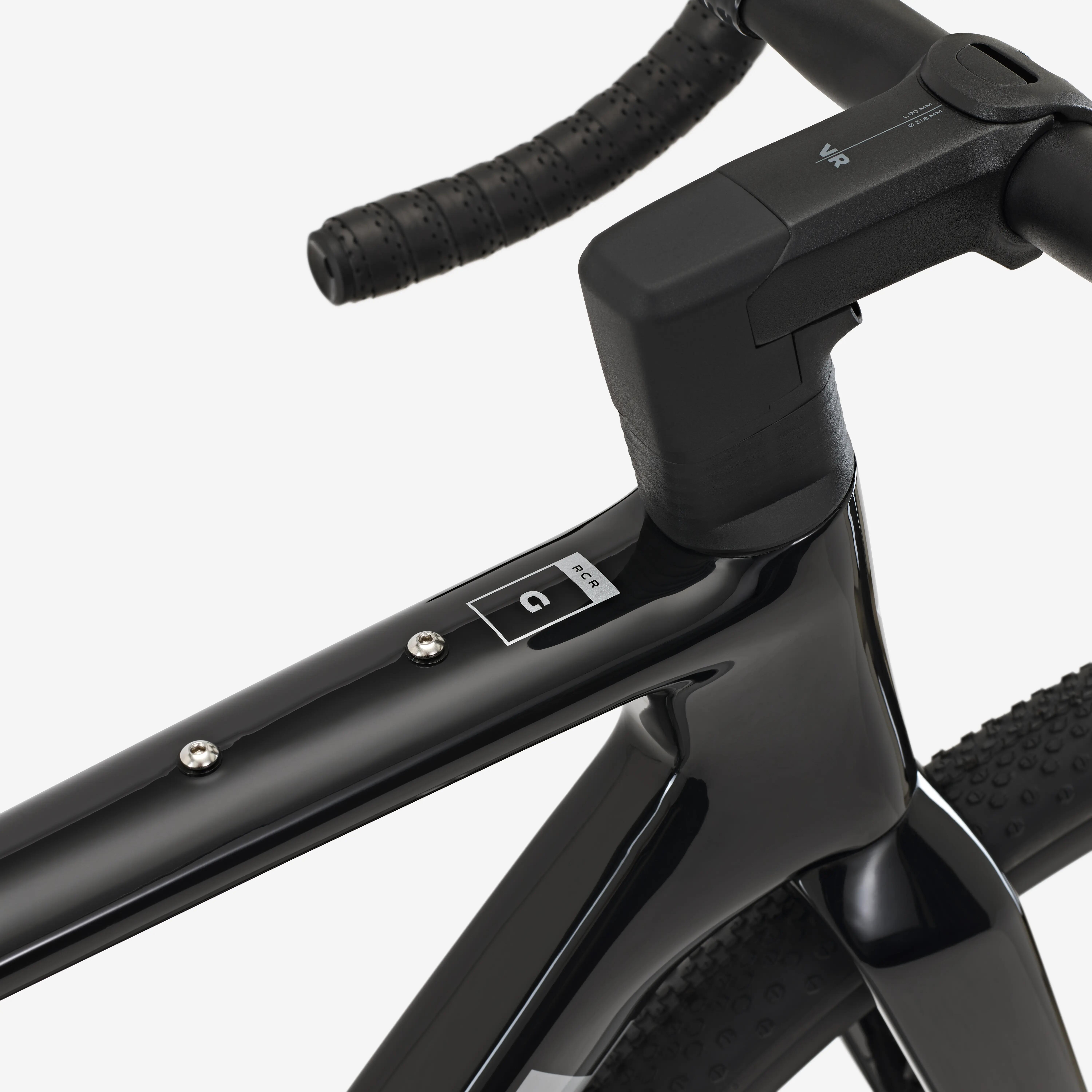

VAN RYSEL VR AL stem
Material: Aluminium
Length:
XS 70 mm - S 80 mm - M 90 mm - L 100 mm - XL 110 mm
Internal cable routing: yes
Handlebar tape: VAN RYSEL EDR ULTRA
Saddle & seat post

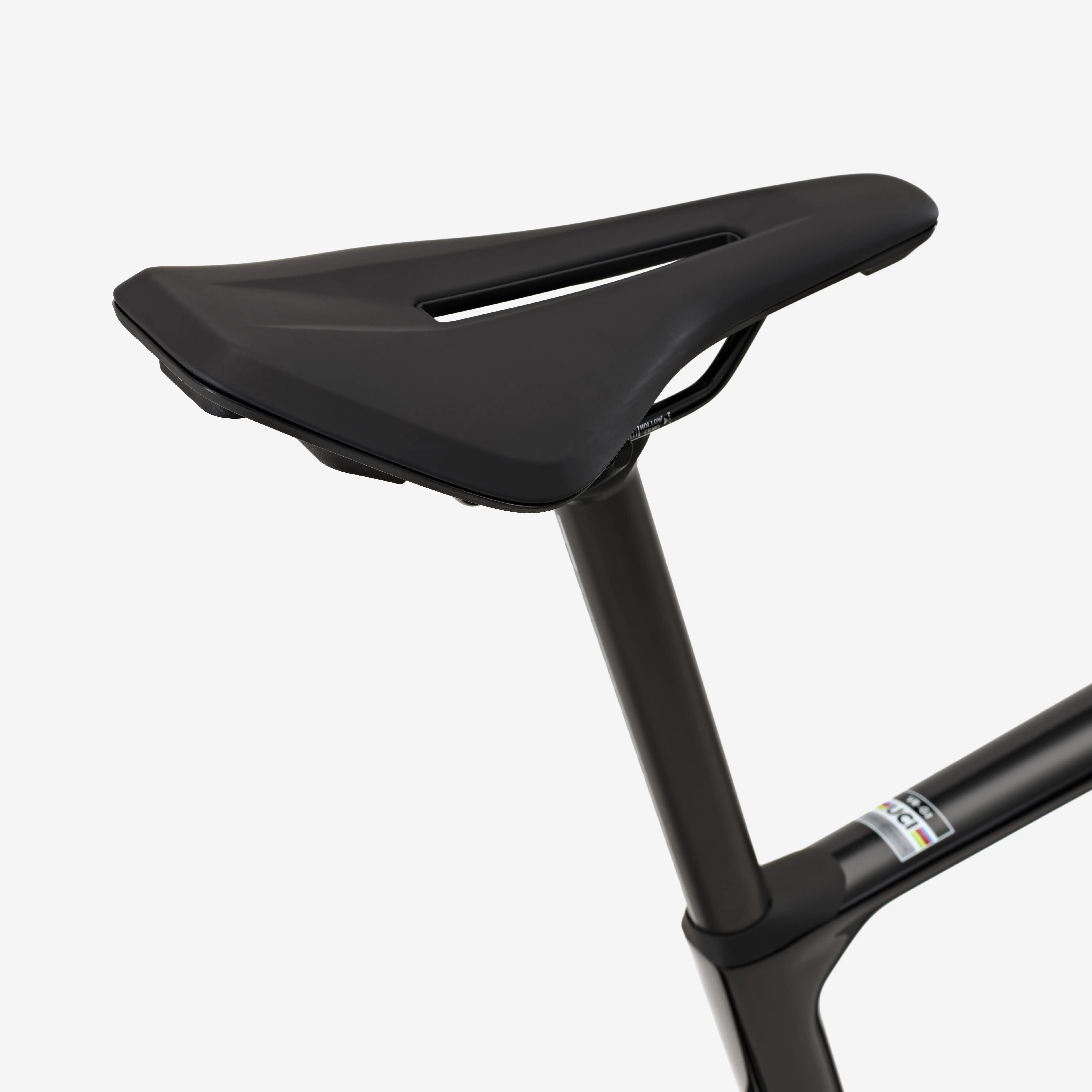

Saddle: VAN RYSEL VR
Seat post: VAN RYSEL
Diameter: 27.2 mm
Length: XS/S 300 mm - M 350 mm - L/XL 400 mm
ACCESSORIES INCLUDED
Pedals: flat
Tubeless valves: included
Puncture-proof fluid: included
Torque wrench: included
Lights: included (front and rear)
Bell: included
Battery charger: Comes with:
Weight
Size M: 8.6 kg (tubeless setup, excluding pedals and accessories)
Weights may vary depending on colour, frame size and component specifications.
Maximum load (rider + load): 110 kg
