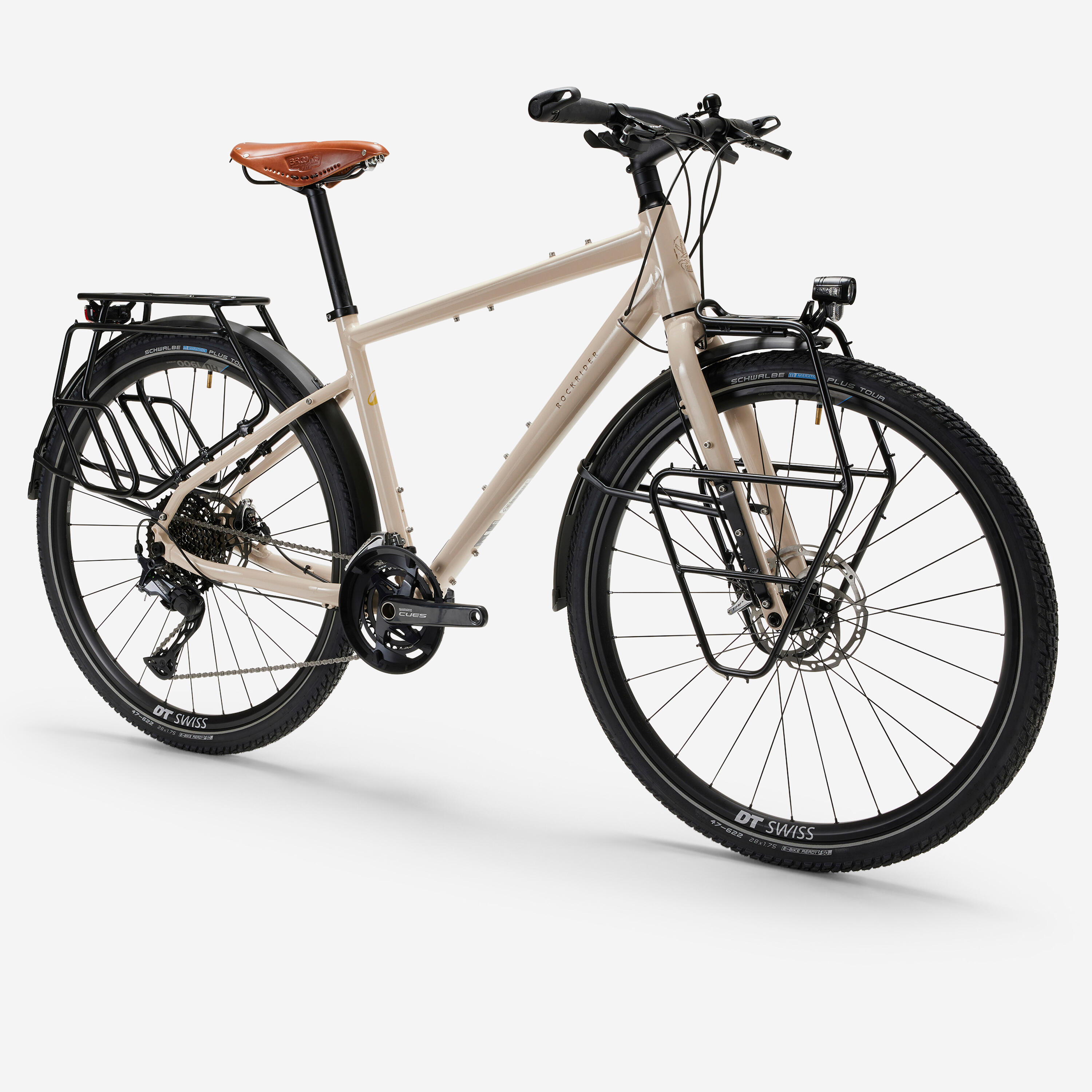

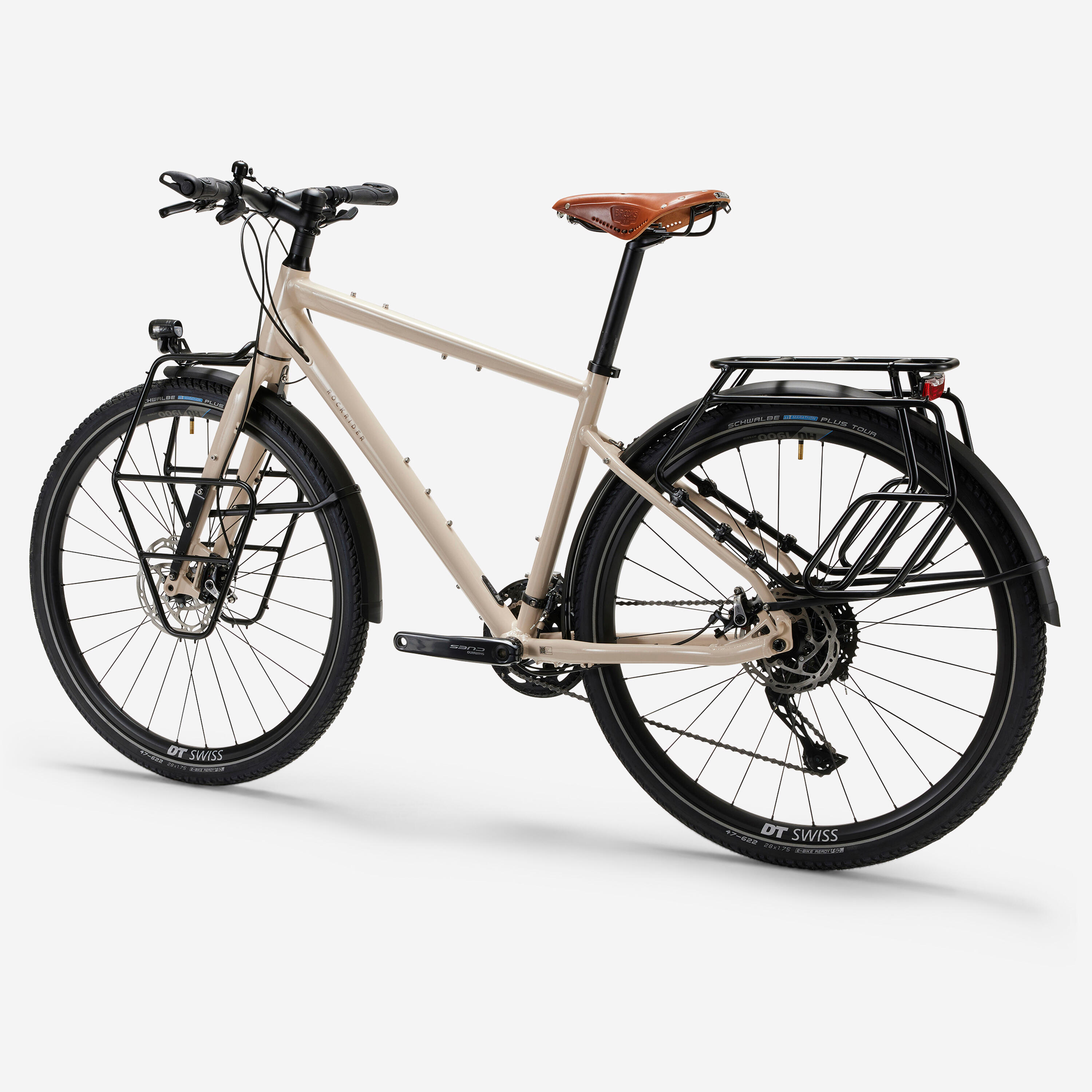

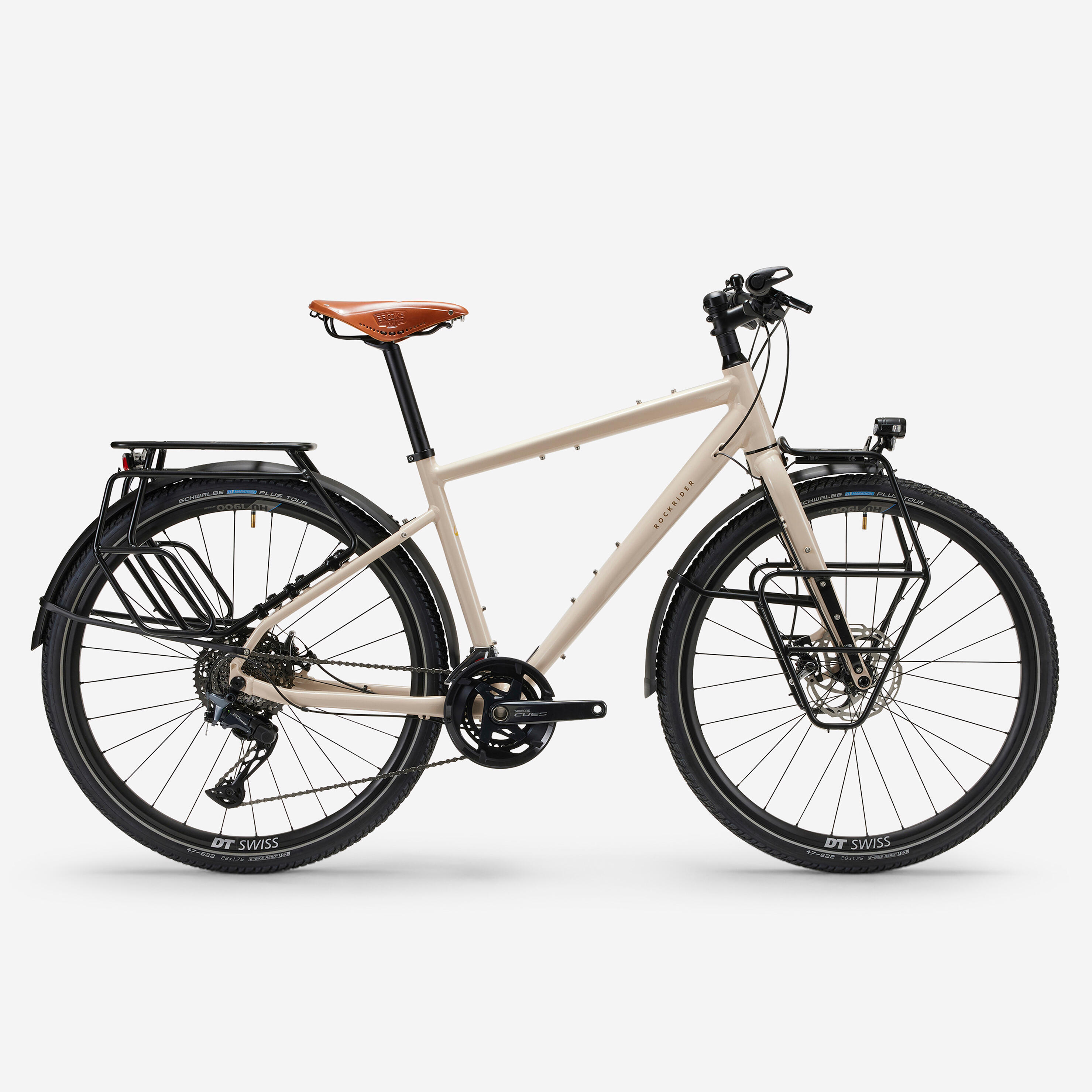

FRAME

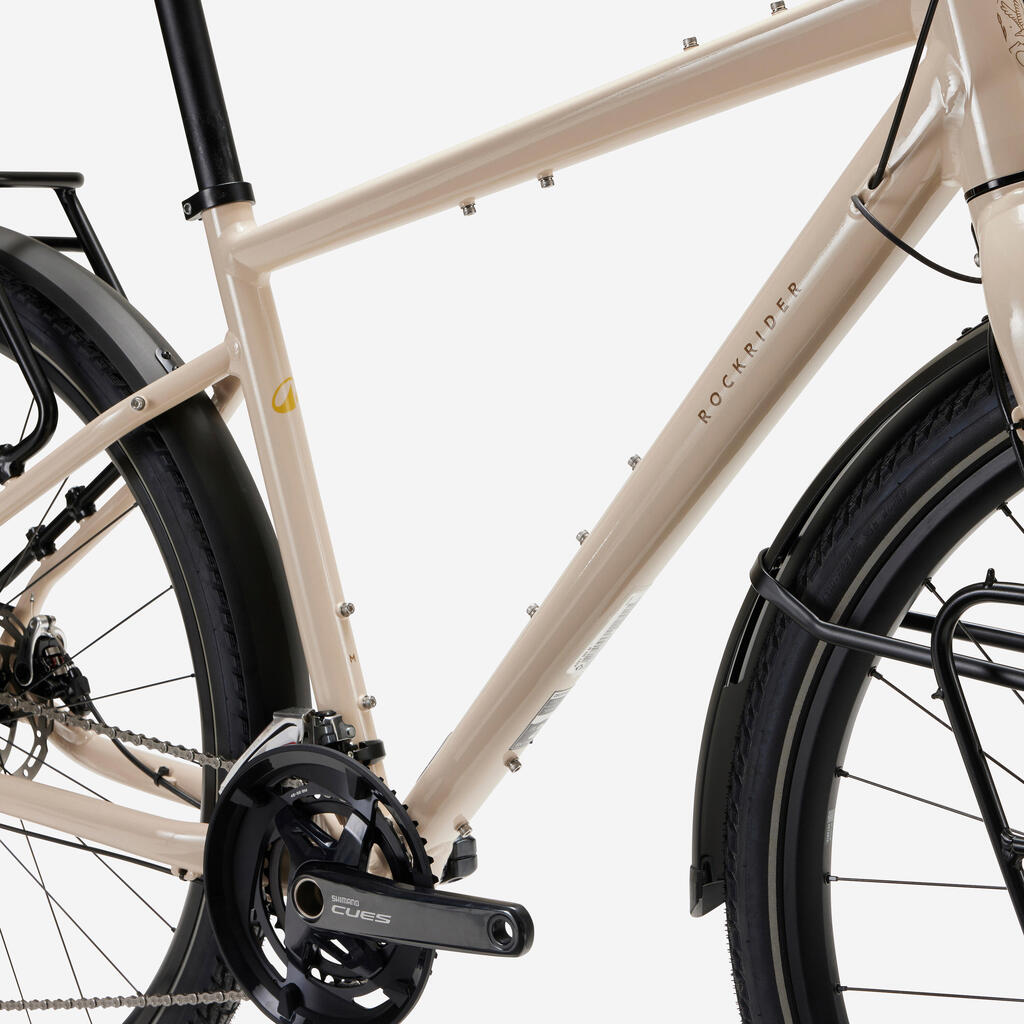

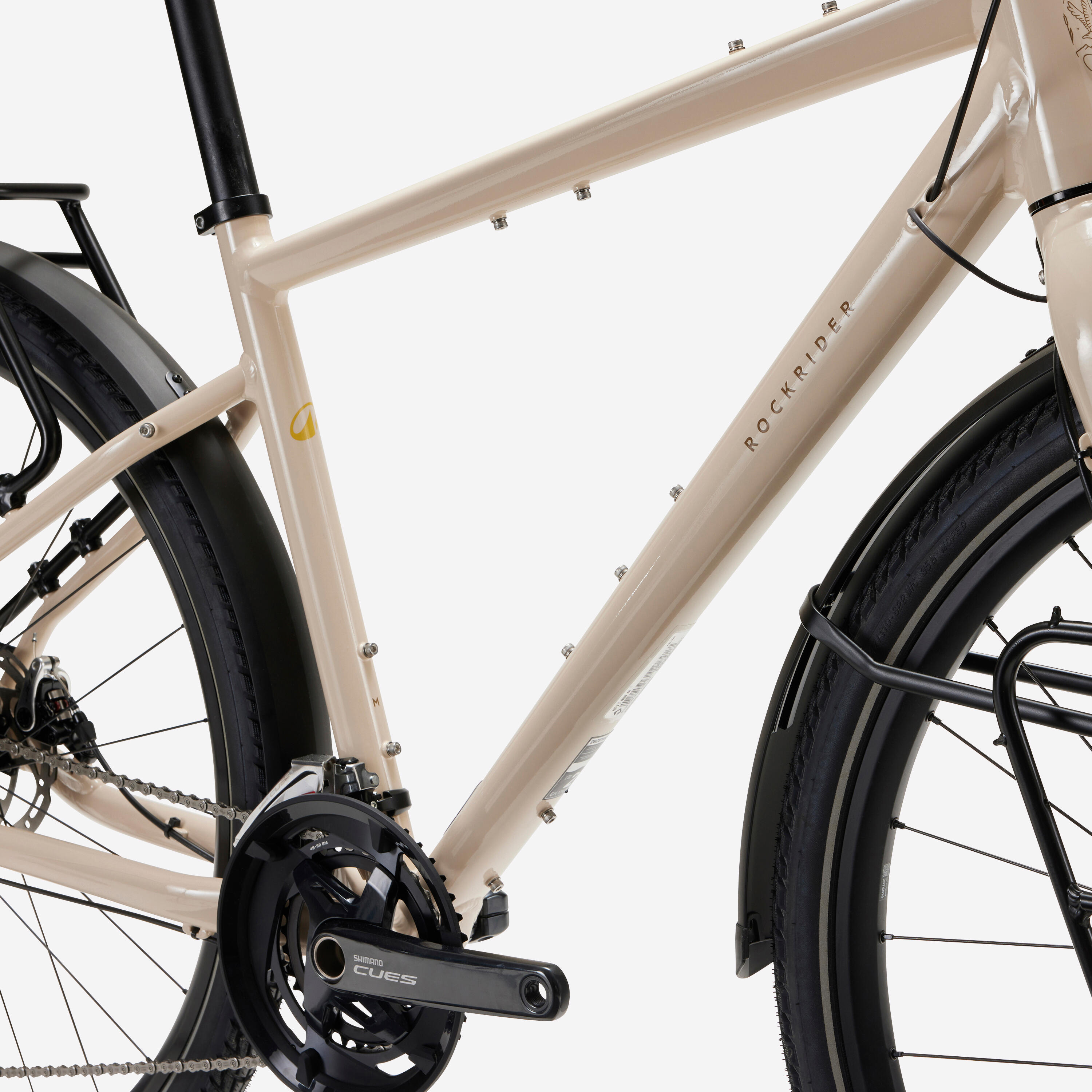

Triple-butted aluminium frame for maximum durability, sturdiness and comfort. Aluminium fork.Internal cable routing. 33 inserts on the frame and fork to attach all your accessories and pannier racks. Compatible with all pannier racks. Removable rear derailleur hanger.
Pannier rack

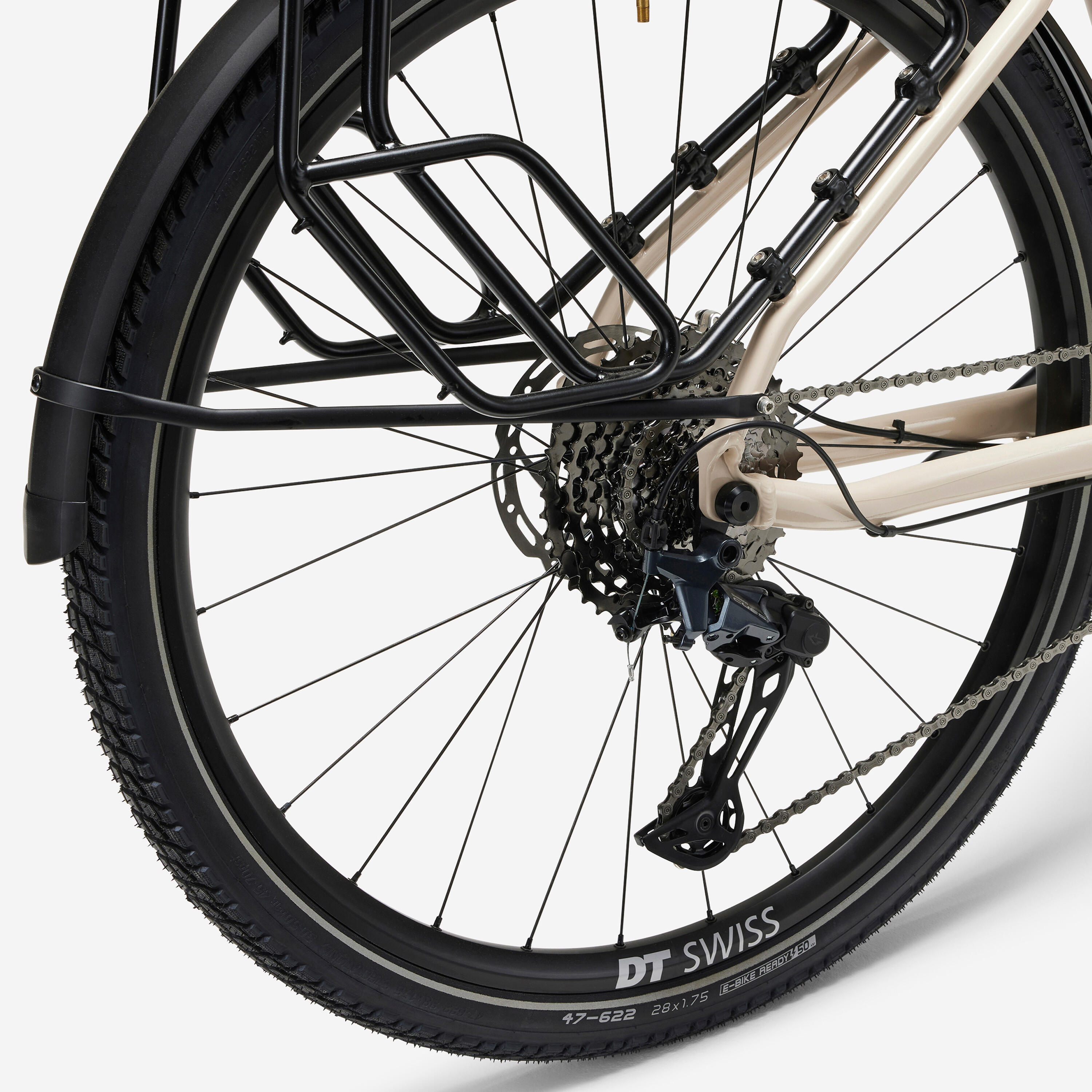

The pannier rack is fasted with six bolts to the bike's rear stays, enabling you to carry up to 40 kg of luggage or a child seat. This design choice also avoids the problem commonly encountered by bikepackers of the screws shearing.The front pannier rack too has been specially designed and features a top platform and a headlamp hook.
DRIVETRAIN
Shimano CUE 2x11 drive train offering a wide range of speeds to tackle all gradients with ease, even when loaded.Shimano CUES CS-LG700 11S cassette:11-45
CUES FC U8000 double chainring chainset:46-32
Shimano CUES FD U6010 front derailleur
Shimano CUES RD U 8020 derailleur
Shimano Linkglide LG500 chain
Shimano CUES SL U8000 gear shifters
BRAKES
Combine braking power with easy maintenance thanks to the TRP Spyre dual piston cable-actuated disc brakes. Shimano and Tektro compatible brake pads. Widely available throughout the world and ready to rack up the miles. TRP Spyre brake levers.

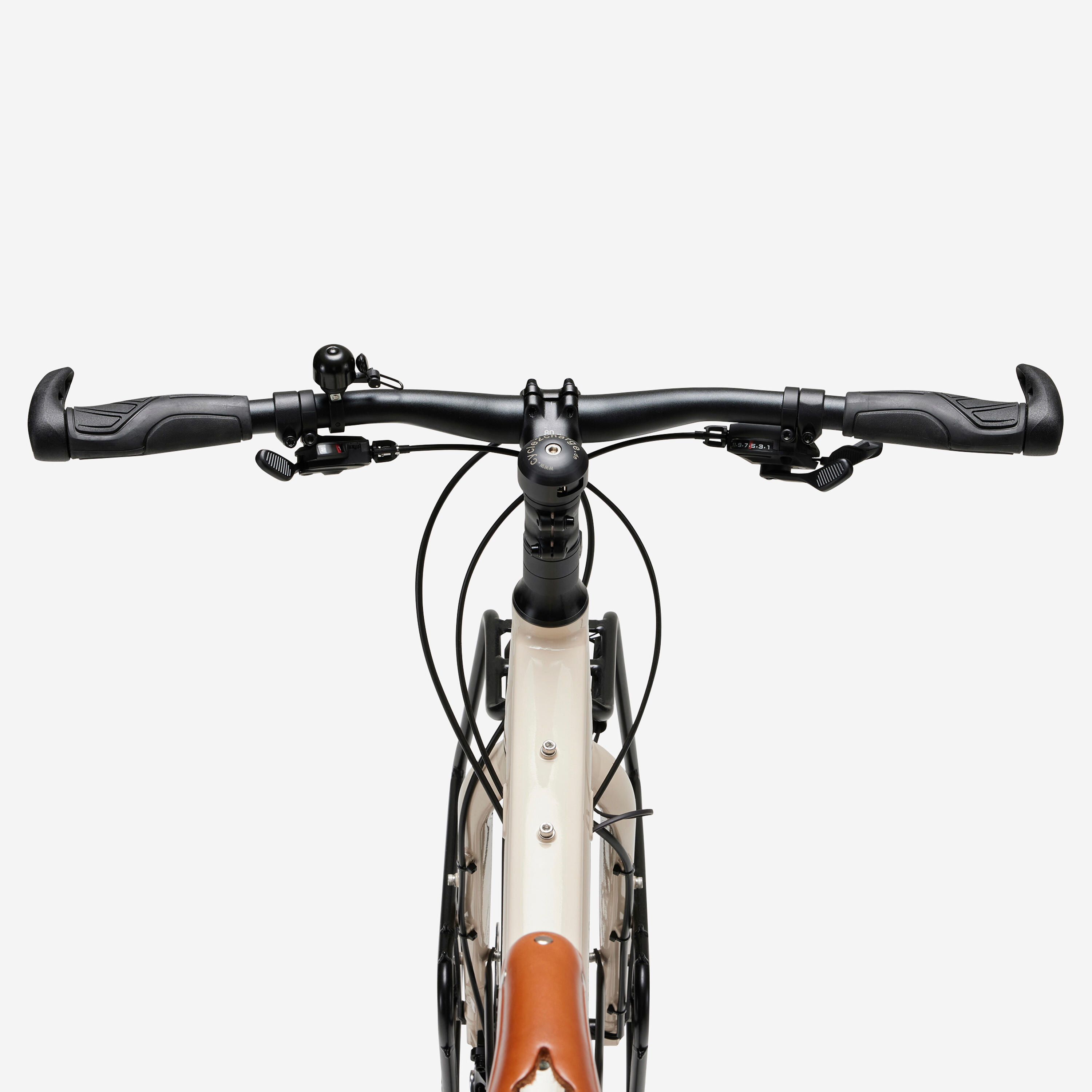

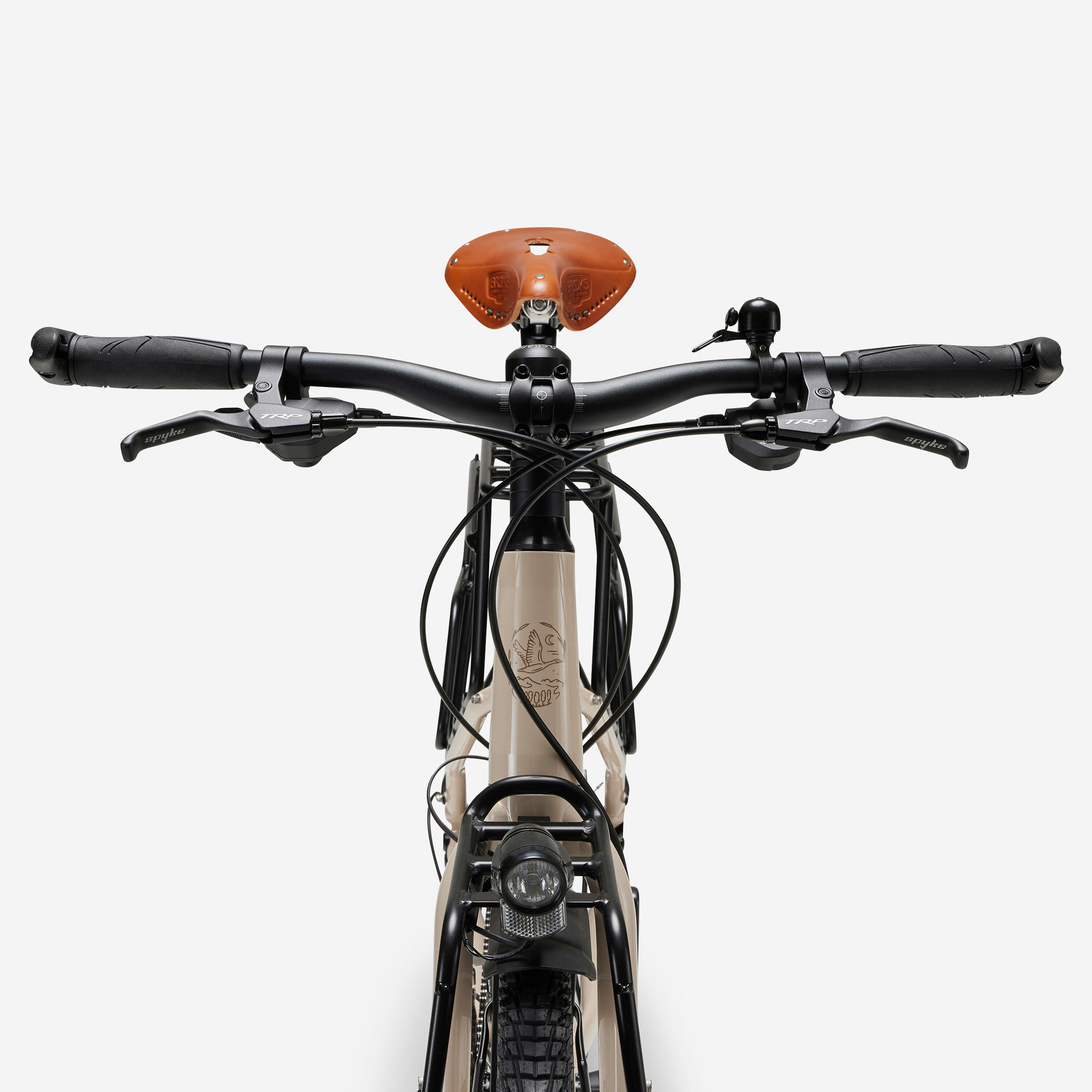

RIDING POSITION:handlebar, stem and steering

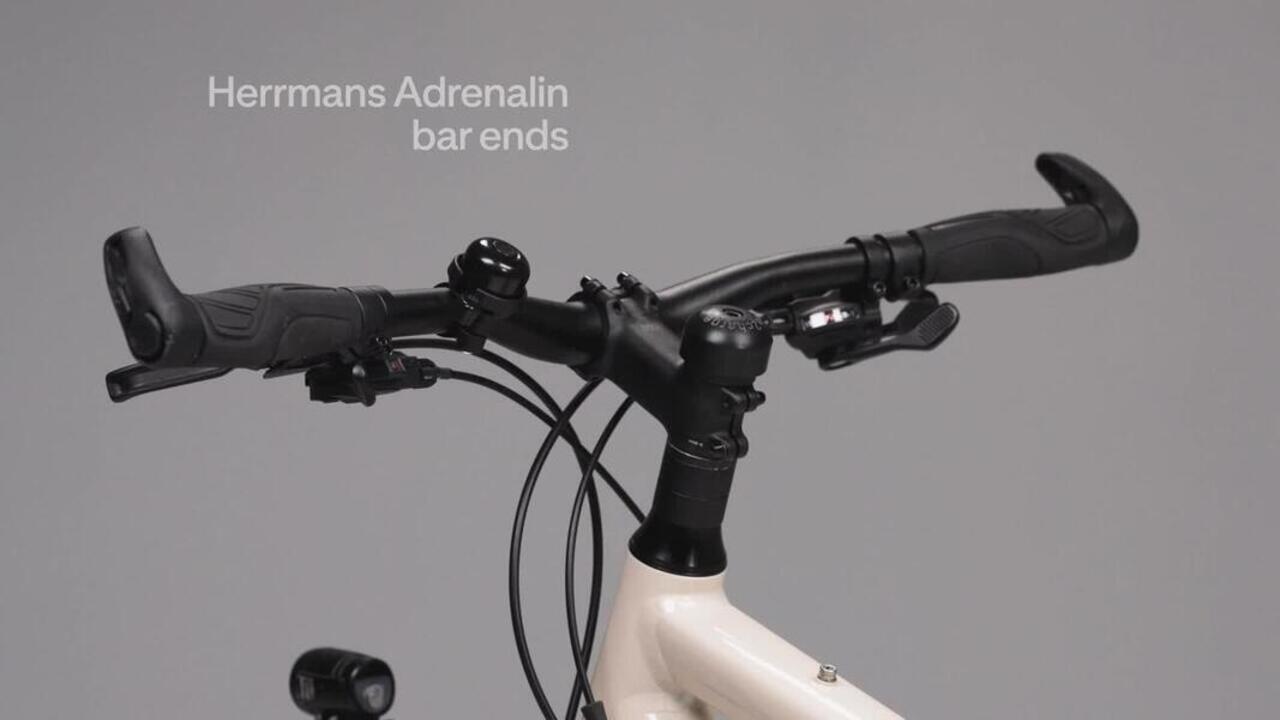

620 mm wide straight handlebar for sizes S and M, and 660 mm for sizes L and XL.Ergonomic grips and Herrmans Adrenalin bar-ends.
Headset with steering stop to prevent your bike from tipping over when leaning on its stand.
Stem: Size S: 60 mm / Size M: 80 mm / Size L: 100 mm / Size XL: 110mm
Saddle
Brooks B17 Imperial adjustable leather saddle with laces.
Aluminium seat post , graduated for easier adjustment.
Seat post diameter: 31.6 mm
The Brooks adjustment key is not supplied – the saddle can be adjusted using a standard Allen key
WHEELS
DT SWISS wheels, thru-axles and dynamo hubs
Shutter Precision PD7 dynamo front hubs, center lock, 12X100mm axle,
DT Swiss 370 rear hubs, center lock, 12X142mm axle
HU 1900 25mm rims, 28 straightpull spokes
Tyre
Schwalbe Marathon tyres with an anti-puncture strip and Schwalbe score of 5/7 for a weight of 985 g per tyre.
Dimensions: 28 x 1.75 (47-622).
Mudguards
Double-walled aluminium mudguards with reinforced stays.
Light and dynamo
Shutter Precision dynamo hub: powerful and reliable, it produces 6 V -0.5 A (3 W) for your electrical equipment.Axa 30 Lux front light: offers excellent visibility for riding safely, even in poor light conditions.
Axa Blueline rear light:with a 4 minute timer, stay visible even when stopped for greater safety."
Built-in USB port
Cycle2Charge USB port built into the stem, ideal for charging your devices on long trips.For optimal load, maintain speed over 21 km/h as long as possible.USB port A
It is recommended to charge a portable battery rather than a smartphone.Smartphones consume energy even when charging, which can limit their charging efficiency even more since their charge protection systems are often more restrictive.
COMPATIBLE ACCESSORIES
You can supplement your bike's equipment with:
- a dual leg kickstand (ref: 8676964)
- ADVT500 or ADVT 900 luggage range
SIZES
4 sizes available: Size S: 1.55 m to 1.65 m.
Size M from 1.66 m to 1.77 m.
Size L from 1.78 m to 1.89 m.
Size XL: 1.90 m to 2.01 m.
If you are on the edge between 2 sizes: Choose the smaller size for greater manoeuvrability and comfort (straighter back).
Choose the larger size for a more stretched out position (better suited to speed).
Compatible with trailer and follow-me
To use a trailer, you need to install a 172 mm through axle on the rear wheel (not supplied): ref. 8618363. Search for ""8618363"" in the Decathlon website search engine
To install a FollowMe, you will need to purchase the "follow me kit adapter nut" (ref. 8618362) sold at Decathlon. You will also need to purchase an "M12 rear wheel axle for adapting a FollowMe" in size 172mm from a non Decathlon website.
