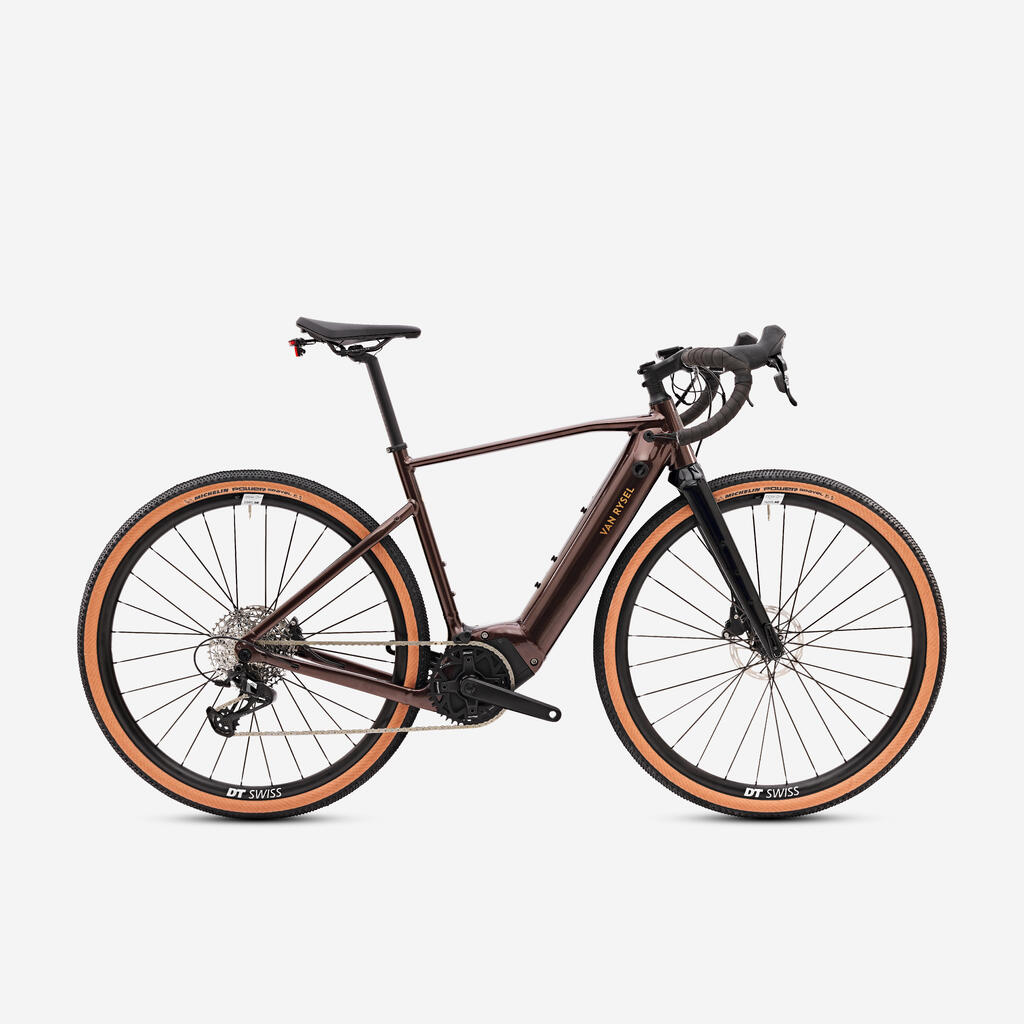

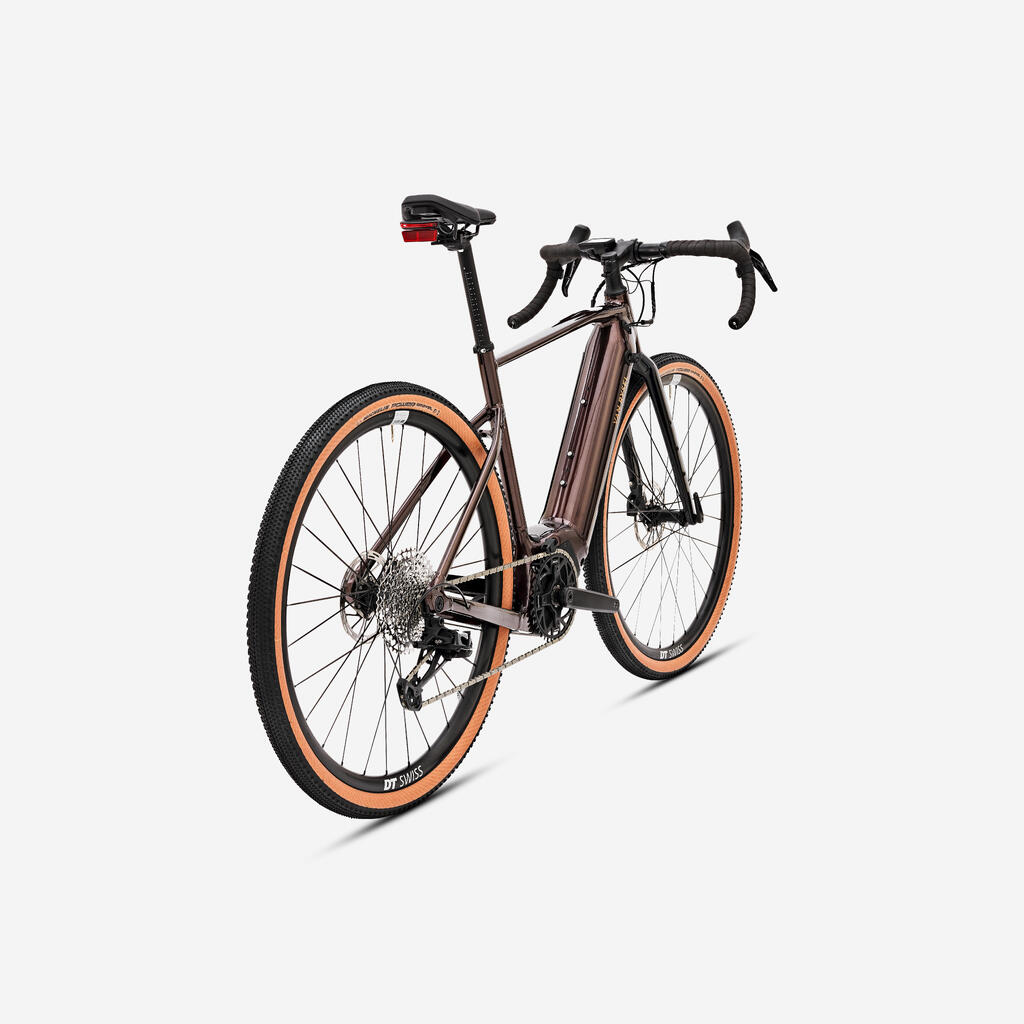

Mid-Drive Electric Gravel Bike E-GRVL AF MD Brose Drive T Mag
An electric gravel bike for anyone who wants to get off the beaten track and conquer the most iconic routes, without being limited by their fitness.
Our most efficient e-gravel bike off-road, equipped with a very powerful Brose Drive T Mag mid-drive motor. And with the 500 Wh removable battery, you need not worry about range.
BENEFITS
Compatibility
11 inserts on the fork and frame for your everyday and adventuring equipment.
Noise level
The Brose Drive T Mag motor is so quiet you'll forget it's even there.
Ease of use
Keep control with the assistance controls on the handlebar.
Versatility
DT Swiss HG 1800 Spline wheels, Power Gravel 700x47 tyres, Apex 1x12 groupset.
Visibility
LED lighting at front and rear powered by the bike battery.
Connectivity
Bluetooth connection with the Decathlon Ride app.
Power
Very powerful Brose Drive T mag 70 Nm mid-drive motor with 4 assistance levels.
Range
Ride for up to 150 km with its removable 500 Wh battery.
TECHNICAL INFORMATIONS
A light, powerful motor
The Brose Drive T Mag motor weighs just 2.9 kg thanks to its magnesium construction. With its torque of 70 Nm (maximum assistance of 320%), it's very powerful and will help you overcome the toughest obstacles, even with a heavy bike and at low speeds. On top of that, it's very quiet, making it very discreet.
No range anxiety
Its 500 Wh battery gives you up to 150 km of range. The battery is removable (and lockable) to make it easier to charge, but it can also be charged directly on the bike.
The maximum battery range shown will vary depending on the route, the cyclist's weight, the temperature, etc.
All-around handling and comfort!
With the intuitive assistance controls on the handlebar, you keep control of both your effort and your steering at all times. The endurance riding position is upright enough to stay comfortable for hours and keep control on rough terrain, all while remaining dynamic. The wide Michelin Power Gravel 700x47 mm tyres, the DT Swiss HG1800 Spline wheels and the SRAM Apex 1x12 groupset help you overcome any challenge.
Fully equipped
The E-GRVL AF MD is one of the best-equipped bikes on the gravel e-bike market and comes with:
- powerful front and rear lights powered by the bike's battery

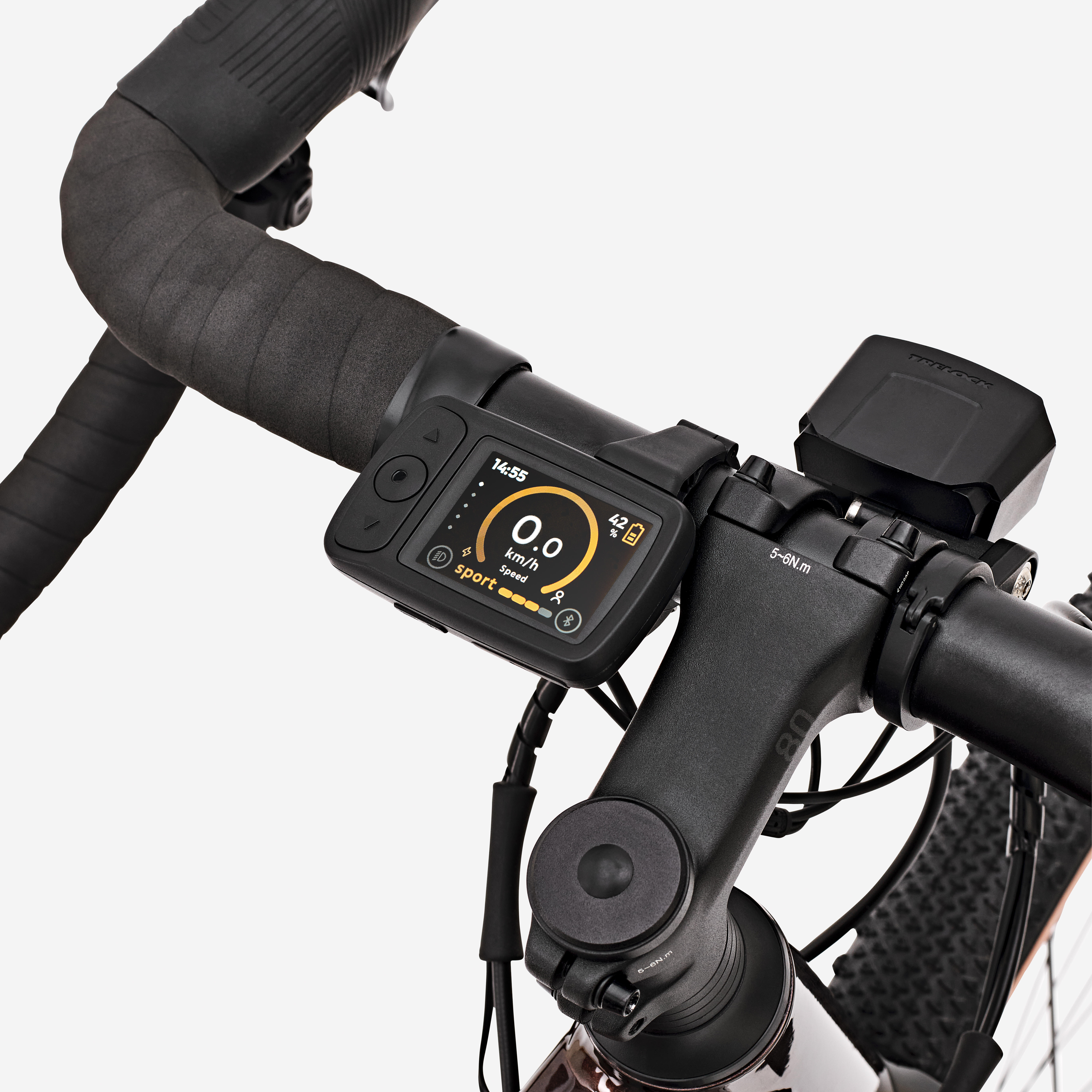

- TFT colour screen

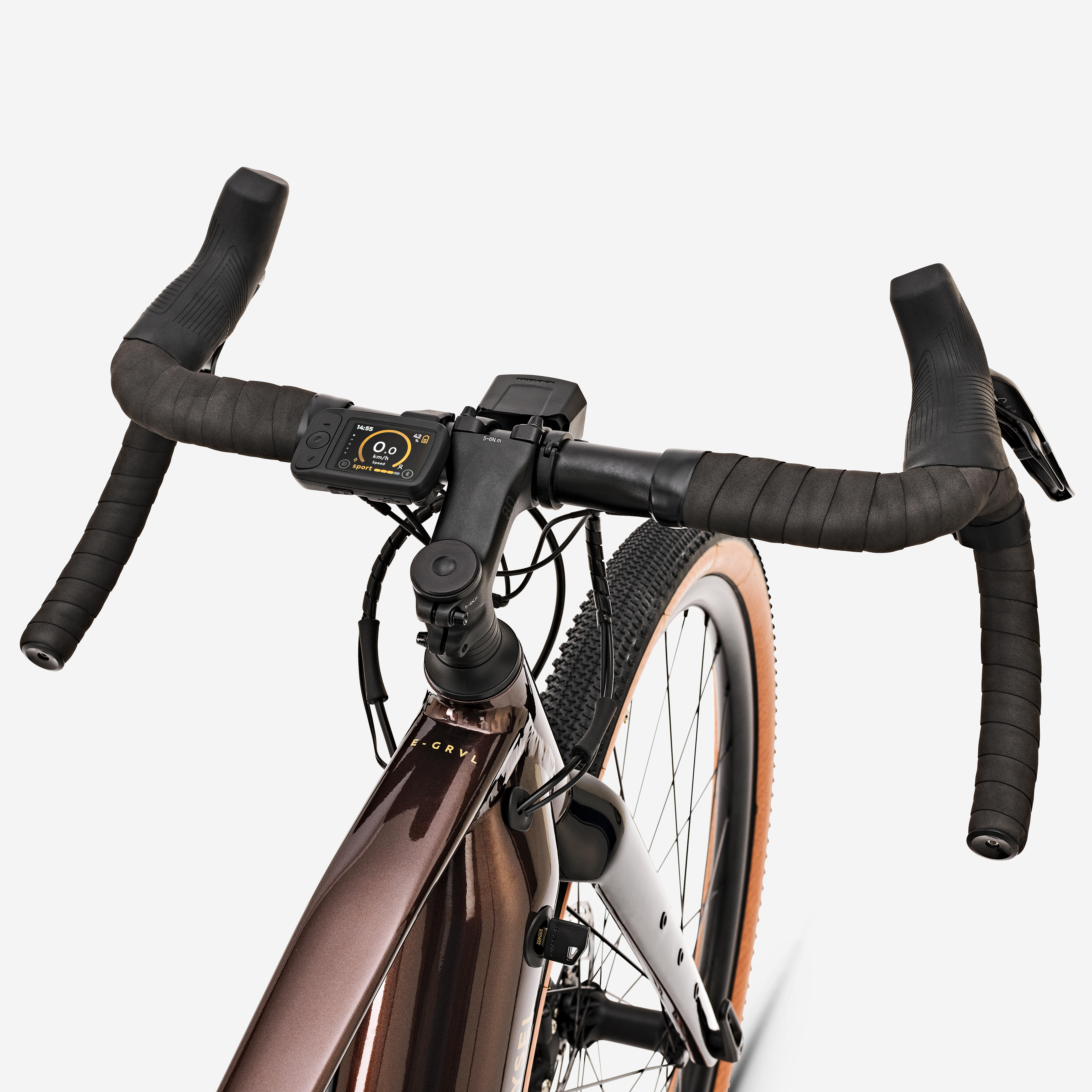

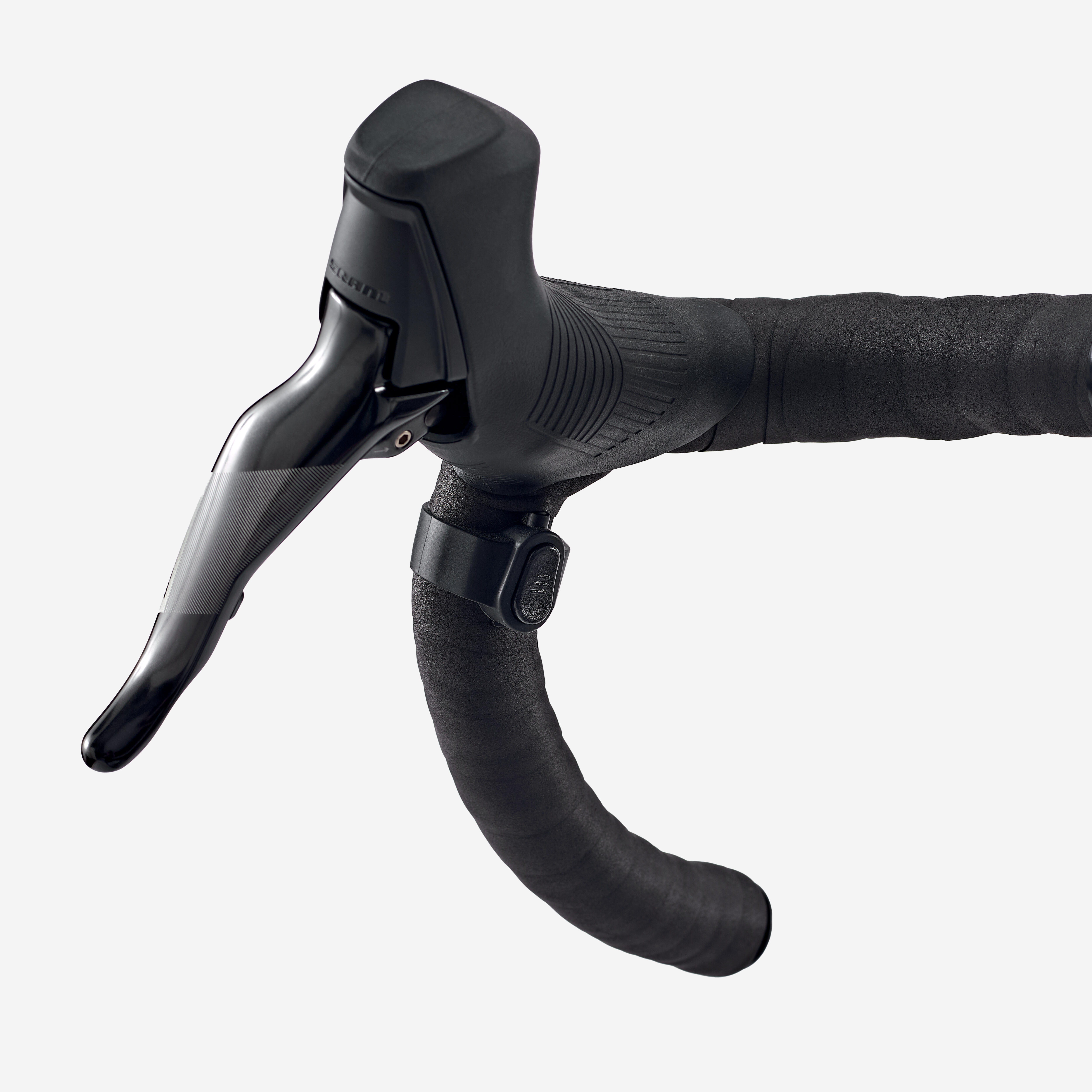

- remote control buttons on the handlebar (just below the shifters) for changing the assistance level
Frame
6061 T6 alu
flat mount disc brakes
internal cable routing
mudguard / pannier rack fixing points
700x50 mm tyres
Fork
full carbon
flat mount disc brake
12x110 "road boost" thru axle
mudguard attachment points
internal cable routing
2x3 attachment points on the legs of the fork (perfect for a "cargo cage")
700x50 mm tyre clearance
Brakes
SRAM Apex
hydraulic disc brakes
flat mount
160 mm rotors
Drivetrain

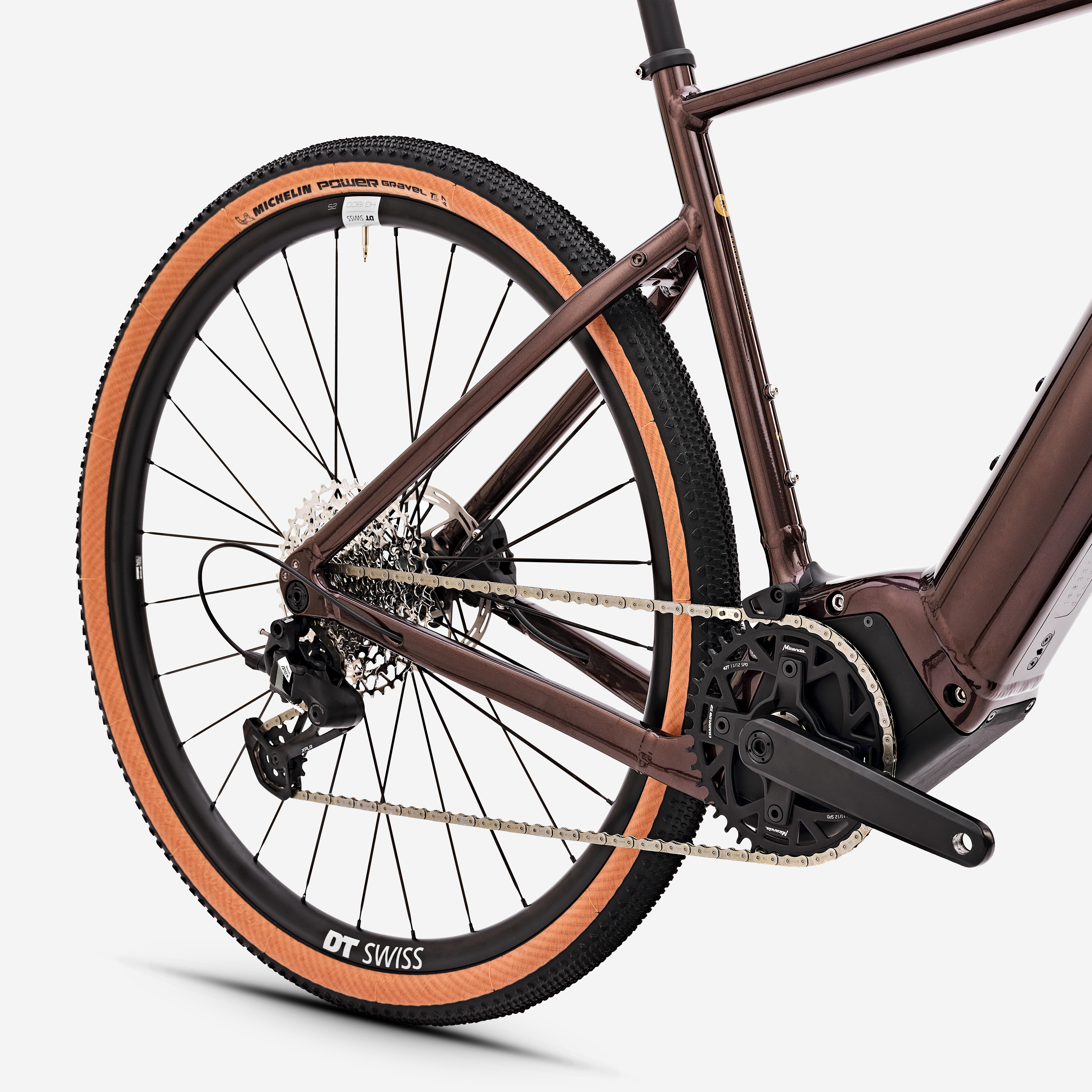

SRAM Apex XPLR 1X12
11-44 cassette (11-12-13-15-17-19-21-24-28-32-38-44)
Miranda 42T chainring
Wheels

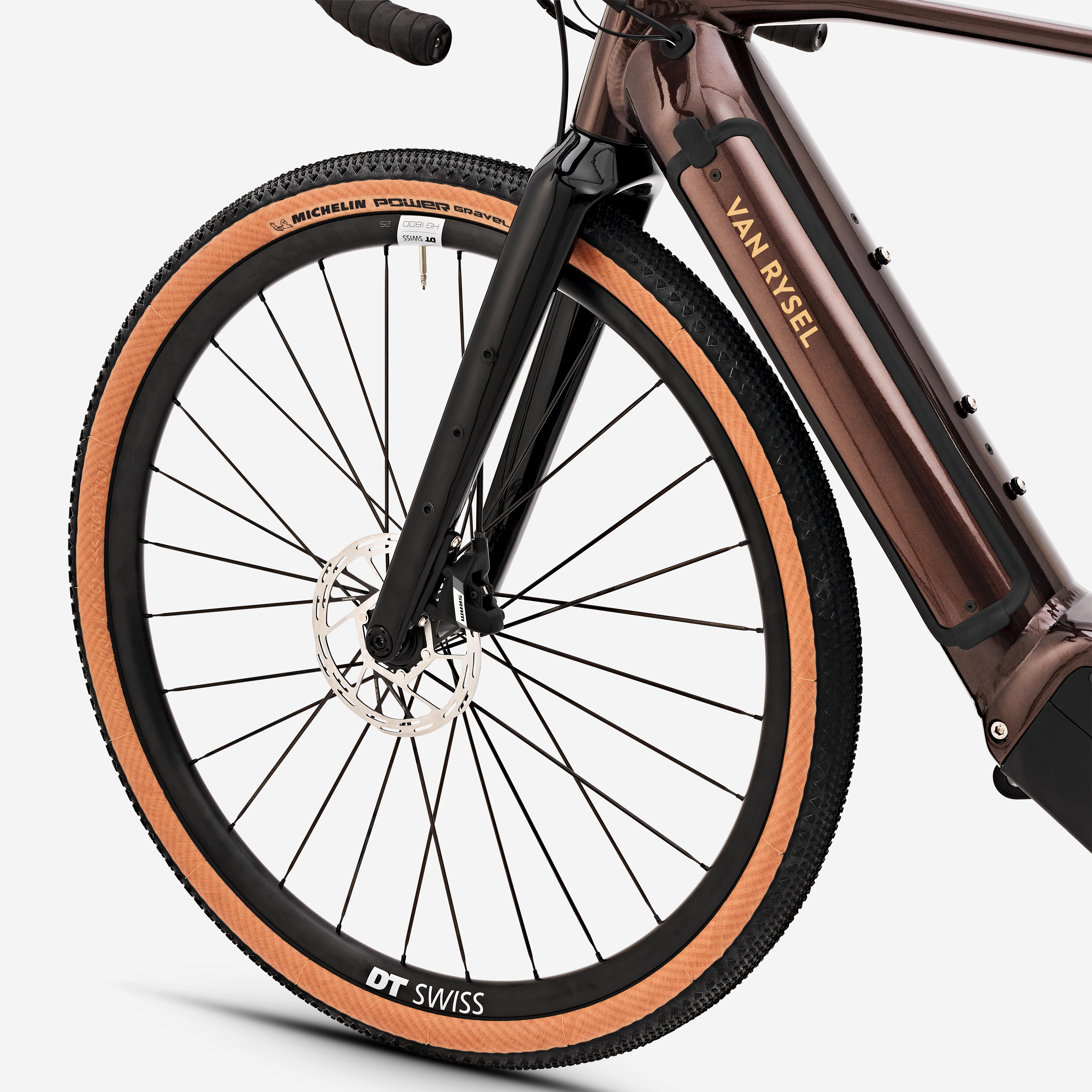

DT Swiss HG1800 Spline
aluminium
tubeless ready
12x110 mm front / 12x148 mm rear road boost thru axles
inner width: 24 mm (suitable for tyres up to 50 mm)
height: 25 mm
The sturdy rims are perfect for the heavier system (up to 140 kg) and for gravel rides.
The hub is designed to withstand the higher acceleration and braking forces created by electric gravel bikes.
Tyre
Michelin Power Gravel Competition Line 700x47
Very good grip thanks to its tread pattern combined with the Michelin Magi-X Compound.
Michelin Bead To Bead Shield reinforcement protects the full length of the tyre's carcass.
The Michelin Magi-X Compound makes the tyre last longer.
POSITION
31.8 mm alu gravel handlebar with 16º flare, width: XS/S 420 mm, M/L 440 mm, XL 460 mm, Reach 70 & Drop 130
6061 T6 8° aluminium stem, length XS 60 mm, S 70 mm, M 80 mm, L 90 mm, XL 100 mm
Comfort Gel bar tape
Comfort saddle

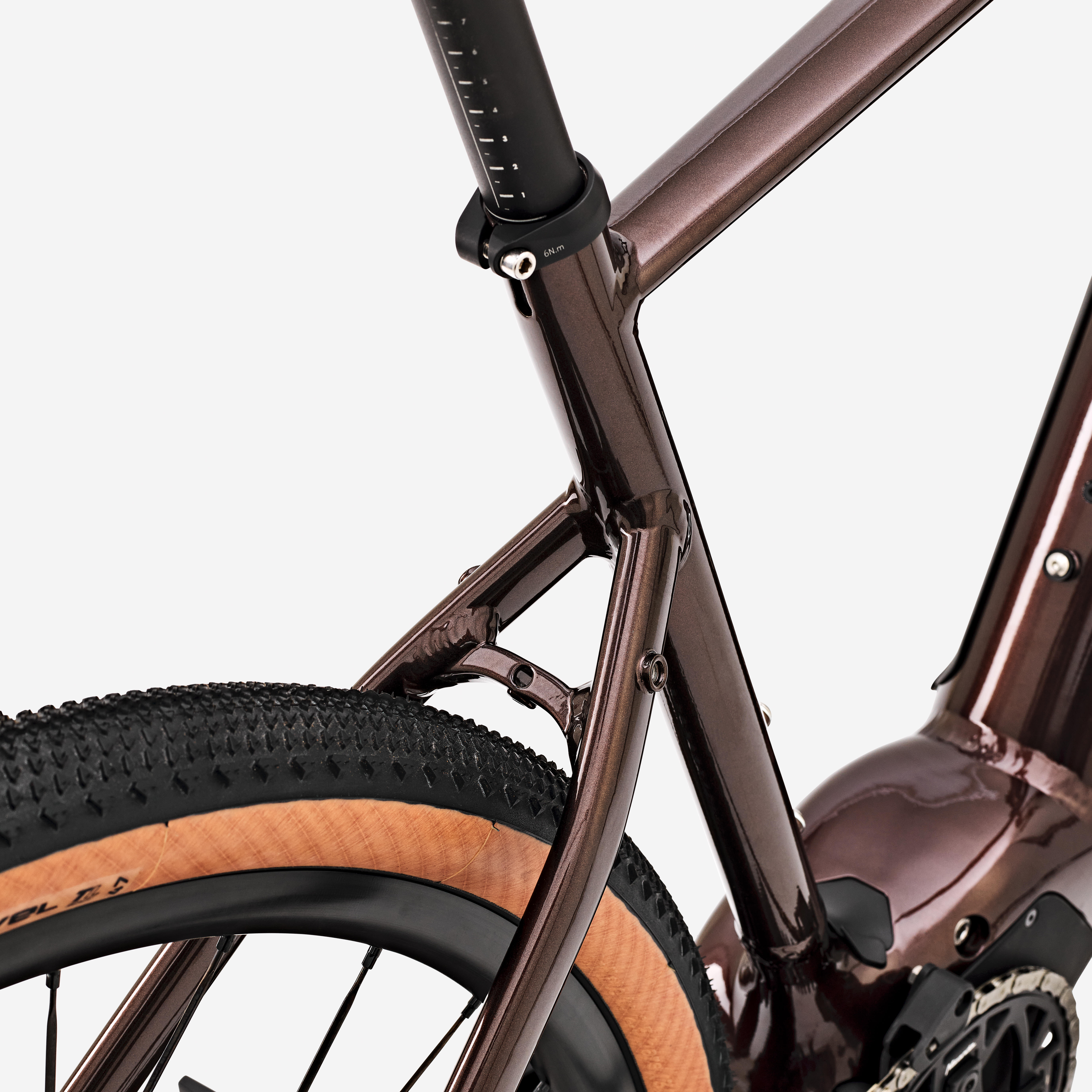

27.2 mm diameter seat post, length: 250 mm (XS), 300 mm (S), 350 mm (M, L, XL)
Motor

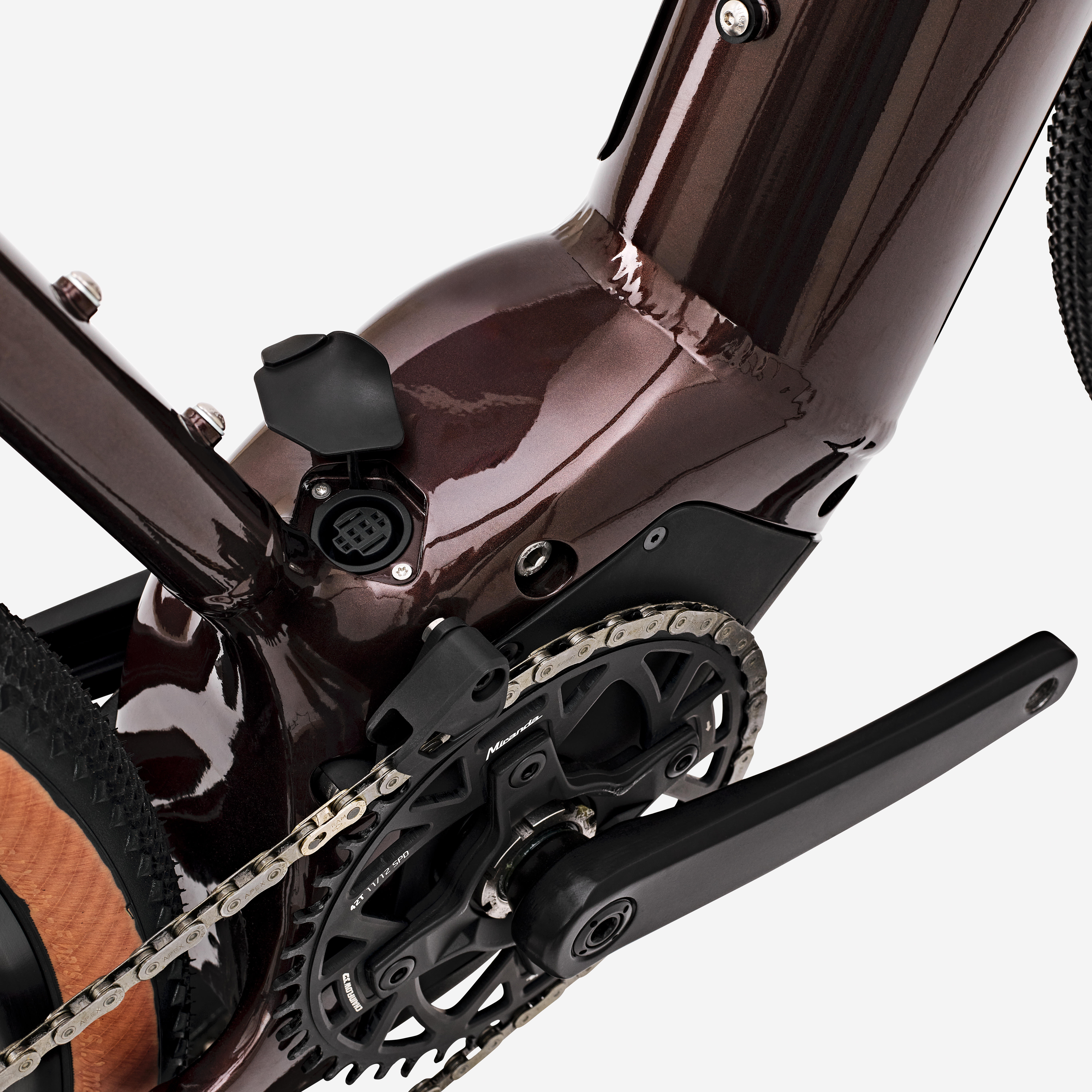

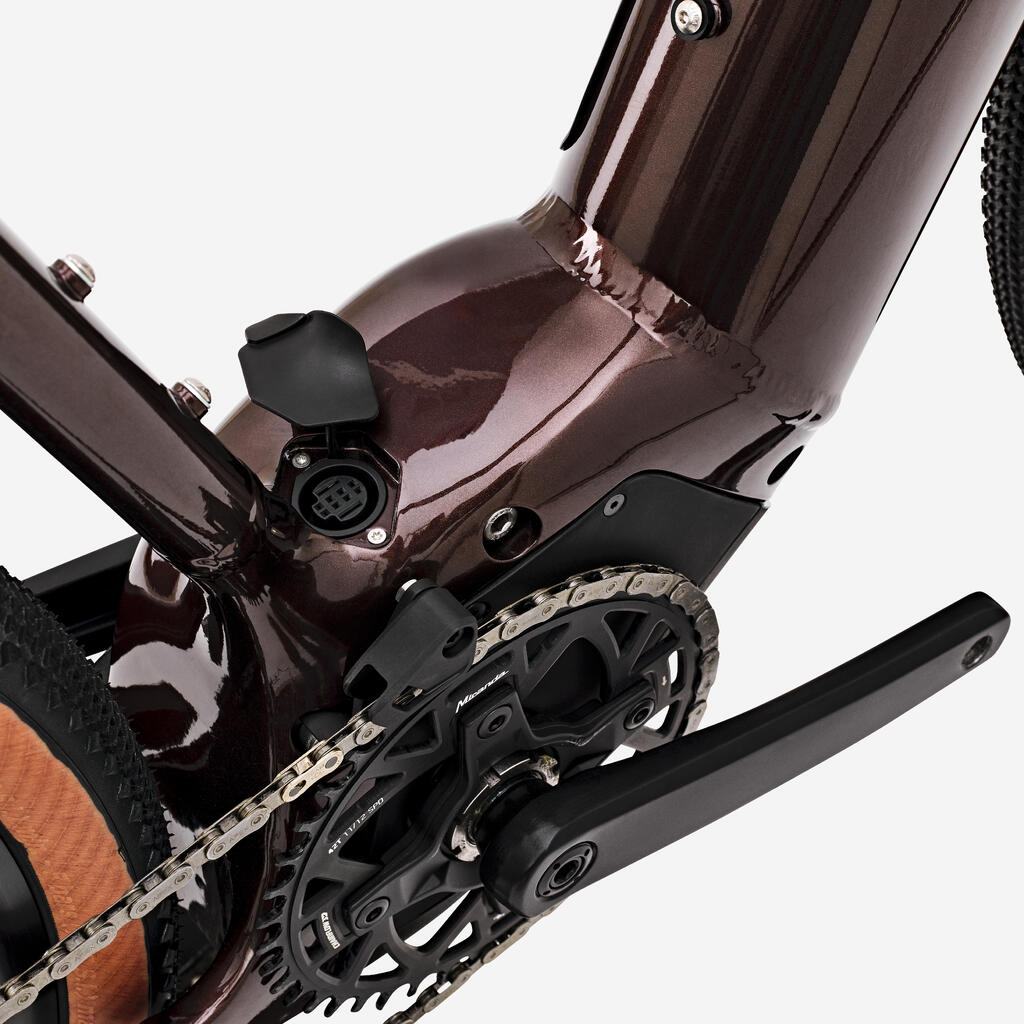

Brose Drive T magnesium mid-drive motor
nominal voltage: 36 V
continuous power: 250 W
torque: 70 Nm
weight: 2900 g
4 assistance levels + walk mode
assistance up to 25 km/h
assistance in walk mode up to 6 km/h

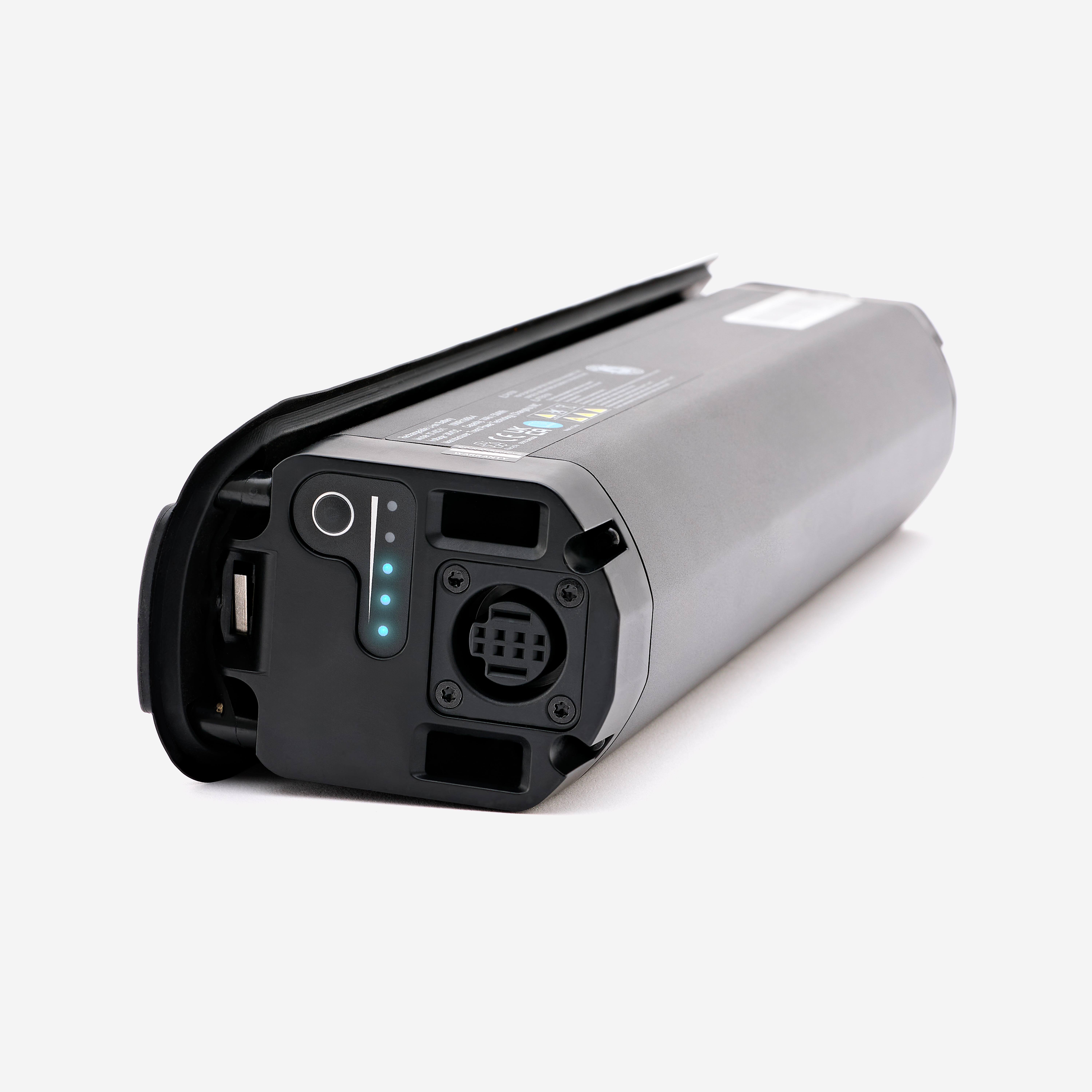

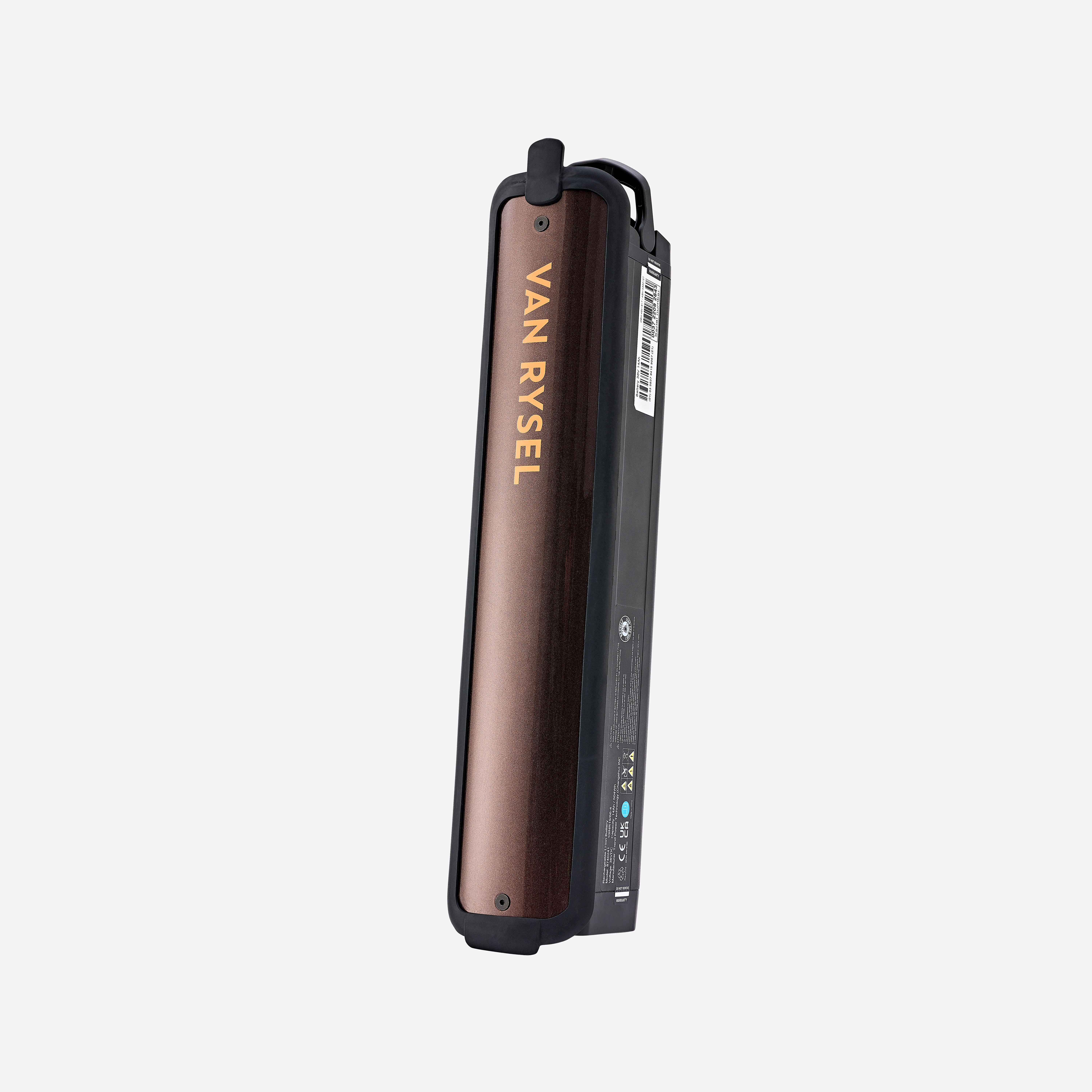

Battery

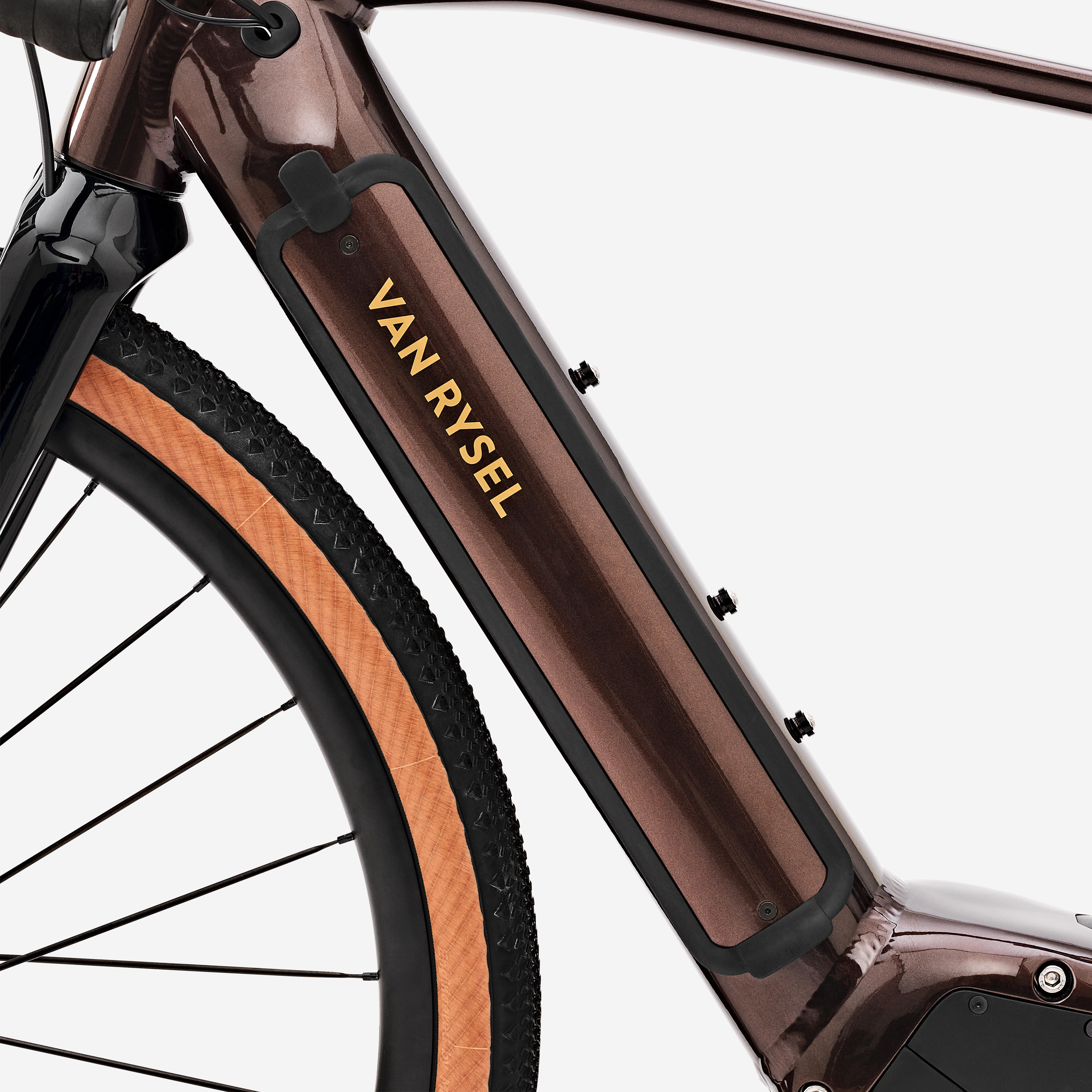

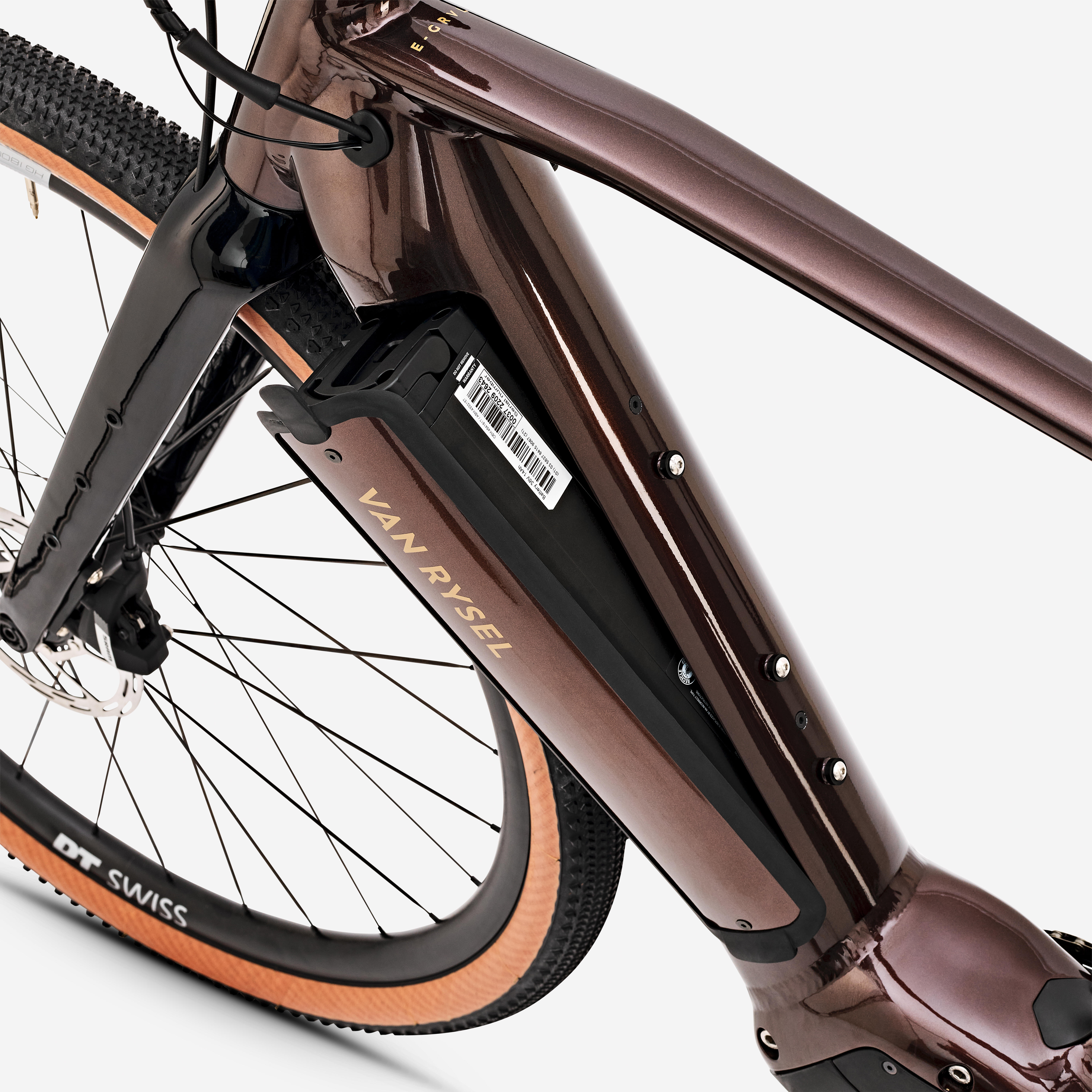

Removable battery that's fully integrated into the frame and comes out at the side to make it easier to grasp.
Capacity: 500 Wh
Thanks to the smart management system (BMS), Decathlon's lithium-ion batteries have a long life span (over 500 full charge cycles).
Lighting

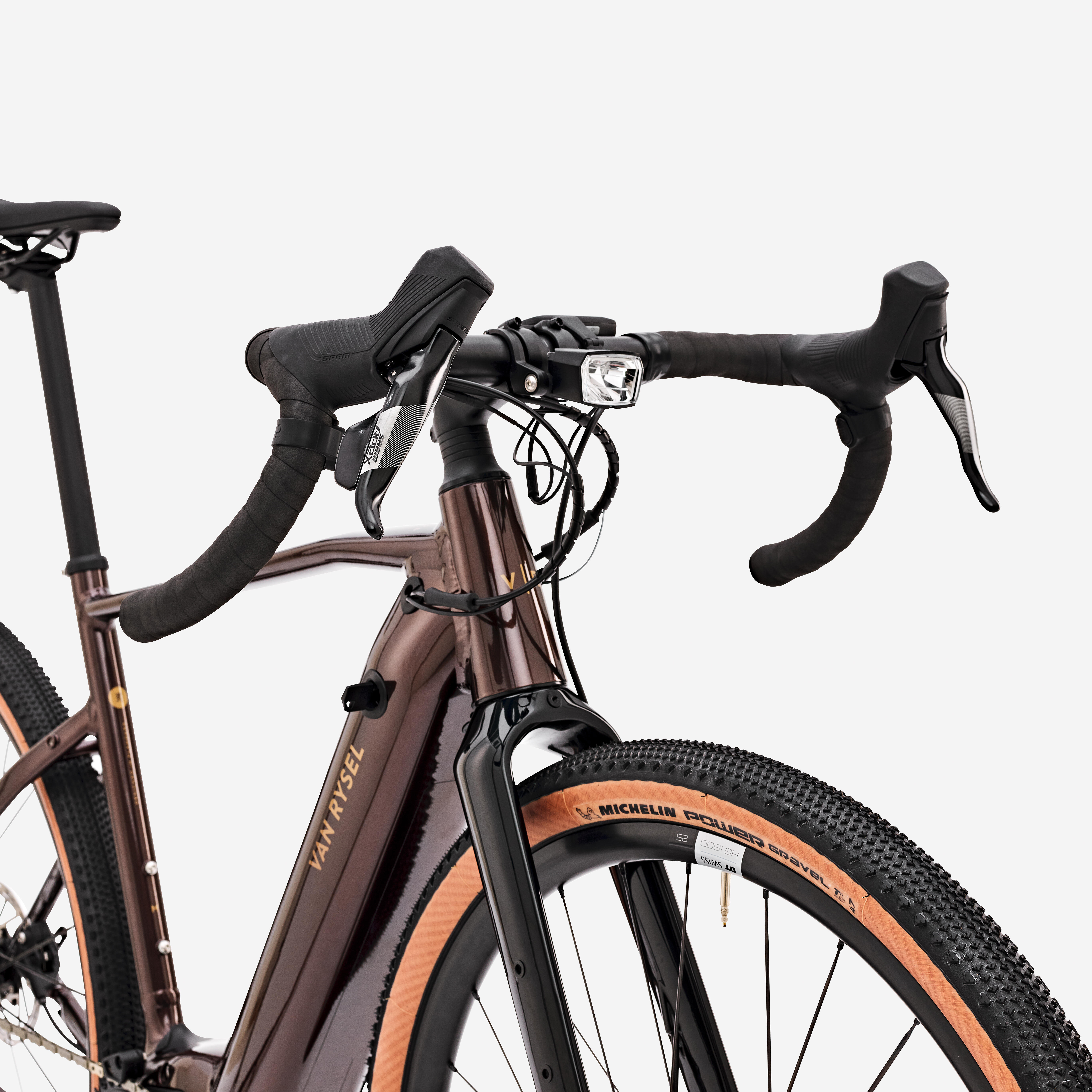

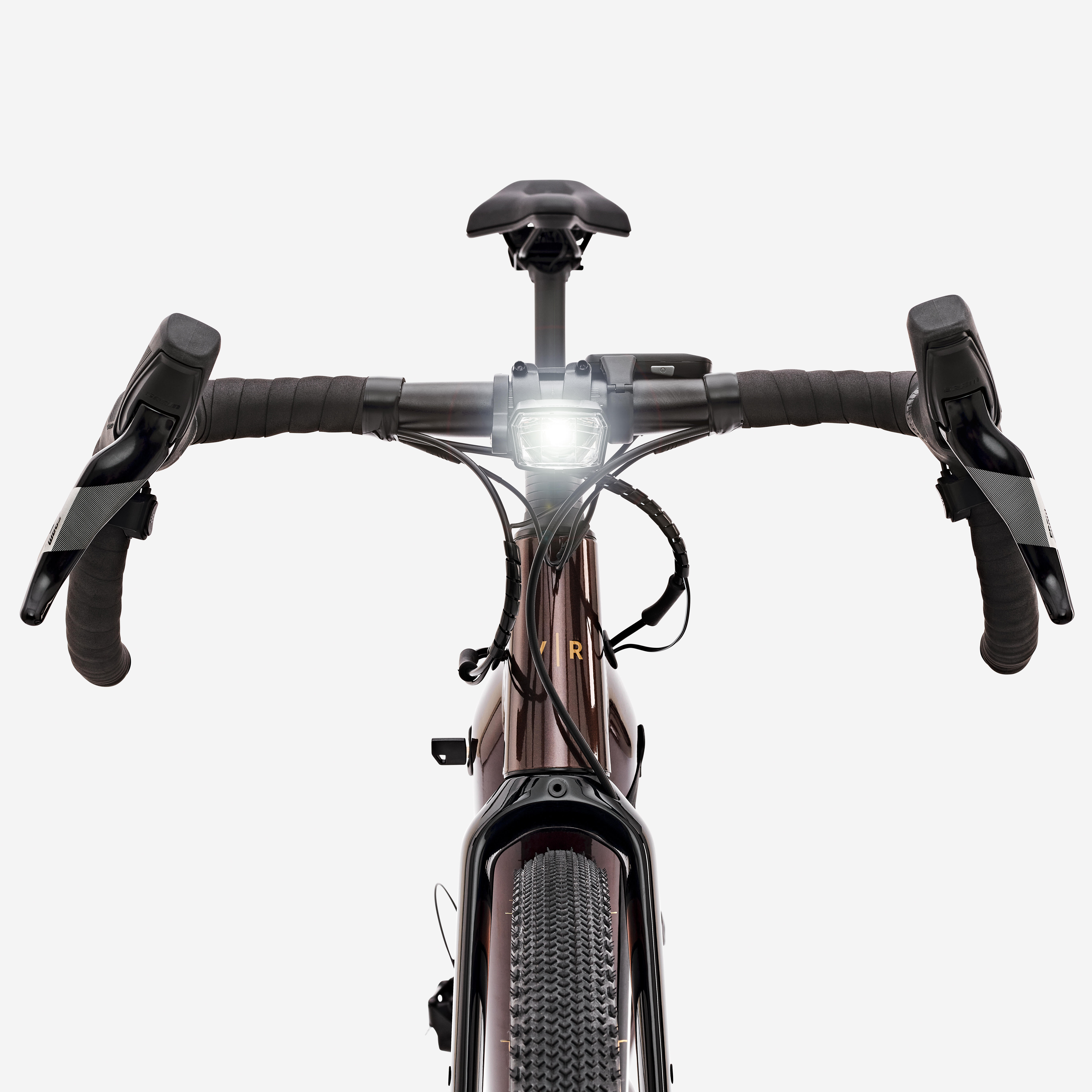

Front: Axa Lighthammer 60 lux

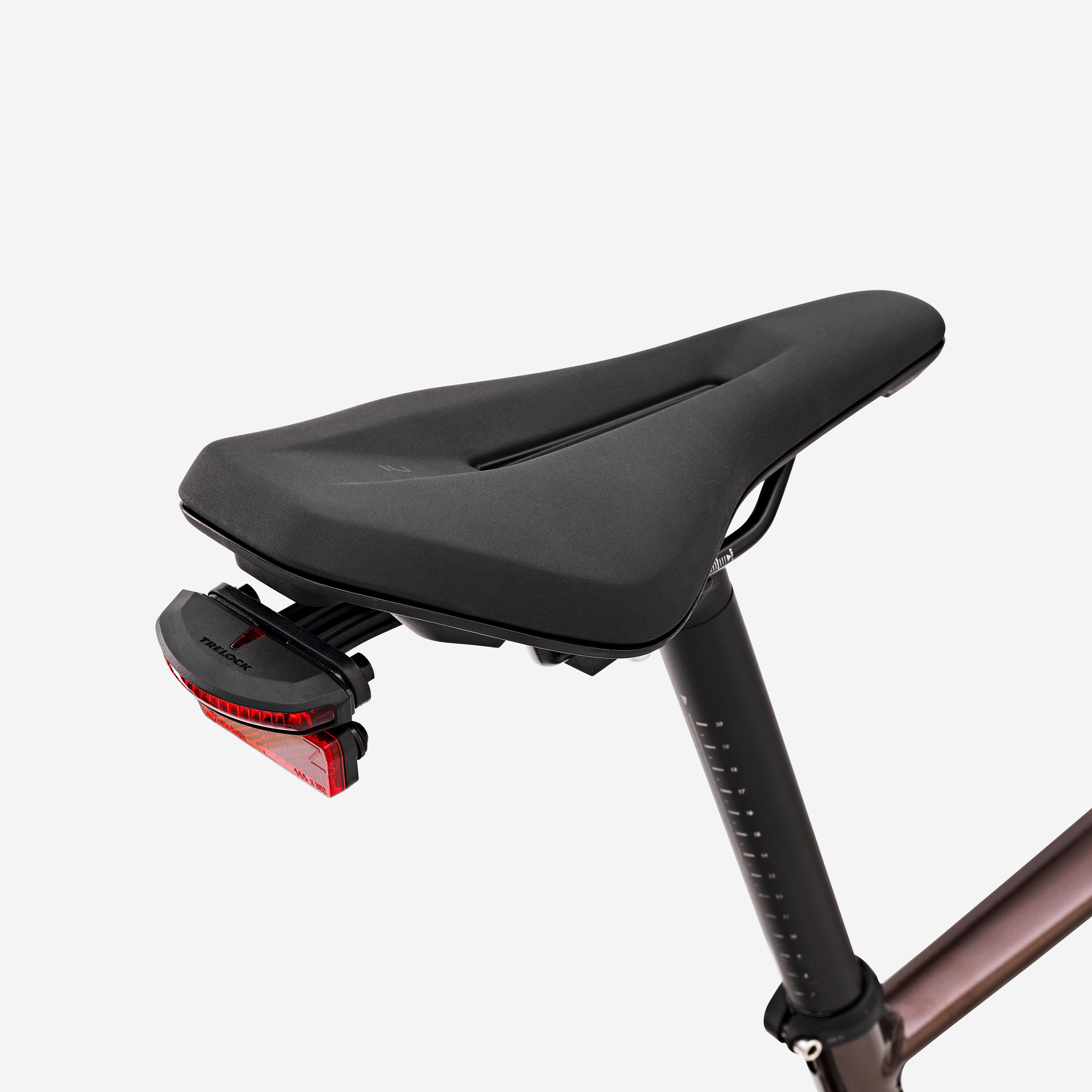

rear: Axa LS 651 cob line
powered by the bike battery
compatible with German, French, and European regulations
Connectivity

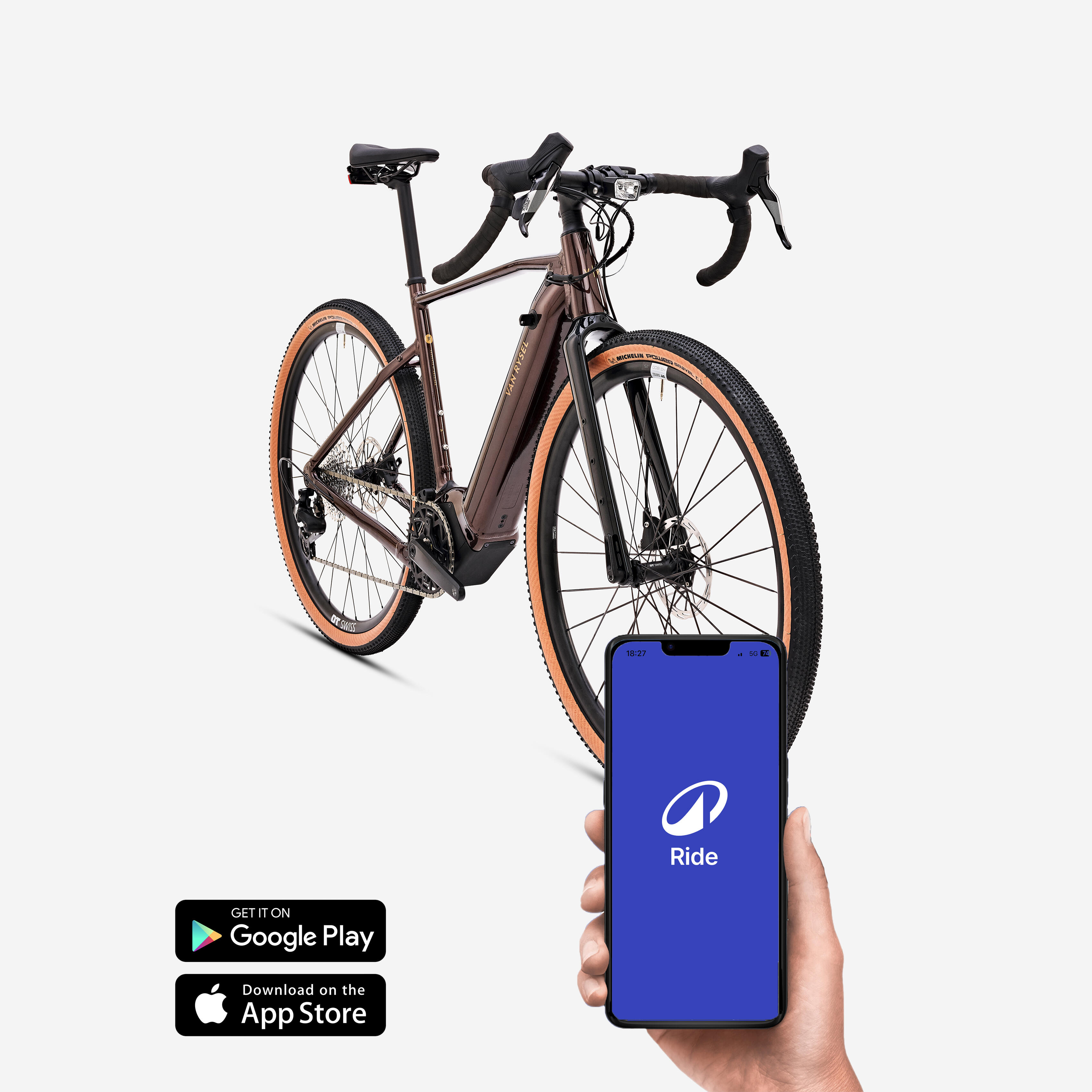

You can connect your smartphone to your bike via Bluetooth using the Decathlon Ride app.
This gives you a more rounded experience, including:
- assistance mode usage stats
- better battery life management
- your route and all the data related to your ride (can be uploaded straight to Strava)
- updates on your electrical parts
And much more!
Weight
18 kg in size M
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
TESTS AND WARRANTY
Warranty
2 Years
