What does E-FL 900 mean?
The "e" means that this is an electrical assistance bike.
"FL" stands for "FOLD'' and "LIGHT".
We designed this bike for anyone seeking a FOLDING e-bike that's ultra-compact and LIGHT. It's sure to become your greatest ally: you'll love the way it handles as you take it with your everywhere, fitting it into the tightest spaces.
The E FL 900 gives you total freedom to improvise, whatever you feel like doing, wherever you want to go.
Motor Features
Mahle X30 rear wheel motorXS System.
Max light output: 250W
Max torque: 45 Nm
Weight: 1.9 kg
Powers you up slopes of up to 8 % incline.
Not recommended for mountain passes.The electrical assistance cuts out above 25 km/h in accordance with EU regulations.
3 levels of assistance to manage your effort level
You can choose from 3 levels of assistance at any time. Press the 'up' or 'down' button on the controller located on the left of the handlebar to switch between modes.
Mode 0 (white led)– Assistance switched off
Mode 1(green led)- Eco mode.Gentle assistance
Mode 2 (orange led) - Moderate assistance for slight inclines for example
Mode 3 (purple led)- Maximum assistance for harder climbs.
Choose the default assistance mode when you switch your bike on via the app.
Up to 55 km of range with your folding e-bike
The battery range varies depending on the weight being transported (user + load), the elevation gain, the wind and the outside temperature.
Our tests enabled us to assess the maximum battery range on fairly flat terrain and without charging.
Mode 1: Up to 55 km
Mode 2:up to 30km (19 miles) up to 25 km (16 miles)
Functions of the remote control
The remote control with its 2 buttons is on the left side of the bike's handlebars.
Actions:
- Select the assistance mode
- Switch the lights on/off. Hold the top button down for 3 sec.
- ''Pedestrian mode''. Providing slight assistance to move the bike more easily when you're on foot (eg.getting out of the garage on a slope or a bike access ramp in a station).Hold the bottom button down for a while.
Connect your bike to your phone to receive info about speed, range, distance.

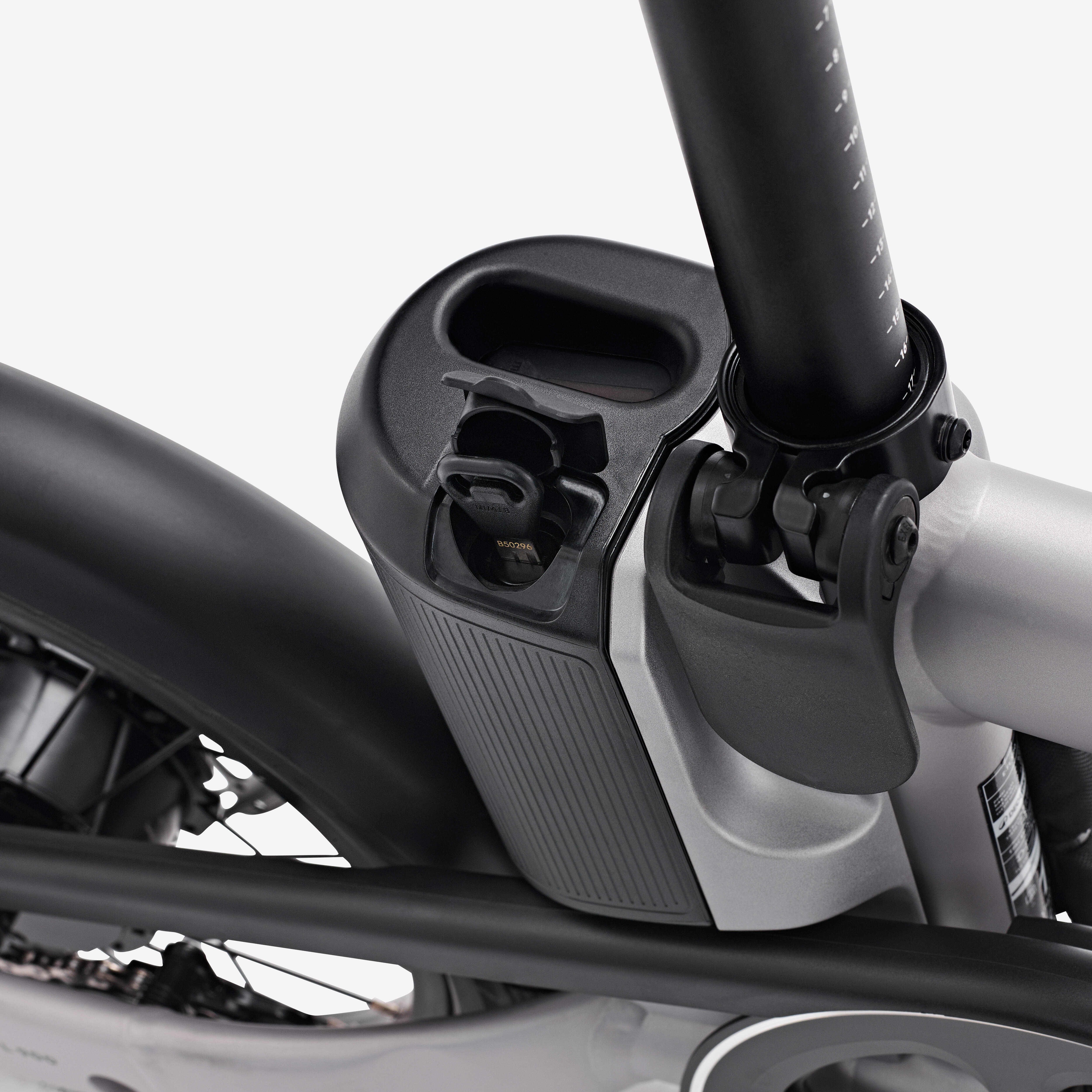

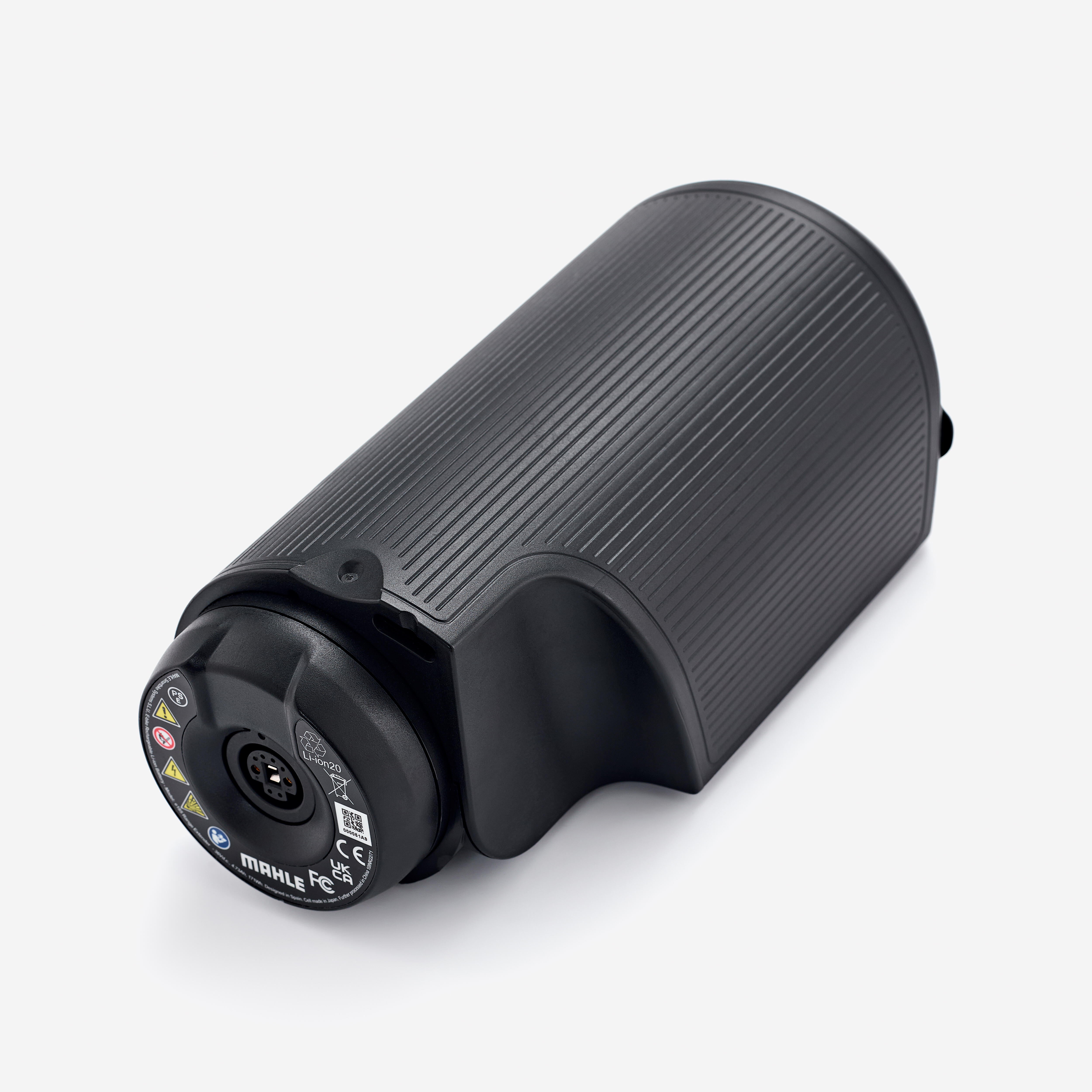

Built-in, lockable, detachable battery
E185 lithium-ion 36v-4,7Ah battery, capacity 171 Wh.
Locked in at the rear of the bike frame for better integration and easy handling.
Quick release with key (3 keys included) to recharge it.
Very light and compact, it's easy to tuck into your bag.
Weight: 1.465 kg.Can you ride with a flat battery?Yes.If the battery is out of charge, the weight of the electric equipment makes the bike less roadworthy than a conventional bike.It can still be ridden
Recharge the battery with the ACTIV charger.
Fully charges in only 2.5 hours with the 4A charger provided.
The battery must be removed using the keys provided to charge it.
When should I charge my battery?
We recommend charging your battery regularly before it is completely flat to maintain optimal performance.
This charger comes with the bike.
Recharge the battery with the Mahle Energy Hub
Looking for a different charging experience?The Mahle Energy Hub is a device designed specifically to manage this battery. Very lightweight and compact (290 g), it's the ultimate ally for commuters who are forever on the move.
The Hub is a unidirectional charging system that can charge the e185 battery or other compatible devices plugged in via a USB-C connection (eg.laptop, phone)
Time to fully charge battery::5h.
/!\ Not supplied with the bike.
Connectivity
Download the Mahle "My SmartBike" app free of charge, create your account and connect via Bluetooth to your bike to have a real-time display, activity tracking and other options.
You will access:
- the level of assistance selected
- your speed
- your journey time
- your distance travelled
- remaining range in kilometres and as a percentage
- GPS for navigation
- electric locking of E-bike assistance
- assistance configuration
Secure your bike with the app
From the main screen of your app, once the bike is connected, the ‘padlock’ button enables you to disable the electric assistance and software settings of the bike for anyone trying to use it with or without the app.
With the lock activated, only you can unlock it.
This electric lock does not affect the mechanics of the e-bike.
However, we recommend that you also use a mechanical anti-theft device (U-lock, chain).
Support smartphone
Not supplied with the bike.
This leaves you free to use the one you may already have to use your smartphone as the best control screen available.
FRAME
6061 T6 aluminium frame that's lightweight, dynamic and sturdy.
The frame hinge locks in 1 second. This is a patented system exclusive to Decathlon.
Fork
Single-arm, 6061-T6 aluminium frame for less weight and more strength.
The single-arm fork design makes the bike incredibly narrow when folded.
In fact, it's only 41 cm wide. That's 25% more compact than our 20" folding bikes.
Inbuilt lighting
The lights are powered by the bike's battery.
They turn on automatically when you switch the battery on.

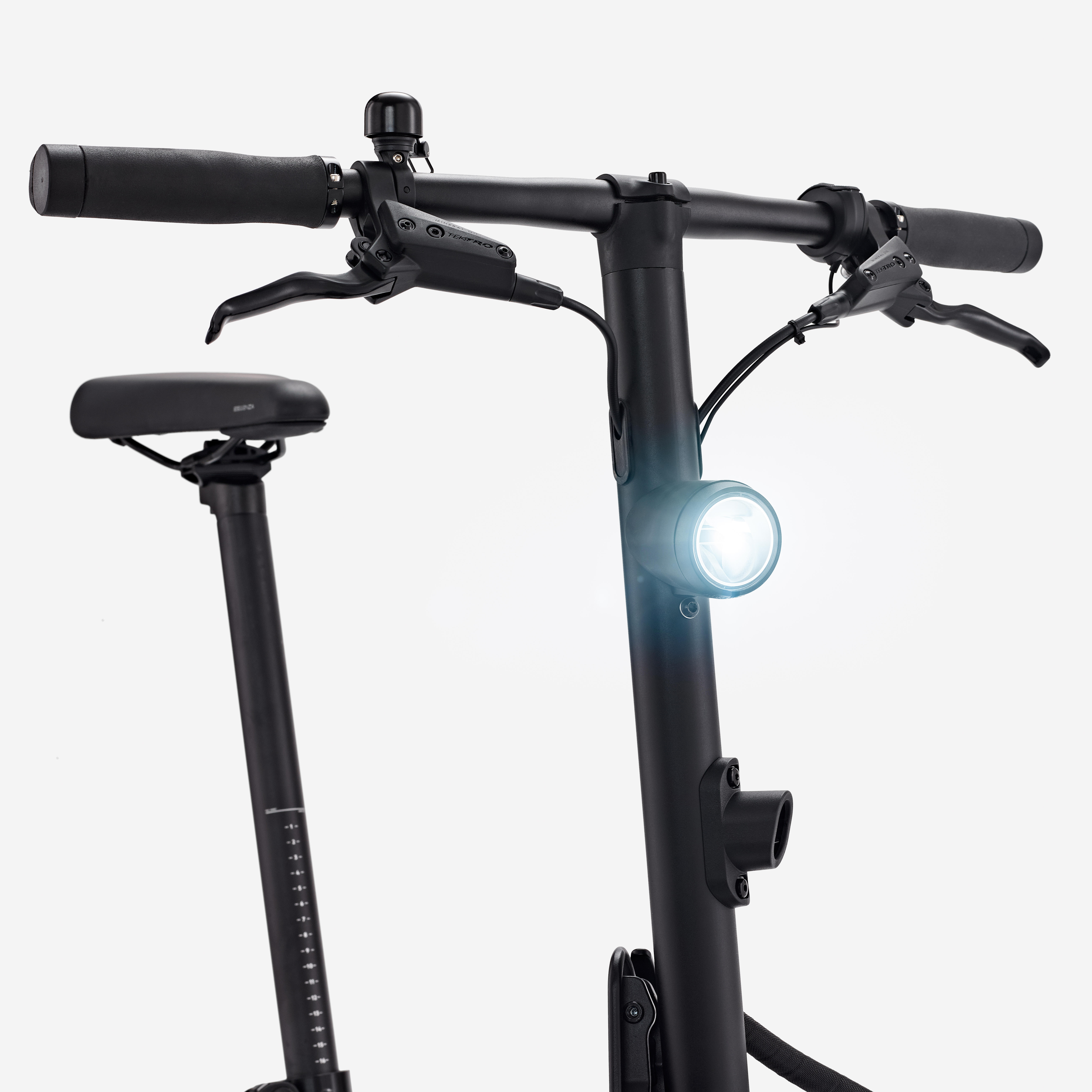

- Front beam: Power of 30 Lux, to see properly on poorly lit roads.
- Rear lightPower of 3 Candelas, to be seenIt is built into the rear mudguard.
Even you've run out of electrical assistance, there is backup power to keep your lights on for 2h, allowing you to get home safely (=compliant with regulations).
BAKES
Tektro (R285) hydraulic disc brakes.
160 mm front and rear disc.Aluminium levers.
Tips for running in your disc brakes.
When your bike comes out of the shop, the pads and discs are new, so braking performance is very poor.
Continuous heavy cold braking (e.g. downhill) can lead to overheating and 'icing' of the pads, making the brakes much less effective.
Break-in is achieved after 10 brake applications per brake (rear then front).
One brake application represents a sharp deceleration from 25 to 5 km/h without locking the wheel (= don't brake so hard that you stop the bike).

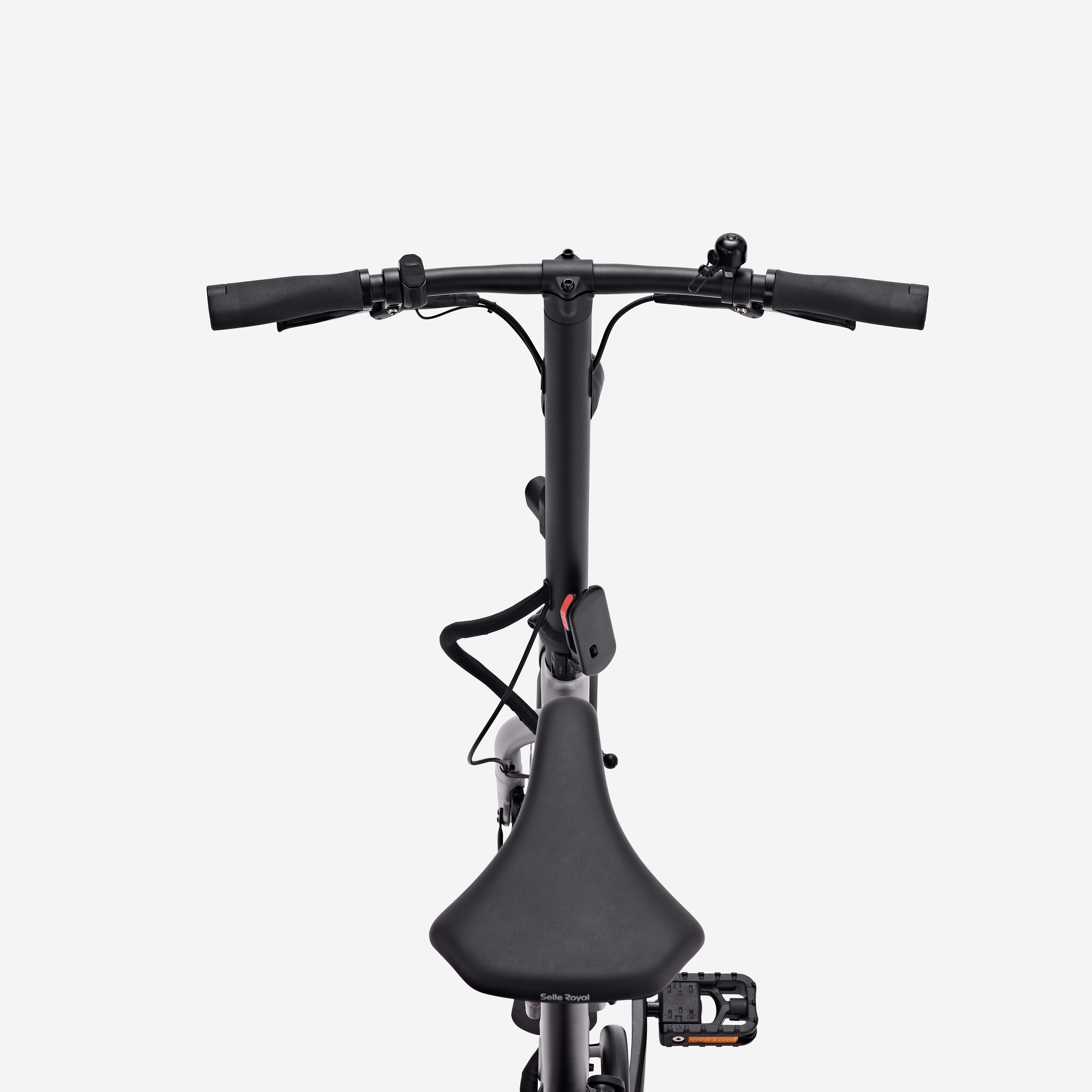

Handle bar
Handlebar:
- Width: 560 mm
- Diameter at centre: 25.4 mm
- Material: aluminium
Stem:
- folding, through a patented system of hinges that automatically lock in 1 second. 510 mm
- Height not adjustable
- Material: aluminium
Ergonomic handles for added riding comfort.
Saddle
Selle Royal.Lightweight and comfortable.
The saddle height can be adjusted using an Allen key
There is a mechanical stop to reduce the risk of saddle theft.
The handle under the saddle makes the bike easy to grip when moving it and guiding it one-handed when in a folded position.
SEAT POST
- Made of aluminium, with a diameter of 34.9 mm.
- Marked so that you instantly know exactly where to set it to each time for the most efficient ride.
- Turns into a stand when you lower it fully so that the bike remains stable once folded.
- A mechanical stop works as an anti-theft device by preventing removal of the saddle without the use of a tool.

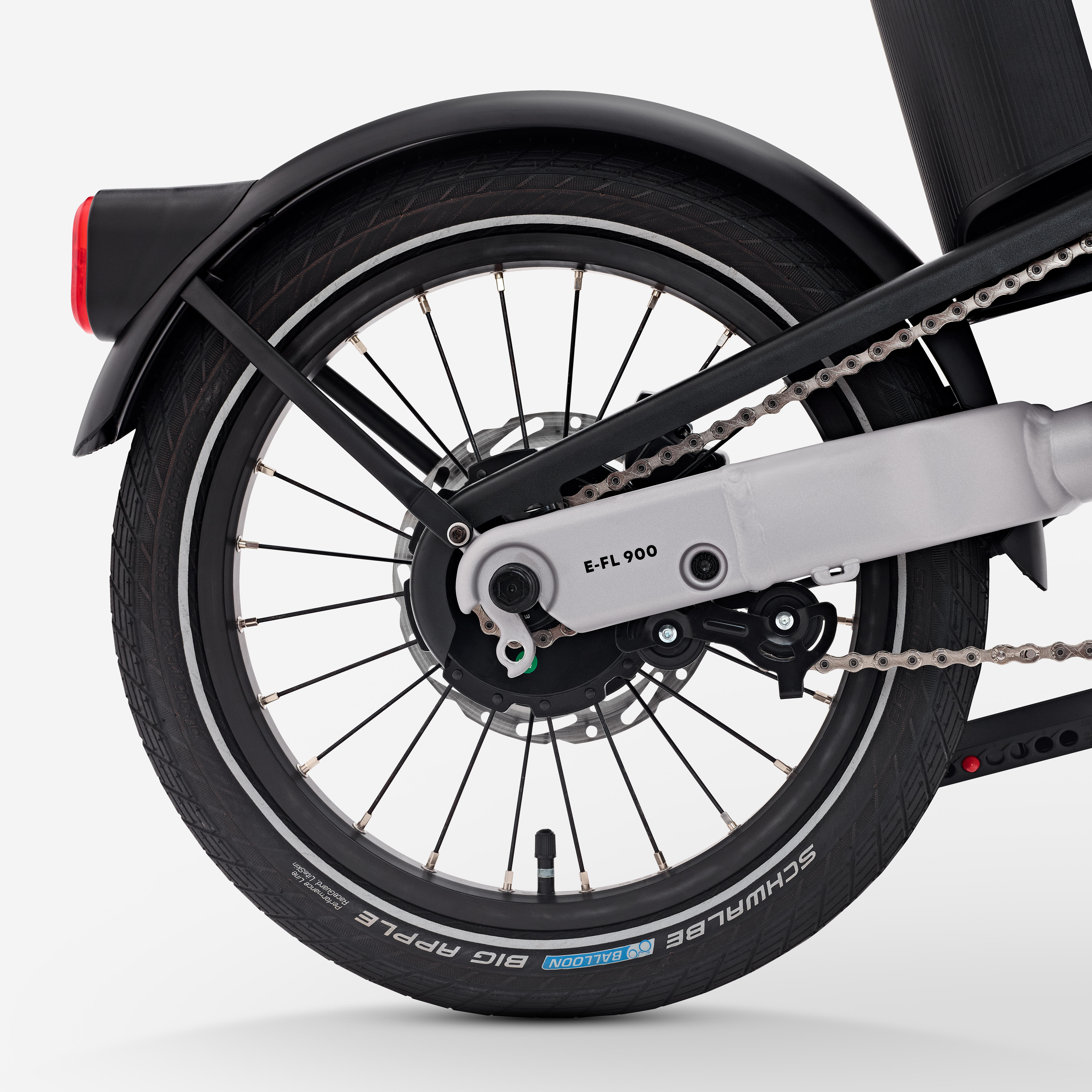

WHEELSET
The 16" wheel size is perfect for a great bike that's very compact.
These smaller wheels make a bike easier to handle and agile than with big wheels.
After your first rides, you're sure to be convinced.
Don't be surprised!Try it, you're going to love it.Rims: Reinforced rims (double wall)
Not compatible with tubeless tyres
Spokes:
20 spokes in front wheel and 24 in rear.
Front hub:
Single-arm reinforced disc hub
TYRE
Schwalbe Big apple tyres
- Sizes: 16"x2.00
- ETRTO:50-305
- Bead: Stiff
- Rubber:Addix
- Technology: RaceGuard
- Type of tyre: Grooved slick
- TPI:67
- Reflective strips
These air-cushion tyres work as natural suspension.At about 2.4 bar, you'll ride along marvellously well and enjoy full suspension.
Recommended pressure: 4,5 BAR to reduce the risk of punctures and extend your range.
TRANSMISSION
- Number of gears: 1 gear
- Single chainring: 53 teeth
- Sprocket: 12 teeth
- Chain treated against corrosion (NPNP), with quick link.
Pedals
Folding pedals so that the bike is even more compact when folded.
Bike stability
- Adjustable stand with a button to adjust the length. Keeps the bike standing when unfolded (whether or not the bike has a luggage rack).
- There is a plinth under the frame to place the bike on when folding it up and protect the bottom bracket.
- The bottom of the seat post turns into a stand if you lower it all the way when folding the bike. This keeps the bike incredibly stable when it's folded so that you can put it away or take it on public transport.
How can you carry your bags?
The bike comes with mounting points on the frame (above the front wheel).
These mounting points can be used to attach a luggage rack exclusively designed by the B'Twin teams.
It can be clipped on and taken off with 1 hand in 1 second.
As it sits on the frame, you won't notice its weight and the bike will remain stable.
This translates into optimal handling, no load on your back, and no perspiration.
/!\ The rack makes it harder to lift the front wheel over kerbs.
Compatible Accesories
Compatible with: - rack specific to Btwin folding bike. (ref.8735484, 8798072)
- protective cover to safeguard your bike and its surroundings when stowed away.
- there is a place on the frame designed to hold a folding lock (ref.8385907) or flask attachment.
Accessories that AREN'T compatible
Not compatible with: - Rear pannier rack.
- infant carrier.
- trailer.
Fastening system
The E-FL 900" is held in its folded position by a brand-new system.
New magnets located at the front wheel hub and on the rear left base of the frame keep the bicycle's wheels parallel.
Once folded, the stem is held against the frame by a clip system.
Essentail for the wheels to remain properly aligned.
This clever system allows you to push your bike when it's folded, and to carry it without a second thought.
The bike rolls when folded
YES, the Fold Light 900" rolls along nicely when folded!
You only need to carry it when absolutely necessary. In other words, when you come across a staircase or need to put it in a train luggage rack or car boot.
The rest of the time, you can easily move it by simply pushing it along, even when folded.
Leave the seatpost in its raised position and use one hand to steer it anywhere, even in busy pedestrian zones (e.g. train station, shop, bar and restaurant).
Bike weight
The E-FL 900 weighs only 15.95 kg (everything included)!
This folding e-bike is the lightest of our range, as well as the most compact and easy to carry.
- 1 high-performance electrical kit, lightweight and compact in size.
- 1 6061 T6 aluminium frame and fork.
- 1 single-arm fork design, making it very narrow.
- 1 great balance when folded.
Take hold of the bike by the saddle.
Climbing up stairs or onto the train will be an absolute breeze.
SIZES
One size fits all.
Suitable for users of 1.50 m to 1.90 m in height (approx. 5-6 foot)
Max load
The E-FL 900 is approved for a total maximum load of 120 kg:
user + bike + additional load (bags, etc.).
Compact design

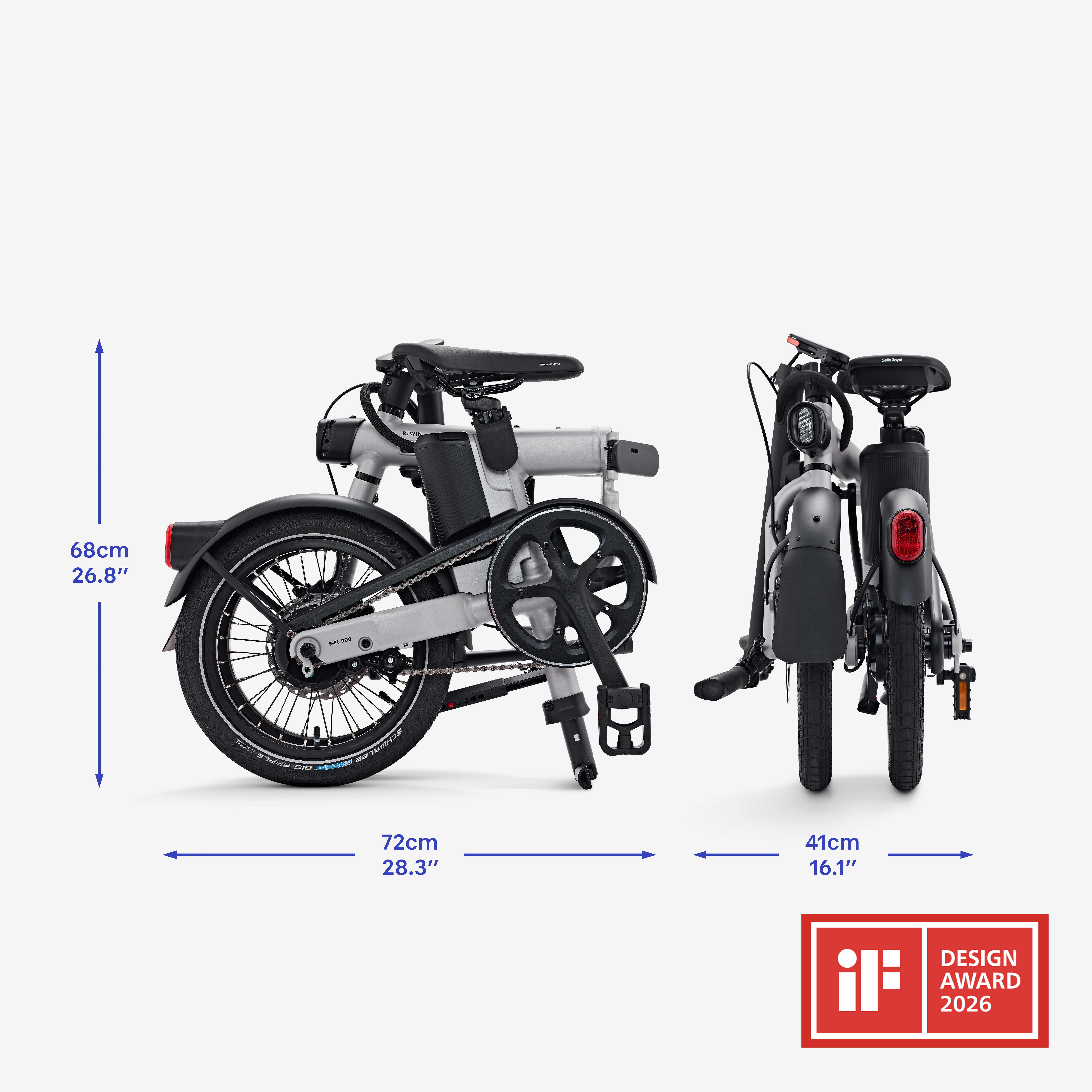

Folded (L/H/W): 72x 68x 41cm
You can take it absolutely everywhere, even places that have the most restricted amount of space.
Ideal for easy storage and versatility!
eg.: trains, the underground, lifts, turnstiles, security gates and car boots.

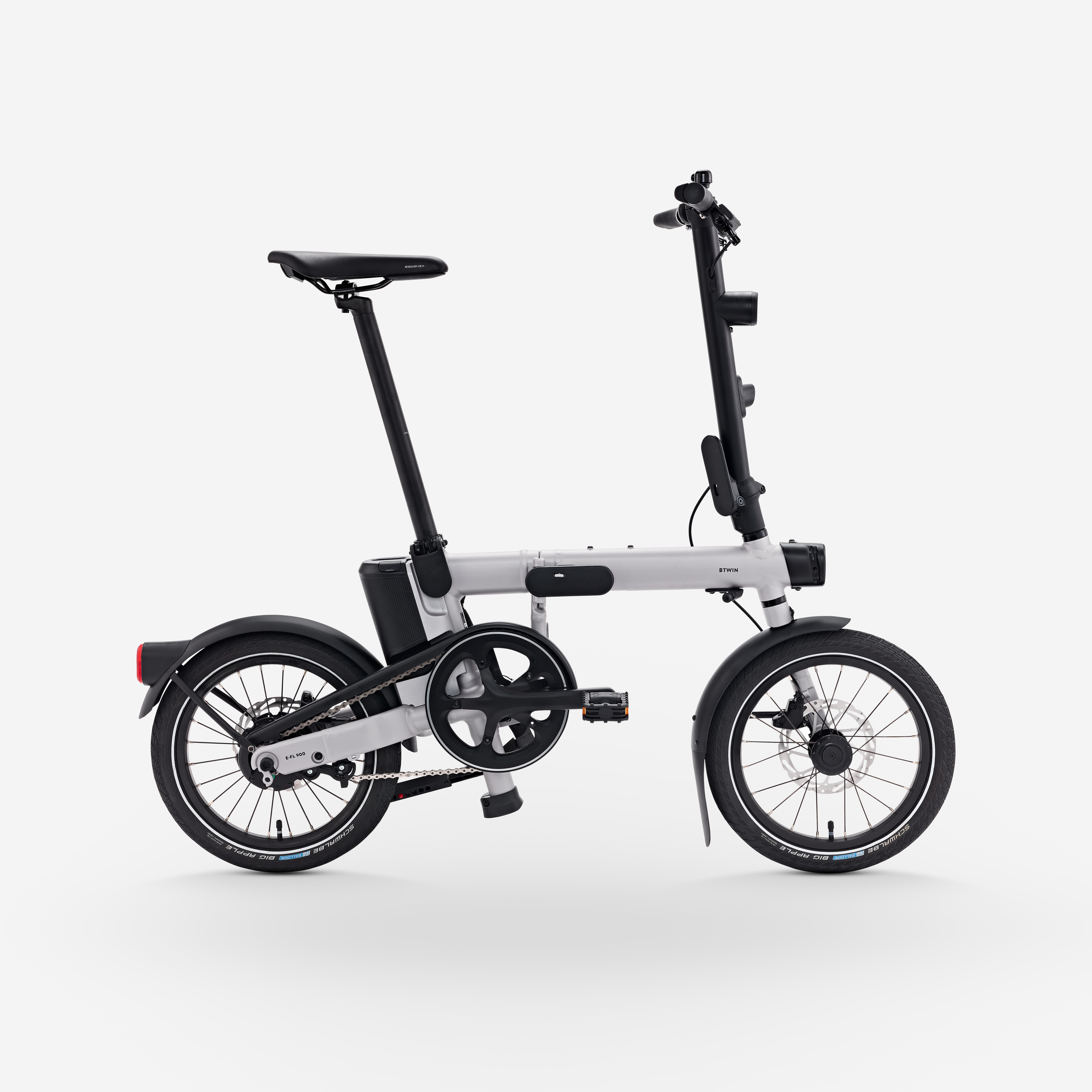

Unfolded (L/H/W):133x 109 x 57 cm
RESTRICTION OF USE
/!\ It's important to always look to make sure the hinges on your frame and stem are locked in place before you ride.
/!\ If you store your bike outdoors without the battery, make absolutely sure that you put the orange cap on to protect the connector the battery plugs into.
/!\ This bike should not be used for stunts, mountain biking or BMXing.
Guarantee
Lifetime guarantee: frame, stem and handlebar.
Parts: 2 years.
