RIVERSIDE

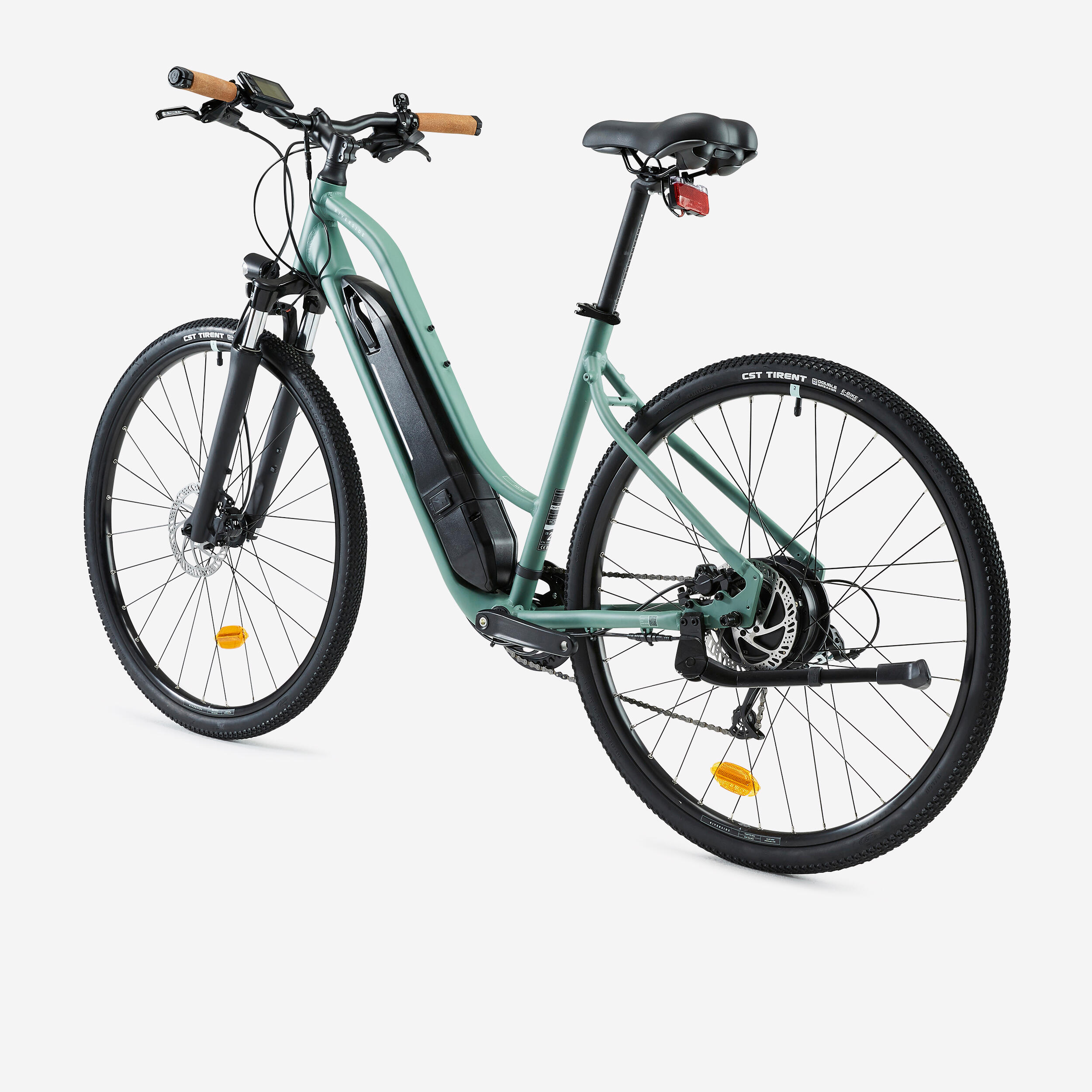

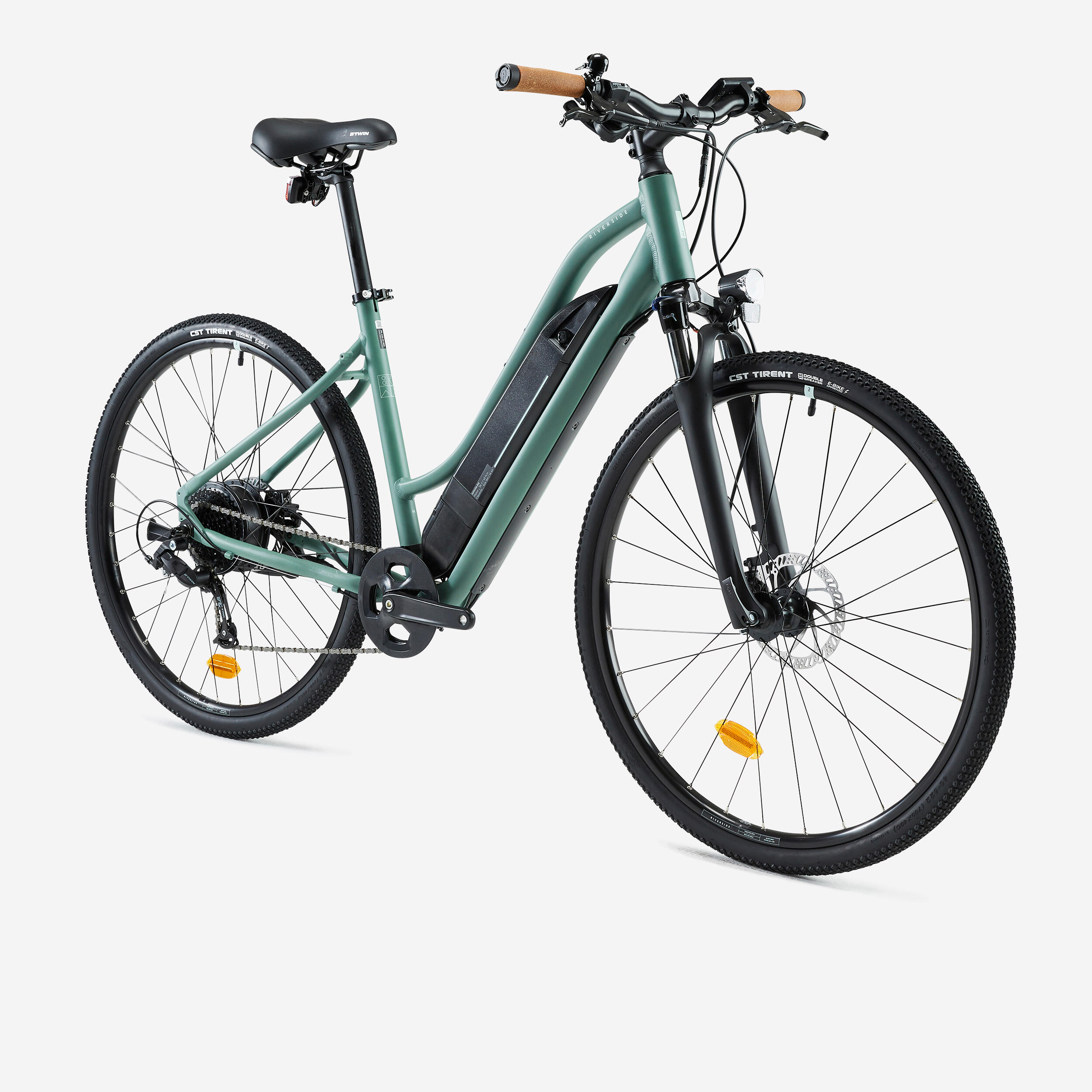

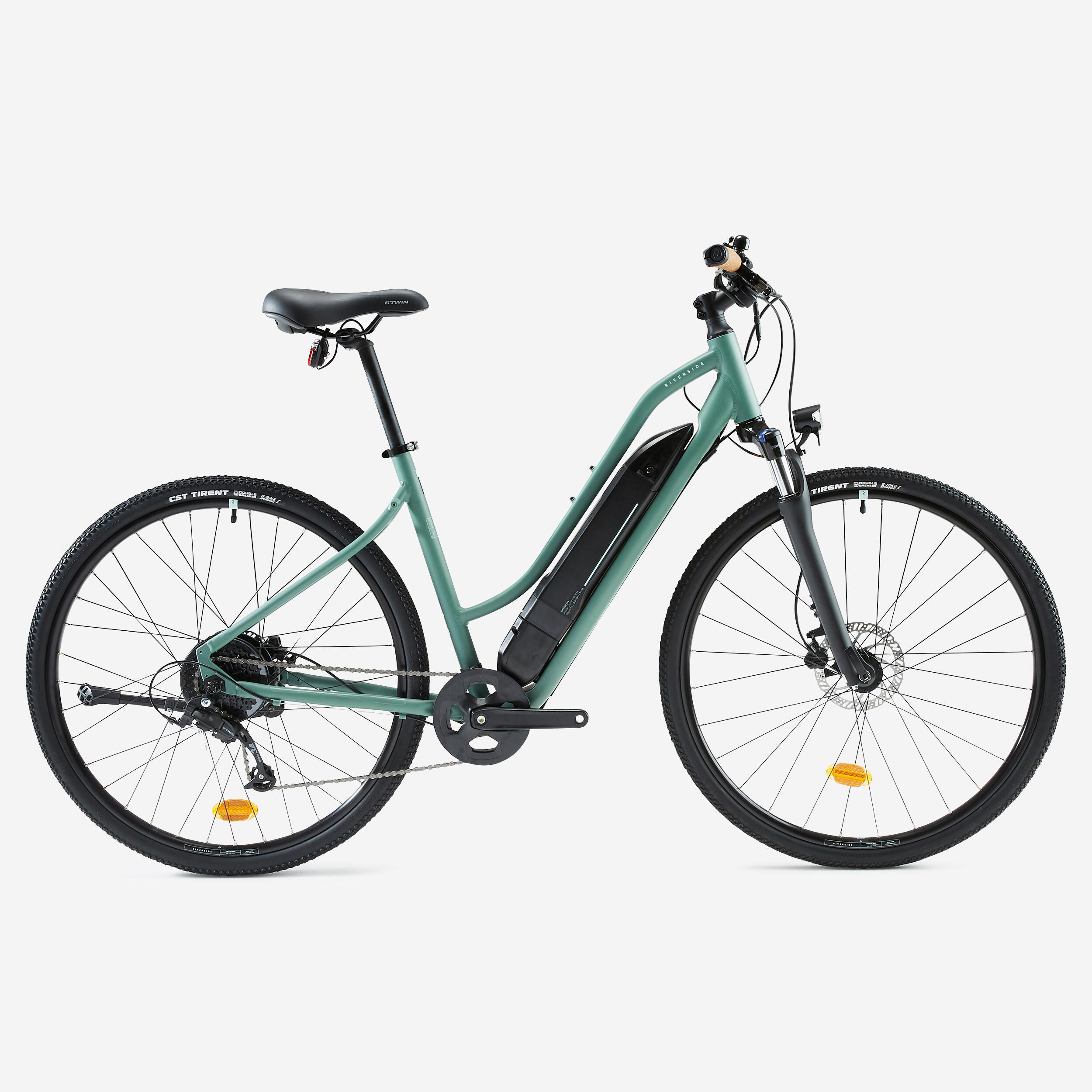

Electric Low Frame Hybrid Bike Riverside 520 E - Green
Set the pace for your road and trail rides with electric assistance! Feel the boost that makes all the difference up to 100 km.
Improved version of the Riverside 500E. Better battery life, built-in lighting and low step through. Also available in high frame.
ID 8767391
BENEFITS
Autonomy
Up to 100 km Removable battery Capacity 504 Wh
Compatibility
Compatible with rear pannier racks, mudguards, child seats and trailers.
Power
Wheel motor with torque captor. Max torque: 42 Nm.
Puncture resistance
Reinforced CST Tirent tyres. Puncture protection rating: 4/5
Cycling comfort
60° trekking position; 60 mm suspension, ergo grips.
Instructions
Download it hereTECHNICAL INFORMATIONS
Choosing your size
3 sizes available: Size S: 1.50 m to 1.65 m.
Size M: 1.66 m to 1.77 m.
Size L: 1.78 m to 1.89 m.
If you are on the edge between 2 sizes: Choose the smaller size for greater comfort (straighter back).
Choose the larger size for a more stretched out position (better suited to speed).
If you're over 1.90 m tall, we advise trying the size L in store or going for the size XL in the high step through version.
0, 1, 2 or 3: choosing your assistance mode
Mode 0 – Assistance disabled.
Mode 1 - Gentle assistance at up to 25 km/h that means you can forget about the weight of the bike - battery life of around 100 km under normal conditions.
Mode 2 - Moderate assistance at up to 25 km/h - battery life of around 90 km under normal conditions.
Mode 3 - Boost assistance at up to 25 km/h for the most difficult ascents.
Battery life varies depending on the weight being transported (user + load), hills and the temperature outside.
Motor
The 36-volt brushless rear wheel motor has 250 Watts of power for a maximum torque of 42 Nm.
For example:
In mode 1, the motor increases your power by +90%, so if you pedal 100 W, the motor adds 90 W.
In mode 2, the motor increases your power by +150%, so if you pedal 100 W, the motor adds 150 W.
In mode 3, the motor increases your power by +220%, so if you pedal 100 W, the motor adds 220 W.

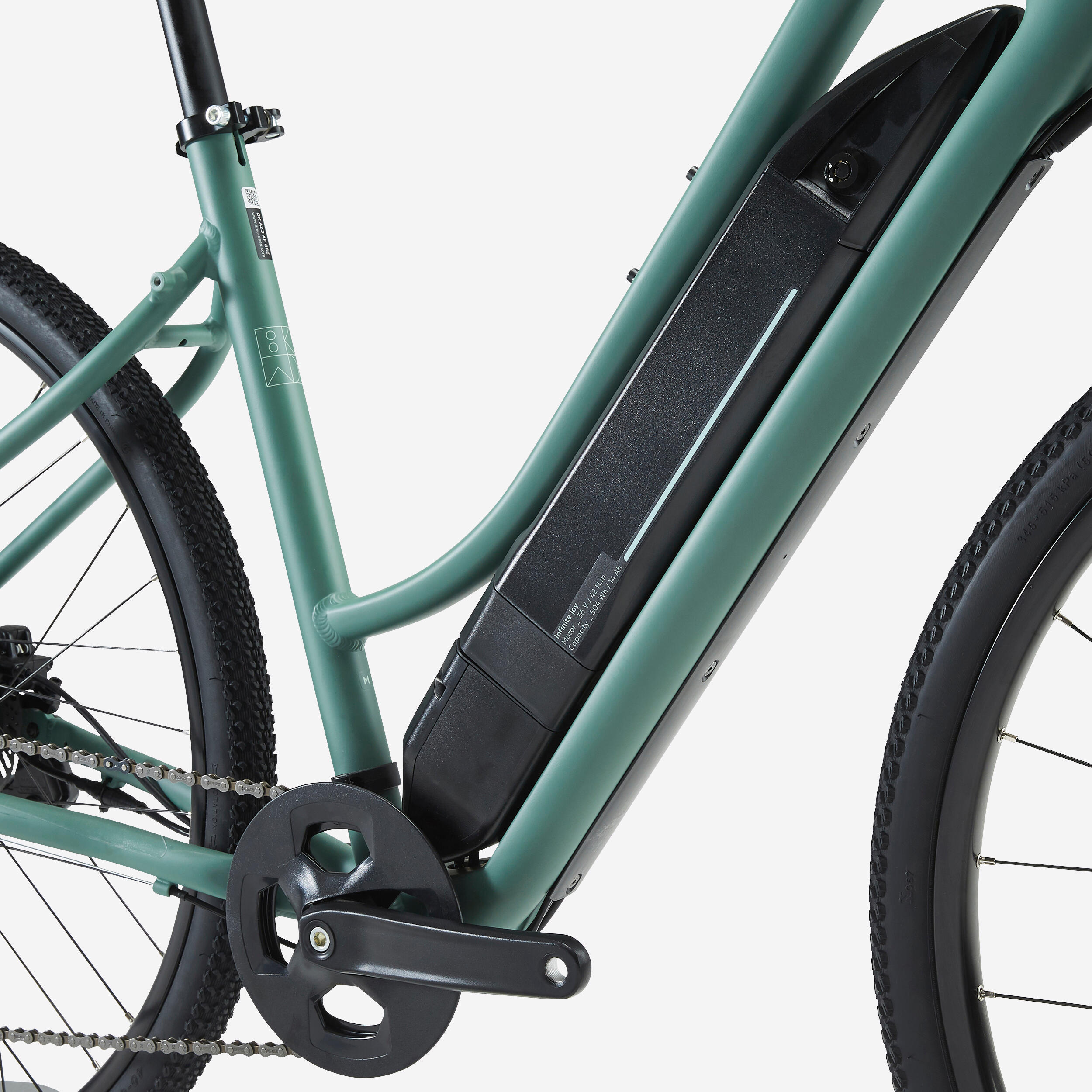

Battery
Batteries with 36 V 15 Ah (500 Wh) LG or Samsung lithium-ion cells and a locking system that prevents any vibrations to the battery as you ride.
Supplied with two lock keys.
Weight: 3.15 kg.2-year warranty, or 500 charging cycles to 100%
Option to recharge on your bike or separately
We recommend recharging the battery after each use.

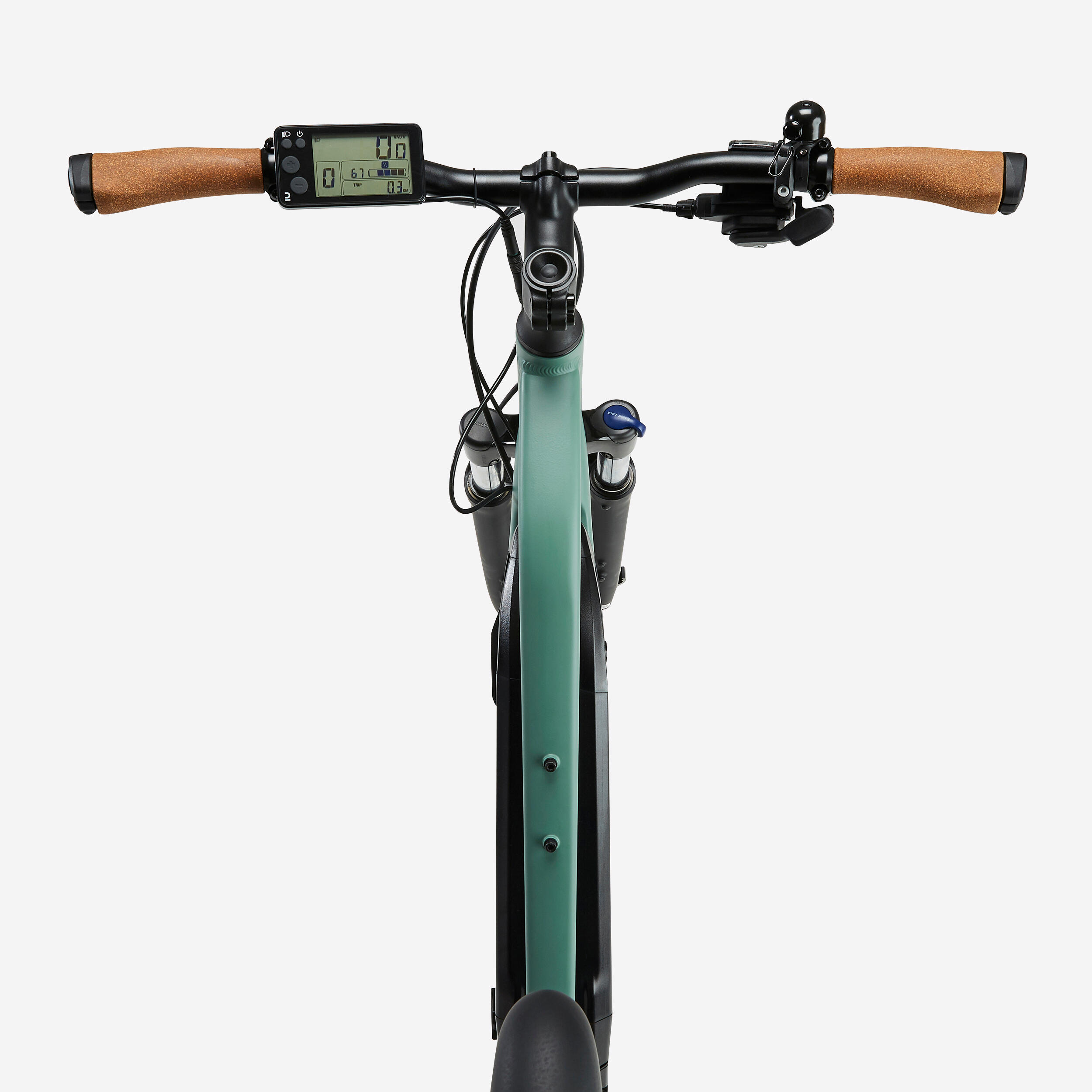

CONTROL SCREEN
LCD screen, backlit for better visibility both day and night.
Displays:
Speed, distance covered and overall, the remaining power and the mode.
You can also control the headlights and turn on Walk mode.USB plug for recharging your smartphone.
What is the assistance sensor?
A simple, clever system: the more you pedal, the more assistance is provided. You are in control of your speed and acceleration.
For those in the know, we're talking about the torque sensor fitted to the bottom bracket.
A frame designed for ease of use, less weight and more comfort
Our engineers have designed the unisex frame of the RS 520E electric hybrid bike out of 6061 aluminium to make it lightweight and robust. Its lowered geometry makes it easy to climb onto, keeping both men and women comfortable.
You can also customise the frame as you like using the bottle cage and pannier rack holes.
The removable derailleur hanger can be changed if needed.
Adjustable suspension fork
Our designers added the Suntour NEX SF19 lockable and adjustable spring suspension fork.
• 1 and 1/8 inch aluminium pivot
• 63 mm of travel
• Aluminium lowers

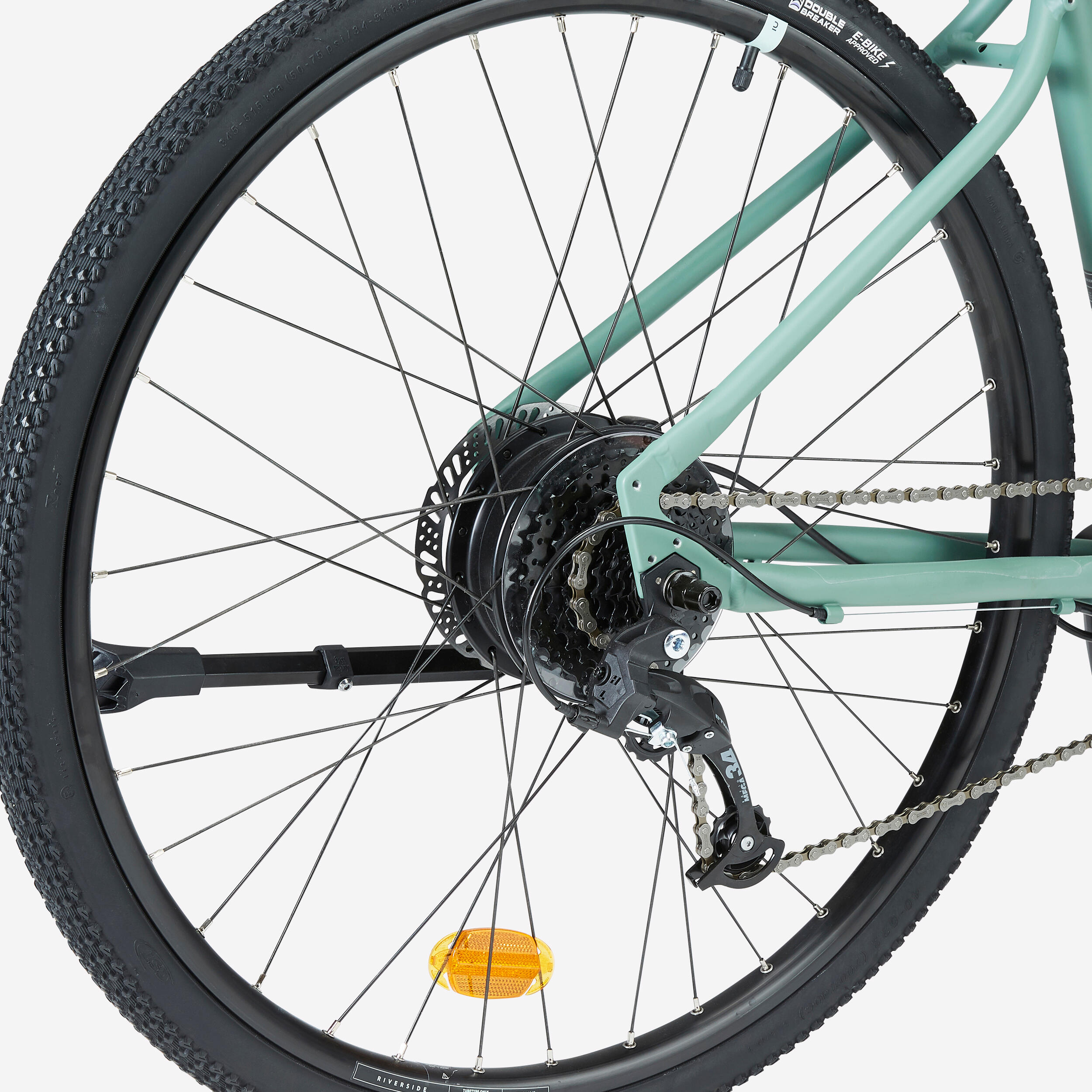

Derailleurs and drive train
Quickly and easily change between the 8 speeds using the shifter on the handlebars.
In detail:
- 8-speed Microshift H081 cassette
- Single chainring: 36 teeth
- Cogs: 11/ 34
- KMC Z7 chain with quick-release
- Rear derailleur: BTWIN RD M25
- Microshift TS 39 shifter.
- Anti-derailment ring
Hybrid tyres
Comfortable, versatile, reinforced tyres from the brand CST Tirent so you can go anywhere.
Puncture protection.
The recommended pressure is between 4 and 5 bars (details on tyre sidewall).
Dimensions: 700 x 40 (40-622).
28" double-walled wheels
Head off on tours with the Riverside 520 E equipped with black double-walled aluminium wheels.
To transport your bike, the quick-release on the front wheel makes it easy to remove.
28-spoke front wheel and 36-spoke rear wheel.
Rear wheel nut can be removed with an 8mm Allen key. (Compatible with B'Twin 900 multitool).
Wheel diameter = 28 inches (21-622).
Hydraulic disc brakes
Cycle safely on any terrain (dry/wet) thanks to the Tektro TKD 160 mm-diameter hydraulic disc brakes at the front and rear.
Hydraulic brakes provide more precise braking as well as greater comfort using the brake levers.
Aluminium brake levers.

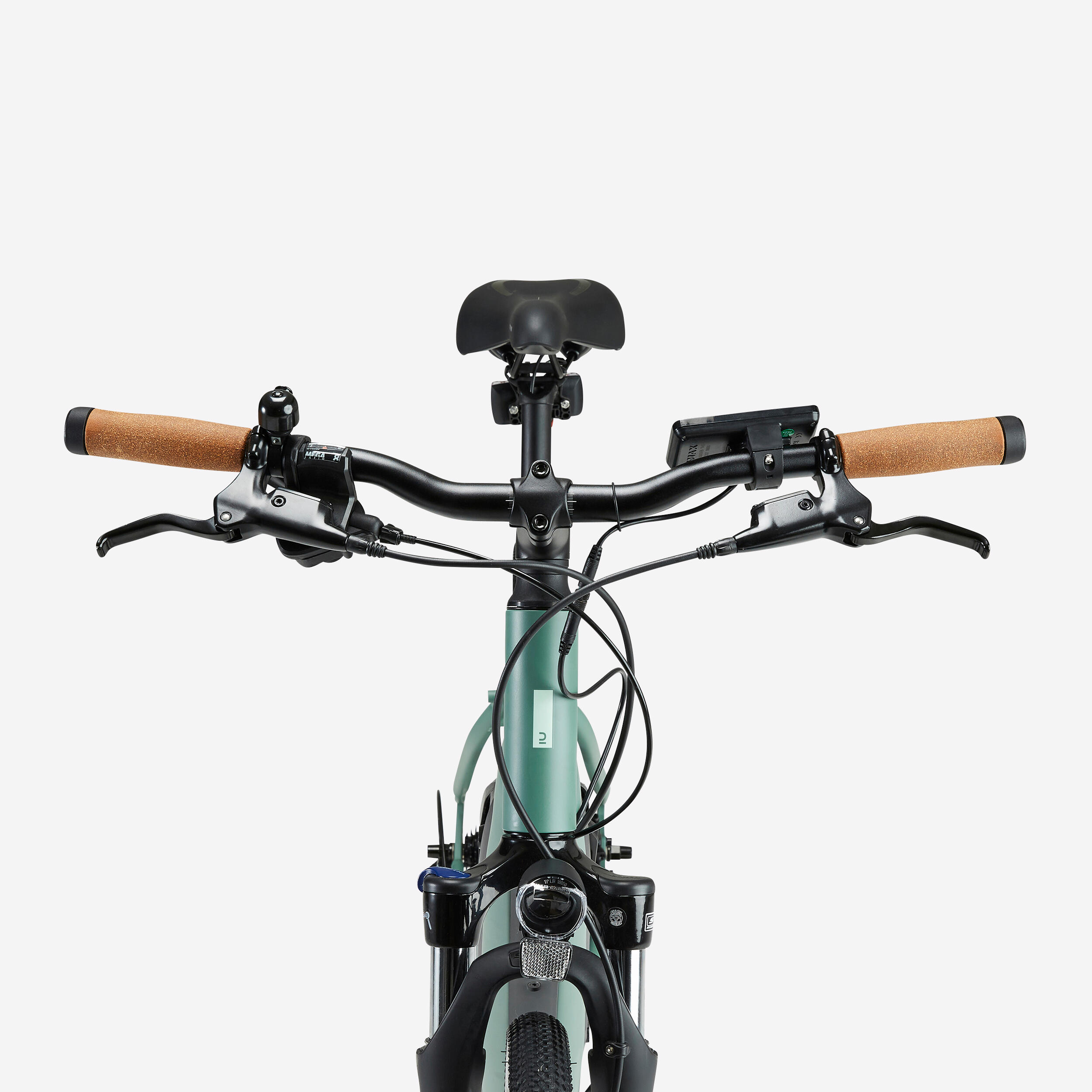

Handlebar, Steering, Stem
Semi-raised aluminium riser bar (620 mm for sizes S and M, 660 mm for size L)
1 1/8" aluminium stem, 75 mm in length.
1⅛" semi-integrated Aheadset headset.
2 aluminium spacers 5 mm in height.
B'Twin ergonomic grips.
Saddle
Because it's important that your seat position is adapted to your riding style, our teams developed the exclusive B'Twin Ergofit Trekking 500 saddle.
Aluminium seat post with graduated markings for easier adjustment.
Collar dimensions = 35 mm.
Seat post diameter = 28.6 mm.
Tool-free saddle height adjustment (quick-release).
Lighting
The Riverside 520E has built-in lights that are powered by the battery.
The front headlight is fixed to the fork and the rear light is under the saddle.
The cables are routed through the frame and seat post.
It has a powerful 20 lux LED light that has a wide beam of light.
The lights are controlled on the handlebars via the control screen.
Crank / Pedals
The Riverside 500 electric bike is supplied with versatile plastic single-piece pedals with a wide pedalling surface to keep the foot on the pedal.
170mm-long aluminium cranks.
36-teeth aluminium chainring. Plastic chainguard.
Accessories
Your Riverside 500 E is supplied with a bell, lights (front/rear), wheel reflectors and pedals.
Depending on the accessory type and size of the bike, the frame is compatible with:
- front and rear mudguards
- stand
- bottle cage
- saddle bag
- rear pannier rack
- child seat
Please ask a sales advisor for further details.
WEIGHT
22.6 kg in size S with the battery.
22.7 kg in size M with the battery.
22.8 kg in size L with the battery.
19.7kg in size S without battery.
19.8kg in size M without battery.
19.9kg in size L without battery.
The bike is supplied with B'Twin Flat platform pedals.
The total weight (bike+cyclist) should not exceed 120kg.
CE Certificate of Conformity
https://share-files.decathlon.com/user-guide/453436/decla_de_conformite_ce_riv_500e.pdf
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Restrictions on use
Not suitable for mountain bikes and BMX.
TESTS AND WARRANTY
Test product
The total weight (bike + luggage + cyclist) should not exceed 120kg.Before implementation in stores, our bikes are tested by many bike trekking enthusiasts. They ride several thousands of kilometres to be properly approved. These tests enable us to guarantee comfort, ease of use and versatility to meet your expectations.
Parts guarantee
Lifetime guarantee: frame, stem and handlebar. Parts: 2 years.
