Weight
S: 12.2 kg
M: 12,3 kg
L: 12.4 kg
XL: 12.6 kg
Weight without pedals, with inner tubes

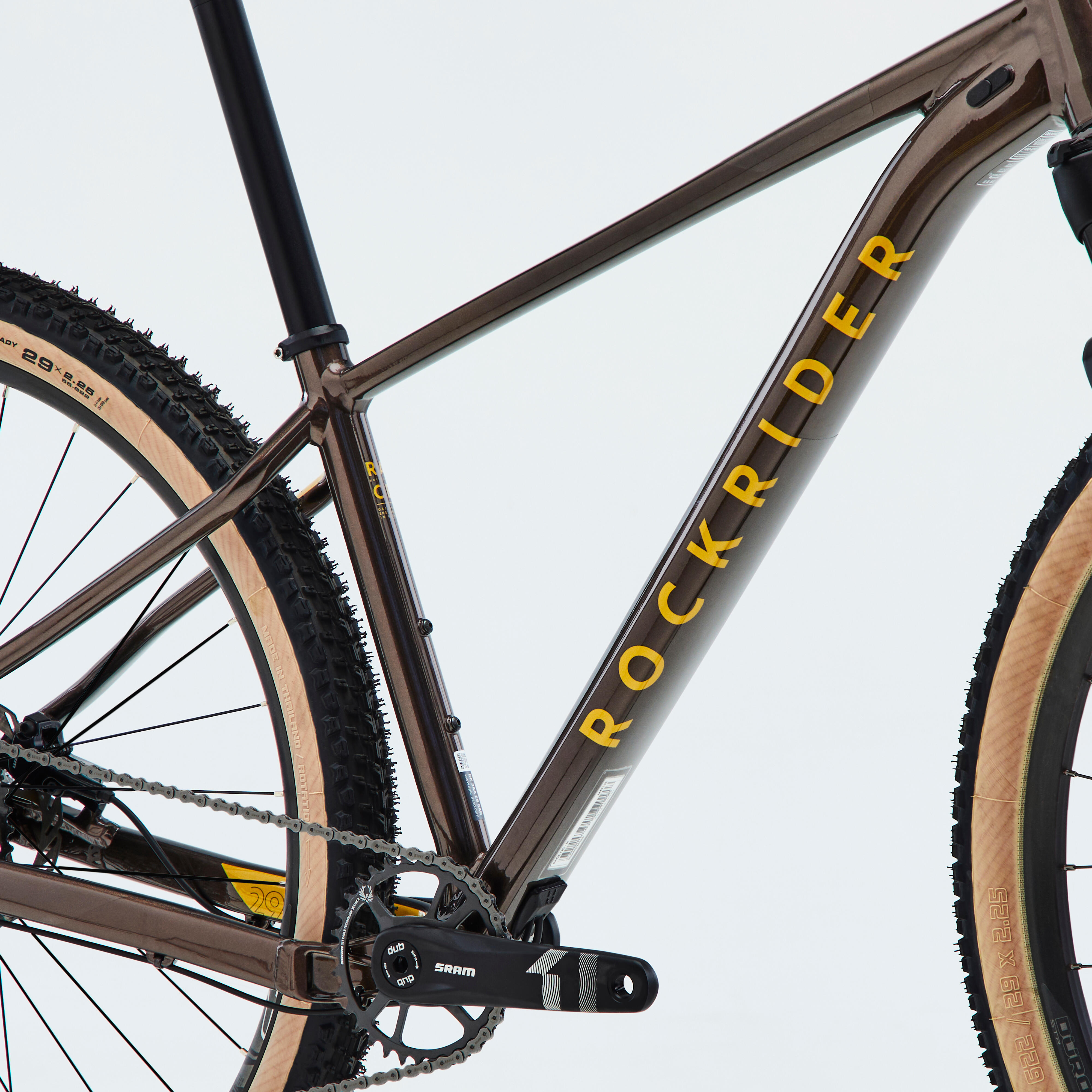

Frame
6061 and 6013 aluminium with triple-butted tubes
1610 g in size M (gross, without derailleur hanger)
31.6 mm seat post
Compatible with dropper posts (internal routing)
Thru axle
BOOST format
PressFit 92 bottom bracket
Compatible with 2 bottle cages
Sram UDH derailleur hanger
Drivetrain
Sram NX Eagle 12-speed rear derailleur
Sram NX Eagle shifter
Sram X1 1000 Eagle chainset (170 mm in S and M, and 175 mm in L and XL)
32/34T chainring (compatible with 30, 3234 and 36T)
SRAM PG1230 11-50 cassette
Sram NX Eagle chain
Sram PF 92 bottom bracket
Fork
Manitou Machete 100 mm
32 mm stanchions
"TS AIR" and "KWIK TOGGLE" technologies
Thru axle
BOOST format
Combolock II remote lockout (2 positions: open and closed)
Weight: 1860 g

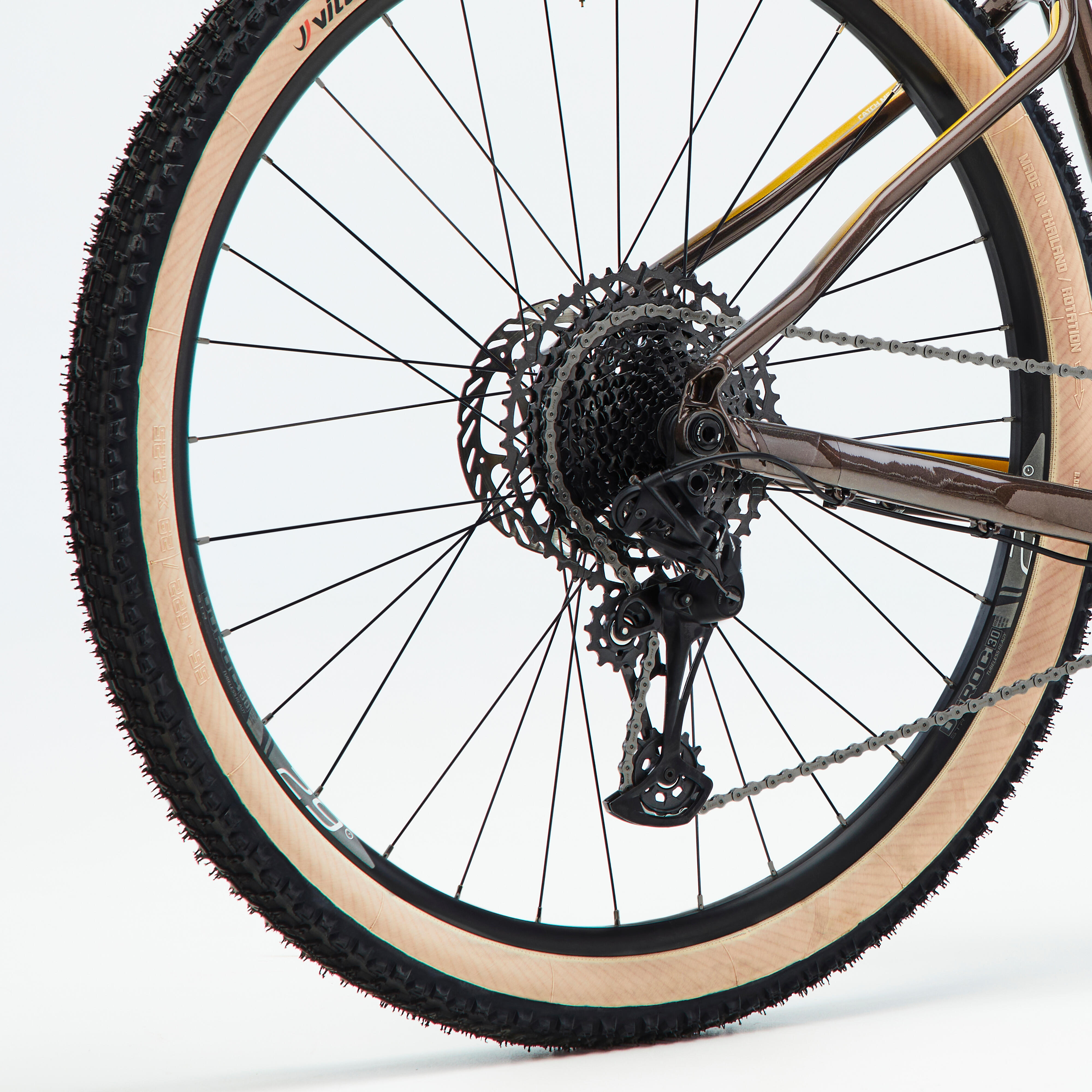

Wheels
29" Sun Ringle Duroc 30 SRC Tubeless Ready wheels
Weight: 1920 g
HD freehub
Inner rim width: 30 mm
6-bolt rotors
28 double-butted spokes
Sealed bearings
BOOST axles: 15 mm front and 12 mm rear
Fitted with rim tape: tubeless ready
Sold without tubeless valves
Brakes
Sram Level T hydraulic
Sram G2 rotors: 180 mm front and 160 mm rear
6-bolt rotors

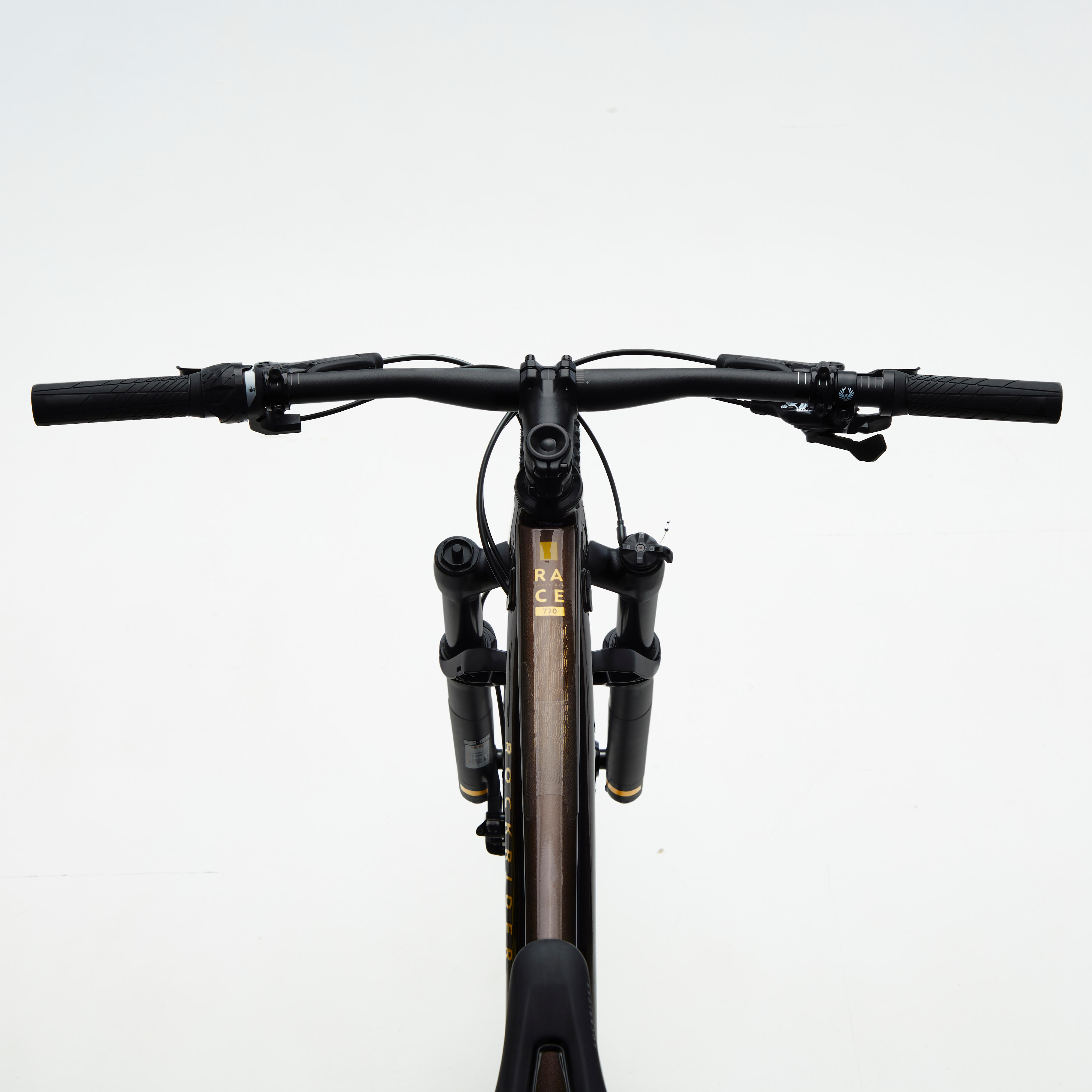

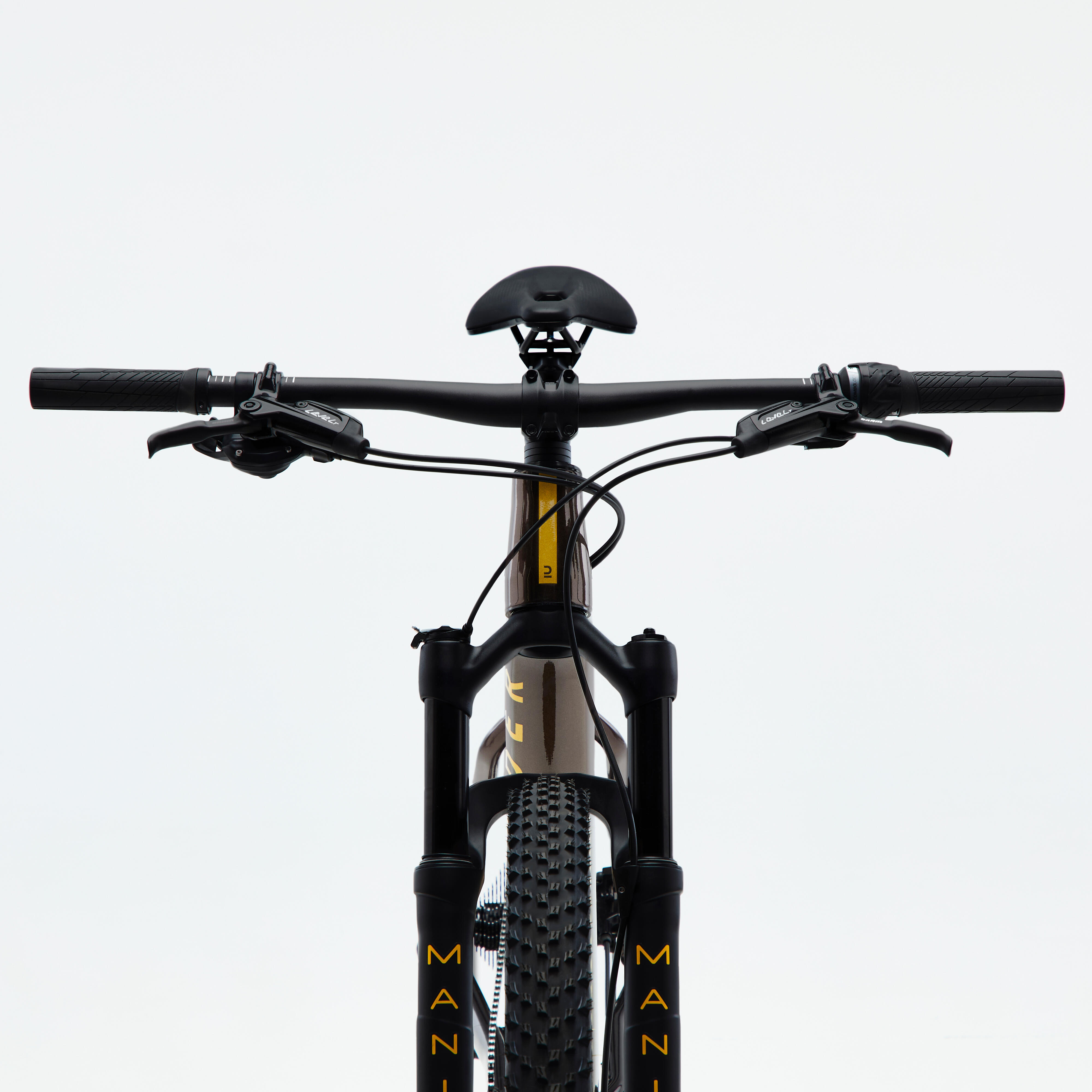

Riding position
Rockrider aluminium stem
-7° angle
60 mm in size S and M
70 mm in size L and XL
Rockrider aluminium flat handlebar
720 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On
Saddle & seatpost
Rockrider Control Short Noze saddle
Steel rails
Weight: 270 g
31.6 mm aluminium seat post
Length: 350 mm (size S) and 400 mm (size M, L and XL)
285 g
Tyre
Front: Vittoria Barzo 29 x 2.25 Graphene
120 TPI carcass
Weight: 720 g
Rear
Vittoria Mezcal 29 x 2.25 Graphene
120 TPI carcass
Reinforced sidewalls
Weight: 760 g
Pedals
Rockrider 520 Grip resin flat pedals
Accessories
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals
Warranty
2 years for wearing parts
Lifetime for the frame, seat post, stem and handlebar
