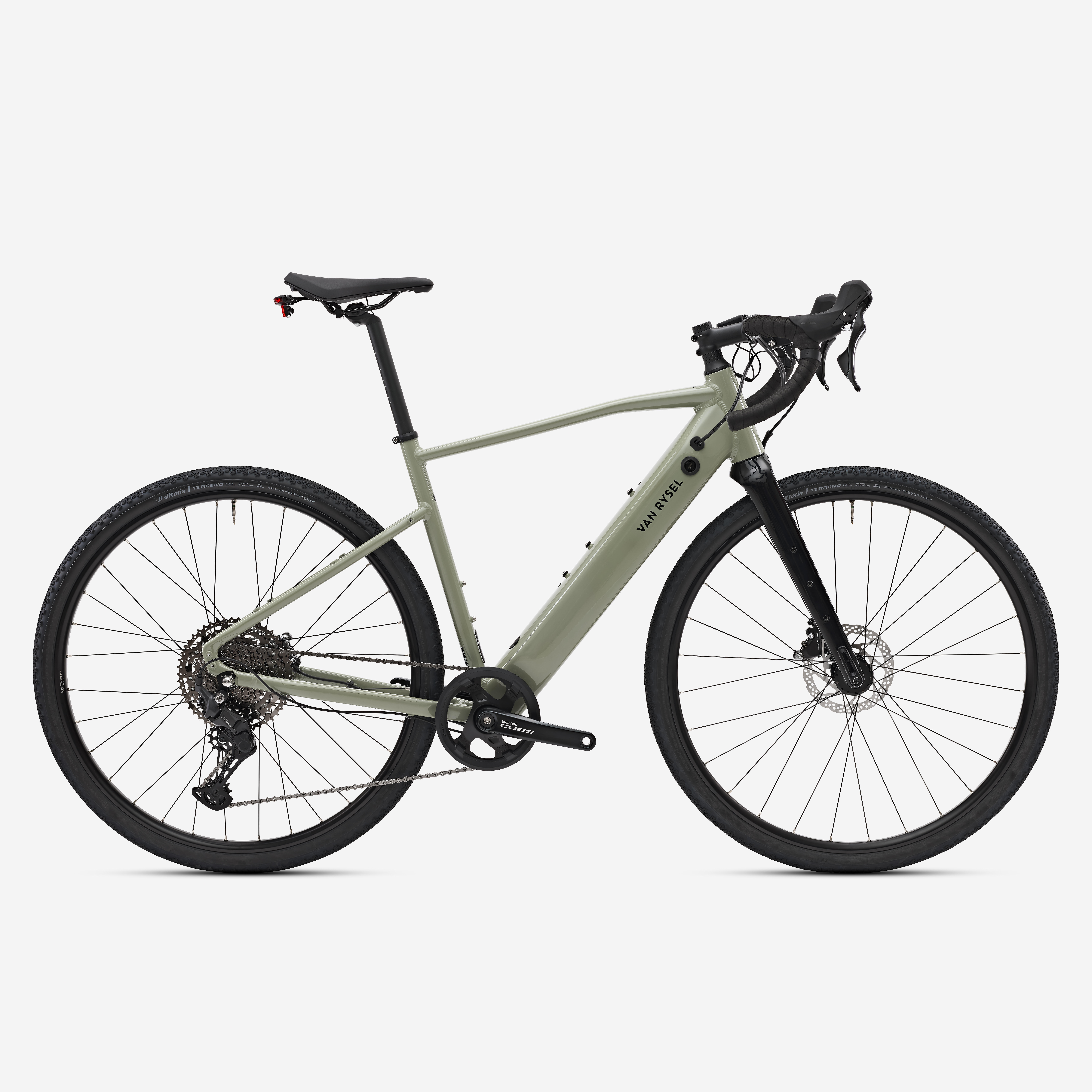

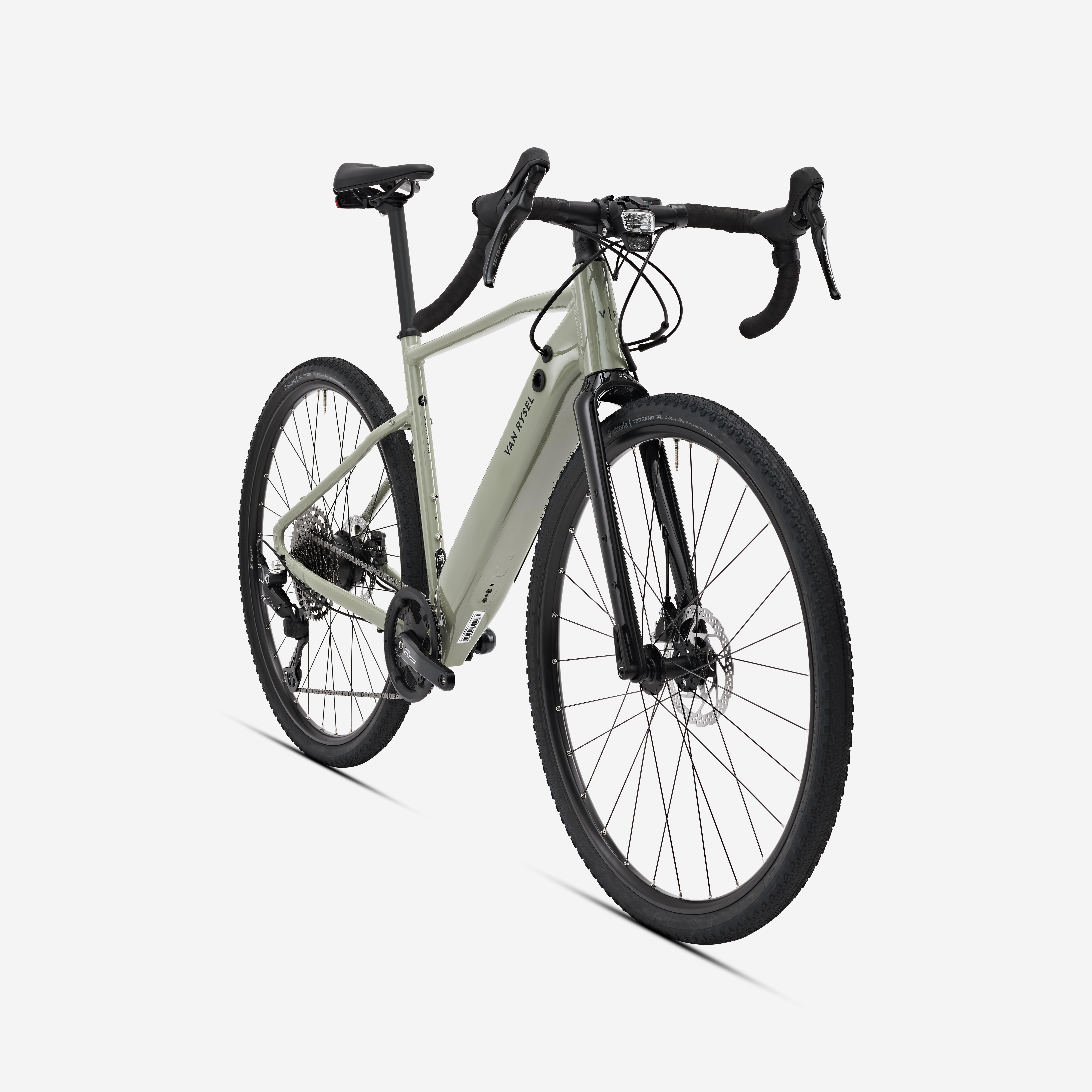

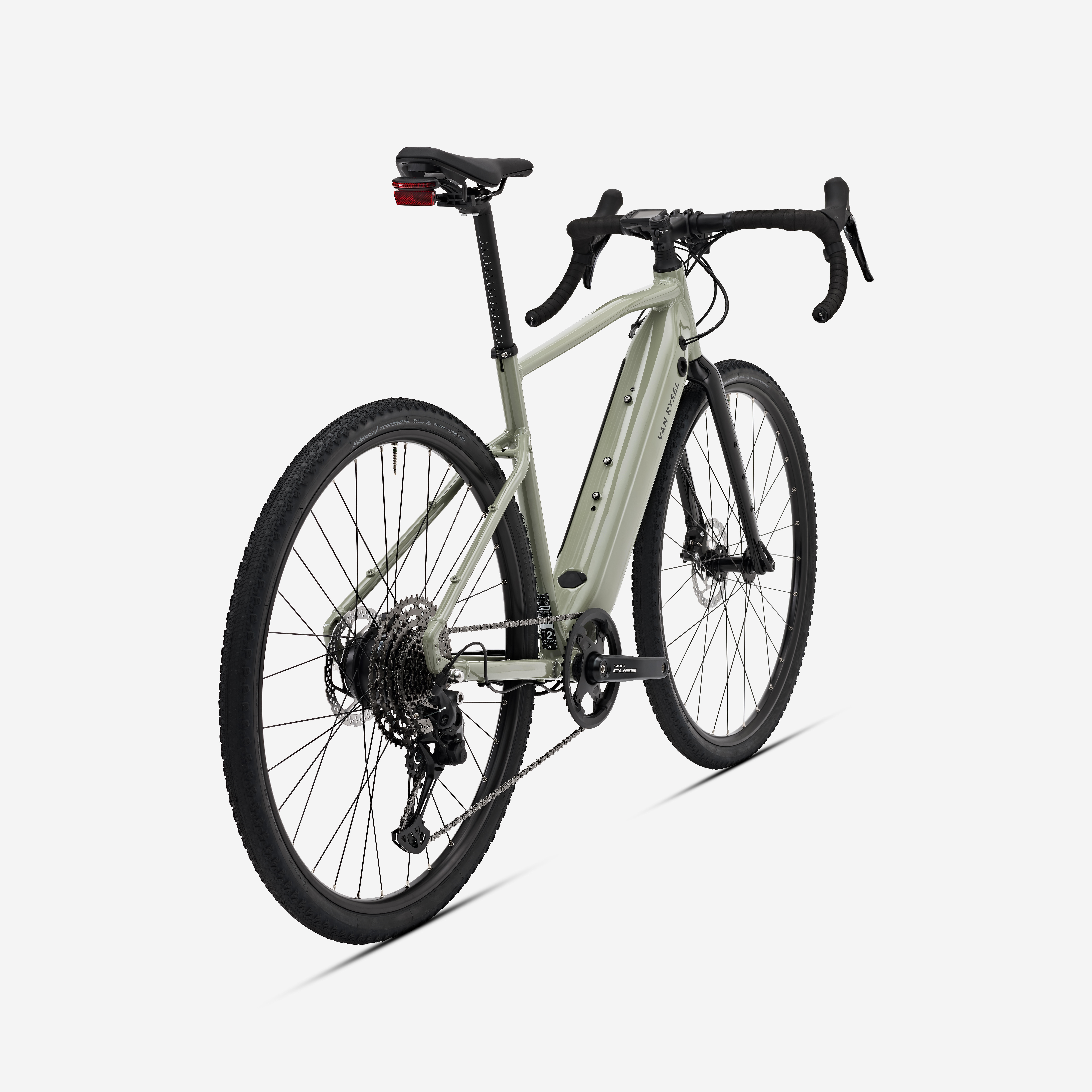

E-GRVL AF DISCOVER
Featuring a smooth motor on the rear hub, a removable battery with a large range and dual lighting fuelled by the battery, this bike's built for adventure.It has ready-fitted attachments for mudguards and pannier racks and you can ride it on any terrain, whether you're just getting around in your daily life or going for excursions lasting several days.
Discreet, smooth motor
Discreetly positioned on the hub of the rear wheel, our motor is very compact and light.The assistance is very smooth, flattening out hilly terrain for you without penalising you on easier riding sections.
3 assistance modes:
- ECO: low assistance to save battery power
- TOUR:moderate assistance for long climbs.
- SPORT: maximum assistance for very difficult sections (high level of battery consumption)
Comfort in all circumstances
With the intuitive assistance controls on the handlebar, you keep control of both your effort and your steering at all times. The endurance riding position is upright enough to stay comfortable for hours while keeping control on rough terrain.The fat 700x45mm Vittoria T30 Tubeless Ready tyres and Shimano Cues 11x1 groupset with hydraulic brakes will get you through all kinds of difficulties.
Fully equipped
The E-GRVL AF MD is one of the best-equipped bikes on the gravel e-bike market and comes with:
- powerful lighting at front and rear, powered by the bike battery
- colour discplay screen, connected to the electrical system

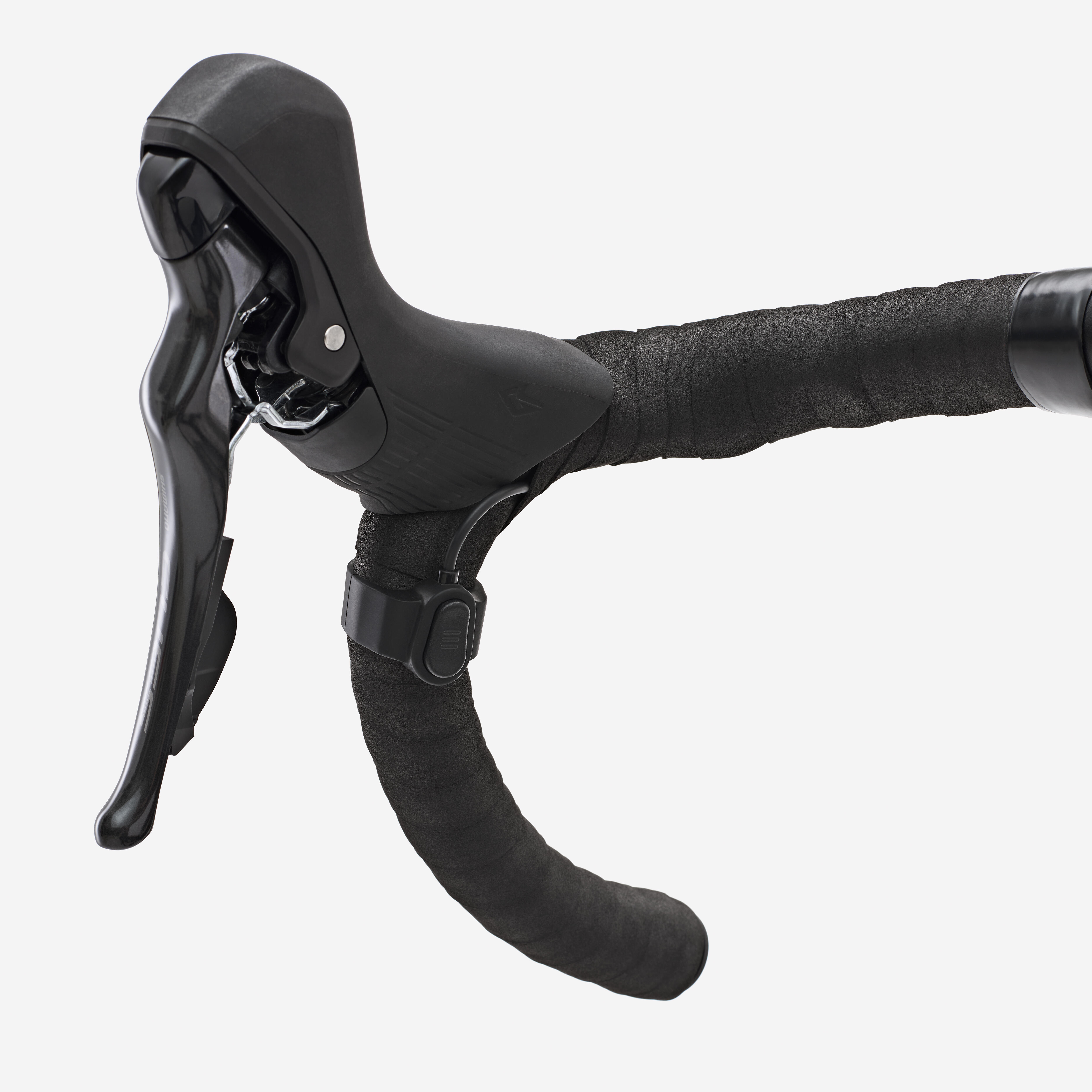

- Command buttons offset on the handlebar (under your hands) to change assist modes without having to let go of the handlebar
The bike is also compatible with the following accessories:
- "ACTV" pannier rack ref. 8828232 (sold separately)
Glimpse
Rear motor:DECATHLON Brushless 35 Nm
Battery: 360 Wh (detachable for charging)
Frame: Aluminium
Drive train: SHIMANO CUES 1x11
Brakes: SHIMANO RS405 for hydraulic brakes
Wheels:Decathlon
Weight 17.7 kg (size M, without pedals)
Motor

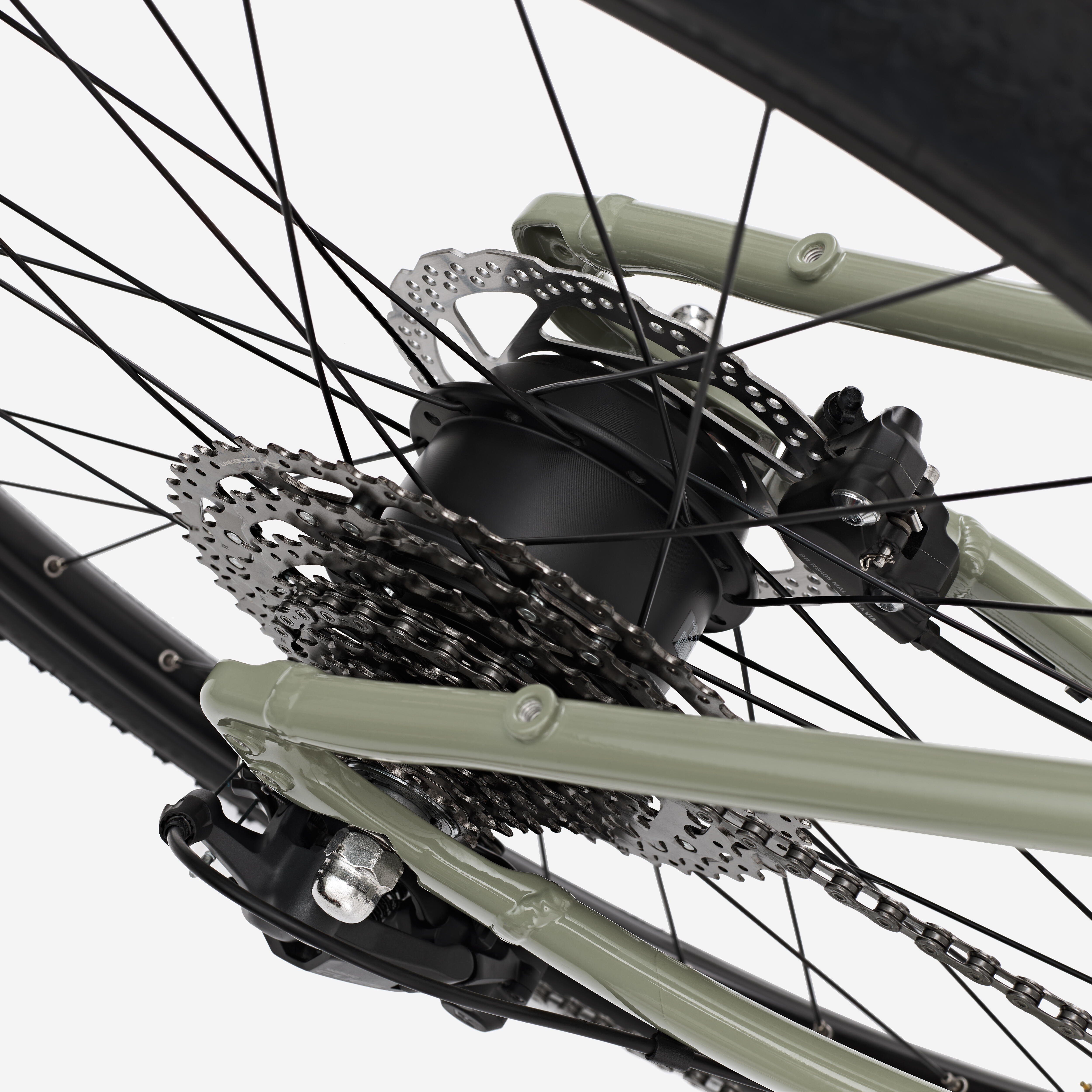

Motor: DECATHLON Brushless, positioned at rear hub
Torque: 35 Nm
Maximum power: 250 W
Torque sensor: No
Rated voltage: 36 V
Assist modes: 3
→ ECO:Low assistance to save battery
→ TOUR:moderate assistance for long climbs.
→ SPORT: maximum assistance for very difficult sections (high battery consumption)1.95 kg
Battery

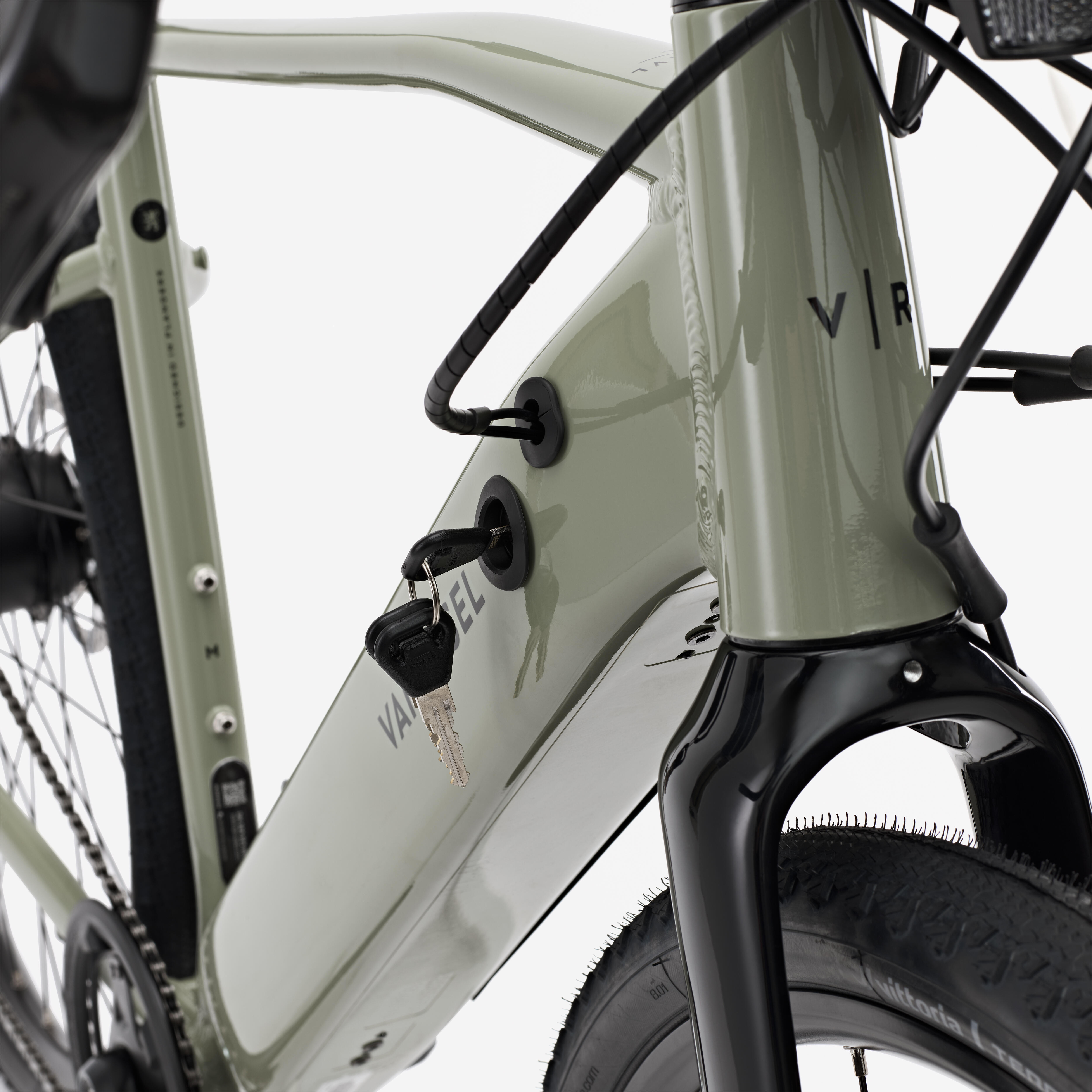

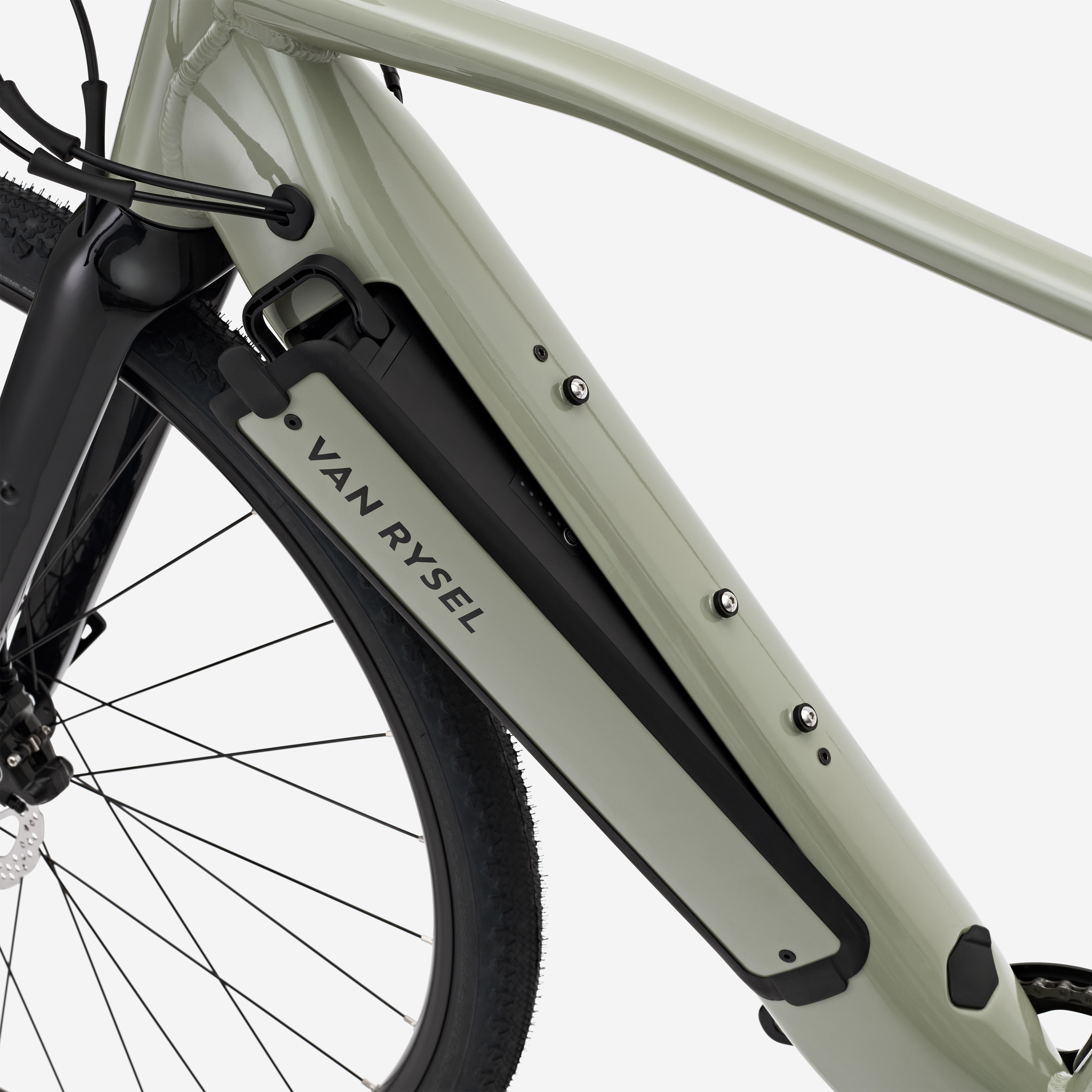

Removable battery, built into the frame and taken off from the side for easy access, with keylock.
Model: DECATHLON
Capacity: 360 Wh (36 V, 10 Ah)
Maximum range (depending on usage conditions): 100 km
Weight: 2.3 kg
Type:Lithium-ion
Full charge time:4.5 Hours with the 2A charger
Charging temperature:from 10°C to + 40°C
Usage temperature: from -10°C to +45°C
Water resistance: IPX4
Range
The range varies depending on a range of factors:weight of the cyclist and cargo, type of road, elevation gain and assist mode used.
A few examples of typical rides:
→ Valentine 55 kg (8.6 stone):64 km on road and gravel, little elevation gain, mode ECO, 51 % of the battery consumed.
→ Peter 72 kg (11 stone):30 km on gravel and forest tracks, 609 m E+, TOUR/SPORT mode, 60 % of the battery consumed.
→ Martin 75 kg (12 stone):50 km on road, 1307 m E+, ECO/TOUR mode, 71 % of battery consumed.
Battery charging
2 options to charge the battery:

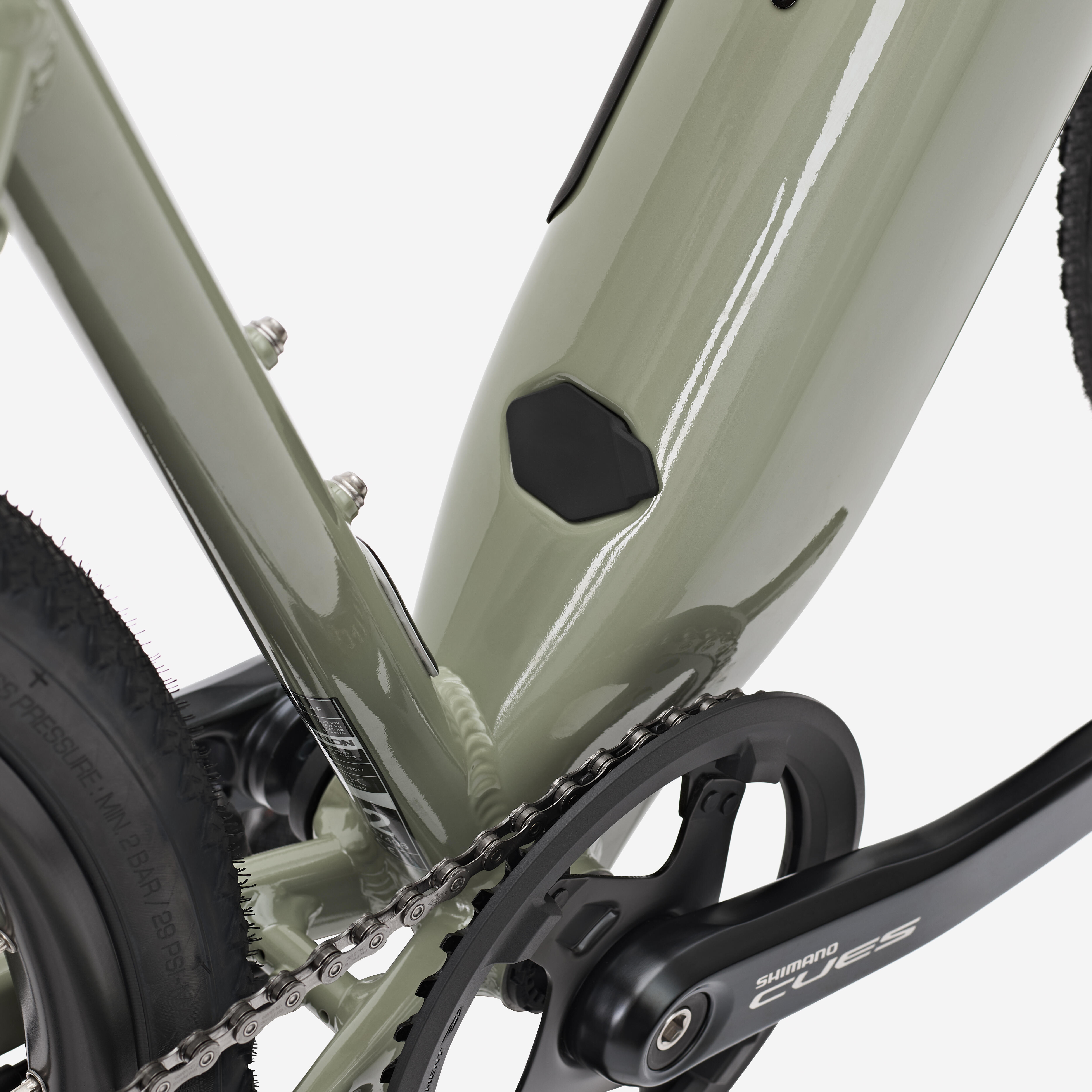

- Directly on the bike using the charging port in the frame
- By removing the battery (with key to unlock)

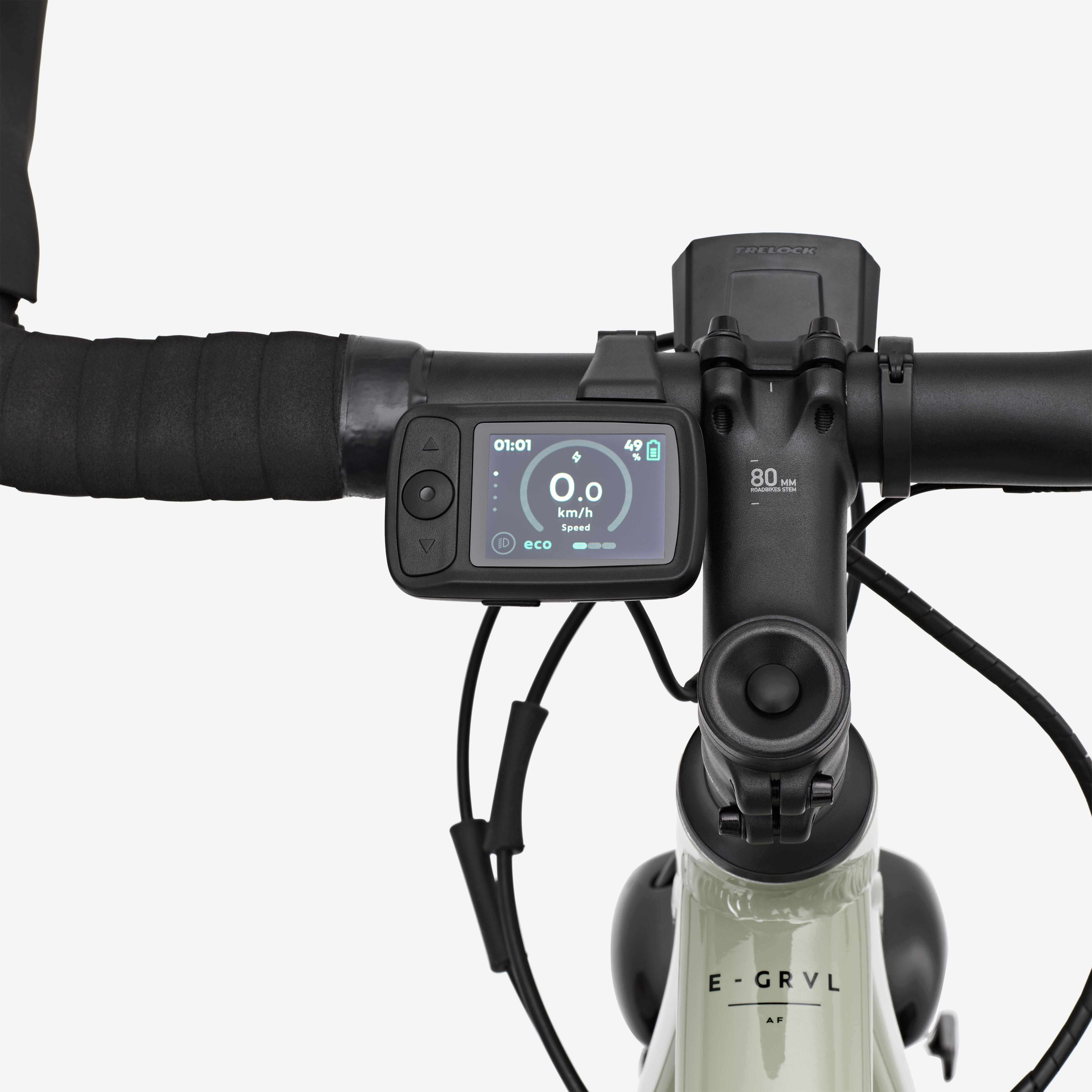

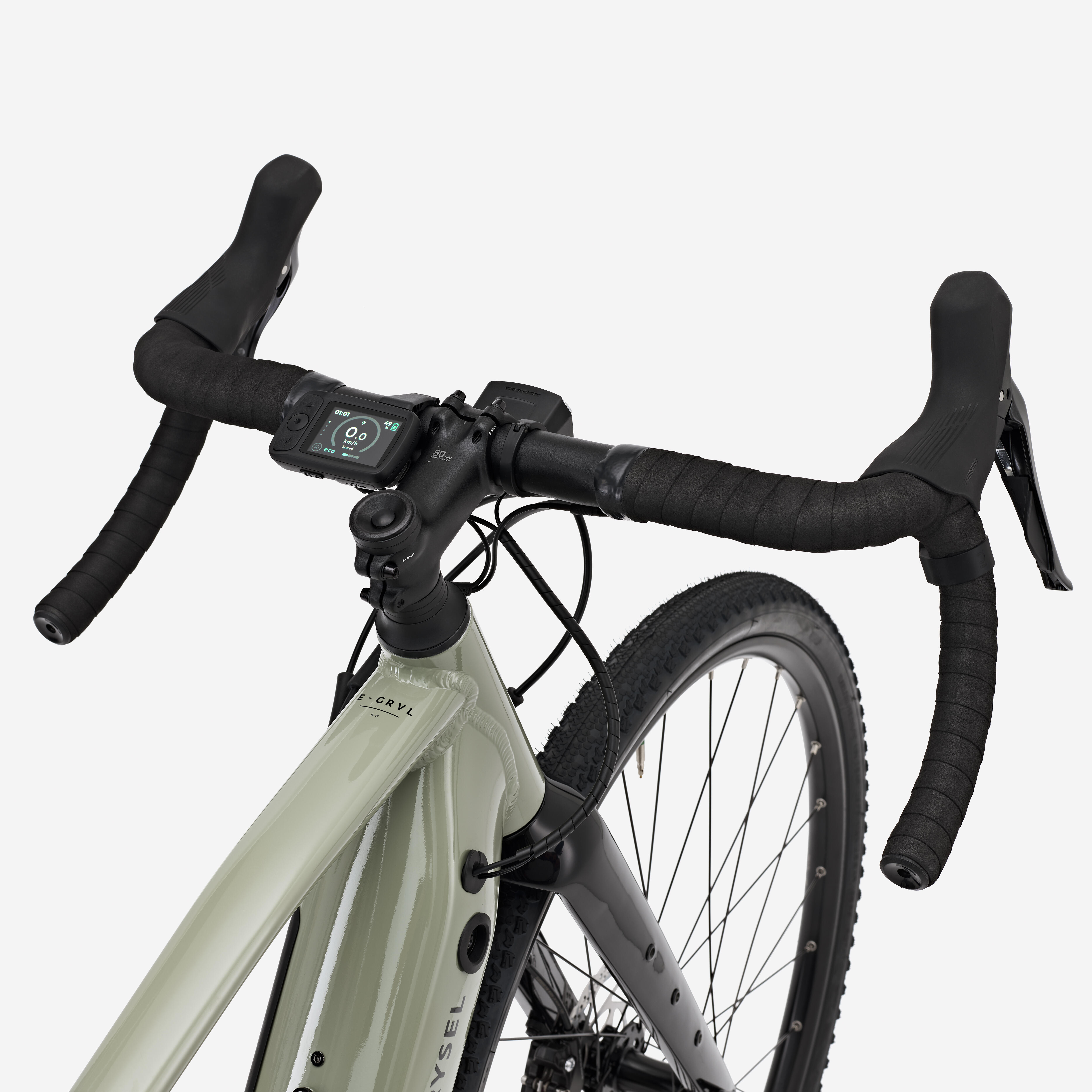

Display
Model: Ergo 920
Display: TFT colour screen
Size: 2"
Connection: no
Data displayed: instantaneous speed, average speed, top speed, time, distribution of power between cyclist and motor, assist level selected, battery level, remaining range (in km) according to battery and assist levels, time of activity duration.
Compatible apps:No

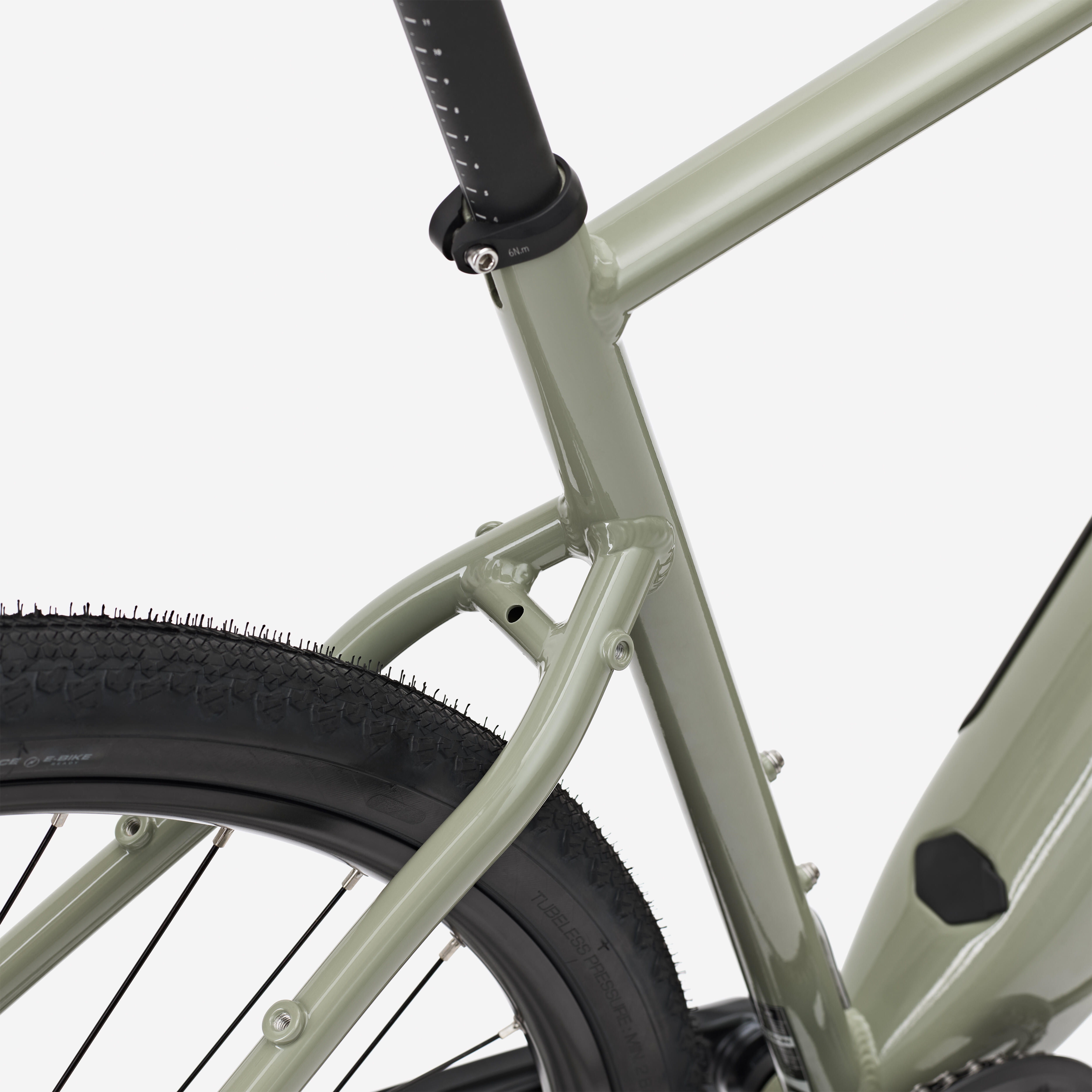

Frame and fork
Frame: VAN RYSEL E-GRVL AF DISCOVER
Composition: aluminium 6061 T6
Maximum wheel clearance: 700 x 50 mm
Steering socket: Conical
Seat post diameter:31.8 mm
Bottle cage mount: 2
Mounts on the frame: 2 x 3
Fork: carbon/aluminium steerer tube
Front axle:100 x 12 mm
Rear axle:-
Cable ducting (frame):internal
Cable ducting (fork):external
Maximum load (bike + cyclist + cargo): 120 kg

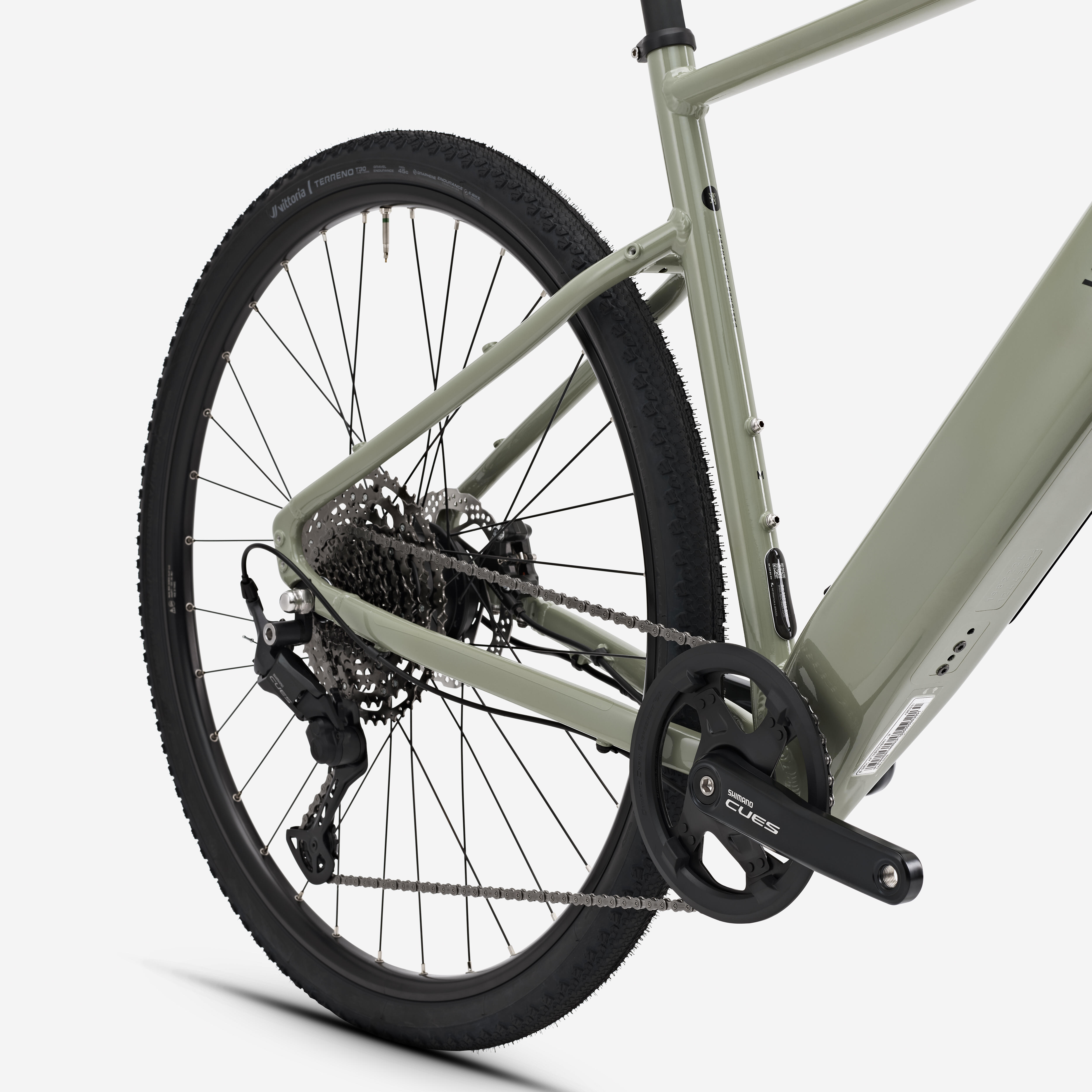

Drive train
Groupset: SHIMANO CUES 1x11
Chainring: SHIMANO CUES U4000-1 40 teeth
Crank: SHIMANO CUES U4000-1
Crank length: 170mm (XS/S/M) -175mm (L/XL)
Cassette: SHIMANO CUES LG400-11, 11s, 11-50 (11-13-15-17-20-23-26-30-36-43-50)
Chain: SHIMANO LG500,120 chain links
Front derailleur:No
Rear derailleur: SHIMANO CUES U6000,G S 10/11-SPEED
Gear control: SHIMANO CUES U6030
Wheels

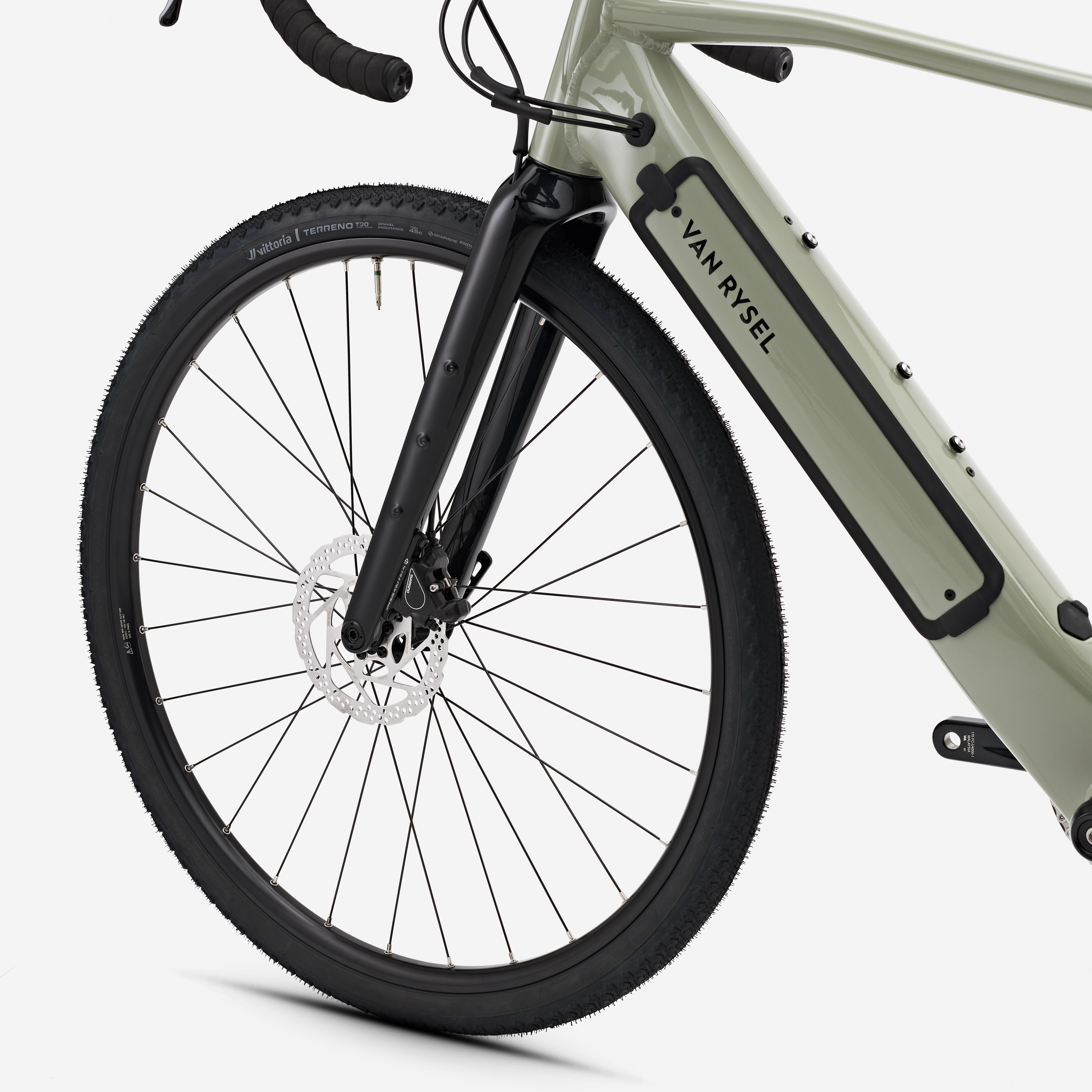

Wheels: VANRYSEL
Rim material: aluminium
Rim technology: Tubeless Ready
Rim strip: yes
Outer width:30mm
Internal width: 25 Mm
Number of front spokes:28 mm
Number of rear spokes: 32
Cassette hub:HD
Sealed bearings:Yes
Tyres
Tyres: VITTORIA TERRENO T30
Front tyre dimensions: 700X45
Rear tyre dimensions: 700X45
Pressure: 2 to 4 bar
Brakes
Brakes: SHIMANO RS405 hydraulic disc brakes
Front disc:160 mm
Rear disc: 160 mm
Disc mount: flat mount

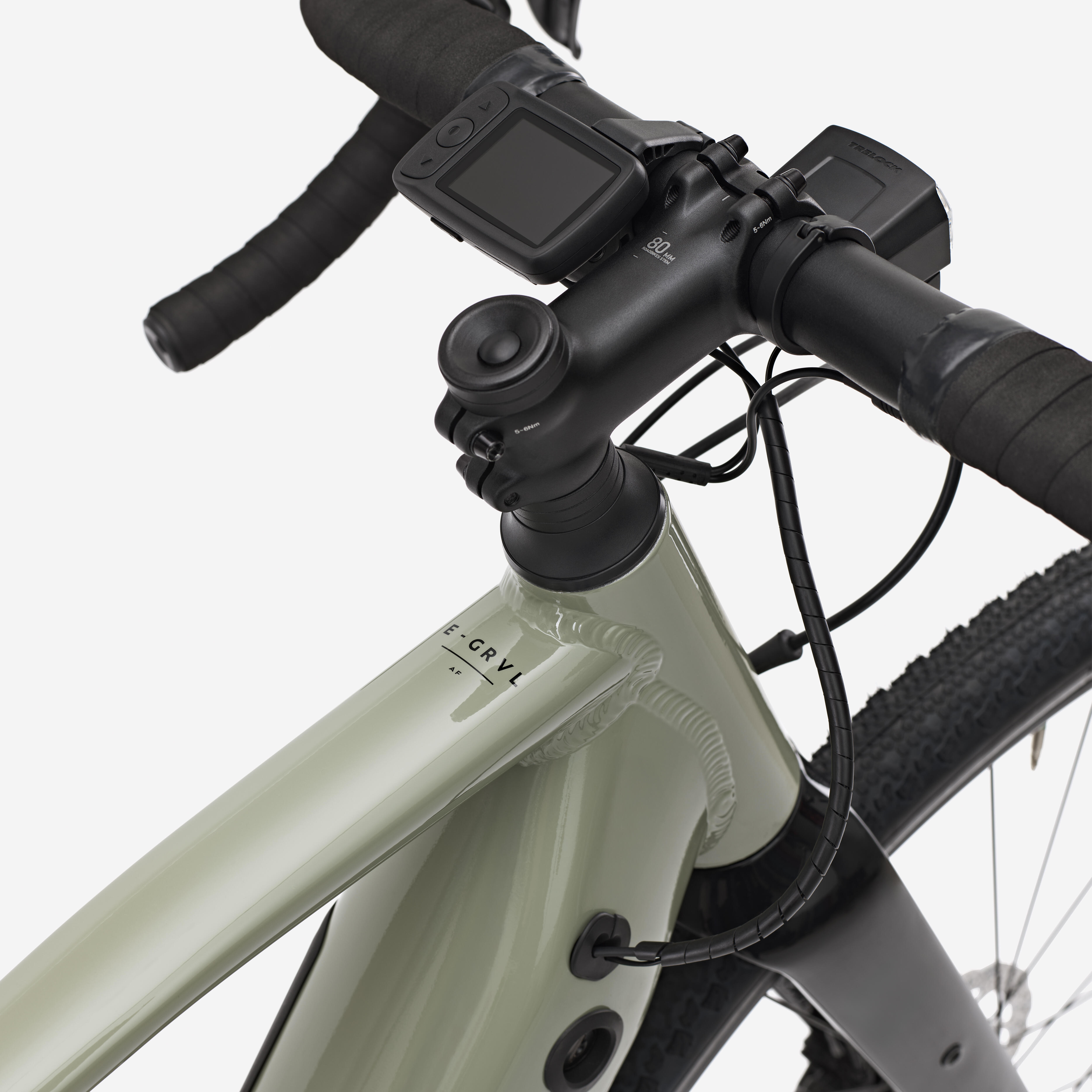

Riding position
Handlebar: VAN RYSEL GRAVEL
Material: Aluminium
Diameter: 31.8 mm
Width: XS/S → 420 mm
M/L/XL → 440 mm
Flare: 16°
Cable ducting:external
Stem:Decathlon
Material: aluminium 6061 T6
Length:
XS → 60 mm
S → 70 mm
M → 80 mm
L → 90 mm
XL → 100 mm
Guidoline: DECATHLON COMFORT GEL

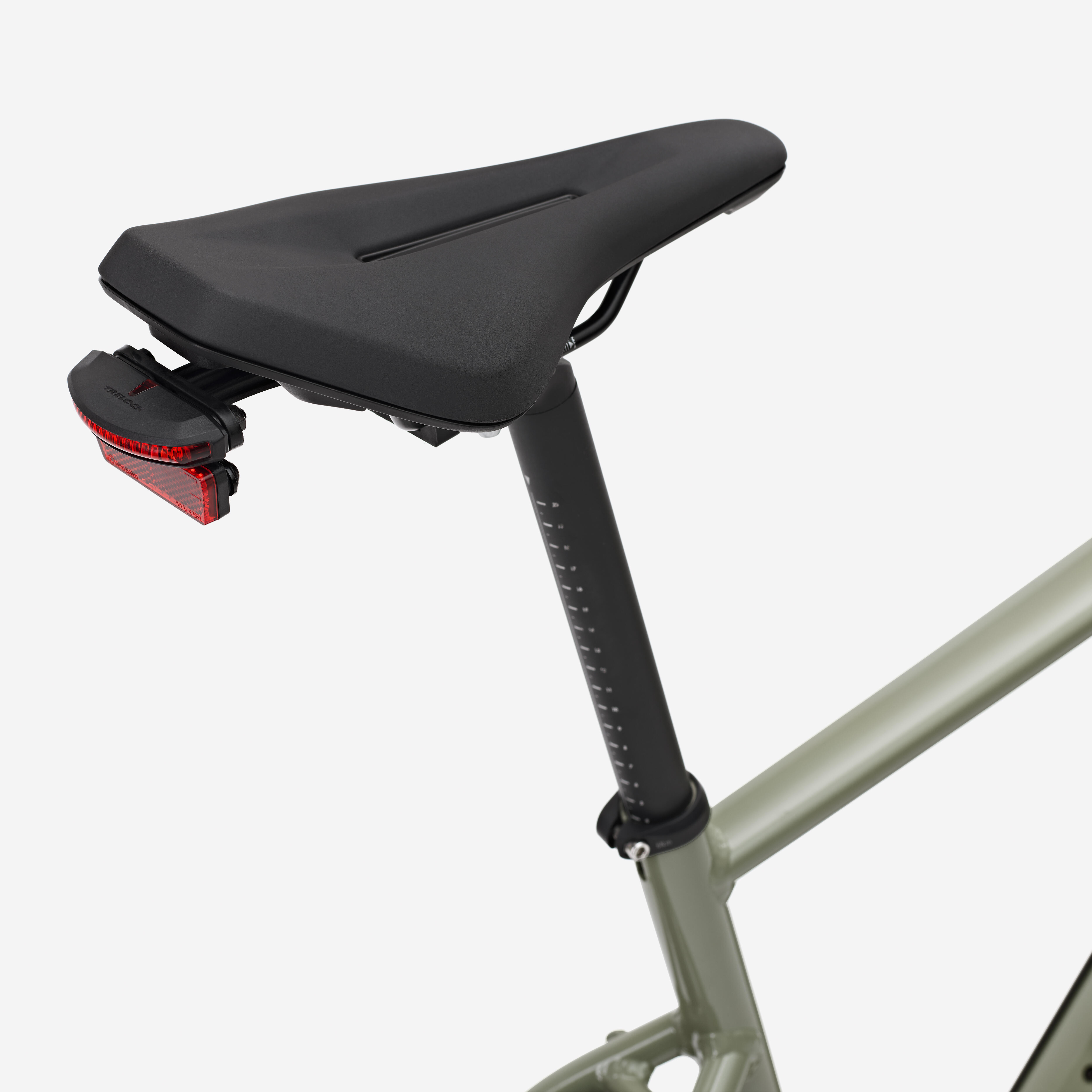

Saddle and seat post
Saddle: DECATHLON COMFORT 155mm
Seat post:Aluminium
Diameter: 27.2 mm
Maximum height: XS → 250 mm
S → 300 mm
M/L/XL → 350 mm
Seat clamp collar: 31.8 mm, aluminium

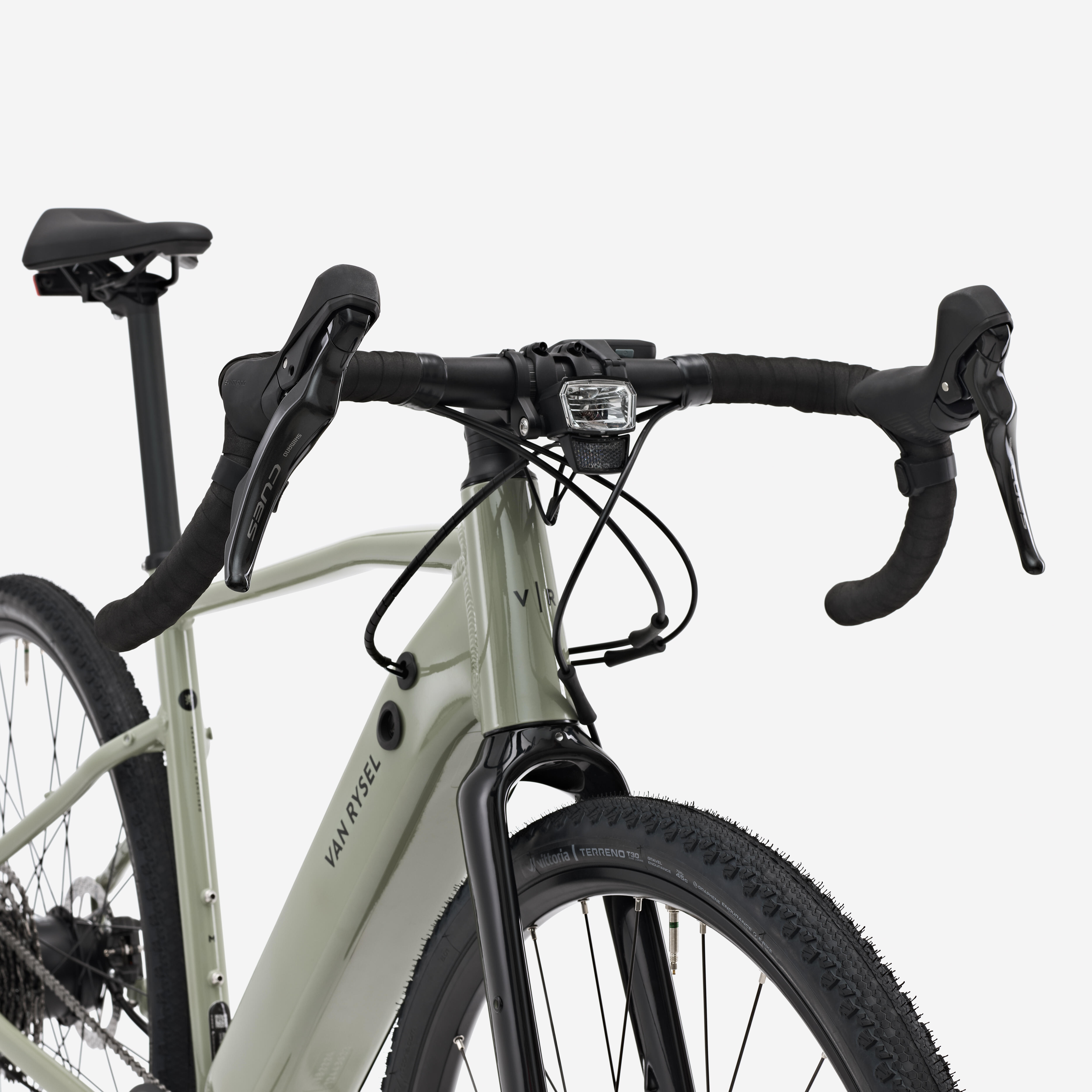

Lighting

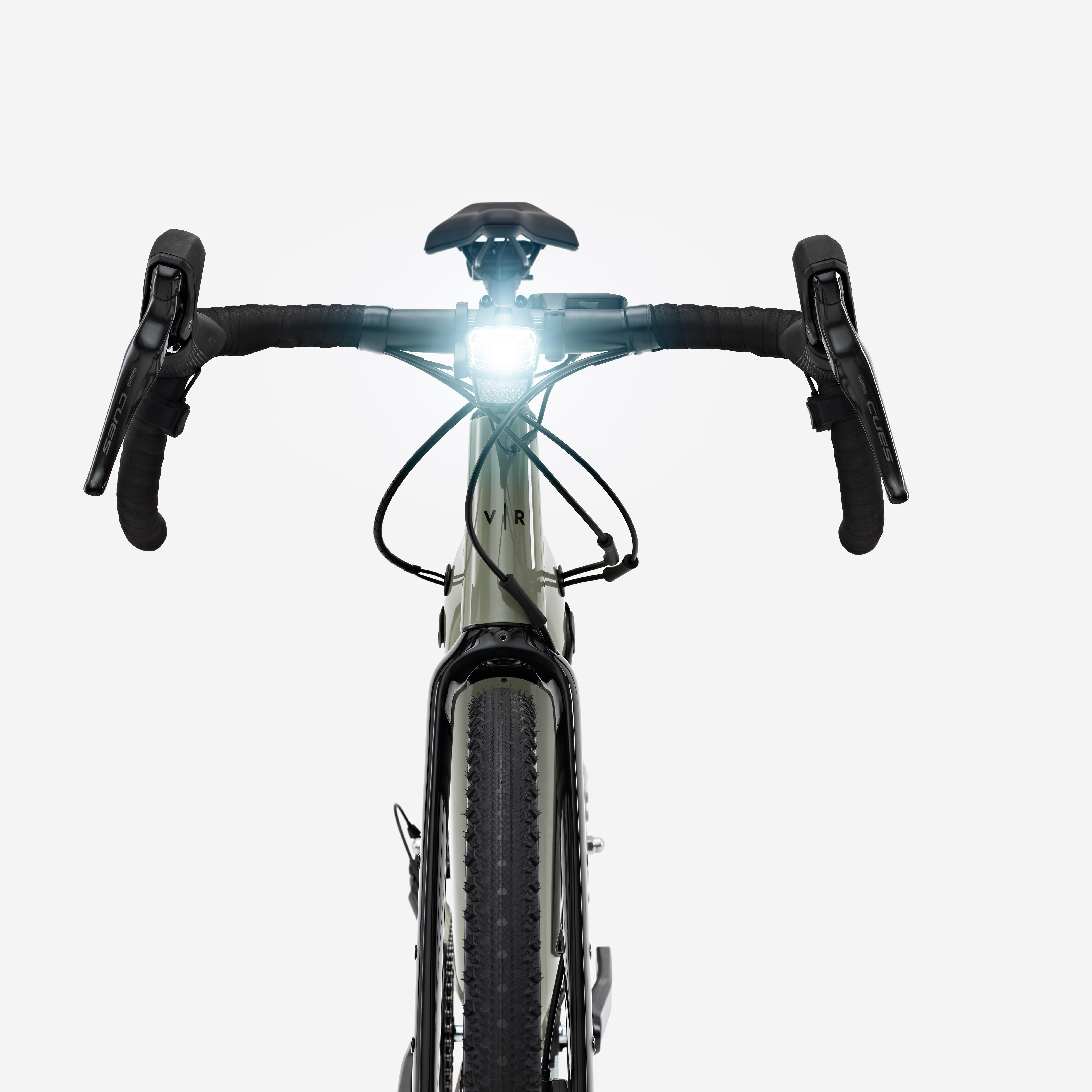

Front: AXA LIGHTHAMMER 60 lux
Rear: AXA LS 651
Power source: bike battery
Compatible regulations:European
ACCESSORIES INCLUDED
Charger: Simplo, 42V2A, 100-240V
Pedals: Yes
Weight
XS 17 kg
S 17.3 kg
M 17.7 kg
L 17.8 kg
XL 17.85 kg
Net weight without pedals
Maximum load
120 kg maximum total load (bike + rider + cargo)
