In a nutshell
Weight: 24.8 kg (in size M without pedals)
Mid-drive motor: Shimano EP801 85 Nm
Battery: 630 Wh
Frame material: aluminium, made in CANADA
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 160 mm / 150 mm
Drivetrain: 1x11
Brakes: Hydraulic
Seatpost: Telescoping
Frame, handlebar and stem warranty: lifetime
Motor
Shimano EP801 motor
Mid-drive position
85 Nm of torque
250W nominal power
600W max power
Torque sensor
Max assistance 350 %
The electrical assistance cuts out above 25 km/h in accordance with EU regulations
motor weight: 2.7 kg

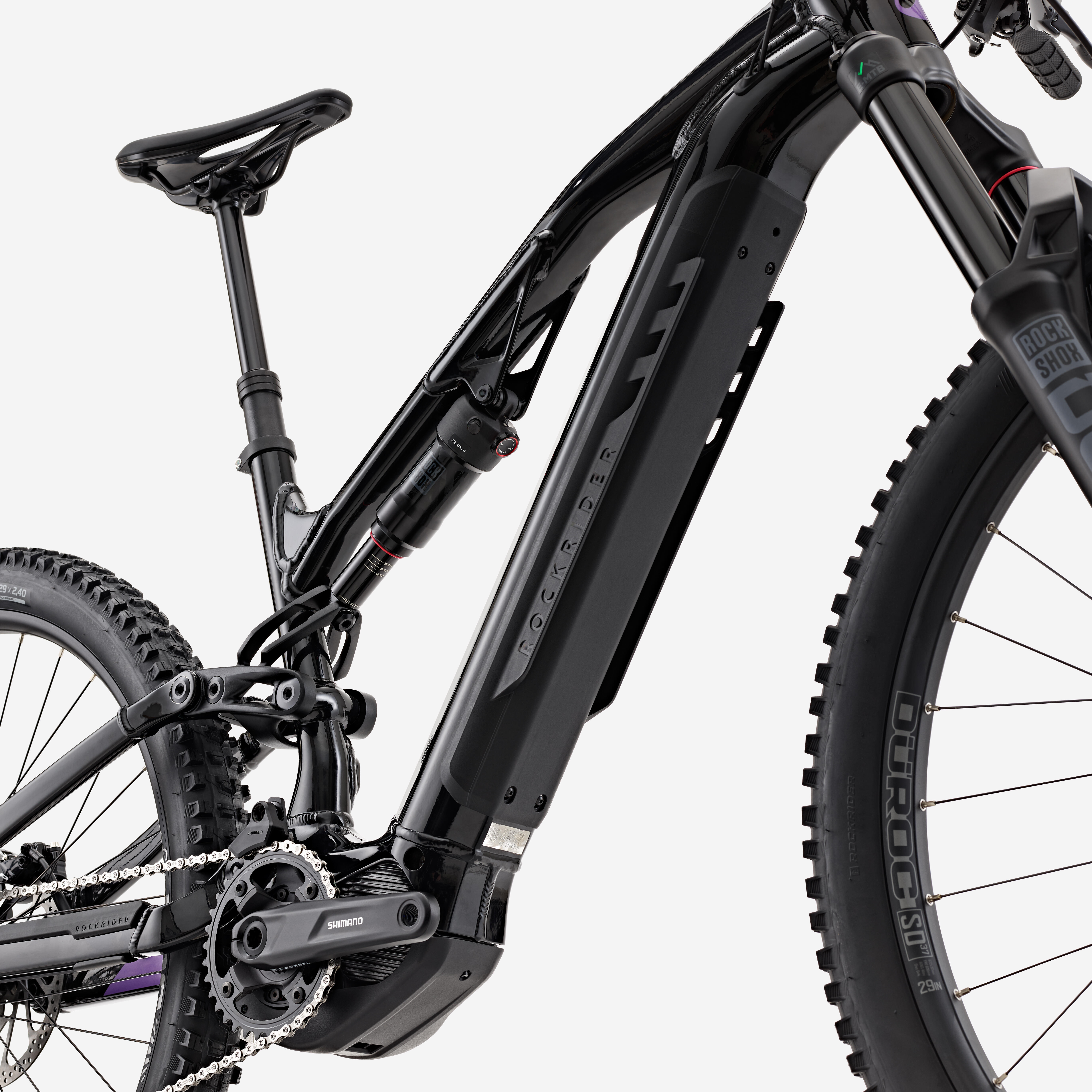

Battery
Battery built into the down tube. It features a compact design with a low centre of gravity to give you a more natural sensation as you ride.
Brand: Shimano BT- EN806
Capacity: 630 Wh (36 V, 17.5 Ah)
Weight: 3.7 kg
Type: Lithium-ion
Full charge: 6 hours with the 4A charger
Charge cycles: 1 000 (more than 60%)
Temperature: 0°C to +40°C (during charging), -10°C to +50°C (in use)
Water resistance: IPX5
Display
Shimano SC-EN600
Compact 1.4" LCD colour screen installed centrally on the right, and protected from crashes and flips.
Assistance modes: 3 to 15 configurable
User profiles: 2 profiles (comes pre-set with EXPL and FEEL)
Walking assistance mode with two power levels
Connects via Bluetooth.
Ergonomic control (on the left of the handlebar): SW- EN600-L
Frame
ROCKRIDER FRAME -
6061 aluminium
150 mm rear travel
Fully built-in battery, comes out vertically
Conical headset
31.6 mm diameter seat tube
Mount for 1 bottle cage
Made in Canada

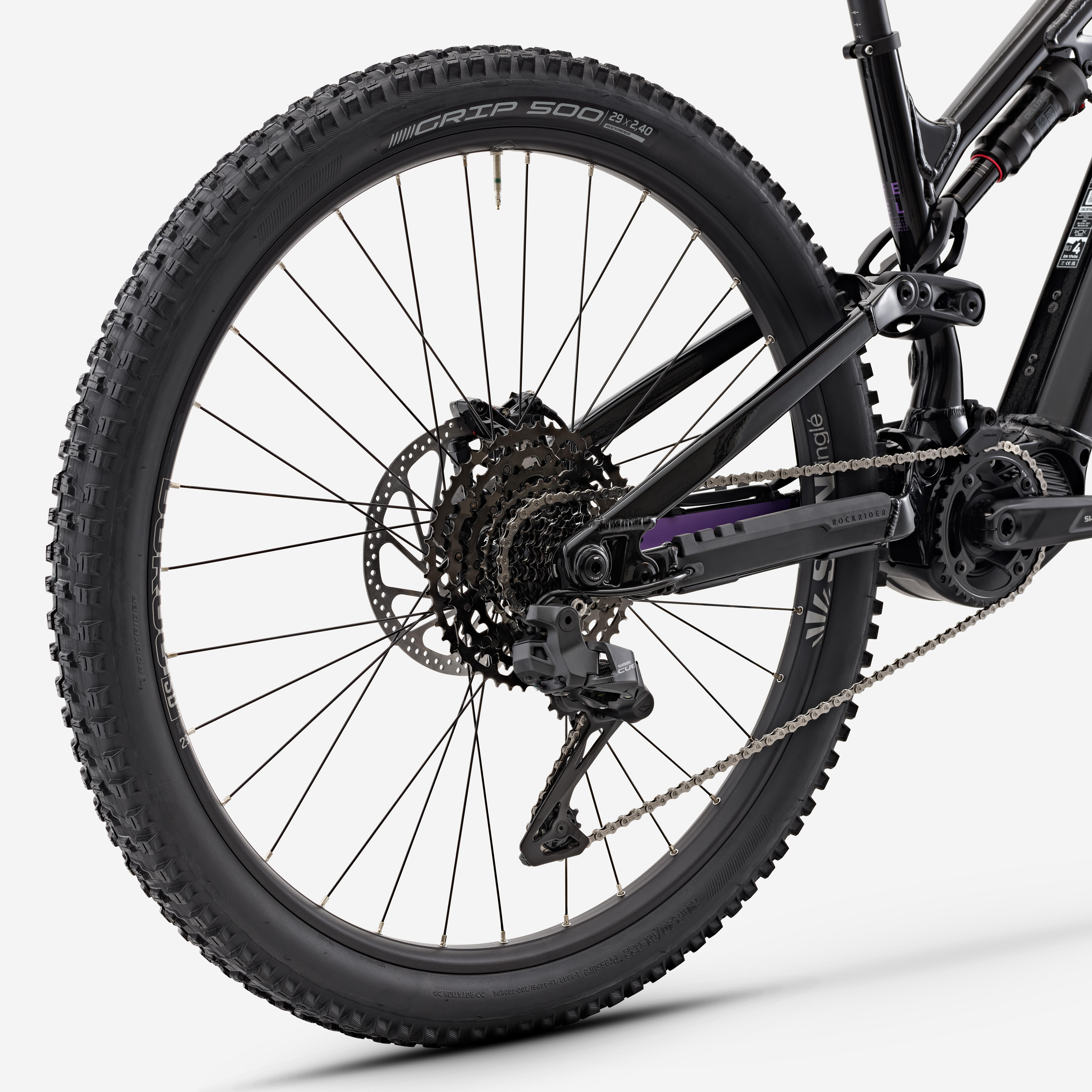

Transmission
Shimano Cues LinkGlide Di2 11-speed
Chainring: 34 teeth with chain guide
Rear derailleur: Shimano Cues 6070 Di2
Chainset: Shimano EM600 165 mm
Right shifter: Shimano SW-EN600-R Di2
Cassette: Shimano Cues LG700 11-50
Chain: Shimano LinkGlide 500
Functioning: electronic with Autoshift and Freeshift technology
Suspension
RockShox Domain RC fork
Travel: 160 mm
Dampers: 38 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 44 mm
Technology: DebonAir air spring
Tunings: air pressure, rebound, low speed compression damping
RockShox Deluxe Select shock
Dimensions: 210 x 52.5 mm
Mount: standard
Tunings: air pressure, rebound
Wheels
29" SUN RINGLE Duroc SD37 COMP wheels
Rim material: aluminium
Rim technology: double-walled, welded, Tubeless Ready
Outer width: 37 mm
Inner width: 32 mm
32 round spokes
6-bolt mount
HD freehub
Sealed bearings
BOOST 110 x 15 mm axles at the front and 148 x 12 mm at the rear
Tubeless Ready and equipped with original, watertight rim tape
(needs specific Presta valves and sealant, which are sold separately)
Brakes
TRP Trail Evo hydraulic disc brakes
Adjustable lever reach
Perforated lever for excellent grip and comfortable use
Number of pistons: 4
Front disc: 203 mm
Rear disc: 203 mm
Compatible with mineral oil
Disc thickness: 2.3mm.6-bolt mounting
Riding position
ROCKRIDER SPORT handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 780 mm
Rise: 15 mm
Upsweep: 5°
Backsweep: 9°
Internal electric cable routing
Rockrider stem
Material: Aluminium
Angle: 0°
Sizes: 45 mm
Grips:
Rockrider Ergo Lock On
Headset
44/55.99 _ 39.76
Saddle & seat post
Saddle: DECATHLON short nose
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (M/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 36 mm diameter
Tyres
Rockrider Grip 500
29" x 2.4"
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug
PEDALS
Rockrider Flat Evo basic resin flat pedals.
We recommend customising your bike with pedals that are suited to your type of riding.
ACCESSORIES INCLUDED
Shimano 4A EC-E8004 charger
SM-BTE80 adapter
Shimano electric cable plug tool
RockShox kit with 2 fork tokens
Your mountain bike comes with a bell, lights, wheel reflectors and pedals.
