In a nutshell
Weight: 14.1 kg in size M (without pedals)
Frame material: Aluminium
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 120/120 mm
Drive train: 1x12
Brakes: hydraulic disc
Seatpost: Telescopic
Warranty on the frame/2 years for the components
Weight
S: 14 kg
M: 14.1 kg
L: 14.25 kg
XL: 14.35 kg
Estimated net weight without pedals, with inner tube.

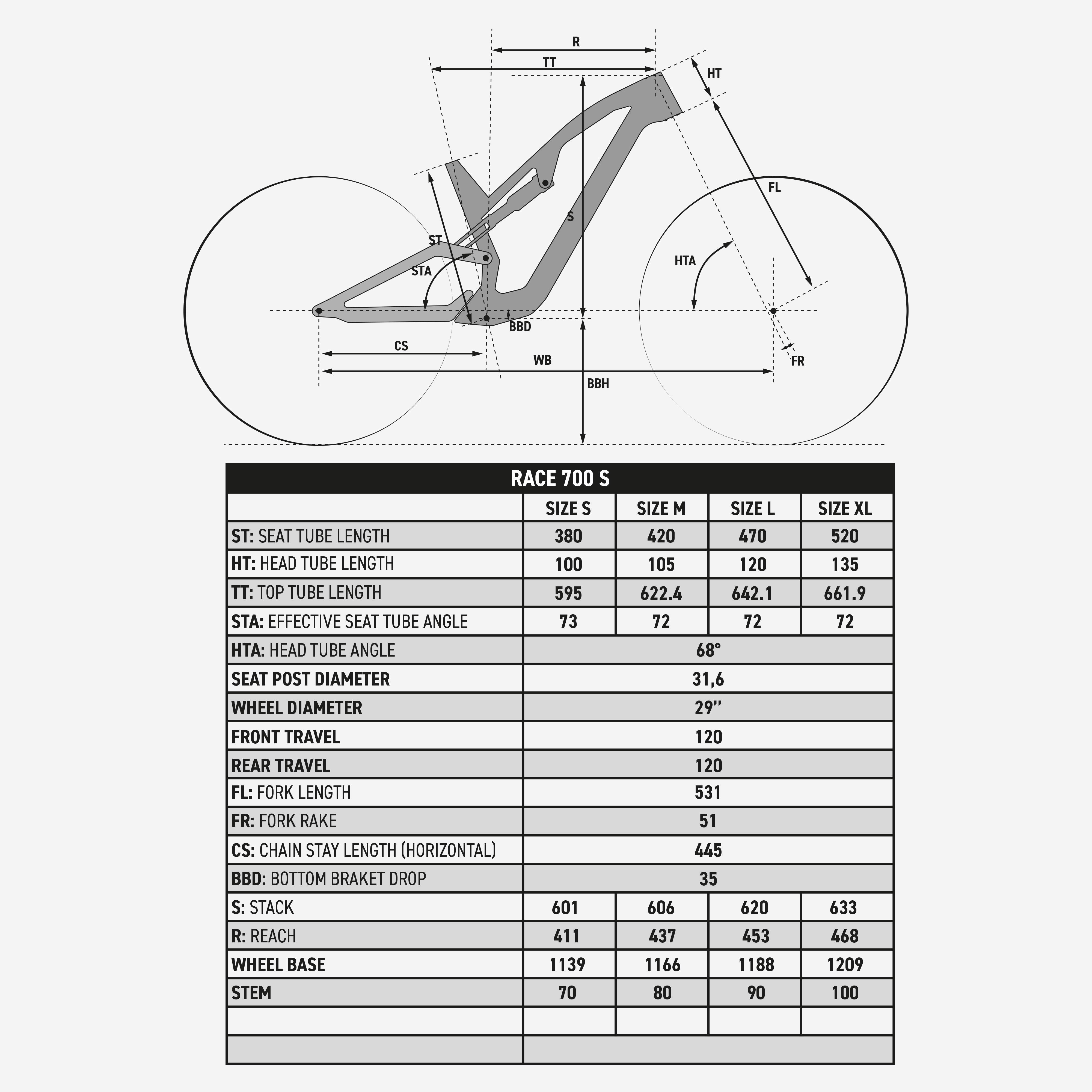

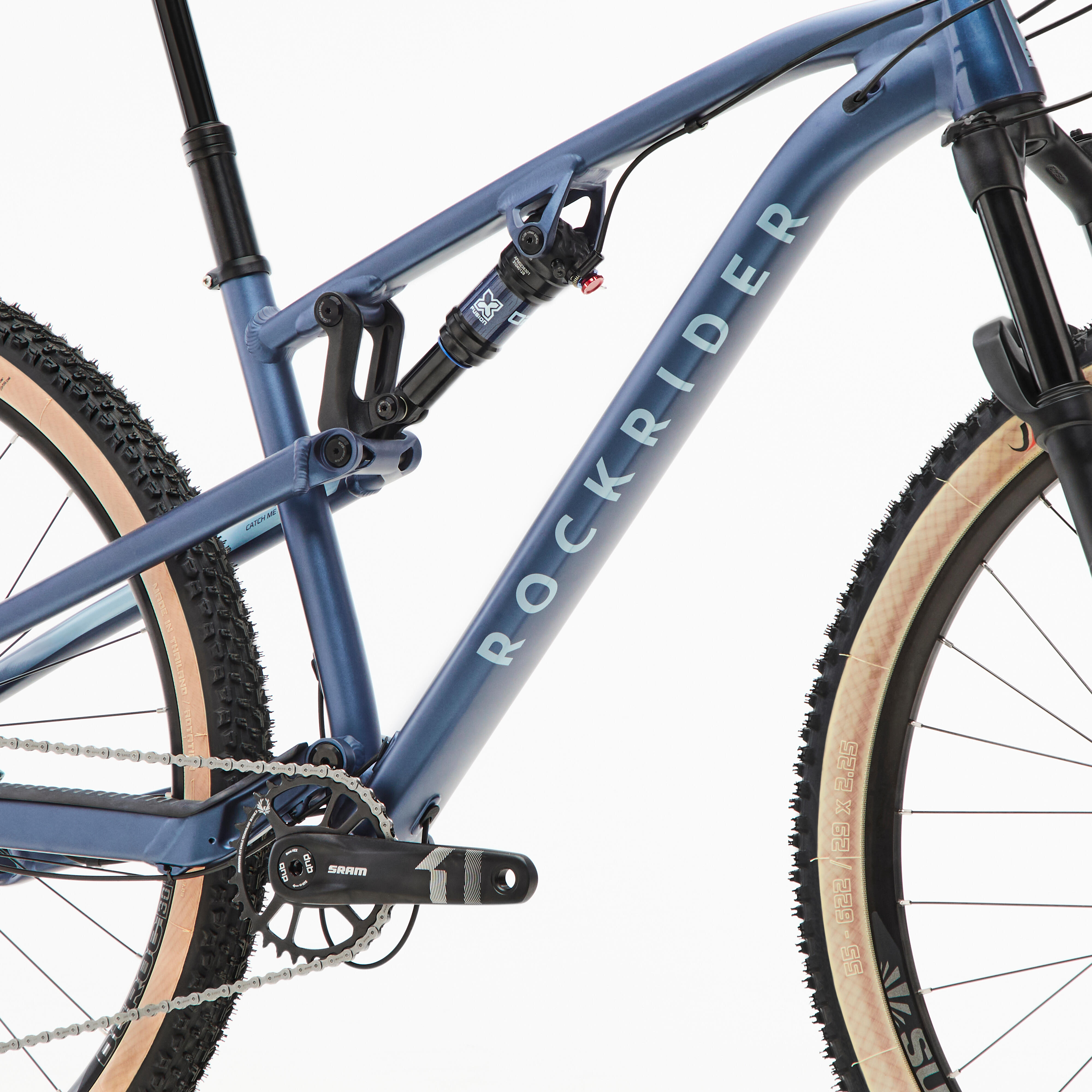

Frame
Composition: Alumium 6061
Travel: 120 mm front/rear
Rear axle: 12 x 148 mm
Axle type: UDH
Chainset: PF92
Seat tube diameter: 31.6 mm
Bottle cage mount: yes (1 bottle)
Transmission
Sram NX Eagle
SRAM X1 1000 aluminium chainset
Cranks:170 mm (S/M) and 175 mm (L/XL)
Chainring: 32 teeth (compatible with 32, 34)
SRAM PG1230 chainset: 11-50
Sram NX chain
Suspension
Fork: Manitou Machete
Travel: 120 mm
Dampers: 32 mm
Axle: Thru axle
Format: 110 x 15 mm
Lockout type: Combolock 2-position handlebar lockout, rebound adjustments
Shock absorption: X Fusion M2 RLR
Travel: 120 mm
Dimensions: TRUNION 165 x 42.5 mm

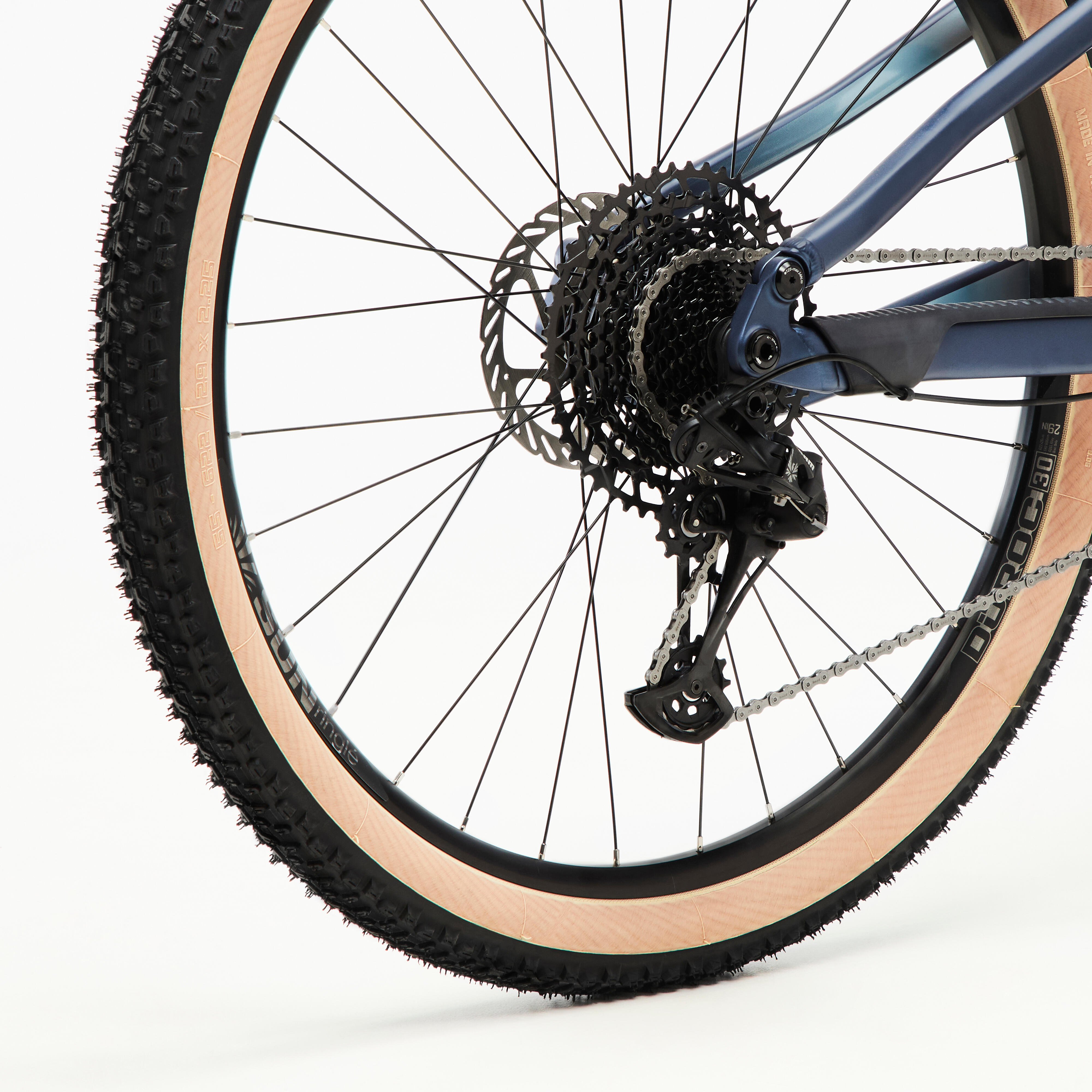

Wheelset
SUN RINGLE Duroc 30 SRC 29"
Internal width: 30 mm
Weight: 2070 grams
HD chainset body
Disc mount: 6 holes
Number of spokes: 32
Watertight bearings
Axle types: BOOST, 15 mm front and 12 mm rear
Tubeless Ready: yes
Fitted with a watertight rim base: Yes
Brakes
Hydraulic disc brakes
SRAM Level
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm
Riding position
Handlebar: Rockrider flat
Material: Aluminium
Diameter: 31.8mm
Width: 720 mm
256 g
Rockrider Aluminium stem
-7° angle
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL
Grips: Rockrider 900 Lock On
/ Seat post
Saddle Rockrider Short Nose
Seat post: Tranz X Dropper telescoping seat post
Diameter: 31,6 mm
Length: 400 mm
Travel: 120 or 150 mm
Insertion limit: 80 mm(120) - 120 mm(150) - 140 mm(170)
Max height (at insertion limit): 281 mm(120) - 318 mm(150) - 358 mm(170)
Control: on the handlebar
Cable routing: Internal routing
Material: 6061 aluminium
Head offset: 15 mm
Interface: 2 rails _ 43 mm centre-centre
Seat clamp torque: 8-10 Nm
Weight: 600 g
Tires
VITTORIA SAGUARO TUBELESS READY
29" x 2.25''
ETRTO: 55-622
Bead: soft
Carcass: 120 TPI
Sidewall: Skinwall
PEDALS
ROCKRIDER MTB 520 GRIP
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, pedals, and a torque wrench
