Frame

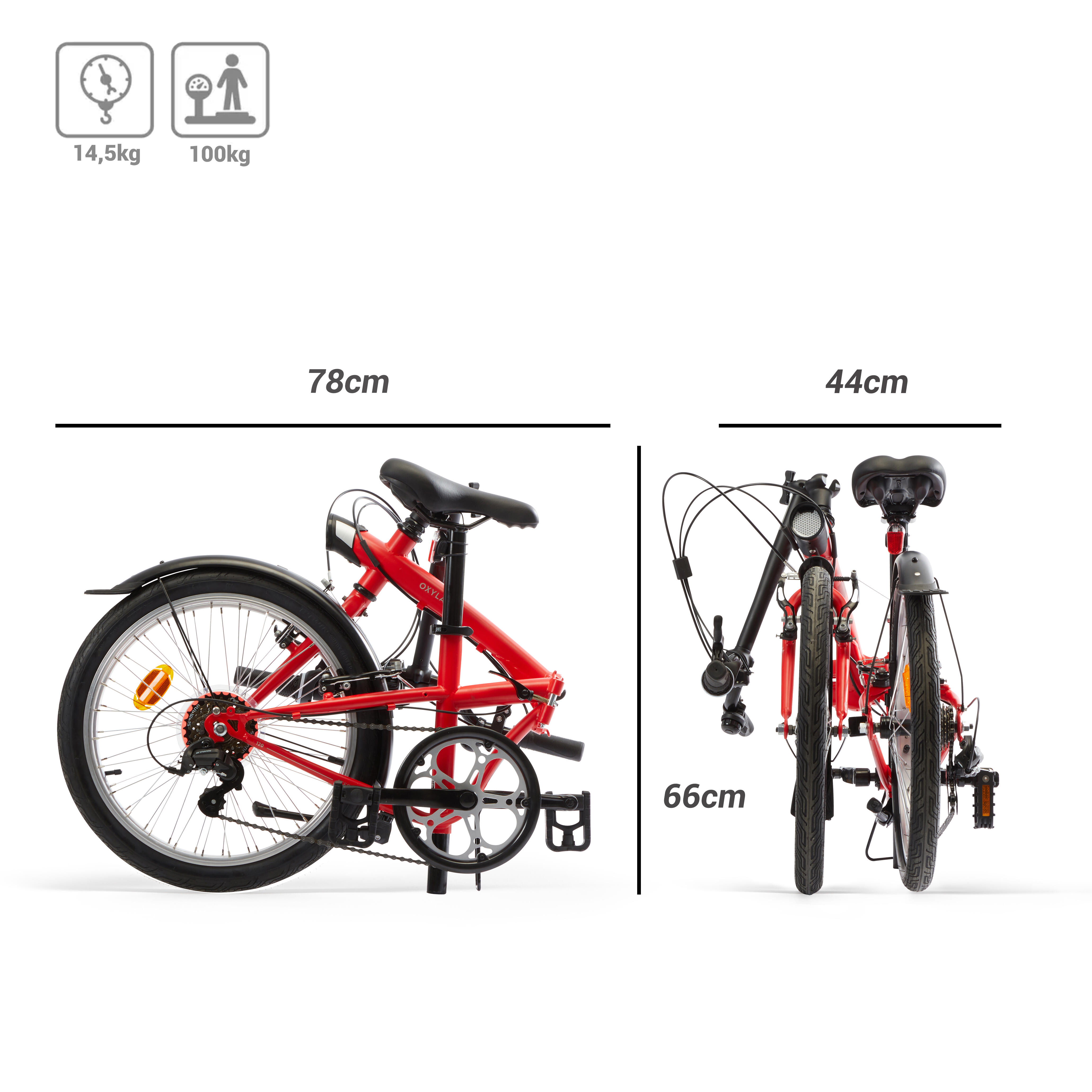

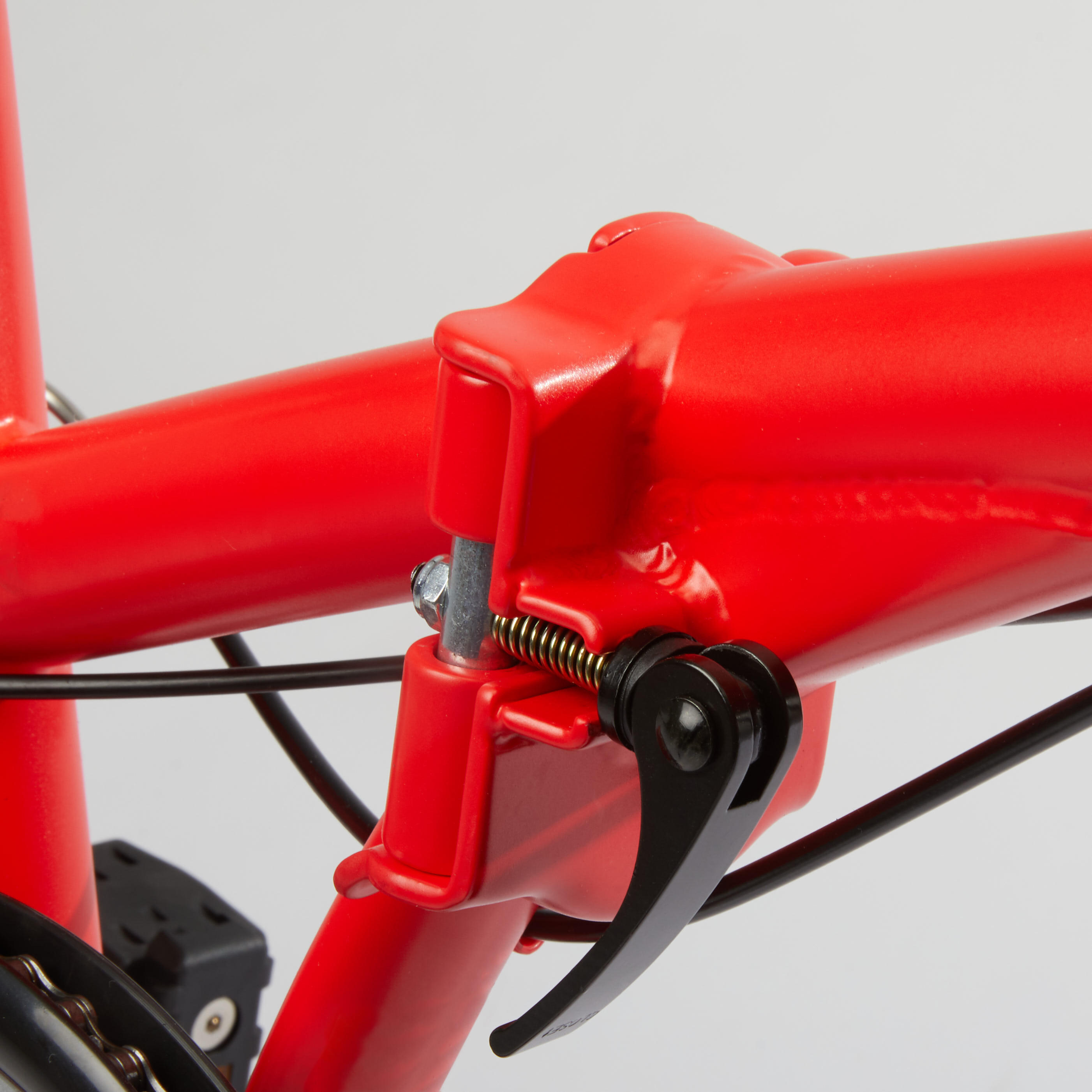

Hi-Ten steel frame. The easy lateral-fold system means the bike takes up little space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there.

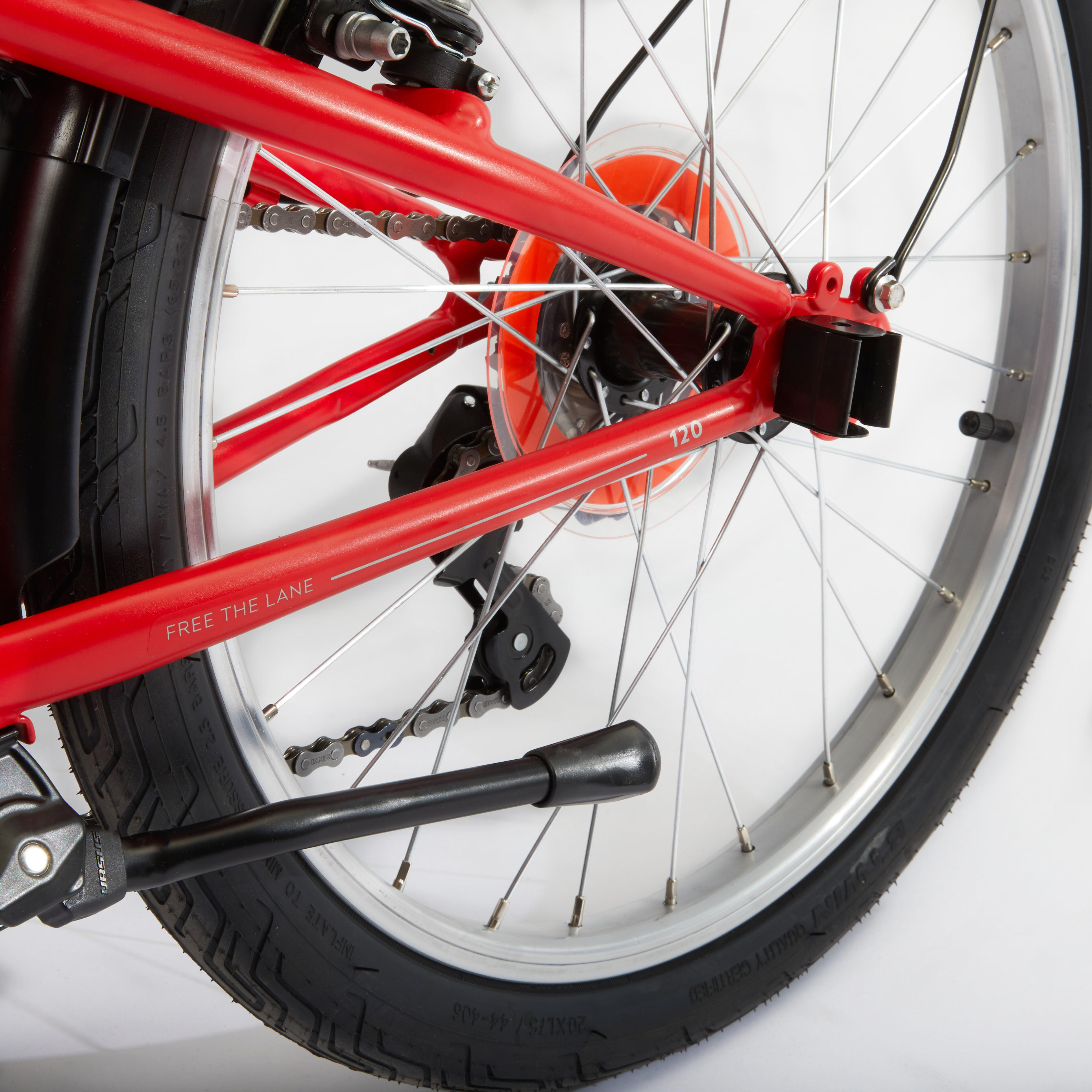

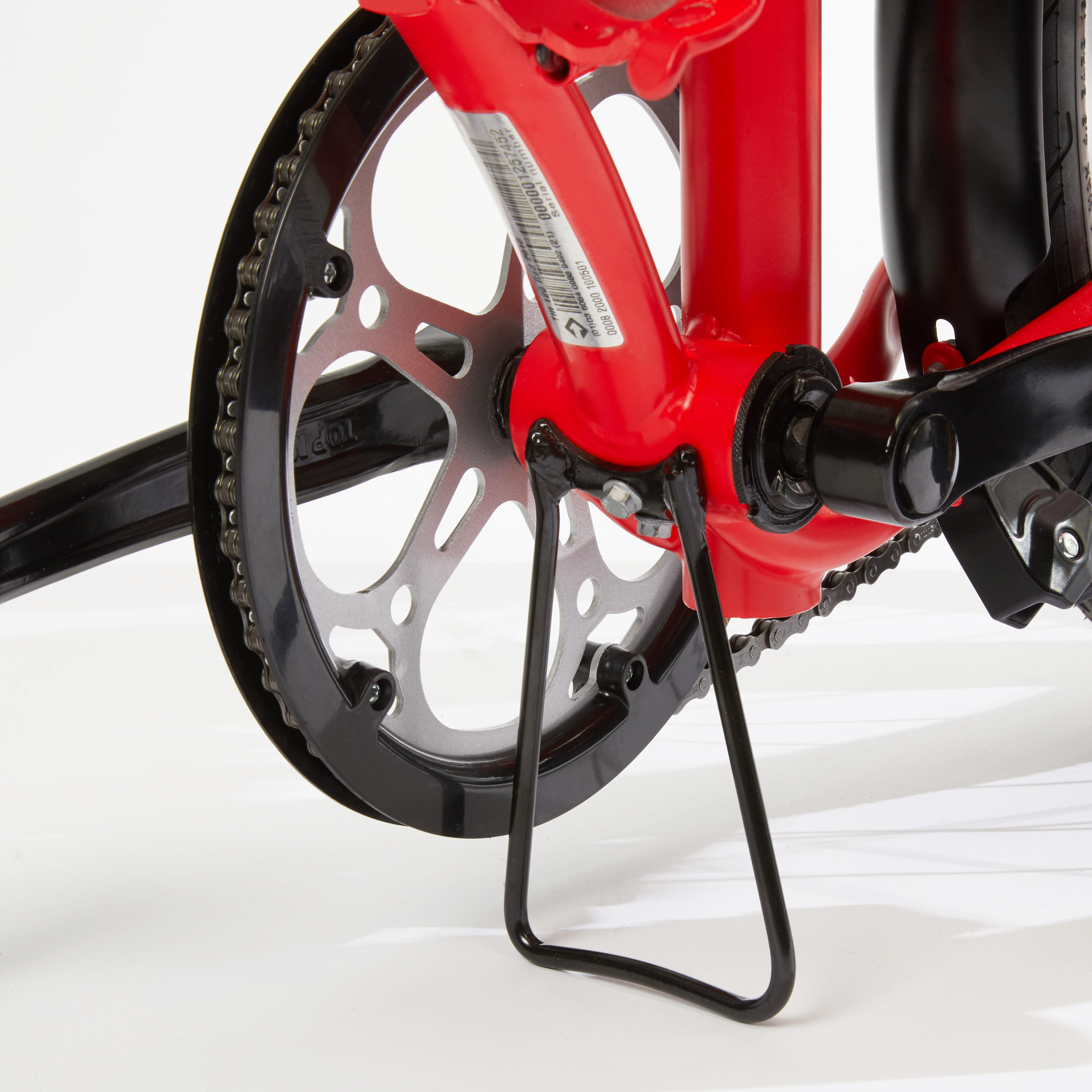

In order to improve your bike's stability once folded, the frame is equipped with a bike stand under its base.
Fork
Hi-ten steel fork for greater.
Drivetrain

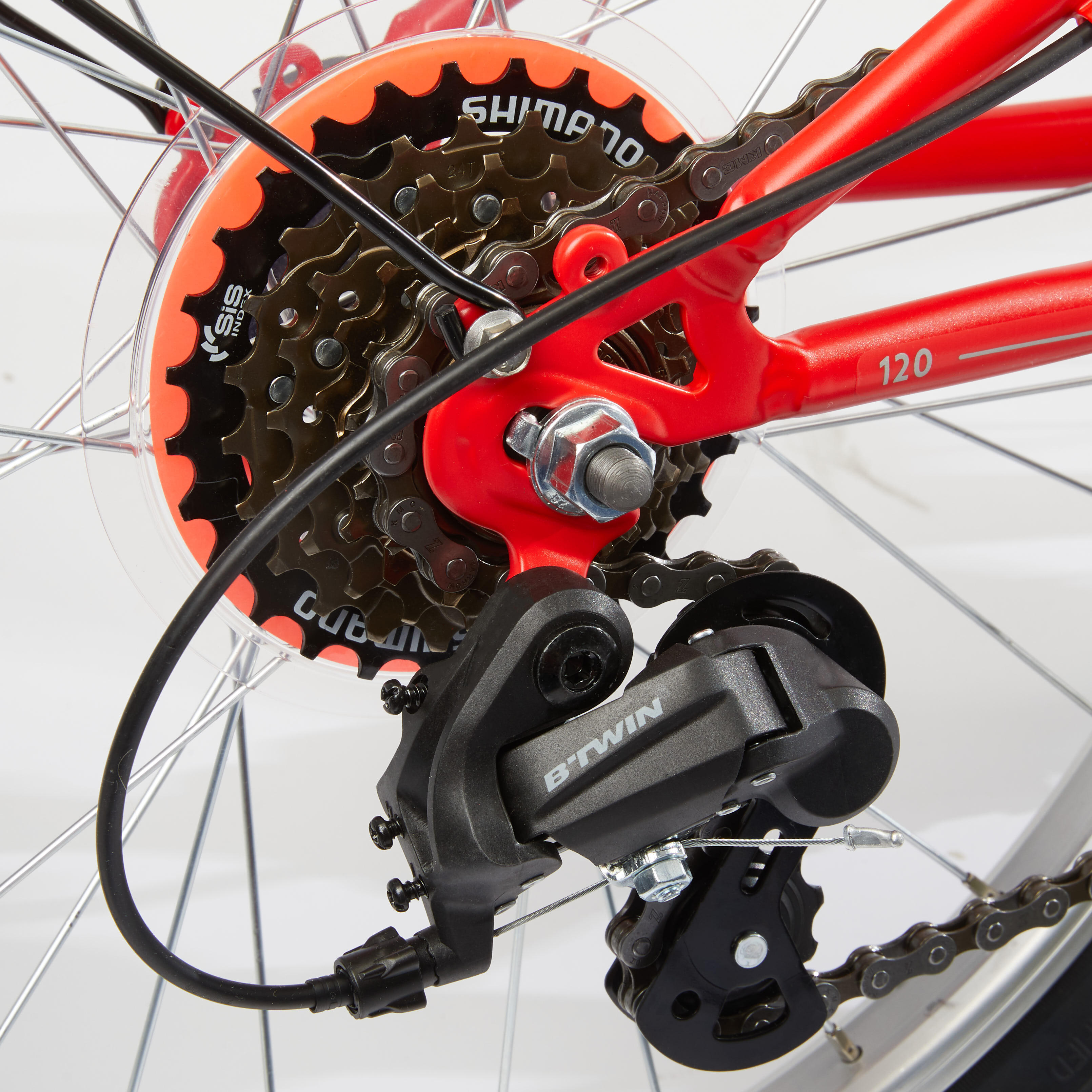

The Oxylane 120 can be used on most gradients and has a 6-speed derailleur. Changing gears is very easy using the grip shifter.
52-tooth chainring, 6-speed Shimano TZ20 14/28 freewheel.
Metres of development: - smallest development: 2.96m per turn of the pedals, 28 teeth
- largest development: 5.90 m for every pedal turn, 14 teeth
Brakes

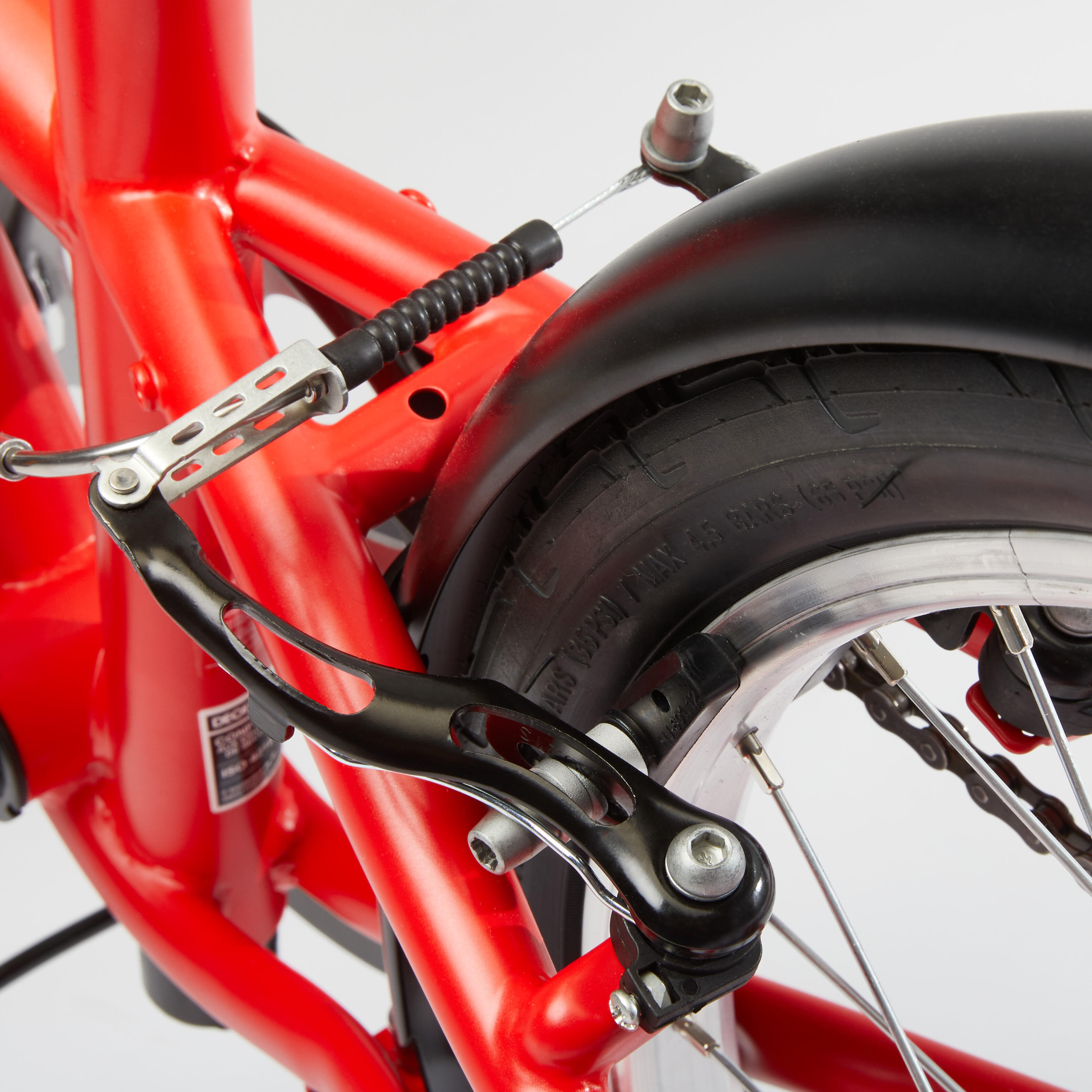

The steel V-Brakes guarantee effective and progressive braking.
Handlebar / stem / steering
Steel low-rise bars with a rise of 60mm to adjust your position on the bike to suit your body and make the bike easier to handle. Handlebar width: 560 mm.
Folding, non-adjustable stem made from aluminium for increased rigidity.
Distance from saddle to handlebar: 540 mm. Bottom bracket to saddle distance: min. 520mm - max. 740mm
SADDLE AND SEATPOST

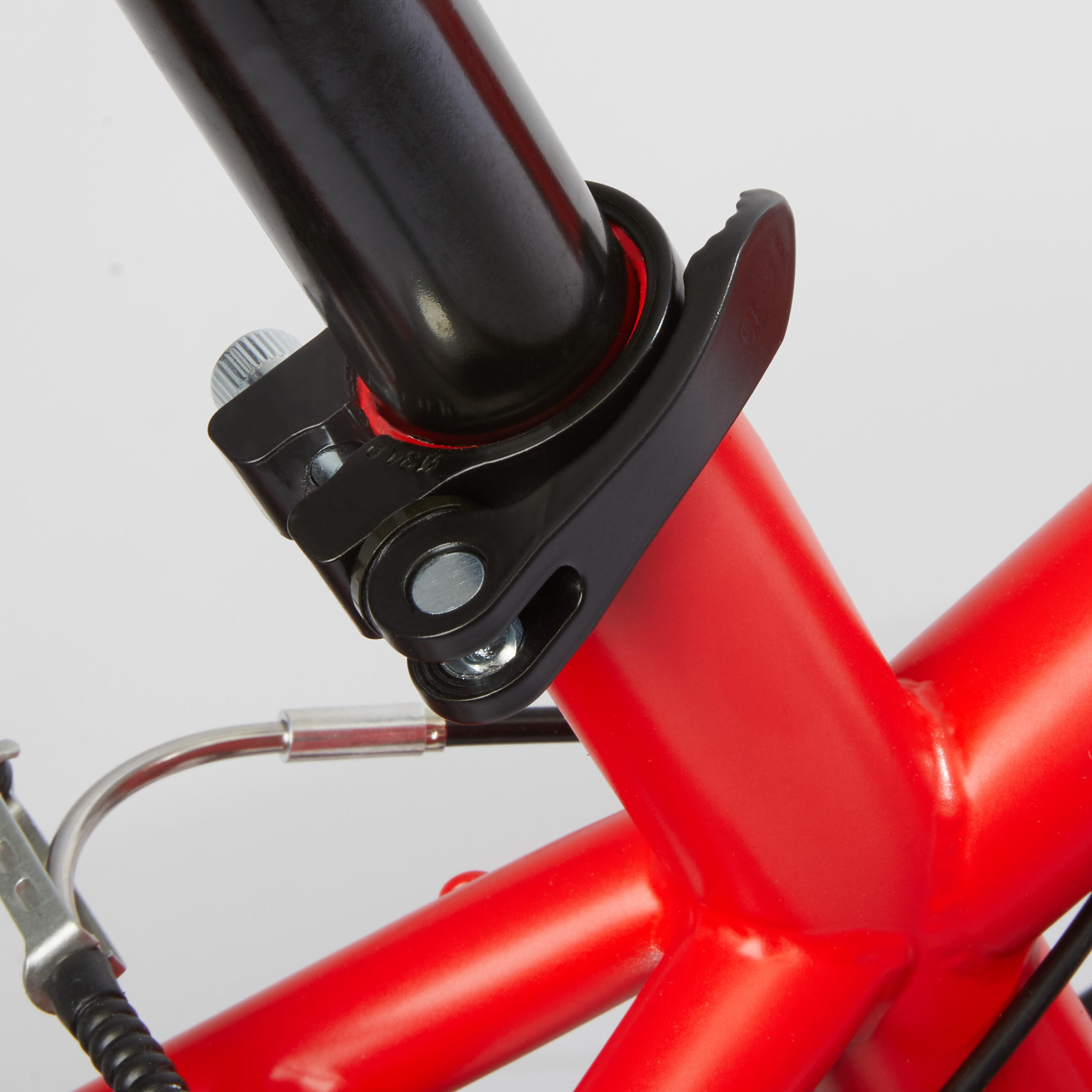

Comfortable, seamless foam saddle and steel seat post (diam: 31.6 mm).
Wheels
20-inch, single-wall rims. Steel hub.

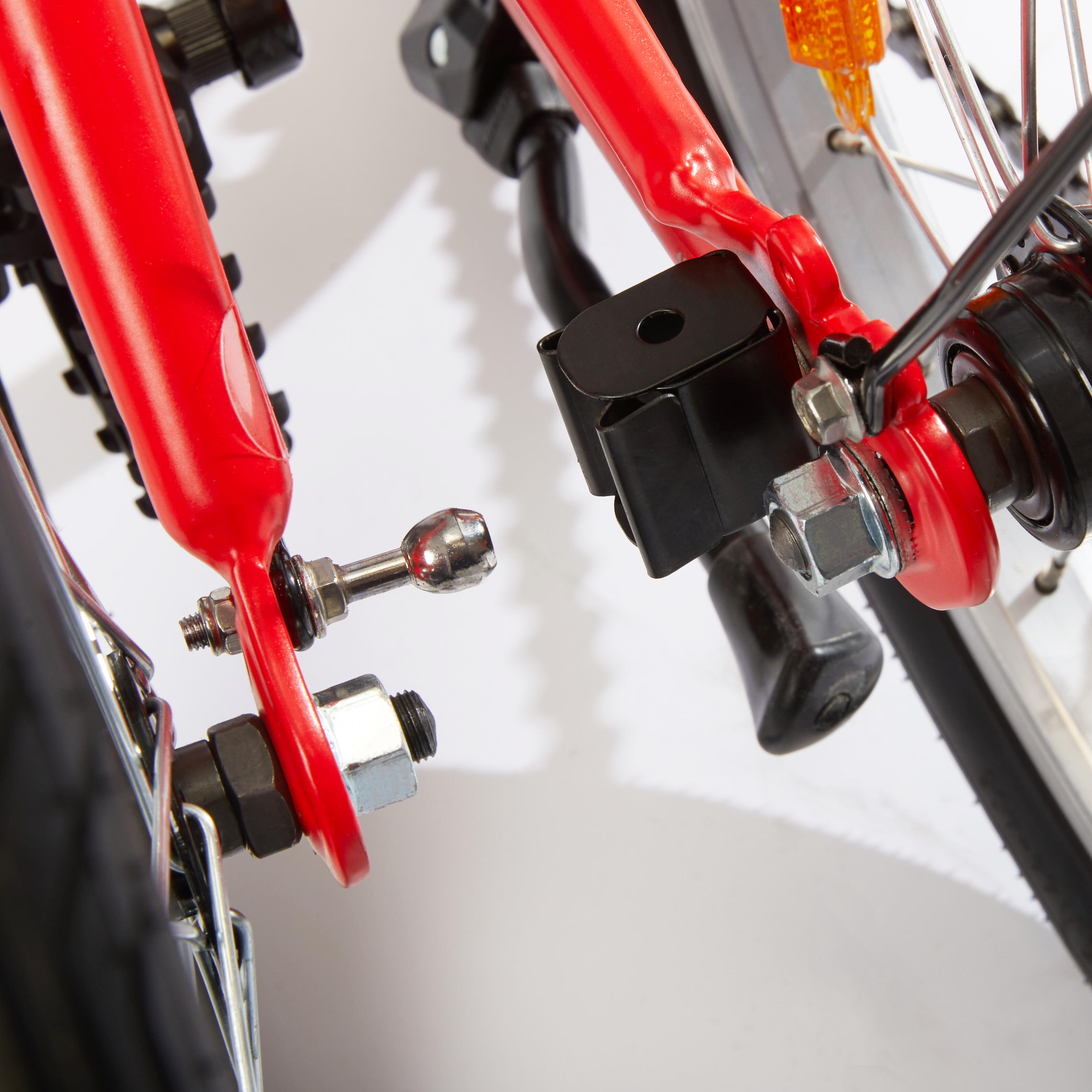

System that holds the wheels together, making it easier to handle and store the bike once folded.
Tires
20 x 1.75 gumwall city tyres. We've developed these tyres to give you the best balance between performance and grip.

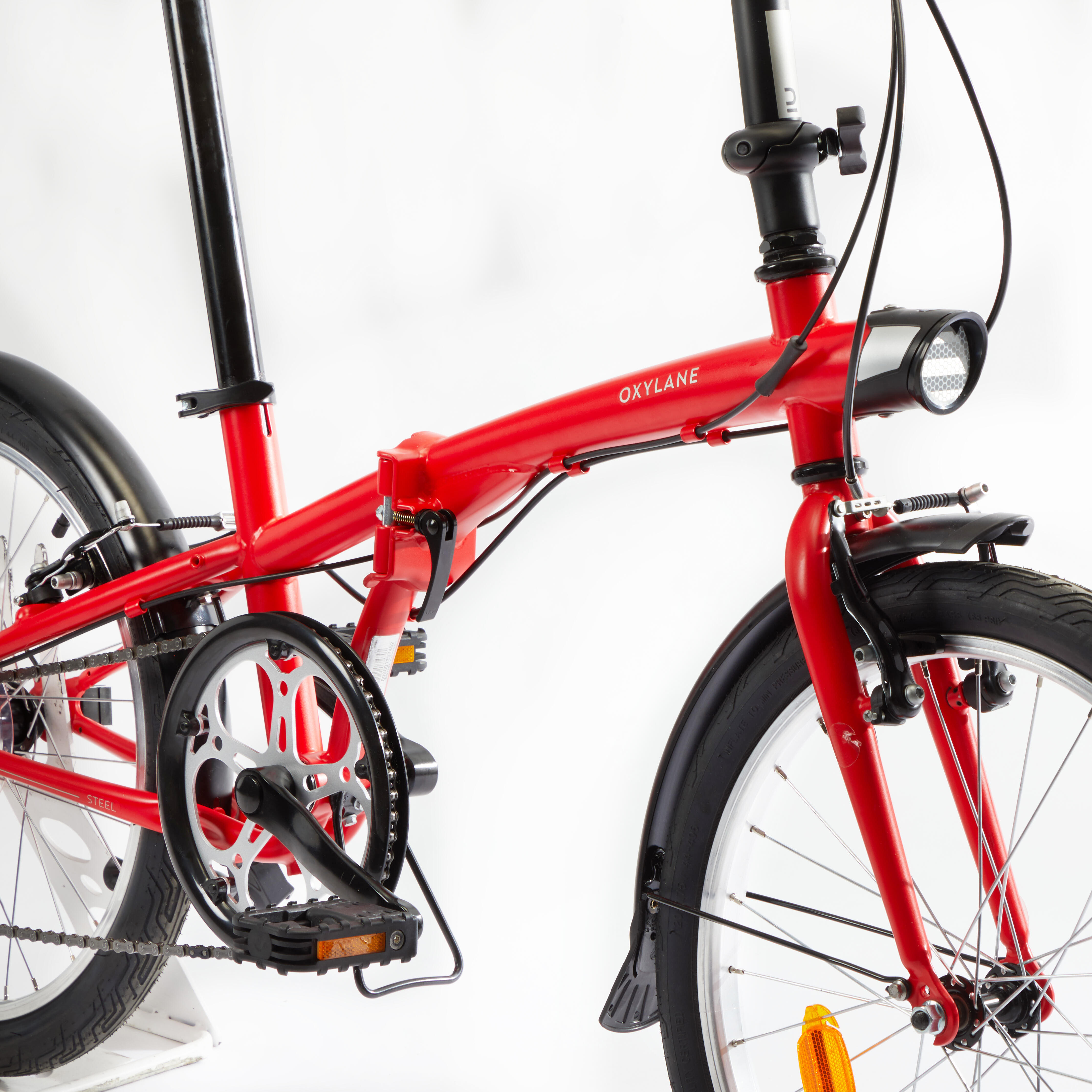

Crankset

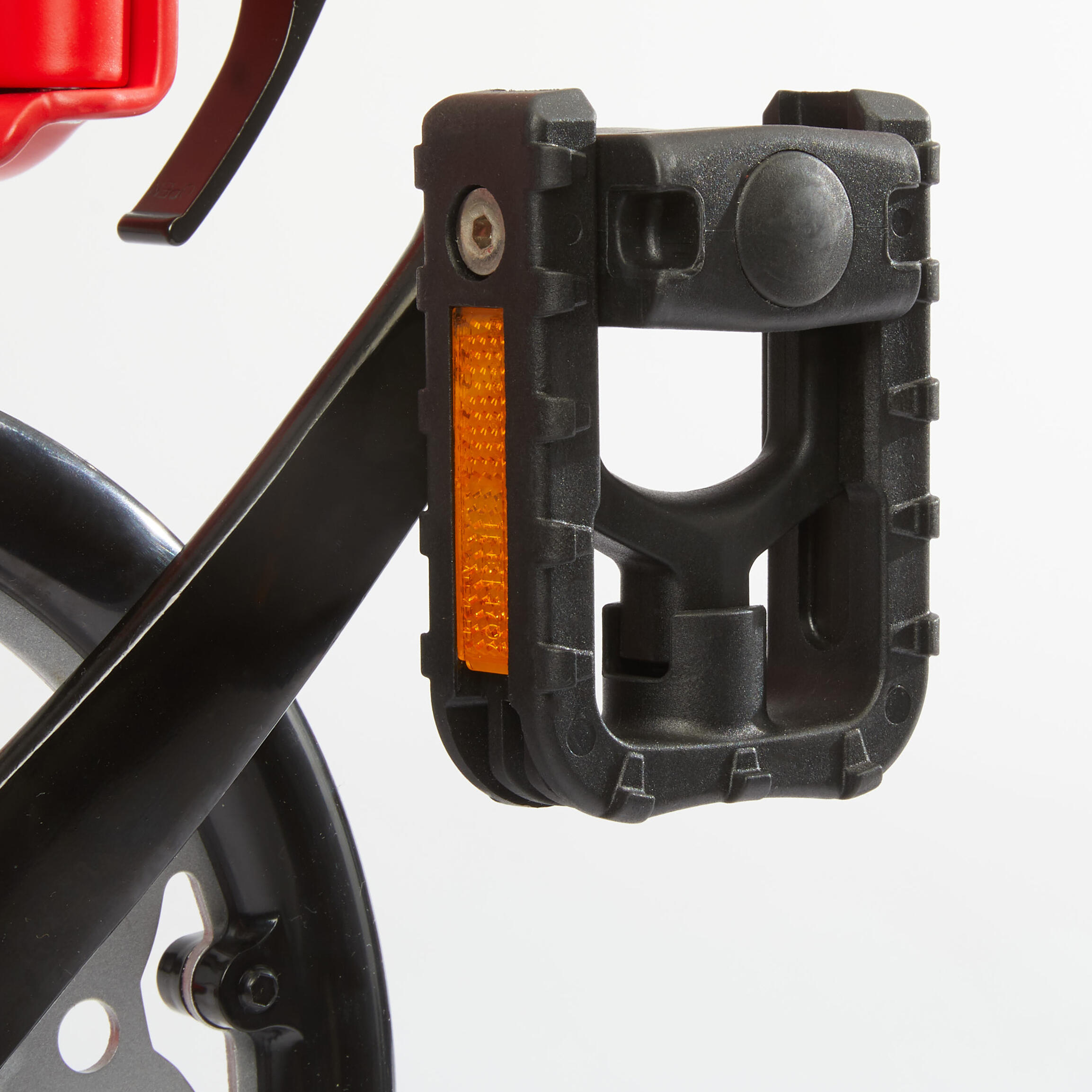

The fold-up pedals reduce bulk when the bike is folded. Once the pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide). Steel cranks: 170mm. Double chainguard to stop your chain jumping and protect it from dirt.
Accessories / equipment
Front and rear battery-operated lights.
Accessories compatible with folding bikes.
- luggage rack for folding bikes. It clips onto the front of the bike's frame in 1 second.(ref:8735484, 8798072)
- rear pannier rack for B'TWIN folding bike.(ref:8750409)
- the 20" protective cover (ref:8271631):
can be used to cover your bike when transporting it (Eurostar, car, train, etc.). The cover comes in a zip-up pouch that you can attach to the underside of your bike's saddle.
How can you carry your bags at the front?
The bike comes with mounting points on the frame (above the front wheel).
It allows you to clip on and off, with one hand and in one second, the exclusive luggage developed by the B'twin teams.
As it sits on the frame, you won't notice its weight and the bike will remain stable.
You'll be able to control your bike as normal.
/!\ The rack makes it harder to lift the front wheel over kerbs.
User size and weight
One frame size only.
This bike's geometry is comfortable for cyclists between 1.45 and 1.85 m tall.
This bike complies with the requirements of standard ISO 4210.
The maximum load it can take is 100 kg (bike + user + luggage). Above this weight, the warranty no longer applies.
