In a nutshell
Weight: 22.6 kg in size M
Mid-drive motor: STAR UNION
Battery: 504 Wh
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 120 mm
Drivetrain: 1x9
Brakes: hydraulic disc
Seat post: Fixed
Frame, handlebar and stem warranty: 2 years

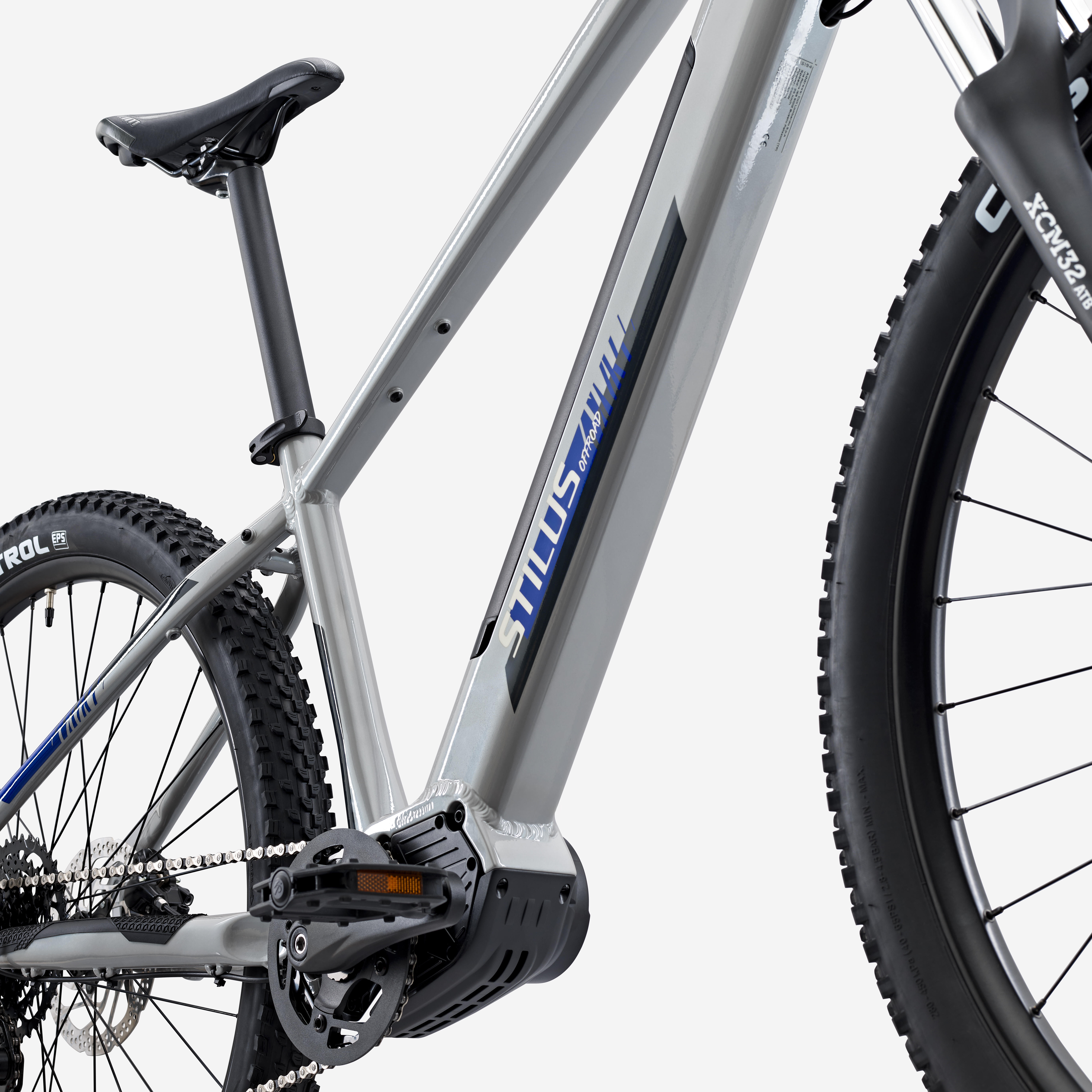

Motor
STAR UNION CM2502 motor
Mid-drive
110 Nm torque
Maximum power:410 W
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
Battery
Integrated
504 Wh

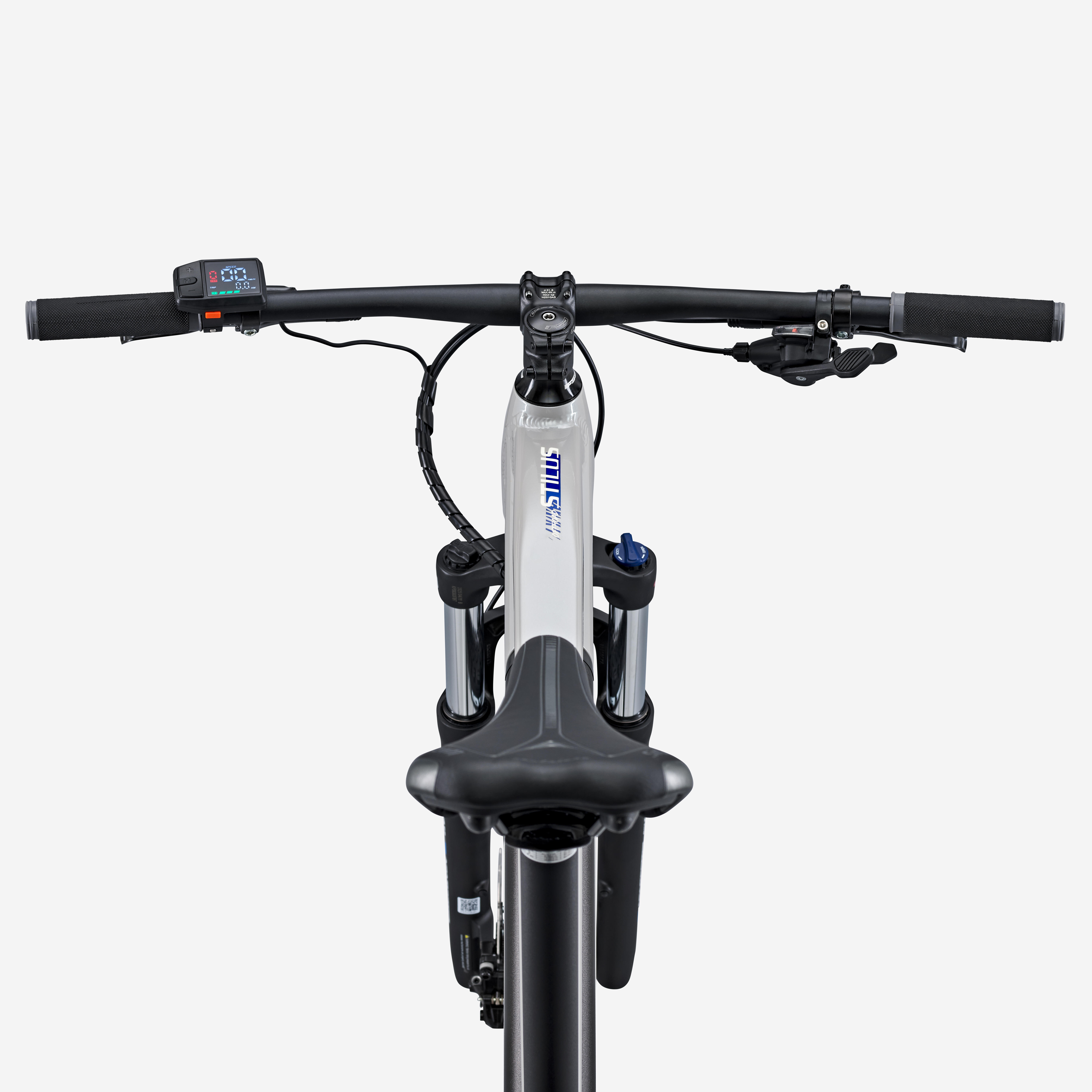

Display
STAR UNION
TFT colour screen,
5 assistance modes: 1, 2, 3, 4, 5
Pedestrian mode assistance with walking.
Weight
S: 22.4 kg
M/L22.6 kg
XL: 22.8 kg
Net weight without pedals
Frame
Aluminium frame
Built-in battery with vertical removal
30.9 mm diameter seat tube
Bottle cage mount:yes (1 bottle)
Drive train
MICROSHIFT ADVENT
34 T chainring with chain guide
MICROSHIFT Advent RD-M619M 9-speed rear derailleur
Cranks: 165 mm
MICROSHIFT Acolyte right shifter with speed indicator
MICROSHIFT Acolyte 9-sprocket steel 11 to 42 T cassette
KMC e9 Sport Silver 116L chain
Suspension
Suntour XCM 32 fork
Travel: 120 mm
Dampers: 32 mm
Axle: QR 9mm
Size: 9x100 mm
Offset: 51 mm
Technology: Spring with preload adjustment
Adjustment: preload

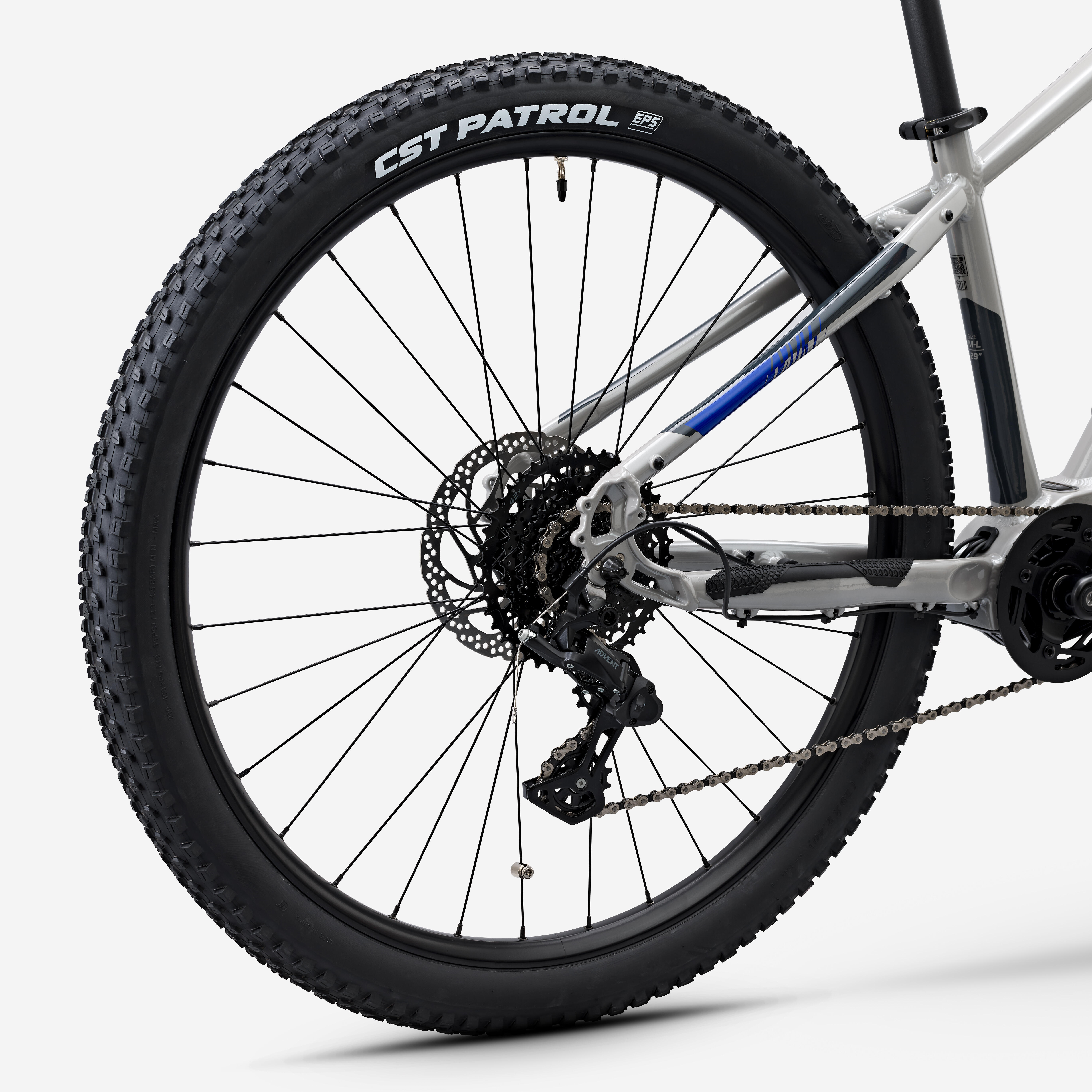

Wheels
SIGNUM 29" wheels
29" size compatible with fat tyres: up to 2.4"
25 mm (width between brackets), 32 spokes
hubs: Shimano TX505
Discs:6-hole
Cassette body: HG
Brakes
SHIMANO MT200 hydraulic disc brakes
Number of pistons: 2
Front disc: 180 mm
Rear disc: 180 mm
Centerlock attachment
Riding position
SIGNUM handlebar
Material:Aluminium
Diameter: 31.8 mm
Width: 740 mm
Rise: 12 mm rise
Backsweep: 9°
SIGNUM stem
Material: Aluminium
Size: 60mm for S & M/L, 75mm for XL
/ Seat post
SIGNUM saddle
SIGNUM seat post
Material: Aluminium
Diameter: 30.9 mm
Length: 350 mm for size S and 450 mm for size M, L, XL
Tires
CST
PATROL
29"" X 2.40"
PEDALS
SIGNUM
Material:resin
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lights, wheel reflectors, and pedals
