In a nutshell
Weight: 25.8 kg (in size M without pedals)
Motor: mid-drive
Torque = 78Nm
Max power = 550W
Battery: 499 Wh
Connectivity: NO
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 120 mm
Drivetrain: 1x08
Brakes: hydraulic disc
Seat post: Fixed
Motor
Vision M120 motor
Mid-drive
78 Nm torque
Torque sensor
Electric assistance cuts out above 25 km/h in accordance with European regulations

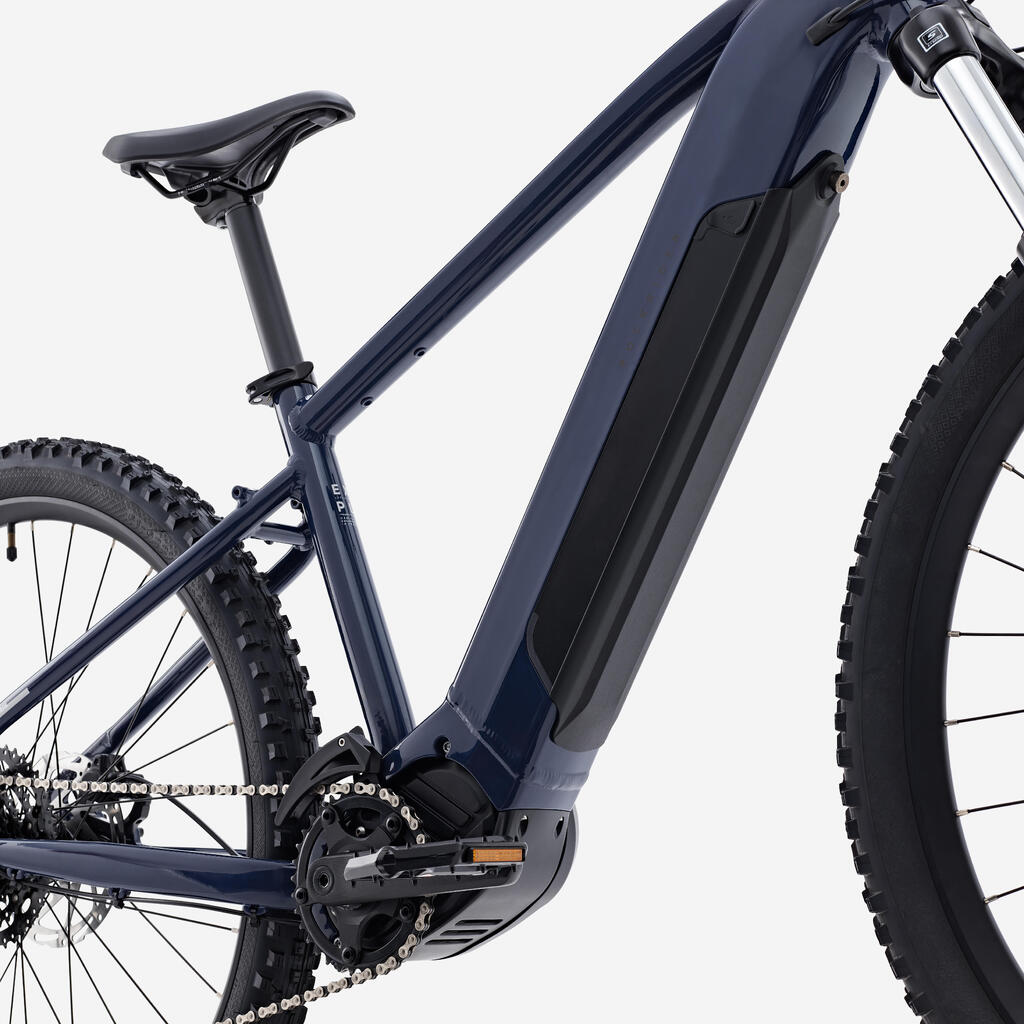

Battery
Battery fully integrated into the frame with low output and protective cover.
Capacity: 499 Wh
Display
T500 UH display
LCD screen
Three assistance modes:1, 2, 3
Pedestrian mode with walking assistance.
Port USB C (5V 500 mAh)
The control unit is installed on the left side and tilted downwards for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Weight
S: 25.7 kg
M: 25.8 kg
L: 25.9 kg
XL: 26 kg
Net weight without pedals
Frame
Composition: Aluminium
Travel: 120 mm fork
Rear axle: 9X135mm
Axle type: Quick Release
Seat tube diameter: 31.6 Mm
Bottle cage mount:yes (2 water bottles)
Drive train
Microshift Acolyte X8
Single chainring: 34 teeth.Cranks: 165 mm
Rear derailleur: 8 speeds
Cassette: 12-46
KMC E8-S E BIKE chain
Suspension
"Fork: SUNTOUR XCM 32
Travel: 120 mm
Dampers: 32 mm
Axle: QR 9x100 mm
Wheelset
29" ZY 30 double-wall aluminium wheel
Internal width:30 mm
Number of spokes: 32
Disc mount: 6 holes
Freewheel hub: Shimano HG
Axle types: QR, 9x100 mm at the front and 9x135 mm at the rear
Tubeless Ready:No
Brakes
Tektro HD-M 275 hydraulic disc brakes
Number of pistons:2
Front disc: 180 mm
Rear disc: 180 mm
Disc mount: 6 bolts
Riding position
Handlebar: Zoom MTB-AL-330 BT
MaterialAluminium
Diameter: 31.8 mm
Width: 760 mm
Rise: 30 mm
Stem: Material: Aluminium
Angle: 6°
Sizes: 60 mm
Grips:
Lock On
/ Seat post
VISION A059H saddle
Zoom seat post
Material: Aluminium
Diameter: 31.6 mm
Length: S/M 350 mm, L/ XL 400 mm
Tyres
Kenda
EL CAPO K1221 29X2.4
ACCESSORIES INCLUDED
Your MTB comes with:
Charger
bell,
lights,
wheel reflectors
and pedals.
