In a nutshell
Weight: 12.7 kg in size M (without pedals)
Frame material: Carbon
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 120/120 mm
Drive train: 1x12
Brakes: hydraulic disc
Seatpost: Telescopic
2-year guarantee for components.
Weight
Weight
S: 12.6 kg
M: 12,7 kg
L: 12.8 kg
XL: 13.0 kg
Weight without pedals but with inner tubes
Frame
Full carbon (frame and connecting rod)
Internal routing
1980 grams in size M with connecting rod and screws
120 mm travel
31.6 mm seat post
Compatible with telescopic seat posts (internal passage)
Thru axle
Boost format
PressFit 92 casing
Compatible with 1 bottle cage
Sram UDH derailleur hanger Frame not compatible with T Type derailleurs
Drivetrain
Shimano SLX / XT 12-speed
Single chainring: 32 teeth.Cranks: 170 mm in size S/M and 175mm in size L/XL
Rear derailleur: 12 speeds
Cassette: 10-51
Shimano 12S 6100 chain: 118 links
Suspension
Fork: Manitou Machete
Travel: 120mm
Damping rods: 32 mm
Axle: thru axle
Format: BOOST

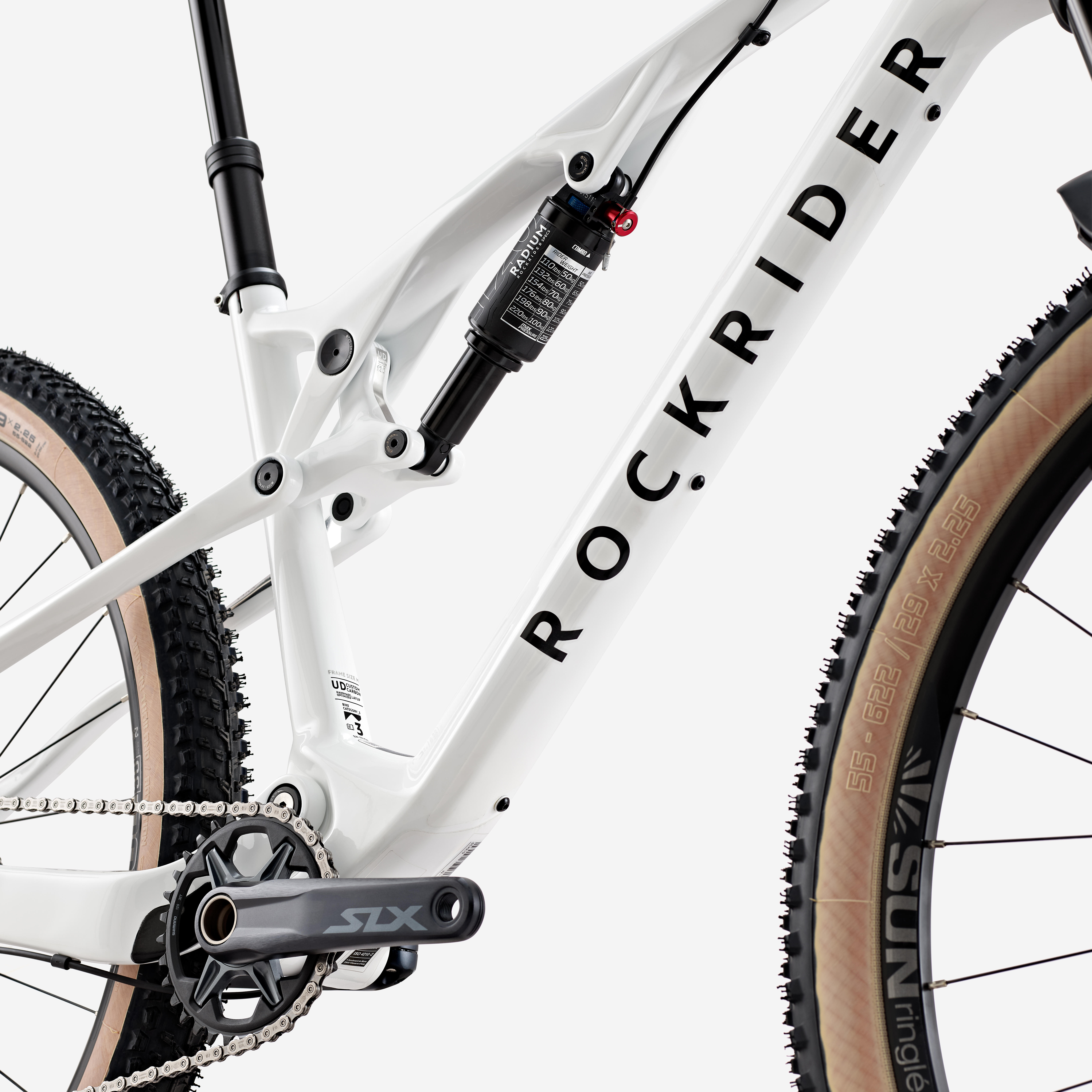

Shock: Manitou Radium Expert
Travel:120mm
Format: 190x45mm
Specific model tailored to the bike's kinematics
Adjustable rebound
3-digit combination lock to lock handlebar
Wheels
SUN RINGLE Duroc 30 SRC 29"
Internal width: 30 mm
Disc mount: 6 holes
Number of spokes:32
Weight: 2070 g
HD cassette body
Tubeless Ready: yes
Bearings: Sealed
BOOST axles: 15 mm front and 12 mm rear
Fitted with watertight rim tape
Brakes
Shimano MT 501
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm

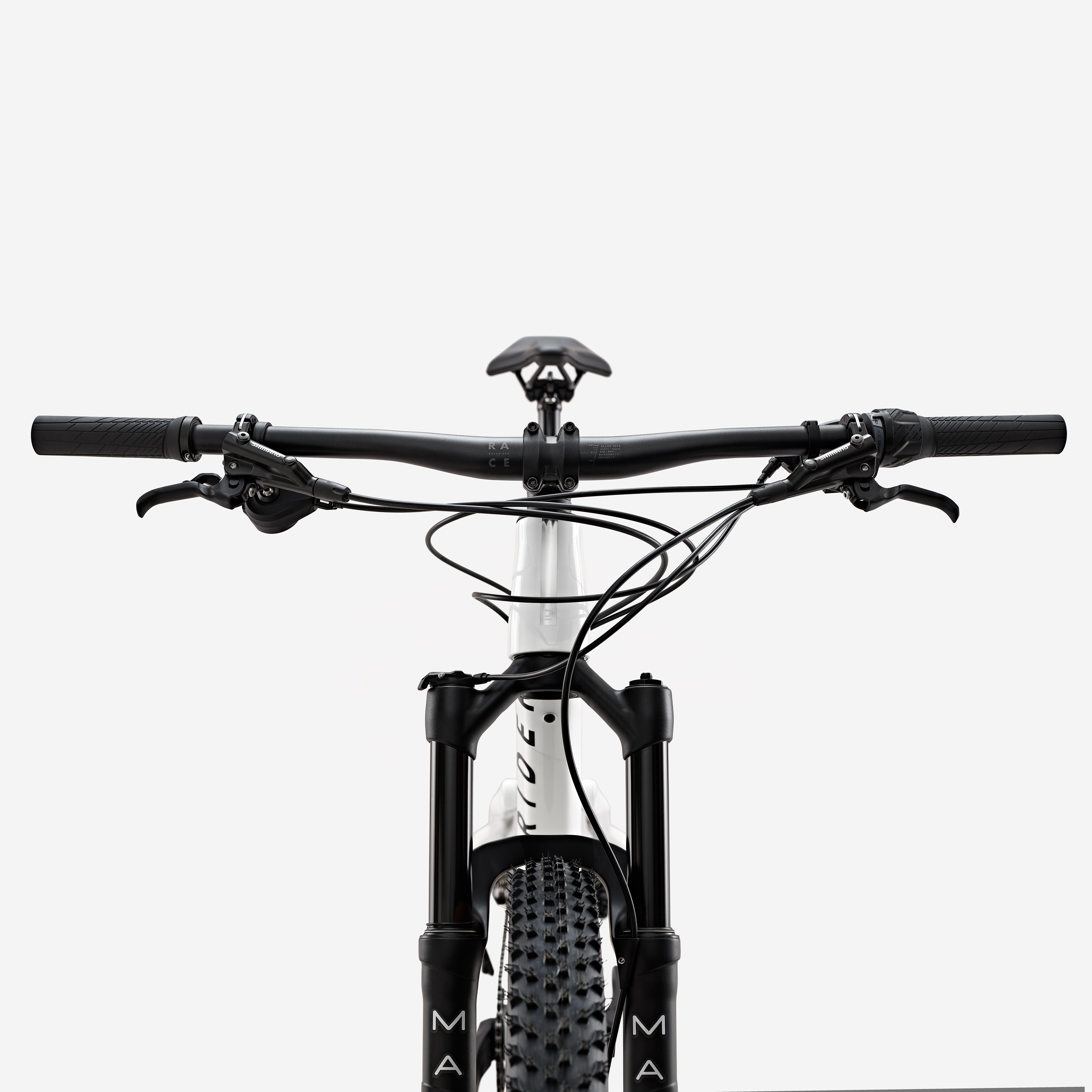

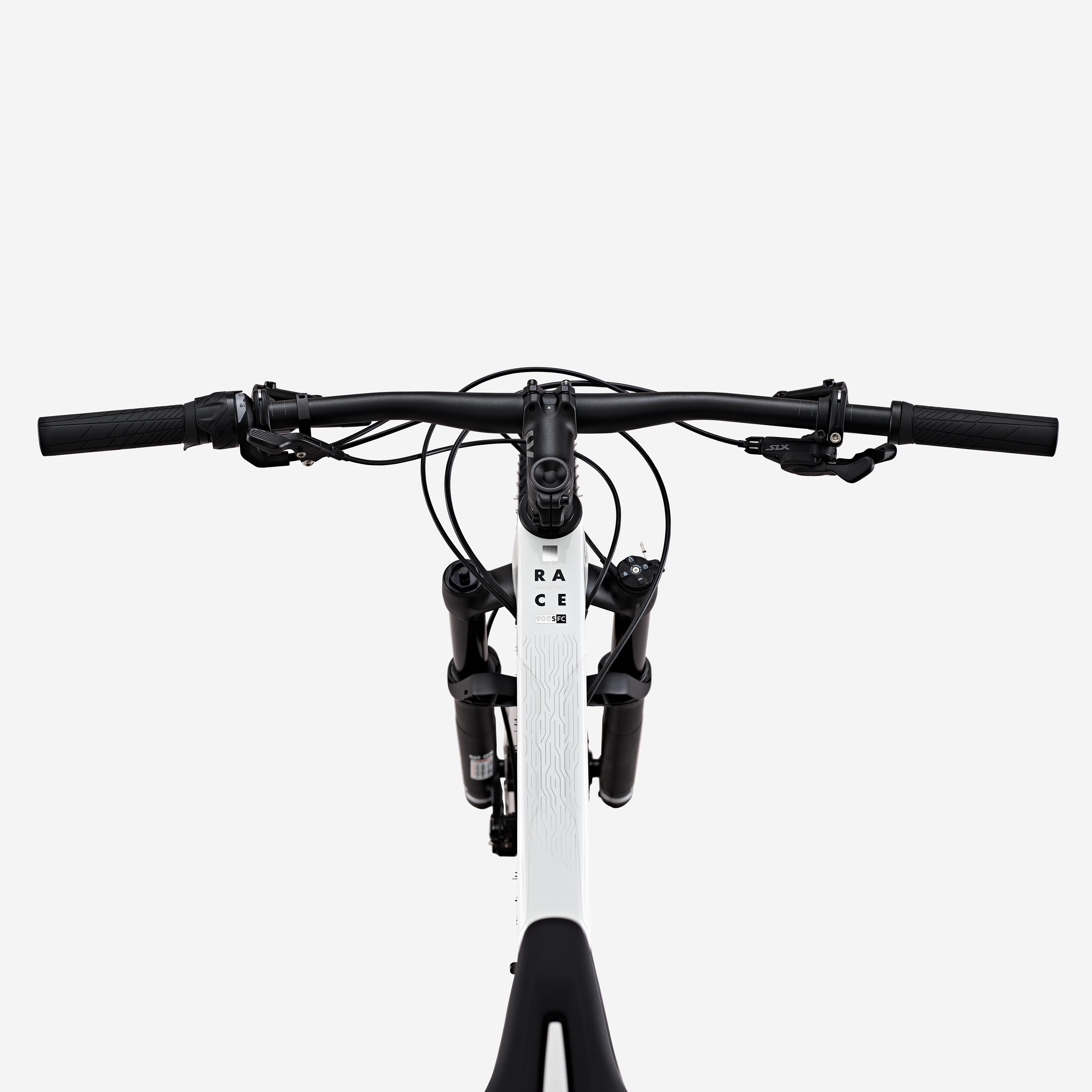

Riding position
Handlebar: Rockrider flat
Material: Aluminium
720 mm width
6.5° axle
256 g
Stem: Rockrider
Material: Aluminium
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL
Grips:Rockrider 900 Lock On
Saddle and seat post
Rockrider Control Short Nose saddle
Steel rails
Weight: 270 g
Seat post: Tranz X Dropper telescoping seat post
Diameter: 31.6 mm
Length: 400 mm
Travel: 100mm (S), 150mm (M/L/XL)
Insertion limit: 80 mm(120) - 120 mm(150) - 140 mm(170)
Max height (at insertion limit): 281 mm(120) - 318 mm(150) - 358 mm(170)
Control: on the handlebar
Cable routing: Internal routing
Material: 6061 aluminium
Head offset: 15 mm
Interface: 2 rails: 43 Mm interaxial distance
Tyres
Front tyre
Vittoria Barzo 29 x 2.25
Tubeless Ready
Beige sidewalls 120 TPI
or
Hutchinson Kraken Racing Lab 29 x 2.30
Tubeless Ready
Race Ripost XC compound
127 TPI carcass

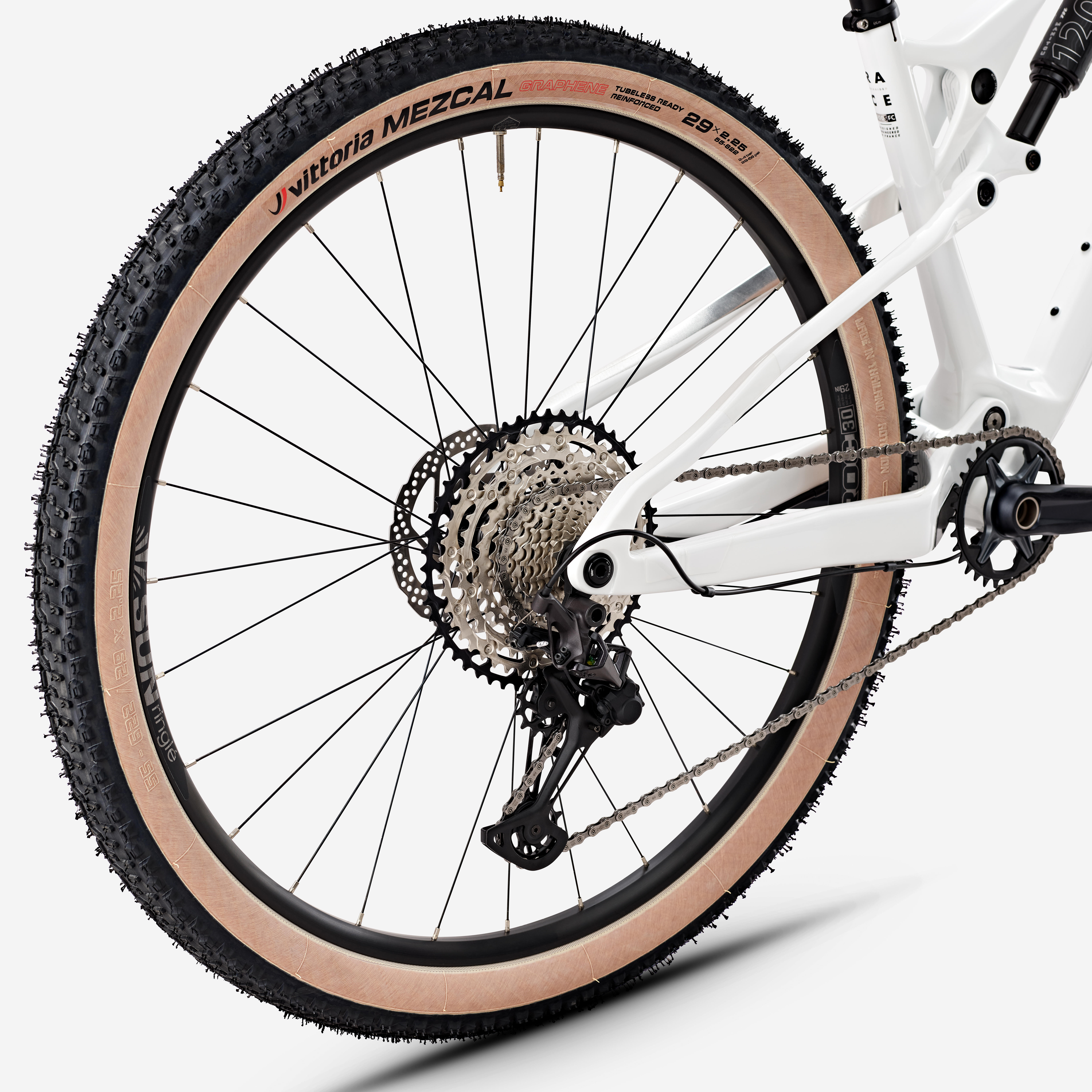

Rear tyre
Vittoria Mezcal reinforced 29 x 2.25
Tubeless Ready
Beige sidewalls 120 TPI
or
Hutchinson Kraken Racing Lab Hardskin 29 x 2.30
Hardskin reinforcement
Tubeless Ready
Race Ripost XC compound
66 TPI carcass
Pedals
Rockrider 520 Grip resin flat pedals
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, pedals, and a torque wrench
