ROCKRIDER
29 inch Full Suspension Carbon Mountain Bike XC 500 - Grey
This mountain bike is designed for improving at cross country (XC) marathon mountain biking.
An XC mountain bike designed for long distances and more rugged ground.
120 mm travel for quickly and easily getting past any obstacle!
ID 8614814
BENEFITS
Compatibility
Tubeless ready wheels and tyres
Lightweight
Full suspension frame with carbon front triangle and aluminium rear triangle.
Precision
Sram GX Eagle Lunar and NX 12-speed groupset.
Shock absorption

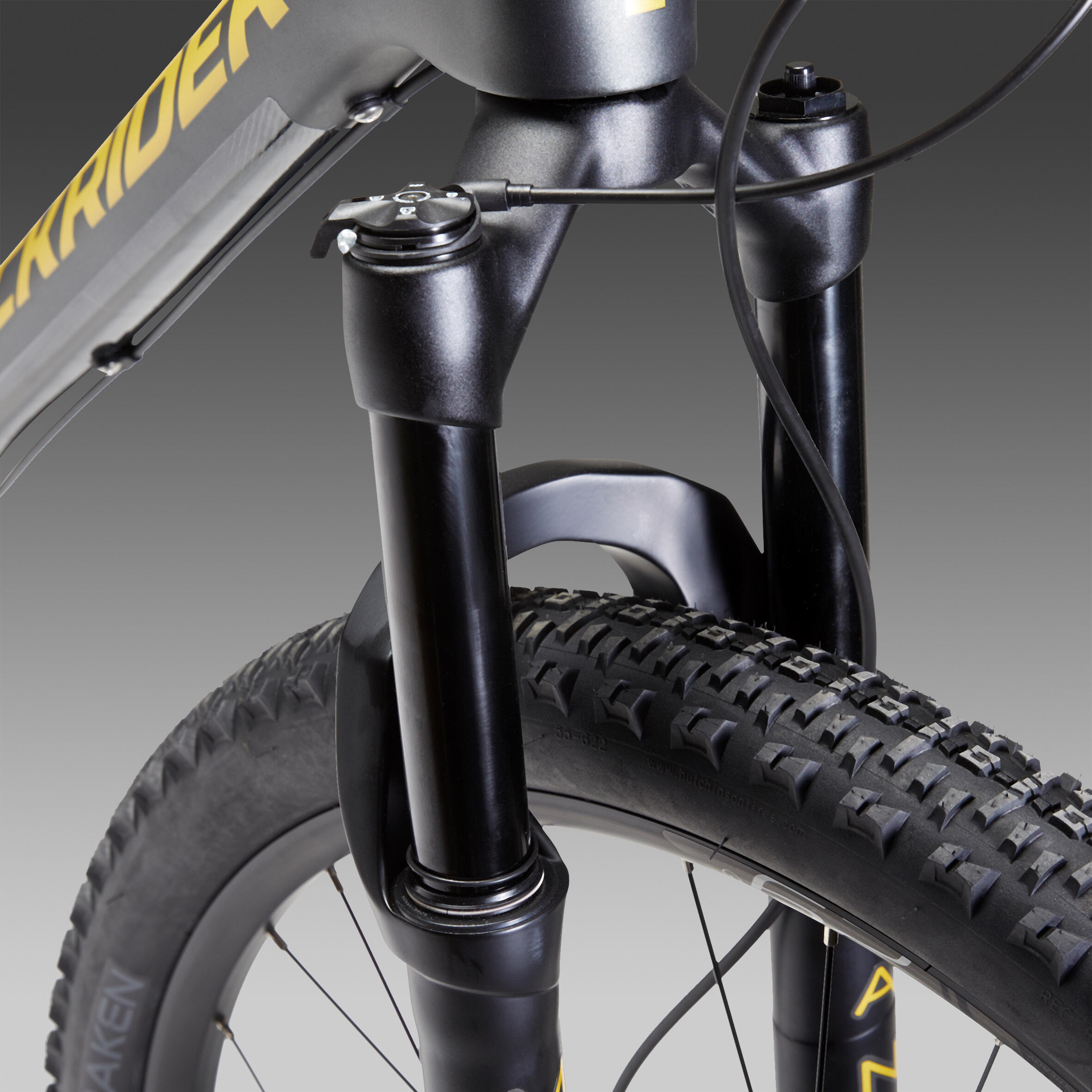

Manitou Machete 120 mm fork and Manitou Radium Expert 120 mm shock.
Efficiency

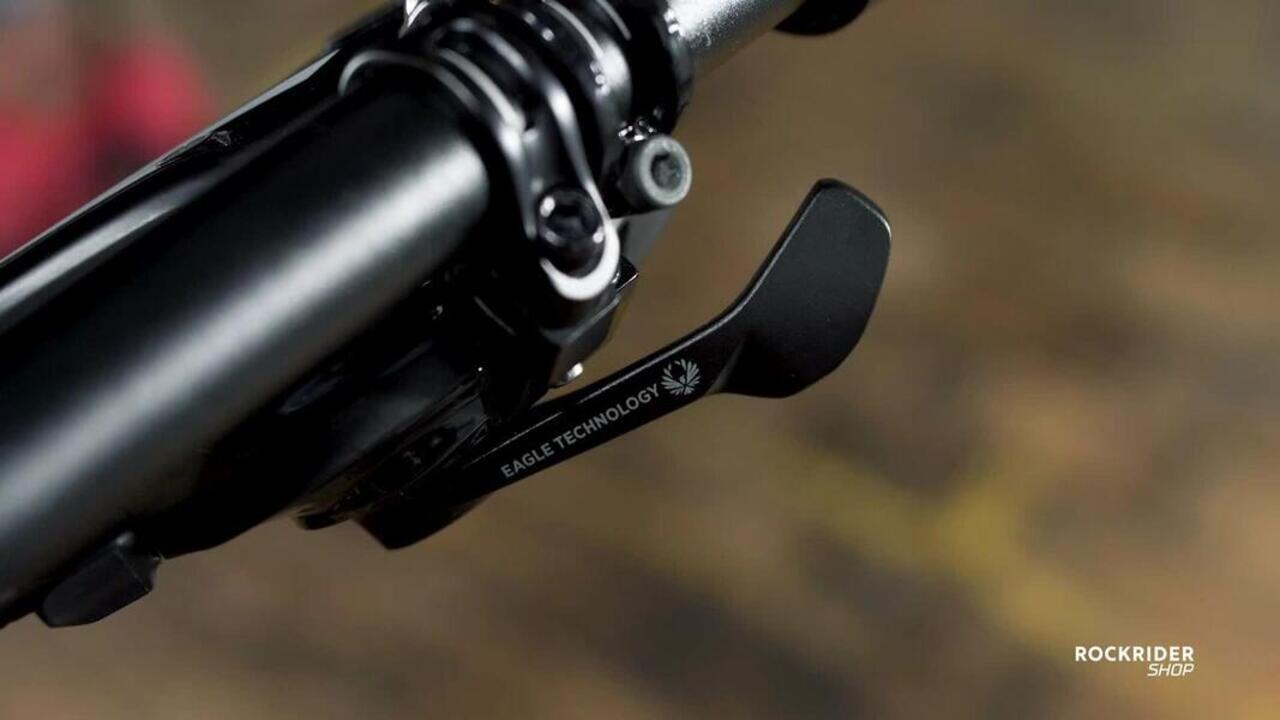

Derailleur and Sram GX Eagle Shifter
Instructions
Download it hereTECHNICAL INFORMATIONS
Description
Thanks to its lightweight full suspension frame composed of a carbon front triangle and aluminium rear triangle, this full suspension XC mountain bike is perfect for having a go at XC marathon courses and extending the distances you ride while retaining efficiency.
Equipped with reliable, long-lasting components (Manitou Machete, Sram GX Eagle groupset, tubeless wheels), this model won't let you down, even in the toughest conditions.
Frame
Carbon front triangle
6061/6013 alu rear triangle
Carbon linkage
148 mm x 12 mm BOOST rear axle
Pressfit 92 bottom bracket
31.6 mm seat tube with internal cable routing for dropper posts (needs special caps to be mounted - product ref 8571387)
Bottom bracket access hatch
Compatible with 1 bottle cage
Single chainring only
Weight in size S: 2.2 kg
Air-sprung fork
MANITOU MACHETE 120 mm
Thru axle
BOOST format
Combolock 3-position remote lockout
Shocks
MANITOU Radium Expert Metric
120 mm travel, 190x45 mm
3 positions
Adjustable rebound
Combolock 3-position remote lockout
1x transmission
Sram GX EAGLE Lunar 12-speed
Sram PG1230 11-50 cassette
Sram X1 1000 crankset
32T chainset (compatible with 30 and 34)
Hydraulic brakes
Sram Level T
180 mm front discs, 160 mm back
Tubeless ready wheels
Sun Ringle Duroc 30 29"
Aluminium rims
Sealed cartridge bearings
Handlebar
Rockrider aluminium flat
Width: 720 mm
Angle: 6.5°
256 g
Stem
Rockrider Aluminium
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL
Saddle
Rockrider XC Ergofit
265 g
Seat post
Rockrider aluminium
Straight
Diameter: 31.6 mm.
Tubeless ready tyres
Front: Hutchinson Kraken Racing Lab 2.30 tubeless ready
127 TPI carcass
Rear Hutchinson Kraken Racing Lab 2.30 tubeless ready Hardskin
66 TPI carcass
or (depending on availability) Front tyre Vittoria Barzo 29 x 2.25 tubeless ready beige sidewalls 120 TPI and rear Vittoria Mezcal reinforced 29 x 2.25 tubeless ready beige sidewalls 120 TPI
Pedals
Rockrider 520 Grip flat pedals
PRODUCT CARE
To keep this bike rolling smoothly, you should perform regular maintenance, including:
- degreasing the chain and lubricating it regularly
- degreasing the disc brakes
- checking for wear on the drivetrain
- regularly servicing the suspension fork (ideally every 50 hours of use)
- regularly reinjecting the tubeless ready tyres with sealant
Total bike weight
Weight (without pedals, tubeless version)
Small: 12.4 kg
Medium: 12.6 kg
Large: 12.8 kg
Extra-large: 12.9 kg
COMPOSITION
composition
Bike frame: 50.0% Carbon Fiber, 50.0% Aluminium
Tips for storage and maintenance
Storage tips
We recommend storing your bike in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Not suitable for all mountain, BMX, enduro or downhill.
TESTS AND WARRANTY
Test product
Our engineers always have real riders test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Warranty
2 Years
Agree by
Milton Ramos and Joseph De Poortere, Rockrider technical partners
