| How to inflate and deflate |
To inflate, connect the hose to the "Inflate" side of the pump.
To deflate, connect the hose to the "Deflate" side of the pump.
Bend your knees to make it more comfortable when inflating. |

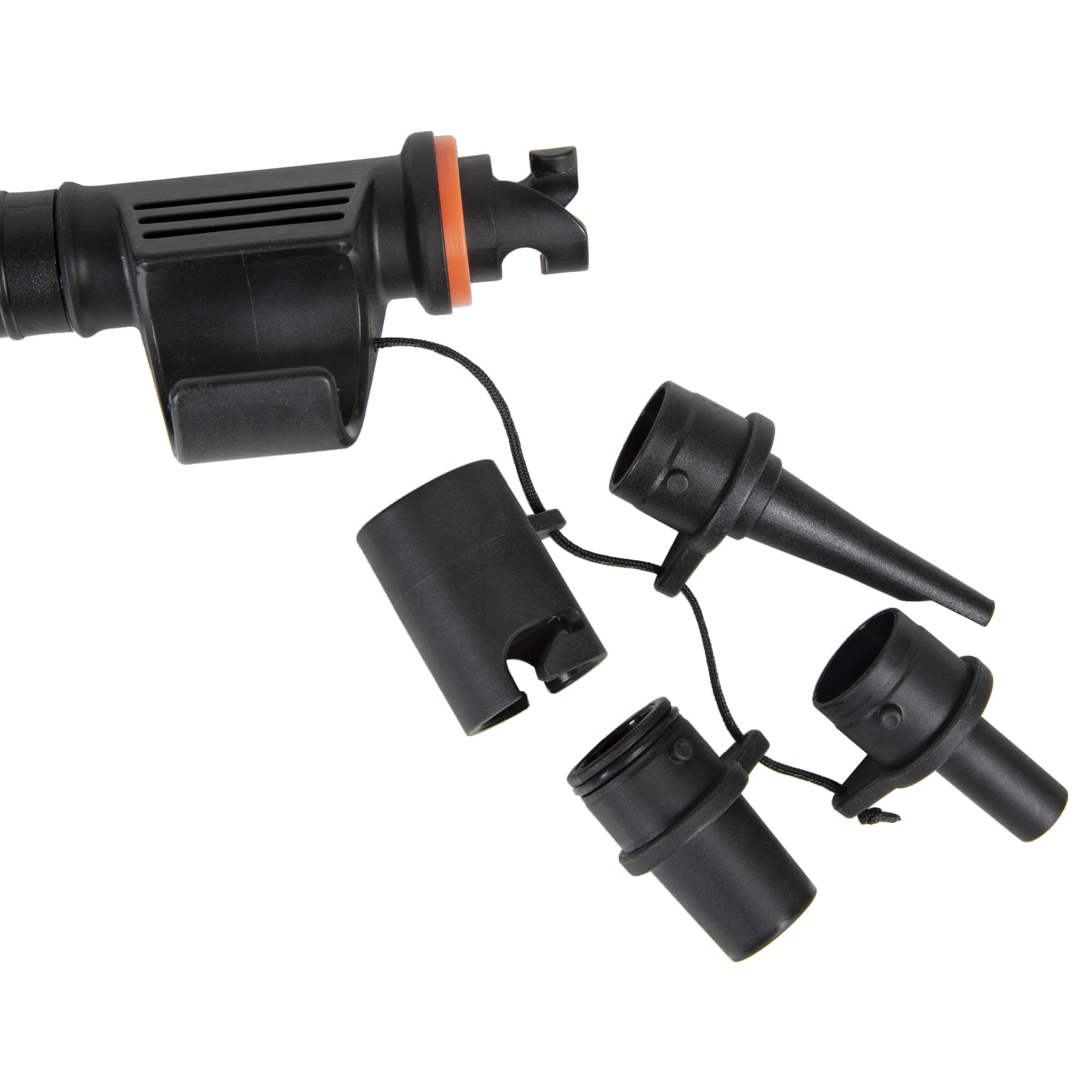

| Are there many nozzles? |
In addition to its standard nozzle to inflate your dropstitch kayak to a high pressure, the pump also comes with:
- A “mini boston” nozzle to inflate the kayak seats.
- A “boston” nozzle to inflate low-pressure kayaks, mattresses and inflatable tents.
- An adaptor and nozzle to inflate certain kitesurfing wings.
- A thin nozzle for flexible “duck”-type valves. |

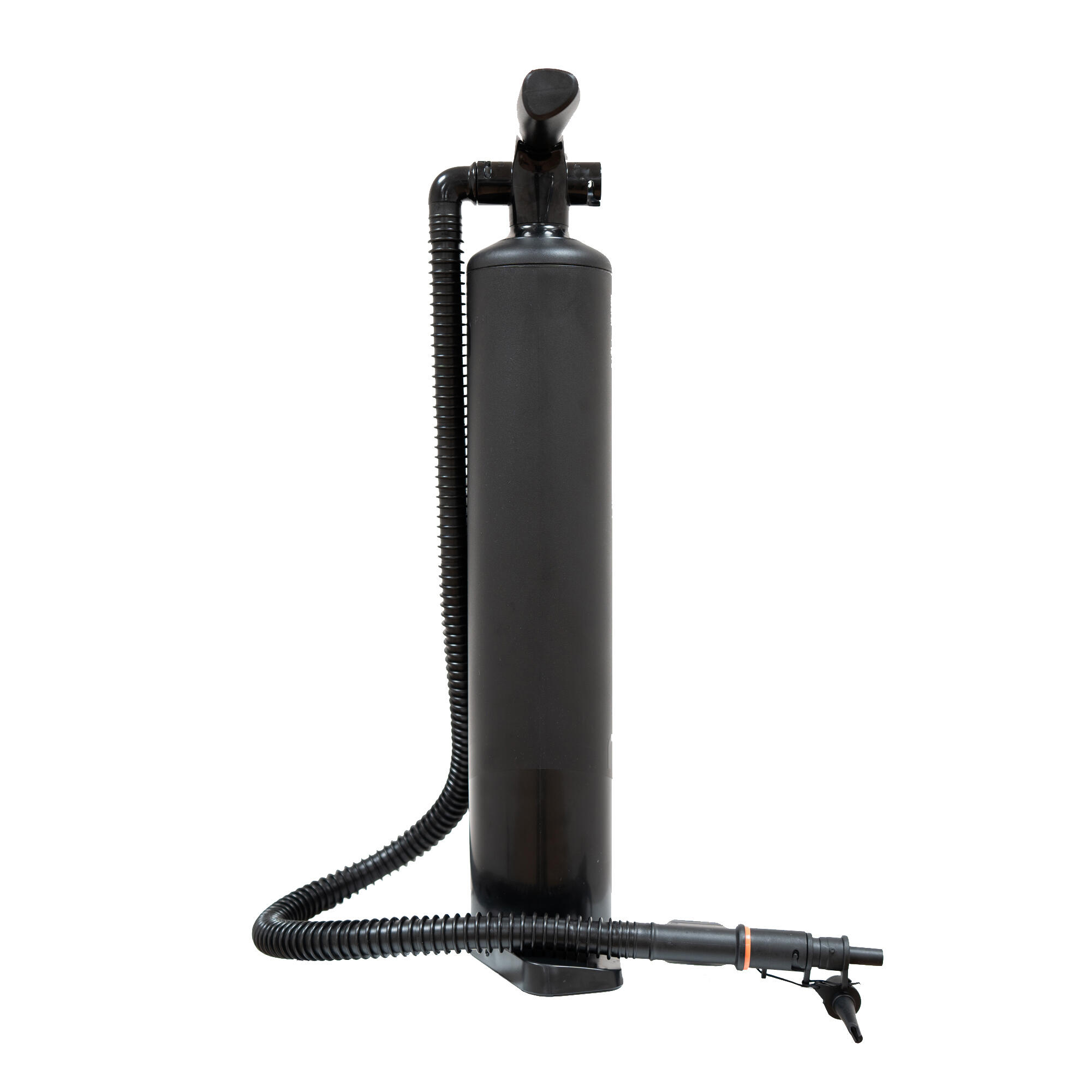

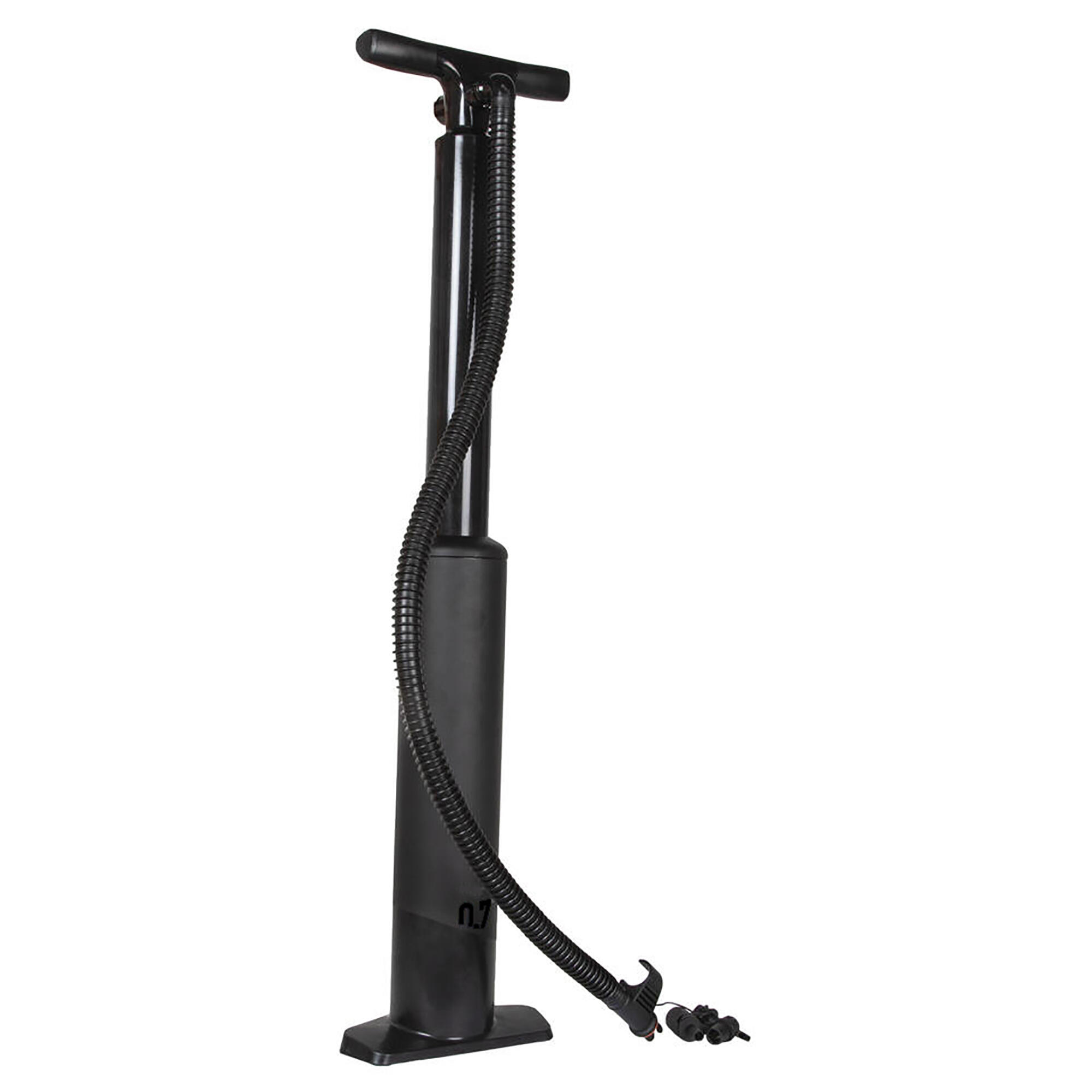

| What are the dimensions? |
Volume of air displaced: 3 L when deflating, 1.7 L when inflating.
Height: 569 mm
Width: 225 mm
Diameter: 105 mm
Weight: 1.4 kg |
| How to store the pump |
Use the fastening clip to attach the hose and pump together.
Do not stand on the pump or the hose.
Clean off any sand, it can damage the seals. |
| How to use the pump |
1/ Find a flat and solid floor
2/ Check that the hose is connected to the INFLATE side
3/ Connect the hose to the boat
4/ Inflate the boat
5/ Stop inflating when the recommended pressure is reached.
6/ Disconnect the hose from the boat |

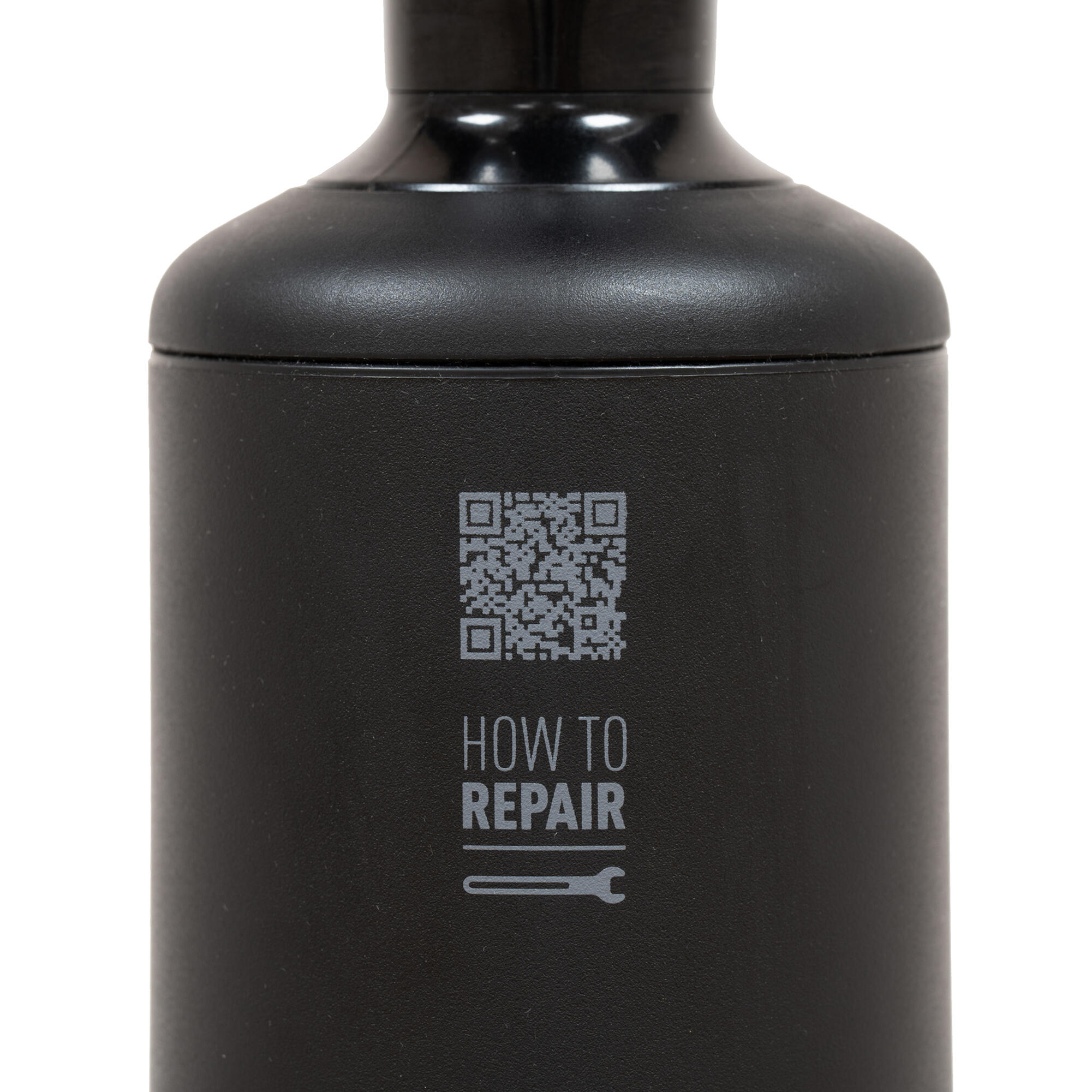

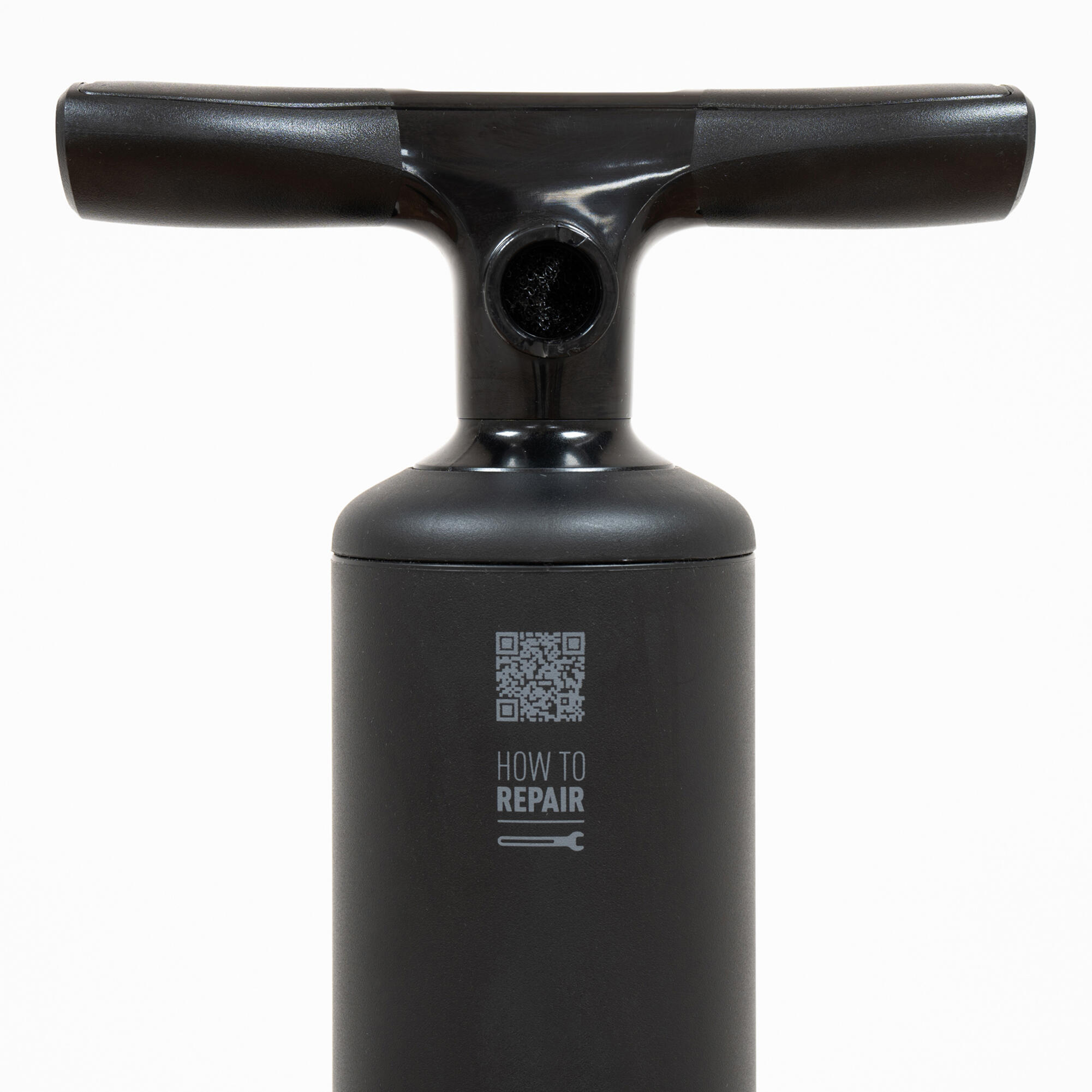

| Can the pump be repaired? |

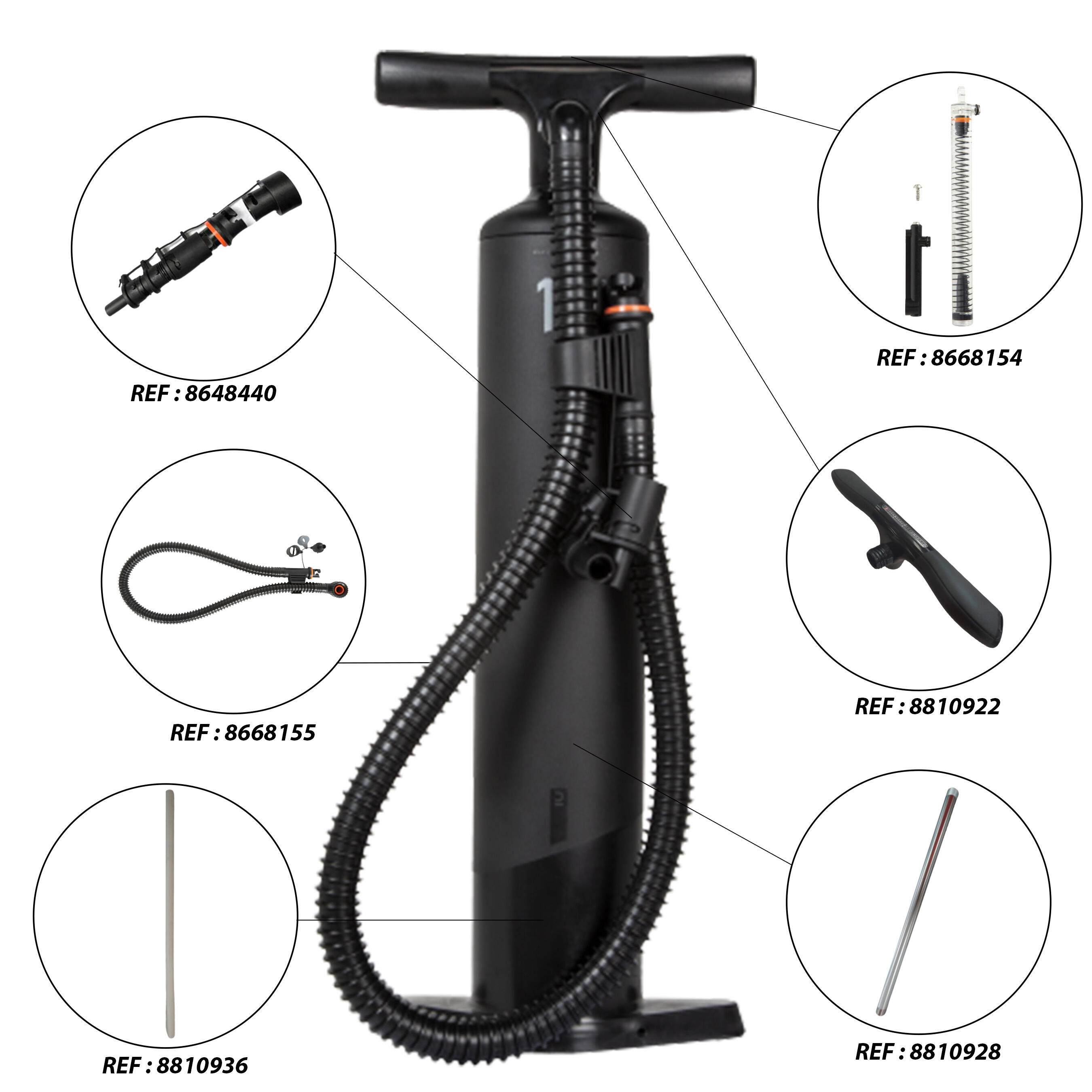

We design our products so that they are as repairable as possible. The following spare parts are available for this pump:
Handle + Pressure gauge: 8810922
Aluminium tube: 8810928
Hose: 8810936 |
