ELOPS

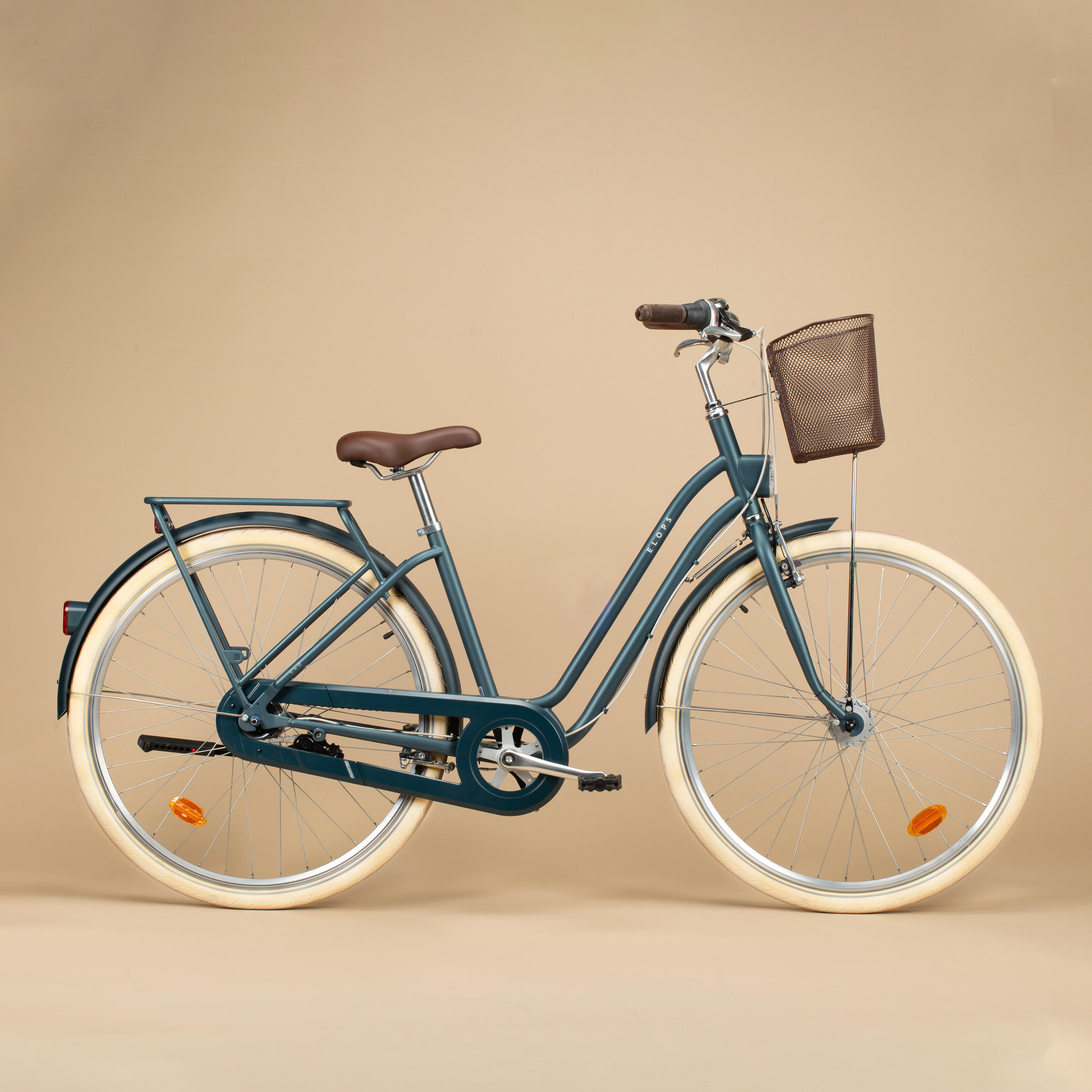

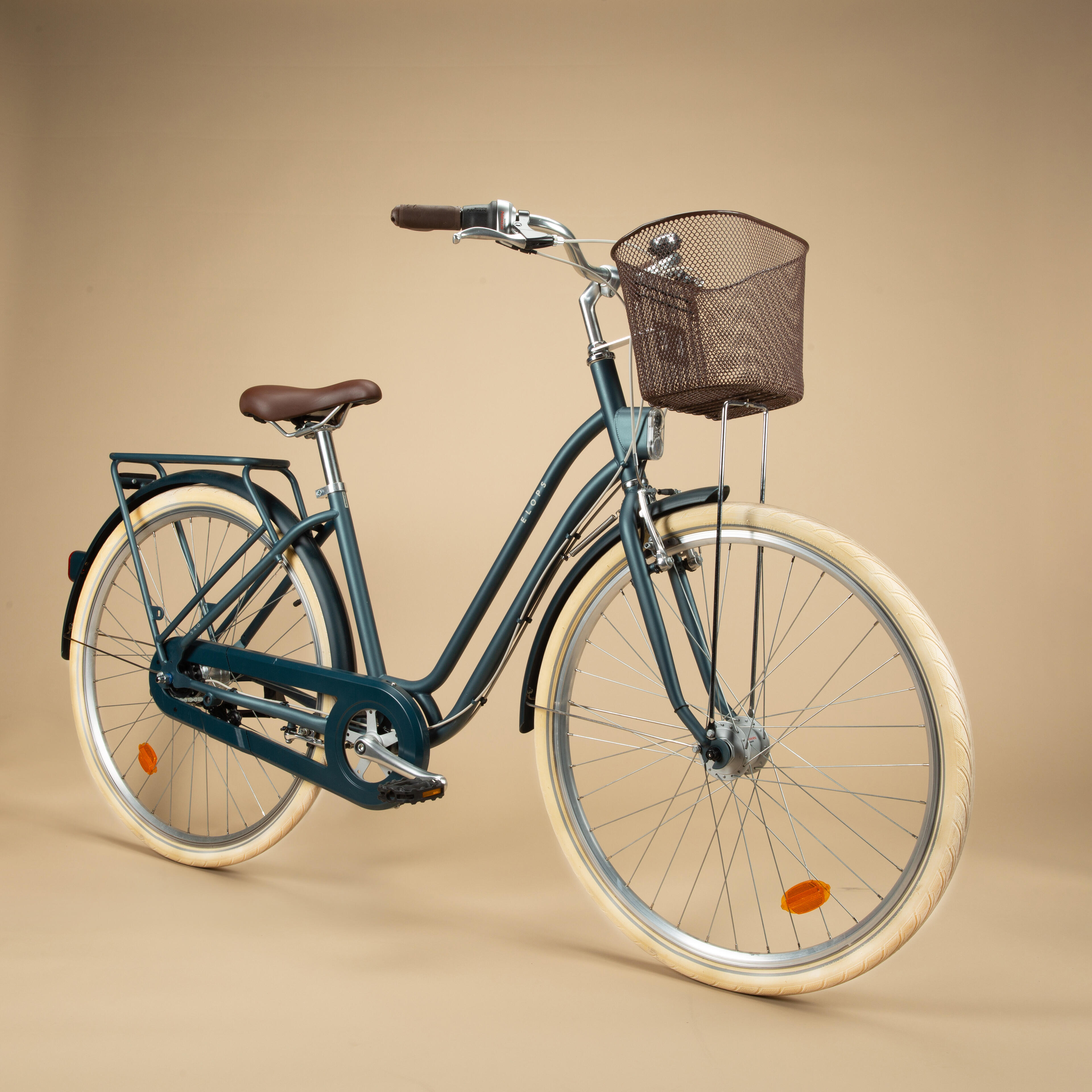

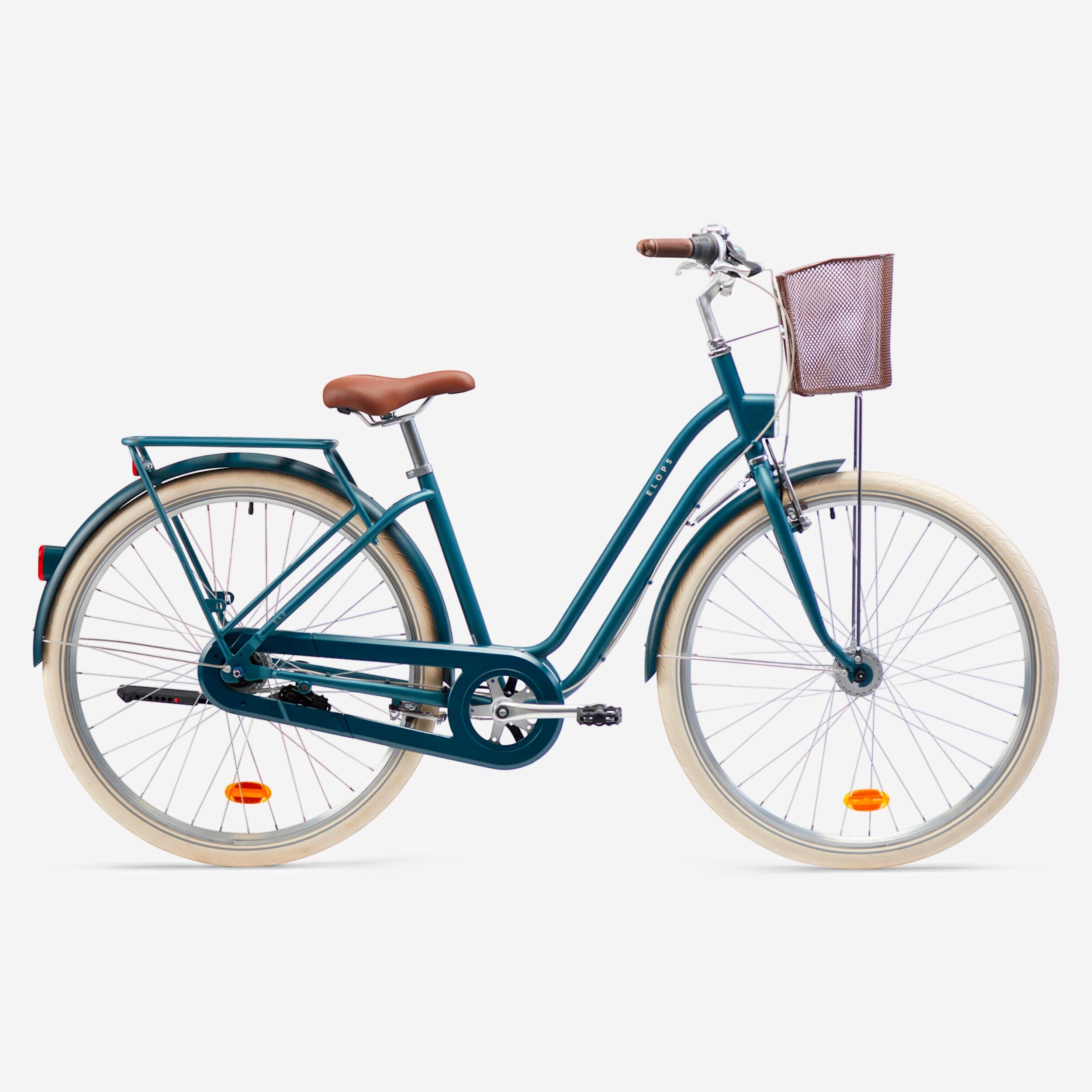

City Bike Elops 540 XS
Our team of designers made this bike so you can enjoy your daily rides comfortably and safely.
Enjoy your daily trips in town thanks to this very comfortable and very practical bike. You'll love the fact that it is fully equipped with all that a demanding urban cyclist needs.
ID 8771599
BENEFITS
Compatibility
Compatible with child seats and saddle bags; safety accessories.
Ease of use
Nexus 7-speed, can shift gears even when stationary; self-powered lights.
Bike safety
Self-powered lights using Shimano hub dynamo; reflective bands on tyres.
User comfort
2 sizes, upright riding position, height-adjustable handlebar, ergonomic grips.
Braking power
V-brakes with brake pads, easy to use and maintain.
TECHNICAL INFORMATIONS
Shimano Nexus gear changes
This type of gear system is designed to let you change gears when stationary, without pedalling. It makes it easier to get your bike going again, particularly when you're carrying a lot of stuff.
The system is also shock-resistant because it's completely integrated into the rear wheel's hub and therefore needs very little maintenance.
There's a grip shifter to control it.
WARNING: the system needs you to stop pedalling for 1 second to change gears.
Frame
Double-butted steel frame—lighter and more comfortable.
Also available in a step-through frame model, making it easier to get on the bike (for both male and female riders).
* Double-butted tube: tube with varying thickness to save weight; thicker at the extremities to make it more solid, and thinner in the middle for a more comfortable ride and to better absorb vibrations.
Fork
Slightly curved steel fork to absorb the small bumps in the road and keep you more comfortable as you ride.
Braking

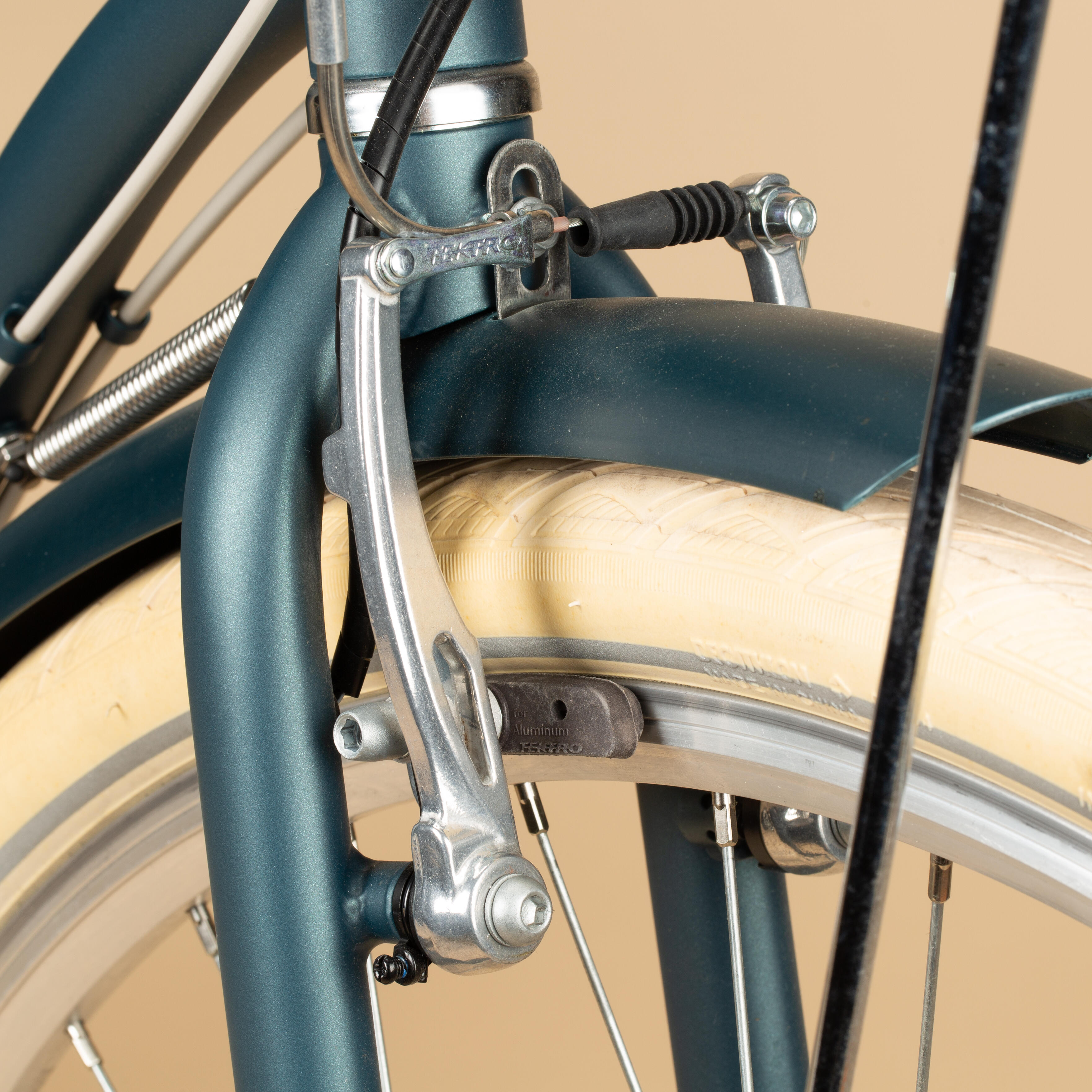

Aluminium V-brake calliper brakes (with pads) and levers.
Handlebar / stem / steering
Aluminium Dutch-style handlebar and damper stem (22.2 diameter) set to a very comfortable upright position.
Ergonomic grips to be more comfortable when regularly using the bike, along with inserts for attaching a VIOO clip to make you more visible from the side.A self-centring spring was added between the fork and the frame to help stabilize your bike with a loaded rack, while riding or parked.
Saddle/Seat post
Height-adjustable seat post (28.6 mm diameter), made of steel to more effectively absorb vibrations and provide a more comfortable ride.

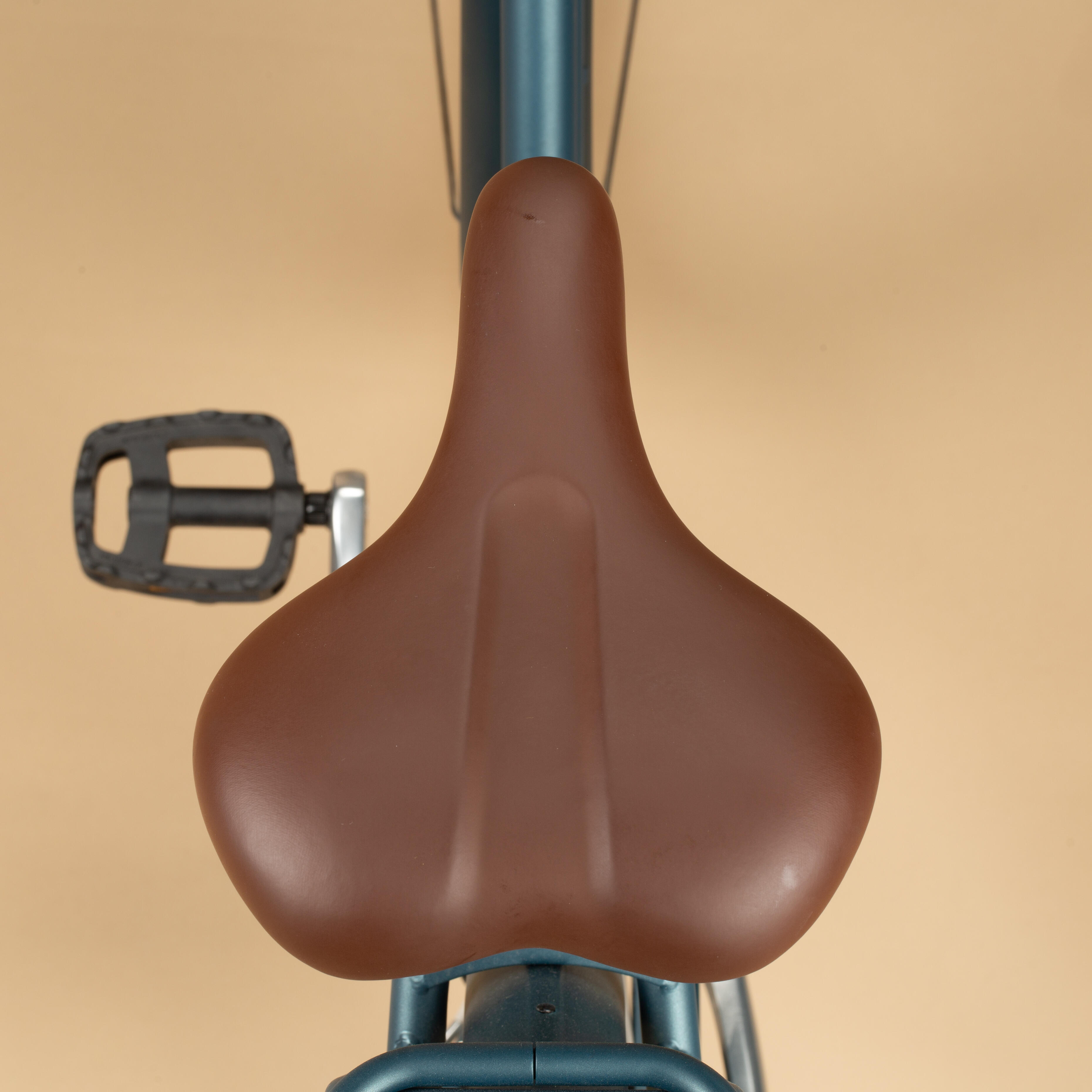

Wide saddle whose foam padding varies in hardness based on the pressure points between your bum and the saddle. Saddle is set at a 12° angle for greater comfort; welded in place for added safety. Lockable seat clamp (diameter: 31.8 mm) so opportunist thieves can't steal your saddle / seat post.
Visibility

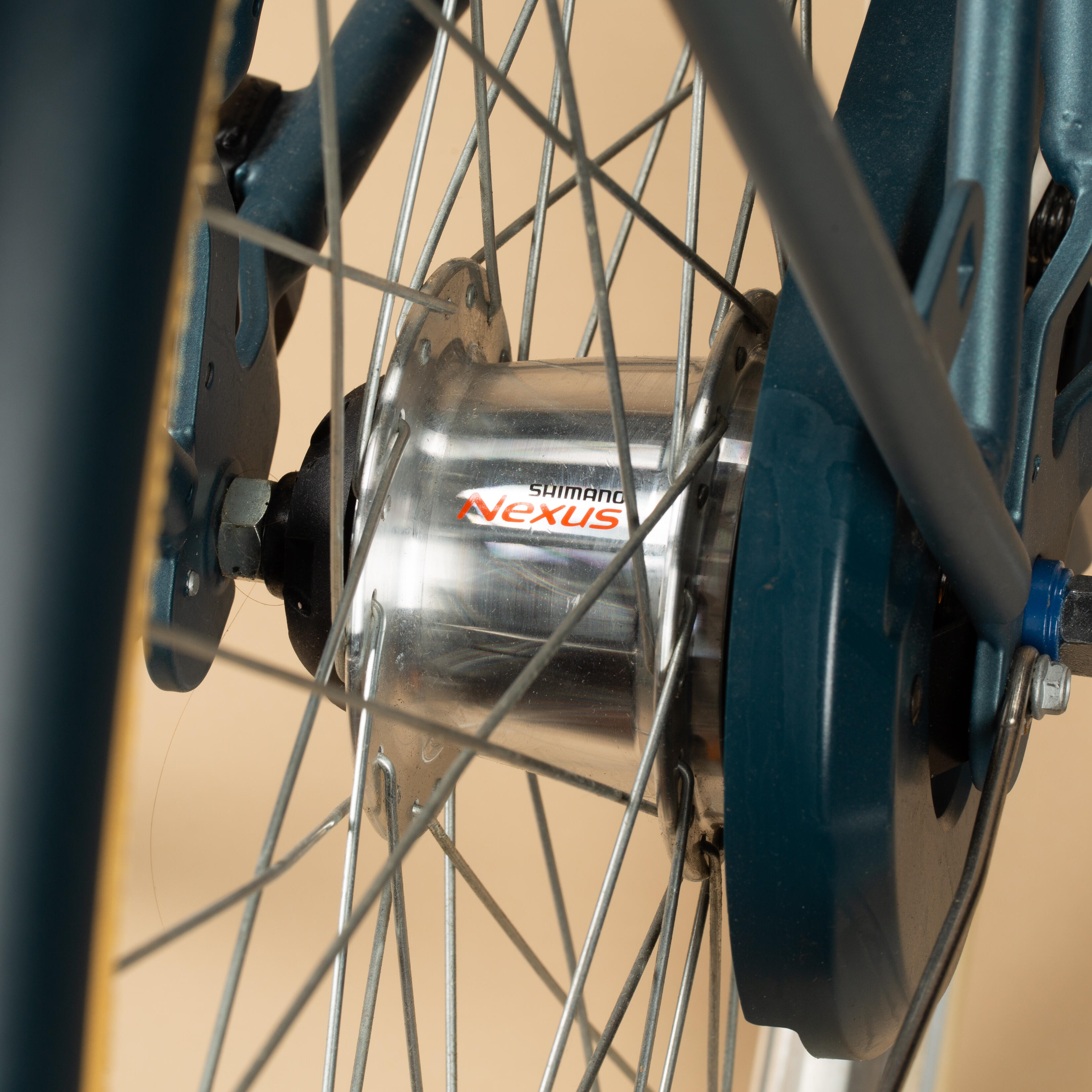

Front and rear lights powered by a Shimano Nexus hub dynamo in the front wheel—no battery needed! Front light turns on automatically in low light conditions.

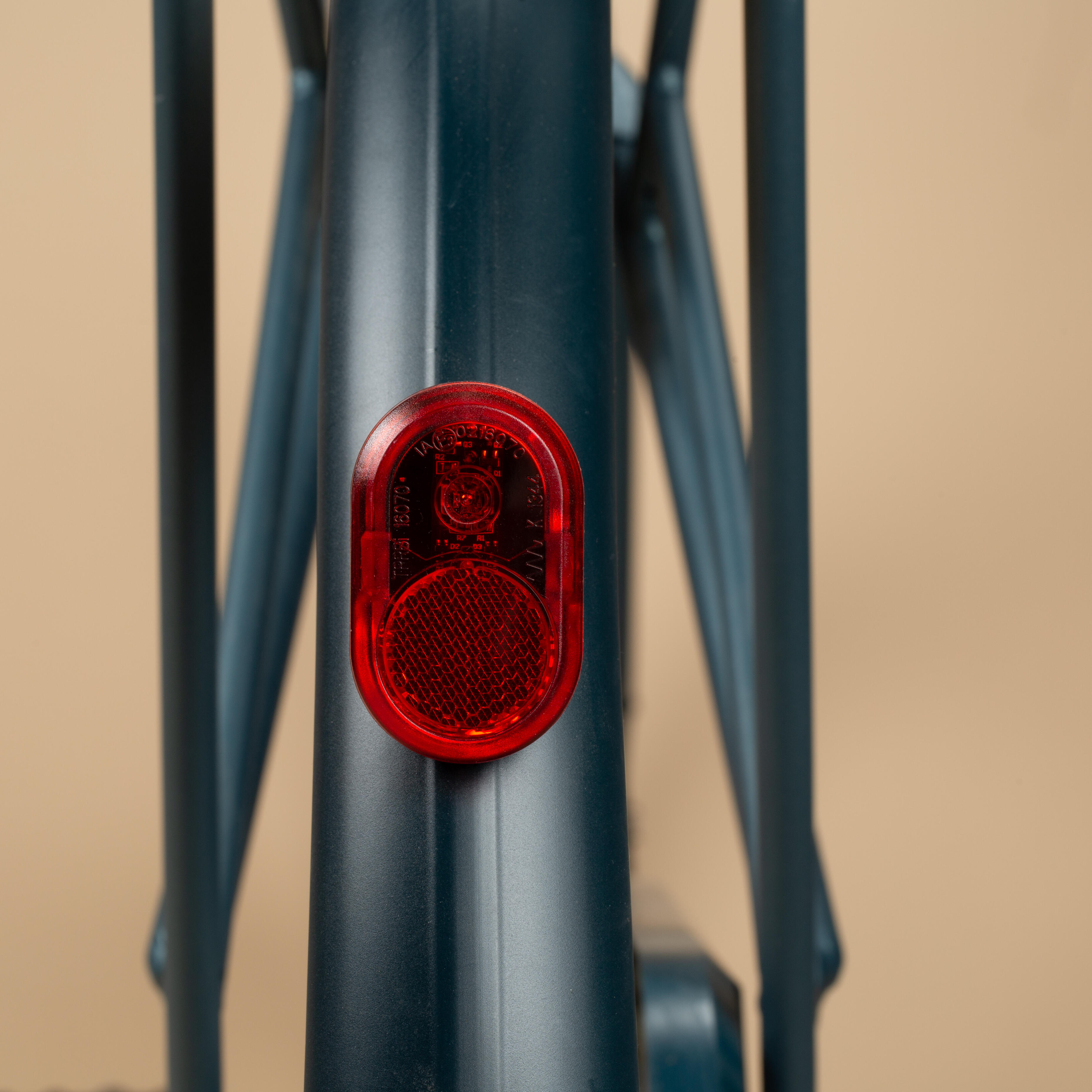

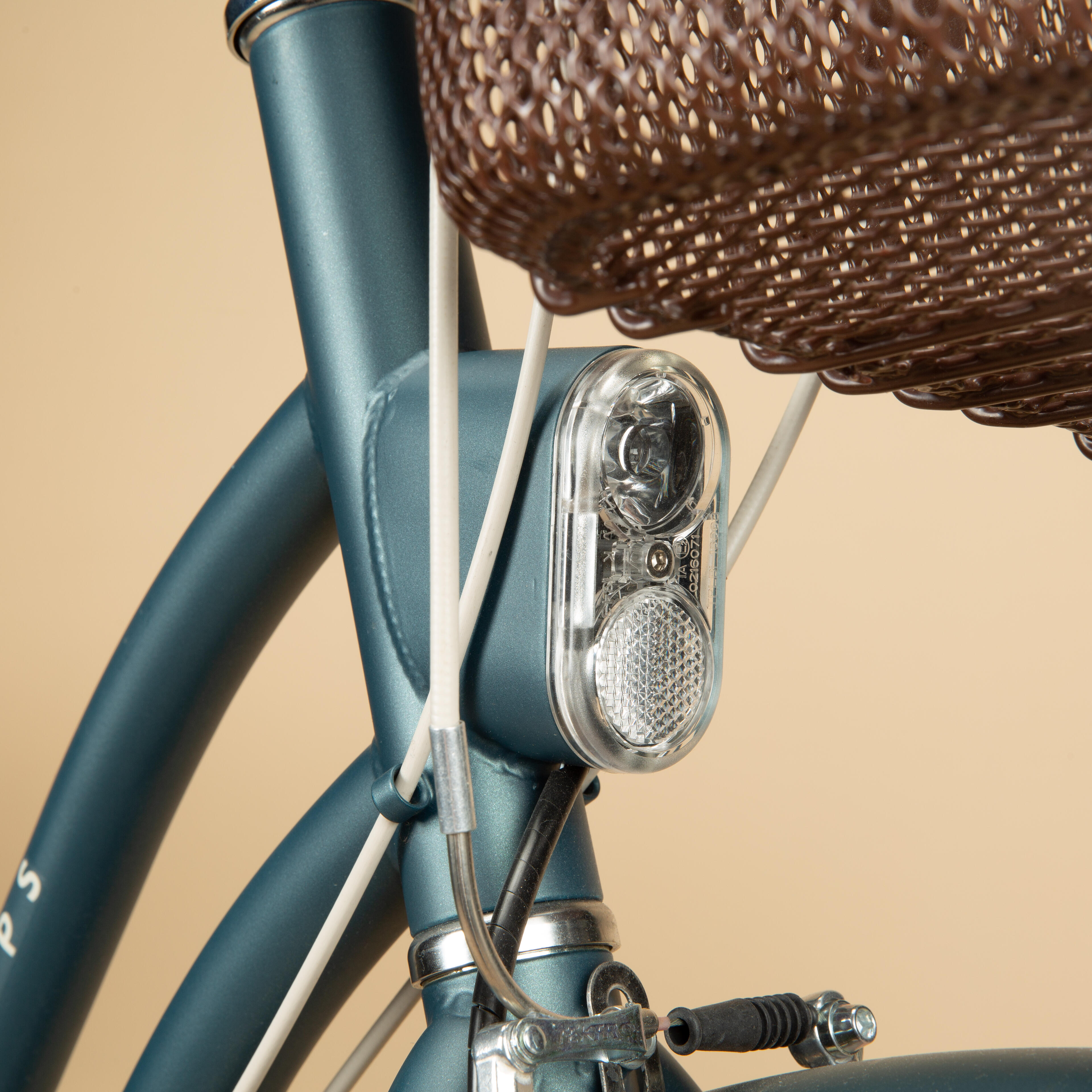

Back light built into the rear mudguard and front light built into the frame to prevent theft. Rear reflector built into the pannier rack.Reflective strips on the front and rear tyres to keep you more visible in the city when riding in any conditions.
Drivetrain / Pedals

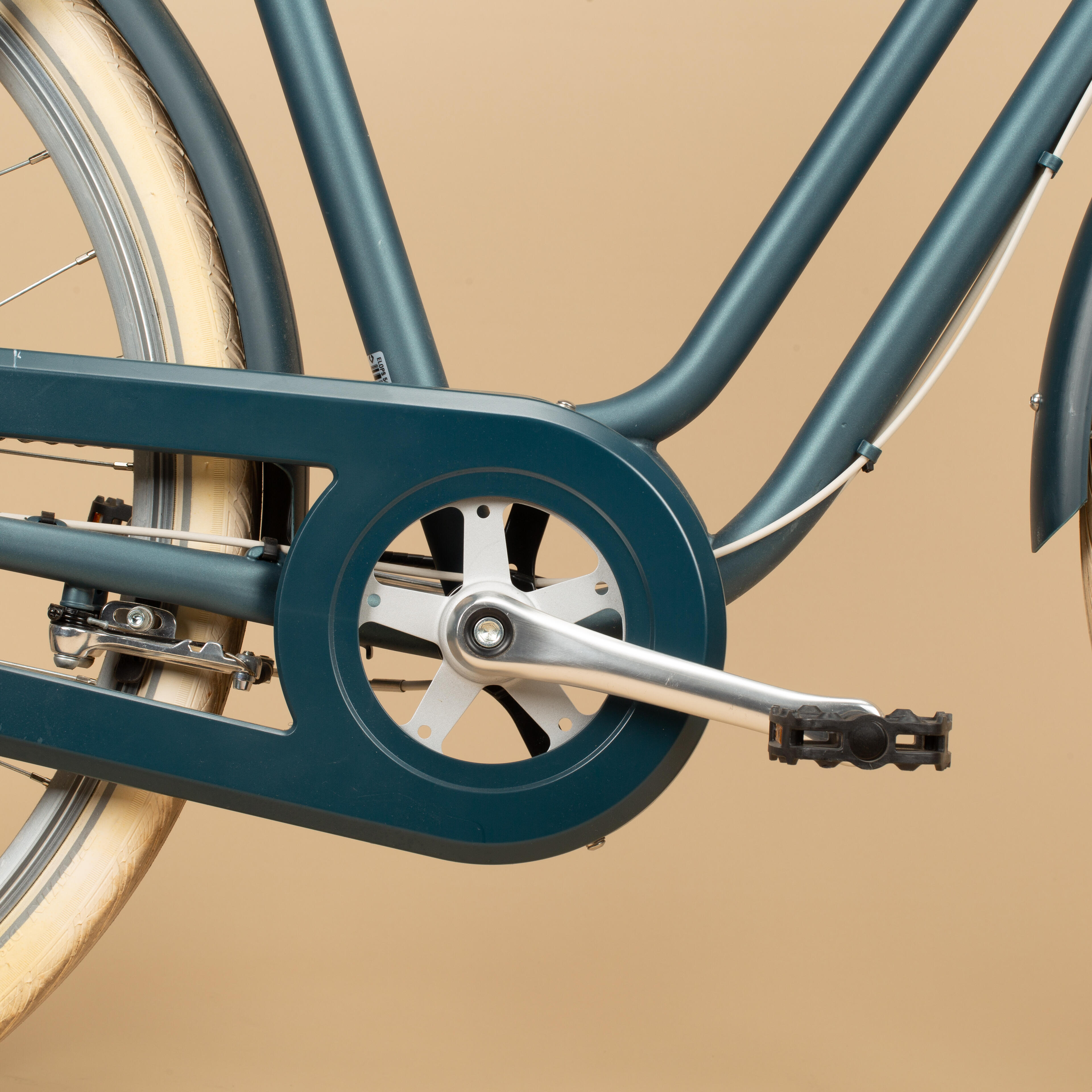

7-speed Shimano Nexus geared hub controlled by a grip shifter. 40-tooth single chainring, 170 mm aluminium cranks, and 20-tooth cog.
Development in metres: 2.77 m to 6.80 m;
Chain tensioner to reduce maintenance caused by wear. KMC 106 chain links with rust-resistant coating.
Resin pedals.
Wheels

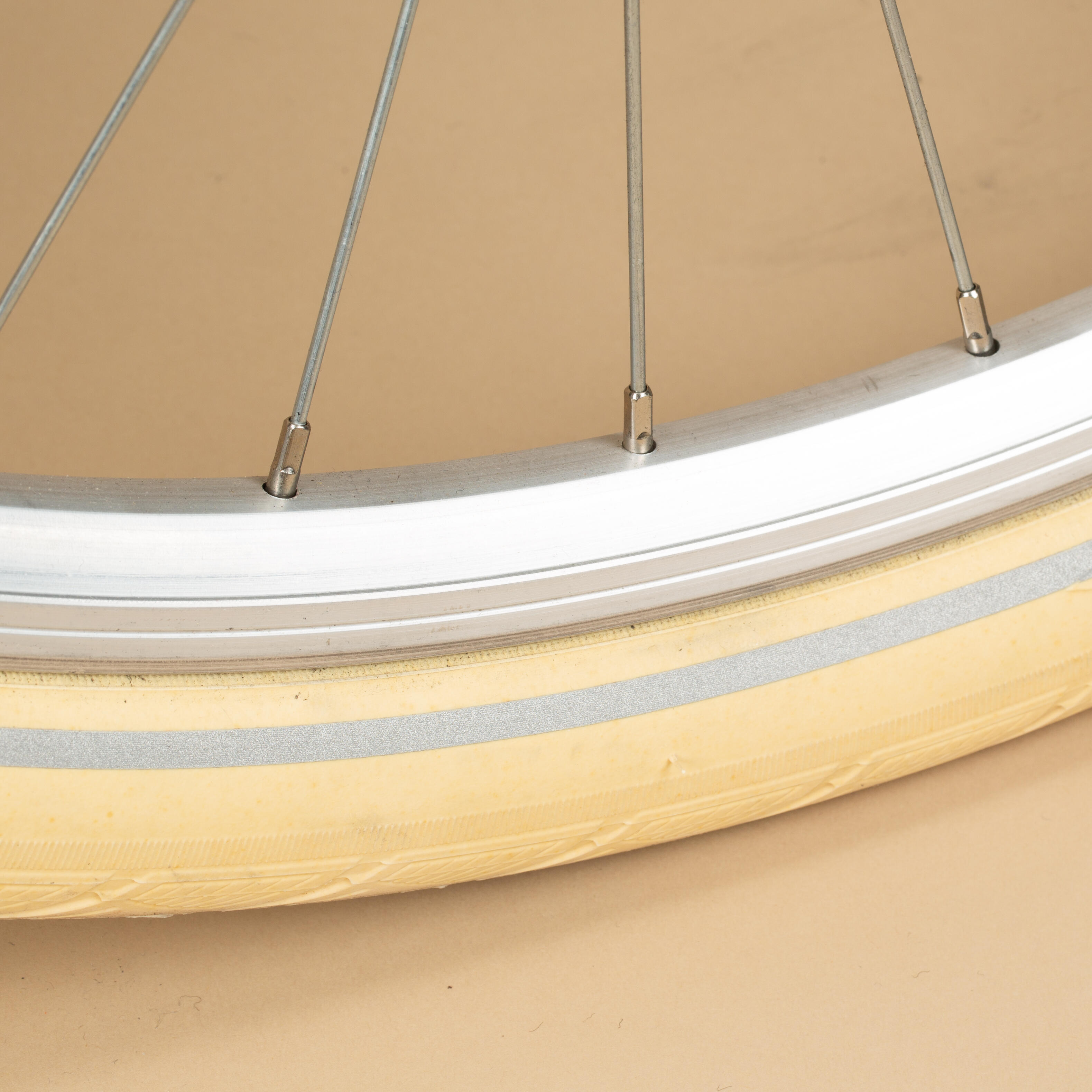

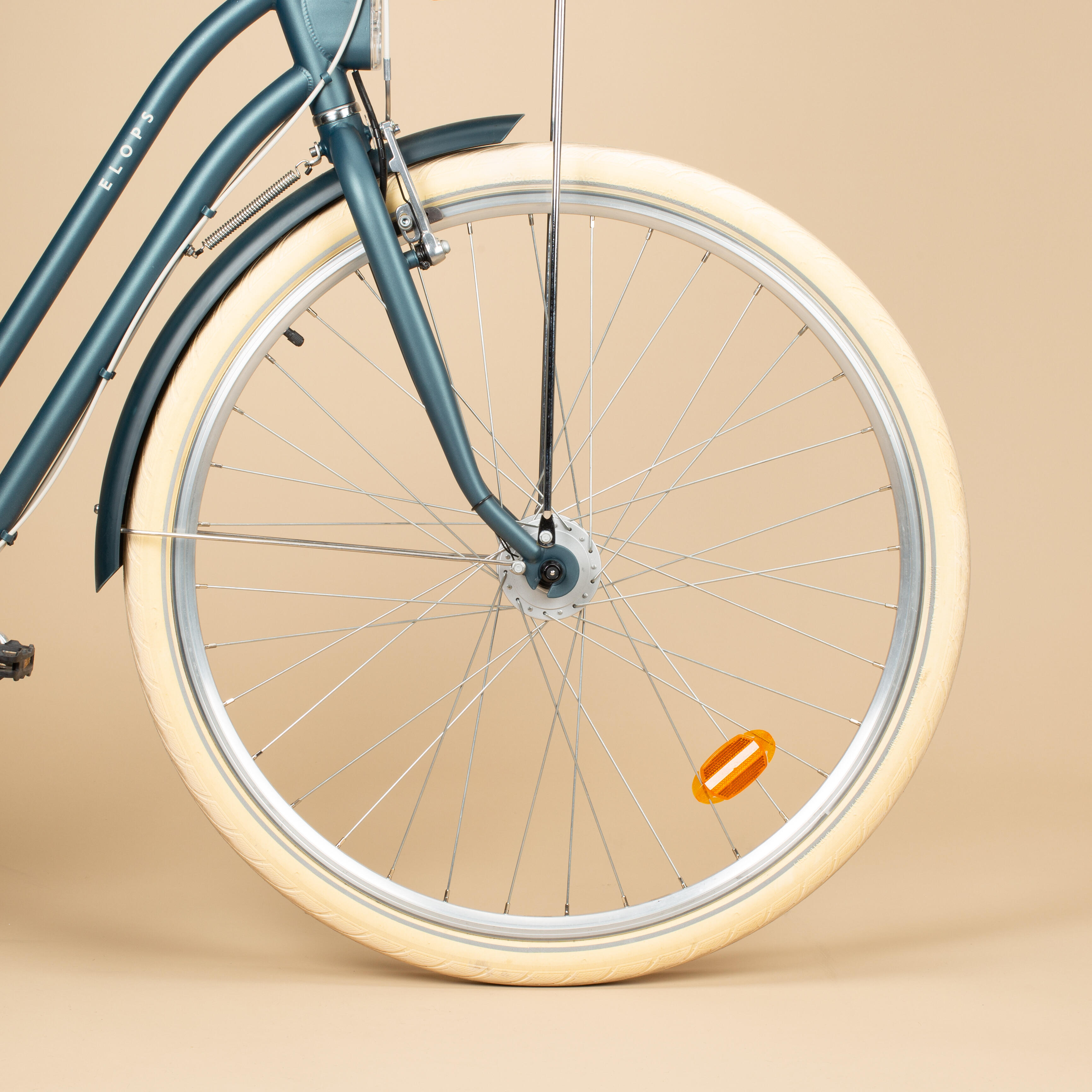

26", 36-spoke, double-walled front and rear wheels made of reinforced aluminium to prevent recurring buckling or deformation of the rims.
Why have we chosen this wheel size? So that our users can enjoy a more comfortable experience and the ride quality that this wheel size offers.
Front wheel attached with a quick release mechanism that can be opened with a 5 mm Allen key. 9 mm rear axle attached with bolts and can be dismounted with a 15 mm wrench.
Tyre
26x44 balloon-type skinwall tyres to smooth out bumps in the road and keep you more comfortable as you ride, while also rolling really well. Schrader valves make the tyres easier to inflate (at petrol stations too).
The ideal pressure is between 3.5 and 4 bars.
1 mm puncture-prevention nylon tyre liner built into the tyre tread.
Reflective bands to make you more visible.
Equipment

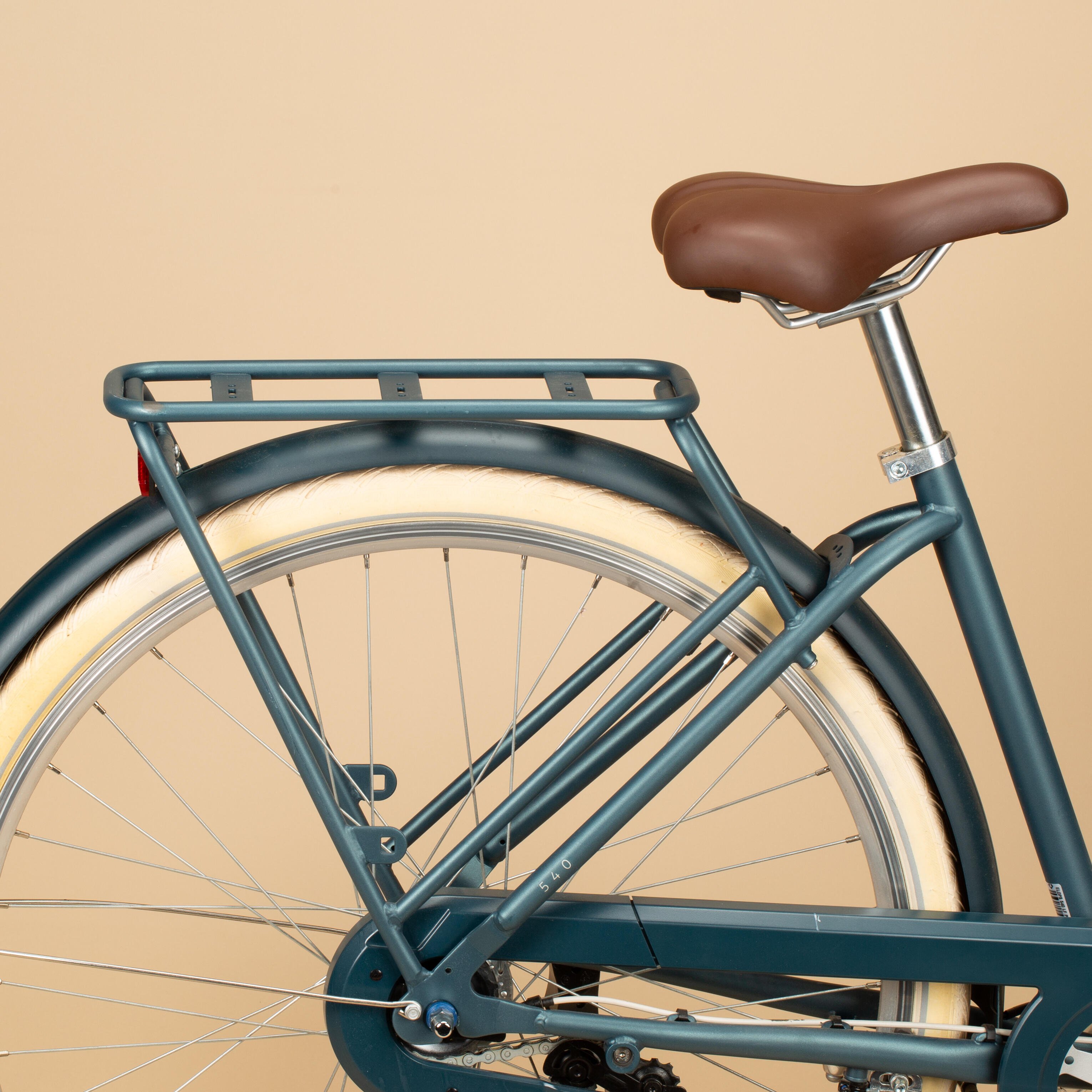

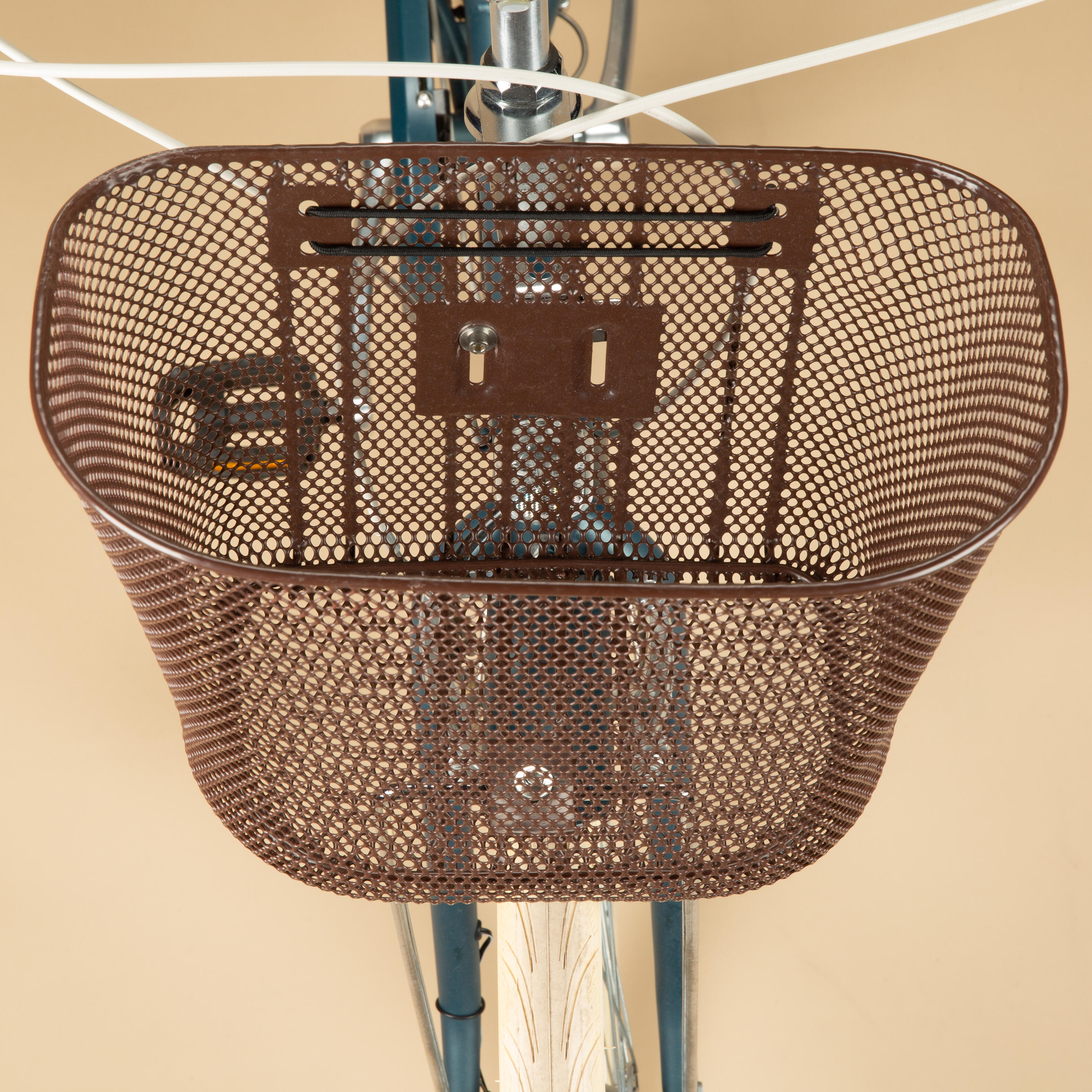

Lights powered by Shimano Nexus dynamo hub in the front wheel; screwed-on front rack; rear pannier rack welded to the frame; front and rear mudguards, side-mounted bike stand, chain guard around the entire chain; designed by our engineers.
Stand

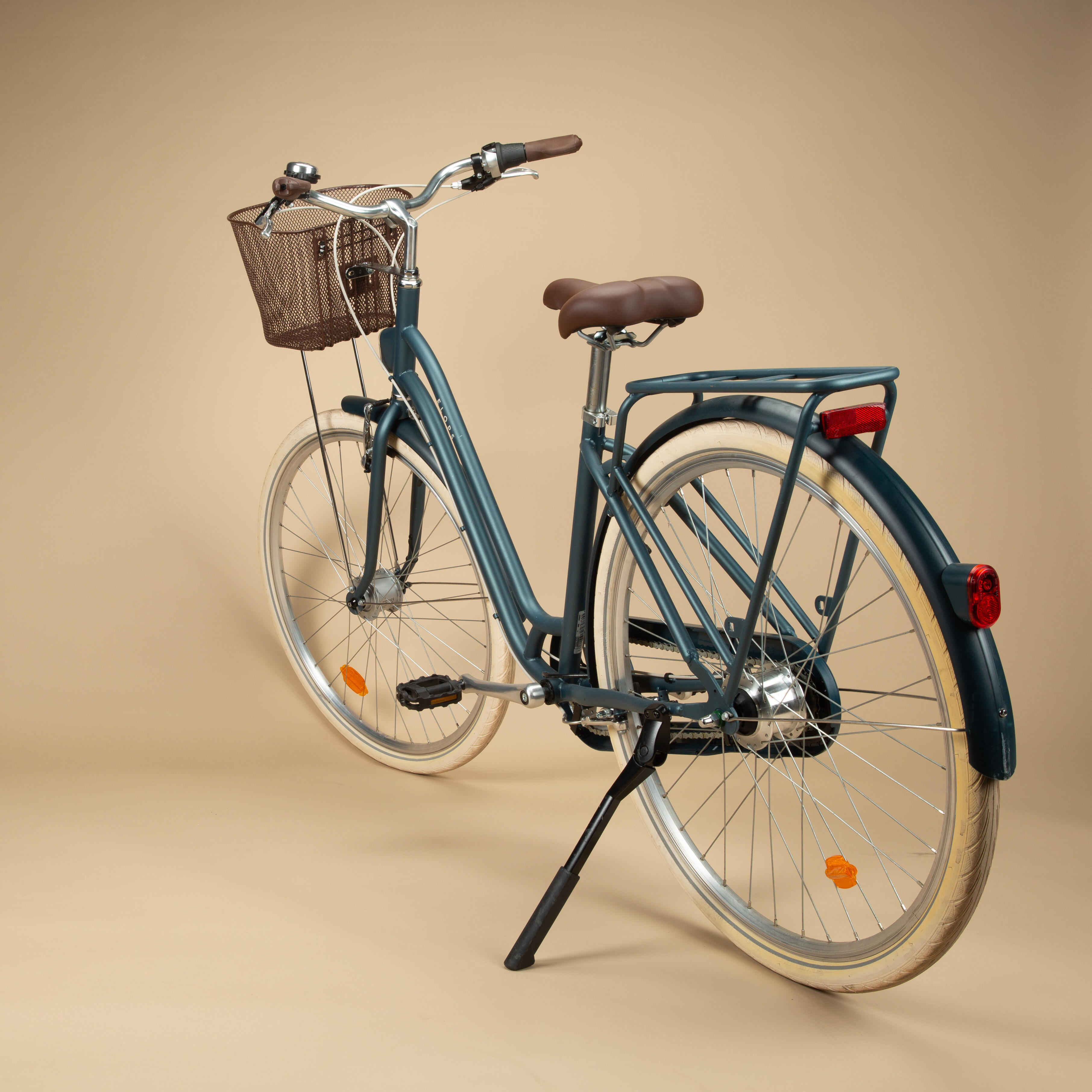

Reinforced side-mounted bike stand to keep the bike stable when parked even with the pannier rack and front basket/rack loaded.
CHOOSING YOUR SHOE SIZE
Size XS is designed for riders who are 1.45 m to 1.55 m tall.
Size S/M is designed for riders who are 1.55 m to 1.75 m tall.
Size L/XL is designed for riders who are 1.75 m to 1.95 m tall.
If you are between two sizes, choose the larger size for a more comfortable ride.
Weight
Size XS: 18 kg
Size S/M: 19.6 kg
size L/XL: 19.9 kg
Maximum weight
This bike supports a maximum total weight of 100 kg (bike + rider + load).
CARE TIPS
To prevent punctures and to get the most out of your bike, check the tyre pressure every fortnight when you're using the bike daily, or before each ride if you only use it occasionally. Degrease and lubricate the chain as soon as dirt begins to accumulate. Wash the frame with soapy water; do not use a high pressure water jet.
Storage/transport tips
Store your bike in a dry, cool place. If riding near the sea, clean your bike regularly to protect it from salt damage.
Transporting the step-through frame bike on a boot bike rack may require an adapter bar.
Use restrictions
Not suitable for off-road use. As this Dutch bike has very wide handlebars, take care when riding along narrow passages indoors or outdoors.
Design
Designed by our team of engineers and designers in Lille, France.Assembled in the European Union.
COMPOSITION
composition
Bike frame: 100.0% Steel
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
When possible, store the bike in a sheltered place or cover it with a tarp.
Restrictions on use
Not designed for all-terrain or mountain biking.
TESTS AND WARRANTY
Agree by
This bike has been developed and honed by our design teams, before being tested and approved by our testers out on the roads to make sure it perfectly meets the needs of urban cyclists.
Parts guarantee
Lifetime on frame, stem, handlebar and fork.2 years (excluding normal wear) on other components.
