| Weight |
S: 12.3 kg
M: 12,4 kg
L: 12.5 kg
XL: 12.7 kg
Weight without pedals, with inner tubes |

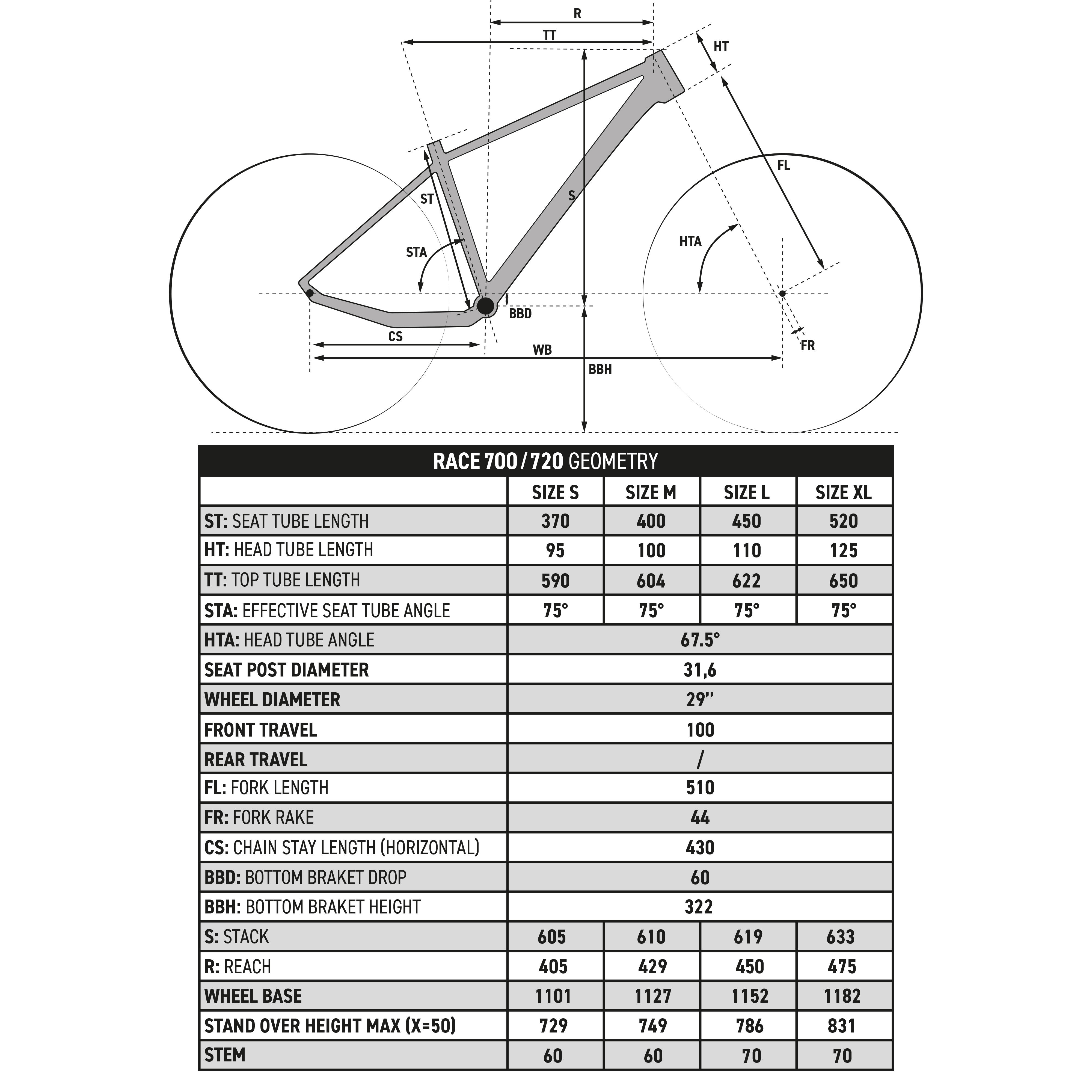

| Frame |

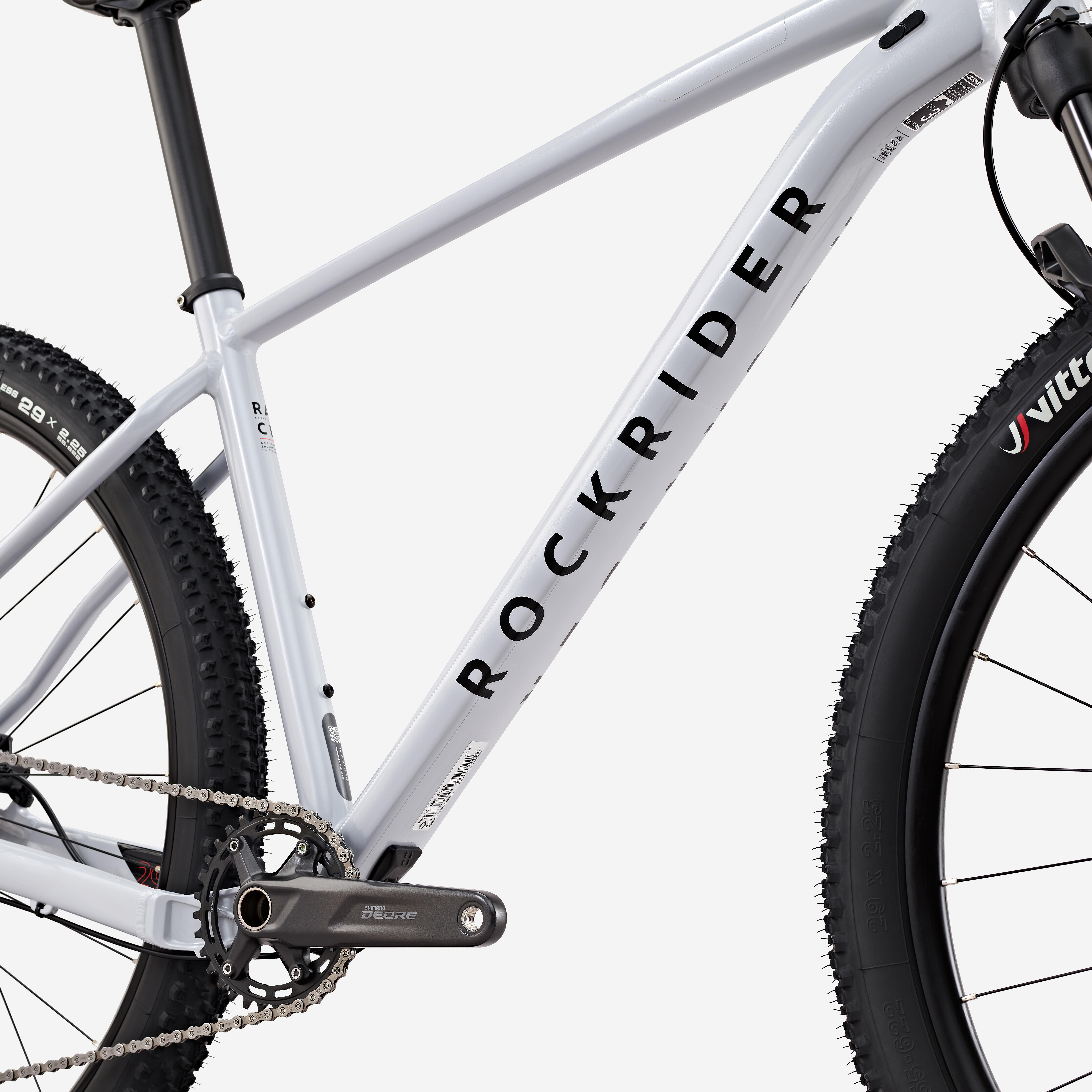

6061 and 6013 aluminium with triple-butted tubes
1610 g in size M (gross, without derailleur hanger)
31.6 mm seat post
Compatible with dropper posts (internal routing)
Thru axle
BOOST format
PressFit 92 bottom bracket
Compatible with 2 bottle cages
Sram UDH derailleur hanger |
| Drivetrain |

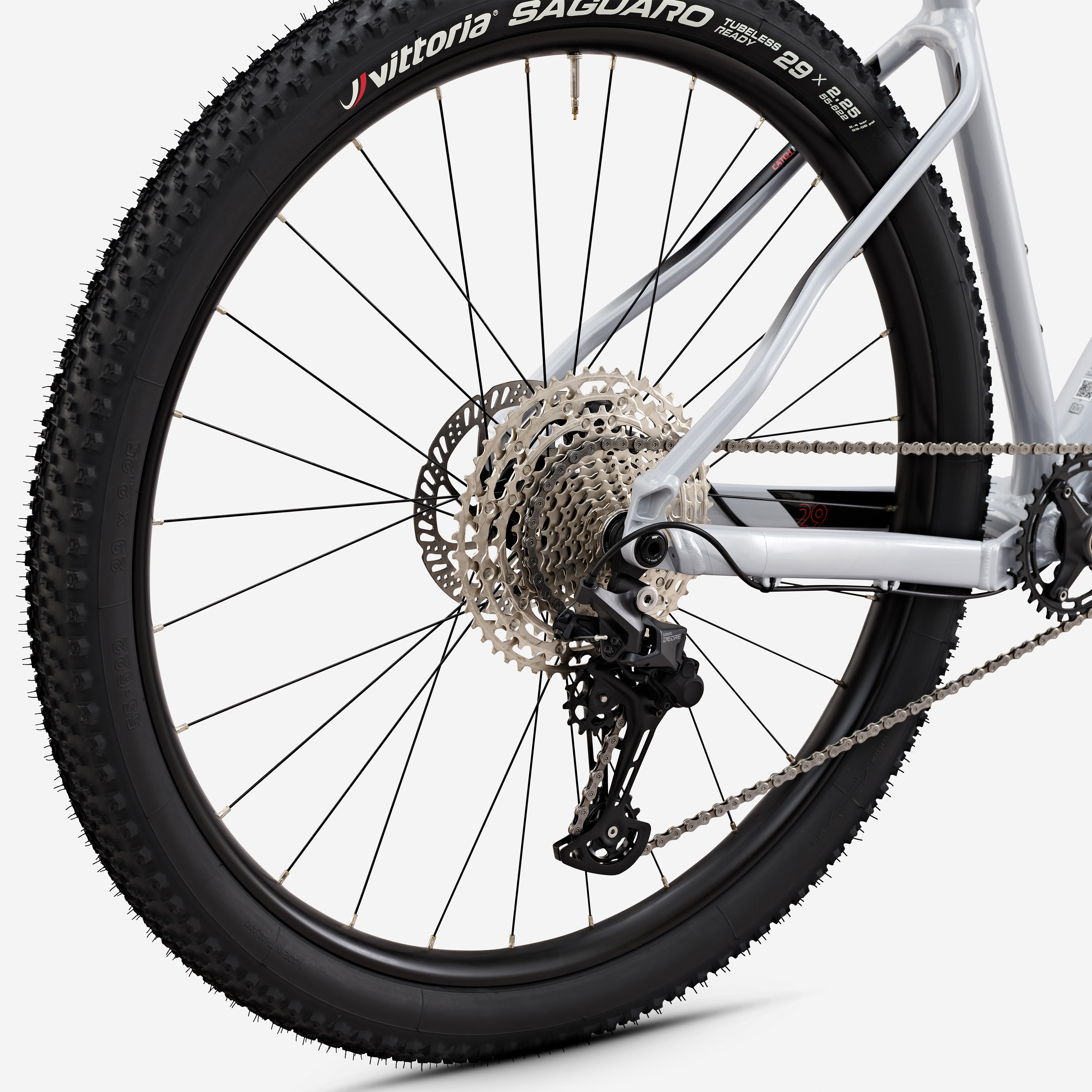

Shimano Deore M5000 rear derailleur
Shimano Deore M5100 shifter
Shimano Deore M5100 bottom bracket (170 mm in S & M and 175 mm in L & XL)
32 chainring guard (compatible with 30, 34 & 36 teeth)
Shimano Deore M5100 cassette
Shimano HG601 chain
Sram PF 92 casing |
| Fork |
Manitou Markhor 100 mm
Dampers: 30 mm, aluminium 6000
Blades: reverse arch
Wheel size: 29"
Air cartridge technology: TS Air
Compression damper: Kwik Toggle, adjustable to 2 positions (Open, Locked)
Rebound damper: TPC, adjustable
Axle: 15 mm x 110 mm
Disc dimensions: 160 mm for post mount, 203 mm max
Max tyre size: 80 mm
Weight: 1878 g |
| Wheels |

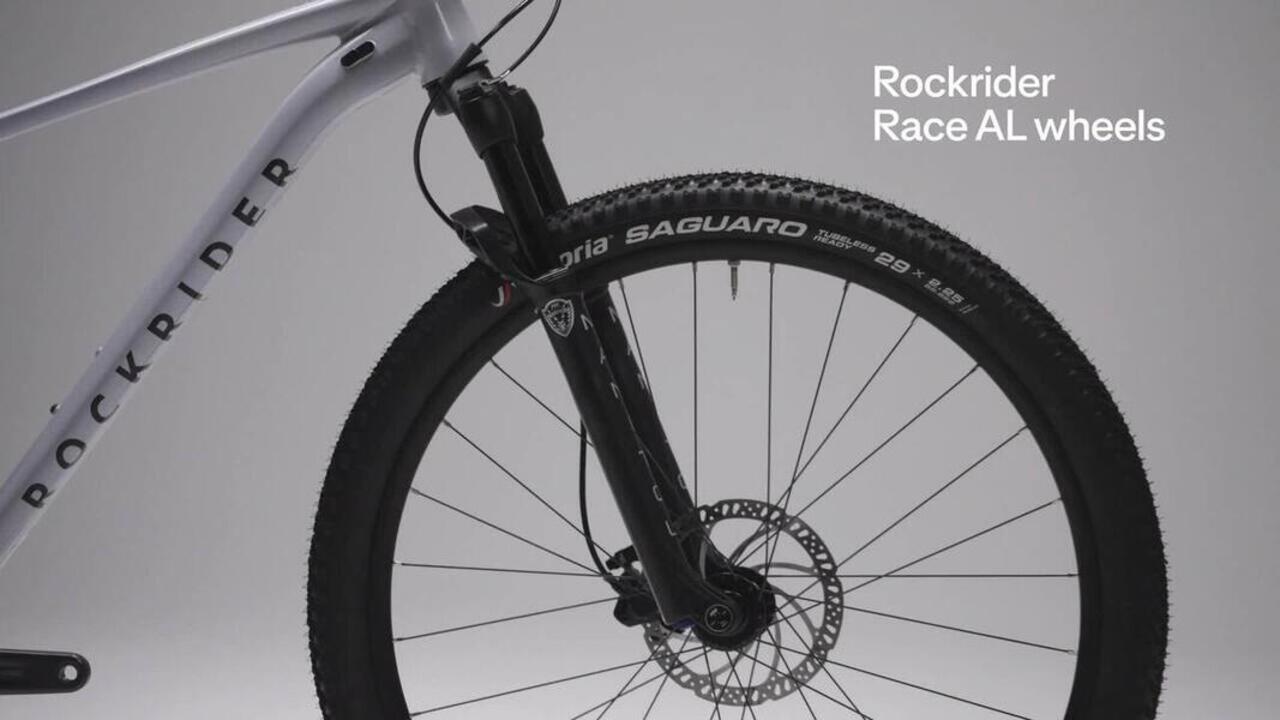

29-inch Rockrider Race AL Tubeless Ready wheels
Weight: 1870 g
Asymmetrical profile
HG freehub
Inner rim width: 27 mm
6-bolt rotors
28 double-butted spokes
Sealed cartridge bearings
BOOST axles: 15 mm front and 12 mm rear
Fitted with watertight rim tape: tubeless ready
Sold without tubeless valves |
| Brakes |
Tektro M276 hydraulic brake
Front disc: TKR 180 mm rotor
Rear disc: TKR 160 mm rotor
6-hole fastening |
| Riding position |
Rockrider aluminium stem
-7° angle
60 mm in size S and M
70 mm in size L and XL

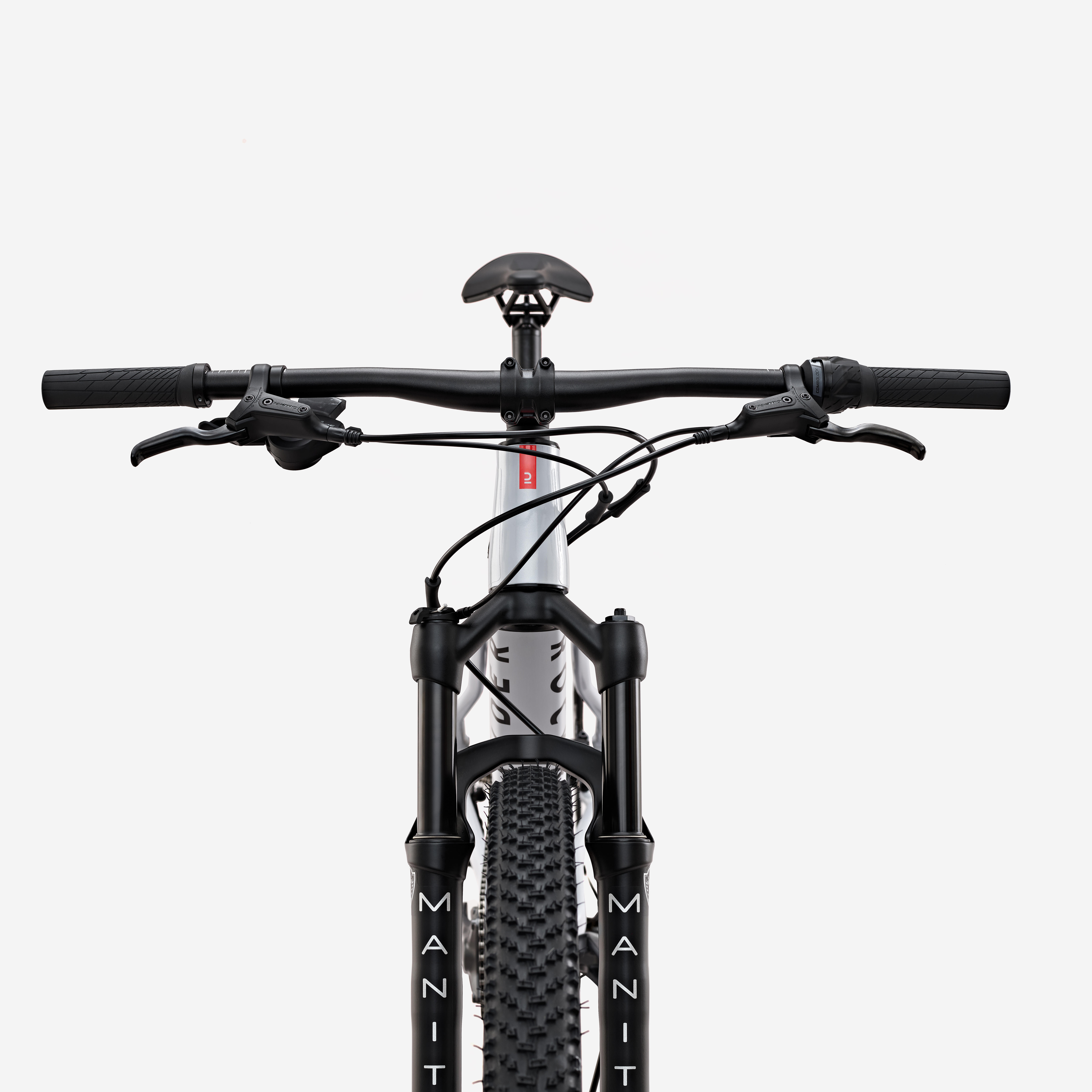

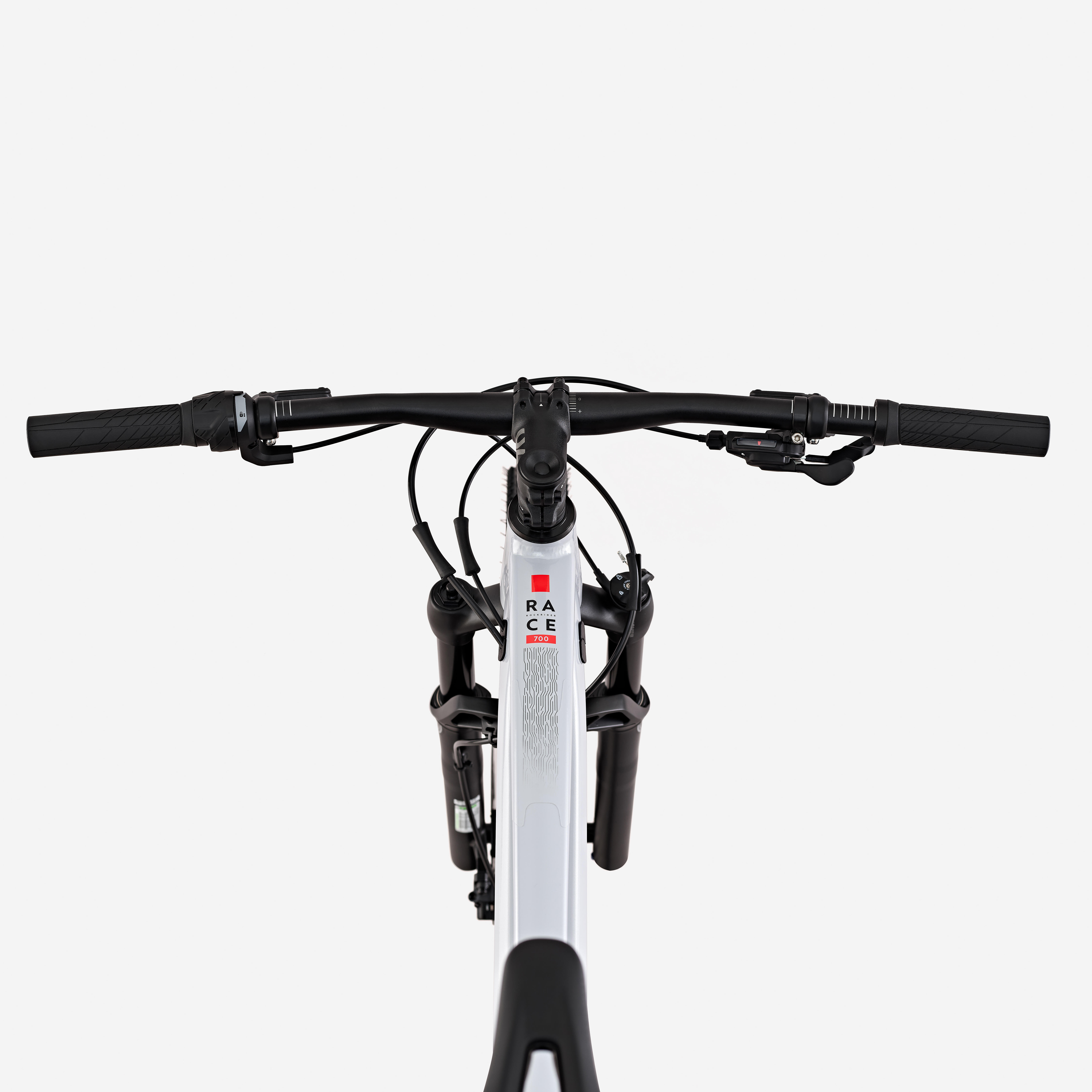

Rockrider aluminium flat handlebar
720 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On |
| Saddle & seatpost |
Rockrider Control Short Nose saddle
Steel rails
Weight: 270 g
31.6 mm aluminium seat post
Length: 350 mm (size S) and 400 mm (size M, L and XL)
285 g |
| Tyre |
Vittoria
Front: Vittoria Saguaro
29 x 2.25 TLR
Flexible Tubeless Ready
Rear: Vittoria Saguaro
29 x 2.25 TLR
Flexible Tubeless Ready |
| Pedals |
Rockrider 520 Grip resin flat pedals |
| Accessories |
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals |
| Warranty |
Lifetime for the frame, seat post, stem and handlebar
2 years for wearing parts |
